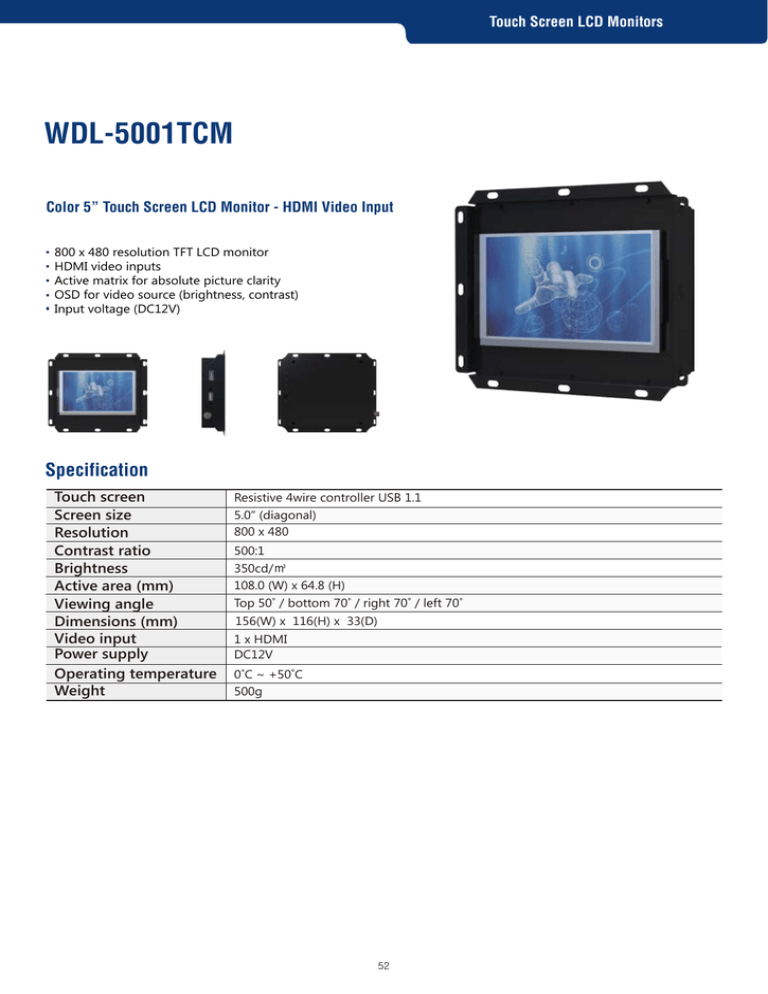

WDL-5001TCM (20150814)s
Touch Screen LCD Monitors
WDL-5001TCM
Color 5” Touch Screen LCD Monitor - HDMI Video Input
800 x 480 resolution TFT LCD monitor
HDMI video inputs
Active matrix for absolute picture clarity
OSD for video source (brightness, contrast)
Input voltage (DC12V)
Specification
Touch screen
Screen size
Resolution
Contrast ratio
Brightness
Active area (mm)
Viewing angle
Dimensions (mm)
Video input
Power supply
Operating temperature
Weight
Resistive 4wire controller USB 1.1
5.0” (diagonal)
800 x 480
500:1
350cd/㎡
108.0 (W) x 64.8 (H)
Top 50˚ / bottom 70˚ / right 70˚ / left 70˚
156(W) x 116(H) x 33(D)
1 x HDMI
DC12V
0˚C ~ +50˚C
500g
52
Touch Screen LCD Monitors
Dimension
Unit: mm
5”
53
350
(cd/㎡)
0~
+50
12V
