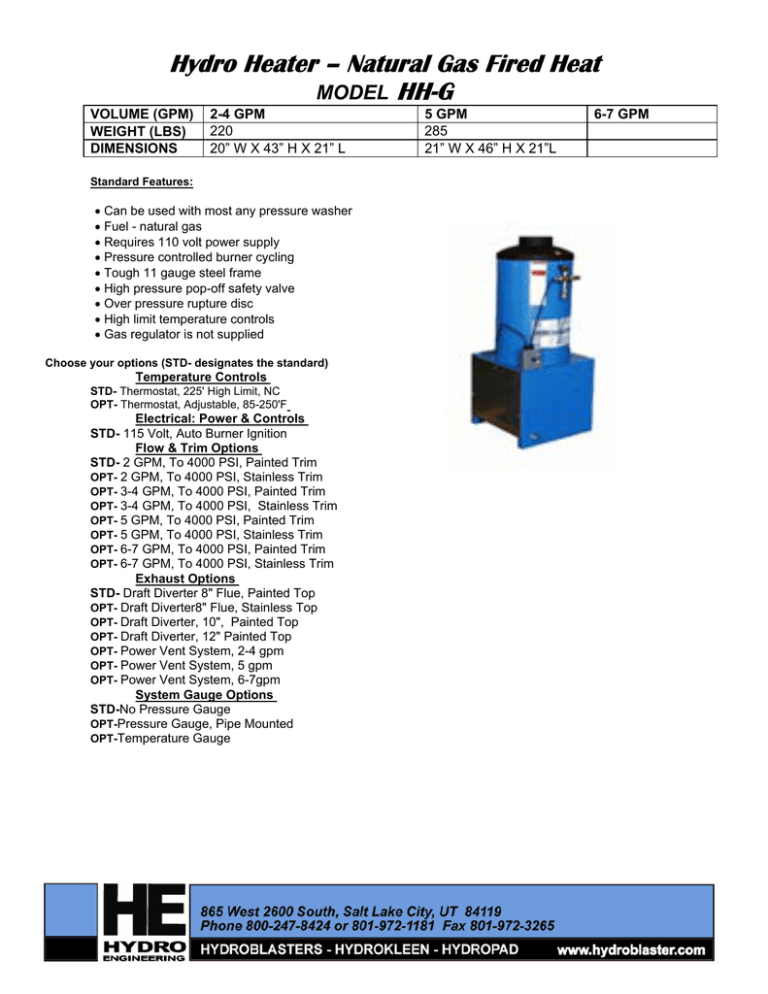

Hydro Heater – Natural Gas Fired Heat
MODEL HH-G
VOLUME (GPM)
WEIGHT (LBS)
DIMENSIONS
2-4 GPM
220
20” W X 43” H X 21” L
Standard Features:
• Can be used with most any pressure washer
• Fuel - natural gas
• Requires 110 volt power supply
• Pressure controlled burner cycling
• Tough 11 gauge steel frame
• High pressure pop-off safety valve
• Over pressure rupture disc
• High limit temperature controls
• Gas regulator is not supplied
Choose your options (STD- designates the standard)
Temperature Controls
STD- Thermostat, 225' High Limit, NC
OPT- Thermostat, Adjustable, 85-250'F
Electrical: Power & Controls
STD- 115 Volt, Auto Burner Ignition
Flow & Trim Options
STD- 2 GPM, To 4000 PSI, Painted Trim
OPT- 2 GPM, To 4000 PSI, Stainless Trim
OPT- 3-4 GPM, To 4000 PSI, Painted Trim
OPT- 3-4 GPM, To 4000 PSI, Stainless Trim
OPT- 5 GPM, To 4000 PSI, Painted Trim
OPT- 5 GPM, To 4000 PSI, Stainless Trim
OPT- 6-7 GPM, To 4000 PSI, Painted Trim
OPT- 6-7 GPM, To 4000 PSI, Stainless Trim
Exhaust Options
STD- Draft Diverter 8" Flue, Painted Top
OPT- Draft Diverter8" Flue, Stainless Top
OPT- Draft Diverter, 10", Painted Top
OPT- Draft Diverter, 12" Painted Top
OPT- Power Vent System, 2-4 gpm
OPT- Power Vent System, 5 gpm
OPT- Power Vent System, 6-7gpm
System Gauge Options
STD-No Pressure Gauge
OPT-Pressure Gauge, Pipe Mounted
OPT-Temperature Gauge
5 GPM
285
21” W X 46” H X 21”L
6-7 GPM
