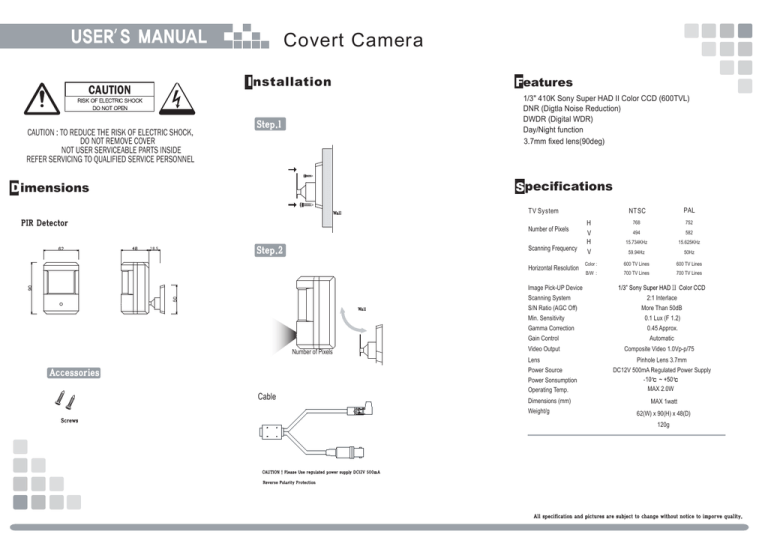

Covert Camera
Installation
CAUTION
Features
1/3" 410K Sony Super HAD II Color CCD (600TVL)
DNR (Digtla Noise Reduction)
DWDR (Digital WDR)
Day/Night function
3.7mm fixed lens(90deg)
CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER
NOT USER SERVICEABLE PARTS INSIDE
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL
Specifications
Dimensions
TV System
Number of Pixels
Scanning Frequency
18.5
Horizontal Resolution
H
V
H
V
NTSC
PAL
768
752
494
582
15.734KHz
15.625KHz
59.94Hz
50Hz
Color :
600 TV Lines
600 TV Lines
B/W :
700 TV Lines
700 TV Lines
Image Pick-UP Device
Scanning System
S/N Ratio (AGC Off)
Min. Sensitivity
Gamma Correction
Gain Control
Number of Pixels
Video Output
Lens
Power Source
Cable
Power Sonsumption
Operating Temp.
Dimensions (mm)
Weight/g
2:1 Interlace
More Than 50dB
0.1 Lux (F 1.2)
0.45 Approx.
Automatic
Composite Video 1.0Vp-p/75
Pinhole Lens 3.7mm
DC12V 500mA Regulated Power Supply
MAX 2.0W
MAX 1watt
62(W) x 90(H) x 48(D)
120g
※
