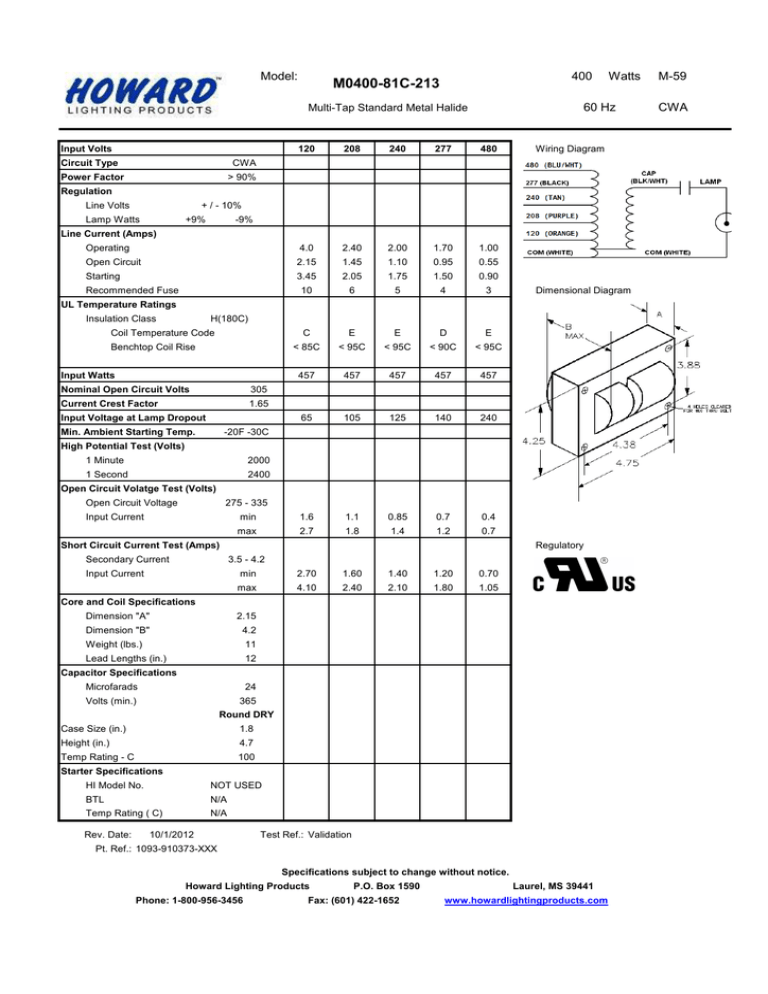

M0400-81C-213 Model: Watts M-59

M0400-81C-213 Model: Watts M-59
Model:
400
M0400-81C-213
60 Hz
Multi-Tap Standard Metal Halide
Input Volts
120
Circuit Type
CWA
Power Factor
> 90%
208
240
Watts
277
480
Wiring Diagram
Regulation
Line Volts
+ / - 10%
Lamp Watts
+9%
-9%
Line Current (Amps)
Operating
4.0
2.40
2.00
1.70
1.00
Open Circuit
2.15
1.45
1.10
0.95
0.55
Starting
3.45
2.05
1.75
1.50
0.90
10
6
5
4
3
Recommended Fuse
Dimensional Diagram
UL Temperature Ratings
Insulation Class
H(180C)
Coil Temperature Code
C
E
E
D
E
< 85C
< 95C
< 95C
< 90C
< 95C
457
457
457
457
457
65
105
125
140
240
min
1.6
1.1
0.85
0.7
0.4
max
2.7
1.8
1.4
1.2
0.7
Benchtop Coil Rise
Input Watts
Nominal Open Circuit Volts
305
Current Crest Factor
1.65
Input Voltage at Lamp Dropout
Min. Ambient Starting Temp.
-20F -30C
High Potential Test (Volts)
1 Minute
2000
1 Second
2400
Open Circuit Volatge Test (Volts)
Open Circuit Voltage
275 - 335
Input Current
Short Circuit Current Test (Amps)
Secondary Current
Regulatory
3.5 - 4.2
Input Current
min
2.70
1.60
1.40
1.20
0.70
max
4.10
2.40
2.10
1.80
1.05
Core and Coil Specifications
Dimension "A"
2.15
Dimension "B"
4.2
Weight (lbs.)
11
Lead Lengths (in.)
12
Capacitor Specifications
Microfarads
24
Volts (min.)
365
Round DRY
Case Size (in.)
1.8
Height (in.)
4.7
Temp Rating - C
100
Starter Specifications
HI Model No.
NOT USED
BTL
Temp Rating ( C)
N/A
N/A
Rev. Date:
10/1/2012
Test Ref.: Validation
Pt. Ref.: 1093-910373-XXX
Specifications subject to change without notice.
Howard Lighting Products
Phone: 1-800-956-3456
P.O. Box 1590
Fax: (601) 422-1652
Laurel, MS 39441
www.howardlightingproducts.com
M-59
CWA
