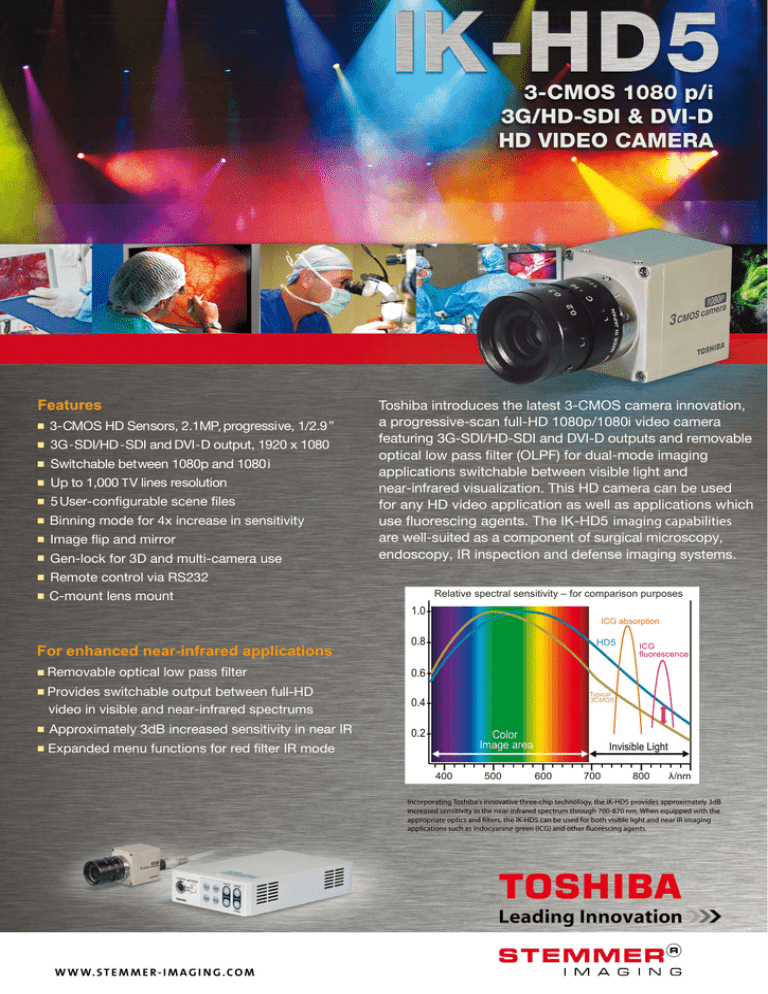

Toshiba IK-HD5

Features

3-CMOS HD Sensors, 2.1MP, progressive, 1/2.9”

3G -SDI/HD -SDI and DVI-D output, 1920 x 1080

Switchable between 1080p and 1080i

Up to 1,000 TV lines resolution

5 User-configurable scene files


Binning mode for 4x increase in sensitivity
Image flip and mirror

Gen-lock for 3D and multi-camera use

Remote control via RS232
C-mount lens mount

Toshiba introduces the latest 3-CMOS camera innovation,
a progressive-scan full-HD 1080p/1080i video camera
featuring 3G-SDI/HD-SDI and DVI-D outputs and removable
optical low pass filter (OLPF) for dual-mode imaging
applications switchable between visible light and
near-infrared visualization. This HD camera can be used
for any HD video application as well as applications which
use fluorescing agents. The IK-HD5 imaging capabilities
are well-suited as a component of surgical microscopy,
endoscopy, IR inspection and defense imaging systems.
Relative spectral sensitivity – for comparison purposes
1.0
For enhanced near-infrared applications
 Removable
0.8
optical low pass filter
0.6
switchable output between full-HD
video in visible and near-infrared spectrums
0.4

Approximately 3dB increased sensitivity in near IR
0.2

Expanded menu functions for red filter IR mode
 Provides
ICG absorption
HD5
ICG
fluorescence
Typical
3CMOS
Color
Image area
400
500
Invisible Light
600
700
800
λ/nm
Incorporating Toshiba’s innovative three-chip technology, the IK-HD5 provides approximately 3dB
increased sensitivity in the near-infrared spectrum through 700-870 nm. When equipped with the
appropriate optics and filters, the IK-HD5 can be used for both visible light and near IR imaging
applications such as indocyanine green (ICG) and other fluorescing agents.
W W W. S T E M M E R- I M A G I N G . C O M
Camera Head Exterior Dimensions
IK-HD5H
3-CMO S, 1/2.9 inch, 2.1MP progressive
Output Resolution
Horizontal: 1920, Vertical: 1080
Resolution : H
:V
1000 TV lines standard
1000 TV lines standard
Sensitivity
F10 standard (59.94 Hz setting)
F11 standard (50 Hz setting)
(at 2000 lx, 3000 K)
4.8 mm
[0.19”]
4 -R1
TO SHI BA
Front
4.8 lx (59.94 Hz setting)
4.0 lx (50 Hz setting)
at F2.2 , 20 dB, BINNING: ON
9.6 lx (59.94 Hz setting)
8.0 lx (50 Hz setting)
at F2.2, 20 d B, BINNING : OFF
Side
32.6 mm
[1.28” ]
4 -R1
38.6 mm
[1.52” ]
56 dB standard
AGC: OFF, Gamma: OFF, Enhance: OFF
S/N Ratio
Operating Temperature 0˚C to 40˚C / 32˚F to 104˚F
Ope rating Humidity
Less than 90% (non-condensing)
Weight
Approx. 93 g (3.3 oz)
Dimensions
W: 32.6 mm H: 38.6 mm D: 41 mm
(1.28 ” x 1.52 ” x 1.61”)
Protruding portion is not included
Controller Front and Back Panels
Power Supply
12V DC±10%
Power Consumption
10.3 W
Scanning System
Scan Frequency
Pro gressi ve / Interlaced (Selectable)
H: 67.433 kHz, V:59.94 Hz :1080p / 59.94 Hz
H: 56.250 kHz, V:50 Hz
:1080p / 50 Hz
H: 33.716 kHz, V:59.94 Hz : 1080i / 59.94 Hz
H: 28.125 kHz, V:50 Hz
: 1080i / 50 Hz
IK-HD5E FRONT
FILE Button
DISP Button
POWER Switch
MENU UP
(SHD) Button
POWER LED
Operating Temperature 0˚C to 40˚C / 32˚F to 104˚F
DATA UP
(AWB) Button
CAMERA CABLE
CONNECTOR
Terminal
DATA DOWN
(ABB) Button
GAIN Button
MENU DOWN
(SHD) Button
PAGE Button
IK-HD5E REAR
FORMAT Switch
KEY LOCK Switch
SYNC
DC IN 12V Terminal
REMOTE Terminal
1
2
50
4
3
EXT. SYNC Terminal
DVI-D Terminal
(option)
For further details, contact your Toshiba ME/ FA distributor.
CAMERA HEAD
IK-HD5H
CAMERA CONTROL UNIT
IK-HD5E
W: 110 mm, H: 40 mm, D: 186 mm
(4.33 ” x 1.58 ” x 7.32”)
Scene Files
rab
White Balance
Auto / Manual (Selectable)
Gain
Auto (0 - 20 dB); Manual (-3 - 20 dB), OFF
Output Signal
DVI-D / 3G-SDI
Electronic Shutter
Auto / Manual / OFF 1/60 - 1/10,000
Camera Head
IK-HD5H
CAMERA CABLE
Model
EXC-3HD03
EXC-3HD06
EXC-3HD10
EXC-3HD15
Dimensions
Connection
Lens
System Components
Approx. 600 g (1.32 lbs .)
Complies to FCC Part 15 Subpa rt B, Class A, EN61000-6-4, EN6000-6-2
Toshiba e nvironmental management
exceeds RoHS
DVI-D
6 7 8 9
Less than 90% (non-condensing)
Weight
or
3G-SDI Terminal
OUT
1 2 3 4 5
Operating Humidity
IK-HR 3 H
3G-SDI
IN
Length
3m
6m
10 m
15 m
W W W. S T E M M E R- I M A G I N G . C O M . I M A G I N G I S O U R PA S S I O N
1080P
3 CMOS camera
Camera Control Unit
Camera Cable
up to 15 m
3G-SDI or DV I
IK-HD5 E
Rear projection less than
4mm (0.157")
Rear projection less tha
n
4mm (0.157") IKHD3H; 11mm (0.433") IKHR3H
Toshiba Europe GmbH
www.toshiba.ch/ics
[email protected]
GERMANY
UNITED KINGDOM
FRANCE
SW I T Z E R L A N D THE NETHERLANDS
AU ST R I A I R E L A N D L I E C H T E N ST E I N B E LG I U M . L U X E M B O U R G
Phone: +49 89 80902-0
Phone: +44 1252 780000
Phone: +33 1 45069560
Phone: +41 55 415 90 90
Phone: +31 575 798888
[email protected] [email protected] [email protected]@[email protected]
DC IN 12V
Power supply 12V DC
(sold separately)
K-TOS8-04/2014 ∙ Subject to technical change without notice. No liability is accepted for errors which may be contained in this document.
Minimum Illumination
41 mm
[1.61”]
38.6 mm
[1.52”]
Image Sensor
32.6 mm
[1.28” ]
