WIRELESS REMOTE CONTROLLED MONITOR

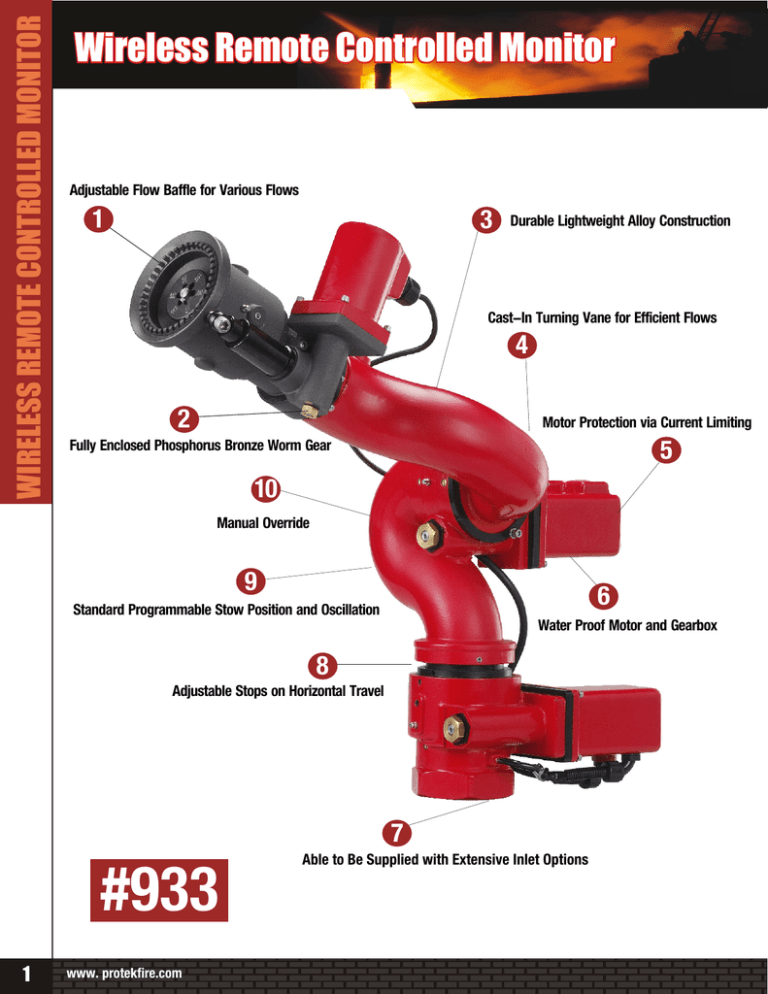

Wireless Remote Controlled Monitor
Adjustable Flow Baffle for Various Flows
1
3
Durable Lightweight Alloy Construction
Cast-In Turning Vane for Efficient Flows
4
2
Motor Protection via Current Limiting
5
Fully Enclosed Phosphorus Bronze Worm Gear
10
Manual Override
9
6
Standard Programmable Stow Position and Oscillation
Water Proof Motor and Gearbox
8
Adjustable Stops on Horizontal Travel
7
#933
16
www. protekfire.com
Able to Be Supplied with Extensive Inlet Options
WIRELESS REMOTE CONTROLLED MONITOR
Wireless Remote Controlled Monitor
#933 Wireless Remote Controlled Monitor
A technologically advanced wireless controlled deck monitor.
With a hand-held wireless remote transmitter, firefighters can direct their fire stream from as far as 200 meters
away from the monitor for safety and efficiency
Capable of flowing 750 GPM (3,000 LPM)
320o horizontal rotation with adjustable stops
Vertical travel 90o above to 45 o below horizontal
Electric nozzle with an adjustable four settings baffle for flow options of 250, 400, 550, 750 GPM
(950-1510-2100-2900 LPM)
Programmable automatic oscillating and stow as standard supply
Easy two-wired installation
Optional touch screen panel for full functional control and monitor position and nozzle pattern display.
Optional joystick control for up/down, left/right movement and nozzle pattern
12 or 24 Volt
Weight: 15 Kgs
Panel Mount Primary Controller
Designed to be permanently
mounted to the apparatus.
able to override
all others.
Hand-held wireless remote transmitter
Touch Screen Control Panel (Also Monitor Position Display)
- Designed to be mounted to the apparatus
is the ultimate in control of the fire stream.
Fully customizable display
screens to make total control
simple and user-friendly that
controlling up/down, left/right,
flow pattern, opening the valve,
oscillating and displaying the
position can not be easier.
Wire or Wireless Joystick Control
Remote 2-1/2” or 3” Electric Valve
Monitor Position Display
26
www. protekfire.com
Functional Pad Display
