User manual | pdf for saving or printing: correct your installation\'s power factor and reduce energy costs

Application: all commercial buildings

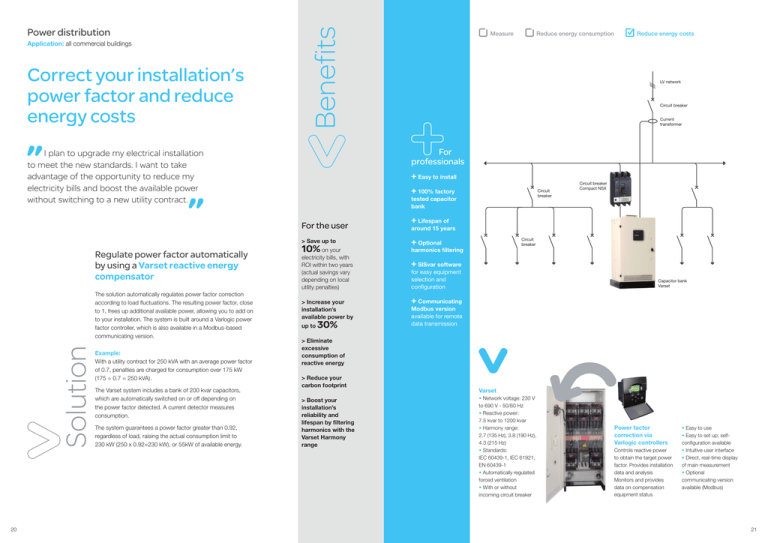

Correct your installation’s
power factor and reduce
energy costs
Benefits
Power distribution
Solution
20
The Varset system includes a bank of 200 kvar capacitors,
which are automatically switched on or off depending on
the power factor detected. A current detector measures
consumption.
The system guarantees a power factor greater than 0.92,
regardless of load, raising the actual consumption limit to
230 kW (250 x 0.92=230 kW), or 55kW of available energy.
Circuit breaker
Current
transformer
Circuit
breaker
tested capacitor
bank
> Save up to
Example:
With a utility contract for 250 kVA with an average power factor
of 0.7, penalties are charged for consumption over 175 kW
(175 ÷ 0.7 = 250 kVA).
Reduce energy costs
LV network
+ Easy to install
+ 100% factory
For the user
The solution automatically regulates power factor correction
according to load fluctuations. The resulting power factor, close
to 1, frees up additional available power, allowing you to add on
to your installation. The system is built around a Varlogic power
factor controller, which is also available in a Modbus-based
communicating version.
Reduce energy consumption
For
professionals
I plan to upgrade my electrical installation
to meet the new standards. I want to take
advantage of the opportunity to reduce my
electricity bills and boost the available power
without switching to a new utility contract.
Regulate power factor automatically
by using a Varset reactive energy
compensator
Measure
10% on your
electricity bills, with
ROI within two years
(actual savings vary
depending on local
utility penalties)
> Increase your
installation’s
available power by
up to
30%
Circuit breaker
Compact NSX
+ Lifespan of
around 15 years
Circuit
breaker
+ Optional
harmonics filtering
+ SlSvar software
for easy equipment
selection and
configuration
Capacitor bank
Varset
+ Communicating
Modbus version
available for remote
data transmission
> Eliminate
excessive
consumption of
reactive energy
> Reduce your
carbon footprint
Varset
> Boost your
installation’s
reliability and
lifespan by filtering
harmonics with the
Varset Harmony
range
• Network voltage: 230 V
to 690 V - 50/60 Hz
• Reactive power:
7.5 kvar to 1200 kvar
• Harmony range:
2.7 (135 Hz), 3.8 (190 Hz),
4.3 (215 Hz)
• Standards:
IEC 60439-1, IEC 61921,
EN 60439-1
• Automatically regulated
forced ventilation
• With or without
incoming circuit breaker
Power factor
correction via
Varlogic controllers
Controls reactive power
to obtain the target power
factor. Provides installation
data and analysis
Monitors and provides
data on compensation
equipment status
• Easy to use
• Easy to set up; selfconfiguration available
• Intuitive user interface
• Direct, real-time display
of main measurement
• Optional
communicating version
available (Modbus)
21
