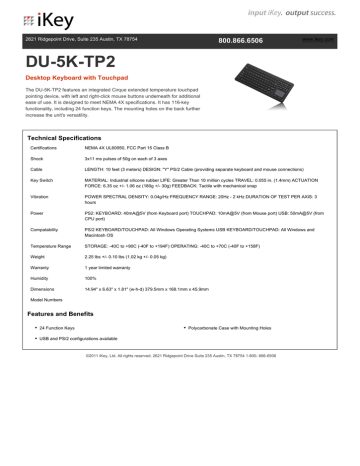

DU-5K-TP2 800.866.6506 Desktop Keyboard with Touchpad

DU-5K-TP2 800.866.6506 Desktop Keyboard with Touchpad
2621 Ridgepoint Drive, Suite 235 Austin, TX 78754
800.866.6506
www.ikey.com
DU-5K-TP2
Desktop Keyboard with Touchpad
The DU-5K-TP2 features an integrated Cirque extended temperature touchpad
pointing device, with left and right-click mouse buttons underneath for additional
ease of use. It is designed to meet NEMA 4X specifications. It has 116-key
functionality, including 24 function keys. The mounting holes on the back further
increase the unit's versatility.
Technical Specifications
Certifications
NEMA 4X UL60950, FCC Part 15 Class B
Shock
3x11 ms pulses of 50g on each of 3 axes
Cable
LENGTH: 10 feet (3 meters) DESIGN: "Y" PS/2 Cable (providing separate keyboard and mouse connections)
Key Switch
MATERIAL: Industrial silicone rubber LIFE: Greater Than 10 million cycles TRAVEL: 0.055 in. (1.4mm) ACTUATION
FORCE: 6.35 oz +/- 1.06 oz (180g +/- 30g) FEEDBACK: Tactile with mechanical snap
Vibration
POWER SPECTRAL DENSITY: 0.04g/Hz FREQUENCY RANGE: 20Hz - 2 kHz DURATION OF TEST PER AXIS: 3
hours
Power
PS2: KEYBOARD: [email protected] (from Keyboard port) TOUCHPAD: [email protected] (from Mouse port) USB: [email protected] (from
CPU port)
Compatability
PS/2 KEYBOARD/TOUCHPAD: All Windows Operating Systems USB KEYBOARD/TOUCHPAD: All Windows and
Macintosh OS
Temperature Range
STORAGE: -40C to +90C (-40F to +194F) OPERATING: -40C to +70C (-40F to +158F)
Weight
2.25 lbs +/- 0.10 lbs (1.02 kg +/- 0.05 kg)
Warranty
1 year limited warranty
Humidity
100%
Dimensions
14.94" x 6.63" x 1.81" (w-h-d) 379.5mm x 168.1mm x 45.9mm
Model Numbers
Features and Benefits
24 Function Keys
Polycarbonate Case with Mounting Holes
USB and PS/2 configurations available
©2011 iKey, Ltd. All rights reserved. 2621 Ridgepoint Drive Suite 235 Austin, TX 78754 1-800- 866-6506
