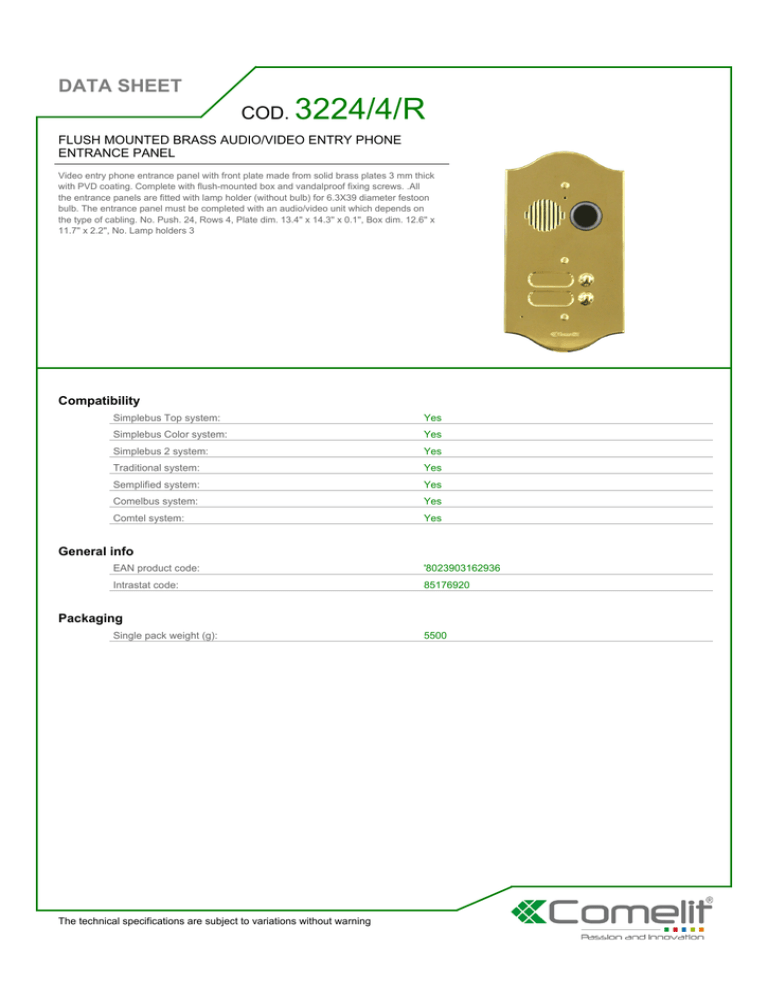

DATA SHEET
COD.
3224/4/R
FLUSH MOUNTED BRASS AUDIO/VIDEO ENTRY PHONE
ENTRANCE PANEL
Video entry phone entrance panel with front plate made from solid brass plates 3 mm thick
with PVD coating. Complete with flush-mounted box and vandalproof fixing screws. .All
the entrance panels are fitted with lamp holder (without bulb) for 6.3X39 diameter festoon
bulb. The entrance panel must be completed with an audio/video unit which depends on
the type of cabling. No. Push. 24, Rows 4, Plate dim. 13.4'' x 14.3'' x 0.1'', Box dim. 12.6'' x
11.7'' x 2.2'', No. Lamp holders 3
Compatibility
Simplebus Top system:
Yes
Simplebus Color system:
Yes
Simplebus 2 system:
Yes
Traditional system:
Yes
Semplified system:
Yes
Comelbus system:
Yes
Comtel system:
Yes
General info
EAN product code:
'8023903162936
Intrastat code:
85176920
Packaging
Single pack weight (g):
The technical specifications are subject to variations without warning
5500
