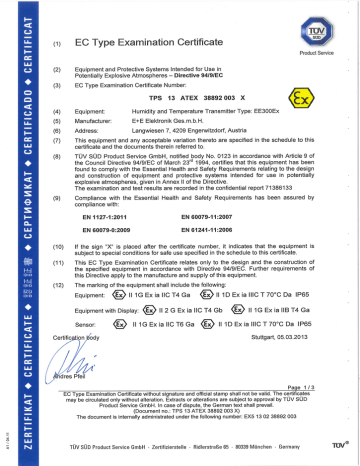

1 EC Type Examination Certificate
Product Service
(2) Equipment and Protective Systems Intended for Use in
Potentially Explosive Atmospheres — Directive 94/9/EC
(3) EC Type Examination Certificate Number:
TPS 13 ATEX 38892003 X
(4) Equipment: Humidity and Temperature Transmitter Type: EE300EX
(5) Manufacturer: E+E Elektronik Ges.m.b.H.
(6) Address: Langwiesen 7, 4209 Engerwitzdorf, Austria
(7) This equipment and any acceptable variation thereto are specified in the schedule to this
certificate and the documents therein referred to.
(8) TUV SUD Product Service GmbH, notified body No. 0123 in accordance with Article 9 of
the Council Directive 94/9/EC of March 23 1994, certifies that this equipment has been
found to comply with the Essential Health and Safety Requirements relating to the design
and construction of equipment and protective systems intended for use in potentially
explosive atmospheres, given in Annex Il of the Directive.
The examination and test results are recorded in the confidential report 71386133
(9) Compliance with the Essential Health and Safety Requirements has been assured by
compliance with:
EN 1127-1:2011 EN 60079-11:2007
EN 60079-0:2009 EN 61241-11:2006
(10) If the sign “X“ is placed after the certificate number, it indicates that the equipment is
subject to special conditions for safe use specified in the schedule to this certificate.
(11) This EC Type Examination Certificate relates only to the design and the construction of
the specified equipment in accordance with Directive 94/9/EC. Further requirements of
this Directive apply to the manufacture and supply of this equipment.
|
I
(>
TE
>
ec
N
(
&
(a=
Ç)
<
(
TE
—
oc
oe
GG
+
ba
=
я
~~
©
s
>
=
N
(
“
Al
—
a
=X]
S\N
(12) The marking of the equipment shall include the following:
Equipment: Ex) II 1G Ex ia IIC T4 Ga Ex} || 1D Ex ia IIIC T 70°C Da 1P65
Equipment with Display: Ex) 112 G ExialICT4Gb Ex) 111G Ex ia IIB T4 Ga
Sensor: Ex) Il1GExiallCT6Ga <Ex) Il 1D Ex ia IIIC T 70°C Da IP65
Certification Body Stuttgart, 05.03.2013
ndres Pfeil
Page 1/3
EC Type Examination Certificate without signature and official stamp shall not be valid. The certificates
may be circulated only without alteration. Extracts or alterations are subject to approval by TUV SUD
Product Service GmbH. In case of dispute, the German text shall prevail.
(Document no.: TPS 13 ATEX 38892 003 X)
The document is internally administrated under the following number: EX5 13 02 38892 003
ZERTIFIKAT © CERTIFICATE e
TUV SUD Product Service GmbH - Zertifizierstelle - RidlerstraBe 65 - 80339 Miinchen - Germany TUV
A1 / 04.11
—
=
GG
™
e.
(a
Lid
GG
*
(>
CC
<
|<)
TE
=
ec
Lid
(i
+
—
I
Z
<
=
s
—
Q.
Lid
(Jb)
7
fH
=
a
=]
=
o/
ZERTIFIKAT * CERTIFICATE e
(16)
(17)
Schedule
EC Type Examination Certificate TPS 13 ATEX 38892 003 X
Description of equipment:
Product Service
The humidity and temperature transmitter EE300EX is dedicatet for use in industrial
applications. The transmitter is available as a fixed install or with remote sensing probe.
The EE300EXx transmitter ist to be powered by an intrinsically safe power source.
Technical and electrical data:
Transmitter EE300Ex Kenndaten
Input voltage (Ui) 28 V
Input power (Pi) 700 mW
Input current (li) 100 mA
Input capacitance (Ci) 2,2 nF
Input inductance (Li) negligible small
protection category of equipment IP65
Temperature range electronics
-40 < Tamb < +60°C
Temperature range for humidity and
temperature probe
-40 < Tamb = +180°C
Temperature range for temperature
probe
-70 < Tamb < +200°C
Test report: 71386133
Special conditions for safe use:
The EE300Ex transmitter with display may not be used in areas with explosive dust
(ANB, IC).
The EE300EXx transmitter may only be operated with safety barriers.
In case of using both measurement channels, each channel must be driven separately
via their own galvanic safety barriers.
For the use oft he EE300EX transmitter with remote probe in explosive area zone 0 the
probe cable must be installed in a metallic, grounded protective tube.
The plastic filter-cap may not be used in explosive area zone 0 with chemicals of the
explosion group lIC.
Page 2/3
EC Type Examination Certificate without signature and official stamp shall not be valid. The certificates
may be circulated only without alteration. Extracts or alterations are subject to approval by TUV SUD
Product Service GmbH. In case of dispute, the German text shall prevail.
(Document no.: TPS 13 ATEX 38892 003 X)
The document is internally administrated under the following number: EX5 13 02 38892 003
за u. u" ®
TUV SUD Product Service GmbH - Zertifizierstelle - Ridlerstraße 65 - 80339 München - Germany TUV
——
A1 / 04.11
ps
=I
“о
a
>
aa
LL
2
+
©
(a=
<I
©
ти
--
oc
hd
©
Ф
=
=X
=
Ss
©
>
=
e
baba
©
Ф
=
a
a
Fa om
an а
ZERTIFIKAT + CERTIFICATE €
The EE300Ex transmitter with the connector option may not be used in areas wit Product Service
explosive dust (INA,!IB,IIC) and in explosive area zone 0 with chemicals of the
explosion group IC.
(18) Essential health and safety requirements:
met by standards
Certification body. Stuttgart, 05.03.2013
€
ndfeas Pfeil
Page 3/3
