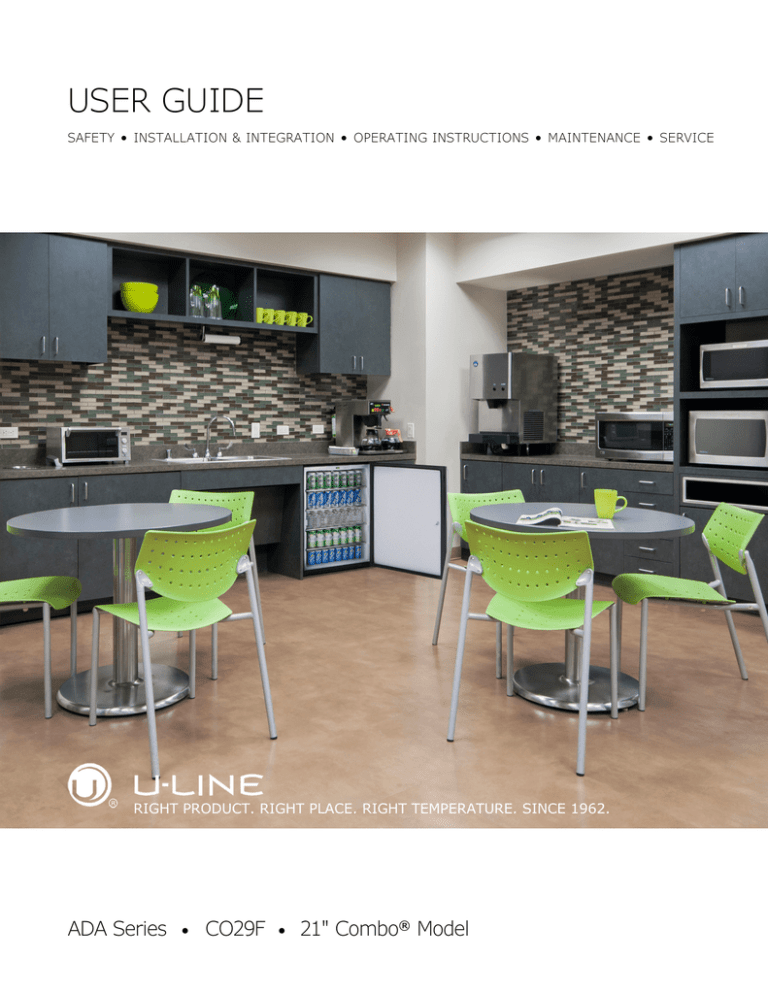

CO29F
USER GUIDE
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
RIGHT PRODUCT. RIGHT PLACE. RIGHT TEMPERATURE. SINCE 1962.
ADA Series
•
CO29F
•
21" Combo® Model
USER GUIDE
u-line.com
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
Contents
Intro
Service
Troubleshooting
Safety
Safety and Warning
Disposal and Recycling
Installation
Environmental Requirements
Electrical
Cutout Dimensions
Product Dimensions
Side by Side Installation
Water Hookup
General Installation
Integrated Panel Dimensions
Integrated Panel Installation
Grille / Plinth Installation
Door Swing
Door Adjust
Operating Instructions
First Use
Ice
Airflow and Product Loading
Interior Shelves
Door Shelves
Maintenance
Cleaning
Cleaning Condenser
Extended Non-Use
Warranty
USER GUIDE
u-line.com
WELCOME TO U-LINE
Congratulations on your U-Line purchase. Your product comes from a company with over five decades and three generations
of premium modular ice making, refrigeration, and wine preservation experience. U-Line continues to be the American
leader, delivering versatility and flexibility for multiple applications including residential, light commercial, outdoor and marine
use. U-Line’s complete product collection includes modular Wine Captain® Models, Beverage Centers, Clear Ice Machines,
Crescent Ice Makers, Glass & Solid Door Refrigerators, Drawer Models, Freezers, and Combo® Models.
U-Line has captivated those with an appreciation for the finer things with exceptional functionality, style, inspired innovations
and attention to even the smallest details. We are known and respected for our unwavering dedication to product design,
quality and selection. U-Line is headquartered in Milwaukee, Wisconsin with a west coast office located in Laguna Beach,
California and European support in Dublin, Ireland. U-Line has shipped product to five continents for over two decades and is
proud to have the opportunity to ship to you.
PRODUCT INFORMATION
Looking for additional information on your product? User Guides, Quick Reference Guides, CAD Drawings, Compliance
Documentation, and Product Warranty information are all available for reference and download at u-line.com under
Documentation.
PROPERTY DAMAGE / INJURY CONCERNS
In the unlikely event property damage or personal injury is suspected related to a U-Line product, please take the following
steps:
1. U-Line Customer Care must be contacted immediately at +1.800.779.2547.
2. Service or repairs performed on the unit without prior written approval from U-Line is not permitted. If the unit has been
altered or repaired in the field without prior written approval from U-Line, claims will not be eligible.
SERVICE INFORMATION
Answers to Customer Frequently Asked Questions are available at u-line.com under Customer Care or you may contact our
Customer Care group directly, contact information below.
GENERAL INQUIRIES
SERVICE & PARTS ASSISTANCE
U-Line Corporation
Monday - Friday 8:00 am to 5:30 pm CST
8900 N. 55th Street
T: +1.800.779.2547
Milwaukee, Wisconsin 53223 USA
F: +1.414.354.5696
Monday - Friday 8:00 am to 4:30 pm CST
Service Email: [email protected]
T: +1.414.354.0300
Parts Email: [email protected]
F: +1.414.354.7905
Email: [email protected]
u-line.com
CONNECT WITH US
Designed, engineered and assembled in WI, USA
Introduction 1
USER GUIDE
u-line.com
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
Safety and Warning
NOTICE
Please read all instructions before installing,
operating, or servicing the appliance.
Use this appliance for its intended purpose only and follow
these general precautions with those listed throughout this
guide:
SAFETY ALERT DEFINITIONS
Throughout this guide are safety items labeled with a
Danger, Warning or Caution based on the risk type:
! DANGER
Danger means that failure to follow this safety
statement will result in severe personal injury or
death.
! WARNING
Warning means that failure to follow this safety
statement could result in serious personal injury
or death.
! CAUTION
Caution means that failure to follow this safety
statement may result in minor or moderate
personal injury, property or equipment damage.
Safety and Warning 1
USER GUIDE
u-line.com
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
Disposal and Recycling
! DANGER
RISK OF CHILD ENTRAPMENT. Before you throw
away your old refrigerator or freezer, take off
the doors and leave shelves in place so children
may not easily climb inside.
If the unit is being removed from service for disposal,
check and obey all federal, state and local regulations
regarding the disposal and recycling of refrigeration
appliances, and follow these steps completely:
1. Remove all consumable contents from the unit.
2. Unplug the electrical cord from its socket.
3. Remove the door(s)/drawer(s).
Disposal and Recycling 1
USER GUIDE
u-line.com
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
Environmental Requirements
This model is intended for indoor/interior applications only
and is not to be used in installations that are open/
exposed to natural elements.
This unit is designed to operate between 50°F (10°C) and
100°F (38°C). Higher ambient temperatures may reduce
the unit’s ability to reach low temperatures and/or reduce
ice production on applicable models.
For best performance, keep the unit out of direct sunlight
and away from heat generating equipment.
In climates where high humidity and dew points are
present, condensation may appear on outside surfaces.
This is considered normal. The condensation will
evaporate when the humidity drops.
! CAUTION
Damages caused by ambient temperatures of
40°F (4°C) or below are not covered by the
warranty.
Environmental Requirements 1
USER GUIDE
u-line.com
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
Electrical
! WARNING
SHOCK HAZARD — Electrical Grounding
Required. Never attempt to repair or perform
maintenance on the unit until the electricity has
been disconnected.
Never remove the round grounding prong from
the plug and never use a two-prong grounding
adapter.
Altering, cutting or removing power cord,
removing power plug, or direct wiring can cause
serious injury, fire, loss of property and/or life,
and will void the warranty.
Never use an extension cord to connect power to
the unit.
Always keep your working area dry.
NOTICE
Electrical installation must observe all state and
local codes. This unit requires connection to a
grounded (three-prong), polarized receptacle
that has been placed by a qualified electrician.
The unit requires a grounded and polarized 115 VAC,
60 Hz, 15A power supply (normal household current). An
individual, properly grounded branch circuit or circuit
breaker is recommended. A GFCI (ground fault circuit
interrupter) is usually not required for fixed location
appliances and is not recommended for your unit because
it could be prone to nuisance tripping. However, be sure
to consult your local codes.
See CUTOUT DIMENSIONS for recommended receptacle
location.
Electrical 1
USER GUIDE
u-line.com
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
Cutout Dimensions
PREPARE SITE
Your U-Line product has been designed for either freestanding or built-in installation. When built-in, your unit
does not require additional air space for top, sides, or
rear. However, the front grille must NOT be obstructed,
and clearance is required for an electrical connection in
the rear.
! CAUTION
Unit can NOT be installed behind a closed cabinet
door.
If you would like to align the face of the unit
with other adjacent cabinet doors, you may need
to alter the wall just behind the drain connection
on the unit to accommodate the drain.
CUTOUT DIMENSIONS
)LOOHU3DQHO1RW3URYLGHGE\8/LQHȊ
0D\%H$GGHG$ERYHRU%HORZ8QLW
WR(QFORVHIRUD%XLOW,Q/RRN
See Electrical
6SHFLɟFDWLRQV
IRU3RZHU6XSSO\
7\SLFDO
&RXQWHU
Height
34-1/4"
(870 mm)
WR
35-1/8"
(892 mm)
&XWRXW
Height
28-5/8"
(727 mm)
WR
28-7/8"
(733 mm)
3UHIHUUHGORFDWLRQ
IRUHOHFWULFDORXWOHW
LVLQDGMDFHQW
FDELQHW
7"
(178 mm)
24"
(610 mm)
Minimum
5/8"
(16 mm)
4"
(102 mm)
21-1/16"
(535 mm)
NOTICE
It is extremely important that this unit sits on a
level surface, as it does not have feet levelers. If
it is not level, the ice mold will not fill evenly.
Cutout Dimensions 1
USER GUIDE
u-line.com
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
Product Dimensions
23" (584 mm)
28 1/2"
(724 mm)
4 9/16" (116 mm)
20 7/8" (530 mm)
Product Dimensions 1
USER GUIDE
u-line.com
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
Side-by-Side Installation
Two units may be installed side-by-side.
Cutout width for a side-by-side installation is the cutout
dimension of a single unit times two.
No trim kit is required. However, 1/4" (6 mm) of space
3. Place bracket over holes and attach to unit with two
screws removed in step 2 using a T-25 Torx driver.
Tighten screws fully.
4. Gently push units into position. Be careful not to
entangle the electrical cord or water line, if applicable.
5. Re-check the leveling, from front to back and side to
needs to be maintained between the units to ensure
side. Make any necessary adjustments. The unit’s top
unobstructed door swing.
surface should be approximately 1/8" (3 mm) below
the countertop.
Units must operate from separate, properly grounded
electrical receptacles placed according to each unit’s
electrical specifications requirements.
Side-by-Side Installation with Bracket
1. Slide both units out so screws on top of units are easily
accessible.
2. Remove screws as shown below.
Side-by-Side Installation 1
USER GUIDE
u-line.com
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
Water Hookup
PREPARE PLUMBING
! CAUTION
The water valve uses a standard 1/4" (6.35 mm)
Do not use any plastic water supply line. The line
compression fitting. U-Line recommends using accessory
is under pressure at all times. Plastic may crack
water hook up kit – part # WATERHOOKUP. The kit
or rupture with age and cause damage to your
includes a 10' (3 m) braided flexible water supply line and
home.
a brass hose fitting. When using a 1/4" (6.35 mm) O.D.
soft copper supply line use the brass nut and sleeve
included with the unit.
Do not use tape or joint compound when
attaching a braided flexible water supply line
that includes a rubber gasket. The gasket
provides an adequate seal – other materials
! CAUTION
Plumbing installation must observe all state and
local codes. All water and drain connections
MUST BE made by a licensed/qualified plumbing
contractor. Failure to follow recommendations
and instructions may result in damage and/or
harm.
Water Supply Connection
When connecting the water supply, please note the
following:
could cause blockage of the valve.
Failure to follow recommendations and
instructions may result in damage and/or harm,
flooding or void the product warranty.
Use new hose set. Do not reuse old hose set.
! CAUTION
Turn off water supply and disconnect electrical
supply to unit prior to installation.
• Before installing the unit and connecting to the cold
water supply, review the local plumbing codes.
Use caution when handling back panel. The
edges could be sharp.
• The water pressure should be between 20 and 120 psi
(138 and 827 kPa).
1. Turn off water supply and disconnect electrical supply
to product prior to attempting installation.
• The water line MUST have a shut-off valve in the
supply line.
2. Remove the back panel.
• The water line should be looped into 2 coils. This will
allow the unit to be removed for cleaning and servicing.
Make certain that the tubing is not pinched or damaged
during installation.
! WARNING
Connect to potable water supply only.
Water Hookup 1
USER GUIDE
u-line.com
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
9. Install retaining clip.
3. Locate water valve inlet.
4. Break away filler feature
in bushing with flat
screwdriver.
Remove
ZLWKɠDW
screwdriver
5. Thread water line
through back panel hole
(with bushing).
6. Locate water valve inlet
and connect to valve.
7. Turn on water supply
and check for leaks.
8. Reinstall back panel.
Water Hookup 2
USER GUIDE
u-line.com
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
General Installation
LEVELING INFORMATION
INSTALLATION
1. Plug in the power/electrical cord.
2. Gently push the unit into position. Be careful not to
NOTICE
Because these units do not have leveling legs, it
entangle the cord and water line.
is extremely important that they sit on a level
surface. If they are not level, the ice mold will
3. Re-check the leveling, from front to back and side to
side. Make any necessary adjustments.
not fill evenly.
Use a level to confirm
4. Remove the interior packing material and wipe out the
the unit is level. Level
inside of the unit with a clean, water-dampened cloth.
should be placed along
top edge and side edge
as shown.
1
General Installation 1
USER GUIDE
u-line.com
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
Integrated Panel Dimensions
INSERT CUSTOM 1/4'' THICK DOOR PANEL
Insert Panel Preparation
A custom door panel may be inserted into the door frame.
Custom door panels can be flat or raised, as long as the
maximum panel thickness where inserted into the door
reveal (channel) is no more than 1/4" thick. For raised
panels, the depth of the reveal is 1/4" on all four sides.
NOTICE
Raised panels will reduce the door’s 90° swing/
zero clearance if the unit is installed next to a
wall or similar type of structure.
Panel Dimensions
Width
Height
19-13/16" (503 mm)
21-13/32" (544 mm)
Integrated Panel Dimensions 1
USER GUIDE
u-line.com
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
Integrated Panel Installation
5. Slide custom door panel insert into 1/4" (6 mm)
channel in door front.
This model accepts a 1/4" insert panel.
INSERT PANEL INSTALLATION
NOTICE
Install the insert as follows:
Use care not to damage magnet, located on door
bottom when installing door insert. Do not set
door on bottom edge when pushing insert into
! CAUTION
Use care when handling the insert. Insert edges
may be sharp.
place.
6. Holding door gasket out of the way, replace handle on
door, making sure it is seated properly on insert and
that screw holes line up.
1. Remove top hinge screw pin
with Phillips head screwdriver.
7. Install two small screws removed in Step 3.
Remove door by tilting forward
and lifting off bottom hinge pin.
8. Starting at the corners and working inward, push door
gasket into place on door.
9. Place door on bottom hinge pin and install upper hinge
screw.
2. Pull door gasket out of groove
(top edge of door only). Start in
the middle and pull outward,
moving toward the edge. This
may take some force.
3. Remove two outside screws
holding door handle. Slightly
separate door handle from door.
4. Pull handle up and off.
Integrated Panel Installation 1
USER GUIDE
u-line.com
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
Grille - Plinth Installation
1
3
REMOVING AND INSTALLING GRILLE
! WARNING
Disconnect electric power to the unit before
4
2
removing the grille.
When using the unit, the grille (plinth strip/base
fascia) must be installed.
! WARNING
DO NOT touch the condenser fins. The condenser
fins are SHARP and can be easily damaged.
Removing the grille
1. Disconnect power to the unit.
2. Remove control knob (4).
3. Loosen the two screws (1).
4. Remove grille (2) and grille cap (3) from unit.
Installing the grille
1. Make sure grille cap (3) is behind grille in slots
provided in grille before attaching grille to unit.
2. Align cabinet and grille holes and secure, but do not
over tighten grille screws (1).
3. Install control knob (4) if equipped.
4. Reconnect power to the unit.
Grille - Plinth Installation 1
USER GUIDE
u-line.com
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
Door Swing
All units have a zero clearance for the door to open 90°.
U-Line recommends a minimum door clearance of 1/4"
(6 mm) to accommodate the handle if the unit is installed
next to a wall.
1/4" Min. (6 mm)
90°
Door Swing
Door Swing 1
USER GUIDE
u-line.com
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
Door Adjustments
CHECKING DOOR ALIGNMENT
The unit’s door is aligned at the factory before shipment.
However, its alignment could have been disturbed during
shipment.
NOTICE
To reverse the door mounting, perform the following:
1. Remove grille (see GRILLE-PLINTH INSTALLATION).
2. Remove top hinge from cabinet (three screws). Hold
door to keep it from falling.
Hinge screws
Properly aligned, the door’s gasket should be
firmly in contact with the cabinet all the way
around the door (no gaps).
1. Carefully examine the door’s gasket to ensure that it is
firmly in contact with the cabinet.
2. When inspecting door alignment, make sure the door
gasket is not pinched on the hinge side of the door.
ALIGNMENT AND ADJUSTMENT
3. Lift the door off the bottom hinge.
4. Remove bottom hinge from cabinet (two screws).
1. Loosen (do not remove) top and bottom hinge screws.
2. Align door squarely with cabinet. Make sure gasket is
firmly in contact with cabinet all the way around the
door (no gaps).
3. Tighten bottom hinge screws.
4. Tighten top hinge screws.
REVERSING THE DOOR
5. Remove screws on opposite side of cabinet.
Location of the unit may make it desirable to mount the
door on the opposite side of the cabinet.
The hinge hardware will be removed and reinstalled on the
opposite side of the cabinet.
Door Adjustments 1
USER GUIDE
u-line.com
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
6. Install hinge on opposite side at bottom of cabinet.
9. Remove plastic hole plug from door handle and
Align hinge outer edge with cabinet before tightening
relocate to opposite side. Lift the handle slightly and
screws.
press on the locking tab, then gently pry the hole plug
out of the hole, being careful not scratch the top cap.
Hinge
Plastic
Hole Plug
Plastic
Hole Plug
Screw
Right Side
Door Swing
Left Side
Door Swing
Right Side Invert
Hinge
Screw
Invert
Hinge
10.Remove pivot screw from top hinge, invert screw and
7. Relocate plastic spacer/bushing on top and bottom of
reinstall pivot screw in top hinge.
door to opposite side. Clean out bushing hole in door
bottom with a screwdriver if necessary.
Press in locking tab, then
lightly pry up to remove
hole plug and move to
opposite side
1
11.Place door on lower hinge pin. Invert and install upper
hinge on door. Fasten upper hinge to unit (three
8. Using a Phillips screwdriver, remove the two screws
screws). Partially tighten screws.
holding the handle.
12.Adjust door to ensure proper seal. Tighten upper and
lower hinge screws securely.
13.Fill holes with remaining screws.
14.Replace the grille.
Door Adjustments 2
USER GUIDE
u-line.com
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
First Use
All U-Line controls are preset at the factory. Initial startup
requires no adjustments.
NOTICE
U-Line recommends allowing the unit to run
overnight before loading with product.
U-Line recommends discarding the ice produced
during the first two to three hours of operation
to avoid possible dirt or scale that may dislodge
from the water line.
ON
OFF
To turn the unit on or off:
Press the rocker switch located below the temperature
control dial in the center of the grille.
CONTROL DIAL
The control dial sets a single continuous temperature.
This set point temperature is a base setting used by the
controller to maintain the temperature zone in the unit.
The factory default MID setting, number 3 or 4 set point,
is approximately 38°F (3°C). The set point temperature is
a gauge for further temperature adjustments.
First Use 1
USER GUIDE
u-line.com
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
Ice
! CAUTION
ICE MAKER OPERATION
When the ice bucket is full, the ice making mechanism will
NEVER use an ice pick, knife or other sharp
shut off. However, the refrigeration system will continue
instrument to separate cubes. Shake the ice
to cool and maintain the ice supply.
bucket instead.
During periods of limited use or high ambient
NOTICE
temperatures, it is common for cubes to fuse together.
Do not place cans or bottles in the ice
Gently shake the bucket to break apart cubes. If not using
compartment because they will freeze.
the ice maker regularly, empty the ice bucket periodically
to ensure fresh cubes.
OFF
It is normal for cubes to appear cloudy. The cause is air
trapped in the water because of fast freezing. It is not
caused by the health, taste or chemical make up of the
ON
water. It is the same air that is in every glass of water you
drink.
Remove the ice bucket for emptying and cleaning. To
remove the ice bucket, raise the bin arm and remove the
bucket from the ice compartment. Use the ice bucket for
To turn off ice production: Raise the bin arm into
ice storage only.
an upright and locked position. The unit will preserve
temperature for ice storage.
NOTICE
If not intending to use the ice maker, turn the
water supply valve off. It is also important to
raise the bin arm of the ice maker (see above).
Failure to raise the bin arm may result in damage
to the water valve.
Certain sounds are normal during the unit’s operation. You
may hear the compressor or fan motor, the water valve,
or ice dropping into the ice bucket.
Ice 1
USER GUIDE
u-line.com
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
3. Turn the adjusting screw toward the minus (-) sign
ICE MAKER ADJUSTMENT
(clockwise) for smaller cubes or toward the plus (+)
Ice Cube Thickness Adjustment
sign (counterclockwise) for larger cubes.
Interval - As Required
On ice maker equipped models, adjust the cube size by
changing water amount injected into the ice maker
4. Install the ice maker assembly cover.
assembly as follows:
1
2
1. Remove the ice maker assembly cover (1).
2. Find the adjusting screw on the ice maker assembly
control box (2). The adjusting screw is just below the
minus (-) and plus (+) signs on the control box.
! CAUTION
Too large of an adjustment to the screw can
cause the water to overflow the ice maker and
can cause property damage.
Ice 2
USER GUIDE
u-line.com
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
Airflow and Product Loading
NOTICE
The unit requires proper airflow to perform at its
highest efficiency. Do not block the front grille,
or the unit will not perform as expected. Do not
install the unit behind a door. When loading your
unit, leave space between the evaporator and
product loaded. Anything in direct contact with
the evaporator is subject to freezing.
When properly loaded, your U-Line unit will store up to 44
(12 oz. [330 ml]) cans or 24 (12 oz. [330 ml]) bottles.
Airflow and Product Loading 1
USER GUIDE
u-line.com
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
Interior Shelves
NOTICE
REMOVING AND INSTALLING INTERIOR
SHELVES
Make sure the shelves are inserted fully into the
unit.
The edge strip toward the rear prevents cans
and bottles from freezing against the cold
evaporator.
3
1
2
For models equipped with glass shelves having recessed
shelf supports, remove the shelves as follows:
1. Pull shelf out about 6" (1), until back of shelf clears the
“hump” on the right-hand side.
2. Tilt up right-hand edge of shelf (2).
3. Remove shelf from unit by pulling out (3).
Insert the shelves as follows:
1. To move to a different position in the unit, insert shelf
at an angle, approximately 15-20°, over the rib in the
side of the unit where you want to place the shelf.
Place the shelf into the unit at an angle to clear the
door.
2. Continue to slide the shelf into the unit at an angle
until it clears the door.
Lower the shelf and push it in completely. Ensure the
raised edge strip is toward the rear of the unit.
Interior Shelves 1
USER GUIDE
u-line.com
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
Door Shelves
REMOVING AND INSTALLING DOOR SHELVES
1
2
To remove the door shelf:
1. Grasp shelf in center, and lift until the shelf notches (1)
clear the pins (2).
2. Carefully pull the shelf away from the door.
To install the door shelf:
1. Holding the shelf in the center, center the shelf in the
door at the desired location, slightly above the pins
(2).
2. Lower the shelf onto the pins (2).
Door Shelves 1
USER GUIDE
u-line.com
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
Cleaning
If any surface discoloring or rusting appears, clean it
EXTERIOR CLEANING
a nonabrasive cloth. Always clean with the grain. Always
Vinyl Clad (Black or White) Models
finish with Claire® Stainless Steel Polish and Cleaner or
quickly with Bon-Ami® or Barkeepers Friend Cleanser® and
Clean surfaces with a mild detergent and warm water
comparable product to prevent further problems.
solution. Do not use solvent-based or abrasive cleaners.
Use a soft sponge and rinse with clean water. Wipe with a
Using abrasive pads such as ScotchBrite™ will
soft, clean towel to prevent water spotting.
cause the graining in the stainless steel to
become blurred.
Clean any glass surfaces with a non-chlorine glass
cleaner.
Rust not cleaned up promptly can penetrate the
surface of the stainless steel and complete
removal of the rust may not be possible.
Stainless Models
Stainless door panels, handles and frames can discolor
when exposed to chlorine gas, pool chemicals, saltwater
Integrated Models
or cleaners with bleach.
To clean integrated panels, use household cleaner per the
cabinet manufacturer’s recommendations.
Keep your stainless unit looking new by cleaning with a
good quality all-in-one stainless steel cleaner and polish
monthly. For best results use
Claire®
Stainless Steel
Polish and Cleaner, which can be purchased from U-Line
Corporation (Part Number 173348). Comparable products
are acceptable. Frequent cleaning will remove surface
contamination that could lead to rust. Some installations
INTERIOR CLEANING
Disconnect power to the unit.
Clean the interior and all removed components using a
mild nonabrasive detergent and warm water solution
may require cleaning weekly.
applied with a soft sponge or non-abrasive cloth.
Do not clean with steel wool pads.
Rinse the interior using a soft sponge and clean water.
Do not use stainless steel cleaners or polishes on
Do not use any solvent-based or abrasive
any glass surfaces.
cleaners. These types of cleaners may transfer taste to
the interior products and damage or discolor the interior.
Clean any glass surfaces with a non-chlorine glass
cleaner.
Do not use cleaners not specifically intended for
stainless steel on stainless surfaces (this
includes glass, tile and counter cleaners).
Cleaning 1
USER GUIDE
u-line.com
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
DEFROSTING
Manual Defrost Models
7. Prop the door in an open position (2 in. [50 mm]
minimum).
Unit is a manual defrost model and will require occasional
defrosting. When there is build-up of 1/4" (6 mm) or more
of frost, manually defrost the unit. Defrost every two
8. After about 1 hour remove the ice bin and discard
water.
months minimum.
9. Allow the frost to melt naturally.
Ensure the door is closing and sealing properly.
10.After the frost melts completely clean the interior and
High ambient temperature and excessive humidity can
all removed components. (See INTERIOR CLEANING).
also produce frost.
NOTICE
! CAUTION
DO NOT use an ice pick or other sharp
DO NOT clean ice bucket using a dishwasher. The
bucket is not dishwasher safe and will be
damaged.
instrument to help speed up defrosting. These
instruments can puncture the inner lining or
damage the cooling unit. DO NOT use any type of
11.When the interior is dry, reconnect power and turn unit
on.
heater to defrost. Using a heater to speed up
defrosting can cause personal injury and
damage to the inner lining.
NOTE: To safeguard against contaminates in ice, discard
first three batches of ice after defrosting.
To defrost:
1. Disconnect power to the unit.
2. For combo models remove all products from the
interior.
3. Remove ice bucket and discard ice.
4. Place towel or other absorbent material on bottom of
ice bin. For combo models also place in bottom of unit.
5. Fill the ice bucket half full with warm, not hot water.
This will help the unit defrost faster.
6. Place the ice bucket back into the unit on top of the
towel or other absorbent material.
Cleaning 2
USER GUIDE
u-line.com
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
Cleaning Condenser
INTERVAL - EVERY SIX MONTHS
To maintain operational efficiency, keep the front grille
free of dust and lint, and clean the condenser when
necessary. Depending on environmental conditions, more
or less frequent cleaning may be necessary.
! WARNING
Disconnect electric power to the unit before
cleaning the condenser.
! WARNING
DO NOT touch the condenser fins. The condenser
fins are SHARP and can be easily damaged.
NOTICE
DO NOT use any type of cleaner on the
condenser unit.
1. Remove the grille. (See GRILLE-PLINTH
INSTALLATION).
2. Clean the condenser coil using a using a soft brush
with a “combing” action or vacuum cleaner. Do not
touch the condenser coil.
3. Install the grille.
Condenser
Cleaning Condenser 1
USER GUIDE
u-line.com
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
Extended Non-Use
VACATION/HOLIDAY, PROLONGED SHUTDOWN
For questions regarding winterization, please
The following steps are recommended for periods of
call U-Line at +1.800.779.2547.
extended non-use:
1. Remove all consumable content from the unit.
2. Disconnect the power cord from its outlet/socket and
leave it disconnected until the unit is returned to
service.
! CAUTION
Damage caused by freezing temperatures is not
covered by the warranty.
Do not put anti-freeze in your unit.
3. Turn off the water supply.
4. If ice is on the evaporator, allow ice to thaw naturally.
5. Clean and dry the interior of the cabinet. Ensure all
water has been removed from the unit.
6. Disconnect the water and drain line (if applicable)
making sure all water is removed from the lines.
7. The door must remain open to prevent formation of
mold and mildew. Open door a minimum of 2"
(50 mm) to provide the necessary ventilation.
WINTERIZATION
If the unit will be exposed to temperatures of 40°F (5°C)
or less, the steps above must be followed. In addition, P60
drain pumps in clear ice machines must be drained
according to the following procedure:
1. Remove the drain pump from the ice machine.
2. Drain the water in the pump’s reservoir by turning the
pump upside down and allowing the water to drain
through the pump’s inlet and vent tube fittings.
3. After water is drained, reinstall the drain pump and
reattach all connections.
Extended Non-Use 1
USER GUIDE
u-line.com
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
Troubleshooting
• Evaporator: Refrigerant flowing through an evaporator
may sound like boiling liquid.
BEFORE CALLING FOR SERVICE
If you think your U-Line product is malfunctioning, read
the CONTROL OPERATION section to clearly understand
the function of the control.
If the problem persists, read the NORMAL OPERATING
SOUNDS and TROUBLESHOOTING GUIDE sections below
to help you quickly identify common problems and
• Condenser Fan: Air moving through a condenser may
be heard.
• Automatic Defrost Drain Pan: Water may be heard
dripping or running into the drain pan when the unit is
in the defrost cycle.
possible causes and remedies. Most often, this will resolve
the problem without the need to call for service.
IF SERVICE IS REQUIRED
If you do not understand a troubleshooting remedy, or
your product needs service, contact U-Line Corporation
directly at +1.800.779.2547.
When you call, you will need your product Model and
Serial Numbers. This information appears on the Model
TROUBLESHOOTING GUIDE
! DANGER
ELECTROCUTION HAZARD. Never attempt to
repair or perform maintenance on the unit
before disconnecting the main electrical power.
Troubleshooting - What to check when problems occur:
and Serial number plate located on the upper right or rear
wall of the interior of your product.
NORMAL OPERATING SOUNDS
All models incorporate rigid foam insulated cabinets to
provide high thermal efficiency and maximum sound
reduction for its internal working components. Despite this
technology, your model may make sounds that are
unfamiliar.
Normal operating sounds may be more noticeable because
Problem
Possible Cause and Remedy
Digital Display
and Light Do Not
Work.
Ensure power is connected to the unit.
If the unit is cooling, it may be in Sabbath
mode.
Interior Light
Does Not
Illuminate.
If the unit is cooling, it may be in Sabbath
mode.
Light Remains
on When Door Is
Closed.
For glass door models, press the light icon
and close the door.
Check light actuator under door.
Unit Develops
Frost on Internal
Surfaces.
Frost on the rear wall is normal and will melt
during each off cycle.
If there is excessive build-up of 1/4" or more,
manually defrost the unit.
Ensure the door is closing and sealing
properly.
High ambient temperature and excessive
humidity can also produce frost.
Unit Develops
Condensation on
External
Surfaces.
The unit is exposed to excessive humidity.
Moisture will dissipate as humidity levels
decrease.
Digital Display
Functions, But
Unit Does Not
Cool.
Ensure the unit is not in “Showroom Mode.”
Momentarily unplug or interrupt power supply
to the unit.
Digital Display
Shows ER or E
Followed by a
Number.
E3 indicates the door may be opened too
long. Ensure the door is closing properly. For
other error codes contact U-Line Customer
Service.
of the unit’s environment. Hard surfaces such as cabinets,
wood, vinyl or tiled floors and paneled walls have a
tendency to reflect normal appliance operating noises.
Listed below are common refrigeration components with a
brief description of the normal operating sounds they
make. NOTE: Your product may not contain all the
components listed.
• Compressor: The compressor makes a hum or pulsing
sound that may be heard when it operates.
Troubleshooting 1
USER GUIDE
u-line.com
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
Problem
Possible Cause and Remedy
Product Is
Freezing.
Because product in contact with the rear wall
may freeze, ensure no product is touching
the rear wall.
Adjust the temperature to a warmer set
point.
Product Is Not
Cold Enough.
Air temperature does not indicate product
temperature. See CHECKING PRODUCT
TEMPERATURE below.
Adjust the temperature to a cooler set point.
Ensure unit is not located in excessive
ambient temperatures or in direct sunlight.
Ensure the door is closing and sealing
properly.
Ensure the interior light has not remained on
too long.
Ensure nothing is blocking the front grille,
found at the bottom of the unit.
Ensure the condenser coil is clean and free of
any dirt or lint build-up.
6. After 24 hours, check the temperature of the water. If
required, adjust the temperature control in a small
increment (see CONTROL OPERATION).
Causes which affect the internal temperatures of
the cabinet include:
• Temperature setting.
• Ambient temperature where installed.
• Installation in direct sunlight or near a heat source.
CHECKING PRODUCT TEMPERATURE
To check the actual product temperature in the
unit:
1. Partially fill a plastic (nonbreakable) bottle with water.
2. Insert an accurate thermometer.
3. Tighten the bottle cap securely.
4. Place the bottle in the desired area for 24 hours.
5. Avoid opening the unit during the testing period.
Troubleshooting 2
USER GUIDE
u-line.com
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
Warranty
unit is completed and mailed back or electronically
U-LINE CORPORATION LIMITED WARRANTY
apply to cosmetic damages. A proof of purchase may
1. U-Line Corporation (“U-Line”) warrants each U-Line
be required.
submitted to U-Line. This 30 day warranty does not
product to be free from defects in materials and
workmanship for a period of one year (two years on
Modular 3000 Series) from the date of purchase.
U-Line further warrants the sealed system (consisting
of the compressor, condenser, evaporator, hot gas
bypass valve, dryer, and connecting tube) in each
U-Line product to be free from defects in materials and
workmanship for a period of five years from the date of
purchase.
4. The following conditions are excluded from this limited
warranty: use of cleaners other than the recommended
stainless steel cleaners and U-Line Clear Ice Maker
cleaner; installation charges; damages caused by
disasters or acts of God, such as fire, floods, wind, and
lightning; damages incurred or resulting from shipping,
improper installation, unauthorized modification, or
misuse/abuse of the product; customer education
calls; food loss and spoilage; door and water level
2. During the initial one year warranty period (two years
adjustments (except during the first 30 days from the
on Modular 3000 Series) for all U-Line products U-Line
date of installation); defrosting the product; adjusting
shall: (1) repair any product or replace any part of a
the controls; door reversal; and cleaning the
product; and (2) for all Marine, RV, and Domestic
condenser.
U-Line products sold and serviced in the United States
(including Alaska and Hawaii) and Canada, U-Line
shall be responsible for the labor costs performed by a
U-Line authorized service company, incurred in
connection with the replacement of any defective part.
During years two through five of the warranty period
for the sealed system, U-Line shall: (1) at U-Line’s
option repair or replace any part of the sealed system;
and (2) for all Marine, RV, and Domestic U-Line
products sold and serviced in the United States
(including Alaska and Hawaii) and Canada, U-Line shall
be responsible for the labor costs incurred in
connection with the replacement of any defective part
of the sealed system. All other charges, including
transportation charges for replacements under this
warranty and labor costs not specifically covered by
this warranty, shall be the responsibility of the
purchaser. This warranty extends only to the original
purchaser of the U-Line product. The Product
Registration Card included with the product should be
5. U-Line products are designed to operate in ambient
temperatures between 50°F and 100°F unless
otherwise noted in the product manual. Exposure to
temperatures outside this range may cause
degradation of performance and issues, such as lower
ice production or spoiled contents, that are not
covered under the terms of this warranty as a result of
that exposure. U-Line product may not be subjected to
temperatures below 40°F without following the
winterization and vacation shutdown procedures in the
user guide.
6. U-Line’s Outdoor Limited Warranty, set forth in this
Paragraph 6 shall apply to U-Line models deemed
suitable for outdoor use by Underwriters Laboratory
(“UL”) as noted in the U-Line Product Catalog, U-Line’s
website, and/or on the serial tag located inside the
product.
promptly completed by you and mailed back to U-Line,
or you can register on-line at www.u-lineservice.com.
A. Outdoor product may come into contact with rain by
virtue of outdoor use. Exposure to other sources of
3. The warranty listed above does not apply to floor
display models. The warranty for these models shall
be 30 days from the date of retail purchase and only if
water shall also cause this warranty to be void,
including flooding of the area in proximity of the unit
greater than 1/8" deep in water, hurricanes, splashing
U-Line’s Product Registration Card included with the
Warranty 1
USER GUIDE
u-line.com
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
of pool water, or directing a spray from a hose or
similar device into and around the unit.
7. If a product defect is discovered during the applicable
warranty period, you must promptly notify either
U-Line at 8900 N. 55th Street, Milwaukee, Wisconsin
53223 USA or at +1.800.779.2547 or the dealer from
whom you purchased the product. In no event shall
such notification be received later than 30 days after
the expiration of the applicable warranty period. U-Line
may require that defective parts be returned, at your
expense, to U-Line’s factory in Milwaukee, Wisconsin,
for inspection. Any action by you for breach of
warranty must be commenced within one year after
the applicable warranty period.
8. THIS LIMITED WARRANTY IS IN LIEU OF ANY AND ALL
OTHER WARRANTIES, EXPRESS OR IMPLIED,
INCLUDING ANY IMPLIED WARRANTY OF
MERCHANTABILITY OR IMPLIED WARRANTY OF
FITNESS FOR A PARTICULAR PURPOSE, ALL OF WHICH
ARE DISCLAIMED. U-Line’s sole liability, and your
exclusive remedy, under this warranty is set forth in
the paragraphs above. U-Line shall have no liability
whatsoever for any incidental, consequential, or
special damages arising from the sale, use, or
installation of the product or from any other cause
whatsoever, whether based on warranty (express or
implied) or otherwise based on contract, tort, or any
other theory of liability.
Some states do not allow limitations on how long an
implied warranty lasts or the exclusion or limitation of
incidental or consequential damages, so the above
limitations may not apply to you. This warranty gives you
specific legal rights, and you may also have other rights
which vary from state to state.
Warranty 6/2014 Rev.G
Warranty 2
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
