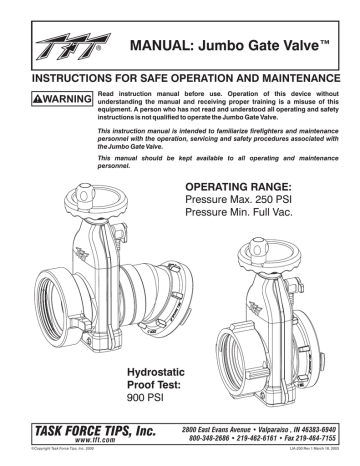

MANUAL: Jumbo Gate Valve™
INSTRUCTIONS FOR SAFE OPERATION AND MAINTENANCE
WARNING
Read instruction manual before use. Operation of this device without
understanding the manual and receiving proper training is a misuse of this
equipment. A person who has not read and understood all operating and safety
instructions is not qualified to operate the Jumbo Gate Valve.
This instruction manual is intended to familiarize firefighters and maintenance
personnel with the operation, servicing and safety procedures associated with
the Jumbo Gate Valve.
This manual should be kept available to all operating and maintenance
personnel.
OPERATING RANGE:
Pressure Max. 250 PSI
Pressure Min. Full Vac.
Hydrostatic
Proof Test:
900 PSI
TASK FORCE TIPS, Inc.
www.tft.com
©Copyright Task Force Tips, Inc. 2003
2800 East Evans Avenue • Valparaiso , IN 46383-6940
800-348-2686 • 219-462-6161 • Fax 219-464-7155
LIA-230 Rev 1 March 18, 2003
1.0 MEANING OF SIGNAL WORDS
A safety related message is identified by a safety alert symbol and a signal word to indicate the level of risk involved with a
particular hazard. Per ANSI standard Z535.4-1998 the definitions of the three signal words are as follows:
DANGER
DANGER indicates an imminently hazardous situation which, if not avoided, will result in death
or serious injury.
WARNING
WARNING indicates a potentially hazardous situation which, if not avoided, could result in
death or serious injury.
CAUTION
CAUTION indicates a potentially hazardous situation which, if not avoided, may result in minor
or moderate injury.
1.1 SAFETY
WARNING
This equipment is intended for use by trained personnel for firefighting. Its use for other
purposes may involve hazards not addressed by this manual. Seek appropriate guidance
and training to reduce risk of injury.
WARNING
Burst hoses and fittings can result in injury or death. Maximum operating pressure of
TFT's Jumbo Gate Valve is 250 psi (17 bar). Do not exceed 250 PSI on either side of valve.
Per NFPA 1962 3 ½ to 5 inch (90-127 mm) hose marked SUPPLY HOSE shall not exceed 185 PSI (13 bar).
Per NFPA 1962 6 inch (152 mm) hose marked SUPPLY HOSE shall not exceed 135 psi (9 bar).
2.0 GENERAL INFORMATION
The Jumbo Gate Valve is intended for use on the intake manifold of a fire engine, fire hydrant, or in a hose line. When used
on a fire engine, the valve is kept closed while the water supply from a hydrant or another pumper to the engine is being
established. This prevents the pump from sucking air through the intake manifold and losing its prime. Once the supply
hose is filled and under pressure, and the air has been vented from the hose, the valve may be opened to connect the
pump to the water supply.
Open
Closed
Open
Closed
Handwheel
Side A
Coupling
Handwheel
Side A
Coupling
Air Vent
Air Vent
Serial
Number
Serial
Number
Side B
Coupling
Jumbo Gate Valve w/Elbow
Side B
Coupling
Jumbo Gate Valve
2.1 CORROSION
The aluminum castings are plastic impregnated, hardcoat anodized, and TFT powdercoat finished inside and out for
maximum corrosion protection. Unique stainless steel wedge gate with polymer seats results in low wear and bidirectional sealing. Hose couplings are attached using polymer bearing rings which provides electrical isolation to help
prevent galvanic corrosion. The effects of corrosion can be minimized by good maintenance practices. See Section 7.0
for maintenance.
2.2 USE WITH SALT WATER
Use with salt water is permissible provided valve is thoroughly cleaned with fresh water after each use. The service life of
the valve may be shortened due to the effects of corrosion and is not covered under warranty.
2
©Copyright Task Force Tips, Inc. 2003
LIA-230 Rev 1 March 18, 2003
3.0 INSTALLATION
Make connections to fire hose or fittings on each side of valve. Valve seals in both directions. When the valve is in the
fully shut off position air is bleed from only one side of valve. The valve is factory assembled to bleed air from the
same side as the air bleed knob is on. See section 5.1 for how to change which side air is vented from.
WARNING
Kinks in supply hose may reduce water flow and cause injury or death to persons
dependant on water flow. When this valve is used on a hydrant or fire truck it is
recommended that it be used with an elbow to minimize risk of hoseline kinks.
CAUTION
Valve must be properly connected. Mismatched or damaged connectors may cause
leaking or uncoupling under pressure and could cause injury.
CAUTION
Male fire hose threads are sharp and can cause injury. Be careful when around male hose
threads.
4.0 USE
4.1 SWIVEL INLET AND COUPLING
On gate valve models with elbows, the inlet elbow swivels 360 degrees to help prevent hose kinks, and make connection
of suction lines easier. The inlet can be turned forward or backward to help make connections in tight places if the water
supply is in front of or behind the truck. Male hose thread inlets are locked so that they will not rotate.
4.2 VALVE OPEN AND CLOSE
To open the valve turn the handwheel in a counter-clockwise direction until the handwheel cannot be turned. To close,
turn the handwheel the opposite way until it cannot be turned.
5.0 AIR VENT
This valve is equipped with an Air Vent which will allow the air to escape from the valve when the hose is charged. The Air
Vent is opened by turning the knob counter-clockwise and closed by turning it clockwise.
The vent is tapped 1/4 NPT. A barb fitting and plastic tube may be used to run the vent behind the pump panel.
WARNING
Loss of prime can interrupt water flow and cause injury or death. Always bleed out air with
air bleed valve to prevent possible loss of prime. Valve can be set up to bleed air from
either of its two sides. When installing valve, be aware of which side a particular valve is
set up to bleed from.
5.1 CHANGING SIDES FOR VENTED AIR
Valve is factory
assembled to vent
air from this side.
For best sealing results against a pressurized
source, place pipe plug towards water supply.
SIDE B
Pipe Plug factory installed on this
side. If it is desired to vent air from
this side then remove the pipe plug
SIDE A and reinstall in the threaded hole on
the other side.
3
©Copyright Task Force Tips, Inc. 2003
LIA-230 Rev 1 March 18, 2003
6.0 DRAWINGS AND PARTS LISTS
16
19
31
33
36
30
35
37
34
32
11
17
20
12
22
23
24
25
9
26
10
27
9
7
8
5
10
8
6
28
29
4
3
2
1
4
©Copyright Task Force Tips, Inc. 2003
LIA-230 Rev 1 March 18, 2003
6.0 DRAWINGS AND PARTS LISTS
Table 1: Jumbo Gate Valve Parts List
#
1
2
3
4
5
6
7
8
9
10
11
12
16
17
19
20
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
Part Description
BOTTOM COVER
O-RING-247
BLADE
1/8 NPT PLUG - HEX SOCKET
5/32 X 1-3/4 HD SPIROL PIN
THREADED BLOCK
GATE BODY
3/8-16 X 1 HEX HEAD BOLT
SEAT
SEAL
SEAL
NAME LABEL - JUMBO GATE VALVE
KNOB - SOFT TOUCH
WASHER .812"OD .406"ID
CRANK BUSHING
1/4 X 1-3/8 HDP SPIROL PN
3/8-16 X 1-1/2 BUTTON HEAD
5/16-18 X 3/4 SOCKET HEAD
CRANK RETAINER
O-RING-221
O-RING-206
BUSHING
BLADE WASHER
ACME SCREW
HANDWHEEL
NAME LABEL: GATE VALVE
DRAIN BODY
O-RING-115
DRAIN SLEEVE
DRAIN LEVER
O-RING-110
DOG POINT
FOLLOWER
Part #
A5510
VO-247
A5540
VFSP2M
VP156X1.75HD
A5542
A5505
VT37-16HX1.0
A5545
A5550
XX329
A1302
A1512
VW812X406-65
A1513
VP250X1.375H
VT37-16BH1.5
VT31-18SH750
A5515
VO-221
VO-206
A5525
A5530
A5520
X281
A1307
A1543
VO-115
A1541
A1542
VO-110
H515
U251
Qty
1
1
1
1
2
1
1
4
2
2
1
1
1
1
1
1
1
2
1
1
1
1
1
1
1
1
1
2
1
1
1
1
1
5
©Copyright Task Force Tips, Inc. 2003
LIA-230 Rev 1 March 18, 2003
6.0 DRAWINGS AND PARTS LISTS
1
3
2
3
4
2
6
1
Table 2: Elbow Parts List
#
1
2
3
4
5
6
DESCRIPTION
PLASTIC STRIP 5.25”
CUP SEAL 5.25 X 4.75 X ¼
BALL 7/16” STAINLESS (FOR LOCKED OUT ELBOWS)
LABEL; PORT COVER
MATE PSF 5.25 X PSF5.25
ELBOW PSM 4.25 X PSM 5.25 (ONLY USED FOR 4.0 INCH
STORZ)
ELBOW PSM 5.25 X PSM 5.25
ELBOW PSM5.25 X PSM7.0-NFS (ONLY USED FOR 6.0
THREADED FEMALE)
1
2
5
6
7
QTY
2
2
2
2
1
1
1
1
PART #
A1291
A1296
VB.437
A1298
A4770
A4019QU
A4065UU
A4065UZ
8
3
4
Table 3: Storz Coupling Parts List
#
1
2
3
4
5
6
7
8
DESCRIPTION
PLASTIC STRIP 4.25” (FOR 4 INCH STORZ)
PLASTIC STRIP 5.25”
CUP SEAL 4.25 X 3.75 X ¼ (FOR 4 INCH STORZ)
CUP SEAL 5.25 X 4.75 X ¼
BALL 7/16” STAINLESS (FOR LOCKED OUT COUPLINGS)
PORT PLUG
LOCKING LEVER
SPRING TORSION
4” STORZ FITTING (USES A4730 ADAPTER ON NON ELBOWED
GATE VALVES)
5” STORZ FITTING
6” STORZ FITTING
4” STORZ GASKET PRESSURE ONLY
4” STORZ GASKET PRESSURE/VACUUM
5” STORZ GASKET PRESSURE ONLY
5” STORZ GASKET PRESSURE/VACUUM
6” STORZ GASKET PRESSURE/VACUUM
QTY
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
PART #
A1292
A1291
A1297
A1296
VB.437
A1299
A4171
A4230
A4124
A4125
A4126
A4215
A4216
A4220
A4221
A4226
6
©Copyright Task Force Tips, Inc. 2003
LIA-230 Rev 1 March 18, 2003
6.0 DRAWINGS AND PARTS LISTS
1
2
3
4
5
Table 4: Male Thread Spout Parts List
#
1
2
3
4
5
DESCRIPTION
PLASTIC STRIP 5.25"
CUP SEAL 5.25 X 4.750 X 1/4
BALL 7/16" STAINLESS
LABEL; PORT COVER
4.0” NH MALE SPOUT
4.5” NH MALE SPOUT
5.0” NH MALE SPOUT
6.0” NH MALE SPOUT
1
2
QTY
1
1
1
1
1
1
1
1
PART #
A1291
A1296
VB.437
A1298
A4620N
A4625N
A4630N
A4635N
5
4
3
Table 4: Female Thread Coupling Parts List
#
1
2
3
4
5
DESCRIPTION
PLASTIC STRIP 5.25"
PLASTIC STRIP 7.00" (FOR 6.0” FEMALE THREADED
COUPLINGS)
CUP SEAL 5.25 (FOR 4.0” THRU 5.0” COUPLINGS ONLY)
PORT PLUG
4.0” NH FEMALE
4.5" NH FEMALE
5.0" NH FEMALE
6.0" NH FEMALE (USES A4745 ADAPTER ON NON ELBOWED
GATE VALVES)
4.0" HOSE COUPLING GASKET
4.5" HOSE COUPLING GASKET
5.0" HOSE COUPLING GASKET
6.0" HOSE COUPLING GASKET
QTY
1
1
PART #
A1291
A1290
1
1
1
1
1
1
A1296
A1299
A4660N
A4665N
A4670N
A1266N
X
V3198
V3220
V3210
V3240
1
1
1
1
7
©Copyright Task Force Tips, Inc. 2003
LIA-230 Rev 1 March 18, 2003
7.0 MAINTENANCE
The valve should be disconnected, cleaned and visually inspected inside and out at least once per month. Moving parts
such as hand wheels, gate/seat and couplings should be checked for smooth and free operation and greased as
needed. A silicone based grease such as Dow Corning 44 will exclude moisture and retard the effects of corrosion. Any
scrapes that expose bare aluminum should be touched up with enamel paint such as Rust-Oleum to inhibit corrosion.
Replace any missing or damaged parts before returning the valve to service.
CAUTION
Dissimilar metals coupled together can cause galvanic corrosion that can result
in the inability to unscrew the threads of complete loss of thread engagement
over time. Per NFPA 1962 (1998 edition), if dissimilar metals are left coupled
together an anti-corrosive lubricant should be applied to the threads. Also the
coupling should be disconnected and inspected at least quarterly.
CAUTION
Any alterations to the Jumbo Gate Valve and its markings could diminish safety
and constitutes a misuse of this product.
8.0 WARRANTY
Task Force Tips, Inc., 2800 East Evans Avenue, Valparaiso, Indiana 46383 ("TFT") warrants to the original purchaser of its
Jumbo Gate Valve ("equipment"), and to anyone to whom it is transferred, that the equipment shall be free from defects in
material and workmanship during the five (5) year period from the date of purchase.
TFT's obligation under this warranty is specifically limited to replacing or repairing the equipment (or its parts) which
are shown by TFT's examination to be in a defective condition attributable to TFT. To qualify for this limited warranty,
the claimant must return the equipment to TFT, at 2800 East Evans Avenue, Valparaiso, Indiana 46383, within a
reasonable time after discovery of the defect. TFT will examine the equipment. If TFT determines that there is a
defect attributable to it, TFT will correct the problem within a reasonable time. If the equipment is covered by this
limited warranty, TFT will assume the expenses of repair.
If any defect attributable to TFT under this limited warranty cannot be reasonably cured by repair or replacement, TFT
may elect to refund the purchase price of the equipment, less reasonable depreciation, in complete discharge of its
obligations under this limited warranty. If TFT makes this election, claimant shall return the equipment to TFT free and
clear of any liens and encumbrances.
This is a limited warranty. The original purchaser of the equipment, any person to whom it is transferred, and any
person who is an intended or unintended beneficiary of the equipment, shall not be entitled to recover from TFT any
consequential or incidental damages for injury to person and/or property resulting from any defective equipment
manufactured or assembled by TFT. It is agreed and understood that the price stated for the equipment is in part
consideration for limiting TFT's liability. Some states do not allow the exclusion or limitation of incidental or
consequential damages, so the above may not apply to you.
TFT shall have no obligation under this limited warranty if the equipment is, or has been, misused or neglected (including
failure to provide reasonable maintenance) or if there have been accidents to the equipment or if it has been repaired or
altered by someone else.
THIS IS A LIMITED EXPRESS WARRANTY ONLY. TFT EXPRESSLY DISCLAIMS WITH RESPECT TO THE
EQUIPMENT ALL IMPLIED WARRANTIES OF MERCHANTABILITY AND ALL IMPLIED WARRANTIES OF
FITNESS FOR A PARTICULAR PURPOSE. THERE IS NO WARRANTY OF ANY NATURE MADE BY TFT BEYOND
THAT STATED IN THIS DOCUMENT.
This limited warranty gives you specific legal rights, and you may also have other rights which vary from state to
state.
TASK FORCE TIPS, Inc.
www.tft.com
©Copyright Task Force Tips, Inc. 2003
2800 East Evans Avenue • Valparaiso , IN 46383-6940
800-348-2686 • 219-462-6161 • Fax 219-464-7155
LIA-230 Rev 1 March 18, 2003
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
