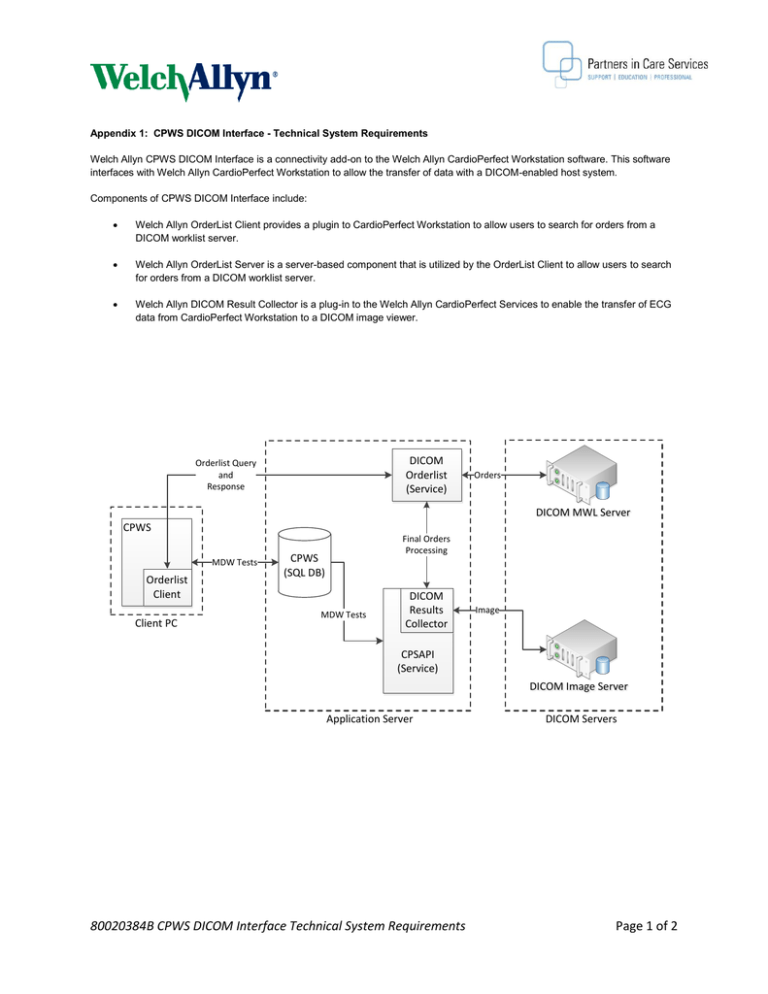

Appendix 1: CPWS DICOM Interface - Technical System Requirements
Welch Allyn CPWS DICOM Interface is a connectivity add-on to the Welch Allyn CardioPerfect Workstation software. This software
interfaces with Welch Allyn CardioPerfect Workstation to allow the transfer of data with a DICOM-enabled host system.
Components of CPWS DICOM Interface include:

Welch Allyn OrderList Client provides a plugin to CardioPerfect Workstation to allow users to search for orders from a
DICOM worklist server.

Welch Allyn OrderList Server is a server-based component that is utilized by the OrderList Client to allow users to search
for orders from a DICOM worklist server.

Welch Allyn DICOM Result Collector is a plug-in to the Welch Allyn CardioPerfect Services to enable the transfer of ECG
data from CardioPerfect Workstation to a DICOM image viewer.
DICOM
Orderlist
(Service)
Orderlist Query
and
Response
Orders
DICOM
DICOM MWL
MWL Server
Server
CPWS
MDW Tests
Orderlist
Client
Client PC
Final Orders
Processing
CPWS
(SQL DB)
MDW Tests
DICOM
Results
Collector
CPSAPI
(Service)
DICOM
DICOM Image
Image Server
Server
Application Server
80020384B CPWS DICOM Interface Technical System Requirements
DICOM Servers
Page 1 of 2
System Requirements
Prior to beginning the installation of the DICOM interface:

CPWS version 1.6.3, or above, installed and running properly.

CPSAPI (from CDIS-NCE 5.0.x or above) installed and running properly.
NOTE: The OrderList Client will inherit the System Requirements from the CardioPerfect Workstation
version that it is being installed against. Consult the CPWS Installation Guide for details.
Operating systems:
Standalone PC

Windows 7 (x86 and x64)

Windows 8 (x86 and x64)
Client PC

Windows 7 (x86 and x64)

Windows 8 (x86 and x64)
Server

Windows 2008 (x86 and x64)

Windows 2008 R2

Windows 2012

Windows 2012 R2
Computer requirements




Any computer may be used that meets the selected operating system requirements.
RAM: 2 GB Minimum
Disk Space: 4 GB free after installation
.NET framework version 3.5 installed on the CDIS-NCE computer
Software Installation Instructions and Order of Installation:
** Found in 50011413 / DICOM Result Collector Software V1.0.0.1
Software Component
(DIR) / Installation Instructions and/or software
CPWS
80013928 / DFU, CPWS S/W INSTALL GUIDE
Orderlist Client (.exe)
(50011806/ DICOM Result
Collector Software V1.0.0.2)
CPSAPI
80016529 / OrderList Plug-in Installation Admin Tool Guide EN

50010430 / SWF, CPSAPI 1.14.0.6 (also found on Connex CSK or
CDIS-NCE software installation discs)

DICOM Result Collector
Follow client install instructions
Execute CPSAPI.MSI
80019212 / DICOM Result Collector Installation Guide EN
80016529 / OrderList Plug-in Installation Admin Tool Guide EN
DICOM Orderlist Server(.exe)

Follow server install instructions
80020384B CPWS DICOM Interface Technical System Requirements
Page 2 of 2
