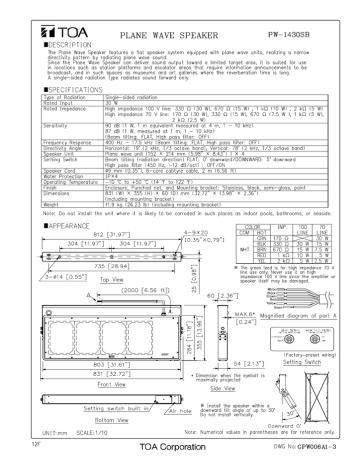

 zd TOA PLANE WAVE SPEAKER PW-1430SB
BDESCRIPTION
The Plane Wave Speaker features a flat speaker system equipped with plane wave units, realizing a narrow
directivity pattern by radiating plane wave sound.
Since the Plane Wave Speaker can deliver sound output toward a limited target area, it is suited for use
in locations such as station platforms and escalator areas that require information announcements to be
broadcast, and in such spaces as museums and art galleries where the reverberation time is long.
A single—sided radiation type radiates sound forward only.
BSPECIFICATIONS
Type of Radiation Single—sided radiation
Rated Input 30 W
Rated Impedance High impedance 100 V line: 330 Q (30 W), 670 Q (15 W) , 1 kQ (10 W) , 2 kQ (5 W)
High impedance 70 V line: 170 Q (30 W), 330 Q (15 М), 670 Q (7.5 W ), 1 kQ (5 W),
2 kQ (2.5 W)
Sensitivity 90 dB (1 W, 1 m equivalent measured at 4 m, 1 — 10 kHz)
0/7 dB (1 W, measured at 1 m, 1 — 10 kHz)
(Beam tilting: FLAT, High pass filter: OFF)
Frequency Response 400 Hz — 17.5 kHz (Beam tilting: FLAT, High pass filter: OFF)
Directivity Angle Horizontal: 19° (2 kHz, 1/3 octave band), Vertical: 78° (2 kHz, 1/3 octave band)
Speaker Unit Plane wave unit (152 X 214 mm (5.98" X 8.43") ) X 4
Setting Switch Beam tilting (radiation direction) FLAT: 0° downward/DOWNWARD: 5° downward
High pass filter (450 Hz, —12 dB/oct) : OFF/ON
Speaker Cord #9 mm (0.35"), 6—core cabtyre cable, 2 m (6.56 ft)
Water Protection IPX4
Operating Temperature —10 °С 10 +50 °С (14 Т 10 122 °F)
Finish Enclosure, Punched net, and Mounting bracket: Stainless, black, semi—gloss, paint
Dimensions 831 (W) X 355 (H) X 60 (D) mm (32.72 Xx 13.98” X 2.36”)
(including mounting bracket)
Weight 11.9 kg (26.25 Ib) (including mounting bracket)
Note: Do not install the unit where it is likely to be corroded in such places as indoor pools, bathrooms, or seaside.
BAPPEARANCE COLOR INP. | 100 | 70
» 4—9X20 COM HOT LINE LINE
812 | 51.97
La - | | - /[0.35”x0.79”] GRN 170 Q 30 W
| | 304 [11.977] т 304 [11.977] ‚| ВК |550 Q SOW 15 W
Г ah | WHT BRN 6/0Q 15W 75 W
— YEL 2 КО SW 25 W
735 [28.94] я X Ihe green lead is for high impedance 70 V
| со line use only. Never use it on high ie
3—-2914 | 0.55 : impedance ine since the amplifier or
| Top View ©, speaker itself may be damaged. >
(2000 [6.56 ft]) x White
А | x 60 [2.36”] stow
he *—) — Yellow
| I | — Green
x
Q = = = = — — ma MAX.6* Magnified diagram of part A
NENA 118 [0.247]
о С С С à | Е m >, SEA TO, HIGH PASS FLIER
ПОЛЕ À © ©
00 | ™M
° ALLA > a. |< || (Factory—preset wiring)
| Lo
831 [32.727] * Dimension when the eyebolt is YT
maximally projected A \
Front View Side View
|
X Install the speaker within a |
downward tilt angle of up to 30°.
Do not install vertically.
Setting switch built in/
Bottom View \
Downward O°
UNIT:mm SCALE:1/10 Note: Numerical values in parentheses are for reference only.
Na J
12F TOA Corporation DWG No: GPWOOGA1-3
