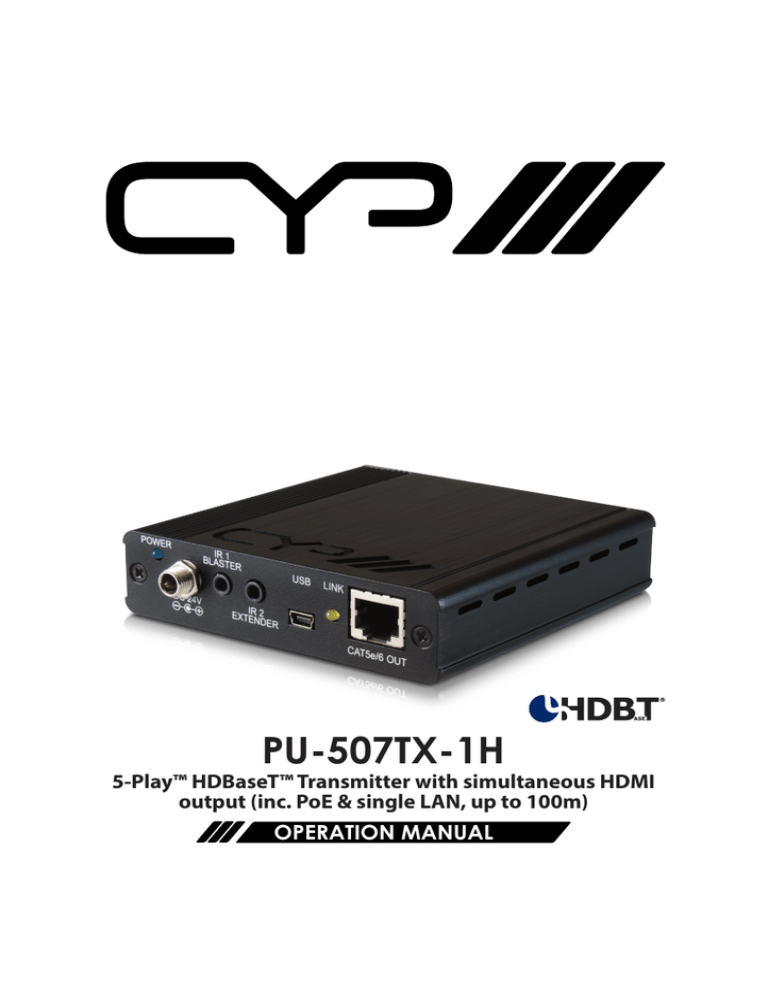

PU-507TX-1H
5-Play™ HDBaseT™ Transmitter with simultaneous HDMI
output (inc. PoE & single LAN, up to 100m)
OPERATION MANUAL
DISCLAIMERS
The information in this manual has been carefully checked and is
believed to be accurate. CYP (UK) Ltd assumes no responsibility for any
infringements of patents or other rights of third parties which may result
from its use.
CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be
contained in this document. CYP (UK) Ltd also makes no commitment to
update or to keep current the information contained in this document.
CYP (UK) Ltd reserves the right to make improvements to this document
and/or product at any time and without notice.
COPYRIGHT NOTICE
No part of this document may be reproduced, transmitted, transcribed,
stored in a retrieval system, or any of its part translated into any language
or computer file, in any form or by any means—electronic, mechanical,
magnetic, optical, chemical, manual, or otherwise—without express
written permission and consent from CYP (UK) Ltd.
© Copyright 2011 by CYP (UK) Ltd.
All Rights Reserved.
Version 1.1 August 2011
TRADEMARK ACKNOWLEDGMENTS
All products or service names mentioned in this document may be
trademarks of the companies with which they are associated.
3
SAFETY PRECAUTIONS
Please read all instructions before attempting to unpack, install or operate
this equipment and before connecting the power supply.
Please keep the following in mind as you unpack and install this
equipment:
• Always follow basic safety precautions to reduce the risk of fire,
electrical shock and injury to persons.
• To prevent fire or shock hazard, do not expose the unit to rain,
moisture or install this product near water.
• Never spill liquid of any kind on or into this product.
• Never push an object of any kind into this product through any
openings or empty slots in the unit, as you may damage parts inside
the unit.
• Do not attach the power supply cabling to building surfaces.
• Use only the supplied power supply unit (PSU). Do not use the PSU if
it is damaged.
• Do not allow anything to rest on the power cabling or allow any
weight to be placed upon it or any person walk on it.
• To protect the unit from overheating, do not block any vents or
openings in the unit housing that provide ventilation and allow for
sufficient space for air to circulate around the unit.
REVISION HISTORY
VERSION NO. DATE
SUMMARY OF CHANGE
v1.00
First release
4
22/10/2013
CONTENTS
1. Introduction�������������������������������������������6
2. Applications�������������������������������������������6
3. Package Contents����������������������������������6
4. System Requirements���������������������������6
5. Features��������������������������������������������������7
6. Operation Controls and Functions�������8
6.1 Front Panel��������������������������������������������������� 8
6.2 Rear Panel����������������������������������������������������� 9
6.3 IR Cable Pin Assignment�����������������������10
6.4 D-Sub 9 Pin Definitions�������������������������10
7. Connection Diagram �������������������������� 11
8. Specifications�������������������������������������� 12
8.1 CAT5e/6/7 Cable Specification�����������13
9. Acronyms��������������������������������������������� 13
5
1. INTRODUCTION
​​​​
The
PU-507TX-1H Transmitter allows uncompressed HDMI signals and
IP data to be transmitted over a Single CAT5e/6/7 cable. This solution
has a simultaneous HDMI output enabling a local HDMI display to be
connected. This device also features full 5-Play convergence allowing the
distribution of Video, Audio, LAN serving, Power over Ethernet (PoE), RS232 and 2-way IR control functionality over the same CAT5e/6/7 cable.
These combined HDMI and control signals can be transmitted up to
lengths of 100 metres.
2. APPLICATIONS
Household entertainment sharing and control
Lecture room display and control
Showroom display and control
Meeting room presentation and control
Classroom display and control
3. PACKAGE CONTENTS
1xPU-507TX-1H Transmitter
1xIR Blaster
1x3.5mm Phone Jack to RS-232 Cable
1x24V DC Power Adaptor
1xPower Cord
Operation Manual
4. SYSTEM REQUIREMENTS
Source equipment with HDMI output connector
Display TV/Monitor with HDMI input connector
HDMI over CAT5e/6/7 Receivers with industry standard CAT5e/6/7
cables
6
5. FEATURES
Supports all v1.4 HDMI resolutions plus 4k.
Supports uncompressed video/audio up to 10.2Gbps
Common supported resolutions: HDTV: 480p, 576p, 720p, 1080i,
1080p, 1080p24, 4K; PC: VGA, SVGA, XGA, WXGA, SXGA, UXGA, WUXGA.
HDMI, HDCP, & DVI compliant
Supports HDCP repeating and CEC functions
Uncompressed data transfer over single CAT cable (100m - CAT6/7;
80m - CAT5e)
Audio support up to 7.1CH & Dolby TrueHD, DTS-HD
5-Play™ convergence: HDMI, LAN, POE & Control (IR & RS232)
Supports 3D signals
Note:
1. This system was tested with CAT6/23AWG cables, results may vary with cables of a different specification.
2. The PoE function is designed for powering compatible Receiver
units only non-PoE Receivers will need their own power supply.
Receivers of another brand may not be compatible.
3. Displaying HDMI 4Kx2K resolution require the standard 4Kx2K HDMI cable and display in order for proper image displaying.
4. This device obtain the last memory function therefore, the device will use last CAT5e/6 output port's EDID when CAT5e/6 output is not connected to a display after power cycling.
The unit will detect CAT5e/6 output's EDID when it obtain a 4Kx2K EDID and send out the signal accordingly to other output ports. If the CAT5e/6 output is without a 4Kx2K's EDID the unit will detect all output's EDID and send out the signal that all outputs can accept.
7
6. OPERATION CONTROLS AND FUNCTIONS
6.1 Front Panel
HDMI OUT
HDMI to CAT5e/6 with LAN/IR/RS232
1
RS232 IN
HDMI IN
2
LAN
3
Transmitter
4
1 HDMI OUT: Connect to HDMI display for instant image display or
cascade with another family type Transmitter.
2 HDMI IN: Connect with source equipment such as DVD/Blu-ray or PS3
player.
3 LAN: Connect to intra-net or internet service system for a total sharing
rate of 100Mbps within the link of Transmitter. Warning: DO NOT
connect this slot with any of the CAT5e/6/7 port, doing so may trigger
a power shut down and ruin the device.
4 RS-232 IN: Connect to a PC/Laptop or RS-232 enabled device (with
supplied 3.5mm Phone Jack to D-Sub 9-Pin adaptor) to transmit of RS232 commands.
8
6.2 Rear Panel
IR 1
BLASTER
POWER
2
LINK
IR 2
EXTENDER
DC 24V
1
USB
3
4
CAT5e/6 OUT
5
6
7
1 POWER LED: Once the power supply is connected the LED will
illuminate.
2 DC 24V: Plug the 24V DC power supply into the unit and connect the
adaptor to an AC outlet.
3 IR 1 BLASTER: Connect with the supplied IR Blaster to blast out the
IR signal received from the Receiver side. Place the IR Blaster in direct
lineof-sight of the equipment to be controlled.
4 IR 2 EXTENDER: Connect with the supplied IR Extender to receive IR
signal from Transmitter side and blast out at Receiver side. Ensure that
remote controller being used is within the direct line-of-sight of the IR
Extender.
5 USB: This slot is reserved for firmware update only.
6 LINK: This LED will illuminate when CAT5e/6/7 output have been
connected to the Receiver and the Receiver have connected with
display that shows image on screen.
7 CAT5e/6/7 OUT: Connect this port to CAT5e/6/7 to HDMI Receiver
with CAT5e/6/7 cable to extend the signal up to 100m.
9
6.3 IR Cable Pin Assignment
IR Blaster
1 Power 3.3V
2 IR Blaster Signal
3 NC
IR Extender
1 IR Signal
2 Power 3.3V
3 Ground
6.4 D-Sub 9 Pin Definitions
Pin
10
Define TX / R
1
N/C
2
TxD/RxD
3
RxD/TxD
4
NC
5
GND
6
NC
7
NC
8
NC
9
NC
7. CONNECTION DIAGRAM
PC
3D TV/Display
Blu-ray or PS3 Player
HDMI
HDMI
HDMI OUT
RS232 IN
HDMI IN
LAN
HDMI to CAT5e/6 with LAN/IR/RS232
IR 1
BLASTER
POWER
DC 24V
USB
IR 2
EXTENDER
RS-232 Cable
Transmitter
LINK
CAT5e/6 OUT
IR2 Blaster
Power
IR1 Extender
Link
CAT5e/6 In
60°
60°
1.5m
3m
7m
m
3m
3D TV/Display
11
8. SPECIFICATIONS
Video Bandwidth
300Mbps/10.2Gbps
Input ports
1 x HDMI, 1 x 3.5mm Phone Jack for RS-232,
1 x IR IN, 1 x LAN*,
1 x USB (Service only)
Output ports
1 x HDMI,
1 x CAT5e/6/7
1 x IR OUT,
Resolution
Up to 4Kx2K
([email protected]/[email protected])
HDMI Input Cable Distance
N/A
CAT5e/6/7 Output
Cable Distance
Up to 100m
IR Frequency
30~50kHz
Power Supply
24V / 1.25A DC (US/EU standards, CE/FCC/UL
certified)
Dimensions
102 mm(W) x 109 mm(D) x 25 mm(H)
Weight
252g
Chassis Material
Metal
Colour
Black
ESD Protection
Human body model:
±8kV (air-gap discharge)
±4kV (contact discharge)
Operating Temperature 0°C ~ 40°C
Storage Temperature
-20˚C ~ 60˚C / -4 ˚F ~ 140 ˚F
Relative Humidity
20 ~ 90% RH (non-condensing)
Power Consumption
18.7W
12
8.1 CAT5e/6/7 Cable Specification
Cable
Type
CAT5E/6/7
Range
Pixel clock
rate
Video Data
Rate
Supported Video
100 M
<=225
MHZ
<=5.3 GBPS UP TO 1080P, 60 HZ, 36
BITS, 3D (DATA RATES
(HD
LOWER THAN 5.3
VIDEO)
GBPS OR BELOW 225
MHZ TMDS CLOCK).
70 M
>225 MHZ
> 5.3 GBPS
4K2K, 30HZ VIDEO
(ULTRA HD
FORMATS
VIDEO)
9. ACRONYMS
ACRONYM
COMPLETE TERM
4Kx2K
3840x2160 / 4096x2160
DTS
Digital Theater System
EDID
Extended Display Identification Data
HDCP
High-bandwidth Digital Content Protection
HDMI
High-Definition Multimedia Interface
HDTV
High-Definition Television
13
CYP (UK) Ltd., Unit 7, Shepperton Business Park, Govett Avenue, Shepperton,
Middlesex, TW17 8BA
Tel: +44 (0) 20 3137 9180 | Fax: +44 (0) 20 3137 6279
Email: [email protected]
www.cypeurope.com
v1.00
