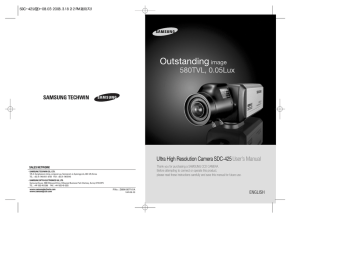

Ultra High Resolution Camera SDC-425 User’s Manual
Thank you for purchasing a SAMSUNG CCD CAMERA.
Before attempting to connect or operate this product,
please read these instructions carefully and save this manual for future use.
SALES NETWORK
•
SAMSUNG TECHWIN CO., LTD.
145-3, Sangdaewon-dong, Jungwon-gu, Seongnam-si, Gyeonggi-do, 462-120, Korea
TEL : +82-31-740-8151~8158 FAX : +82-31-740-8145
•
SAMSUNG OPTO-ELECTRONICS UK, LTD.
Samsung House, 1000 Hillswood Drive, Hillswood Business Park Chertsey, Surrey KT16 OPS
TEL : +44-1932-45-5308 FAX : +44-1932-45-5325
www.samsungtechwin.com
www.samsungcctv.com
P/No. : Z6806-0877-01A
VAN 08. 03
ENGLISH
Before operating the camera, confirm the camera model and
proper input power voltage. In order to that you can understand
this manual thoroughly, we'll introduce our model description.
■ SDC-425 SERIES
NTSC MODELS
PAL MODELS
SDC-425N
SDC-425ND
SDC-425P
SDC-425PD
SDC-425PH
The exclamation point within an equilateral triangle is intended to alert the user
to the presence of important operating and maintenance (servicing)
instructions in the literature accompanying the appliance.
■ MODEL DESCRIPTION
• SDC-425 X X
POWER SOURCE
SIGNAL SYSTEM
• SIGNAL SYSTEM
N --> NTSC MODEL
• POWER SOURCE
N --> DC12V/AC24V
D --> DC12V
H --> AC 230V~
The lightning flash with an arrowhead symbol, within an equilateral triangle is
intended to alert the user to the presence of uninsulated “dangerous voltage”
within the product's enclosure that may be of sufficient magnitude to
constitute a risk of electric shock to persons.
P --> PAL MODEL
INFORMATION -This equipment has been tested and found to comply with limits
for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference when the
equipment is operated in a commercial environment. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful interference to radio
communications.
Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at
his own expense.
WARNING : Changes or modifications not expressly approved by the manufacturer
could void the user’s authority to operate the equipment.
WARNING : To prevent electric shock and risk of fire hazards:
Do NOT use power sources other than that specified.
Do NOT expose this appliance to rain or moisture.
This installation should be made by a qualified service person and
should conform to all local codes.
Features
Contents
• Features
5
• Warnings & Cautions
6
• Components and Accessories
8
• Overview
9
• Installation Procedures
High Resolution
DIS (Digital Image Stabilizer)
By adopting a diagonal 6mm(1/3") 410,000
(NTSC) pixel, 470,000(PAL) pixel SONY CCD,
the camera produces clear picture quality with
a horizontal resolution of 580 TV lines for color.
The DIS function compensates for any camera
movement, to produce more stable pictures.
Video/DC Drive Lens Support
10
Lens
Connecting a Monitor
Connecting Power
10
12
13
• How to Use the Camera
14
Function Menu Structure
How to Set up the Functions
14
15
• Troubleshooting
29
• Specifications
30
Excellent Sensitivity
You can select Video or DC Drive Lens from the
menu.
The built-in high sensitivity COLOR CCD
enable a clear image even in 0.05Lux(COLOR),
0.0002Lux(SENS-UP) or lower illumination.
Miscellaneous Functions
HLC(High Light Compensation), SYNC
(INT/LL), SENS-UP, FREEZE, FLIP (H/V-REV),
D-ZOOM, SHARPNESS, MOTION DETECTION
and PRIVACY functions are provided.
SSNR (Samsung Super Noise
Reduction) Function
The high performance W-IV DSP chip
dramatically reduces the gain noise in digital
image processing, producing clear, sharp
images in low lighting environments.
OSD
The camera control is convenient by using 7
different foreign language O.S.D.
- NTSC : English, Spanish, Japanese, Korean
- PAL : Korean, English, French, German,
Spanish, Italian, Chinese
Electrical Day&Night
The camera identifies whether it is day or night and
automatically switches to the appropriate mode,
depending on its environment. By day, the camera
switches to color mode in order to maintain optimal
color. At night, it switches to B/W mode so as to
obtain better picture definition.
Motion Detection
Since the camera detects motion without any
additional external sensor, you can monitor
activity more efficient.
COLOR CCD CAMERA
4
User’s Manual
COLOR CCD CAMERA
5
User’s Manual
Samsung Techwin cares for the environment at all product manufacturing
stages to preserve the environment, and is taking a number of steps to
provide customers with more environment-friendly products.The Eco mark
represents Samsung Techwin s will to create environment-friendly products,
and indicates that the product satisfies the EU RoHS Directive.
Precautions
Do not install under extreme
temperature conditions.
Do not install in high humidity
environment.
Warnings & Cautions
This information is provided to ensure your safety and to prevent any losses, financial
or otherwise. Please read it carefully and use the product accordingly.
* For product inquiries, please contact the retail shop where you bought the camera. The use of equipment such
as an aerial ladder while providing after-sales service shall be at your expense.
* Separate the power plug when thunder crashes or lighting flashes.
* This product is support equipment for surveillance system. Therefore, we can't compensate for material loss
and/or personal injuries by robbery, fire, natural disaster or something like this type.
Use only under temperature conditions between
-10˚C and +50˚C. Provide good ventilation when
using in high temperature conditions.
May lower image quality.
Do not install under unstable
lighting conditions.
Avoid touching the camera lens.
Warning/Attention/Special Mark Messages
Ignoring this information may
result in material loss and/or
serious personal injuries including
death.
Ignoring this information may
result in material loss and/or a
slight injuries.
Indicates “Never Allowed.”
Indicates “No Disassembling.”
Severe lighting changes or flickering may hinder
normal camera operation.
The lens is the most important component of
the camera. Be careful not to smear it with
fingerprints.
Do not drop the camera or subject
it to physical shock.
May cause a product malfunction.
COLOR CCD CAMERA
6
User’s Manual
COLOR CCD CAMERA
Never keep the camera face to
strong light directly.
May damage the CCD.
7
User’s Manual
Overview
Precautions
Do not expose the camera to rain
or other types of liquids.
Do not expose the camera to
radioactivity.
May cause a product malfunction.Wipe dry any
liquids. Liquids may contain minerals that are
corrosive to electronic components.
Front View
Side View
Radioactivity exposure may damage the CCD.
Notes
• Exposure to a spotlight or an object emitting strong light may cause smear or blooming.
• Ensure that the power source complies with normal specifications before supplying it to
the camera.
CCD protection cap : Please cover the CCD SENSOR when not using it.
C-Mount lens adaptor : Please attach the C-Mount lens here.
CS-Mount lens adaptor: Please remove the C-MOUNT lens adaptor and then attach it.
Back Focus clamp screw : Please loosen the clamp screw with a screwdriver before
adjusting the Back Focal length.
Auto Iris Lens Connector
Bottom View
Components and Accessories
Tripod Mounting Bracket Screw Hole
Used to fix the camera on a bracket or tripod.
The screw sizes for this hole are as follows:
L
1/4"-20 UNC (20 THREAD)
L:4.5mm±0.2mm (ISO standard),
or 0.197" (ASA standard)
Ultra High Resolution Camera
Auto iris lens connection plug
C-Mount adaptor
Instruction manual
COLOR CCD CAMERA
You can separate the Tripod Mounting Bracket and install it on the top or
bottom of the camera. Make sure to use the Tripod Mounting Bracket when
fixing the camera to a bracket or tripod. Otherwise the camera may not be
secure, or the internal circuitry of the camera may be damaged.
8
User’s Manual
COLOR CCD CAMERA
9
User’s Manual
Overview
Installation Procedures
Rear View
When Using Auto Iris Lens
1. Strip the insulation of the auto iris lens
cable 8mm from the end.
2. Strip the insulation of the core of the auto
iris lens cable to expose a 2mm length.
approx. 2mm
approx. 8mm
*High Voltage Type
Power lamp : Lights up when the correct power is supplied to the camera.
Function Setup Button
SETUP button : Displays the menu on the screen and uses enter sub menu.
Up&Down button : Used to move the cursor up or down in the menu screen.
Left&Right button : Used to move the cursor left or right in the menu screen
Video output terminal :
Sends video signal and connects to the video input terminal of the monitor.
Power input terminal : Connects to the power appropriate to each model.
Installation Procedures
LENS
The lens is not supplied with this camera. Purchase a lens suitable for your environment.
This camera accepts the auto iris lens and both C-and CS-mount lens.
Notes
• It is recommended to use the DC type Auto Iris Lens to effectively enjoy the major
functions of this camera.
• Keep the lens surface clean, since if it is contaminated with dirt or fingerprints the
picture quality suffers.
COLOR CCD CAMERA
10 User’s Manual
3. Remove the cover of the auto iris lens connector plug and solder the lens cable to the
connector pin of the plug.
Pin No.
No.1 Pin
No.2 Pin
No.3 Pin
No.4 Pin
DC
Damping Damping +
Drive +
Drive -
LENS
VIDEO
Red (power)
No.3 Pin
NC
No.1 Pin
White (video signal)
Black (GND)
Lens cable
Connector
No.4 Pin
No.2 Pin
4. Please replace the auto iris lens connection plug cover and take off the CCD protection
cap, and then attach the auto iris lens to the camera
by screwing it in clockwise.
5. Please insert the connection plug that is connected to
the auto iris lens cable into the auto lens connector,
which is located on the side of the camera.
When using a C-Mount lens
Please take off the CCD protection cap and attach the C-Mount lens to
the camera by screwing it in clockwise.
C-mount adaptor
COLOR CCD CAMERA
11 User’s Manual
Installation Procedures
When using a CS-Mount lens
1. Please take off the CCD protection cap
and C-mount adaptor.
2. Please attach the CS-Mount lens to the
camera by screwing it in clockwise.
• The connection method varies depending on the type of monitor and accessories.
Please refer to the user's manual for each instrument.
• Please turn off the power when connecting.
• Please select Hi-Z on the 75Ω/Hi-Z switch for the intermediate video TV set and select
75Ω for the Intermediate device as shown in the picture below.
CCD Camera
C-mount adaptor
Intermediate
End monitor
CS-mount adaptor
CCD protection cap
Notes
• Please use the specified lens connection parts as shown in the picture below.
The use of the wrong sized parts of the wrong size may cause damage to the inside of
the camera or result in poor fitting.
• Use of a lens which is too heavy affects the balance of the
camera and may cause a malfunction. Please use a lens
that weighs less than 450g.
• Please select Av mode if possible when adjusting the
automatic light control (ALC) of an auto lens. Use of PK
mode may cause hunting.
Connecting Power
Each model has a different power input specification. Please check the model type and
standard power requirement before connecting to power.
AC/DC Power Type
DC Power Type
• Use AC24V, 300mA adaptor or DC12V,
500mA for SDC-425N/P
• Use DC12V, 500mA for SDC-425ND/PD
C-mount lens : 10 mm or less
CS-mount lens : 5 mm or less
Connecting a Monitor
Please connect the video output terminal located on the back of the camera to the monitor.
High Voltage Type (AC230V, 50Hz)
• Use AC230V, 50Hz power source for SDC425PH.
Monitor
CCD Camera
COLOR CCD CAMERA
12 User’s Manual
COLOR CCD CAMERA
13 User’s Manual
Installation Procedures
When the resistance value of copper wire is at [20°C(68°F)]
How to Set up the Functions
Copper wire size(AWG)
#24(0.22mm2)
#22(0.33mm2)
#20(0.52mm2)
#18(0.83mm2)
Resistance value(Ω/m)
0.078
0.050
0.030
0.018
Voltage drop(V/m)
0.028
0.018
0.011
0.006
• As shown in the table above, voltage decreases as the wire gets longer.
Therefore use of an excessively long adaptor output line for connection to the camera
may affect the performance of the camera.
Standard voltage for camera operation : DC 12V±10%, AC 24V±10%
There may be some deviation in voltage drop depending on the type of wire and the manufacturer.
You can set up functions using the 5 buttons on the rear of the camera.
UP button
SET button
LEFT button
DOWN button
RIGHT button
1. Press the SET button.
• Main setup menu is displayed on the monitor screen.
How to Use the Camera
Select the function using
the UP or DOWN button.
Function Menu Structure
Setup Menu
LENS
EXPOSURE
WHITE BALANCE
BACKLIGHT
SSNR
DAY/NIGHT
IMAGE ADJUSTMENT
(IMAGE ADJ.)
SPECIAL
• DC
• SHUTTER
• RETURN
• ATW
• OUTDOOR
• OFF
• ON
• COLOR
• FREEZ
• D-ZOOM
• CAMTITLE
• PRIVACY
• RESET
• VIDEO
• AGC
• MANUAL
• SENS-UP
• MANUAL
• INDOOR
• BLC
• OFF
• B/W
• V-REV
• SHARPNESS
• SYNC
• DIS
• RETURN
• AWC
EXIT
COLOR CCD CAMERA
14 User’s Manual
SET
MAIN SETUP
1.LENS
DC
2.EXPOSURE
3.WHITE BAL
ATW
4.BACKLIGHT
OFF
5.SSNR
ON
6.DAY/NIGHT
AUTO
7.IMAGE ADJ
8.SPECIAL
9.EXIT
Change the status using
the LEFT or RIGHT button.
• HLC
• AUTO
• H-REV
• RETURN
• MOTION DET
• LANGUAGE
2. Select a desired function using the Up and Down buttons.
• Place the cursor over a desired item.
3. Set up a selected item by using the Left and Right buttons.
4. To finish the setting, select ‘EXIT’ and press the SET button.
Notes
• An item with the
icon also has sub menus. To select a sub menu, select an item with
the icon and press the SET button.
• An item with the - - - icon is unavailable due to function settings.
COLOR CCD CAMERA
15 User’s Manual
How to Use the Camera
LENS
Using this function, you can control screen brightness.
1. When the SETUP menu screen is displayed, select LENS by using the Up and Down
buttons so that the arrow indicates LENS .
2. Select the connected lens type by using the Left and Right buttons.
1. When the SETUP menu screen is displayed, select EXPOSURE by using the Up and
Down buttons so that the arrow indicates EXPOSURE .
2. Select a desired mode using the Up and Down buttons.
EXPOSURE
1.SHUTTER
--2.AGC
HIGH
3.SENS-UP
OFF
4.RETURN
MAIN SETUP
1.LENS
DC
2.EXPOSURE
DC/Video : Select Auto Iris Lens
• When DC is selected, you can control screen brightness. The range of brightness
control is between 1 and 70. Adjust the brightness appropriately for optimal
screen brightness.
Notes
• Some lenses may not work properly, depending on the setting of the BRIGHTNESS LEVEL.
• When Using a Video-Type Auto Iris Lens
Adjust the ALC adjustment terminal on the lens appropriately. In general, set it to
AV (Average).
It may not work properly depending on the installed lens. Set the Level VR of the
lens to the optimal value.
Set AGC to OFF and adjust the Lens VR to an appropriate brightness.
Adjust the Lens VR, adjust the BRIGHTNESS, and then check if the screen
brightness changes properly. Otherwise, adjust the Lens VR again.
Manual : Select Manual Lens
EXPOSURE
MAIN SETUP
1.LENS
DC
2.EXPOSURE
3.WHITE BAL
ATW
COLOR CCD CAMERA
16 User’s Manual
SHUTTER : You can select either auto or manual shutter.
- A.FLK : Select this when you experience picture flicker, which can happen when there
is a clash with the frequency of the installed lighting.
- ESC : Select this to control the shutter speed automatically. If ESC is selected, the
shutter speed is automatically controlled depending on the ambient illumination
of the subject.
- MANUAL : You can control shutter speed manually.
Notes
• When the SHUTTER is set to ESC after selecting the Internal Synchronization Type, the
picture may become unstable if the camera faces a bright fluorescent light. Therefore,
take care when choosing the installation position.
• ESC and MANUAL modes are only available together when the lens is set to MANUAL.
• When the SHUTTER is set to MANUAL or A.FLK mode, SENS-UP will be disabled.
AGC(AUTO GAIN CONTROL) : The higher the gain level, the brighter the screen but the higher the noise.
- OFF : Deactivates the AGC function.
- LOW : Allows automatic gain control from 5.3dB to 32dB.
- HIGH : Allows automatic gain control from 5.3dB to 37dB.
SENS-UP : When it is night or dark, the camera automatically detects the light level and
maintains a clear picture if this mode is activated.
- OFF : Deactivates the SENS-UP function.
- AUTO : Activates the SENS-UP function.
COLOR CCD CAMERA
17 User’s Manual
How to Use the Camera
RETURN : Select this to save the changes in the EXPOSURE menu and return to the SETUP menu.
Notes
• If you press the SET button in ‘AUTO’ mode, You can adjust brightness by increasing or
decreasing the shutter speed. (X2~X256)
• Note that the higher the zoom level, the brighter the screen, but the more likely it is that
an after-image will appear.
• Although Noise, Spots, and Whitish symptoms may occur in SENS-UP operation when
the zoom level is increased, this is normal.
Notes
• White Balance may not work properly under the following conditions. In this case select
the AWC mode.
When the color temperature of environment surrounding the subject is out of the
control range (e.g. clear sky, or sunset)
When the ambient illumination of the subject is dim.
If the camera is directed towards a fluorescent light or is installed in a place where
illumination changes dramatically, the White Balance operation may become unstable.
BACKLIGHT
White Balance (White Bal.)
Use the White Balance function to adjust the screen color.
1. When the SETUP menu screen is displayed, select ‘White Bal.’ by using the Up and
Down buttons so that the arrow indicates ‘White Bal.’ .
2. Select a desired mode using the Up and Down buttons.
MAIN SETUP
1.LENS
DC
2.EXPOSURE
3.WHITE BAL
ATW
4.BACKLIGHT
OFF
Select one of the following 5 modes, as appropriate for your purpose.
ATW : Select this when the color temperature is between 1800˚K and 10500˚K
INDOOR : Select this when the color temperature is between 4500˚K and 8500˚K.
OUTDOOR : Select this when the color temperature is between 1800˚K and
10500˚K. (sodium light inclusion)
AWC SET : To find the optimal setting for the current luminance environment in this
mode, set the point the camera towards a sheet of white paper and press the
SET button. If the environment changes, readjust it.
MANUAL : Select this to fine-tune White Balance manually. Set White Balance first by
using the ATW or AWC mode. After that switch to MANUAL mode, finetune the White Balance and then press the SET button.
COLOR CCD CAMERA
18 User’s Manual
This camera is designed so that it delivers a distinctive subject and background at the
same time, even when the subject is in backlight, unlike conventional cameras, by
adopting a proprietary W-IV DSP chip.
1. When the SETUP menu screen is displayed, select ‘BACKLIGHT’ by using the Up and
Down buttons so that the arrow indicates BACKLIGHT .
MAIN SETUP
1.LENS
DC
2.EXPOSURE
3.WHITE BAL
ATW
4.BACKLIGHT
OFF
5.SSNR
ON
2. Select a desired mode using the Left and Right buttons depending on the camera purpose.
BLC : Enables a user to directly select a desired area from a picture, and to view the
area more clearly.
BLC ON
COLOR CCD CAMERA
BLC OFF
19 User’s Manual
How to Use the Camera
HLC (High Light Compensation) :
If there is a high light installed in a limited environment such as an apartment parking
garage or gas station entrance, removing the high light makes it possible to view car
license plates efficiently.
- DAY : In normal daylight conditions, the HLC is not activated.
- NIGHT : If a high light that is larger than a certain size is present on the screen,
remove the high light to see license plates clearly.
SSNR
This function reduces the background noise in a low luminance environment.
1. When the SETUP menu screen is displayed, select ’SSNR’ by using the Up and Down
buttons so that the arrow indicates ’SSNR’ .
MAIN SETUP
1.LENS
DC
2.EXPOSURE
3.WHITE BAL
ATW
4.BACKLIGHT
OFF
5.SSNR
ON
6.DAY/NIGHT
AUTO
HLC MASKING AREA
HLC ON
HLC OFF
OFF : Not being used
3. Select a desired mode using the Left and Right buttons and press the SET button.
Select ‘BLC’ to adjust the area to be
HLC : Enable a user to select a mask color
enhanced and enhancement level.
of high light area from a picture.
2. Select a desired mode using the Left and Right buttons.
OFF : Deactivates SSNR. Noise is not reduced.
ON : Activates SSNR so that noise is reduced.
3. Set the SSNR mode to ‘ON’ and press the SET button. Then you can adjust the noise
reduction level.
Notes
• You cannot set the SSNR to ‘ON’ or ‘OFF’ when the AGC mode of the EXPOSURE menu
is ‘OFF’.
• When adjusting the noise reduction level of the SSNR mode, remember that the higher
the level set, the more the noise level will be reduced but that after image may also occur.
Notes
• Because there can be a difference in the effectiveness of HLC according to the amount of
light area in the screen, optimize the installation angle for the best HLC performance.
• In a dark environment, the HLC is only activated when a high light that is larger than a
certain area is present.
• The HLC is not activated in light or overly dark conditions.
COLOR CCD CAMERA
20 User’s Manual
COLOR CCD CAMERA
21 User’s Manual
How to Use the Camera
DAY/NIGHT
Notes
You can display pictures in color or black and white.
1. When the SETUP menu screen is displayed, select ‘DAY/NIGHT’ by using the Up and
Down buttons so that the arrow indicates DAY/NIGHT .
MAIN SETUP
1.LENS
DC
2.EXPOSURE
3.WHITE BAL
ATW
4.BACKLIGHT
OFF
5.SSNR
ON
6.DAY/NIGHT
AUTO
7.IMAGE ADJ
2. Select a desired mode using the Left and Right buttons according to the picture display you want.
COLOR : The picture is always displayed in color.
B/W : The picture is always displayed in black and white.
AUTO : The mode is switched to Color in a normal environment, but switches to
B/W mode when ambient illumination is low. To set up the switching time
or speed for AUTO mode, press the SET button.
• When using a Video Auto Iris Lens, if you set the lens level to low, automatic switching
between Color and Black & White may not occur.
• You cannot control the DAY/NIGHT menu when AGC in the EXPOSURE menu is ‘OFF’.
At this time, the exchange between DAY mode and NIGHT mode operates as like selecting
‘COLOR’ mode.
• The OSD key does not work for 3 seconds when switching to Color or B/W, to ensure
stable camera operation.
• The camera may focus less well under infrared illumination than under normal illumination.
• Since the camera may not focus as well under infrared illumination at night as it does under
normal illumination, install an Extra-low Dispersion Lens to obtain sharp pictures.
IMAGE ADJ.
1. When the SETUP menu screen is displayed, select ‘IMAGE ADJ.’ by using the Up and
Down buttons so that the arrow indicates IMAGE ADJ.
MAIN SETUP
1.LENS
DC
2.EXPOSURE
3.WHITE BAL
ATW
4.BACKLIGHT
OFF
5.SSNR
ON
6.DAY/NIGHT
AUTO
7.IMAGE ADJ
8.SPECIAL
2. Select a desired mode using the Up and Down buttons.
- DWELL TIME : You can select the duration time about changing the day/night mode.
5s, 7s, 10s, 15s, 20s, 30s, 40, 60s
COLOR CCD CAMERA
22 User’s Manual
1.
2.
3.
4.
5.
6.
IMAGE SETUP
FREEZE
OFF
V-REV
OFF
H-REV
OFF
D-ZOOM
OFF
SHARPNESS
ON
RETURN
COLOR CCD CAMERA
23 User’s Manual
How to Use the Camera
FREEZE : You can view still or moving pictures.
V-REV : You can flip the picture vertically on the screen.
H-REV : You can flip the picture horizontally on the screen.
D-ZOOM : You can use a digital zoom of x1~x10.
SHARPNESS : As you increase this value, the picture outline becomes stronger and clearer.
Adjust this value appropriately depending on the sharpness of the picture.
RETURN : Select this to save the settings for the IMAGE ADJ. menu and to return to
the SETUP menu.
1.
2.
3.
4.
5.
6.
7.
8.
Notes
• When H-REV or V-REV is selected, any text in the picture also will be flipped horizontally
or vertically.
• If you increase the SHARPNESS level too high, the picture may become distorted or
noise may appear.
SPECIAL
CAM TITLE
SYNC
MOTION DET
PRIVACY
DIS
LANGUAGE
RESET
RETURN
OFF
INT
OFF
OFF
OFF
ENGLISH
CAM TITLE : If you enter a title, the title will appear on the monitor.
1) If the SPECIAL menu screen is displayed, use the Up and Down buttons so that
the arrow indicates ‘CAM TITLE’.
2) Set it to ‘ON’ by using the Left and Right buttons.
Notes
SPECIAL
1. When the SETUP menu screen is displayed, select ‘SPECIAL’ by using the Up and Down
buttons so that the arrow indicates ‘SPECIAL’.
MAIN SETUP
1.LENS
2.EXPOSURE
3.WHITE BAL
4.BACKLIGHT
5.SSNR
6.DAY/NIGHT
7.IMAGE ADJ
8.SPECIAL
9.EXIT
DC
ATW
OFF
ON
AUTO
2. Select a desired mode using the Up and Down buttons.
COLOR CCD CAMERA
24 User’s Manual
• When the CAM TITLE menu is ‘OFF’, no title
will be displayed on the monitor screen
even if you enter one.
SPECIAL
1. CAM TITLE
2. SYNC
3) Press the SET button.
4) Use the 4 direction buttons to move to a
desired letter and select the letter by pressing
the SET button. Repeat this to enter multiple
letters. You can enter up to 15 letters.
OFF
INT
Camera ID
ABCDEFGHIJKLM
NOPQRSTUVWXYZ
abcdefghijklm
nopqrstuvwxyz
-.123456789
CLR POS END
Notes
• If you move the cursor to CLR and press the SET button, all the letters are deleted. To
edit a letter, change the cursor to the bottom left arrow and press the SET button. Move
the cursor over the letter to be edited, move the cursor to the letter to be inserted and
then press the SET button.
COLOR CCD CAMERA
25 User’s Manual
How to Use the Camera
5) Enter a title, move the cursor to ’POS’ and press the
SET button. The entered title appears on the screen.
Select the position to display the title on the screen
by using the 4 direction buttons and press the SET
button. When the position is determined, select ’END’
and press the SET button to return to the SPECIAL
menu.
FRONT DOOR
to Locate, then SET
SYNC : In areas where the supply is at 60Hz, you can
synchronize the output phase of multiple cameras
using the power synchronization function (Line-Lock)
without using a synchronization signal generator.
- INT : Internal Synchronization Type
- L/L : Power Synchronization Type, Line-lock
• Press the SET button.
• You can select a desired phase from 0 to 359 when
select 'phase'.
• You can decide the synchronization between luminance and color signal when select
the 'mode'.
Notes
• When using AC power at 60Hz frequency, you can use the L/L type synchronization.
• When the power is DC 12V, the SYNC. menu is fixed to the ‘INT’ mode.
MOTION DET:
This product has a feature that allows you to observe
movement of objects in 8 different areas on the screen,
and the words 'MOTION DETECTED' appear on the
screen when movement is detected.
you can monitor activity more efficient.
1) When the SPECIAL menu screen is displayed, press the Up and Down buttons so
that the arrow indicates MOTION DET .
2) Set up the mode using the 4 direction buttons.
COLOR CCD CAMERA
26 User’s Manual
- SENSITIVITY : You can select up to 8 MD areas. When SENSITIVITY number is high, motion
detection sensitivity is increased to recognize even small movement.
- AREA MODE : Determines whether to use the MD area selected in SENSITIVITY.
- SEL POS : Determines which of the 4 vertices of each MD area is to be used.
- YPOS : Determines the coordinate of the vertical axis for SEL POS.
- XPOS : Determines the coordinate of the horizontal axis for SEL POS.
- FILL SET : Fills in a selected MD area. Fills in a selected MD area. The color of filling is
sequentially selected as brown, orange, blue, cyan, yellowish green, yellow
and red.
- RETURN : Select this to save the MOTION DET menu settings and return to the SPECIAL
menu.
Notes
• MD areas show only MOTION DET menu. Therefore, MD areas don’t display on the monitor
screen.
PRIVACY : Hide an area you want to hide on the screen.
1) When the SPECIAL menu screen is displayed, press the Up and Down buttons so
that the arrow indicates ‘PRIVACY’.
2) Set up the mode using the 4 direction buttons.
- AREA SEL : You can select up to 8 MD areas.
- AREA MODE : Determines whether to use the area
selected in the AREA SEL, and the size
and position of the area.
- MASK COLOR : Determine area color. You can select
Gray, Green, Red, Blue, Black, White.
- TRANSP : Determine the transparency of selected area as
controlling number from 0 to 3.
- RETURN : Select this to save the PRIVACY menu settings
and return to the SPECIAL menu.
COLOR CCD CAMERA
27 User’s Manual
Troubleshooting
How to Use the Camera
DIS (Digital Image Stabilizer) :
This function mitigates any picture movement due to external factors such as wind.
Notes
• The chance of resolution decrease is existed because DIS function uses the digital zoom.
• DIS doesn’t operate when background illumination is too low.
• DIS doesn’t operate when object pattern is monotonic as like sky or white wall.
LANGUAGE : You can select the menu language according to your requirements.
RESET : Resets the camera settings to the factory defaults.
RETURN : Select this to save the SPECIAL menu settings and return to the SPECIAL menu.
EXIT
Press the SET button in the EXIT menu to save the current settings and exit the SET menu.
If you have trouble operating your camera, refer to the following table.
If the guidelines do not enable you to solve the problem, contact an authorized
technician.
• Nothing appears on the screen.
Check that the power cord and line connectionbetween the camera and monitor are fixed
properly.
Check that you have properly connected VIDEO cable to the camera VIDEO output jack.
Check that the lens type is VIDEO lens or DC lens.
• The image on the screen is dim.
Is lens stained with dirt? Clean your lens with soft, clean cloth.
Set the monitor to proper condition.
If the camera is exposed to too strong light, change the camera position.
• The image on the screen is dark.
Adjust the contrast feature of the monitor.
If you have an intermediate device, set the 75Ω / Hi-z properly.
• The camera is not working properly, and the surface of the camera is hot.
Check that you have properly connected the camera to an appropriate power source.
• The DAY/NIGHT menu does not work.
Check that AGC of EXPOSURE SETUP menu is ‘OFF’.
• The SENS-UP function does not work.
Check that AGC of EXPOSURE SETUP menu is ‘OFF’.
Check that SHUTTER of EXPOSURE SETUP menu is ‘A.FLK’ or ‘MANUAL’.
• The Motion Detection function does not work.
Check that MOTION DEF of SPECIAL SETUP menu is ‘OFF’.
• Color is not correct.
Check the setting of WHITE BAL SETUP menu .
• The screen flickers continually.
Check that direction of camera turns toward the Sun.
COLOR CCD CAMERA
28 User’s Manual
COLOR CCD CAMERA
29 User’s Manual
DECLARATION OF CONFORMITY
Specifications
SDC-425ND
SDC-425N
SDC-425PD
SDC-425P
SDC-425PH
Input Voltage
DC12V(±10%) AC24/DC12V(±10%) DC12V(±10%) AC24/DC12V(±10%)
AC 230V
Power Consumption Max 2.5W
Max 2.5W
Max 4.0W
Max 3.5W
Max 3.5W
1/3 inch, Diagonal 6mm Sony Interline CCD
Sensor
811(H) X 508(V)
795(H) x 596(V)
CCD Total Pixels
768(H) x 494(V)
752(H) x 582(V)
Effective Pixels
2:1 Interlace
Scanning System
Internal /
Internal /
Sync Synchronization
Internal
Internal
Line Lock
Line Lock
H : 15.734 KHz, / V: 59.94 Hz
H : 15.625 KHz, V : 50.00 Hz
Frequency
Korean, English, Japanese,
English, French, Germany, Spanish,
OSD
Spanish
Italy, Chinese
580 TV Lines
Resolution
S/N (Y signal)
52 dB (AGC Off, Weight ON)
Min. Illumination
0.05 Lux(Color), 0.0002(SENS-UPX256)/ @F1.2(50 IRE, AGC HIGH)
BLC/HLC/OFF
Back Light Compensation
Electrical
COLOR / AUTO / B/W
DAY&NIGHT
LOW/HIGH/OFF
Gain Control
E
White Balance
ATW/AWC/MANUAL/Outdoor/Indoor (1,800K~10,500K)
L
Electronic
AUTO/MANUAL(X256 ~1/60sec ~
AUTO/MANUAL(X256 ~1/50sec ~
E
C
shutter speed
1/120,000sec)/A.FLK
1/120,000sec)/A.FLK
T
SENS-UP
AUTO/OFF(Selectable X2~X256)
R
SSNR
ON/OFF (Level Adjustable)
I
C
ON/OFF (8 Zone)
Motion Detection
A
ON/OFF (8 Zone)
PRIVACY
L
V-REV
ON/OFF
H-REV
ON/OFF
FREEZE
ON/OFF
SHARPNESS
ON/OFF (Level Adjustable)
IRIS Control
DC/VIDEO
DIS
ON/OFF
D-ZOOM
ON/OFF(X10)
CAM TITLE
OFF/ON (Displayed 15 characters)
Lens Mount
C/CS Mount(changeable)
Operating
-10˚C to +50˚C / 30% to 80% RH
Temperature/Humidity
Dimension
58(W) X 52(H) X 121(D)mm
Weight
290g
310g
290g
310g
510g
POWER
COLOR CCD CAMERA
30 User’s Manual
Application of Council Directive(s)
89 / 336 / EEC
Manufacturer's Name
SAMSUNG TECHWIN CO., LTD
Manufacturer's Address
SAMSUNG TECHWIN CO., LTD
42, SUNGJU-DONG CHANGWON-CITY,
KYUNGNAM, KOREA, 641-716
European Representative Name
European Representative Address
Equipment Type/Environment
CCTV Camera
Model Name
SDC-425P, SDC-425PH, SDC-425PD
Beginning Serial NO.
S8030001
Year of Manufacture
2008. 03. 01
Conformance to
EN 50081-1 : 1992
EMC-Directive 89/336 EEC and 92/31/EEC
EN 50130-4 : 1996
We, the undersigned, hereby declare that the equipment specified above conforms
to the above Directive(s).
Manufacturer
SAMSUNG TECHWIN CO., LTD
Signature
Legal Representative in Europe
Signature
Full Name
HAN SEUG KIM
Full Name
Position
QUALITY CONTROL MANAGER
Position
Place
CHANGWON, KOREA
Place
Date
2008. 03. 01
Date
COLOR CCD CAMERA
31 User’s Manual
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
