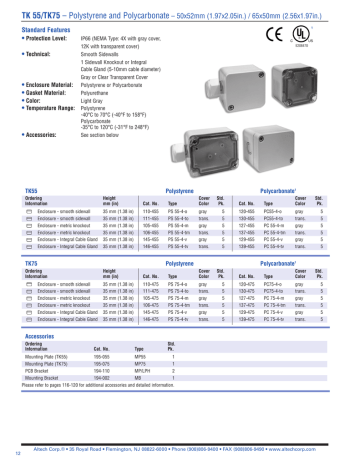

TK 55/TK75 – Polystyrene and Polycarbonate – 50x52mm (1.97x2.05in.) / 65x50mm (2.56x1.97in.)
Standard Features
• Protection Level:
• Technical:
• Enclosure Material:
• Gasket Material:
• Color:
• Temperature Range:
• Accessories:
1
IP66 (NEMA Type: 4X with gray cover,
12K with transparent cover)
Smooth Sidewalls
1 Sidewall Knockout or Integral
Cable Gland (5-10mm cable diameter)
Gray or Clear Transparent Cover
Polystyrene or Polycarbonate
Polyurethane
Light Gray
Polystyrene
-40°C to 70°C (-40°F to 158°F)
Polycarbonate
-35°C to 120°C (-31°F to 248°F)
See section below
TK55
E208470
Polycarbonate1
Polystyrene
Ordering
Information
Enclosure - smooth sidewall
Enclosure - smooth sidewall
Enclosure - metric knockout
Enclosure - metric knockout
Enclosure - Integral Cable Gland
Enclosure - Integral Cable Gland
Height
mm (in)
Cat. No.
Type
Cover
Color
Std.
Pk.
Cat. No.
Type
Cover
Color
Std.
Pk.
35 mm (1.38 in)
35 mm (1.38 in)
35 mm (1.38 in)
35 mm (1.38 in)
35 mm (1.38 in)
35 mm (1.38 in)
110-455
111-455
105-455
106-455
145-455
146-455
PS 55-4-o
PS 55-4-to
PS 55-4-m
PS 55-4-tm
PS 55-4-v
PS 55-4-tv
gray
trans.
gray
trans.
gray
trans.
5
5
5
5
5
5
120-455
130-455
127-455
137-455
129-455
139-455
PC55-4-o
PC55-4-to
PC 55-4-m
PC 55-4-tm
PC 55-4-v
PC 55-4-tv
gray
trans.
gray
trans.
gray
trans.
5
5
5
5
5
5
Std.
Pk.
Cat. No.
Type
Cover
Color
Std.
Pk.
5
5
5
5
5
5
120-475
130-475
127-475
137-475
129-475
139-475
PC75-4-o
PC75-4-to
PC 75-4-m
PC 75-4-tm
PC 75-4-v
PC 75-4-tv
gray
trans.
gray
trans.
gray
trans.
5
5
5
5
5
5
TK75
Polycarbonate1
Polystyrene
Ordering
Information
Enclosure - smooth sidewall
Enclosure - smooth sidewall
Enclosure - metric knockout
Enclosure - metric knockout
Enclosure - Integral Cable Gland
Enclosure - Integral Cable Gland
Height
mm (in)
Cat. No.
Type
Cover
Color
35 mm (1.38 in)
35 mm (1.38 in)
35 mm (1.38 in)
35 mm (1.38 in)
35 mm (1.38 in)
35 mm (1.38 in)
110-475
111-475
105-475
106-475
145-475
146-475
PS 75-4-o
PS 75-4-to
PS 75-4-m
PS 75-4-tm
PS 75-4-v
PS 75-4-tv
gray
trans.
gray
trans.
gray
trans.
Accessories
Ordering
Information
Cat. No.
Type
Std.
Pk.
Mounting Plate (TK55)
195-055
MP55
1
Mounting Plate (TK75)
195-075
MP75
1
PCB Bracket
194-110
MP/LPH
2
Mounting Bracket
194-002
MB
1
Please refer to pages 116-120 for additional accessories and detailed information.
