NEC PX602WL NEC Laser Projector BENEFITS

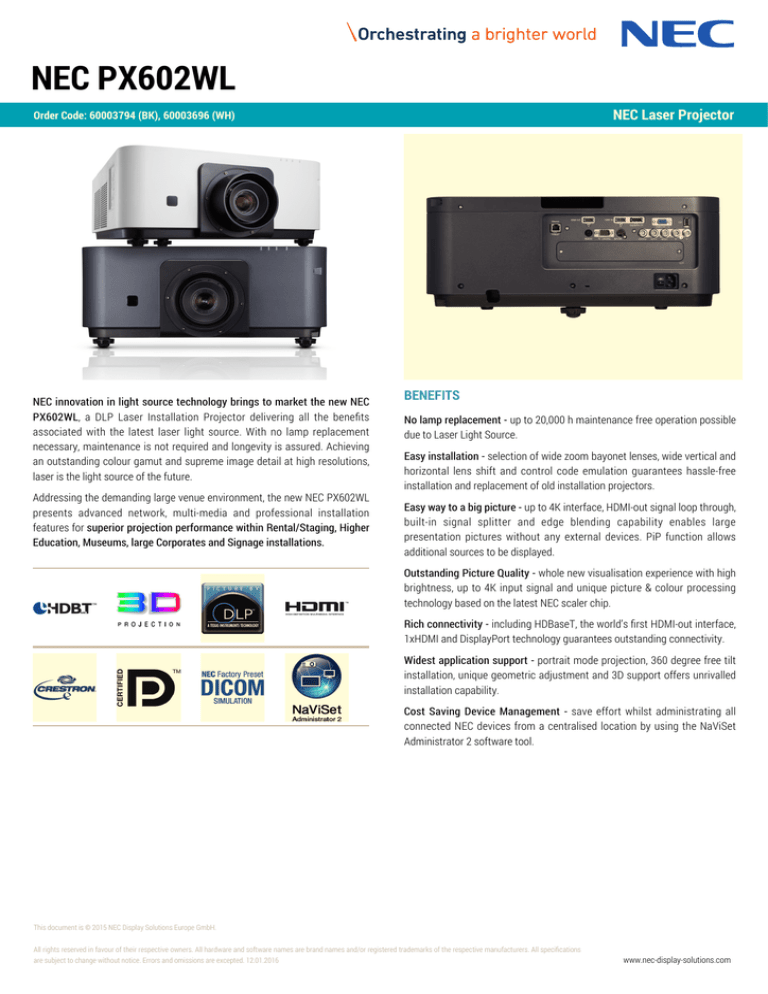

NEC PX602WL NEC Laser Projector Order Code: 60003794 (BK), 60003696 (WH) NEC innovation in light source technology brings to market the new NEC PX602WL, a DLP Laser Installation Projector delivering all the beneﬁts associated with the latest laser light source. With no lamp replacement necessary, maintenance is not required and longevity is assured. Achieving an outstanding colour gamut and supreme image detail at high resolutions, laser is the light source of the future. Addressing the demanding large venue environment, the new NEC PX602WL presents advanced network, multi-media and professional installation features for superior projection performance within Rental/Staging, Higher Education, Museums, large Corporates and Signage installations. BENEFITS No lamp replacement - up to 20,000 h maintenance free operation possible due to Laser Light Source. Easy installation - selection of wide zoom bayonet lenses, wide vertical and horizontal lens shift and control code emulation guarantees hassle-free installation and replacement of old installation projectors. Easy way to a big picture - up to 4K interface, HDMI-out signal loop through, built-in signal splitter and edge blending capability enables large presentation pictures without any external devices. PiP function allows additional sources to be displayed. Outstanding Picture Quality - whole new visualisation experience with high brightness, up to 4K input signal and unique picture & colour processing technology based on the latest NEC scaler chip. Rich connectivity - including HDBaseT, the world’s ﬁrst HDMI-out interface, 1xHDMI and DisplayPort technology guarantees outstanding connectivity. Widest application support - portrait mode projection, 360 degree free tilt installation, unique geometric adjustment and 3D support offers unrivalled installation capability. Cost Saving Device Management - save effort whilst administrating all connected NEC devices from a centralised location by using the NaViSet Administrator 2 software tool. This document is © 2015 NEC Display Solutions Europe GmbH. All rights reserved in favour of their respective owners. All hardware and software names are brand names and/or registered trademarks of the respective manufacturers. All speciﬁcations are subject to change without notice. Errors and omissions are excepted. 12.01.2016 www.nec-display-solutions.com NEC PX602WL - Technical Specification Projection Technology 1-chip DLP™ Technology Native Resolution 1280 x 800 (WXGA) Contrast Ratio 1 10000:1 Brightness 1 6000 ANSI Lumen, with std. optional lense Lamp Laser Light Source Lamp Life [hrs] 20000 Lens 5 optional bayonet lenses Projection Factor depending on lens selection Projection Distance [m] 1.02 – 19.39 Screen Size (diagonal) [cm] / [inch] Maximum: 760 / 300"; Minimum: 127 / 0" Zoom Motorized Focus Adjustment Motorized Supported Resolutions 4096 x 2160 (4k); 2560 x 1600 (WQXGA); 2048 x 1080 (2k); 1920x1200 (WUXGA) - 640x480 (VGA); 1080i/50/60; 1080p/24/25/30/50/60; 720p/60; 720p/50; 576i/50; 576p/50; 480p/60; 480i/50 Frequency Horizontal: analog: 15/24-100 kHz, digital: 15/24-153 kHz; Vertical: analog: 48-120 Hz, digital: 24-120 Hz RGB (analog) Input: 1 x 5BNC, shared with Component Signal (YPbPr); 1 x Mini D-sub 15 pin Digital Input: 1 x DisplayPort supporting HDCP; 1 x HDBaseT; 1 x HDMI™ supporting HDCP Output: 1 x HDMI supporting HDCP Video Input: 1 x BNC R Share S-Video Input: 1 x BNC G/B Share Control Input: 1 x 3.5 mm Stereo Mini Jack (Wired Remote); 1 x D-Sub 9 pin (RS-232); 1 x Ethernet shared with HDBaseT Option Slot Input: 1 x Slot for optional OPS modules USB 1 x Type A (USB 2.0 high speed for mouse support) 3D Sync Output: 1 x Mini DIN 3pin Video Signals NTSC; NTSC 4.43; PAL; PAL-M; PAL-N; PAL60; SECAM REMOTE CONTROL Remote Control Auto Adjust; AV Mute; Direct Info; Direct Source Select; Eco Mode Control; Freeze-function; Full Lense control; Help-function; ID Select; Illuminated Buttons; Input Control; Magnify-function; On Screen On/Off Selection; Picture Adjust; PIP Function; Power (On-OFF); Select (up, down, left, right); Shutter function; Test Picture; Wired / Wireless Connection ELECTRICAL Power Supply 100-240 V AC; 50 - 60 Hz Power Consumption [W] 270 Eco Mode; 550 Normal Mode Dimensions (W x H x D) [mm] 484 x 195 x 509 (without lens and feet) Weight [kg] 18.5 Fan Noise [dB (A)] 38 Colour Versions Black; White ERGONOMICS Safety and Ergonomics CE; ErP; RoHS; TÜV GS ADDITIONAL FEATURES Special Characteristics 4K Interface; AMX Beacon; Built-in Display/Multiscreen Splitter; Cinema Quality Picture (CQP) Processing for best image quality; Crestron RoomView; DICOM Simulation; Digital 3D Reform™; Direct Power-Off Function; Edge Blending Function (Build In); Free Tilt; Full 3D HDMI Support; Geometric Correction; HDBaseT; Keystone Correction (H=±40°, V=±40°); LAN; Lens Shift (vertical +0.5 max/-0.5 max, horizontal ± 0.15 max.); Light Source Adjustment; Manual Wall Color Correction; Multi-Screen compensation mode; NaViSet Administrator 2; OPS module support; Optional User Logo; OSD with 27 languages; Password Security System; Picture in Picture / Picture by Picture; PJ LINK; Portrait Setting; RS-232 Control; Stacking Function; Timer-Function; Virtual Remote for direct PC control GREEN FEATURES Energy Eﬃciency Laser Light Source Ecological Materials 100% recyclable packaging; Downloadable manuals Ecological Standards ErP compliant Projectors 3 years pan-European service Light Source 3 years or 10000h (whatever comes ﬁrst) SHIPPING CONTENT Shipping Contents IR Remote Control (RD - 465E); Network Set-up Guide; Power Cord; Projector; Quick Setup Guide; Stacking Holder; Users Manual on CD-ROM; Utility software OPTIONAL ACCESSORIES Optional Accessories DLP-Link 3D Glasses (VolfoniFit); Flightcase; Portrait Mode Cover (NP07CV); Stacking Frame (PJ01FPX); XpanD 3D Glasses (X105-RFX2); XpanD 3D RF Emitter (AD025-RF-X1) Lenses NP33ZL (0.79-1:1) available from 04/2015; NP34ZL (1-1.28:1); NP36ZL (1.28-1.61:1); NP37ZL (1.6-3.07:1); NP38 (3.04-5.78:1) OPS Slot-in Modules Digital Signage Player; HD/SD-SDI Module; HDBaseT Receiver; Slot-in PCs IMAGE CONNECTIVITY MECHANICAL WARRANTY 1 Compliance with ISO21118-2012 50% of initial brightness at the end of speciﬁed laser life time. This product has been equipped with a laser module and is classiﬁed according to Class 2 of Safety of Laser Products IEC 60825-1. DO NOT LOOK DIRECTLY INTO THE BEAM.
