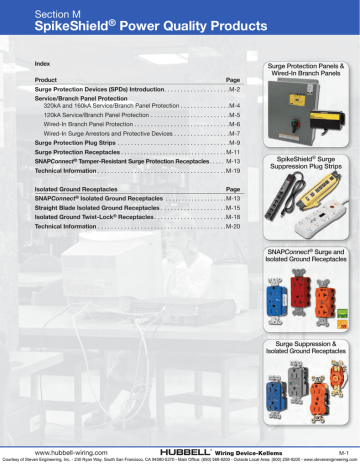

Section M - SpikeShield Power Quality Products

Section M

SpikeShield

®

Power Quality Products

Index

Product Page

Surge Protection Devices (SPDs) Introduction . . . . . . . . . . . . . . . . . . . .M-2

Service/Branch Panel Protection

320kA and 160kA Service/Branch Panel Protection . . . . . . . . . . . . . . .M-4

120kA Service/Branch Panel Protection . . . . . . . . . . . . . . . . . . . . . . . .M-5

Wired-In Branch Panel Protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . .M-6

Wired-In Surge Arrestors and Protective Devices . . . . . . . . . . . . . . . . .M-7

Surge Protection Plug Strips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .M-9

Surge Protection Receptacles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . M-11

SNAPConnect

®

Tamper-Resistant Surge Protection Receptacles . . . . . M-13

Technical Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .M-19

Isolated Ground Receptacles Page

SNAPConnect

®

Isolated Ground Receptacles . . . . . . . . . . . . . . . . . . . M-13

Straight Blade Isolated Ground Receptacles . . . . . . . . . . . . . . . . . . . .M-15

Isolated Ground Twist-Lock ®

Receptacles . . . . . . . . . . . . . . . . . . . . . .M-18

Technical Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .M-20

Surge Protection Panels &

Wired-In Branch Panels

SpikeShield ® Surge

Suppression Plug Strips

SNAPConnect

®

Surge and

Isolated Ground Receptacles

Surge Suppression &

Isolated Ground Receptacles www.hubbell-wiring.com

®

Wiring Device-Kellems

M-1

Courtesy of Steven Engineering, Inc. - 230 Ryan Way, South San Francisco, CA 94080-5370 - Main Office: (650) 588-9200 - Outside Local Area: (800) 258-9200 - www.stevenengineering.com

SpikeShield

®

Power Quality Products

Surge Protection Devices (SPDs) Introduction

Panel Protection

The SpikeShield ® line of panel surge protection devices offers a broad selection of products to meet the various requirements of industrial, commercial, institutional and residential applications. No other surge suppression system can meet the flexibility, safety and performance standards set by Hubbell.

Hubbell offers surge protection products which can handle peak amperage capacities of 50kA to 320kA.

The SpikeShield product line also includes a line of panels with replaceable modules. This series features improved performance through the use of a low impedance bus-bar design and easily replaceable bolt-down modules.

The SpikeShield branch panel protection system includes the complete compact and economical 50, 80, 100 and

120kA series product offering.

These wired-in products can protect branch panels, safety switches and load centers. They can be installed as an appendage or flush mounted to a finished wall next to the panel. The versatility of the wired-in products allows them to be used on branch panels, as well as main panel protection in smaller commercial facilities.

M-2

®

Wiring Device-Kellems

www.hubbell-wiring.com

Courtesy of Steven Engineering, Inc. - 230 Ryan Way, South San Francisco, CA 94080-5370 - Main Office: (650) 588-9200 - Outside Local Area: (800) 258-9200 - www.stevenengineering.com

SpikeShield

®

Power Quality Products

320kA, 160kA and 120kA Service/Branch Panel Protection

Features and Benefits

Surface mounting

Peak Amp Capacity

320kA and 160kA

#10 AWG to

#2 AWG lug size

Bolt-down, replaceable modules

NEMA 3R/12 enclosure

Surface mounting

Diagnostics panel

Peak Amp Capacity

120kA

#12 AWG to

#2 AWG lug size

NEMA 3R/12 enclosure

Features

Thermal fusing

Compact design with bus-bar pathways

Peak amp capacity

Bolt-down modules

Fault-current fusing

LED and audible alarm status indicator

Sine wave tracking

Benefits

Thermal fuse prevents the MOVs from overheating when exposed to high current levels.

Allows installation in areas with space restrictions. Minimizes connecting lead length which reduces impedance ensuring improved clamping performance.

Protects equipment under the worst electrical conditions.

Assures positive connection and allows for easy replacement.

Prevents excessive panel damage caused by internal short circuits or component failure.

Provides visual and audible indication of panel status. Green for operational, red for module failure.

Audible alarm for module failure with silencing.

Provides uniform clamping throughout the sine wave.

Note: All panel products are UL Listed to Standard 1449-3rd edition.

www.hubbell-wiring.com

®

Wiring Device-Kellems

M-3

Courtesy of Steven Engineering, Inc. - 230 Ryan Way, South San Francisco, CA 94080-5370 - Main Office: (650) 588-9200 - Outside Local Area: (800) 258-9200 - www.stevenengineering.com

SpikeShield

®

Power Quality Products

320kA and 160kA Service/Branch Panel Protection

Ordering Information and Specifications

The SpikeShield ® service entrance product line includes a line of panels with replaceable modules. This series features improved performance through the use of a low impedance bus-bar design and easily replaceable bolt-down modules.

They incorporate a modular (replaceable surge suppression modules) design and feature the latest industry approvals and safety ratings.

Including UL 1449-3rd edition.

HBL4P320A

HBL8P160DA

Service/Branch Panel Protection 320,000 Peak Amp Capacity (Type 2 SPD)

Voltage V AC

120/240 Single phase

120/208 Wye*

240/120 Delta split phase

277/480 Wye**

347/600 Wye

Configuration

1Ph. 3-wire +G

3Ph. Wye 4-wire +G

3Ph. Delta 4-wire +G ‘High Leg’

3Ph. Wye 4-wire +G

3Ph. Wye 4-wire +G

Catalog Number

HBL3P320A

HBL4P320A

HBL6P320A

HBL8P320A

HBL10P320A

With Disconnect

HBL3P320DA

HBL4P320DA

HBL6P320DA

HBL8P320DA

HBL10P320DA

Replacement Module

HBL160M120A

HBL160M120A

HBL160M240A & HBL160M120A

HBL160M480A

HBL160M600A

Service/Branch Panel Protection 160,000 Peak Amp Capacity (Type 2 SPD)

120/240 Single phase

120/208 Wye*

240/120 Delta split phase

277/480 Wye**

347/600 Wye

1Ph. 3-wire +G

3Ph. Wye 4-wire +G

3Ph. Delta 4-wire +G ‘High Leg’

3Ph. Wye 4-wire +G

3Ph. Wye 4-wire +G

HBL3P160A

HBL4P160A

HBL6P160A

HBL8P160A

HBL10P160A

HBL3P160DA

HBL4P160DA

HBL6P160DA

HBL8P160DA

HBL10P160DA

Note: Units come standard with Surge Counter.

*120/208 Wye also applies to 127/220 Wye.

**277/480 Wye also applies to 220/380 Wye, 230/400 Wye and 240/415 Wye.

Electrical Specifications

Catalog Number SCCR

HBL3P320A

HBL3P160A 200kA

HBL4P320A

HBL4P160A 200kA

HBL6P320A

HBL6P160A 200kA

HBL8P320A

HBL8P160A 200kA

HBL10P320A

HBL10P160A 200kA

Note: SCCR - Short Circuit Current Rating.

† MCOV - Maximum Continuous Operating Voltage.

In - Nominal discharge current.

In

20kA

20kA

20kA

20kA

20kA

MCOV †

150/300

150/300

270/150

320/640

420/840

HBL160M120A

HBL160M120A

HBL160M240A & HBL160M120A

HBL160M480A

HBL160M600A

Voltage Protection Rating (VPR)

L-N L-G N-G

700

700

1200/700

1200

1500

700

700

1200/700

1200

1500

700

700

700

1200

1500

L-L

1200

1200

1500/1000

1200

2500

Product Specifications

Max. Surge Current per Phase: 320kA and 160kA

Max. Operating Temperature:

Diagnostics:

-40ºF to 149ºF (-40ºC to 65ºC)

Red & Green LED’s, Diagnostic Test Switches, Dry Contacts, Audible Alarm, Surge Counter

Dimensions (Wye):

Dimensions (Delta):

Weight (320kA):

Weight (160kA):

Terminal Accommodation:

Frequency:

EMI/RFI:

NEMA:

Listing:

Warranty:

6.0"D x 20.0"W x 24.0"L (with Disconnect); 6.0"D x 12.0"W x 12.0"L (without Disconnect)

6.0"D x 16.0"W x 20.0"L (with Disconnect); 7.0"D x 14.0"W x 16.0"L (without Disconnect),

54 lbs. (without Disconnect), 57.5 lbs. (with Disconnect)

21.9 lbs. (without Disconnect), 21.8lbs. (with Disconnect)

#10 AWG to #2 AWG

50/60 Hz

Up to -30dB

3R/12 Metallic cULus UL1449-3rd edition type 2 SPD, UL1283, CSA C22.2 NO. 8-M1986

10 year

M-4

®

Wiring Device-Kellems

www.hubbell-wiring.com

Courtesy of Steven Engineering, Inc. - 230 Ryan Way, South San Francisco, CA 94080-5370 - Main Office: (650) 588-9200 - Outside Local Area: (800) 258-9200 - www.stevenengineering.com

SpikeShield

®

Power Quality Products

120kA Service/Branch Panel Protection

Ordering Information and Specifications

The SpikeShield ® 120kA branch panel product offering features an economical, compact, modular design.

These wired-in products can protect branch panels, safety switches and load centers. They can be installed as an appendage or flush mounted to a finished wall next to the panel. The versatility of the wired-in products allows them to be used on branch panels, as well as main panel protection found in smaller commercial facilities or residential applications.

HBL8P120B

Service/Branch Panel Protection 120,000 Peak Amp Capacity (Type 2 SPD)

Voltage V AC

120/240 Single Phase

120/208 Wye*

240/120 Delta split phase

277/480 Wye**

347/600 Wye

Configuration

1Ph. 3-wire +G

3Ph. Wye 4-wire +G

3Ph. Delta 4-wire +G ‘High Leg’

3Ph. Wye 4-wire +G

3Ph. Wye 4-wire +G

Catalog Number

HBL3P120B

HBL4P120B

HBL6P120B

HBL8P120B

HBL10P120B

Note: Units come standard with Surge Counter.

*120/208 Wye also applies to 127/220 Wye.

**277/480 Wye also applies to 220/380 Wye, 230/400 Wye and 240/415 Wye.

Replacement Module

HBL3P120BM

HBL4P120BM

HBL6P120BM

HBL8P120BM

HBL10P120BM

Electrical Specifications

Catalog Number

HBL3P120B

HBL4P120B

HBL6P120B

HBL8P120B

HBL10P120B

SCCR

200kA

In

20kA

200kA 20kA

200kA 20kA

MCOV †

150/270

150/270

275/150

200kA 20kA 320/640

200kA 20kA 390/780

Note: SCCR - Short Circuit Current Rating.

† MCOV - Maximum Continuous Operating Voltage.

In - Nominal discharge current.

Voltage Protection Rating (VPR)

L-N L-G N-G

700

700

1000/700

1200

1500

700

700

1000/700

1200

1500

700

700

700

1200

1500

L-L

1200

1200

1500/1200

2000

2500

Product Specifications

Max. Surge Current per Phase: 120kA

Max. Operating Temperature:

Diagnostics:

-40ºF to 149ºF (-40ºC to 65ºC)

Red & Green LED’s, Diagnostic Test Switches, Dry Contacts, Audible Alarm, Surge Counter

Dimensions:

Weight:

Terminal Accommodation:

Frequency:

EMI/RFI:

NEMA:

Listing:

Warranty:

7.0"D x 14.0"W x 16.0"L

21.8 lbs.

#12 AWG to #2 AWG

50/60 Hz

Up to -30dB

3R/12 Metallic cULus UL1449-3rd edition type 2 SPD, UL1283, CSA C22.2 NO. 8-M1986

10 year www.hubbell-wiring.com

®

Wiring Device-Kellems

M-5

Courtesy of Steven Engineering, Inc. - 230 Ryan Way, South San Francisco, CA 94080-5370 - Main Office: (650) 588-9200 - Outside Local Area: (800) 258-9200 - www.stevenengineering.com

SpikeShield

®

Power Quality Products

Wired-In Branch Panel Protection

100,000 Peak Amperage Capacity

The wired-in surge protection device brick design is ideal for areas where space is a major consideration.

The surge unit can be mounted directly to the panel through a chase nipple connection which will reduce lead length and impedance while increasing protection levels.

The 100kA product features a NEMA 4X housing and a 200kA SCCR rating.

They SpikeShield wired-in surge protective devices are UL 1449-3rd edition listed.

HBL9W100C

Wired-In Branch Panel Protection 100,000 Peak Amp Capacity (Type 2 SPD)

Service Voltage V AC

120/240 Single Phase

120/208 Wye*

240 Delta

240/120 Delta split phase

277/480 Wye**

480 Delta

347/600 Wye

600 Delta

Configuration

1Ph. 3-wire +G

3Ph. Wye 4-wire +G

3Ph. Delta 3-wire Corner Gnd

3Ph. Delta 4-wire +G ‘High Leg’

3Ph. Wye 4-wire +G

3Ph. Delta 3-wire Corner Gnd

3Ph. Wye 4-wire +G

3Ph. Delta 3-wire Corner Gnd

Note: *120/208 Wye also applies to 127/220 Wye.

**277/480 Wye also applies to 220/380 Wye, 230/400 Wye and 240/415 Wye.

Also can be used on ungrounded systems.

Catalog Number

HBL3W100C

HBL4W100C

HBL5W100C

HBL6W100C

HBL8W100C

HBL9W100C

HBL10W100C

HBL11W100C

Electrical Specifications

Catalog Number

HBL3W100C

HBL4W100C

HBL5W100C

HBL6W100C

HBL8W100C

HBL9W100C

HBL10W100C

HBL11W100C

SCCR

200kA

200kA

200kA

200kA

200kA

200kA

200kA

200kA

In

20kA

MCOV †

150/270

20kA 150/270

20kA 300

20kA 275/150

20kA 320/640

20kA 640

20kA 390/780

20kA 780

Note: SCCR - Short Circuit Current Rating.

† MCOV - Maximum Continuous Operating Voltage.

In - Nominal discharge current.

Product Specifications

Max. Surge Current per Phase:

Max. Operating Temperature:

Diagnostics:

Dimensions:

Weight:

Terminal Accommodation:

Frequency:

EMI/RFI:

NEMA:

Listing:

Warranty:

L-N

Voltage Protection Rating (VPR)

L-G N-G

900

900

N/A

1000

1200

N/A

1500

N/A

1200

1200

N/A

1200

2000

N/A

2500

N/A

700

700

N/A

700

1000

N/A

1500

N/A

100kA

-40ºF to 140ºF (-40ºC to 60ºC)

Green Status LED’s, Audible Alarm, Dry Contacts

3.1"D x 9.9"W x 4.8"H

4.78 lbs.

#10 AWG 18.0" Wire Leads

50/60 Hz

Up to -30dB

Type 4X cULus UL1449-3rd edition type 2 SPD,

UL1283 (Wye prod. only), CSA C22.2 NO. 8-M1986

10 year

L-L

1500

1500

1500

1500

2500

3000

3000

3000

M-6

®

Wiring Device-Kellems

www.hubbell-wiring.com

Courtesy of Steven Engineering, Inc. - 230 Ryan Way, South San Francisco, CA 94080-5370 - Main Office: (650) 588-9200 - Outside Local Area: (800) 258-9200 - www.stevenengineering.com

SpikeShield

®

Power Quality Products

Wired-In Surge Arrestors and Protective Devices

36,000, 40,000 and 50,000 Peak Amperage Capacity

Surge Arrestors are a low cost solution that may be installed on the line side or load side of the service entrance. These are also excellent for OEM applications where size is an important variable.

Hubbell’s 50kA single phase wired-in surge protective devices feature a compact design,

NEMA 4X rating and are UL 1449-3rd edition listed.

HBL3W50

HBLSDSA36

HBLSDSA40

Wired-In Surge Arrestors, Single Phase 36,000 and Three Phase 40,000 (Type 1 / Type 2 SPD)

Service Voltage V AC

120/240 Single Phase

347/600V Max Three Phase

Configuration

1Ph. 3-wire

3Ph. 4-wire

Peak Amp Capacity

36kA

40kA

Mounting Means

Back Nipple Mount

Back Nipple Mount

Catalog Number

HBLSDSA36

HBLSDSA40

Wired-In Surge Protective Devices 50,000 Peak Amp Capacity (Type 1 SPD)

Service Voltage V AC

120/240 Single Phase

Configuration

1Ph. 3-wire + G

Peak Amp Capacity

50kA

Mounting Means

Side Nipple Mount

Catalog Number

HBL3W50

Electrical Specifications

Catalog Number

HBLSDSA36

HBLSDSA40

HBL3W50

HBL3W120

SCCR

25kA

200kA

25kA

25kA

In

10kA

Note: SCCR - Short Circuit Current Rating.

† MCOV - Maximum Continuous Operating Voltage.

In - Nominal discharge current.

MCOV †

150

10kA 750/1500

10kA 150

10kA 150

Voltage Protection Rating (VPR)

L-N L-G N-G

700

2500

700

700

N/A

N/A

800

800

N/A

N/A

N/A

N/A

L-L

1200

4000

1200

1200

Product Specifications

Max. Surge Current per Phase:

Max. Operating Temperature:

Diagnostics:

Dimensions:

Weight:

Terminal Accommodation:

Frequency:

EMI/RFI:

NEMA:

Listing:

Warranty:

36kA

-40ºF to 160ºF

(-40ºC to 70ºC)

Green Status LED per line

1.9"D x 2.25"W x 2.25"H

.72 lbs.

#14 AWG Wire Leads

50/60 Hz

Up to -30dB

Type 4X

UL1449-3rd edition

2 year

40kA

-40ºF to 160ºF

(-40ºC to 70ºC)

Green Status LED per line

2.64"D x 3.6"W x 3.0"H

1.8 lbs.

#12 AWG Wire Leads

50/60 Hz

Up to -30dB

Type 4X

UL1449-3rd edition

2 year

50kA

-40ºF to 160ºF

(-40ºC to 70ºC)

Green Status LED per line

2.7"D x 3.0"W x 3.6"H

1.8 lbs.

#12 AWG Wire Leads

50/60 Hz

Up to -30dB

Type 4X

UL1449-3rd edition

10 year www.hubbell-wiring.com

®

Wiring Device-Kellems

M-7

Courtesy of Steven Engineering, Inc. - 230 Ryan Way, South San Francisco, CA 94080-5370 - Main Office: (650) 588-9200 - Outside Local Area: (800) 258-9200 - www.stevenengineering.com

SpikeShield

®

Power Quality Products

Surge Protection Plug Strips

Features and Benefits

Energy

Saving

UL 1449

3 rd Edition

HBL8ESPS1050M: 1050 joule, 6 foot cord, energy saving unit with master/slave set up.

Turns power off to peripherals when item plugged into master is powered off.

HBL7PS1050A: 1050 joule, 6 foot cord,

$5,000 down-line warranty, tamperresistant shutters.

HBL8PS350YL: Yellow, high visibility, robust, metal housing, 350 joules, 6 foot cord, wire management feature, $2,500 down-line warranty.

HBL4PS1050USB: Four outlet, 1050 joule

SPD features a black housing, 6 foot cord,

90 degree plug, and two USB ports for charging smart phones and other electronic devices.

M-8

®

Wiring Device-Kellems

www.hubbell-wiring.com

Courtesy of Steven Engineering, Inc. - 230 Ryan Way, South San Francisco, CA 94080-5370 - Main Office: (650) 588-9200 - Outside Local Area: (800) 258-9200 - www.stevenengineering.com

SpikeShield

®

Power Quality Products

Surge Protection Plug Strips

15 Ampere, 125 Volts 50/60Hz

SpikeShield ® Surge Protective Devices

Plug-in Style Surge Outlets

Description

Single outlet plug-in SPD

Single outlet plug-in SPD w/phone line protection

# of

Outlets

1

1

Joule

Rating

Peak AMP

Rating

Cord

Length Color

750 13.5kA

N/A Off. White

750 13.5kA

N/A Off. White

Single outlet plug-in SPD w/CATV protection

Three outlet plug-in SPD

1

3

750 13.5kA

N/A Off. White

750 13.5kA

N/A Off. White

Warranty Catalog Number

N/A

HBL1PI750

N/A

HBL1PI750M

N/A

HBL1PI750C

N/A

HBL3PI750

SpikeShield ® Surge Protection Plug Strips

Metallic Strips

Description

Metal Power Strip

(No surge protection)

Metal SPD

SPD w/Wire Management

SPD w/Wire Management

Heavy Duty SPD w/HBL5252BK Receptacles

Heavy Duty SPD w/HBL8200HW Receptacles

# of

Outlets

6

Joule

Rating

N/A

Peak AMP

Rating

Cord

Length

N/A

Color

6' Off. White

6 1050 19.5kA

6 350 6.5kA

8 350 6.5kA

6 900 30kA

6 900 30kA

UL 1449

3 rd Edition

Down Line

Warranty Catalog Number

N/A

HBL6MPS

6' Off. White $2,500

HBL6MPS1050

6' Yellow $2,500

HBL6PS350YL

6' Yellow $2,500

HBL8PS350YL

6' Black N/A

HBL6PS

6' Black N/A

HBL6PSHG

Tamper-Resistant Non-Metallic Strips

Description

Power Strip

(No surge protection)

SPD

SPD

# of

Outlets

6

6

6

Joule

Rating

N/A

Peak AMP

Rating

Cord

Length

N/A

Color

6' Off. White

350 6.5kA

350 6.5kA

Down Line

Warranty Catalog Number

N/A

HBL6PPS

6' Off. White $2,500

HBL6PS350A

15' Off. White $2,500

HBL6PS35015A

SPD

SPD w/Fax/Modem

SPD

SPD w/Fax/Modem

SPD

SPD w/Fax/Modem/CATV

SPD w/Fax/Modem/CATV/DSS

6 350 6.5kA

6 1050 19.5kA

25' Off. White $2,500

HBL6PS35025A

6' Off. White $2,500

HBL6PS1050MA

7 1050 19.5kA

7 1050 19.5kA

6'

6'

Off. White $10,000

Off. White $10,000

HBL7PS1050A

HBL7PS1050MA

7 1050 19.5kA

15' Off. White $10,000

HBL7PS105015A

8 2100 39kA

8 2100 39kA

6' Off. White $25,000

HBL8PS2100MA

6' Off. White $25,000

HBL8PS2100DA

Specialty Non-Metallic Surge Strips

Description

SPD w/Two USB Ports

Remote Switch SPD w/One Keychain Ring Control

# of

Outlets

Joule

Rating

Peak AMP

Rating

Cord

Length

4 1050 19.5kA

6'

6 2100 39kA

Color

Black

Down Line

Warranty Catalog Number

$10,000

HBL4PS1050USB*

6' Off. White $25,000

HBL6RSPS2100

8 1050 19.5kA

6' Off. White $10,000

HBL8ESPS1050M

Energy Saving SPD w/Master/

Controlled Design w/Fax/Modem

Energy Saving SPD Master/

Controlled Design w/CATV Protection

8 1050 19.5kA

6' Off. White $10,000

HBL8ESPS1050C

Note: See page Tech-10 for Tamper-Resistant description.

*With 90 Angle Plug.

HBL1PI750 HBL1PI750M

HBL1PI750C HBL3PI750

HBL6MPS

HBL6PS

HBL6PS350YL

HBL6PS350A

HBL8PS2100MA

HBL8PS350YL HBL6RSPS2100 HBL8ESPS1050M

www.hubbell-wiring.com

®

Wiring Device-Kellems

M-9

Courtesy of Steven Engineering, Inc. - 230 Ryan Way, South San Francisco, CA 94080-5370 - Main Office: (650) 588-9200 - Outside Local Area: (800) 258-9200 - www.stevenengineering.com

SpikeShield

®

Power Quality Products

Surge Protection Receptacles

Features and Benefits

Meets UL Standards 1449 3rd

Edition and 498; CSA Certified

Damage-alert alarm sounds when surge protection is no longer functioning and keeps sounding until the receptacle is replaced or muting screw is utilized

Muting screw allows damage- alert alarm to be silenced until device is replaced

Power-on indicator light verifies instantly that power is available at the receptacle and the suppression circuit is fully functional; light off means power has been interrupted; flashing light indicates surge protection circuitry has been damaged

Distinctive surge symbol provides quick visual identification of surge suppression receptacle.

High-impact nylon face resists breakage

Fits standard wall box

Automatic self-grounding staple attached to bridge meets NEC requirements

®

IG8362SA

Note: The effectiveness of SPD devices diminishes with the increase in distance between the device and the equipment to be protected.

Surge Protection Receptacles

Hubbell has the broadest offering of SPD receptacles in the industry with technology that is unsurpassed. Inside

Hubbell SPD receptacles are two 22mm square MOVs providing 240 joules of surge protection for each mode.

The nylon component shield protects the printed circuit board from moisture and contaminants. An all-glass PC board provides superior moisture immunity for longer life in humid environments. Conformal coating is provided on the printed circuit board for additional moisture immunity.

NEC

®

is a registered trademark of the National Fire Protection Association (NFPA).

M-10

®

Wiring Device-Kellems

www.hubbell-wiring.com

Courtesy of Steven Engineering, Inc. - 230 Ryan Way, South San Francisco, CA 94080-5370 - Main Office: (650) 588-9200 - Outside Local Area: (800) 258-9200 - www.stevenengineering.com

SpikeShield

®

Power Quality Products

Surge Protection Receptacles

15 and 20 Ampere, 125 Volts AC 60 Hz

G

W

Circuit Guard

®

, Specification Grade

Duplex Receptacles

Description

Surge suppression receptacles with light, 240 joules/15000A per mode.

Surge suppression receptacles with light and alarm, 240 joules/15000A per mode.

Isolated ground, surge suppression receptacles with light and alarm,

240 joules/15000A per mode.

4-PLEX ® surge suppression receptacles with lights. 80 joules/6500A per mode.

Color

Blue

Ivory

Office White

White

Almond

Blue

Gray

Ivory

Office White

White

Blue

Gray

Ivory

Office White

Orange

White

Blue

Ivory

15A 125V

NEMA 5-15R

UL CSA

Catalog Number

HBL5260SA

HBL5260ISA

HBL5260OWSA

HBL5260WSA

HBL5262ALSA

HBL5262SA

HBL5262GYSA

HBL5262ISA

HBL5262OWSA

HBL5262WSA

IG5262SA

IG5262GYSA

IG5262ISA

IG5262OWSA

IG5262OSA

IG5262WSA

HBL415S

HBL415IS

Circuit Guard

®

, Hospital Grade Duplex Receptacles

Description

Surge suppression receptacles with light and alarm, 240 joules/15000A per mode.

Color

Almond

Blue

Gray

Ivory

Red

White

Isolated ground, surge suppression receptacles with light and alarm,

240 joules/15000A per mode.

4-PLEX surge suppression receptacles with lights, 80 joules/6500A per mode.

Blue

Gray

Ivory

Orange

Red

White

Blue

Ivory

Red

Catalog Number

HBL8262ALSA

HBL8262SA

HBL8262GYSA

HBL8262ISA

HBL8262RSA

HBL8262WSA

IG8262SA

IG8262GYSA

IG8262ISA

IG8262OSA

IG8262RSA

IG8262WSA

G

W

20A 125V

NEMA 5-20R

UL CSA

HBL5360SA

HBL5360ISA

HBL5360OWSA

HBL5360WSA

HBL5362ALSA

HBL5362SA

HBL5362GYSA

HBL5362ISA

HBL5362OWSA

HBL5362WSA

IG5362SA

IG5362GYSA

IG5362ISA

IG5362OWSA

IG5362OSA

IG5362WSA

HBL420S

HBL420IS

HBL8362ALSA

HBL8362SA

HBL8362GYSA

HBL8362ISA

HBL8362RSA

HBL8362WSA

IG8362SA

IG8362GYSA

IG8362ISA

IG8362OSA

IG8362RSA

IG8362WSA

HBL420HS

HBL420HIS

HBL420HRS

3.28"

(66.5)

1.30"

(33.0)

1.13"

(28.7)

1.75"

(44.5)

HBL5262GYSA

3.28"

(66.5)

1.30"

(33.0)

1.75"

(44.5)

IG5362SA

1.13"

(28.7)

1.30"

(33.0)

1.23"

(31.2)

1.23"

(31.2)

1.23"

(31.2)

3.28"

(66.5)

4-PLEX

®

Accessories

Description

4-PLEX adapter plates for 1- and 2-gang

(4-PLEX mount directly to 4" (101.6) square device boxes).

4-PLEX portable box. Portable 4" (101.6) square box with one cord grip. Accepts up to .66" (16.8) dia. cord.

Note: 4-PLEX box is not UL Listed.

Color

Blue

Ivory

Red

Ivory

Catalog Number

HBL4APBL

HBL4API

HBL4APR

HBL4PBI

1.13"

(28.7)

1.75"

(44.5)

HBL8362ISA

Wallplates (Sold Separately)

Configuration Color

High-Impact Nylon

Standard

1-Gang

Almond

Blue

Blue

Gray

Ivory

Ivory

Off. White

Orange

Red

White

NP26AL

NP26GY

NP26I

NP26OW

NP26OIG**

NP26R

NP26W

Mid-Size

NPJ26AL

NPJ26CBL*

NPJ26BL

NPJ26GY

NPJ26C*

NPJ26I

NPJ26OW

NPJ26R

NPJ26W

Note: *Premarked “COMPUTER ONLY.” Lettering is block ¼" high.

**Premarked “ISOLATED GROUND.” Lettering is block ¼" high.

Jumbo size plate.

See section N for additional wallplates.

See page M-19 for technical information.

Chrome

Brass

Plated

Plated Steel

SCH26

SBP26

Stainless Steel (S/S)

Brass

Smooth S/S

Smooth S/S

Smooth

Brass

SS26

SSJ26

SB26

4.30" sq.

(109.2)

3.38" (85.9)

3.02" (76.7)

.92"

(23.4)

HBL415S

Dimensions in Inches (mm)

.1"

(2.5) www.hubbell-wiring.com

®

Wiring Device-Kellems

M-11

Courtesy of Steven Engineering, Inc. - 230 Ryan Way, South San Francisco, CA 94080-5370 - Main Office: (650) 588-9200 - Outside Local Area: (800) 258-9200 - www.stevenengineering.com

SpikeShield

®

Power Quality Products

SNAPConnect

®

Surge Protection and Isolated Ground Receptacles

Heavy Duty Specification Grade

Surge Suppression Receptacles

SpikeShield ® SNAPConnect ® tamper-resistant surge receptacles provide excellent point of use protection for sensitive electronic loads from every day power spikes and surges.

Isolated Ground Receptacles

SNAPConnect

®

Isolated Ground devices provide a clean ground path for sensitive equipment. Devices come with power indication, tamper-resistant or a combination of both.

Project Timing

• Save Time and Money

• Consistent Installation

• Meet Job Deadlines

Immediate Benefits!

Installation Efficiency

• No Stripping

• No Looping/No Tape

• No Exposed Terminals

In-Use

• Flush Appearance

• Simple Replacement

• Shallow Box Depth

M-12

®

Wiring Device-Kellems

www.hubbell-wiring.com

Courtesy of Steven Engineering, Inc. - 230 Ryan Way, South San Francisco, CA 94080-5370 - Main Office: (650) 588-9200 - Outside Local Area: (800) 258-9200 - www.stevenengineering.com

SpikeShield

®

Power Quality Products

SNAPConnect

®

Surge Protection and Isolated Ground Receptacles

Heavy Duty Specification Grade

G

W

SNAPConnect

®

Tamper-Resistant Surge

Protection Receptacle with Power Indicating LED

Description Color

Hospital Grade SNAPConnect receptacle, smooth face, duplex.

®

Tamper-Resistant, surge supression

Commercial Grade SNAPConnect

®

Tamper-Resistant, surge supression receptacle, smooth face, duplex.

Blue

Gray

Ivory

Light Almond

Red

White

Blue

Gray

Ivory

Light Almond

White

15A 125V

NEMA 5-15R

UL CSA

Catalog Number

SNAP8262S

SNAP8262GYS

SNAP8262IS

SNAP8262LAS

SNAP8262RS

SNAP8262WS

SNAP5262S

SNAP5262GYS

SNAP5262IS

SNAP5262LAS

SNAP5262WS

G

W

20A 125V

NEMA 5-20R

UL CSA

SNAP8362S

SNAP8362GYS

SNAP8362IS

SNAP8362LAS

SNAP8362RS

SNAP8362WS

SNAP5362S

SNAP5362GYS

SNAP5362IS

SNAP5362LAS

SNAP5362WS

3.31"

(84.0)

1.75"

(44.3)

SNAP5262S

1.64"

(41.7)

2.62"

(66.5)

1.33"

(33.8)

SNAPConnect ® Tamper-Resistant Isolated Ground Receptacle

Description Color Catalog Number

Hospital Grade SNAPConnect ® Tamper-

Resistant, isolated ground, smooth face, duplex.

Hospital Grade Style Line ® decorator

SNAPConnect

®

Tamper-Resistant, isolated ground, smooth face, duplex.

Commercial Grade, isolated ground

Style Line

®

Decorator

Orange

Red

Orange

Red

Orange

Orange

SNAP8200IGTR

SNAP8200RIGTR

SNAP2172IGTR

SNAP2172RIGTR

SNAP5262IGTR

SNAP2152IGTR

SNAP8300IGTR

SNAP8300RIGTR

SNAP2182IGTR

SNAP2182RIGTR

SNAP5362IGTR

SNAP2162IGTR

3.28"

(83.3)

2.62"

(66.5)

SNAP2182RIGTR

1.64"

(41.7)

.86"

(21.9)

SNAPConnect

®

Isolated Ground Receptacle with Power Indicating LED

Description Color

Hospital Grade SNAPConnect smooth face, duplex.

®

Tamper-Resistant, isolated ground,

Hospital Grade Style Line

®

decorator

SNAPConnect ® Tamper-Resistant, isolated ground, smooth face, duplex.

Commercial Grade, isolated ground

Style Line ® Decorator

Orange

Red

Orange

Red

Orange

Orange

Catalog Number

SNAP8200IGL

SNAP8200RIGL

SNAP2172IGL

SNAP2172RIGL

SNAP5262IGL

SNAP2152IGL

SNAP8300IGL

SNAP8300RIGL

SNAP2182IGL

SNAP2182RIGL

SNAP5362IGL

SNAP2162IGL

3.28"

(83.3)

.86"

(21.9)

SNAP5362IGL

1.64"

(41.7)

2.62"

(66.5)

SNAPConnect ® Tamper-Resistant Isolated Ground Receptacle with Power Indicating LED

Description Color

Hospital Grade SNAPConnect ® Tamper-

Resistant, isolated ground, smooth face, duplex.

Commercial Grade

Style Line

®

decorator

Commercial Grade, isolated ground

Style Line ® decorator

Orange

Red

Orange

Red

Orange

Orange

Catalog Number

SNAP8200IGLTR

SNAP8200RIGLTR

SNAP2172IGLTR

SNAP2172RIGLTR

SNAP5262IGLTR

SNAP2152IGLTR

SNAP8300IGLTR

SNAP8300RIGLTR

SNAP2182IGLTR

SNAP2182RIGLTR

SNAP5362IGLTR

SNAP2162IGLTR

3.28"

(83.3)

.86"

(21.9)

2.62"

(66.5)

SNAP8300RIGLTR

.78"

(19.8)

1.48"

(37.6)

SNAPConnect

®

Right Angle Pigtailed Connector for General Use

Description

Clear right angle terminal with 6 inch leads #12 AWG THHN/

THWN-2, 600V, Polycarbonate housing material

Solid Wire

SNAP1RA

Note: See page Tech-10 for Power Indicating and Tamper-Resistant descriptions.

See page M-19 for SNAPConnect

®

technical information.

Stranded Wire

SNAP2RA

.63"

(16.0)

SNAP1RA

Dimensions in Inches (mm)

www.hubbell-wiring.com

®

Wiring Device-Kellems

M-13

Courtesy of Steven Engineering, Inc. - 230 Ryan Way, South San Francisco, CA 94080-5370 - Main Office: (650) 588-9200 - Outside Local Area: (800) 258-9200 - www.stevenengineering.com

SpikeShield

®

Power Quality Products

Straight Blade Isolated Ground Receptacles

Features and Benefits

Wrap-around, locked on brass mounting strap provides additional support strength for receptacle assembly

Green grounding screw connected directly to the grounding contacts

Insulation barrier construction

— first patented by Hubbell — isolates ground contacts from the mounting strap

Back and side wiring capability provides easy installation with stranded or solid wire

Dimensionally stable, reinforced thermoplastic polyester provides impact strength in addition to heat and flame resistance

Automatic self-grounding clip assures ground continuity between mounting strap and metal wall box

Straight blade 15A and 20A, 125V duplex receptacles are available in a variety of colors

Amperage and voltage clearly indicated

Impact-resistant nylon face

IG5262

Isolated Ground Receptacles,

A “Clean” Path Provides A “Clean” Ground For Sensitive Equipment

In February 1968, Hubbell patented the first isolated ground receptacle. Today – when a clean, noise-free ground is more important than ever – Hubbell is still setting the standard.

Hubbell uses insulation barrier construction on many models to isolate the ground contacts from the mounting strap. The green grounding screw is connected directly to the grounding contacts. In this way, ground contacts are separated from the mounting strap and also from the conventional grounding system. The isolated ground circuit is completed by running a dedicated insulated ground wire from the system ground buss to the green grounding screw.

And there’s more to the Hubbell line:

• Available in 19 NEMA configurations and a total of

60 different type receptacles.

• Versatility and mobility: With Hubbell’s grounding method,

Hubbell’s IG devices can be mounted in boxes, on metal

panels...almost anywhere.

• Hubbell quality: Every Hubbell IG device meets and

exceeds all applicable codes and standards, plus the

toughest standard of all...the Hubbell standard

of excellence.

IG triangle on the face of the receptacle clearly indicates isolated ground device.

M-14

®

Wiring Device-Kellems

www.hubbell-wiring.com

Courtesy of Steven Engineering, Inc. - 230 Ryan Way, South San Francisco, CA 94080-5370 - Main Office: (650) 588-9200 - Outside Local Area: (800) 258-9200 - www.stevenengineering.com

SpikeShield

®

Power Quality Products

Straight Blade Isolated Ground Receptacles

Ordering Information

1.33"

(33.8)

Hospital Grade ,

HBL ® Extra Heavy Duty,

Isolated Ground Receptacles

Description

Flush, thermoplastic polyester face, duplex, back and side wired, multiple drive screws.

Style Line

®

decorator.

Flush, thermoplastic polyester face, single.

Color

Orange

Red

Orange

Ivory

White

Orange

15A 125V

NEMA 5-15R

UL CSA

0.5 HP

Catalog Number

IG8200

IG8200R

IG8210

20A 125V

NEMA 5-20R

UL CSA

1 HP

IG8300

IG8300R

IG2182

IG2182I

IG2182WA

IG8310

3.28"

(83.3)

2.73"

(69.3)

IG8200

.80"

(20.3)

1.33"

(33.8)

15A and 20A, 125V

HBL ® Extra Heavy Duty,

Specification Grade,

Isolated Ground Receptacles

Description

Flush, nylon face, duplex, back and side wired, multiple drive screws.

Weather Resistant, duplex, isolated ground.

Finder groove, nylon face, duplex, back and side wired.

Style Line

®

decorator, flush, nylon face, back and side wired.

4-PLEX

®

receptacle.

Flush, nylon face, single, back and side wired.

Weather Resistant, single,

Isolated ground.

Orange

Orange

Orange

Note: *Not Fed. Spec. Listed.

See page Tech-10 for Weather Resistant description.

See page M-20 for isolated ground technical information.

See page A-46 and A-47 for accessories.

See page A-23 for 4-PLEX accessories.

Color

Orange

Gray

Ivory

Red

White

Orange

Gray

Ivory

Red

White

Orange

Black

Blue

Gray

Ivory

Office White

White

Orange

Gray

15A 125V

NEMA 5-15R

UL CSA

0.5 HP

Catalog Number

IG5262

IG5262GY

IG5262I

IG5262R

IG5262WR

IG5262GYWR

IG5262IWR

IG5262RWR

CR5252IG

CR5252IGBK

CR5252IGGY

CR5252IGI

CR5252IGOW

CR5252IGW

IG2152

IG415

IG5261

IG5261WR

20A 125V

NEMA 5-20R

UL CSA

1 HP

IG5362

IG5362GY

IG5362I

IG5362R

IG5362W

IG5362WR

IG5362GYWR

IG5362IWR

IG5362RWR

IG5362WWR

CR5352IG

CR5352IGBK

CR5352IGBL

CR5352IGGY

CR5352IGI

CR5352IGOW

CR5352IGW

IG2162

IG2162GY

IG420*

IG5361

IG5361WR

3.28"

(83.3)

3.28"

(83.3)

4.30" sq.

(109.2)

IG5262

.80"

(20.3)

1.33"

(33.8)

2.73"

(69.3)

2.73"

(69.3)

1.05"

(26.7)

CR5252IG

.80"

(20.3)

3.38" (85.9)

3.02"

(76.7)

.92"

(23.4)

IG415

Dimensions in Inches (mm)

.1"

(2.5) www.hubbell-wiring.com

®

Wiring Device-Kellems

M-15

Courtesy of Steven Engineering, Inc. - 230 Ryan Way, South San Francisco, CA 94080-5370 - Main Office: (650) 588-9200 - Outside Local Area: (800) 258-9200 - www.stevenengineering.com

SpikeShield

®

Power Quality Products

Straight Blade Isolated Ground Receptacles

Ordering Information

1.57"

(39.9)

1.32"

(33.6)

3.28"

(83.3)

3.28"

(83.3)

2.73"

(69.3)

IG5352

.83"

(21.1)

1.57"

(39.9)

1.32"

(33.6)

2.73"

(69.3)

IG20CR

.83"

(21.1)

1.57"

(39.9)

1.30"

(32.9)

Hubbell-PRO Heavy Duty

Specification Grade

Description

Smooth face, duplex, back and side wired.

Tamper-Resistant, smooth face, duplex, back and side wired.

Note: See page Tech-10 for Tamper-Resistant description.

Color

Orange

Almond

Gray

Ivory

Light Almond

White

Orange

Ivory

White

15A 125V

NEMA 5-15R

UL CSA

0.5 HP

Catalog Number

IG5252

IG5252AL

IG5252GY

IG5252I

IG5252LA

IG5252W

IG5252TR

IG5252ITR

IG5252WTR

Commercial Specification Grade

Description

Smooth face, duplex, side wired.

Style Line

® side wired.

decorator; smooth face; back and

Color

Orange

Almond

Gray

Ivory

Light Almond

White

Orange

Almond

Gray

Ivory

Light Almond

White

Catalog Number

IG15CR

IG15CRAL

IG15CRGRY

IG15CRI

IG15CRLA

IG15CRWHI

IG15DR

IG15DRAL

IG15DRGRY

IG15DRI

IG15DRLA

IG15DRWHI

20A 125V

NEMA 5-20R

UL CSA

1 HP

IG5352

IG5352AL

IG5352GY

IG5352I

IG5352LA

IG5352W

IG5352TR

IG5352ITR

IG5352WTR

IG20CR

IG20CRAL

IG20CRGRY

IG20CRI

IG20CRLA

IG20CRWHI

IG20DR

IG20DRAL

IG20DRGRY

IG20DRI

IG20DRLA

IG20DRWHI

3.28"

(83.3)

2.73"

(69.3)

IG20DR

.83"

(21.1)

2.25"

(57.15)

15A and 20A, 250V

HBL

®

Extra Heavy Duty,

Specification Grade,

Isolated Ground Receptacles

Description

Flush, nylon face, duplex, back and side wired, multiple drive screws.

Flush, nylon face, single.

Color

Orange

Orange

G

15A 250V

NEMA 6-15R

UL CSA

1.5 HP

Catalog Number

IG5662

IG5661

G

20A 250V

NEMA 6-20R

UL CSA

2 HP

IG5462

IG5461

3.28"

(85.3)

3.68

(93.5)

IP20

SUITABILITY

30A, 125V and 250V

Isolated Ground Receptacles

Description

Single receptacle,

2 pole, 3 wire grounding.

Color

Orange

Note: See page M-20 for isolated ground technical information.

G G G G

W

30A 125V

NEMA 5-30R

UL CSA

2 HP

Catalog Number

IG9308

W

30A 125V

NEMA 5-30P

UL CSA

2 HP

30A 250V

NEMA 6-30R

UL CSA

2 HP

IG9330

30A 250V

NEMA 6-30P

UL CSA

2 HP

1.81"

(46.0)

IG9308

M-16

®

Wiring Device-Kellems

www.hubbell-wiring.com

Courtesy of Steven Engineering, Inc. - 230 Ryan Way, South San Francisco, CA 94080-5370 - Main Office: (650) 588-9200 - Outside Local Area: (800) 258-9200 - www.stevenengineering.com

SpikeShield

®

Power Quality Products

Isolated Ground Twist-Lock

®

Receptacles

Features and Benefits

Insulation barrier construction first patented by Hubbell isolates ground contact from the mounting strap

Wire restraint recess for both back and side wiring reduces terminal loosening

Glass-filled thermoplastic polyester base is heat and impact resistant, providing dimensional stability and strength

One-piece contact with long spring arm (low stress) and oxide cutting nibs; prevents stress and overheating

#10 silicon bronze terminal screw provides excellent strength and resistance to corrosion and stripping

Accommodates both back and side wiring

External back wiring allows visual inspection of terminations

IG2310

All-brass mounting and grounding system provides a low resistance ground path

High-impact, abuse-resistant nylon face

Color-coding by voltage rating helps ensure mating of proper devices

Boss diameter is 1.56 in. (39.6) on

20 and 30A devices, simplifying installation

Automatic self-grounding clip assures ground continuity between mounting strap and metal wall box

Face color-coding by voltage facilitates locating and mating of proper devices.

125V AC 250V AC 480V AC 125/250V AC

www.hubbell-wiring.com

®

Wiring Device-Kellems

M-17

Courtesy of Steven Engineering, Inc. - 230 Ryan Way, South San Francisco, CA 94080-5370 - Main Office: (650) 588-9200 - Outside Local Area: (800) 258-9200 - www.stevenengineering.com

SpikeShield

®

Power Quality Products

Isolated Ground Twist-Lock

®

Receptacles

Ordering Information

3.28"

(83.3)

1.70"

(43.2)

2.73"

(69.5)

15A, 125V and 250V

Back and Side Wired

Description

Flush, RTP face, duplex.

Flush, RTP face, single.

Poles/Wires

2 pole, 3 wire

2 pole, 3 wire

Color

Orange

Orange

Note: RTP is an abbreviation for reinforced thermoplastic polyester.

*Supplied with break-off tabs for split circuit wiring.

W X

G G

15A 125V

NEMA L5-15R

UL/CSA

Catalog Number

IG4700A*

IG4710

Y

15A 250V

NEMA L6-15R

UL/CSA

IG4550A*

IG4560

IG4700A

.95"

(24.1)

20A, 125V, 250V and 480V AC

Back and Side Wired

Description Poles/Wires

Flush, nylon face, single.

2 pole, 3 wire

Color

Orange

G

W

20A 125V

NEMA L5-20R

UL/CSA

1 HP

Catalog Number

IG2310

X

G

Y

20A 250V

NEMA L6-20R

UL/CSA

2 HP

IG2320

3.28"

(83.3)

1.38"

(35.1)

1.27"

(32.3)

2.38"

(60.5)

30A, 125V and 250V

Back and Side Wired

Description

Flush, nylon face, single.

Poles/Wires

2 pole, 3 wire

Color

Orange

G

W

30A 125V

NEMA L5-30R

UL/CSA

2 HP

Catalog Number

IG2610

X

G

Y

30A 250V

NEMA L6-30R

UL/CSA

2 HP

IG2620

IG4710

1.70"

(43.2)

1.23"

(31.2)

20A, 125V/250V and 3Ø 250V AC

Back and Side Wired

Description

Flush, nylon face, single.

Poles/Wires

3 pole, 4 wire

Color

Orange

X X

G W

Y

20A 125/250V AC

NEMA L14-20R

UL/CSA

2 (1) HP

Catalog Number

IG2410

G Y

Z

20A 3Ø 250V AC

NEMA L15-20R

UL/CSA

3 HP

IG2420

3.28"

(83.3)

2.67"

(67.8)

1.56"

(39.6)

2.38"

(60.5)

.98"

(24.9)

IG2310

#6-32 TAP

30A, 125V/250V and 3Ø 250V AC

Back and Side Wired

Description

Flush, nylon face, single.

Poles/Wires

3 pole, 4 wire

20A and 30A, 3ØY 120/208V AC

Back and Side Wired

Description

Flush, nylon face, single.

Poles/Wires

4 pole, 5 wire

Color

Orange

X X

G W G

Y

Y

30A 125/250V AC

NEMA L14-30R

UL/CSA

2 (2) HP

Catalog Number

IG2710

Z

30A 3Ø 250V AC

NEMA L15-30R

UL/CSA

3 HP

IG2720

Color

Orange

Note: See page M-20 for isolated ground technical information.

X

W

Y

G

Z

20A 3ØY

120/208V AC

NEMA L21-20R

UL/CSA

2 HP

Catalog Number

IG2510

X

W

G

Y

Z

30A 3ØY

120/208V AC

NEMA L21-30R

UL/CSA

3 HP

IG2810

X

G

Y

20A 480V AC

NEMA L8-20R

UL/CSA

3 HP

IG2340

M-18

®

Wiring Device-Kellems

www.hubbell-wiring.com

Courtesy of Steven Engineering, Inc. - 230 Ryan Way, South San Francisco, CA 94080-5370 - Main Office: (650) 588-9200 - Outside Local Area: (800) 258-9200 - www.stevenengineering.com

SpikeShield

®

Power Quality Products

Surge Protection Device Specifications

Technical Information

SpikeShield

®

Surge Protection Plug Strips

Operating Specifications

Max. Cont. Operating Voltage

Operating Frequency

Max Surge Current

Operating Temperature

PS350 Series

130

50/60Hz

6.5kA

MPS1050 Series PS350YL Series

130

50/60Hz

19.5kA

130

50/60Hz

6.5kA

PS1050 Series

130

50/60Hz

19.5kA

PS2100 Series 6PS Series

130

50/60Hz

39.0kA

------------------- -40°F to 160°F (-40°C to 70°C) ----------------------

130

50/60Hz

30.0kA

Performance

UL Voltage Protection Rating

EMI/RFI Noise Rejection

400V n/a

400V n/a

400V n/a

400V

-20dB

400V

-20dB

500V

-20dB

Warranty

Downline Warranty $2,500 $2,500 $2,500 $2,500 (6PS1050)

$10,000 (all others)

$25,000 None

Physical Specifications

Housing Type

Color

ABS

Off. White

Metal

Off. White

Metal

Yellow

ABS

Off. White "USB" version is Black

ABS

Off. White

Metal

Black

Dimensions

HBL6PS350/1050 Series & HBL6PPS

HBL7PS1050 Series

HBL6MPS Series

HBL6PS350YL

HBL8PS350YL

HBL8ESPS Series

HBL6RSPS Series

HBL4PS1050USB

Length

11.2" (284.5)

14.75" (374.7)

12.25" (311.2)

14.75" (374.7)

10.0" (254.0)

10.4" (264.2)

9.12" (231.6)

10.38" (263.7)

Width

2.36" (59.9)

2.36" (59.9)

2.5" (63.5)

2.5" (63.5)

6.0" (152.4)

3.8" (96.5)

4.4" (111.8)

3.81" (96.8)

Height

1.85" (47.0)

1.85" (47.0)

1.5" (38.1)

1.85" (47.0)

1.85" (47.0)

1.44" (36.6)

1.68" (42.7)

1.44" (36.6)

HBLCATC

24Vpk

50/60Hz

200

45V n/a

None

ABS

Off. White

Surge Protection Receptacles

Description

Type – 2 Pole, 3 Wire, Grounding

Part

Receptacle

Top

Base

Power Contact

Contact Design

Mounting Strap

Clamping Plate

Duplex / SNAPConnect

®

15A/20A

Nylon

Nylon

.031" (.8) Brass

Tandem Modified Bypass

.050" (1.3) Steel-Zinc Coated

.031" (.8) Brass

Rating – 15A, 125V AC/20A, 125V AC

Certification – UL Listed File E2186

Listed to UL Standards 498 Receptacles

Meets UL1449-2.5

Terminal Screws

Grounding Screw

Brass #8-32 (Duplex only)

Steel (Green) (Duplex only)

CSA Certified to Specification C22.2 No. 42 Automatic Self-Grounding Clip Stainless Steel

ANSI/IEEE C62.41 (IEEE 587) Mounting Screws Steel-Zinc Plated

Installation Categories “A" (Ring Wave)

“B" (Unidirectional Impulse)

LED

Alarm Muting Screw

Green

Nylon

4-PLEX

®

15A/20A

Lexan

®

Lexan

®

.032" (.8) Brass

Triple Wipe

.031" (.8) Brass-Line Terminal Plate

.031" (.8) Brass-Neutral-Terminal Plate

Brass #8-32

Brass (Green)

.050" (1.3) Ground Plate

Brass

Green

Performance

Electrical

Frequency

Voltage

Response Time

Protection Modes

Transient Suppression

Normal Mode (L-N)

Common Mode (L-G), (N-G)

UL Voltage Protection Rating

EMI/RFI Attenuation at 50 Ohms Normal Mode -40 dB

Operating Temperature 32°F to 140°F (0°C to 60°C)

Flammability

Duplex / SNAPConnect

®

60Hz

120V AC + 10%–15%

Approximately 5 ns

20V AC + 10%–15%

Approximately 5 ns

Normal and Common Modes Normal and Common Modes

Peak Energy (10 X 100 μs) Peak Current (8 X 20 μs) Peak Energy (10 X 100 μs) Peak Current (8 X 20 μs)

240 joules 15000A 80 joules 6500A

240 joules

600 L-N, 600 L-G

UL 94V-2

15000A

1000 N-G

4-PLEX

®

60Hz

80 joules

600 L-N, 600 L-G

-40°F to 140°F (-40°C to 60°C)

UL 94V-2

6500A

900 N-G www.hubbell-wiring.com

®

Wiring Device-Kellems

M-19

Courtesy of Steven Engineering, Inc. - 230 Ryan Way, South San Francisco, CA 94080-5370 - Main Office: (650) 588-9200 - Outside Local Area: (800) 258-9200 - www.stevenengineering.com

SpikeShield

®

Power Quality Products

Isolated Ground Device Specifications

Technical Information

Specifications

Receptacle

Typical Specification – Catalog Number IG5262

Manufacturer’s Identification – Hubbell IG5262

Description – Isolated Ground, Straight Blade, Duplex Receptacle

Type – 2 Pole, 3 Wire, Grounding

Rating – 15A, 125V

Certification – UL Listed, CSA Certified, Fed. Spec.

Part

Receptacle

Top

Base

Triple Wipe Power Contacts

Wire Clamp

Mounting Strap

Insulator

Terminal Screws

Grounding Screw

Center Assembly-Rivet

Automatic Self-Grounding Clip

Flat. Hd. Mtg. Screws

IG5262 IG5352

Description

15A

Nylon

PET*

0.31" (8) Phosphor Bronze

0.062" (1.6) Steel Nickel Plated

0.050" (1.3) Brass

Nylon

Brass #8-32

Brass (Green)

Brass

Stainless Steel

Steel Zinc Plated

Note: *Polyethylene Terephthalate Polyester.

Performance

Electrical

Dielectric Voltage

Max. Working Voltage

Current Interrupting

Temperature Rise

Mechanical

Terminal Identification

Terminal Accommodation

Product Identification

Environmental – Material

Flammability

Operating Temperatures

Withstands 2,000V minimum.

125V or as rated.

Certified for current interrupting at full rated current.

Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated direct current.

Terminals identified in accordance with UL 498 and

CSA C22.2 No. 42 (Brass, White, Green).

#14-10 AWG standard or solid copper conductor only.

Ratings are permanent part of device.

Top: UL 94V-2, Base: UL 94V-0 and UL 94-5 VA.

Maximum continuous 75°C; minimum -40°C/F (w/o impact) maximum (167°F, 75°C).

Specifications

Receptacle

Catalog Number – IG5352, IG15CR, IG15DR

Description – Isolated Ground, Straight Blade Duplex, Receptacle

Type – 2 Pole, 3 Wire, Grounding

Rating – 15A, 125V

Certification – UL Listed, CSA Certified

Part

Receptacle

Top

Base

Power Contacts

Terminal Clamp

Grounding Screw

Mounting Strap

Auto Ground

Mounting Screws

Description

15A

Nylon

Nylon

.030" (.8) Brass

.062" (1.6) Nickel Plated Steel

#8-32 Plated Steel, TriDrive

.040" (1) Galvanized Steel

Stainless Steel

Zinc Plated Steel, Self-Tapping

Performance

Electrical

Dielectric Voltage

Maximum Working Voltage

Current Interrupting

Temperature Rise

Mechanical

Terminal Identification

Terminal Accommodation

Product Identification

Environmental – Material

Flammability

Operating Temperatures

Withstands 2000V Minimum.

125V.

Certified for current interrupting at full rated current.

Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated direct current.

Terminals identified in accordance with UL 498 and

CSA C22.2 No. 42 (Brass, White, Green).

#14-10 AWG stranded or solid copper conductors only.

Ratings are a permanent part of the device.

UL 94V-2.

Max. continuous: 75°C; Min. continuous: -40°C w/o impact.

M-20

®

Wiring Device-Kellems

www.hubbell-wiring.com

Courtesy of Steven Engineering, Inc. - 230 Ryan Way, South San Francisco, CA 94080-5370 - Main Office: (650) 588-9200 - Outside Local Area: (800) 258-9200 - www.stevenengineering.com

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
