ConvaQuip

S I T - T O - S T A N D L I F T

MODELS

ConvaQuip STS600E

ConvaQuip STS600E-D

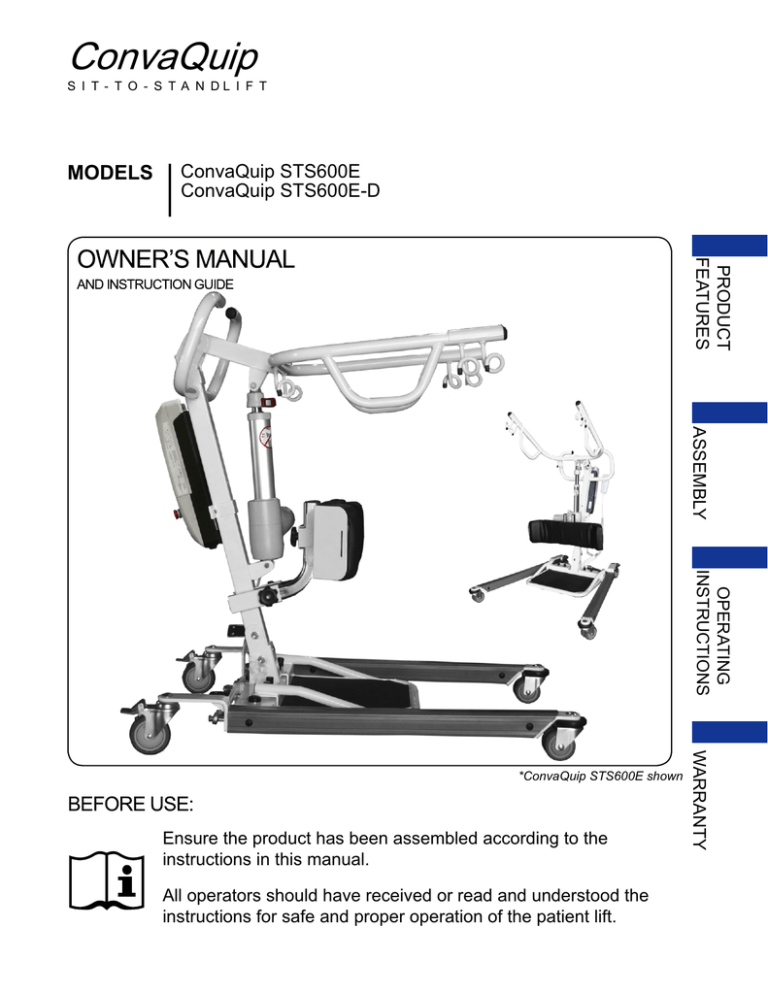

*ConvaQuip STS600E shown

Ensure the product has been assembled according to the instructions in this manual.

All operators should have received or read and understood the instructions for safe and proper operation of the patient lift.

Thank you for choosing ConvaQuip!

To better serve you, please record the following information:

Supplier Name:

Telephone:

Serial #:

Date of Purchase:

INSPECT YOUR MERCHANDISE

Upon receipt of your ConvaQuip STS600E, verify that all merchandise is complete and free from any shipping damage. Refuse delivery if the packaging appears to be badly damaged.

If the merchandise is received damaged or is missing components, contact the shipping company immediately and file a claim.

For further assistance, contact your local dealer or ConvaQuip at the following:

ConvaQuip Ind., Inc.

P.O. Box 3417

Abilene, TX 79604

325-677-4177 / 1-800-637-8436 www.convaquip.com

[email protected]

REV 7.23.2014

SAFETY INSTRUCTIONS

The ConvaQuip Sit-To-Stand patient lift allows a caregiver to lift and transfer a patient safely with minimum physical effort. Before attempting to lift anyone, you should practice operating the lift and be able to explain to the patient the lifting and transfer procedures.

Arrange all necessary items (e.g. lift, sling, commode chair or wheelchair) properly for a smooth transfer.

• Special care must be taken with patients who are comatose, spastic, agitated, or otherwise severely handicapped. A competent caregiver must always be present during any patient lifting.

• The sole function of the patient lift is for transferring a patient from one utility (beds, bathtubs, toilets, etc.) to another.

• The lift should not be used to transport or move patients from room to room or over longer distances. Transfers should normally take place within the same patient room or bathroom.

• Do not put anything (e.g. cushion, pad, etc.) between the user and the sling. This may cause user to slide out of the sling and cause injury.

• The user/patient being transferred should be positioned in the center of the area being transferred from (i.e. bed, wheel chair, chair, commode, etc.) before being lifted, as well as when he/she is returned.

• Keep lifter base widened (use foot pedals to accomplish this) and brakes unlocked during lifting. If the brakes are locked during the lift process, the lift may become unstable.

• While the patient is suspended, always keep the patients centered between the base legs.

• Do not attempt to roll the lift or casters over floor obstacles while the user is in the sling and on board.

3

• Use only ConvaQuip slings specially designed and tested for ConvaQuip patient lifts . Do not use slings manufactured by other companies on

ConvaQuip sit-to-stand patient lift. ConvaQuip is not responsible for any consequence resulting from using non-ConvaQuip products.

• Use only ConvaQuip manufactured or approved parts and components.

ConvaQuip is not responsible for any adverse consequence resulting from using parts and components from other manufacturers.

• Service and repair of the patient lift should be performed by ConvaQuip or its authorized dealers ONLY. ConvaQuip is not responsible for any consequence resulting from any unauthorized service or repair.

• Never attempt to lift over the maximum capacity of the lift and any accessories used in conjunction with the lift. The maximum safe working load for the lift will be clearly labeled on the lift.

DEFINITIONS

& SYMBOLS

In this manual the user refers to the patient or resident and may be used interchangeably at different times. Caregiver refers to the operator or person who is assisting with the transfer.

Symbols used in this manual and their meanings:

Warning! Failure to heed this warning may result in damage to the product or serious injury to the operator and/or user.

Important instructions follow. Read and understand the instructions in the manual before using the product.

Note! Important information concerning the product and/or its correct and proper usage follows.

4

PRODUCT FEATURES

DESCRIPTION

& APPLICATIONS

ConvaQuip presents the ConvaQuip Series of sit-to-stand patient lifts, a solution for patient transfers between bed, chair or commode. The lift reduces injury risk associated with antiquated manual patient lifting practices. Competitively priced and combined with a unique design, the lift provides a new level of comfort and safety. The ConvaQuip lift has set the standard for value and is an option for residential use.

• 600 Lb. safe working loads

• Low base

• Fully adjustable knee pad

• Removable foot platform

• Four sizes of deluxe padded slings

• Optional buttock support strap

• Knee pad strap for extra leg support

• Features alternative Sani-sling hook-up that eliminates underarm discomfort during transfer.

5

SPECIFICATIONS

& OPTIONS

CONTROL BOX

Input Voltage

Output Voltage

Battery Pack

Control

Protection Class

Over-duty alarm

Battery Status

STS600E / STS600E-D

220-240VAC 50Hz /

110-120VAC 60Hz

24 VDC

24 VDC 5AH

Panel and Handset

IP65 / IP54 by LCD by LCD

Maximum Safe Load Capacity

Max. height of Boom

Min. height of Boom

Base closed external width

Base open external width

Base height clearance

Overall length

Boom Internal Width

Bariatric Size Kneepad

Bariatric Size Footrest

Buttock Support Strap

Kneepad/Calf Support Strap

Quick Release

Dual Front Casters

STS600-E series

600 Lb.

68”

33”

25.5”

38”

4.5”

40”

19”

Yes

Optional

Optional

Optional

Yes

Yes

*ConvaQuip is committed to continuous improvements of our products, therefore the specs, dimensions and features listed above are for guidance only and subject to change without prior notice.

6

ASSEMBLY

Prior to assembly, unpack all parts from the shipping carton and check for any missing parts. Contact your dealer immediately if a part is missing.

Parts List for

STS600E / STS600E-D

Base

2.

Mast

3.

Control Box

4.

Pendant

5.

Actuator

6.

Lifting Boom

7 Kneepad Assembly

8 Footrest

9.

Castor with Brake

10 Front Castor

7

STEP BY STEP ASSEMBLY

1

Engage the brakes. Remove the bolts from the bottom of the mast and base. Pull the Mast to an upright position. Re-insert the bolts into the holes at bottom of the mast and tighten the nuts.

翿

2

Attach boom to top of mast.

Re-insert the bolts into the holes at bottom of the mast and tighten the nuts.

3

A. Attach the bottom of Actuator to the bracket on the Mast and insert pin. Insert keeper ring through hole in pin to secure base of actuator.

B. Attach the top of the Actuator to the bracket on the Boom and insert pin. Insert keeper ring through hole in pin to secure actuator to upper bracket.

B.

A.

翿

8

4

BATTERY ASSEMBLY FOR STS600E / STS600E-D

Install the control box. Slide the control box over and onto the metal tab mounted at the bottom of the Mast. Line up the control box with the hole at the top of the mast and insert the screw to hold the control box in place. Secure the control box by turning the lock mechanism into the lock position.

9

Attach the L-shaped arms to back of the kneepad. For desired height of the kneepad, use proper holes on the L-shaped arms. Then use the bolt to attach and fasten the

L-shaped arms to the Mast.

5

KNEEPAD ASSEMBLY FOR STS600E / STS600E-D

L-shape arms

Bolt

Bolt

翿

6

Attach actuator and pendant to the control box.

BATTERY PLUG-INS FOR E-series

Pendant Plug

翿

Actuator Plug

翿

AC Power Plug

翿

7

Tighten all nuts and make sure lift is sturdy before use.

11

10

CONTROL BOX INSTRUCTIONS

LCD INDICATORS

The following instructions apply to

ConvaQuip STS600E-series

Battery pack release

Battery indicator

Emergency button

LCD display / LCD

Lifting actuator UP

翿

Lifting actuator DOWN

Overload

Battery Volume

Overused low battery Battery Low

(Blink)

翿

Capacity Function

90%

Battery is charged to around 90%

70%

50%

Battery is charged to around 70

50% Battery

Capacity Remaining

Charge batteries immediately.

25%

10%

0%

25% Battery

Capacity Remaining

Charge batteries immediately.

Battery is charged to around 10%

Buzzer beeps / Only lowering possible

Power off

翿

FEATURES:

EMERGENCY STOP FOR STS600E series

• Smart charging function for longer battery life

Emergency stop button interrupts the power supply to the actuators and makes the actuators stop immediately in case of sudden danger.

• Battery capacity indicator on battery pack

• Soft start and stop for lifting actuator

• Soft and Hardware over-current protection

• Actuator’s Over-duty protection with sign on LCD press RED button

• Emergency stop button interrupts the power supply

LOCKED to the actuator and makes the actuator stop immediately turn RED button clockwise

UNLOCKED in case of sudden danger

• Internal charger

• LCD-display showing battery capacity and indication when the battery needs recharging.

*IT’S STRONGLY RECOMMENDED THAT THE BUTTON IS PRESSED DOWN WHEN THE LIFT WILL

NOT BE USED FOR OVER 3 DAYS TO MAINTAIN OPTIMAL BATTERY LIFE AND PERFORMANCE.

• Audible alarm for low battery capacity

• Standard protection class: IP 65

• Pulling-proof design to lock the AC plug

PATIENT LIFT WILL NOT OPERATE WHILE CHARGING

12

13

FEATURES OF POWER PLUG:

C-CLAMP :

• when the battery is being charged, insert this C-clamp to secure the power plug

WATERPROOF COVER:

• when control is not being used, the cover should be closed

used to prevent water ingress.

REMOVE AND INSERT BATTERY PACK:

REMOVE : press button A and pull out in the up direction (Fig.1)

INSERT:

• put the battery pack all the way down to position as shown in Fig.2

• slide into direction C while having the release button pressed

(Fig.3)

• make sure the battery pack won’t slide back off by pulling the battery pack without pressing the release button B.

14

OPERATING INSTRUCTIONS

Double check all assemblies for tightness and read operating instructions carefully prior to use.

Do not attempt to use patient lift unless the patient exhibits control over the upper body, strength to grasp the handles, ability to bear some weight and flexibility in knees, hips and ankles.

PREPARATION BEFORE LIFTING

• Turn on the power by twisting the RED RESET BUTTON clockwise

• Press the UP or DOWN button on the hand control once and check if the battery indicator lights are on.

• Position the base of the lift around or under the object

• Widen the base and engage the caster brakes

Do not attempt to transfer a patient without prior approval of the person’s nurse. Also, do not transfer without having studied the instructions and performed several practices in operating the product. Together with the patient’s doctor, nurse or medical attendant, select a sling that is both practical and comfortable. The sling selected should be one that serves the needs of the patient, while providing the patient with optimal safety. Never interfere with the lift unless instructed by the attendant. Have a doctor, nurse, or medical attendant (experienced in the use of the ConvaQuip Lift) present during the first few times the lift is used to transfer a new user.

15

FITTING ConvaQuip STAND ASSIST SLING

• Position the patient in a sitting position

• Slide the sling down patient’s back to lumbar position.

• Draw the shoulder straps to the front of the patient close to the chest.

• Draw the waist belt around patient’s waist and press together to fasten.

Attach the shoulder straps to the hooks.

Shoulder strap loop

STEP 3

Shoulder strap

Velcro waist belt

OR

For sling application

• Place sling behind seated patient with the 2 red pads under the arms.

• Cross the adjustable chest belt over and fasten it securely using the buckle (adjust for comfort).

• Cross the short black strap over and pull the left loop strap through the black strap.

• Hook the two loop straps to the hooks on the lift boom using the same hook and loop sequence on each side.

• The black strap will be straight across in front of patient to stabilize the sling during lift.

• Have patient grasp handles on boom and tilt head back slightly.

• Make sure the patients feet are firmly on the platform and knees are

• touching the kneepads with kneecaps just above the padding.

Use the lift to complete the lift and pivot transfer.

16

翿

翿

• Fit sling as described in “Fitting ConvaQuip Stand Assist Sling”.

• Push lift towards patient. Open the base of the lift. Apply the brakes in both rear casters.

• Position patient’s feet on the foot platform and knees against the knee pad.

• Attached the sling straps to the hooks.

• Have the patient’s hands holding the handles. For patients who cannot hold the handles, have them hold their arms around the chest.

• Press the “UP” button on the hand control.

• Before the patient’s body has lifted from the bed, stop and make sure the sling is secured and patient’s knees are against the knee pad.

• The patient should be comfortable with the pressure under the arms. If not, adjust the sling and try another loop option to release pressure.

• Press the “UP” button until the patient’s body has completely left the bed.

• Transfer to another object can be done at this position without the patient attending a full standing position.

• Release the brakes, close the base, and pull the lift away from the bed.

• Lower the patient to the object intended.

• To lift patient in a standing position, continue to lift until the patient’s knees are locked in a standing position.

• At the standing position, patient’s knees may move away from the knee pad.

• Release the brakes, close the base, and pull the lift away from the bed.

• Lower the patient to the object intended.

• Reverse the above procedures when lowering the patient to the bed.

翿

17

8LIFT AND TRANSFER FROM WHEELCHAIR

• Fit sling as described in “Fitting ConvaQuip Stand Assist Sling”.

• Push lift towards patient. Open the base of the lift to go around the chair. Apply the brakes in both rear casters.

• Position patient’s feet on the foot platform and knees against the knee pad.

• Attached the sling straps to the hooks.

• Have the patient’s hands holding the handles. For patients who cannot hold the handles, have them hold their arms around the chest.

• Press the “UP” button on the hand control.

• Before the patient’s body is lifted from the chair, stop and make sure the sling is secured and patient’s knees are against the knee pad.

• The patient should be comfortable with the pressure under the arms. If not, adjust the sling and try another loop option to release pressure.

• Press the “UP” button until the patient’s body has completely left the chair.

• Transfer to another object can be done at this position without the patient attending a full standing position.

• Release the brakes, close the base, and pull the lift away from the chair.

• Lower the patient to the object intended.

• To lift patient in a standing position, continue to lift until the patient’s knees are locked in a standing position.

• At the standing position, patient’s knees may move away from the knee pad.

• Release the brakes, close the base, and pull the lift away from the chair.

• Lower the patient to the object intended.

• Reverse the above procedures when lowering the patient to the chair.

18

LIFT AND TRANSFER FROM COMMODE

ConvaQuip TOILETING SLING

The ConvaQuip Toileting Sling can be used with the ConvaQuip to lift a patient in a sitting position. When in use the ConvaQuip Toileting Sling supports the client under the thighs and across the mid-back area.

Shoulder strap loop

Shoulder strap

Velcro waist belt

Leg strap

Leg strap loop

The ConvaQuip Toileting Sling is not suitable for patients who have involuntary movements or patients with limited postural control.

Fitting the ConvaQuip Toileting Sling

Slide the sling down patient’s back to lumbar position.

• Draw shoulder straps under the arms and around the chest into the front.

• Draw Velcro waist belt around waist and press together to fasten.

• Draw each leg support under the thigh.

• Crisscross leg straps by feeding one of the leg straps through the other strap.

• Attach shoulder straps to hooks in upper ends of the lifting arms.

• Attach leg straps to hooks in the lower ends of the lifting arm.

19

MAINTENANCE & INSPECTION

The operator of the lift shall inspect the ConvaQuip Lift before each use. Check all bolts for tightness. Make sure the base can be easily widened and that all lift parts are in place. Make sure that casters can be turned freely, and that caster brakes can be engaged. Make certain all necessary items (i.e. slings, wheelchairs, etc.) are ready for use.

At least once a month, the lift should be thoroughly inspected by a person qualified to recognize any signs of wear and tear and looseness of bolts or parts. Replace any worn parts immediately.

To lubricate, put a drop of oil on the following points when the

ConvaQuip Lift is placed into service and every month thereafter: Top of Mast, Spreader Hinge, and Caster Axles.

EVERY 3

MONTHS

BOOM & SPREADER BAR

Check connections between Boom and Mast for improper connection, looseness or wear.

Check the Boom for bending and deflection.

MAST

Check the Mast for bending or deflection.

BASE & FOOT PEDAL

Check bolts and nuts for looseness..

Check casters and axle bolts for tightness.

Check rubber parts on the casters for deflection

FIRST

RECEIVED

MONTHLY

20

BASE & FOOT PEDAL

Apply grease to caster ball bearings if needed.

Check welding joints for rust and crack.

CLEANING

AS NEEDED

ACTUATOR & CONTROL BOX

Make sure the control box is firmly affixed to the mast.

Make sure the actuator is secured to the

Boom and mast with pins and key rings

Make sure actuator plug into control box is not loose.

SLINGS & SLING HARDWARE

Check sling for wear.

Check sling hardware every time before use.

FIRST

RECEIVED

MONTHLY

EVERY 3

MONTHS

21

TROUBLESHOOTING GUIDE

The following list of encountered problems and solutions will assist you in determining what may be causing your patient lift not to function as designed. If you have a problem occurring which is not listed below, please contact your dealer or technical support for help. Do not attempt to repair or replace components or parts on your lift as this may void your warranty or cause further problems that may result in patient injury. Stop using your lift immediately if it is not functioning correctly or any warning beeps are heard.

I need to re-charge my batteries often or they fail to hold a charge when I charge them.

• Replace the batteries or battery pack as they are at the end of their life cycle

• Batteries should be changed every 18-24 months depending on usage

The actuator will either go up or down but not both

• Replace your hand control as it is at the end of its life cycle

• Your control box may be malfunctioning

There is a grinding sound inside the actuator when lifting

• Replace your actuator as the internal gears are stripped

The actuator stops and starts while lifting or lowering

• Replace the batteries or battery pack as they are at the end of their life cycle

My lift will not operate even though it shows the batteries are charged

• Unplug the AC power cord from the control box as the lift will not work when the control box/charger is connected to AC Power

• Check to make sure the hand control is properly inserted all the way into the control box

port

• Check to make sure the actuator plug is properly connected and inserted all the way into the control box

Your hand control needs to be replaced as it is at the end of its life cycle

If there is a problem you cannot correct, please contact the dealer for assistance.

22

EMERGENCY LOWERING MECHANISM

The following instructions apply to

ConvaQuip STS600E-series

In case there is a failure with the actuator or electronics and the user is left suspended in mid-air, please follow the procedures below to safely lower the user to a safer position.

The Quick Release is implemented by a spring-loaded lever mounted at the top end collar of the actuator shaft. DO NOT attempt to turn the Quick

Release mechanism like a knob. This will damage the Quick Release mechanism and actuator. Manually activate Quick Release by pulling the

RED lever with the arrow symbol in the direction indicated by the arrow towards the opposite red tab. This will de-clutch the actuator and lower the user safely down.

Note: When the Quick Release is activated, the boom will not lower itself unless there is weight or force applied in the downward direction.

Contact your dealer immediately if standard troubleshooting techniques do not correct the failure. Do not attempt to lift until all failure and safety issues have been resolved.

NOTE: THE EMERGENCY LOWERING DEVICE IS INTENDED FOR USE

DURING LIFT FAILURE. THIS DEVICE WILL ALLOW LOWERING OF

PATIENTS ONLY. PLEASE CONTACT YOUR DEALER IMMEDIATELY IN

CASE OF FAILURE.

23

NOTES

WARRANTY AND RETURN GOODS POLICY

WARRANTY POLICY:

ConvaQuip offers a limited warranty on all patient lifts, slings and accessories to be free of defects in workmanship and product performance. This warranty is extended only to the original purchaser/user and is therefore non transferrable. Any warranty claims must be submitted through an authorized dealer or distributor that sold the original product with proper proof of sale and serial number supplied. Prior authorization from ConvaQuip is required for any warranty replacement and we reserve the right to replace parts and or accessories in lieu of sending complete new patient lifts. Dealers and distributors will be billed for any advance warranty replacement items shipped and credited at 100% only when the defective items have been returned to ConvaQuip and proven defective. Product returned without a ConvaQuip return authorization will be refused. Returns received 30 days after the issuance of a return authorization will also be refused as the authorization will have expired. The final disposition of warranty claims will be subject to our inspection of the returned items. ConvaQuip has the right to determine valid claims based on the individual circumstances of each claim. Warranty claims will be denied should evidence of the following be det ermined:

Misuse of product , modification of product or failure to maintain as per the owner’s manual

Serial number removed or defaced

Normal wear and tear

ConvaQuip warrants the following products and components for the time period specified:

Lift frames and spreader bar: 3 years

Actuator: 2 years

Parts including casters, control box, PCB, pendant, charger: 2 years

Batteries: 1 year

Weigh Scale: 2 years

Stand Aid all components: 2 years

Hydraulic pumps: 1 year

Reusable slings: 6 months

ConvaQuip Single Patient Slings are designed for limited use with one patient and may not be washed. ConvaQuip will replace any disposable slings found to have a manufacturing defect. Normal wear and tear will not be covered under warranty.

RETURN GOODS POLICY:

ConvaQuip will allow goods to be returned only with prior authorization and a valid RA number issued by the RA co-coordinator. RA’s will only be provided for items invoiced within 30 days of the initial RA request. All returns must be received at ConvaQuip within 30 days or the RA will expire. The returning package must be clearly marked with the RA number or the shipment will not be received or an y credit issued. When a part is returned to ConvaQuip for warranty inspection a $50 service charge will apply if the part is not defective. Returns are subject to a minimum re stocking fee of 15% or more depending on the condition of the returned items. Where an item was ordered incorrectly according to your purchase order or the customer no longer wants the item(s) returning freight is the responsibility of the dealer/customer not ConvaQuip.

Patient lifts may not be returned unless the following has occurred:

The wrong lift was shipped in error by ConvaQuip

The lift is heavily damaged or defective out of the box

Please note that lifts being returned must be in the original carton and all parts and components included with the return. Failure to comply with this requirement will incur higher re-stocking fees or a rejection of the return. Slings, parts and accessories may only be returned if they have not been used. There are no exceptions to this provision.

ConvaQuip reserves the right to issue credit amounts based on strict adherence to this policy.

P.O. Box 3417 Abilene, TX 79604

Tel: 800-637-8436 Fax: 325-677-7217 www.convaquip.com

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
