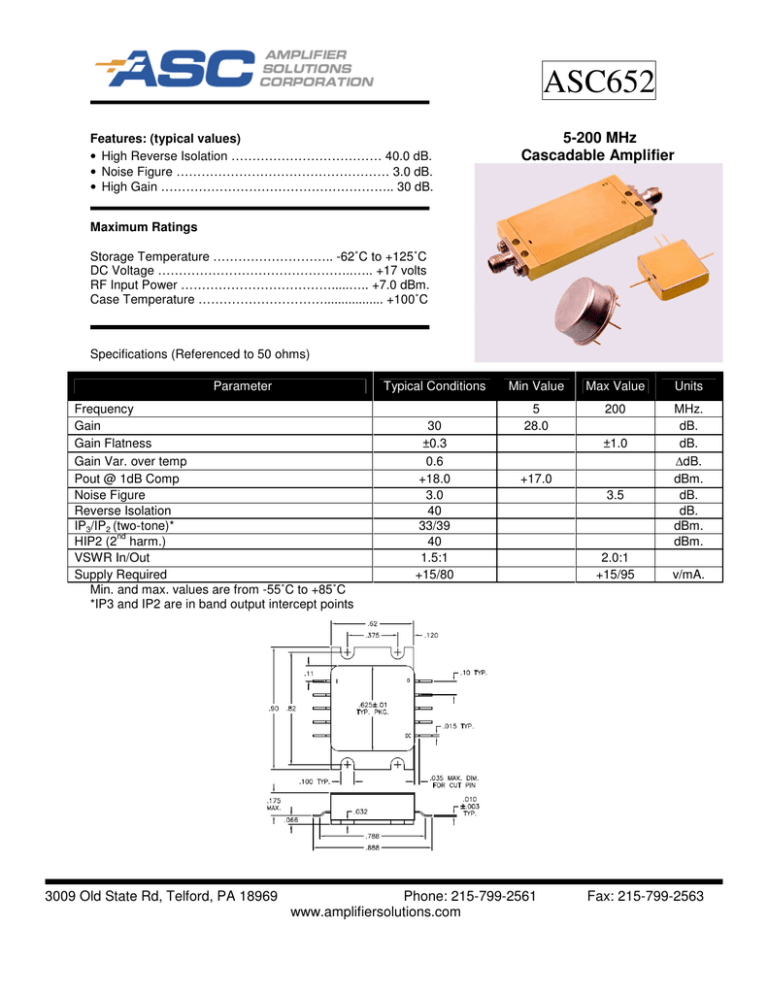

ASC652
Features: (typical values)
• High Reverse Isolation ……………………………… 40.0 dB.
• Noise Figure …………………………………………… 3.0 dB.
• High Gain ……………………………………………….. 30 dB.
5-200 MHz
Cascadable Amplifier
Maximum Ratings
Storage Temperature ……………………….. -62˚C to +125˚C
DC Voltage ………………………………………..….. +17 volts
RF Input Power ……………………………….....….. +7.0 dBm.
Case Temperature …………………………................. +100˚C
Specifications (Referenced to 50 ohms)
Parameter
Typical Conditions
Frequency
Gain
Gain Flatness
Gain Var. over temp
Pout @ 1dB Comp
Noise Figure
Reverse Isolation
IP3/IP2 (two-tone)*
nd
HIP2 (2 harm.)
VSWR In/Out
Supply Required
Min. and max. values are from -55˚C to +85˚C
*IP3 and IP2 are in band output intercept points
3009 Old State Rd, Telford, PA 18969
30
±0.3
0.6
+18.0
3.0
40
33/39
40
1.5:1
+15/80
Min Value
Max Value
Units
5
28.0
200
MHz.
dB.
dB.
1dB.
dBm.
dB.
dB.
dBm.
dBm.
±1.0
+17.0
Phone: 215-799-2561
www.amplifiersolutions.com
3.5
2.0:1
+15/95
v/mA.
Fax: 215-799-2563
