VC-01 Single Channel CAT5E Passive Transceiver

VC-01 Single Channel CAT5E Passive Transceiver
BFR Video CAT
WG-01
SINGLE CHANNEL CAT5E PASSIVE TRANSCEIVER

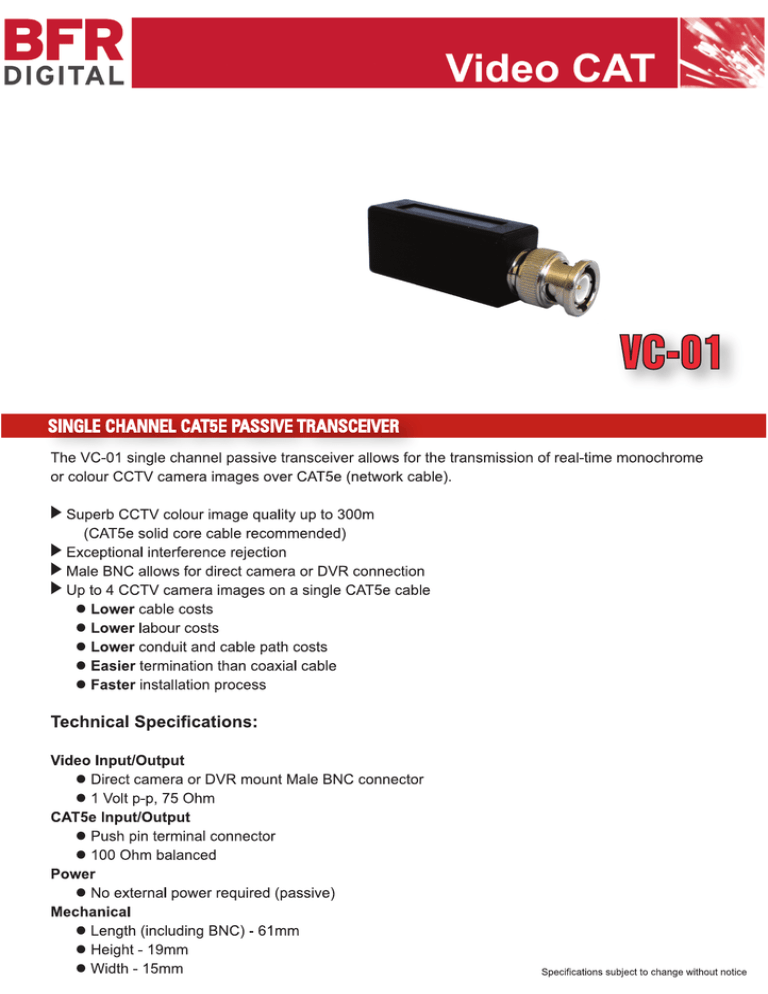

The VC-01 single channel passive transceiver allows for the transmission of real-time monochrome
or colour CCTV camera images over CAT5e (network cable).
» Superb CCTV colour Image quality up to 300m
(CAT5e solid core cable recommended)
» Exceptional interference rejection
» Male BNC allows for direct camera or DVR connection
> Up to 4 CCTV camera images on a single CAT5e cable
e Lower cable costs
e Lower labour costs
e Lower conduit and cable path costs
e Easier termination than coaxial cable
e Faster installation process
Technical Specifications:
Video Input/Output
e Direct camera or DVR mount Male BNC connector
e 1 Volt p-p, 75 Ohm
CAT5e Input/Output
e Push pin terminal connector
e 100 Onm balanced
Power
e No external power required (passive)
Mechanical
e Length (including BNC) - 61mm
e Height - 19mm
e Width - 15mm
Specifications subject to change without notice
