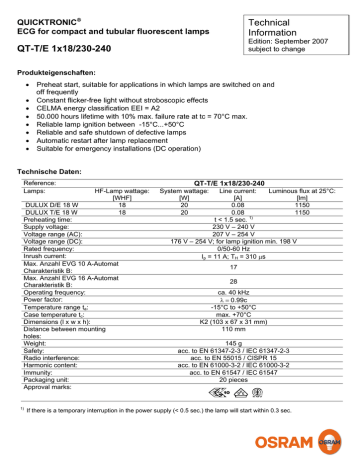

Data sheet QT-T/E 1x18/230-240
QUICKTRONIC®
ECG for compact and tubular fluorescent lamps
Technical
Information
QT-T/E 1x18/230-240
Edition: September 2007
subject to change
Produkteigenschaften:
•
•
•
•
•
•
•
•
Preheat start, suitable for applications in which lamps are switched on and
off frequently
Constant flicker-free light without stroboscopic effects
CELMA energy classification EEI = A2
50.000 hours lifetime with 10% max. failure rate at tc = 70°C max.
Reliable lamp ignition between -15°C...+50°C
Reliable and safe shutdown of defective lamps
Automatic restart after lamp replacement
Suitable for emergency installations (DC operation)
Technische Daten:
Reference:
Lamps:
QT-T/E 1x18/230-240
HF-Lamp wattage:
[WHF]
18
18
DULUX D/E 18 W
DULUX T/E 18 W
Preheating time:
Supply voltage:
Voltage range (AC):
Voltage range (DC):
Rated frequency:
Inrush current:
Max. Anzahl EVG 10 A-Automat
Charakteristik B:
Max. Anzahl EVG 16 A-Automat
Charakteristik B:
Operating frequency:
Power factor:
Temperature range ta:
Case temperature tc:
Dimensions (l x w x h):
Distance between mounting
holes:
Weight:
Safety:
Radio interference:
Harmonic content:
Immunity:
Packaging unit:
Approval marks:
1)
System wattage:
[W]
20
20
Line current:
Luminous flux at 25°C:
[A]
[lm]
0.08
1150
0.08
1150
1)
t < 1.5 sec.
230 V – 240 V
207 V – 254 V
176 V – 254 V; for lamp ignition min. 198 V
0/50-60 Hz
Ip = 11 A; TH = 310 µs
17
28
ca. 40 kHz
λ = 0.99c
-15°C to +50°C
max. +70°C
K2 (103 x 67 x 31 mm)
110 mm
145 g
acc. to EN 61347-2-3 / IEC 61347-2-3
acc. to EN 55015 / CISPR 15
acc. to EN 61000-3-2 / IEC 61000-3-2
acc. to EN 61547 / IEC 61547
20 pieces
If there is a temporary interruption in the power supply (< 0.5 sec.) the lamp will start within 0.3 sec.
QUICKTRONIC®
ECG for compact and tubular fluorescent lamps
Vorläufige Technische
Technical
Information
QT-T/E 1x18/230-240
Ausgabe:
Edition:
July
September
Juni
Juli
2006
2006
20062007
subject
Änderungen
to change
vorbehalten
Product number:
Product number
QT-T/E 1x8/230-240
EAN 10 / Single unit (1 pc.)
4050300 326382
EAN 40 / Package unit (20 pcs.)
4050300 326399
Lamp wiring:
Max. permitted cable length in between EVG and lamp: 2.0 m (PIN 1;2); 1.0 m (PIN 3;4)
