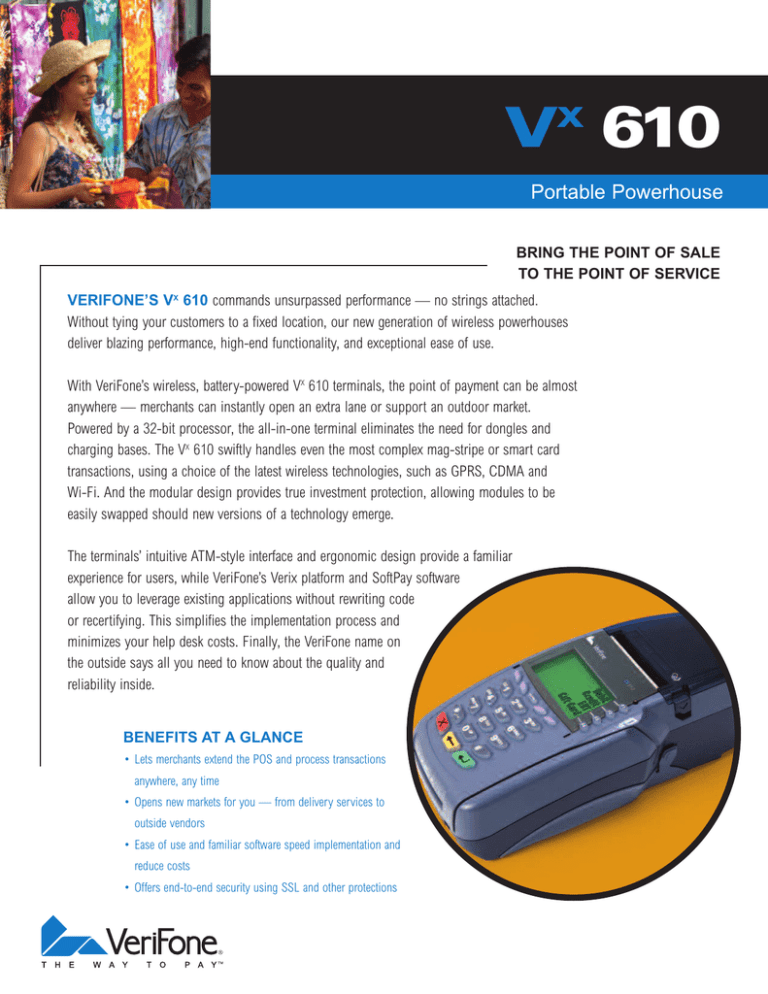

V 610
X
Portable Powerhouse
BRING THE POINT OF SALE
TO THE POINT OF SERVICE
VERIFONE’S VX 610 commands unsurpassed performance — no strings attached.
Without tying your customers to a fixed location, our new generation of wireless powerhouses
deliver blazing performance, high-end functionality, and exceptional ease of use.
With VeriFone’s wireless, battery-powered VX 610 terminals, the point of payment can be almost
anywhere — merchants can instantly open an extra lane or support an outdoor market.
Powered by a 32-bit processor, the all-in-one terminal eliminates the need for dongles and
charging bases. The VX 610 swiftly handles even the most complex mag-stripe or smart card
transactions, using a choice of the latest wireless technologies, such as GPRS, CDMA and
Wi-Fi. And the modular design provides true investment protection, allowing modules to be
easily swapped should new versions of a technology emerge.
The terminals’ intuitive ATM-style interface and ergonomic design provide a familiar
experience for users, while VeriFone’s Verix platform and SoftPay software
allow you to leverage existing applications without rewriting code
or recertifying. This simplifies the implementation process and
minimizes your help desk costs. Finally, the VeriFone name on
the outside says all you need to know about the quality and
reliability inside.
BENEFITS AT A GLANCE
• Lets merchants extend the POS and process transactions
anywhere, any time
• Opens new markets for you — from delivery services to
outside vendors
• Ease of use and familiar software speed implementation and
reduce costs
• Offers end-to-end security using SSL and other protections
VX 610
Portable Powerhouse
FEATURES AND BENEFITS
SPECIFICATIONS
Countertop payment with wireless flexibility
Base Terminal
•
Extends countertop payment to wherever consumers are, opening new market
opportunities for you
Familiar, consistent platform
•
Proven Verix-based platform provides seamless fit with merchant’s existing
•
Supports payment and value-added applications — application separation at both
•
•
VeriFone countertop terminals
the hardware and software level minimizes or eliminates the need to recertify
existing payment applications every time an application is added or modified
Designed for optimal performance with IP-based transactions
Dual modem design — wireless and dial — offers added dependability
Exceptional performance and ease of use
•
•
•
•
•
•
•
•
•
Powerful 32-bit processing, multi-tasking, and “always-on” wireless services
(local and wide-area) trim transaction times to just a few seconds, even on the
most complex transactions such as SSL and EMV-based smart card
File compression and high-speed IP wireless networks greatly streamline
application downloads
Industry leading battery performance with large capacity Lithium-Ion Smart
Battery technology
Intuitive ATM-style interface, backlit display, large keys, and bold menu prompts
reduce clerk errors and minimize help desk calls
All-in-one design includes high-speed (18 lines/second) thermal printer, drop-in
“clam shell” paper loading
Standard countertop paper roll providing minimizing inventory, costs, and
provides additional printing capability over competitor’s products
Vertical, triple-track, high-coercivity card reader handles most magnetic-stripe cards
Built-in smart card reader and Security Access Modules (SAMs) support multiple
smart card solutions and offer added data protection
Internal PIN pad supports debit and other PIN-based applications
Advanced security and superior reliability
•
•
Latest security protections include advanced 3DES encryption, Master Key/Session
Key and Derived Unique Key Per Transaction (DUKPT) key-management, and
sophisticated VeriShield file authentication plus tamper resistance
The Vx 610 is PED Approved by Visa and MasterCard for debit and other
PIN-based transactions and has received EMV Level 1 and Level 2 Type Approval
© 2005 VeriFone. All rights reserved. VeriFone, the VeriFone logo, Vx, SoftPay, VeriShield, and Verix
are either trademarks or registered trademarks of VeriFone in the United States and/or other countries.
All features and specifications are subject to change without notice.
08/05 45410 Rev B 4M/VM
Processor
32-bit microprocessor
Memory
4 MBytes (2 MBytes of Flash, 2 MBytes of SRAM) or
6 MBytes (4 MBytes of Flash, 2 MBytes of SRAM)
Display
128 x 64 pixel graphical LCD with backlighting; supports 8 lines x 21 characters
Magnetic Card Reader
Triple track (tracks 1, 2, 3), high coercivity, bi-directional
Primary Smart Card
ISO 7816, 1.8V, 3V, 5V or synchronous and asynchronous cards; EMV certified
SAM Card Reader
1 or 3 Security Access Modules (SAMs)
Keypad
3 x 4 numeric keypad, plus 8 soft-function keys and 4 screen-addressable keys
Peripheral Ports
One RS-232 ports and 1 telco port support peripherals including PIN pads
and check readers
Printer
Integrated thermal with graphics capabilities, 18 lines per second, 24 or 32
columns; standard counter-top paper roll 58 mm (2.25 in.) x 25M, single ply
Modem
Standard 14.4kbps modem (Bell 103/212a, CCITT V.21/V.22/V.22bis,
300/1200/2400/14.4k bps, synchronous and asynchronous)
Wireless Modem
Supports Wide Area Wireless GSM\GPRS on 900/1800 MHz or 850/1900 MHz;
CDMA2000 1X on 800/1900, and Local Area Wireless WiFi 802.11b
Protocols
Application selects between asynchronous protocols (Visa 1, Visa 2, etc) and
synchronous protocols (including ISO 8583/SDLC). IP enabled, with optional
TCP\IP protocol stack
Security
3DES encryption, Master/Session and DUKPT key management; PED approved;
VeriShield file authentication. SSL API for secured IP transactions
Physical
Length: 209mm (8in.); Width: 102 mm (4in.); Height:70mm (2.8in.)
Weight: Terminal/708g (1.5lbs)
Environmental
0 to 40 C (32 to 104 F) operating temperature; 5% to 90% relative humidity,
non-condensing
Voltage
AC input 100 - 240 VAC, 50/60 Hz; DC Output 8.6 - 9.4 VDC, 4.0 Amp
