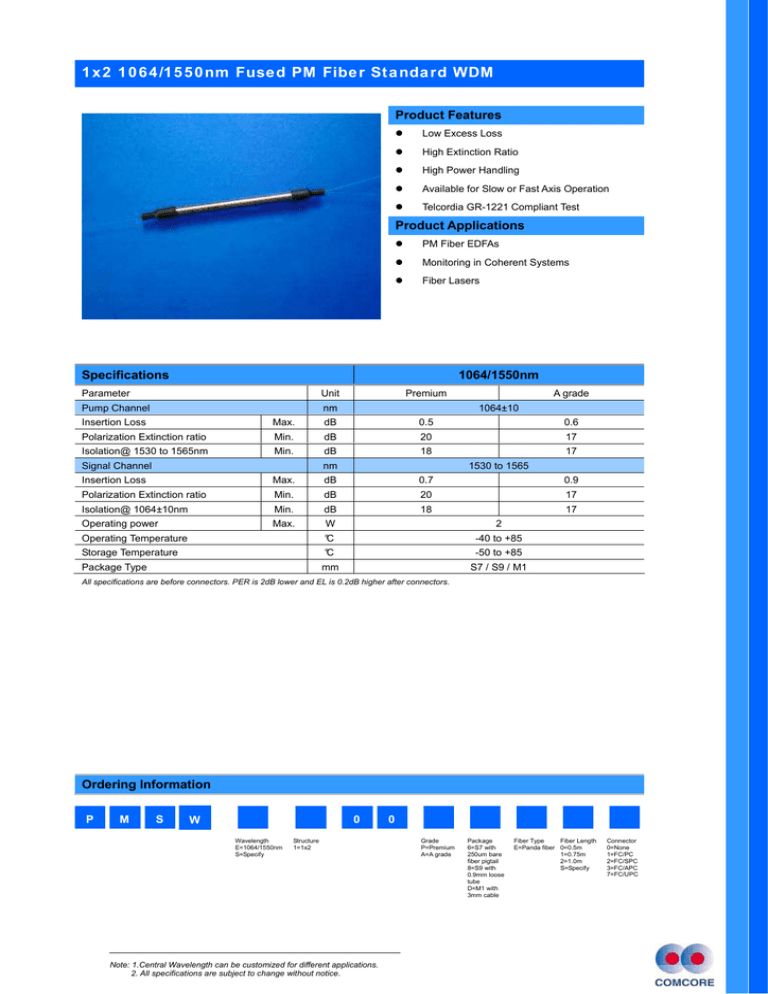

datasheet for PMSW by Comcore Technologies, Inc.
1 x 2 1 0 6 4 /1 5 5 0 nm Fuse d PM Fibe r St a nda rd WDM Product Features Low Excess Loss High Extinction Ratio High Power Handling Available for Slow or Fast Axis Operation Telcordia GR-1221 Compliant Test Product Applications PM Fiber EDFAs Monitoring in Coherent Systems Fiber Lasers Specifications 1064/1550nm Parameter Unit Pump Channel nm Premium A grade 1064±10 Insertion Loss Max. dB 0.5 0.6 Polarization Extinction ratio Min. dB 20 17 [email protected] 1530 to 1565nm Min. dB 18 Signal Channel nm 17 1530 to 1565 Insertion Loss Max. dB 0.7 0.9 Polarization Extinction ratio Min. dB 20 17 [email protected] 1064±10nm Min. dB 18 Operating power Max. W 2 Operating Temperature °C -40 to +85 Storage Temperature °C -50 to +85 Package Type mm S7 / S9 / M1 17 All specifications are before connectors. PER is 2dB lower and EL is 0.2dB higher after connectors. Ordering Information P M S 0 W Wavelength E=1064/1550nm S=Specify Structure 1=1x2 Note: 1.Central Wavelength can be customized for different applications. 2. All specifications are subject to change without notice. 0 Grade P=Premium A=A grade Package 6=S7 with 250um bare fiber pigtail 8=S9 with 0.9mm loose tube D=M1 with 3mm cable Fiber Type Fiber Length E=Panda fiber 0=0.5m 1=0.75m 2=1.0m S=Specify Connector 0=None 1=FC/PC 2=FC/SPC 3=FC/APC 7=FC/UPC
