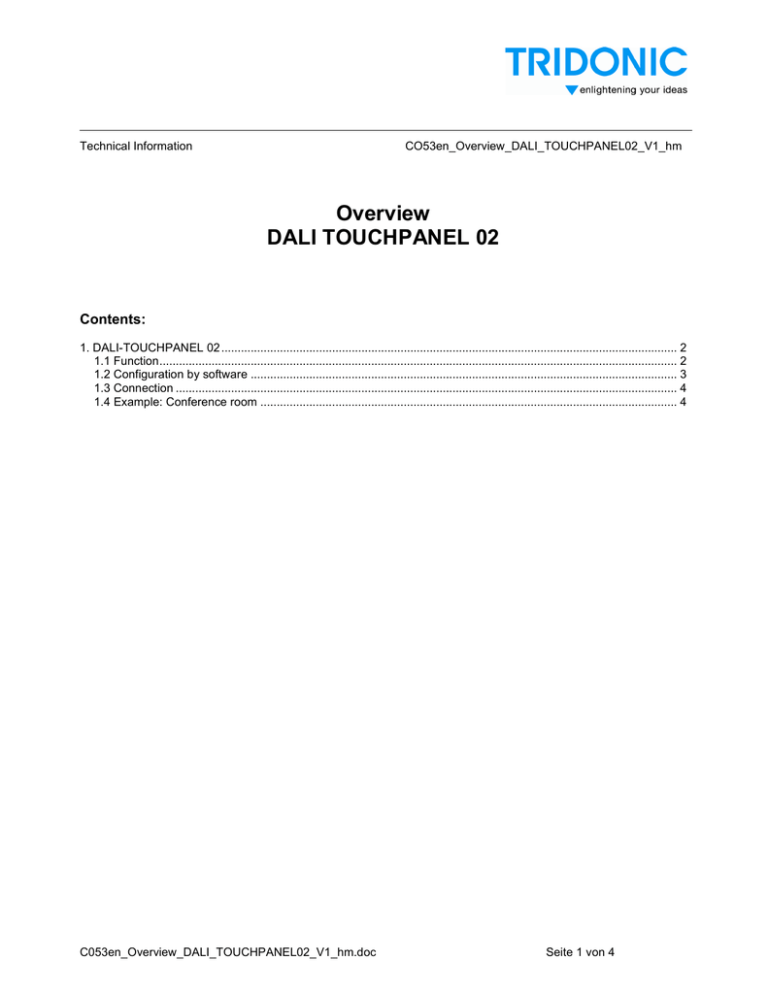

Technical Information
CO53en_Overview_DALI_TOUCHPANEL02_V1_hm
Overview
DALI TOUCHPANEL 02
Contents:
1. DALI-TOUCHPANEL 02 ............................................................................................................................................ 2
1.1 Function............................................................................................................................................................... 2
1.2 Configuration by software ................................................................................................................................... 3
1.3 Connection .......................................................................................................................................................... 4
1.4 Example: Conference room ................................................................................................................................ 4
C053en_Overview_DALI_TOUCHPANEL02_V1_hm.doc
Seite 1 von 4
1. DALI-TOUCHPANEL 02
The DALI-TOUCHPANEL 02 is a multifunctional device for the DALI circuit. It combines the
functions of DALI-GC and DALI-SC in a single module and has six freely definable buttons.
The six buttons are configured using the masterCONFIGURATOR (since V2.6).
The following configurations are possible:
• On/off switching of individual addresses, groups or broadcast
• Up/down fading of individual addresses, groups or broadcast
• Scene selections
The DALI TOUCHPANEL 02 offers a high degree of design flexibility. The user interface
can be customised with interchangeable layout cards.
The DALI TOUCHPANEL 02 is multi-master-compatible, which means that several control modules can be installed
in parallel in a DALI system.
Via the software masterCONFIGURATOR (since V2.60) it is possible to configure the panel for tunable white
applications. The layout is configurable to control individual addresses, groups or broadcast.
1.1 Function
Button assignments of the factory layout:
Scene buttons:
Calling up scenes 1-3
Group buttons:
Controlling assigned DALI
devices or DALI groups.
Short press: ON, OFF
Long press: Dimming
Finder LED:
Red LED to find the panel in the
dark.
Long press: LED on/off
C053en_Overview_DALI_TOUCHPANEL02_V1_hm.doc
Seite 2 von 4
Button assignments of the tunable white layout:
On-/Off button:
Turning the Light On or Off
Dim wheel:
Recall of discrete dim values by
pressing on any position of the
dim wheel.
Diming by sliding along the dim
wheel.
Tunable White button:
Change of the color temperature
along the planckian locus via the
buttons on the right and left side.
Adjusting to 4500K by pressing
the button in the middle.
1.2 Configuration by software
Finder LED:
Red LED to find the panel in the
dark.
Long press: LED on/off
The masterCONFIGURATOR (since V2.6) software can be used to assign each of the buttons on the DALITOUCHPANEL 02. The DALI circuit can also be configured with the masterCONFIGURATOR (addressing,
grouping, etc.). In addition to the masterCONFIGURATOR (since V2.6) software you will need a DALI USB for the
connection between the computer and the DALI circuit.
Table 1: Parameters for the dimming mode
Dimming mode selection
Toggle ON/OFF
Dim up only
Dim up and on for short press
Dim down only
Dim down and off for short
press
Toggle up/down
Toggle up/down and on/off for
short press
Short press
Toggles between the selected
ON command and OFF
command
Ignored
Perform the selected ON
command
Ignored
Perform the selected OFF
command
Ignored
Toggles between the selected
ON command and OFF
command
Long press
On (if necessary) / fade up
On (if necessary) / fade up
Fade down
Fade down
Toggle between fade up and
fade down
Toggle between fade up and
fade down
Note: Selecting ON or OFF in dimming mode not only allows you to switch the lighting on or off, you can
also select which specific command for ON or OFF will be sent. ON and OFF are therefore variables.
Example: Configuring the scene 1 button
•
•
•
Logical address:
Dimming mode:
ON/OFF command:
Broadcast
toggle ON/OFF
ON command: “Go to scene 1” / OFF command: “Go to scene 1”
Each time the button is pressed the command “Go to scene 1” is sent.
C053en_Overview_DALI_TOUCHPANEL02_V1_hm.doc
Seite 3 von 4
1.3 Connection
The DALI TOUCHPANEL 02 is connected directly to the DALI circuit and does not need a separate power supply. It
is powered via the DALI circuit (current draw = 6 mA). It can be connected to the DALI circuit with either polarity.
1.4 Example: Conference room
Requirement
• On/off switching at the door
• Dimming of all the lights (broadcast) at the control panel near the window
• Retrieval of user-defined lighting scenes (e.g. the presentation scene) at the control panel near the window
Fig. 1: Overview of a conference room set-up
Table 2: DALI-SC and TOUCHPANEL 02 assignment
Linear luminaires
Halogen spotlights
DALI-SC
(control panel near door)
DALI-TOUCHPANEL 02
(control panel near
window)
Conference room
Group 1
Group 2
Rotary switch position 1 (scene 1-4):
Scene 1 ⇒ Light off
Scene 2 ⇒ Light 100%
Scenes 3 and 4 ⇒ not used
Touchpanel factory layout:
Scene 1 ⇒ Light off
Scene 2 ⇒ Light 100%
Scene 3 ⇒ Presentation
Up button ⇒ Fade up both groups
Down button ⇒ Fade down both groups
OFF button ⇒ Switch off the lighting
Technical Sales
November 2012
C053en_Overview_DALI_TOUCHPANEL02_V1_hm.doc
Seite 4 von 4
