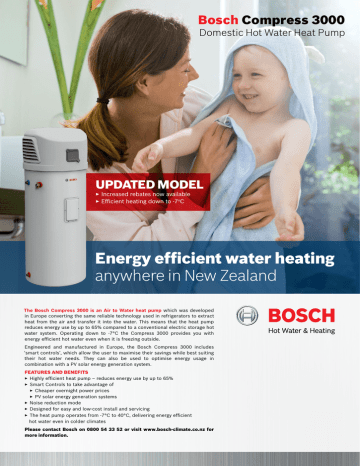

Bosch Compress 3000
Domestic Hot Water Heat Pump
UPDATED MODEL
3 Increased rebates now available
3 Efficient heating down to -7oC
Energy efficient water heating
anywhere in New Zealand
The Bosch Compress 3000 is an Air to Water heat pump which was developed
in Europe converting the same reliable technology used in refrigerators to extract
heat from the air and transfer it into the water. This means that the heat pump
reduces energy use by up to 65% compared to a conventional electric storage hot
water system. Operating down to -7°C the Compress 3000 provides you with
energy efficient hot water even when it is freezing outside.
Engineered and manufactured in Europe, the Bosch Compress 3000 includes
‘smart controls’, which allow the user to maximise their savings while best suiting
their hot water needs. They can also be used to optimise energy usage in
combination with a PV solar energy generation system.
FEATURES AND BENEFITS
3
Highly efficient heat pump – reduces energy use by up to 65%
3
Smart Controls to take advantage of
3
Cheaper overnight power prices
3
PV solar energy generation systems
3
Noise reduction mode
3
Designed for easy and low-cost install and servicing
3
The heat pump operates from -7°C to 40°C, delivering energy efficient
hot water even in colder climates
Please contact Bosch on 0800 54 33 52 or visit www.bosch-climate.co.nz for
more information.
Bosch Compress 3000
3
Reduces energy use by up to 65%
3
Smart controls for user flexibility;
demand & running cost
optimisation
3
Suitable for 3–4 people
670
Specifications
Model
Bosch Product Code
7736501960
Heat Pump operating temperatures oC
-7°C / +40°C
Total operating temperatures oC
-10oC / +50oC
Outlet Water temperature oC
Storage capacity (L)
60oC - 65oC
270
Max Water Relief Pressure (kPa)
1000
Max Water Supply Pressure (kPa)
800
COP*
3.3
Heat Pump Module
Heat Pump Max input (kW)
0.6
Max Current (A)
2.6
Heat Pump heating capacity (kW)
1.5
Back Up Electric Element
1.65
7.2
Maximum Combined Total
Heating capacity (kW)
3.15
Maximum input 2.25
Maximum Current @ 230V (A)
9.8
Net empty weight (kg)
130
Refrigeration type/ Mass (kg)
R134a/0.375
Domestic Warranty
Parts & Labour
2 Years
Tank (Part Only)
5 Years
1180
Total Max current (A)
1840
Heat input (kW)
64
* COP as measured under the following conditions: air 15oC; RH 70%;
water 15oC-60oC.
Note: Heat pumps use the ambient temperature in surrounding air to heat water in
the tank. This means as the air temperature around the tank decreases, the time
taken to heat the full tank increases. Customers in colder climate and frost prone
areas should consider this when deciding which type of Bosch system is best for
their circumstances. For detailed information on which Bosch hot water system
best suits your needs please call Bosch.
Please contact us on 0800 54 33 52 or visit www.bosch-climate.co.nz for more
information.
