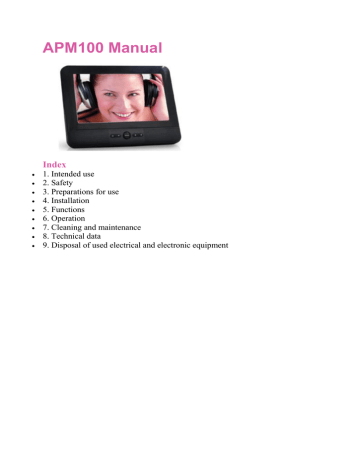

APM100 Manual
Index









1. Intended use
2. Safety
3. Preparations for use
4. Installation
5. Functions
6. Operation
7. Cleaning and maintenance
8. Technical data
9. Disposal of used electrical and electronic equipment
Intended use
The appliance works as portable media player. With this device it is
possible to play music (MP3/WMA3), video (MPEG4 / Xvid), photo
(JPEG) and E-book (only .txt) files. These files can be accessed either
from external sources (including USB and SD card) or from the internal
drive (1.6 GB) of the AMP100. It is also possible to save files on the
internal disc.
Read the manual carefully before the first use.
Safety
Labels in this manual
WARNING A warning means that injury or death is possible if the
instructions are not obeyed.
CAUTION A caution means that damage to the equipment is possible.
A note gives additional information, e.g. for a procedure.
General safety instructions
CAUTION Do not spill any liquid on the appliance.
Preparations for use
Unpacking


Unpack the appliance carefully.
Check the package contents as described below. If any item is
missing, please contact your reseller.
We recommend that you retain the original carton and packing materials
in case it ever becomes necessary to return your product for service.
This is the only way to safely protect the product against damage in
transit. If you do dispose of the carton and the packing materials, please
remember to recycle with due care to the environment.
Package contents
The following items are included in the received package:
1 x APM100
1 x Remote control
1 x Button cell
1 x Quick start guide
% 1% Headphone
1 x AC adapter
1 x 12V Car adapter
NOTE: the button cell battery has already been inserted in your remote
control
If any item is missing, please contact your reseller.
Installation
Put the appliance on a horizontal flat surface.
 Connect the appliance to the mains.
See for instructions section 3.1
Connect the random equipment to the appliance. Read the paragraph
"Connecting external devices".

CAUTION Do not put the appliance near a heat source.
Do not expose the appliance to direct sunlight.
Connecting to the mains
Connect the female plug of the AC adapter to the DC IN jack

Connect the mains plug to a wall socket.
Connecting external devices
HDMI (1), USB (2) and SD Card (3) inputs
You can connect the% 1% to a TV to display the pictures or video files
on the TV screen.
Use a standard HDMI cable for this.
For extended instructions, read the paragraph "Operation" further on in
this manual.
Connect the headphone
For extended instructions, read the paragraph "CD functions" further on
in this manual.
Functions
Remote control
1. MUTE button
2. AUDIO button
3. HOME button
4. PHOTO button
5. VOLUME - button
6. VOLUME + button
7. DISPLAYOUT button
8. LEFT button
9. SETUP button
10. ROTATE button
11. PLAY/ PAUSE button
12. STOP button
13. PREV button
14. NEXT button
15. LCD button
16. SUBTITLE button
17.
18.
19.
20.
21.
22.
23.
24.
25.
26.
27.
28.
VIDEO button
MUSIC button
BROWSER button
UP button
RIGHT button
OK button
RETURN button
DOWN button
ZOOM + button
ZOOM - button
FAST FORWARD button
FAST BACKWARD button
APM100 Portable Mediaplayer
Stereo sound: 2 x 1 Watt
Operation
Turning the device on and off.
Set the switch in the ON position to turn the equipment on.
Set the switch in the OFF position to switch off the device.
HOME-page
After you have turned on your AMP100, the HOME page will be loaded
automatically.
Press the OK button .
Select CARD, external USB stick or (internal) hard disc.
DESKTOP will be loaded automatically.
Explorer
Select EXPLORER (1) to browse through all types of files on the local
disk or other connected sources
You can play any type of file.





Select the preferred source using the UP (20) and DOWN (24) keys
Press OK (22) to confirm.
Select the preferred file
Press OK (22) to confirm.
If it is a video file: see section MOVIE
If it is a music file: see section MUSIC
If it is an image file: see section PHOTOS
If it is a text file: see section: E-BOOK
Movie
Select MOVIE (2) to browse your video files
If the selected video file is playing, you can choose from several options.
Use the keys SETUP (9) / OK (22) for this.
Use the LEFT (8) and RIGHT (21) keys to navigate within the menu.
The menu will automatically disappear, but if you wish to remove it
sooner, press RETURN (23)










PLAY / PAUSE: play or pause the selected file
PREV: previous file
NEXT: next file
TRACK: select the TRACK of the VIDEO playing (if available)
SUBTITLE: select the subtitles for the VIDEO file that is playing (if
available)
SCALE: select the VIDEO format (4:3. 16:9, full screen, max)
MODE: select from the various repeat and programming options
CHANNEL: Select the desired sound with this view (STEREO, LEFT,
RIGHT)
SUB SIZE/COLOR: select the preferred size and colour of the
subtitles.
Press the SETUP (9) Button or the LEFT (8) Button.
You can now select from the following options:




Sort: to sort the files alphabetically (A-Z, Z-A)
Copy/Paste: copies the selected files and pastes them in a desired
location
Delete: to delete selected files
Cancel: to exit the menu
Music
Select MUSIC (3) to browse your music files
If the selected music file is playing, you can choose from several options.
Use the keys SETUP (9) / OK (22) for this.
Use the LEFT (8) and RIGHT (21) keys to navigate within the menu.
The menu will automatically disappear, but if you wish to remove it
sooner, press RETURN (23)
You can now select from the following options:
PLAY / PAUSE: play or pause the selected file
 PREV: previous file
 NEXT: next file
 MODE: select from the various repeat and programming options
 SOUND: select from the various sound effects
 DISPLAY: select the cover image or the lyrics of a song (if available)
 FAVOR: Allows you to rate your music (1,2,3,4,5 Stars)
 Press the SETUP (9) Button or the LEFT (8) Button.
You can now select from the following options:





Sort: to sort the files alphabetically (A-Z, Z-A)
Copy/Paste: copies the selected files and pastes them in a desired
location
Delete: to delete selected files
Cancel: to exit the menu
Photos
Select PHOTO (4) to browse your photos and images
If your images are displayed, you can choose from several options.
Use the keys SETUP (9) / OK (22) for this.
Use the LEFT (8) and RIGHT (21) keys to navigate within the menu.
The menu will automatically disappear, but if you wish to remove it
sooner, press RETURN (23)

PLAY / PAUSE: view or pause the slide presentation
THUMB: this gives you an overview of several images in thumb
format
MUSIC: this allows you to add music to your slide presentation
EFFECT: this allows you to select a transition effect for your different
photos/images
TIME SLOT: to set the display time of your images/photos
ORDER: set the sequence of your images/photos
SET BG: set the selected image/photo as background

Press the SETUP (9) Button or the LEFT (8) Button.






You can now select from the following options:




Sort: to sort the files alphabetically (A-Z, Z-A)
Copy/Paste: copies the selected files and pastes them in a desired
location
Delete: to delete selected files
Cancel: to exit the menu
E-book
Select E-BOOK (5) to browse your E-BOOK files
If the selected E-BOOK is displayed, you can choose from several
options.
Use the keys SETUP (9) / OK (22) for this.
Use the LEFT (8) and RIGHT (21) keys to navigate within the menu.
The menu will automatically disappear, but if you wish to remove it
sooner, press RETURN (23)










PLAY/ PAUSE
ROTATE: this allows you to rotate the image
SAVE: this allows you to save your bookmarks
JUMP: to open a bookmark
FONT: to set the font size
COLOR: select the colour of the letters
BK GRAD: set the background
MUSIC: to play and pause your music
TIME: to set the time display for a page
Press the SETUP (9) Button or the LEFT (8) Button.
You can now select from the following options:




Sort: to sort the files alphabetically (A-Z, Z-A)
Copy/Paste: copies the selected files and pastes them in a desired
location
Delete: to delete selected files
Cancel: to exit the menu
Music(s)
Select MUSIC (S) (7) to directly call the music file that is playing
Copy (general)
Copying a file from one source to another source
NOTE:
Copying must be done from within the Explorer, as this may result in
error messages when carried out from other sources.
Select the preferred file
 Press the LEFT button (8).
The options will appear at the bottom of the screen

Press the RIGHT button (21).
 Select "file"
 Press OK (22) to confirm.
A menu will appear on the right of the screen

Select "copy"
Use the UP (20) key for this.





Press OK (22) to confirm.
Press the RETURN button (23).
Select the preferred location to copy the file to
Press the LEFT button (8).
Select "file"
Use the UP (20) key for this.

Select "paste"
 Press OK (22) to confirm.
The file has been copied

NOTE:
The USB stick you use must be formatted as FAT32 file system. The
device does play files from an NTFS formatted USB stick, but the
APM100 cannot copy files to it. You must transfer the files to the USB
stick via the computer
Setting
Output
You can connect the% 1% to a TV to display the pictures or video files
on the TV screen.
Connect your APM100 to your TV
Use a standard HDMI cable for this.

Select "settings"
Use the RIGHT (21) key for this.

Press OK (22) to confirm.
 Select "outputs"
Use the UP (20) key or the DOWN (24) key.

Press OK (22) to confirm.
 Select the desired output mode (LCD or image)
Use the UP (20) key or the DOWN (24) key.


Press OK (22) to confirm.
NOTE:
If you select "LCD", the image will be displayed on the AMP100.
If you select "aspect ratio" the image will be displayed on TV.

Consult the manual of your TV for the correct aspect ratio.

Press the RETURN (23) key to exit the menu
Press the RETURN (23) key again to return to HOME.

Language
Select "settings"
Use the RIGHT (21) key for this.

Press OK (22) to confirm.
 Select "language"
Use the UP (20) key or the DOWN (24) key.

Press OK (22) to confirm.
 Select the preferred language
Use the UP (20) key or the DOWN (24) key.


Press OK (22) to confirm.

Press the RETURN (23) key to exit the menu
Press the RETURN (23) key again to return to HOME.

Key tone
Select "settings"
Use the RIGHT (21) key for this.

Press OK (22) to confirm.
 Select 'key tone'.
Use the UP (20) key or the DOWN (24) key.

Select 'on' or 'off'.
Use the UP (20) key or the DOWN (24) key.


Press OK (22) to confirm.

Press the RETURN (23) key to exit the menu
Press the RETURN (23) key again to return to HOME.

System information
Select "settings"
Use the RIGHT (21) key for this.

Press OK (22) to confirm.
 Select 'system information'
Use the UP (20) key or the DOWN (24) key.

Press OK (22) to confirm.
You will see an overview of:






The capacity of the internal drive.
The available space for the internal drive.
The software version.
Press the OK (22) key to exit the menu
Press the RETURN (23) key to return to HOME.
Restore default settings
Select "settings"
Use the RIGHT (21) key for this.

Press OK (22) to confirm.
 Select 'default'
Use the UP (20) key or the DOWN (24) key.

Press OK (22) to confirm.
 Select 'yes' or 'no'
Use the LEFT (8) key or the RIGHT (21) key.



Press OK (22) to confirm.
Press the RETURN (23) key to return to HOME.
Cleaning and maintenance
WARNING Before performing any cleaning or maintenance, switch off
and unplug the appliance.
Clean the outside of the appliance with a soft cloth. When the appliance
is very dirty, dampen the cloth slightly with water and a neutral solution.
Technical data
Power supply:
DC 9V Adapter
16:9 aspect ratio with 17.8 cm screen (7")
Stereo sound: 2 x 1 Watt
MPEG4 / Xvid playback
MP3 / WMA playback
USB 2.0 slot
Slot-in for SD / MMC card
Digital output: HDMI
2G internal memory
Earphone jack
An external hard disc is not compatible with the APM100, you can only
use USB memory sticks
Accessories
Remote control
% 1% Headphone
AC/DC Adapter
12V Car adapter
Quick start guide
Disposal of used electrical and
electronic equipment
The meaning of the symbol on the material, its accessory or packaging
indicates that this product shall not be treated as household waste.
Please, dispose of this equipment at your applicable collection point for
the recycling of electrical and electronic equipments waste. In the
European Union and Other European countries which there are separate
collection systems for used electrical and electronic product. By ensuring
the correct disposal of this product, you will help prevent potentially
hazardous to the environment and to human health, which could
otherwise be caused by unsuitable waste handling of this product. The
recycling of materials will help conserve natural resources. Please do not
therefore dispose of your old electrical and electronic equipment with
your household waste.
For more detailed information about recycling of this product, please
contact your local city office, your household waste disposal service or
the shop where you purchased the product.
For more information and warranty conditions, please visit: www.akai.eu
Do not dispose of batteries as household waste but take them to a
battery recycling facility.
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
