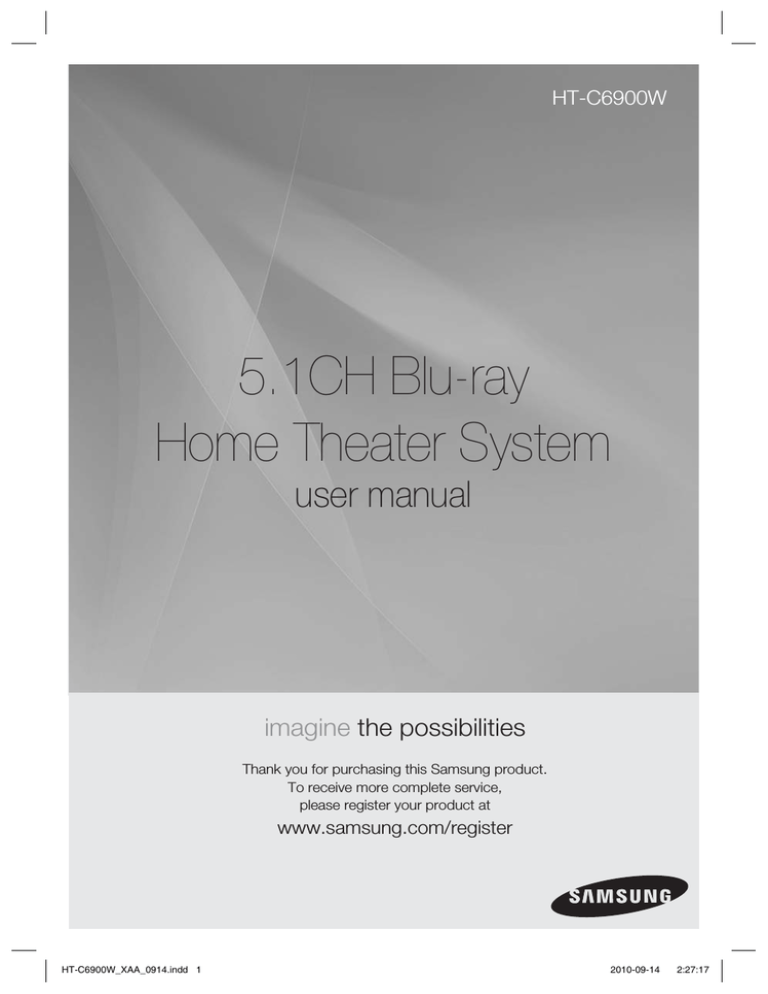

HT-C6900W
5.1CH Blu-ray
Home Theater System
user manual
imagine the possibilities
Thank you for purchasing this Samsung product.
To receive more complete service,
please register your product at
www.samsung.com/register
HT-C6900W_XAA_0914.indd 1
2010-09-14
2:27:17
Safety Information
Safety Warnings
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER (OR BACK).
NO USER-SERVICEABLE PARTS ARE INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
The lighting flash and Arrowhead
within Triangle Is awarning sign
alerting you of dangerous voltage
Inside the product.
CAUTION : TO REDUCE THE RISK OF
ELECTRIC SHOCK, DO NOT REMOVE
COVER (OR BACK) NO USER SERVICEABLE
PARTS INSIDE. REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL.
The explanation point within the
triangle is a warning sign alerting
you of important instructions
accompanying the product.
WARNING
CAUTION
• To reduce the risk of fire or electric shock, do
not expose this appliance to rain or moisture.
• Apparatus shall not be exposed to dripping or
splashing and no objects filled with liquids, such as
vases, shall be placed on the apparatus.
• The Mains plug is used as a disconnect device and
shall stay readily operable at any time.
CLASS 1
KLASSE 1
LUOKAN 1
KLASS 1
PRODUCTO
LASER PRODUCT
LASER PRODUKT
LASER LAITE
LASER APPARAT
LÁSER CLASE 1
CLASS 1 LASER PRODUCT
• This product is classified as a CLASS 1
LASER product.
Use of controls, adjustments or performance
of procedures other than those specified
herein may result in hazardous radiation
exposure.
• Complies with 21CFR 1040.10 except for
deviations pursuant to Laser Notice No. 50,
dated June 24, 2007.
2
DANGER
VISIBLE AND INVISIBLE LASER RADIATION WHEN
OPEN. AVOID DIRECT EXPOSURE TO BEAM. (FDA
21 CFR)
CAUTION
• CLASS 3B VISIBLE AND INVISIBLE LASER
RADIATION WHEN OPEN. AVOID EXPOSURE TO
THE BEAM (IEC 60825-1)
• THIS PRODUCT UTILIZES A LASER. USE OF
CONTROLS OR ADJUSTMENTS OR
PERFORMANCE OF PROCEDURES OTHER
THAN THOSE SPECIFIED HEREIN MAY RESULT
IN HAZARDOUS RADIATION EXPOSURE. DO
NOT OPEN COVER AND DO NOT REPAIR
YOURSELF. REFER SERVICING TO QUALIFIED
PERSONNEL.
English
HT-C6900W_XAA_0914.indd 2
2010-09-14
2:27:32
This product satisfies FCC regulations when shielded cables and connectors are used to connect the
unit to other equipment. To prevent electromagnetic interference with electric appliances, such as
radios and televisions, use shielded cables and connectors for connections.
FCC NOTE (for U.S.A)
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used
in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/TV technician for help.
CAUTION : FCC regulations state that any unauthorized changes or modifications to this equipment may void the user’s authority to operate it.
RF Radiation Exposure Statement
This equipment complies with FCC RF Radiation Exposure limits set forth for an uncontrolled
environment.
This equipment should be installed and operated with a minimum distance of 20cm between the
radiator and your body.
This transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause
undesired operation.
Changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
To comply with the FCC RF exposure compliance requirements, this device and its antenna
must not be co-located or operated in conjunction
The final device into which this transmitter module is installed must be labeled with the following
statement:
"This device contains TX FCC ID: A3LDNUBS1." If this transmitter will be configured as a pc
peripheral, it will be the OEM's responsibility to obtain authorization as such (either through
Certification of Declaration of Conformity) prior to marketing of the device.
English
HT-C6900W_XAA_0914.indd 3
3
2010-09-14
2:27:32
Important Safety Instructions
Read these operating instructions carefully before using the unit. Follow all the safety instructions listed
below. Keep these operating instructions handy for future reference.
1) Read these instructions.
2) Keep these Instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with dry cloth.
7) Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus
(including amplifiers) that produce heat.
9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two
blades with one wider than the other. A grounding type plug has two blades and a third grounding
prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit
into your outlet, consult an electrician for replacement of the obsolete outlet.
10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles,
and the point where they exit from the apparatus.
11) Only use attachment/accessories specified by the manufacturer.
12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or
sold with the apparatus. When a cart is used, use caution when moving the cart/
apparatus combination to avoid injury from tip-over.
13) Unplug this apparatus during lightning storms or when unused for long periods of time.
14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been
damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects
have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate
normally, or has been dropped.
4
English
HT-C6900W_XAA_0914.indd 4
2010-09-14
2:27:32
Precautions
• Ensure that the AC power supply in your house complies with the identification sticker located on the back
of your product.
• Install your product horizontally, on a suitable base (furniture), with enough space around it for ventilation
(3~4 inches).
• Do not place the product on amplifiers or other equipment which may become hot.
Make sure the ventilation slots are not covered.
• Do not stack anything on top of the product.
• Before moving the product, ensure the Disc Insert Hole is empty.
• In order to disconnect the product completely from the power supply, remove the main plug from the wall
outlet, especially when left unused for a long period of time.
• During thunderstorms, disconnect the AC main plug from the wall outlet. Voltage peaks due to lightning
could damage the product.
• Do not expose the product to direct sunlight or other heat sources. This could lead to overheating and
malfunction of the product.
• Protect the product from moisture, and excess heat or equipment creating strong magnetic or electric
fields (i.e. speakers.).
• Disconnect the power cable from the AC supply if the product malfunctions.
• Your product is not intended for industrial use. Use of this product is for personal use only.
• Condensation may occur if your product or disc has been stored in cold temperatures. If transporting the
product during the winter, wait approximately 2 hours until the product has reached room temperature
before using.
• The batteries used with this product contain chemicals that are harmful to the environment.
Do not dispose of batteries in the general household trash.
Viewing TV using the 3D function
IMPORTANT HEALTH AND SAFETY INFORMATION FOR 3D PICTURES. Read and
understand the following safety information before using the TV’s 3D function.
WARNING
• Some viewers may experience discomfort while viewing 3D TV such as dizziness, nausea and headaches. If you
experience any such symptom, stop viewing 3D TV, remove 3D Active Glasses and rest.
• Watching 3D images for an extended period of time may cause eye strain. If you feel eye strain, stop viewing 3D
TV, remove your 3D Active Glasses and rest.
• A responsible adult should frequently check on children who are using the 3D function. If there are any reports of
tired eyes, headaches, dizziness, or nausea, have the child stop viewing 3D TV and rest.
• Do not use the 3D Active Glasses for other purposes (such as general eyeglasses, sunglasses, protective
goggles, etc.)
• Do not use the 3D function or 3D Active Glasses while walking or moving around. Using the 3D function or 3D
Active Glasses while moving around may result in injuries due to running into objects, tripping, and/or falling.
English
HT-C6900W_XAA_0914.indd 5
5
2010-09-14
2:27:32
Safety Information
Cautions on Handling and Storing Discs
Small scratches on the disc may reduce sound
and picture quality or cause skipping.
Be especially careful not to scratch discs when
handling them.
Holding discs
• Do not touch the playback side of the disc.
• Hold the disc by the edges so that
fingerprints will not get on the surface.
• Do not stick paper or tape on the disc.
Disc Storage
• Do not keep in direct sunlight
• Keep in a cool ventilated area
• Keep in a clean Protection jacket.
Store vertically.
✎ NOTE
 Do not allow the discs to become contaminated with
dirt.
 Do not load cracked or scratched discs.
Handling and Storing Discs
If you get fingerprints or dirt on the disc, clean it with a
mild detergent diluted in water and wipe with a soft cloth.
• When cleaning, wipe gently from the inside to
the outside of the disc
✎ NOTE
 Condensation may form if warm air comes into
contact with cold parts inside the product. When
condensation forms inside the product, it may not
operate correctly. If this occurs, remove the disc
and let the product stand for 1 or 2 hours with the
power on.
License
• This product is covered by one or more of the following U.S. patents:
5,457,669 5,561,649 5,705,762 6,043,912 6,438,099 6,467,061
6,556,521 6,578,163 6,697,307 6,728,474 6,771,891 6,894,963
6,895,593 6,937,815 6,996,327 7,009,926 7,085,221 7,088,649
7,092,327 7,099,566 7,123,564 7,142,493 7,142,495 7,145,861
7,146,624 7,151,729 7,161,879 7,164,647 7,167,437 7,173,891
7,177,250 7,194,187 7,203,891 7,209,423 7,210,067 7,228,062
7,245,566 7,245,567 7,257,065 7,263,045 7,269,110 7,272,086
7,272,106 7,280,460 7,283,729 7,286,454 7,304,938
• “This item incorporates copy protection technology that is protected
by U.S. patents and other intellectual property rights of Rovi
Corporation. Reverse engineering and disassembly are prohibited.”
• ABOUT DIVX VIDEO: DivX® is a digital video format
created by DivX,Inc. This is an official DivX Certified
device that plays DivX video. Visit www. divx.com for
more information and software tools to convert your
files into DivX video.
ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified® device must
be registered in order to play DivX Video-on-Demand (VOD) content.
To generate the registration code, locate the DivX VOD section in the
device setup menu. Go to vod.divx.com with this code to complete
the registration process and learn more about DivX VOD.
DivX Certified to play DivX video up to HD 1080p, including premium
content.
• iPod is a trademark of Apple Inc.,
registered in the U.S. and other
countries.
iPhone is a trademark of Apple Inc.
• Manufactured under license from Dolby Laboratories. Dolby,
Pro Logic and the double-D symbol are trademarks of Dolby
Laboratories.
• Manufactured under license under U.S. Patent #’s: 5,451,942;
5,956,674;5,974,380; 5,978,762; 6,226,616; 6,487,535;
7,212,872; 7,333,929; 7,392,195; 7,272,567 & other U.S.
and worldwide patents issued & pending.
DTS and the Symbol are registered trademarks, & DTS-HD,
DTS-HD Master Audio | Essential, and the DTS logos are
trademarks of DTS, Inc. Product includes software. © DTS,
Inc. All Rights Reserved.
• < Open Source License Notice >
In the case of using open source software, Open Source
Licenses are available on the product menu.
• "Blu-ray 3D" and "Blu-ray 3D"logo are trademarks of Blu-ray
Disc Association.
Copyright
© 2010 Samsung Electronics Co., Ltd. All rights
reserved.
6
English
HT-C6900W_XAA_0914.indd 6
2010-09-14
2:27:32
Contents
Safety Warnings
Important Safety Instructions
Precautions
Cautions on Handling and Storing Discs
License
Copyright
GETTING STARTED
9
10
11
15
16
16
17
18
Key features of your new Blu-ray Home Theater
Icons that will be used in manual
Disc Types and Characteristics
Accessories
Description
Front Panel
Rear Panel
Remote control
CONNECTIONS
20
24
25
26
27
28
Connecting the Speakers
Connecting External Devices/your TV via HDMI
Connecting the FM Antenna
Connecting the Video Out to your TV
Connecting Audio from External Components
Connecting to the Network
SETUP
30
31
32
32
33
33
33
35
35
35
35
35
36
36
37
37
37
38
39
39
39
39
39
39
39
40
40
40
41
41
44
44
44
45
45
45
Before Starting (Initial settings)
Setting the Menu
Display
3D
TV Aspect Ratio
BD Wise (Samsung Products only)
Resolution
HDMI Format
Movie Frame (24Fs)
Progressive Mode
Still Mode
HDMI Deep Color
Audio
Speaker Setting
Musical Room Calibration
EQ Optimizer
HDMI Audio
Digital Output
Dynamic Range Control
AV Sync
System
Initial Settings
[email protected] Screen Size
Anynet+ (HDMI-CEC)
BD Data Management
Clock
DivX(R) Registration
DivX(R) Deactivation
Network
Network Settings
Network Status
BD-Live Internet Connection
Language
Security
Parental Rating
Change Password
2
9
20
30
ENGLISH
2
4
5
6
6
6
SAFETY INFORMATION
English
HT-C6900W_XAA_0914.indd 7
7
2010-09-14
2:27:33
Contents
SETUP
45
45
45
45
45
46
46
46
General
Background
Front Display
Power On/Off Sound
Light Effect
Support
Software Upgrade
Contact Samsung
BASIC FUNCTIONS
47
47
48
49
49
50
52
54
55
56
56
57
Playing a Disc
Using the Disc menu / Title menu / Popup menu
Using the Search and Skip Functions
Slow Motion Play/Step Motion Play
Repeat Playback
Using the TOOLS button
Listening to Music
Sound Mode
Playing back a Picture
Playing Back a USB Storage Device
Listening to Radio
Using an iPod
NETWORK SERVICES
59
63
63
63
Using [email protected]
BD-LIVE™
Software Upgrade Notification
Using the AllShare Function
OTHER INFORMATION
65
68
69
Troubleshooting
Index
Specifications
45
47
59
65
• Figures and illustrations in this User Manual are provided for reference only and may differ from actual product appearance.
8
English
HT-C6900W_XAA_0914.indd 8
2010-09-14
2:27:33
01
Getting Started
Getting Started
Key features of your new Blu-ray Home Theater
Product Features
Playback of many disc types, plus an FM tuner
This product allows you to play various discs, including BD-ROM/RE/R, DVD-VIDEO, DVD-RW/-R
(V mode), DVD+RW/+R, MP3/WMA, JPEG, DivX/MKV/MP4, and CD-R/RW, and has a sophisticated
FM tuner, all in a single player.
Full HD audio decoding support (Dolby Digital, Dolby Pro Logic ll, Dolby Digital Plus,
Dolby TrueHD, DTS, DTS-HD HRA, DTS-HD MA Essential)
Please refer to www.DOLBY.COM and DTS.COM for more detail.
HDMI
HDMI transmits Blu-Ray/DVD video and audio signals simultaneously, and provides a clearer picture.
The 1080p (Full HD) resolution provides even clearer pictures.
AV SYNC function
Video may lag behind the audio if the product is connected to a digital TV.
To compensate for this, you can adjust the audio delay time to sync up with the video.
Wireless receiver module
Samsung ’s rear-channel wireless receiver module does away with cables running between the product
and rear-channel speakers. Instead, the rear speakers connect to a compact wireless receiver module
that communicates with the product.
iPod & iPhone support
You can enjoy music files by connecting your iPod to the product with the supplied iPod dock.
BD Wise
BD Wise automatically adjusts BD Wise-compliant Samsung products to their optimal settings.
This feature is enabled only if BD Wise-compliant Samsung products are connected to each other using
an HDMI cable.
[email protected]
You can download various fee charged or free of charge applications through the network connection.
Various internet services and content are provided, including news, weather forecast, stock
market, games, movies and music.
3D
This product can play 3D contents through an HDMI cable.
To implement the 3D effect, connect a 3D device (3D-compliant AV receiver, 3D-compliant TV) to the
product using an HDMI cable, and play the 3D content while wearing 3D vision glasses.
Blu-ray Disc Features
Blu-ray Discs support the highest quality HD video available in the industry - Large capacity means no
compromise in video quality. Furthermore, a Blu-ray Disc has the same familiar size and look as a DVD.
* The following Blu-ray Disc features are disc dependant and will vary. Appearance and navigation of
features will also vary from disc to disc. Not all discs will have the features described below.
Video highlights
The BD-ROM format for movie distribution supports three highly advanced video codecs, including AVC,
VC-1, and MPEG-2.
HD video resolutions are also available:
1920 x 1080 HD
1280 x 720 HD
For high-definition playback
To view high-definition content on a Blu-ray disc, an HDTV (High Definition Television) is required.
Some discs may require using the product's HDMI OUT to view high-definition content. The ability to view
high-definition content on Blu-ray disc may be limited depending on the resolution of your TV.
BD-LIVE
You can use a Blu-ray Disc supporting BD-LIVE through the network connection to enjoy special content
provided by the disc manufacturer.
English
HT-C6900W_XAA_0914.indd 9
9
2010-09-14
2:27:33
Getting Started
Icons that will be used in manual
Make sure to check the following terms before reading the user manual.
Term
Logo
Icon
h
z
Z
BD-ROM
BD-RE/-R
DVD-VIDEO
Definition
This indicates a function available on a BD-ROM.
This indicates a function available on a BD-RE/-R disc recorded in the
BD-RE format.
This indicates a function available on a DVD-VIDEO.
DVD-RW (V)
DVD-R
y
DVD+RW
This indicates a function available on recorded DVD+RW or DVD-RW (V)/
DVD-R/+R discs that have been recorded and finalized.
DVD+R
Audio CD
MP3
WMA
-
JPEG
-
DivX
MKV
MP4
DivX
USB storage
device
-
CAUTION
-
NOTE
-
Shortcut Key
-
o
w
G
x
F
!
✎
This indicates a function available on an audio CD-RW/-R (CD-DA format
This indicates a function available in a CD-RW/-R, DVD-RW/-R disc or a
USB storage media containing MP3 or WMA contents.
This indicates a function available in a CD-RW/-R, DVD-RW/-R disc or a
USB storage media containing JPEG contents.
This indicates a function available in a CD-RW/-R, DVD-RW/-R disc or a
USB storage media containing DivX contents.
This indicates a function available on a USB storage device.
This indicates a situation where a function does not operate or settings
may be cancelled.
This indicates tips or instructions on the page that help each function
operate.
This indicates a button on the remote that provides direct and easy
access to a function.
• This product is compatible with the NTSC color system only.
• PAL discs will not play.
10
English
HT-C6900W_XAA_0914.indd 10
2010-09-14
2:27:33
01
Logos of Discs that can be played
Blu-ray Disc Compatibility
Blu-ray is a new and evolving format. Accordingly, disc
compatibility issues are possible. Not all discs are
compatible and not every disc will play back. For
additional information, refer to the Disc Types and
Characteristics section of this Manual. If you encounter
compatibility problems, please contact the SAMSUNG
customer care center at 1-800 SAMSUNG.
Blu-ray Disc
3D Blu-ray Disc
Dolby Digital Plus
NTSC broadcast system in
U.S.A, Canada, Korea,
Japan
Dolby TrueHD
DTS-HD High Resolution
Audio
Java
DTS-HD Master Audio |
Essential
✎ NOTE
 Playback may not work for some types of discs, or
when specific operations, such as angle change
and aspect ratio adjustment, are being performed.
Information about the discs is written in detail on
the box. Please refer to this if necessary.
 Do not allow the disc to become dirty or scratched.
Fingerprints, dirt, dust, scratches or deposits of
cigarette smoke on the recording surface may
make it impossible to use the disc for playback.
 When a BD-Java title is played, loading may take
longer than a normal title, or some functions may
perform slowly.
Getting Started
Disc Types and Characteristics
Discs that cannot be played
•
•
•
•
•
•
HD DVD Disc
DVD-RAM
3.9 GB DVD-R Disc for Authoring.
DVD-RW (VR mode)
Super Audio CD (except CD layer)
DVD-ROM/PD/MV-Disc, etc CVD/CD-ROM/
CDV/CD-G/CD-I/LD
• CDGs play audio only, not graphics.
✎ NOTE
BD-LIVE
 Some commercial discs and DVD discs purchased
outside your region may not be playable with this
product. When these discs are played, “Cannot read
this disc. Please check the regional code of the
disc.” will be displayed.
 If a DVD-R/-RW disc has not been recorded
properly in DVD video format, it will not be playable.
English
HT-C6900W_XAA_0914.indd 11
11
2010-09-14
2:27:34
Getting Started
Region code
Disc Types
Both this product and the discs are coded by
region. These regional codes must match in
order to play the disc. If the codes do not match,
the disc will not play.
BD-ROM
Disc Type
Blu-ray
DVD-VIDEO
Region
Code
Area
A
North America, Central America,
South America, Korea, Japan,
Taiwan, Hong Kong and South
East Asia.
B
Europe, Greenland, French
territories, Middle East, Africa,
Australia and New Zealand.
C
India, China, Russia, Central and
South Asia.
1
The U.S., U.S. territories and
Canada
2
Europe, Japan, the Middle East,
Egypt, South Africa, Greenland
3
Taiwan, Korea, the Philippines,
Indonesia, Hong Kong
4
Mexico, South America, Central
America, Australia, New Zealand,
Pacific Islands, Caribbean
5
Russia, Eastern Europe, India,
most of Africa, North Korea,
Mongolia
6
China
Blu-ray Disc Read Only Memory. A BD-ROM disc
contains pre-recorded data. Although a BD-ROM
may contain any form of data, most BD-ROM discs
will contain movies in High Definition format, for
playback on the product. This product can play
back pre-recorded commercial BD-ROM discs.
BD-RE/BD-R
Blu-ray Disc Rewritable/Blu-ray Disc Recordable.
BD-RE/BD-R is the ideal format for making
backups, or recording personal video.
DVD-VIDEO
• A digital versatile disc (DVD) can contain up to 135minutes of images, 8 audio languages and 32 subtitle
languages. It is equipped with MPEG-2 picture
compression and Dolby Digital surround, allowing you
to enjoy vivid and clear quality images.
• When switching from the first layer to the second
layer of a dual-layered DVD Video disc, there may
be momentary distortion in the image and sound.
This is not a malfunction of the product.
• Once a DVD-RW/-R recorded in Video Mode is
finalized, it becomes DVD-Video. Pre-recorded
(pre-stamped) commercial DVDs with movies are
also referred to as DVD-Videos. This product can
play back pre-recorded commercial DVD discs
(DVD-Video discs) with movies.
DVD-R/-RW
• Once a DVD-R/-RW recorded in Video Mode is
finalized, it becomes DVD-Video. Ability to play
back may depend on recording conditions.
• This product can play back DVD-R disc recorded
and finalized with a Samsung DVD video recorder.
• Playback can be perfomed with DVD-RW discs in
the Video Mode and finalized only.
DVD+RW
• This product can play back a DVD+RW disc
recorded with a DVD Video recorder. Ability to
play back may depend on recording conditions.
DVD+R
• This product can play back a DVD+R disc recorded
and finalized with a DVD Video recorder. Ability to
play back may depend on recording conditions.
12
English
HT-C6900W_XAA_0914.indd 12
2010-09-14
2:27:35
01
DivX (Digital Video Express)
• An audio disc on which 44.1kHz PCM Audio is
recorded.
• This product can play back CD-DA format audio
CD-R and CD-RW discs.
• The product may not be able to play some CD-R or
CD-RW discs due to the condition of the recording.
DivX is a video file format developed by Microsoft and is
based on MPEG4 compression technology to provide
audio and video data over the Internet in real-time.
MPEG4 is used for video encoding and MP3 for audio
encoding so that the users can watch a movie at near
DVD-quality video and audio.
CD-R/-RW
Supported Formats (DivX)
• Use a 700MB (80 minute) CD-R/-RW disc.
If possible, do not use a 800MB (90 minute) or above
disc, as the disc may not play back.
• If the CD-R/-RW disc was not recorded as a closed
session, you may experience delays when playing
back the beginning of the disc or all recorded files
may not play.
• Some CD-R/-RW discs may not be playable with this
product, depending on the device which was used to
burn them. For contents recorded on CD-R/-RW
media from CDs for your personal use, playability
may vary depending on contents and discs.
This product only supports the following media formats.
If both video and audio formats are not supported, the
user may experience problems such as broken images
or no sound.
Disc Format
Using MP3 discs
• CD-R/-RW, DVD-RW/-R recorded with UDF,
ISO9660 or JOLIET format can be played back.
• Only MP3 files with the “.mp3” or “.MP3” extension
can be played.
• Playable bit rate range is from 56 Kbps to 320 Kbps.
• Playable sample-rate is 32KHz to 48KHz.
• The product can handle a maximum of 1500 files and
folders under a parent folder. For MP3 files recorded with
a VBR (Variable Bit Rates), the sound may cut in and out.
Using JPEG discs
• CD-R/-RW, DVD-RW/-R recorded with UDF,
ISO9660 or JOLIET format can be played back.
• Only JPEG files with the ".jpg", ".JPG", ".jpeg" or
"JPEG" extension can be displayed.
• Progressive JPEG is supported.
DVD-RW/-R (V)
• This is a format that is used for recording data on a
DVD-RW or DVD-R disc. The disc can be played by
this product once it has been finalized.
• If a disc has has been recorded in Video Mode by a
different maker’s recorder but has not been finalized,
it cannot be played by this product.
Supported Video Formats
Format
AVI
Supported Versions
DivX3.11~DivX5.1, XviD
Supported Audio Formats
Format
Bit Rate
Sampling
Frequency
MP3
80~384kbps
AC3
128~384kbps
44.1/48khz
DTS
1.5Mbps
44.1khz
44.1khz
• DivX files, including audio and video files, created
in the DTS format can only support up to 6Mbps.
• Aspect Ratio : Although the default DivX resolution
is 640x480 pixels (4:3), this product supports up
to 800x600 pixels (16:9). TV screen resolutions
higher than 800 are not supported.
• When you play a disc whose sampling frequency is
higher than 48khz or 320kbps, you may experience
shaking on the screen during playback.
• Qpel and gmc is not supported.
MKV, MP4
• CD-R/-RW, DVD-R/-RW, USB, PC streaming
• Video Files with the following extensions can be
played. : .avi, .divx, .mkv, .mp4, .AVI, .DIVX,
.MKV, .MP4
✎ NOTE
 Some DivX, MKV and MP4 format discs may
not play, depending on the video resolution and
frame rate condition.
English
HT-C6900W_XAA_0914.indd 13
Getting Started
Audio CD
13
2010-09-14
2:27:36
Getting Started
Supported File Formats
Video File Support
File Extension
Container
*.avi
Video Codec
Audio Codec
Resolution
Divx 3.11/4.x/5.1/6.0
MP3
AC3
DTS
WMA
PCM
1920x1080
XviD
AVI
MP4v3
H.264 BP/MP/HP
1920x1080
1920x1080
1920x1080
1920x1080
VC-1 AP
*.mkv
DivX 5.1/6.0
MKV
XviD
MP3
AC3
DTS
1920x1080
1920x1080
1920x1080
H.264 BP/MP/HP
*.wmv
WMV (wmv9)
*.mp4
MP4
*.mpg
*.mpeg
PS
VC-1 AP
1920x1080
WMA
VC-1 SM
MP4 (mp4v)
H.264 BP/MP/HP
MPEG1
MPEG2
H.264 BP/MP/HP
1920x1080
1920x1080
AAC
1920x1080
1920x1080
MP1, 2
AC3
DTS
1920x1080
1920x1080
Music File Support
File Extension
Container
Audio Codec
Support Range
*.mp3
MP3
MP3
-
WMA
Compliant with WMA version 10
* Sampling rates (in kHz) - 8, 11, 16, 22, 32,
44.1, 48
* Bit rates - All bit-rates in the range 5kbps to
384kbps
*.wma
14
WMA
English
HT-C6900W_XAA_0914.indd 14
2010-09-14
2:27:36
01
Supported devices:
USB storage media, MP3 player, digital camera,
USB card reader
1) Does not support if a folder or file name is
longer than 125 characters.
2) A subtitle file bigger than 300 KB may not be
properly displayed.
3) A certain USB/digital camera device may not
be compatible with the product.
4) FAT16 and FAT32 file systems are
supported.
• NTFS file system is not supported.
5) Photo (JPEG), music (MP3) and video file
should have their names in Korean or English.
Otherwise, the file may not played.
6) Connect directly to the product's USB port.
Connecting through another cable may raise
problems with USB compatibility.
7) Inserting more than one memory device to a
multi-card reader may not operate properly.
8) PTP protocol for digital camera is not
supported.
9) Do not disconnect USB device during a
"loading" process.
10) Bigger the image resolution, the longer the
delay to displaying.
11) DRM applied MP3 files downloaded from a
commercial site are not played back.
12) External HDD device is not supported.
13) Supported file formats
Format
Still Picture
Music
File name
File extension
Bit rate
Version
Pixel
Sampling Frequency
JPG
JPG .JPEG
–
–
640x480
–
MP3
.MP3
80~384kbps
–
–
44.1kHz
Getting Started
Notes on USB connection
Accessories
Check for the supplied accessories below.
FUNCTION
TV SOURCE
POWER
BD RECEIVER/TV
SLEEP
1
2
4
5
7
8
3
6
9
FULL SCREEN
REPEAT
0
MUTE
TUNING
/CH
VOL
SFE MODE
DISC MENU
MENU
TITLE MENU
POPUP
TOOLS
INFO
RETURN
EXIT
TUNER
MEMORY
A
[email protected]
Video Cable
(AH39-40001V)
FM Antenna
(AH42-00017A)
iPod Dock
(AH96-00051A)
User's Manual
(AH68-02279R)
B
C
MO/ST
D
DSP
Remote Control
(AH59-02298A)/
Batteries (AAA size)
(4301-000116)
ASC Microphone
(AH30-00099A)
English
HT-C6900W_XAA_0914.indd 15
15
2010-09-14
2:27:36
Getting Started
Description
Front Panel
1
2
3
4
5
6
7
8
1
2
3
4
DISC TRAY
Insert disc here.
DISPLAY
Displays the playing status, time, etc.
REMOTE CONTROL SENSOR
Detects signals from the remote control.
OPEN/CLOSE BUTTON
Opens and closes the disc tray.
5
FUNCTION BUTTON
6
TUNING DOWN & SKIP BUTTON
7
8
STOP BUTTON
Stops disc playback.
PLAY/PAUSE BUTTON
Plays a disc or pauses playback.
9
TUNING UP & SKIP BUTTON
Goes to the next title/chapter/track.
Tunes up the FM frequency band.
10
11
12
POWER BUTTON (
Turns the product on and off.
13
)
9
10
11 12
13
Switches the mode as follows :
BD/DVD D. IN AUX HDMI. IN1 HDMI. IN2 FM
Goes back to the previous title/chapter/track.
Tunes down the FM frequency band.
VOLUME CONTROL
Volume adjustment.
ASC IN JACK
Used to connect the ASC Microphone for setting up MRC (Musical Room Calibration).
USB PORT
A USB storage device can be connected here and used as storage when connected to BDLIVE. It can also be used for software upgrades and MP3/JPEG/DivX/MKV/MP4 playback.
✎ NOTE
 Software upgrades using the USB Port must be performed with a USB memory flash stick only.
16
English
HT-C6900W_XAA_0914.indd 16
2010-09-14
2:27:37
01
Getting Started
Rear Panel
1
2
3
4
5
6
7
DIGITAL
AUDIO IN
HDMI IN
8
9 10
FM ANT
LAN
WIRELESS
11
12
COMPONENT OUT
HDMI OUT
iPod
OPTICAL
SPEAKER IMPEDANCE : 3
VIDEO OUT
1
5.1 CHANNEL SPEAKER OUTPUT
CONNECTORS
Connect the front, center, surround, subwoofer speakers.
2
COOLING FAN
The cooling fan supplies cool air to the product to prevent overheating
and always revolves when the power is on.
3
iPod JACK
Connect the iPod dock connector here.
4
FM 75 COAXIAL JACK
Connect the FM antenna.
5
TX CARD CONNECTION (WIRELESS)
The TX card enables communication between the product and the
wireless receiver module.
6
EXTERNAL DIGITAL OPTICAL IN JACKS
(OPTICAL)
Use this to connect external equipment capable of digital output.
7
HDMI IN JACKS
Receives digital video and audio signals simultaneously using an
HDMI cable.
8
HDMI OUT JACK
Using an HDMI cable, connect this HDMI output terminal to the
HDMI input terminal on your TV for the best quality picture.
9
LAN TERMINAL
Can be used for network based services (see pages 59~64),
BD-LIVE and software upgrade under the network connection.
10
AUX IN JACKS
Connect to the 2CH analog output of an external device
(such as a VCR)
11
COMPONENT VIDEO OUT JACKS
Connect a TV with Component video inputs to these jacks.
12
VIDEO OUT JACK
Connect your TV's Video Input jack (VIDEO IN) to the VIDEO OUT
Jack on this product.
! CAUTION
 Provide a minimum of 4 inches of clearance on all sides of the the home theater to ensure adequate
ventilation.
 Do not obstruct the cooling fan or ventilation holes.
English
HT-C6900W_XAA_0914.indd 17
17
2010-09-14
2:27:38
Getting Started
Remote control
Tour of the Remote Control
POWER
FUNCTION
TV SOURCE
BD RECEIVER/TV
SLEEP
Turn the product on and off.
If you want to change to Home Theater
or TV mode on the remote control,
check this button's LED color.
- Home Theater : Orange
- TV: Green
Press numeric buttons to operate options.
Use to select the mode.
or
Press to select TV's video mode.
Set a Sleep time to shut off the
procuct.
To open and close the disc tray.
1
2
3
4
5
6
7
8
9
FULL SCREEN
REPEAT
0
Press this to see the full screen on a TV.
Allows you to repeat a title, chapter,
track or disc.
Press to search backwards or
forwards.
Press to skip backwards or forwards.
Press to pause a disc.
Press to stop/play a disc.
Cut off the sound temporarily.
MUTE
Adjust the volume.
TUNING
/CH
VOL
SFE MODE
Press this to move to the home
menu.
DISC MENU
MENU
TITLE MENU
Press to view the disc menu.
Press this to use the Tools menu.
POPUP
TOOLS
INFO
RETURN
EXIT
Select on-screen menu items and
change menu value.
Return to the previous menu.
These buttons are used both for menus
on the product and also several
Blu-ray Disc functions.
Press this to link to various
[email protected] services.
Select the desired Dolby Pro
Logic II audio mode.
18
Search for active FM stations and
change channels.
You can set the SFE (Sound Field Effect) mode best
suited for the type of music you are listening to.
Use this to enter the popup
menu/title menu.
Use this to display the playback
information when playing
a Blu-ray/DVD disc.
Press this to exit the menu.
TUNER
MEMORY
A
[email protected]
B
C
MO/ST
D
DSP
Used to set a preset radio
frequency.
Select MONO or STEREO for radio
broadcasting.
Regulate and stabilize the volume
level. (Digital Signal Processor)
English
HT-C6900W_XAA_0914.indd 18
2010-09-14
2:27:39
01
* Battery size: AAA
TV Brand Code List
Brand
Code
Brand
Code
Admiral
(M.Wards)
56, 57, 58
Mitsubishi/
MGA
18, 40, 59, 60, 75
A Mark
01, 15
MTC
18
NEC
18, 19, 20, 40, 59, 60
Anam
01, 02, 03, 04, 05,
06, 07, 08, 09, 10,
11, 12, 13, 14
Nikei
03
Onking
03
01, 18, 40, 48
Onwa
03
Panasonic
06, 07, 08, 09, 54,
66, 67, 73, 74
AOC
✎ NOTE
 Make sure to match the “+” and “–” ends of
Bell &
Howell
(M.Wards)
57, 58, 81
Brocsonic
59, 60
Candle
18
Penney
18
Philco
03, 15, 17, 18, 48,
54, 59, 62, 69, 90
Philips
15, 17, 18, 40,
48, 54, 62, 72
Cetronic
03
Citizen
03, 18, 25
Cinema
97
Pioneer
63, 66, 80, 91
Classic
03
Portland
15, 18, 59
Concerto
18
Proton
40
Contec
46
Quasar
06, 66, 67
Coronado
15
Craig
03, 05, 61, 82, 83, 84
Radio
Shack
17, 48, 56, 60,
61, 75
Croslex
62
03
RCA/
Proscan
18, 59, 67, 76, 77,
78, 92, 93, 94
Crown
Curtis
Mates
Realistic
03, 19
59, 61, 63
CXC
03
When operating a TV with the remote control
Daewoo
02, 03, 04, 15, 16,
17, 18, 19, 20, 21,
22, 23, 24, 25, 26,
27, 28, 29, 30, 32,
34, 35, 36, 48, 59, 90
1. Press the BD RECEIVER/TV button to set the
remote control to TV mode.
Daytron
40
Dynasty
03
Emerson
03, 15, 40, 46, 59, 61,
64, 82, 83, 84, 85
Fisher
19, 65
Funai
03
Futuretech
03
General
Electric (GE)
06, 40, 56, 59,
66, 67, 68
Hall Mark
40
Hitachi
15, 18, 50, 59, 69
Inkel
45
JC Penny
56, 59, 67, 86
JVC
70
KTV
59, 61, 87, 88
the batteries with the diagram inside the
compartment.
 Assuming typical TV usage, the batteries last
for about one year.
 The remote control can be used up to
approximately 23 feet (7 meters) in a straight line.
Setting the Remote Control
You can control certain functions of your TV with
this remote control.
2. Turn on the TV.
3. While holding down the POWER button, enter
the code corresponding to your brand of TV.
• If there is more than one code listed for
your TV in the table, enter one at a time to
determine which code works.
• Example : For a Samsung TV
While holding down the POWER button, use the
number buttons to enter 00, 15, 16, 17, or 40.
4. If the TV turns off, the setting is complete.
• You can use the TV POWER, VOLUME,
CHANNEL, and Numeric buttons (0~9).
✎ NOTE
 The remote control may not work on some
brands of TV's. Also, some operations may not
be possible, depending on your brand of TV.
 The remote control will work with Samsung TVs
by default.
KEC
03, 15, 40
KMC
15
LG
(Goldstar)
01, 15, 16, 17, 37, 38,
39, 40, 41, 42, 43, 44
Sampo
40
Samsung
00, 15, 16, 17, 40,
43, 46, 47, 48, 49,
59, 60, 98
Sanyo
19, 61, 65
Scott
03, 40, 60, 61
Sears
15, 18, 19
Sharp
15, 57, 64
Signature
2000
(M.Wards)
57, 58
Sony
50, 51, 52, 53, 55
Soundesign
03, 40
Spectricon
01
SSS
18
Sylvania
18, 40, 48, 54,
59, 60, 62
Symphonic
61, 95, 96
Tatung
06
Techwood
18
Teknika
03, 15, 18, 25
TMK
18, 40
Toshiba
19, 57, 63, 71
Vidtech
18
Videch
59, 60, 69
Luxman
18
Wards
LXI
(Sears)
15, 17, 18, 40,
48, 54, 60, 64
19, 54, 56, 59,
60, 62, 63, 65, 71
Yamaha
18
York
40
Magnavox
15, 17, 18, 48, 54,
59, 60, 62, 72, 89
Yupiteru
03
Marantz
40, 54
Zenith
58, 79
Matsui
54
Zonda
01
MGA
18, 40
Dongyang
03, 54
English
HT-C6900W_XAA_0914.indd 19
Getting Started
Installing batteries in the Remote Control
19
2010-09-14
2:27:39
Connections
This section involves various methods of connecting the product to other external components.
Before moving or installing the product, be sure to turn off the power and disconnect the power cord.
Connecting the Speakers
Position of the product
Place it on a stand or cabinet shelf, or under the TV
stand.
SW
Selecting the Listening Position
The listening position should be located about 2.5
to 3 times the distance of the TV's screen size away
from the TV.
Example : For 32" TV's 2~2.4m
For 55" TV's 3.5~4m
Front Speakers ei
Place these speakers in front of your listening position, facing inwards (about 45°)
toward you. Place the speakers so that their tweeters will be at the same height as your
ear. Align the front face of the front speakers with the front face of the center speaker or
place them slightly in front of the center speakers.
Center Speaker f
It is best to install it at the same height as the front speakers. You can also install it
directly over or under the TV.
Place these speakers to the side of your listening position. If there isn't enough room,
place these speakers so they face each other. Place them about 2 to 3 feet (60 to
90cm) above your ear, facing slightly downward.
Surround Speakershj
the front and center speakers, the surround speakers are used to handle
* Unlike
mainly sound effects and sound will not come from them all the time.
Subwoofer g
The position of the subwoofer is not so critical. Place it anywhere you like.
Speaker Components
(L)
(R)
(L)
FRONT
20
(R)
REAR
CENTER
SUBWOOFER
SPEAKER CABLE
English
HT-C6900W_XAA_0914.indd 20
2010-09-14
2:27:40
02
Connections
SWA-5000
TX Card
Wireless Receiver Module
Speaker Cable (2EA)
Removing/Installing the speaker on the stand
* Front Speakers only
How to remove the speaker
If you attach the speaker on the wall, remove the stand
before using it.
1. Pull out the stand in the arrow direction as shown.
• Be careful not to put excessive force when removing it.
Otherwise, it can be damaged.
2. This is the appearance after the stand is removed.
How to install the speaker
1. Connect the stand in the arrow direction so that it fits the
corresponding holes (x4) on the speaker.
2. Fully insert the stand in the arrow direction as shown.
3. This is the appearance after the speaker unit is installed.
English
HT-C6900W_XAA_0914.indd 21
21
2010-09-14
2:27:44
Connections
Connecting the Speakers
Connecting The Speakers
1. Press down the terminal tab on the back of the speaker.
2. Insert the black wire into the black terminal (–) and the red wire into
the red (+) terminal, and then release the tab.
3. Connect the connecting plugs to the back of the product by
matching the colors of the speaker plugs to the speaker jacks.
4. With the product turned off, insert the TX card into the TX Card
Connection (WIRELESS) on the back of the product.
• Hold the TX card so that the label "WIRELESS" faces upward and
insert the card into the port.
• The TX card enables communication between the product
and the wireless receiver module.
5. Connect the left and right surround speakers to the wireless
receiver module.
6. Plug the power cord of the wireless receiver module into the
wall outlet.
7. Turn on the product. The product and wireless receiver
module will now communicate with each other and you will
hear sound from the Surround speakers.
Black
Red
iPod
TX card
Center Speaker
Front Speaker (L)
Front Speaker (R)
SPEAKER IMPEDANCE : 3
Surround Speaker (L)
Surround Speaker (R)
Subwoofer
FM ANT
WIRE
W
iPod
Wireless Receiver Module
SPEAKER IMPEDANCE : 3
This product should be connected with the SWA-5000 only.
22
English
HT-C6900W_XAA_0914.indd 22
2010-09-14
2:27:47
02
 Do not let children play with or near the speakers. They could get hurt if a speaker falls.
 When connecting the speaker wires to the speakers, make sure that the polarity (+/–) is correct.
 Keep the subwoofer speaker out of reach of children to prevent children from inserting their hands
Connections
! CAUTION
or alien substances into the duct (hole) of the subwoofer speaker.
 Do not hang the subwoofer on the wall through the duct (hole).
 Do not insert any other card except the TX card specifically for this product.






If you use a different TX card, the product may be damaged or you may not be able to remove
the card easily.
Do not insert the TX card upside down or in the reverse direction.
Insert the TX card when the product is turned off. Inserting the card when it is turned on may
cause a problem.
The wireless receiving antenna is built into the wireless receiver module. Keep it away from water
and moisture.
For optimal listening performance, make sure that the area around the wireless receiver module
location is clear of any obstructions.
If you hear no sound from the wireless surround speakers, switch the mode to DVD 5.1 channel
or Dolby Pro Logic II.
In 2-CH mode, you will hear no sound from the wireless surround speakers.
✎ NOTE
 If you place a speaker near your TV set, screen color may be distorted because of the magnetic
field generated by the speaker. If this occurs, place the speaker away from your TV set.
 Place the wireless receiver module at the rear of the listening position. If the wireless receiver
module is too close to the product, it may cause some sound interruption due to interference.
 If you use a device such as a microwave oven, wireless LAN Card or any other device that uses
the same frequency (2.4/5.8GHz) near the product, it may cause some sound interruption due to
interference.
 The transmission distance from the product to the wireless receiver module is about 33 feet
(10m), but may vary depending on your operating environment. If a steel-concrete wall or metallic
wall is between the product and the wireless receiver module, the system may not operate at all,
because the radio wave cannot penetrate metal.
 If the product doesn't make wireless connection, the system needs ID Setting between the
product and wireless receiver module. With the product turned off, press "0""1""3""5" on
the remote control, and then turn on the product. With the wireless receiver module turned on,
press the "ID SET" button on the back of the wireless receiver module for 5 seconds.
English
HT-C6900W_XAA_0914.indd 23
23
2010-09-14
2:27:49
Connections
Connecting External Devices/your TV via HDMI
HDMI is the standard digital interface for connecting to devices such as a TV, projector, DVD player, Blu-ray
player, set top box, and more.
Because HDMI is all digital, you'll enjoy digital quality video and sound as it was originally created, without
the distortions that can be caused when digital content is converted to analog.
DVD or Blu-ray Player
SAT(Satellite/Set top box)
HDMI IN
FM ANT
LAN
WIRELESS
DIGITAL
AUDIO IN
HDMI IN
COMPONENT OUT
HDMI OUT
iPod
OPTICAL
SPEAKER IMPEDANCE : 3
VIDEO OUT
HDMI OUT
HDMI OUT : Connecting to a TV with an HDMI Cable (BEST QUALITY)
Connect an HDMI cable (not supplied) from the HDMI OUT jack on the back of the product to the
HDMI IN jack on your TV.
✎ NOTE
 Certain HDMI output resolutions may not work, depending on your TV.
 If an HDMI cable is connected or removed during playback of a CD-DA, MP3 or JPEG file, the product will
stop playing.
 After making the video connection, set the Video input source on your TV to match the corresponding Video
output (HDMI, Component or Composite) on your product.
See your TV owner's manual for more information on how to select the TV's Video Input source.
 If you have set the product's remote control to operate your TV, press the TV SOURCE button on the remote
control and select HDMI as the external source of the TV.
 You must have an HDMI connection to enjoy videos with 3D technology.
 A long HDMI cable may cause a screen noise. If this is the case, set Deep Color to Off in the menu.
24
English
HT-C6900W_XAA_0914.indd 24
2010-09-14
2:27:49
02
HDMI IN : Connecting to an External Component with an HDMI Cable
Connections
Connecting External Devices/your TV via HDMI
1. Connect an HDMI cable (not supplied) from the HDMI IN jack on the back of the product to the HDMI OUT jack
on your digital device.
2. Press the FUNCTION button to select HDMI. IN1 or HDMI. IN2 input.
The mode switches as follows : BD/DVD D. IN AUX HDMI. IN1 HDMI. IN2 FM
HDMI Auto Detection Function
If you have connected your home theater by HDMI cable, the home theater's video output
automatically switches to the HDMI mode when you turn it on. For available HDMI video resolutions,
see page 34.
• This function is not available if the HDMI cable does not support CEC.
• HDMI connection description
- HDMI outputs only a pure digital signal to the TV.
- If your TV does not support HDCP, random noise appears on the screen.
• What is the HDCP?
HDCP (High-band width Digital Content Protection) is a system for preventing BD/DVD content outputted via
HDMI from being copied. It provides a secure digital link between a video source (PC, DVD. etc) and a display
device (TV, projector. etc). Content is encrypted at the source device to prevent unauthorized copies from being
made.
! CAUTION
 The Anynet+ function is supported only when an HDMI Cable is connected to the HDMI OUT of the
product.
Connecting the FM Antenna
1. Connect the FM antenna supplied to the
FM 75Ω COAXIAL jack.
FM Antenna (supplied)
2. Slowly move the antenna wire around until
you find a location where reception is good,
then fasten it to a wall or other rigid surface.
FM ANT
WIRELESS
iPod
DIGIRA
AODIO I
OPTICA
✎ NOTE
 This product does not receive AM
broadcasts.
English
HT-C6900W_XAA_0914.indd 25
25
2010-09-14
2:27:50
Connections
Connecting the Video Out to your TV
Red
Blue
Green
METHOD 1
LAN
COMPONENT OUT
METHOD 2
Yellow
VIDEO OUT
METHOD 1 : Component Video (BETTER QUALITY)
If your television is equipped with Component Video inputs, connect a Component video cable (not
supplied) from the Component Video Output (Pr, Pb and Y) jacks on the back of the product to the
Component Video Input Jacks on your TV.
✎ NOTE
 You can select from a variety of resolution settings such as 1080i, 720p, 480p and 480i, depending on the disc type. (See page 34)
 The actual resolution may differ from the setting in the Setup menu if both Component and HDMI cables are connected.
The resolution may also be different depending on the disc. (See page 34)
 After making the video connection, set the Video input source on your TV to match the corresponding Video output (HDMI,
Component or Composite) on your product.
See your TV owner's manual for more information on how to select the TV's Video Input source.
 If you have set the product's remote control to operate your TV, press the TV SOURCE button on the remote control and select
COMPONENT as the external source of the TV.
 In DVD playback, if both HDMI and Component jacks are connected and you select the Component 1080p, 1080i, 720p or 480p
mode, the Display Setup menu will show the output resolution as 1080p, 1080i, 720p or 480p in the menu.
The resolution is actually 480i.
METHOD 2 : Composite Video (GOOD QUALITY)
Connect the supplied Video cable from the VIDEO OUT jack on the back of the product to the VIDEO
IN jack on your TV.
✎ NOTE
 The VIDEO source is always output in 480i resolution regardless of the resolution set in the Setup menu. (See page 34)
 After making the video connection, set the Video input source on your TV to match the corresponding Video output (HDMI,
Component or Composite) on your product.
See your TV owner's manual for more information on how to select the TV's Video Input source.
 If you have set the product's remote control to operate your TV, press the TV SOURCE button on the remote control and
select VIDEO as the external source of the TV.
! CAUTION
 Do not connect the unit through a VCR. Video signals fed through VCRs may be affected by copyright protection
systems and the picture will be distorted on the television.
26
English
HT-C6900W_XAA_0914.indd 26
2010-09-14
2:27:51
02
Connections
Connecting Audio from External Components
LAN
DIGITAL
AUDIO IN
HDMI IN
COMPONENT OUT
HDMI OUT
OPTICAL
VIDEO OUT
Red
Optical Cable
(not supplied)
Set-Top Box
OPTICAL
White
Audio Cable
(not supplied)
If the external analog
component has only one
Audio Out, connect either
left or right.
VCR
AUX
OPTICAL : Connecting an External Digital Component
Digital signal components such as a Cable Box/Satellite receiver (Set-Top Box).
1. Connect the Digital Input (OPTICAL) on the product to the Digital Output of the external digital
component.
2. Press the FUNCTION button to select D.IN input.
• The mode switches as follows : BD/DVD D. IN AUX HDMI. IN1 HDMI. IN2 FM
✎ NOTE
 To see video from your Cable Box/Satellite receiver, you must connect it's video output directly to a TV.
 This system supports Digital sampling frequencies of 32 kHz of higher from external digital components.
 This system supports only DTS and Dolby Digital audio, MPEG audio (bit stream) is not supported.
AUX : Connecting an External Analog Component
Analog signal components such as a VCR.
1. Connect AUX IN (Audio) on the product to the Audio Out of the external analog component.
• Be sure to match connector colors.
2. Press the FUNCTION button to select AUX input.
• The mode switches as follows : BD/DVD D. IN AUX HDMI. IN1 HDMI. IN2 FM
✎ NOTE
 You connect the Video Output jack of your VCR to the TV, and connect the Audio Output jacks of the
VCR to this product.
English
HT-C6900W_XAA_0914.indd 27
27
2010-09-14
2:27:51
Connections
Connecting to the Network
This product enables you to view network based services (See pages 59~64) such as [email protected] and
BD-LIVE, as well as receive software upgrades when a network connection is made. We recommend
using an AP (Access Point) or IP router for the connection.
For more information on router connection, refer to the user manual of the router or contact the router
manufacturer for technical assistance.
Cable Network
1. Using the Direct LAN Cable (UTP cable), connect the LAN terminal of the product to the LAN
terminal of your modem.
2. Set the network options. (See page 41)
LAN
COMPONENT OUT
Y
HDMI IN
HDMI OUT
VIDEO OUT
Router
Broadband modem
(with integrated router)
Or
Broadband modem
Broadband
service
Broadband
service
Networking with PC for
AllShare function
(See pages 63~64)
✎ NOTE
 Internet access to Samsung’s software update server may not be allowed, depending on the router you use or the
ISP’s policy. For more information, contact your ISP (Internet Service Provider).
 For DSL users, please use a router to make a network connection.
 For the AllShare function, a PC must be connected in the network as shown in the figure.
28
English
HT-C6900W_XAA_0914.indd 28
2010-09-14
2:27:52
02
Wireless Network
You can connect to your network with a Wireless IP sharer. A wireless AP/IP router is required to make
a wireless network connection. To set the network configuration options. see page 41.
Connections
Connecting to the Network
Broadband
service
Wireless IP sharer
PC
Networking with PC for
AllShare function
(See pages 63~64)
✎ NOTE
 To use a wireless network, your product must be connected to a wireless IP sharer. If the wireless IP sharer
supports DHCP, your product can use a DHCP (dynamic) or static IP address to connect to the wireless network.
 This product supports IEEE 802.11B, G, and N. We recommend using IEEE 802.11N. When you play video
over a IEEE 802.11B or G connection, the video may not play smoothly.
 Select a channel for the wireless IP sharer that is not currently being used. If the channel set for the wireless IP
sharer is currently being used by another device nearby, this will result in interference and communication failure.
 If you select the Pure High-throughput (Greenfield) 802.11n mode and set your AP's Security Encryption type






to WEP, TKIP or TKIPAES (WPS2Mixed), your Samsung home theater will not support the connection in
compliance with new Wi-Fi certification specifications.
If your AP supports WPS (Wi-Fi Protected Setup), you can connect to the network via PBC (Push Button
Configuration) or PIN (Personal Identification Number). WPS will automatically configure the SSID and WPA
key in either mode.
Connection Methods : You can setup the wireless network connection 3 ways:
- PBC(WPS)
- Auto Setup (Using the Auto Network Search function)
- Manual Setup
Wireless LAN, by its nature, may cause interference, depending on the operating conditions.
(AP performance, distance, obstacles, interference by other radio devices, etc).
Set the wireless IP sharer to Infrastructure mode. Ad-hoc mode is not supported.
When applying the security key for the AP (wireless IP sharer), only the following security protocols are
supported:
1) Authentication Mode : WEP, WPAPSK, WPA2PSK
2) Encryption Type : WEP, AES
To use the AllShare function, you must connect your PC to your network as shown in the figure.
The connection can be wired or wireless.
English
HT-C6900W_XAA_0914.indd 29
29
2010-09-14
2:27:54
Setup
Before Starting (Initial Settings)
1. Turn on your TV after connecting the product.
(When the product is connected to TV for the first
time, the product will turn on automatically and
display the Initial Settings screen.)
Initial Settings I On-Screen Language
Select a language for the on-screen displays.
English
7. Press the ◄► buttons to select the desired
Network Settings : Wired, Wireless or
PBC(WPS), and then press the ENTER button.
If you do not know your Network Settings,
press the BLUE (D) button on your remote
instead to skip Network Settings here, finish the
Initial Settings, and go to the Home menu. If
you selected a Network Setting, go to pages
39~42 for more information about the Network
settings. When done, go to Step 8.
Français
Deutsch
Initial Settings I Network
Español
Italiano
Network Setting is needed to use various Internet services.
Nederlands
Choose the primary method for connecting to network.
> Move
s Select
Wired : Set the network connection using the Ethernet cable.
Please make sure that the Ethernet cable is connected.
Wired
2. Press the ▲▼ buttons to select the desired
language, then press the ENTER button.
3. Press the ENTER button to Start.
Initial Settings
Wireless
PBC(WPS)
a Previous d Skip
< Move " Select
8. Press the OK button.
The home menu appears. (For more information
about home menu, please see page 31)
TV Aspect, Musical Room Calibration and Network will be set.
Each setting may be changed later under "Settings"
• Home Menu
Start
a Previous
4. Press the ▲▼ buttons to select the desired TV
aspect ratio, then press the ENTER button.
(See page 33)
The Musical Room Calibration screen appears.
5. Plug the ASC microphone into the ASC IN jack
on the product. (See page 37)
6. Press the ENTER button to Start.
No Disc
a Change Device
d View Devices
" Enter
✎ NOTE
 When the product is connected to TV for the
Initial Settings I Musical Room Calibration
Preparing...
d Skip
Setting the Musical Room Calibration function
takes about 3 minutes.
30
You Tube
internet radio service
Please activate [email protected]
to enjoy a variety of Internet Services.
" Select
first time, the product will turn on automatically.
This is not a malfunction.
 The home menu will not appear if you do not
configure the initial settings, with the exception
below.
 If you press the BLUE (D) button during the
Musical Room Calibration or Network setup,
you can access the home menu even if the
network setup is not completed yet.
 When you return to the home menu, the full
screen mode is cancelled automatically.
English
HT-C6900W_XAA_0914.indd 30
2010-09-14
2:27:55
03
again to make changes, press the STOP ()
button on the front panel of the product for
more than 5 seconds with no disc inserted.
 Use the HDMI cable to connect the product to
an Anynet+ (HDMI-CEC)-compliant Samsung TV.
If the TV uses a language supported by the
product, that language will be set to a
preferred language automatically.
For this to work, the Anynet+ (HDMI-CEC)
feature must be set to On in both TV and the
product.
 If the product is left in the stop mode for more
than 5 minutes without being operated, a
screen saver will appear on your TV. If the
product is left in the screen saver mode for
more than 25 minutes, the power will
automatically turn off except during playback
of a CD-DA (Automatic Power-Off Function).
Setting the Menu
DISC MENU
MENU
TITLE MENU
1. Press the POWER button.
The Home Menu appears.
• Home Menu
You Tube
internet radio service
Please activate [email protected]
to enjoy a variety of Internet Services.
2
3
4
1
5
No Disc
a Change Device
1
Selects the [email protected]
2
Selects the Videos.
3
Selects the Music.
4
Selects the Photos.
5
Selects the Settings.
6
Displays buttons available.
d View Devices
6
" Enter
POPUP
1
TOOLS
INFO
3
2
Setup
 If you want to display the Initial Settings screen
RETURN
EXIT
4
TUNER
1
MENU Button : Press this to move to the home menu.
2
RETURN Button : Return to the previous menu.
3
ENTER / DIRECTION Button:
Press the arrow buttons to move the cursor and select
an item.
Press the ENTER button to launch the selected item or
confirm the setting.
4
EXIT Button : Press this to exit the menu.
2. Press the ◄► buttons to select Settings,
then press the ENTER button.
3. Press the ▲▼ buttons to select the desired
submenu, then press the ENTER button.
4. Press the ▲▼ buttons to select the desired
item, then press the ENTER button.
5. Press the EXIT button to exit the menu.
✎ NOTE
 When the product is connected to the network,
select [email protected] from the home menu.
Download desired content from Samsung AppS.
 The access steps may differ depending on the
selected menu.
 The OSD (On Screen Display) may change in
this product after you upgrade the software
version.
English
HT-C6900W_XAA_0914.indd 31
31
2010-09-14
2:28:00
Setup
Display
You can configure various display options such
as the TV Aspect, Resolution, 3D, etc.
3D
Select whether to play a Blu-ray Disc with 3D
contents in 3D Mode.
Settings
Display
3D
3D
Audio
System 3D Mode
: Auto
NetworkTV Screen Size :
55 inch
Language
Security
General
> Move s Enter r Return
Support
Still Mode
: Auto
TV Screen Size
Lets you enter the actual screen size of your
TV so that the product can adjust the image
according to the screen size and display an
optimal 3D image. (The maximum allowed
screen size is 116 inches for this product.)
! CAUTION
 If you want to enjoy a 3D content, connect a
3D device (3D compliant AV receiver or TV)
to the product and wear a 3D glass before
playing the 3D content.
 While watching the 3D video, all analog
component and composite signals will be
blocked automatically.
 All 3D signals are output only using the
HDMI cable and through the HDMI OUT
port.
3D Mode
• Auto : The 3D Blu-ray Disc is played in 3D
mode if your product detects a TV which
supports it. It is played in 2D mode if your
product detects a TV which cannot support it.
• 3D : The 3D Blu-ray Disc is played in 3D mode
at all times. If a TV cannot support 3D Blu-ray
discs, the TV's screen can be black.
• 2D : The 3D Blu-ray Disc is played in 2D mode
at all times. Choose this to view a picture
without 3D effect or when a TV cannot support
3D Blu-ray discs.
✎ NOTE
 If you press the STOP() button once during
the 3D disc playback, 3D mode option will be
deactivated.
To activate 3D mode option during the 3D disc
playback, press the STOP() button twice.
 As the video resolution in 3D play mode is
fixed according to the resolution of the
original 3D video, you can not change the
resolution to your preference.
 Some functions such as BD Wise, or setting
the screen size or resolution may not
operate properly in 3D play mode.
 You must use a high-speed HDMI cable for
a proper output of the 3D signal.
 Stay at least three times of the length of the
screen distant from the TV.
- It is recommended to place the 3D video
screen forward at eye level.
 If the product is connected to some 3D
devices, the 3D effect may not function
properly.
 You can not use this product for switching a
2D content to 3D.
 Depending on the content and its play position,
vertical black bars could be seen on left or right
or both sides.
32
English
HT-C6900W_XAA_0914.indd 32
2010-09-14
2:28:01
03
BD Wise (Samsung Products only)
Depending on the type of television you have, you
may want to adjust the screen aspect ratio.
BD Wise is Samsung's latest inter-connectivity feature.
• 16:9 Normal
Certain movies (4:3 source)
are displayed in 4:3 Pillarbox
(black bars on sides of
picture) if 16:9 normal is
selected.
• 16:9 Wide
You can view the full 16:9
picture on your widescreen
TV.
Setup
TV Aspect Ratio
When you connect Samsung products with
BD-Wise to each other via HDMI, the optimum
resolution is set automatically.
• Off : The output resolution is fixed according to
the resolution previously set, regardless of the
resolution of the disc.
• On : The original resolution of the BD/DVD disc
is output to the TV.
✎ NOTE
 If you want to change the resolution in BD
Wise, you must set BD Wise to Off in advance.
 If you set BD Wise to off, the resolution of the
• 4:3 Letter Box
Select when you want to
see the full 16:9 ratio screen
supplied by a Blu-ray Disc/
DVD, even though you have
a TV with a 4:3 ratio screen.
Black bars will appear at
the top and bottom of the
screen.
• 4:3 Pan-Scan
Select when you want to see
the 16:9 video supplied by the
Blu-ray Disc/DVD without the
black bars on top and bottom,
even though you have a TV
with a 4:3 ratio screen. The
extreme left and right portion
of the movie picture will be cut
off.
✎ NOTE
 Depending on the disc type, some aspect ratios
may not be available.
 If you select an aspect ratio and option which is
different than the aspect ratio of your TV screen,
the picture might appear distorted.
 If you select the 4:3 Pan-Scan or 4:3 Letter Box,
you can't see full screen by pressing the FULL
SCREEN button on the remote control.
connected TV will be adjusted to its maximum
resolution automatically.
 If the product is connected to a device that
does not support BD Wise, you can not use
the BD Wise function.
 For a proper operation of BD Wise, set the BD Wise
menu of both the product and the TV to On.
Resolution
Sets the output resolution of the Component and
HDMI video signal.
The number in 1080p, 1080i, 720p, 480p, or
480i indicates the number of lines of video.
The i and p indicate interlaced and progressive
scan, respectively.
• Auto : Automatically checks and sets the optimal
resolution. (HDMI only)
• BD Wise : Automatically sets the optimal
resolution when connected via HDMI to a TV with
the BD Wise feature. (The BD Wise menu item
appears only if BD Wise is set to On.) HDMI only.
• 1080p : Outputs 1080 lines of progressive video. (HDMI only)
• 1080i : Outputs 1080 lines of interlaced video.
• 720p : Outputs 720 lines of progressive video.
• 480p : Outputs 480 lines of progressive video.
• 480i : Outputs 480 lines of interlaced video.
(Component & VIDEO only)
English
HT-C6900W_XAA_0914.indd 33
33
2010-09-14
2:28:02
Setup
Resolution according to the output mode
• Blu-ray Disc playback
HDMI / connected
Output
Setup
HDMI / not connected
HDMI Mode
Component/VIDEO Mode
Component Mode
VIDEO Mode
Auto
Optimal Resolution
480i
-
-
1080p, Movie Frame (24Fs) off
[email protected]
480i
-
-
1080p/1080i,
Movie Frame (24Fs) on
[email protected]
480i
-
-
1080i, Movie Frame (24Fs) off
1080i
480i
1080i
480i
720p
720p
480i
720p
480i
480p
480p
480i
480p
480i
480i
-
-
480i
480i
• DVD playback
HDMI / connected
Output
Setup
HDMI Mode
Component/VIDEO Mode
Component Mode
VIDEO Mode
Auto
Optimal Resolution
480i
-
-
1080p
[email protected]
480i
-
-
1080i
1080i
480i
480p
480i
720p
720p
480i
480p
480i
480p
480p
480i
480p
480i
480i
-
-
480i
480i
✎ NOTE
 If the connected TV does not support Movie
Frame or the selected resolution, the message
“If no pictures are shown after the selection,
please wait for 15 seconds. And then, the
resolution will be reverted to the previous value
automatically. Would you like to make a
selection?” will be displayed.
If you select Yes and the resolution is not
supported, the TV's screen will be blank.
Please wait. After 15 seconds, the resolution
reverts to the previous value automatically.
 If the screen is blank, press and hold the
STOP () button on the front of the product
for more than 5 seconds (no disc inserted).
All settings are restored to the factory default.
Follow the steps on the previous page to
access each mode and select the Display
Setup that your TV will support.
34
HDMI / not connected
 When the factory default settings are restored,
all user BD data is deleted.
 The Blu-ray Disc must have the 24 frame
feature in order to use the Movie Frame (24Fs)
mode.
 If both HDMI and Component jacks are
connected and you are currently viewing
component output, there may be a difference
between the resolution listed in the table and
actual resolution depending on your TV.
 If the HDMI Auto Detection feature does not
work, you can't select the 1080p resolution or
Movie Frame (24Fs).
English
HT-C6900W_XAA_0914.indd 34
2010-09-14
2:28:06
03
Setup
HDMI Format
Progressive Mode
You can optimize the color setting from the HDMI
output by selecting a connected device Type:
Set to improve picture quality when you view DVDs.
• TV : Select if connected to a TV via HDMI.
• Monitor : Select if connected to a Monitor via
HDMI.
✎ NOTE
 A TV or monitor has to be connected to the
product before you select this option.
Movie Frame (24Fs)
Setting the Movie Frame (24Fs) feature to On
allows you to adjust the product's HDMI output to
24 frames per second for improved picture quality.
You can enjoy the Movie Frame (24Fs) feature only
on a TV supporting this frame rate. This menu can
only be selected in 1080i or 1080p HDMI output
resolution modes.
• Off : Movie Frame (24Fs) function is off.
• On : Movie Frame (24Fs) function is on.
✎ NOTE
 Two types of frame rates may be included,
depending on the disc: Movie material (24
frame) and Video material (30 frame). When the
setting switches between Movie (24 frame) and
Video (30 frame), the screen may blink for a
few seconds.
 If your TV does not support Movie Frame
(24Fs) function, a pop-up message is
displayed.
• Auto : Select to have the product automatically
set the best picture for the DVD you're
watching.
• Video : Select for the best picture from
Concert or TV show DVDs.
Still Mode
Set the type of picture the home theater shows
when you pause DVD playback.
• Auto: Automatically show the best still picture
depending on the content.
• Frame : Select when pausing a scene with a
little action.
• Field : Select when pausing a scene with a lot
of action.
HDMI Deep Color
Set to output the picture from the HDMI OUT jack
with Deep Color or without. Deep Color allows more
accurate color reproduction with deeper color depth.
• Auto: The picture is output with Deep Color to
the connected TV which supports HDMI Deep
Color.
• Off : The picture is output without Deep Color.
English
HT-C6900W_XAA_0914.indd 35
35
2010-09-14
2:28:06
Setup
Distance
Audio
If the speakers cannot be placed at equal
distances from the listening position, you can
adjust the delay time of the audio signals from the
front, center, surround and subwoofer speakers.
Speaker Setting
Settings
Display
Audio
System
Network
Language
Security
General
Support
Speaker Setting
|
Level
Distance
Test tone
:
• You can set the Speaker Distance between
1ft (0.3m) and 30ft (9.0m).
Off
Settings
<Change r Return
Level
Display
Audio
System
Network
Language
Security
General
Support
Distance
: ◄ 10ft (3.0m) |
: 10ft (3.0m)
: 10ft (3.0m)
: 10ft (3.0m)
: 10ft (3.0m)
: 10ft (3.0m)
:
Off
Front L
Front R
Center
Surround L
Surround R
Subwoofer
Test Tone
<Change r Return
You can adjust the balance and level for each
speaker.
Adjusting Front/Center/Surround
/Subwoofer Speaker Level
• The volume level can be adjusted in steps from
+6dB to -6dB.
• The sound gets louder as you move closer to
+6dB and quieter as you get closer to -6dB.
Settings
Display
Audio
System
Network
Language
Security
General
Support
Level
Front L
Front R
Center
Surround L
Surround R
Subwoofer
Test Tone
:
:
:
:
:
:
:
◄ 0 dB |
0 dB
0 dB
0 dB
0 dB
0 dB
Off
<Change r Return
Test Tone
Use the Test Tone feature to check the speaker
connections.
Press the ◄ or ► button to select All.
• A test tone will be sent to Front L Center Front R Surround R Surround L Subwoofer in order so you can make sure the
speakers are set up correctly.
To stop the test tone, press the ◄ or ► button to
select Off.
Settings
Display
Audio
System
Network
Language
Security
General
Support
Speaker Setting
Level
Distance
Test Tone
:◄
All
|
<Change r Return
✎ NOTE
 When HDMI Audio is ON, audio is produced
through the TV speakers. The Test Tone
function is not available.
36
English
HT-C6900W_XAA_0914.indd 36
2010-09-14
2:28:06
03
By setting the Musical Room Calibration (MRC)
function just once when you relocate or install the
product, you can have the product automatically
recognize the distance between speakers, levels
between channels, and frequency characteristics
to create a 5.1-channel sound field optimized for
your environment.
ASC
microphone
✎ NOTE
Setup
Musical Room Calibration
 Setting the Musical Room Calibration
function takes about 3 minutes.
 You can only use the Musical Room Calibration
setup if there is no disc in the player.
 If the ASC microphone is disconnected during the
Musical Room Calibration setup, the setup will be
canceled.
 When the Musical Room Calibration function is
activated, the DSP, Dolby Pro Logic ll and SFE
Mode will not work.
 If the product is connected to external devices or
other components (such as an iPod, AUX, D.IN),
the Musical Room Calibration Setup may not work
properly.
 Noise may result in wrong measurement. So
please proceed with the measurement in a quiet
room to obtain proper calibration.
EQ Optimizer
Musical Room Calibration
Turns the Musical Room Calibration mode
on and off.
• Off: You hear the speakers set to the User
Speaker Setting values.
• On: You hear the speakers set to the Musical
Room Calibration mode values.
Musical Room Calibration Setting
1. Plug the ASC microphone into the ASC IN jack.
2. Place the ASC microphone at the listening position.
• Musical Room Calibration runs automatically
in the following sequence:
Front left Center Front right Surround right Surround left Subwoofer
• Press the RETURN button to cancel the
Musical Room Calibration Setting.
Set optimal EQ automatically depending on the
region.
• Off : Turn EQ Optimizer off.
• On : Turn EQ Optimizer on.
HDMI Audio
The audio signals transmitted over the HDMI
Cable can be toggled On and Off.
• Off : Video is transmitted over the HDMI
connection cable only, and audio is output
through your product speakers only.
• On : Both video and audio signals are
transmitted over the HDMI connection cable,
and audio is output through your TV speakers
only.
✎ NOTE
 HDMI Audio is automatically down-mixed to
2ch for TV speakers.
English
HT-C6900W_XAA_0914.indd 37
37
2010-09-14
2:28:09
Setup
✎ NOTE
Digital Output
Lets you set the audio output format according
to the capabilities of your amplifier. (For more
details, please refer to the digital output
selection).
• PCM
• Bistream (Re-encode)
• Bistream (Audiophile)
 Be sure to select the correct Digital Output
or you will hear no sound or a loud noise.
 If the HDMI device (Receiver, TV) is not compatible
with a compressed format (Dolby digital, DTS), the
audio signal outputs as PCM.
 Regular DVDs do not have Secondary and Effect
audio.
 Some Blu-ray Discs do not have Secondary and
Blu-ray Discs may include three audio streams.
- Primary Audio : The audio soundtrack of the
main feature.
- Secondary Audio : Additional soundtrack
such as director or actor's commentary.
- Interactive Audio : Plays Interactive sounds
when selected. Interactive Audio is different on
each Blu-ray Disc.
Effect audio.
 This Digital Output setup does not affect the
analog (L/R) audio or HDMI audio output to your
TV.
It affects the optical and HDMI audio output when
the home theater is connected to a receiver.
 If you play MPEG audio soundtracks, audio signal
outputs PCM regardless of Digital Output
Selections (PCM or Bitstream).
Digital Output Selection
Setup
Connection
Definition for
Blu-ray Disc
38
Bitstream
(Audiophile)
HDMI Receiver
Optical
PCM
Up to 7.1ch
PCM 2ch
DTS re-encoded
PCM
PCM 2ch
Dolby Digital
Up to 5.1ch
PCM 2ch
DTS re-encoded
Dolby Digital
Dolby Digital
Dolby Digital
Plus
Up to 7.1ch
PCM 2ch
DTS re-encoded
Dolby Digital Plus
Dolby Digital
Up to 7.1ch
PCM 2ch
DTS re-encoded
Dolby TrueHD
Dolby Digital
DTS
Up to 6.1ch
PCM 2ch
DTS re-encoded
DTS
DTS
DTS-HD HRA
Up to 7.1ch
PCM 2ch
DTS re-encoded
DTS-HD HRA
DTS
DTS-HD MA
Up to 7.1ch
PCM 2ch
DTS re-encoded
DTS-HD MA
DTS
PCM
PCM 2ch
PCM 2ch
PCM 2ch
PCM 2ch
PCM 2ch
Audio Stream
on Blu-ray Disc Dolby TrueHD
Audio Stream
on DVD
Bitstream
(Re-encode)
PCM
HDMI Receiver or Optical HDMI Receiver
Optical
Dolby Digital
Up to 5.1ch
PCM 2ch
Dolby Digital
Dolby Digital
Dolby Digital
DTS
Up to 6.1ch
PCM 2ch
DTS
DTS
DTS
Any
Decodes Primary, Secondary and
Effect audio streams together into
PCM audio.
Outputs only the Primary audio
Decodes Primary, Secondary and
soundtrack (main soundtrack of the
Effect audio streams together into
movie) so that your receiver can decode
PCM audio, then re-encodes the
the audio bitstream. You will not hear
PCM audio into DTS bitstream.
Secondary and Effect audio.
English
HT-C6900W_XAA_0914.indd 38
2010-09-14
2:28:09
03
You can listen at low volumes but still hear dialog
clearly. This is only active when a Dolby Digital
signal is detected.
• Off : Turn Dynamic Range Control off.
• On : Choose to listen to a movie at a lower
volume without losing clarity of dialog.
• Auto : The Dynamic Range Control is set
automatically based on the information
provided by the Dolby TrueHD Soundtrack.
You can then operate this product using a
Samsung TV remote control and start disc
playback simply by pressing the PLAY (►) button
on the TV’s remote control.
For more information, please see the TV user
manual.
• Off : Anynet+ function is off.
• On : Anynet+ function is on.
✎ NOTE
 This function is not available if the HDMI cable
does not support CEC.
AV Sync
 If your Samsung TV has an n logo, then
Video may not sync with the audio when the
product is connected to a digital TV. If this occurs,
adjust the audio delay time to match the video.
• You can set the audio delay time between
0 msec and 300 msec. Adjust it to the optimal
setting.
 Depending on your TV, certain HDMI output
System
Initial Settings
By using the Initial Settings, you can set
language, TV aspect, Musical Room Calibration
and Network setting, etc.
For more information on the settings, refer to the
corresponding section in this user manual.
[email protected] Screen Size
Set the [email protected] Screen to the optimal size.
• Size 1 : Display smaller application icons. You
may see some black on the sides of the
screen.
• Size 2 : Display normal application icons.
• Size 3 : Display larger application icons. The
image may be too large for your TV screen.
Anynet+ (HDMI-CEC)
Anynet+ is a convenient function that offers linked
operations with other Samsung products that
have the Anynet+ feature.
To operate this function, connect this product to
a Samsung TV with an HDMI cable.
it supports the Anynet+ function.
resolutions may not work.
Please refer to the user manual of your TV.
 The Anynet+ function is supported only when
an HDMI Cable is connected to the HDMI OUT
of the product.
 If the HDMI cable or the power code is
unplugged, or if the product is turned off
abnormally due to power failure, first connect
the HDMI cable again; turn on all devices
including the product, and use the ANYNET+
function under the TV menu to activate all
connected devices again.
BD Data Management
Lets you manage the downloaded contents from a Blu-ray
Disc that supports the BD-LIVE service.
You can check the device information including the
storage size, delete the BD data or change the Flash
memory device. Change Device allows you to select either
the product's Internal Memory or External Memory
(connected USB Device). If the data to be stored from
BD-LIVE is greater than the size of the remaining memory
or the Internal Memory is full, connect an External USB
device, then select External Device in the menu.
Settings
Display
Audio
System
Network
Language
Security
General
Support
Menu :
BDOn-Screen
Data Management
Disc Menu: Internal Memory
:
Current Device
Total Size Audio
: 589 MB
Subtitle : 589 MB
Available Size
:
:
|
Delete BD Data
Change Device
> Move
: Internal Memory
s Select
r Return
English
HT-C6900W_XAA_0914.indd 39
Setup
Dynamic Range Control
39
2010-09-14
2:28:10
Setup
Description of Device (Storage) Information
on the Product
DivX(R) Registration
• Total Size : Total size of the Device (Storage).
• Available Size : Available size of the Device (Storage).
View DivX(R) VOD Registration Code to purchase
and play DivX(R) VOD content.
✎ NOTE
 In the external memory mode, disc playback
will be stopped if you disconnect the USB
device in the middle of the playback.
 Only those USB devices formatted in FAT file
system (DOS 8.3 volume label) are supported.
We recommend you use USB devices that
support USB 2.0 protocol with a 4 MB/sec or
faster read/write speed.
 The Resume Play function may not work after
you format the storage device.
 The total size of BD Data Management may
differ, depending on the software version.
Clock
Set time-related functions.
Settings
Display
On-Screen
ClockMenu :
Audio Clock Mode Disc Menu
:
: Auto
|
System Clock Set
Audio
:
Network Time Zone Subtitle : GMT + 0:00:
LanguageDST
: Off
Security
General
> Move s Select r Return
Support
• Clock Mode : You can select Auto or Manual.
If you select Manual, the Clock Set menu will
be activated while DST will be deactivated.
• Clock Set : You can specify the current time
and date manually.
• Time Zone : You can specify the time zone
that is applicable to your area.
• DST : You can set DST (Daylight Saving Time)
1 hour, 2 hours and off.
40
Settings
Display
Audio
System
Network
Language
Security
General
Support
Initial Settings
Disc Menu
:
DivX(R)
AudioVideo On Demand:
Your registration
Subtitlecode is : XXXXXXXXXX
:
To learn more visit www.divx.com/vod
OK
✎ NOTE
 This option is not activated if you select OK.
To activate this option, please activate
DivX(R) Deactivation.
DivX(R) Deactivation
Select this to get a new registration code.
Settings
Display
Audio
System
Network
Language
Security
General
Support
Initial Settings
Disc Menu
:
Audio
:
Subtitle
:
Do you want
to deactivate your device?
Yes
No
✎ NOTE
 This function can be operated when DivX(R)
Registration function is deactivated.
English
HT-C6900W_XAA_0914.indd 40
2010-09-14
2:28:11
03
Setup
Network
Network Setting
To begin setting up the network connection for
your product, follow these steps:
1. In the Home menu, press the ◄► buttons to
select the Settings, and then press the
ENTER button.
Internet Protocol Setup
: Auto
IP Address
: 0
0
0
0
Subnet Mask
: 0
0
0
0
Gateway
: 0
0
0
0
DNS
: Auto
DNS Server
: 0
0
0
0
> Move
" Enter
' Return
2. Press the ▲▼ buttons to select Network,
and then press the ENTER button.
3. Press the ▲▼ buttons to select Network
Settings, and then press the ENTER button.
4. Press the ▲▼ buttons to select Network
Type, and then press the ENTER button.
5. Press the ▲▼ buttons to select Wired or
Wireless, and then press the ENTER button.
6. Go to the next section.
2. After the Network Function has acquired the
network values, press the RETURN button.
Then, run a Network Test to ensure the
product has connected to your network (See
page 44).
3. If the Network Function does not acquire the
network values or you selected Manual, go to
the directions for Manual Setup.
Setting Up a Wired Connecton - Manual
Network Settings
Please contact your ISP to find out if your IP
address is static or dynamic. If it is dynamic, we
recommend using the Auto setting. This is the
easiest and will work in the majority of cases. If it is
static, you must use the manual set up procedure.
Directions for wired networks are below. Directions
for wireless networks are after the directions for
wired networks.
If the Auto Setting does not work, you’ll need to set
the Network Setting values manually.
To get the Network setting values from most
Windows computers, follow these steps:
1. Right click the Network icon on the bottom
right of the screen.
2. In the pop-up menu, click Status.
3. On the dialog that appears, click the Support
tab.
Wired Network
4. On the Support tab, click the Details button.
The Network settings are displayed.
1. In the Network Settings menu, press the
▲▼ buttons to select Network Setting, and
then press the ENTER button.
The Internet Protocol Setup screen appears.
To enter the Network settings into your product,
follow these steps:
2. Press the ► button, then select Auto or
Manual, and then press the ENTER button.
Setting Up a Wired Connecton - Auto
1. If you selected Auto, the Network Function
acquires and fills in the values for IP Address,
Subnet Mask, etc., automatically.
✎ NOTE
 This process can take up to five minutes.
1. On the Internet Protocol Setup screen, press
the ENTER button.
2. Press the ▲▼ buttons to select Manual,
and then press the ENTER button.
3. Press the ▼ button to go to the first entry
field (IP Address).
Network Setting
Internet Protocol Setup
: Manual
IP Address
: 0
0
0
0
Subnet Mask
: 255 255 255
0
Gateway
: 0
DNS
: Manual
DNS Server
: 0
> Move
" Enter
0
0
0
0
0
0
' Return
English
HT-C6900W_XAA_0914.indd 41
41
2010-09-14
2:28:13
Setup
4.
Use the number buttons on your remote to
enter numbers.
5.
When done with each field, use the ►
button to move successively to the next
field.
You can also use the other arrow buttons to
move up, down, and back.
6.
Enter the IP Address, Subnet Mask, and
Gateway values.
7.
Press the ▼ button to go to DNS.
8.
Press the ▼ button to go to the first DNS
entry field.
9.
Press the RETURN button on your remote.
10. Run a Network Test to ensure the product
has connected to your network (See page
44).
4.
After the network connection is set up,
press the RETURN button to exit the
Network Setting screen.
Setting Up the Wireless Network
Connection - Auto Network Search
Most wireless networks have an optional security
system that requires devices that access the
network to transmit an encrypted security code
called an Access or Security Key. The Security Key
is based on a Pass Phrase, typically a word or a
series of letters and numbers of a specified length
you were asked to enter when you set up security
for your wireless network. If you use this method
of setting up the network connection, and have
a Security Key for your wireless network, you will
have to enter the Pass Phrase during the setup
process.
Wireless Network
 Setting Up the Network Connection
You can setup the wireless connection three ways:
To set up the wireless connection using Auto
Network Search, follow these steps:
• Using PBC(WPS)
1.
In the Network Settings menu, press the
▲▼ buttons to select Network Setting,
and then press the ENTER button.
The Internet Protocol Setup screen appears.
2.
Press the ▲▼ buttons to select the
Internet Protocol Setup, and then press
the ENTER button.
3.
Press the ▲▼ buttons to select Auto or
Manual, and then press the ENTER button.
4.
If you selected Auto, press the ▲ button to
go to Select a network, and then press the
ENTER button.
The Network function searches for available
wireless networks.
When done, it displays a list of the available
networks.
• Using the Auto Network Search function.
• Manually.
Each method is described below.
Setting Up the Wireless Network
Connection - PBC(WPS)
The easiest way to set up the wireless network
connection is using the PBC(WPS) function.
If your wireless router has a PBC(WPS) button,
follow these steps:
1.
In the Network Settings menu, press the
▲▼ buttons to select Network Setting,
and then press the ENTER button.
The Internet Protocol Setup screen appears.
2.
Press the RED (A) button on the remote
control.
3.
Press the PBC(WPS) button on your router
within two minutes. Your product displays
the Network Selection Screen, and
automatically acquires all the network
setting values it needs and connects to your
network. When it is done, it displays an OK
button. Press the ENTER button on your
remote.
42
Network Setting
Select a network
Internet Protocol Setup
: Not Selected
: Auto
IP Address
: 0
0
0
0
Subnet Mask
: 0
0
0
0
Gateway
: 0
0
0
0
DNS
: Auto
0
0
0
DNS Server
a PBC(WPS) > Move
: 0
" Enter ' Return
English
HT-C6900W_XAA_0914.indd 42
2010-09-14
2:28:14
03
In the list of networks, press the ▲▼
buttons to select a network, and then press
the ENTER button.
10. When done, press the BLUE (D) button on
your remote, and then press the ENTER
button.
6.
If the PIN/Security pop-up appears, go to
Step 7. If the Network Connecting Screen
appears, go to Step 11.
7.
Press the ▲▼ buttons to select PIN or
Security.
For most home networks, you would select
Security (for Security Key).
11. Wait until the connection confirmation
message is displayed, and then press the
ENTER button. The Network Settings
screen reappears.
8.
On the Security screen, enter your network’s
Pass Phrase.
✎ NOTE
 You should be able to find the Pass Phrase
on one of the set up screens you used to set
up your router or modem.
Network Setting
12. To test the connection, press the ▼ button
to select Network Test, and then press the
ENTER button.
Setting Up the Wireless Network
Connection - Manual
If the Auto Setting does not work, you need to
enter the Network settng values manually.
To get the Network setting values from most
Windows computers, follow these steps:
1.
Right click the Network icon on the bottom
right of the screen.
2.
In the pop-up menu, click Status.
3.
On the dialog that appears, click the
Support tab.
4.
On the Support tab, click the Details button.
The Network settings are displayed.
Security Key
0 entered
–
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
V
W
X
Y
Z
0~9
Number
a Lower case
b Delete
space
Move " Enter
9.
Setup
5.
' Return
To enter the Pass Phrase, follow these
general directions:
• Press the number keys on your remote to
enter numbers.
• Use the arrow keys on your remote to
move from button to button on the
Security Key screen.
• Pressing the RED (A) button on the
remote lets you change the text displayed
on the buttons to lower case, upper case,
numbers, or icons. To enter a letter or
symbol, move the cursor to the letter or
symbol, and then press the ENTER
button.
• To delete the last letter or number you
entered, press the GREEN (B) button.
To Enter the Network settings into your product,
follow these steps:
1.
On the Internet Protocol Setup screen,
press the ENTER button.
2.
Press the ▲▼ buttons to select Manual,
and then press the ENTER button.
3.
Press the ▼ button to go to the first entry
field (IP Address).
Network Setting
Select a network
Internet Protocol Setup
: Not Selected
: Manual
IP Address
: 0
0
0
Subnet Mask
: 255 255 255
0
Gateway
: 0
DNS
: Manual
DNS Server
a PBC(WPS) > Move
4.
0
: 0
0
0
0
0
0
0
" Enter ' Return
Use the number buttons to enter numbers.
English
HT-C6900W_XAA_0914.indd 43
43
2010-09-14
2:28:14
Setup
5.
6.
When done with each field, use the ►
button to move successively to the next
field.
You can also use the other arrow buttons to
move up, down, and back.
Enter the IP Address, Subnet Mask, and
Gateway values.
7.
Press the ▼ to go to DNS.
8.
Press the ▼ button to go to the first DNS
entry field. Enter the numbers as above.
9.
When done, press the ▲ button to return to
Access Point Selection. Select the network,
and then press the ENTER button.
10. Go to Step 6 in the Automatic Wireless
procedure above, and follow the directions
from that point on.
Network Test
Use this menu to connect to the wired network or
check whether your network connection is
working or not.
BD-Live Internet Connection
Select whether to allow an Internet connection
when BD-LIVE service is used.
• Allow(All) : The Internet connection will be
allowed for all BD-LIVE contents.
• Allow(Valid Only) : The Internet connection will
be allowed only for BD-LIVE contents
containing a valid certificate.
• Prohibit : No Internet connection will be
allowed for any BD-LIVE content.
✎ NOTE
 What is a valid certificate?
When the product uses BD-LIVE to send the
disc data and request to the server to certify
the disc, the server uses the transferred data
to check if the disc is valid and sends the
certificate back to the product.
 The Internet connection may be restricted
while you are using BD-LIVE contents.
Language
Network Status
Check whether a connection to the network and
the Internet have been established.
You can select the language you prefer for the
home menu, disc menu, etc.
• On-Screen Menu : Select the language for the
on-screen displays.
• Disc Menu : Select the language for the disc
menu displays.
• Audio : Select the language for disc audio.
• Subtitle : Select the language for disc subtitles.
✎ NOTE
 The selected language will only appear if it is
supported on the disc.
44
English
HT-C6900W_XAA_0914.indd 44
2010-09-14
2:28:15
03
Setup
Security
General
When you operate this menu for the first time, the
password setup screen appears. Enter the
desired 4-digit password using the number
buttons. (Default password is set to 0000.)
Background
Change the background theme of the menu screen.
Parental Rating
The Parental Rating works in conjunction with
Blu-ray Disc/DVDs that have been assigned a
rating, which helps you control the types of
Blu-ray Disc/ DVDs that your family can watch.
To use this function, select a rating level that
restricts the player to playing discs with ratings
appropriate for your family.
A larger number indicates that the program is
intended for adult audiences only. When you
select a rating number, you should select the
highest rating number you want the player to be
able to play. For example, if you select Level 6,
the player will play discs rated 6 and below, and
will not play discs rated Level 7 or 8.
Settings
Display
Audio
System
Network
Language
Security
General
Support
Parental Rating
Change Password
 Off
8(Adults)
7
6
5
4
3
2
Settings
Display
Audio
System
Network
Language
Security
General
Support
Background
Parental Rating
: Off
Change Password
Skin 1
Skin 2
Skin 3
Skin 4
Skin 5
> Move
s Select
r Return
Front Display
Change the brightness of the front panel.
• Auto : Dim during playback only.
• Dim : Dim the display window.
• Bright : Brighten the display window.
Power On/Off Sound
Change Password
Play a melody when the product is turned on and
off.
• Off : Turn Power Sound Off.
• On : Turn Power Sound On.
Change the 4-digit password used to access
security functions.
Light Effect
▼
Settings
Change Password
Display
Audio
System
Enter New Password
Network
Language
Security
General
Support
Number r Return
You can activate or deactivate the light effect on the
top of the product.
• Always On : Activate Light Effect at all times.
Select this for retail display.
• Auto : Activate Light Effect when turning the
product on and off or when moving the tray.
Select when installing the product in your home.
• Off : Turn Light Effect off at all times.
If you forgot your password
1. Remove the disc.
2. Press and hold the STOP () button on the
front panel for 5 seconds or more.
All settings will revert to the factory settings.
NOTE
 When the factory default settings are restored, all the
user data stored in the BD data will be deleted.
✎
English
HT-C6900W_XAA_0914.indd 45
45
2010-09-14
2:28:15
Setup
Support
Software Upgrade
This menu allows you to upgrade software for
performance improvements or additional services.
You can check the current software version,
upgrade on the Internet and set the Auto upgrade
notification. If the product is properly connected to
the network by cable or wirelessly, the product will
automatically connect to our website each time it is
turned on and download update files if any valid
upgrade exists.
You can also update software in two other ways:
• USB : Visit www.samsung.com/bluraysupport,
then download and store the latest software
(RUF file) onto a USB flash drive. Connect the
USB flash drive to the USB port of the product
(disc tray must be empty) to update the
software, then follow the on-screen
instructions.
• CD : Visit www.samsung.com/bluraysupport,
download and write the latest software (RUF
file) onto a disc. Insert and play the disc in the
product to start the update, then follow the
on-screen instructions.
Settings
Display
Software Upgrade
Software
Audio
Disc MenuUpgrade :
System Current Version Audio : XXX-XXXXXXXX-XXXX.X
:
NetworkBy Internet
Subtitle
:
|
Language
Auto Upgrade Notification : On
Security
General
> Move s Select r Return
Support
✎ NOTE
 Software upgrades using the USB Host jack
must be performed with no disc inside.
 If you want to cancel the upgrade during the
process of downloading the upgrade data,
press the ENTER button.
 When the system upgrade is done, check the
1. To select By Internet, press the ENTER
button.
A popup message appears if an update is
available asking if you want to upgrade.
2. If you select Yes, the product turns off
automatically before restarting, and then
begins the upgrade. (Never turn it on
manually here.)
3. The update progress popup appears.
When the update is completed, the product
turns off automatically again.
4. Press the POWER button to turn on the
product.
software details in the software Upgrade
menu.
 Do not turn off the product during the System
Upgrade. It may cause the product to not
work properly.
 Do not use USB devices other than USB Flash
Drives to do software upgrades when using
the USB Host jack.
Contact Samsung
Provides contact information for assistance with
your product.
✎ NOTE
 The Update is complete when the product turns
off after restarting. Press the POWER button to
turn on the updated product for your use. Never
turn the product off or on manually during the
update process.
 Samsung Electronics shall take no legal
responsibility for product malfunction caused by
an unstable internet connection or consumer
negligence during software upgrade.
46
English
HT-C6900W_XAA_0914.indd 46
2010-09-14
2:28:18
Disc Structure
The contents of disc are usually divided as below.
Playback
• Blu-ray Disc, DVD-VIDEO
1. Press the OPEN/CLOSE ( ) button to open
the disc tray.
2. Place a disc gently into the tray with the
disc’s label facing up.
3. Press the PLAY (►) button or OPEN/
CLOSE ( ) button to close the disc tray.
Playback related buttons
PLAY ( ►)
STOP (  )
chapter 1
title 2
chapter 2
chapter 3
track 3
track 4
track 5
• Audio CD (CD-DA)
track 1
track 2
• MP3, WMA, DivX, MKV and MP4
folder (group) 1
file 1
file 2
file 1
folder (group) 2
file 2
file 3
Starts playback.
Stops playback.
• If you press the button once:
The stop position will be
memorized.
• If you press the button
twice: The stop position will
be not memorized.
With some Blu-ray discs (BD-J),
this function may not work.
PAUSE (  )
title 1
chapter 1 chapter 2
Basic Functions
Playing a Disc
04
Basic Functions
Pauses playback.
✎ NOTE
 "Not Available" will appear when an invalid
Using the Disc menu / Title menu / Popup menu
Using the Disc Menu
hZ
1. During playback, press the DISC
MENU button on the remote
control.
2. Press the ▲▼◄ ► buttons to make
the desired selection, then press the
ENTER button.
DISC MENU
✎ NOTE
 Depending on the disc, the menu items may
differ and this menu may not be available.
button is pressed.
English
HT-C6900W_XAA_0914.indd 47
47
2010-09-14
2:28:19
Basic Functions
Using the Title Menu
Using the Search and Skip Functions
Z
1. During playback, press the TITLE
MENU button on the remote
control.
2. Press the ▲▼◄ ► buttons to
make the desired selection, then
press the ENTER button.
TITLE MENU
POPUP
Searching for a Desired Scene
hzZyx
✎ NOTE
 Depending on the disc, the menu items may
differ and this menu may not be available.
 The Title Menu will only be displayed if there
are at least two titles on the disc.
Playing the Title List
z
1. During playback, press the DISC
MENU or TITLE MENU button.
2. Press the ▲▼ buttons to select an
entry you want to play from Title
List, then press the ENTER
button.
DISC MENU
TITLE MENU
POPUP
BD-ROM,
BD-RE/-R,
DVD-RW/-R,
DVD+RW/+R,
DVD-VIDEO
DivX, MKV, MP4
)1­)2­)3­
)4­)5­)6­)7
(1­(2­(3­
(4­(5­(6­(7
)1­)2­)3
(1­(2­(3
• To return to normal speed playback, press the
PLAY (►) button.
 No sound is played in search mode.
h
TITLE MENU
POPUP
2. Press the ▲▼◄ ► buttons or
ENTER button to select the desired
menu.
✎ NOTE
 Depending on the disc, the menu items may
differ and this menu may not be available.
48
• During playback, press the SEARCH ()
button.
Each time you press the SEARCH ()
button, the playback speed will change as
follows.
✎ NOTE
Using the Popup Menu
1. During playback, press the POPUP
button on the remote control.
During playback, you can search quickly through
a chapter or track, and use the skip function to
jump to the next selection.
Skipping Chapters
hzZyx
• During playback, press the SKIP (#$)
button.
If you press the SKIP ($) button, the disc
moves to the next chapter.
If you press the SKIP (#) button, the disc
moves to the beginning of the chapter. One
more press makes it move to the beginning of
the previous chapter.
English
HT-C6900W_XAA_0914.indd 48
2010-09-14
2:28:20
04
Basic Functions
Slow Motion Play/Step Motion Play
Repeat
Off
Slow Motion Play
hzZy
• In pause mode, press the SEARCH ()
button.
If you press the SEARCH () button, the
playback speed is reduced to * 1/8 * 1/4 * 1/2
• To return to normal speed playback, press the
PLAY (► ) button.
✎ NOTE
3. To return to normal play, press the REPEAT
button again.
4. Press the ▲▼ buttons to select Off, then
press the ENTER button.
✎ NOTE
 Depending on the disc, the Repeat function
may not be available.
 No sound is played in slow mode.
 Slow motion operates only in the forward
Repeat the Section
direction.
hzZy
Step Motion Play
hzZy
• In pause mode, press the PAUSE (  ) button.
Each time you press the PAUSE (  ) button, a
new frame appears.
• To return to normal speed playback, press the
PLAY ( ► ) button.
1. During playback, press the REPEAT
button on the remote control.
REPEAT
2. Press the ▲▼ buttons to select
REPEAT A-B.
Repeat
REPEAT A-B : Off
s Mark A
✎ NOTE
 No sound is played in step mode.
 Step motion operates only in the forward
direction.
3. Press the ENTER button at the point where
you want repeat play to start (A).
4. Press the ENTER button at the point where
you want repeat play to stop (B).
Repeat Playback
5. To return to normal play, press the REPEAT
button again.
Repeat the Title or Chapter
6. Press the ENTER button.
hzZy ✎ NOTE
 If you set point (B) before 5 seconds has
Repeat the disc title or chapter.
1. During playback, press the
REPEAT button on the remote
control.
REPEAT
elapsed, the prohibition message will appear.
2. Press the ▲▼ buttons to select
Chapter or Title, then press the
ENTER button.
English
HT-C6900W_XAA_0914.indd 49
49
2010-09-14
2:28:21
Basic Functions
 Information about the primary / secondary
Using the TOOLS button
During playback, you can operate the
disc menu by pressing the TOOLS
button.
TOOLS
• TOOLS Menu Screen
Tools
Title
:
1/1
Chapter
4/21
Playing Time
:
00:12:06
Audio
: 1/7 ENG Multi CH
Subtitle
:
1/6 ENG
Angle
:
1/1
BONUSVIEW Video :
Off
BONUSVIEW Audio :
0/1 Off
mode is also displayed if the Blu-ray Disc has a
BONUSVIEW section.
Use the ◄► button to switch between
primary and secondary audio modes.
 This function depends on what audio
languages are encoded on the disc and may
not be available.
 A Blu-ray Disc can contain up to 32 audio
languages and a DVD up to 8.
 Some Blu-ray Discs may allow you to select
either the multi-channel LPCM or Dolby digital
audio soundtrack in English.
Picture Setting
< Change " Enter
✎ NOTE
▪ Depending on the disc, the TOOLS menu may
differ.
Selecting the Subtitle Language
hZx
1. During playback, press the TOOLS button.
2. Press the ▲▼ buttons to select Subtitle.
Moving to a Desired Scene Directly
3. Press the ◄► buttons to select the desired
subtitle language.
hzZy ✎ NOTE
 Depending on the Blu-ray Disc / DVD, you may
1. During playback, press the TOOLS button.
2. Press the ▲▼ buttons to select Title,
Chapter or Playing Time.
3. Enter the desired Title, Chapter or Playing
Time using the number buttons, then press
the ENTER button.
Selecting the Audio Language



hzZx
1. During playback, press the TOOLS button.
2. Press the ▲▼ buttons to select Audio.
3. Press the ENTER button.


be able to change the desired subtitle in the
Disc Menu.
Press the DISC MENU button.
This function depends on what subtitles are
encoded on the disc and may not be available
on all Blu-ray Discs/DVDs.
A Blu-ray Disc can contain up to 255 subtitle
languages and a DVD up to 32.
Information about the primary / secondary
mode is also displayed if the Blu-ray Disc has a
BONUSVIEW section.
This function changes both the primary and
secondary subtitles at the same time.
The total number of subtitles is the sum of the
primary and secondary ones.
4. Press the ▲▼ buttons to select the audio
language you want.
✎ NOTE
 The ◄► indicator is not displayed on the
screen if the BONUSVIEW section does not
contain any BONUSVIEW audio settings.
50
English
HT-C6900W_XAA_0914.indd 50
2010-09-14
2:28:26
04
x
• You must have some experience with video
extraction and editing in order to use this
feature properly.
• To use the caption function, save the caption
file (*.smi) with the same file name as that of the
DivX media file (*.avi) within the same folder.
Example. Root Samsung_007CD1.avi
Samsung_007CD1.smi
• You can use up to 60 alphanumeric characters or 30
East Asian characters (2 byte characters such as
Korean and Chinese) for the file name.
• User : The user can adjust the sharpness
and noise reduction function respectively.
Setting the BONUSVIEW
Basic Functions
Caption Function
h
The BONUSVIEW feature allows you to view
additional content (such as commentaries) in a
small screen window while the movie is playing.
This function is only available if the disc has the
bonusview feature.
Changing the Camera Angle
hZ
When a Blu-ray Disc/DVD contains multiple
angles of a particular scene, you can use the
ANGLE function.
1. During playback, press the TOOLS button.
Primary a audio/video
Secondary a audio/video
2. Press the ▲▼ buttons to select Angle.
3. Press the ◄► buttons to select the desired
angle.
1. During playback, press the TOOLS button.
Selecting the Picture Setting
3. Press the ◄► buttons to select the desired
bonusview.
2. Press the ▲▼ buttons to select BONUSVIEW
Video or BONUSVIEW Audio.
hzZy ✎ NOTE
This function lets you to adjust video quality when
the home theater is connected to a TV via HDMI.
1. During playback, press the TOOLS button.
2. Press the ▲▼ buttons to select Picture
Setting, then press the ENTER button.
3. Press the ◄► buttons to select the desired
Picture Setting, then press the ENTER
button.
• Dynamic : Choose this setting to increase
Sharpness.
• Normal : Choose this setting for most
viewing applications.
• Movie : This is the best setting for watching
movies.
 If you switch from BONUSVIEW Video,
BONUSVIEW Audio will change automatically
in accordance with BONUSVIEW Video.
Tools
BONUSVIEW Video
Off
BONUSVIEW Audio :
0/1 Off
Picture Setting
< Change " Enter
English
HT-C6900W_XAA_0914.indd 51
51
2010-09-14
2:28:30
Basic Functions
Listening to Music
ow
Buttons on the Remote Control
used for Music Playback
@
1
2
3
4
5
6
7
8
9
FULL SCREEN
ENTER button : Plays and pauses the selected
track.
8
◄► buttons : Fast Play.
(except for Audio CD (CD-DA))
9
STOP button : Stops a track.
0
SKIP ($) button : During playback, moves to
the next page in the Music List or moves to the
next track in the Playlist.
!
SKIP (#) button : During playback, moves to
the previous page in the Music List or moves to
the previous track in the Playlist.
If you press this button after three seconds
of playback in the Playlist, the current track is
replayed from the beginning. But, if you press this
button within three seconds after playback starts
in the Playlist, the previous track is played.
@
NUMBER button : During the Playlist playback,
press the desired track number. The selected
track will be played.
REPEAT
1
2
0
!
0
3
9
8
7
4
TOOLS
INFO
5
7
RETURN
EXIT
TUNER
MEMORY
A
B
C
[email protected]
MO/ST
D
6
DSP
1
REPEAT buttons : Selects the play mode in the
Playlist.
2
SEARCH buttons : Fast Play.
(Audio CD (CD-DA) only)
3
PAUSE button : Pauses playback.
4
PLAY button : Plays the currently selected track.
5
▲▼ buttons : Selects a track in the Music List
or Playlist.
6
YELLOW (C) button : Select or deselect a track
in the music list.
52
English
HT-C6900W_XAA_0914.indd 52
2010-09-14
2:28:30
04
Repeat an Audio CD (CD-DA)/MP3
1. Insert an Audio CD (CD-DA) or an MP3 Disc
into the disc tray.
• Audio CDs (CD-DA) play automatically.
• To start an MP3 disc, press the ◄►
buttons to select Music, then press the
ENTER button.
1. During the Playlist playback, press
the REPEAT button.
2. Select the desired play mode by pressing
the REPEAT button repeatedly.
Off
Tracks on a disc are played
Audio CD
in the order in which they
(CD-DA)/MP3
were recorded on the disc.
Audio CD (CD-DA)/MP3 Screen Elements
1
2
Playlist
TRACK 001
REPEAT
3
(
) Track
Audio CD
(CD-DA)
Current track is repeated.
1/12
(
) One
MP3
Current track is repeated.
(
) All
Audio CD
All tracks are repeated.
(CD-DA)/MP3
(
) Shuffle
The random option plays
Audio CD
a disc's tracks in random
(CD-DA)/MP3
order.
Basic Functions
Playing an Audio CD (CD-DA)/MP3
TRACK 001
05:57
TRACK 002
04:27
TRACK 003
7
6
04:07
TRACK 004
+
03:41
00:08 / 05:57
TRACK 005
03:17
TRACK 006
03:35
s Pause
5
Tools
r Return
4
Playlist
1. Insert an Audio CD (CD-DA) or an MP3 Disc
into the disc tray.
1
Displays the music information.
• Audio CDs (CD-DA) play automatically.
2
Displays the playlist.
• To start an MP3 disc, press the ◄► buttons
to select Music, then press the ENTER
button.
3
Shows the current track/total tracks.
4
Displays control buttons available.
5
Shows the current play time/total play time.
6
Displays the current playback status.
7
Displays the repeated playback status.
2. To move to the Music List, press the STOP ()
or RETURN button.
The Music List screen appears.
3. Press the ▲▼◄► buttons to move to the
desired track, then press the YELLOW (C) button
to check desired tracks.
Repeat this procedure to select additional tracks.
Music
2. Press the ▲▼ buttons to select the track
you want to play, and then press the ENTER
button.
TRACK 001
TRACK 002
00:05:57
00:04:27
TRACK 003
TRACK 004
00:04:07
00:03:41
TRACK 005
TRACK 006
00:03:17
00:03:35
TRACK 007
TRACK 008
00:03:47
00:03:49
TRACK 009
TRACK 010
00:03:53
CDDA
3 files selected 1/2 Page
TRACK 003
00:03:45
Select
 Jump page
r Return
English
HT-C6900W_XAA_0914.indd 53
53
2010-09-14
2:28:31
Basic Functions
4. If there is an undesired track in the playlist,
press the YELLOW (C) button again.
The selected track will be deleted.
5. Press the ENTER button to play the selected
tracks.
1/1
Playlist
TRACK 001
+
TRACK 001
05:57
TRACK 002
04:27
TRACK 003
04:07
s Pause
Tools
r Return
6. To go to the Music List, press the STOP ()
or RETURN button.
7. To go to the Playlist, press the ENTER
button.
 You can create a playlist with up to 99 tracks
on Audio CD (CD-DA).
DSP (Digital Signal Processor) Function
DSP regulates the volume level and decreases
drastic volume changes when you change
channels or during a scene transitions.
• SMART SOUND : Regulates the volume level
and deceases drastic volume changes when
you change channels or during a scene
transition.
• MP3 ENHANCER : This also helps enhance your
sound experience (ex. mp3 music). You can
upscale your MP3 level sound (24 kHz, 8bit) to
CD level sound (44.1 kHz, 16bit).
• POWER BASS : This function stresses low
tones providing deep, powerful sound effects.
SFE (Sound Field Effect) MODE
You can set the SFE mode best suited for the
type of music you are listening to.
When you press the SFE MODE
button, it cycles through the following
functions:
SFE MODE
HALL1
Provides a clear vocal as if
listening in a concert hall.
HALL2
Also provides a clear vocal as if
listening in a concert hall but, less
powerful than HALL1.
JAZZ
Recommended setting for Jazz.
CHURCH
Gives the feel of being in a grand
church.
ROCK
Recommended setting for Rock.
SFE OFF
54
DSP
When you press the DSP button, it
cycles through the following functions:
SMART SOUND MP3 ENHANCER POWER BASS DSP MODE OFF
00:08 / 05:57
✎ NOTE
Sound Mode
Select this for normal listening.
English
HT-C6900W_XAA_0914.indd 54
2010-09-14
2:28:34
04
Using the TOOLS button
You can select the desired Dolby Pro
Logic II audio mode.
During the slide show playback, you
can use various function by pressing
the TOOLS button.
Press the
MUSIC
MOVIE
PROLOG
PL II button.
When listening to music, you can experience
sound effects as if you are listening to the
actual performance.
TOOLS
Basic Functions
Dolby Pro Logic II Mode
Tools
Stop Slide Show
Slide Show Speed :
Normal
Slide Show Effect :
Fade1
Background Music
Adds realism to the movie soundtrack.
Zoom
Rotate
You can listen to a 2CH sound source in
5.1CH surround sound with all speakers
active.
Information
> Move
" Enter
' Return
- A specific speaker(s) may not be output
depending on the input signal.
MATRIX
You will hear multi channel surround sound.
STEREO
Select this to listen to sound from the front left
and right speakers and the subwoofer only.
✎ NOTE
 When selecting Dolby Pro Logic II mode,
connect your external device to the AUDIO
INPUT jacks (L and R) on the product. If you
connect to only one of the inputs (L or R), you
cannot listen to surround sound.
Playing back a Picture
G
Playing a JPEG Disc
1. Insert a JPEG disc into the disc tray.
2. Press the ◄► buttons to select Photos,
and then press the ENTER button.
3. Press the ▲▼◄► buttons to select the
folder you want to play, and then press the
ENTER button.
• Stop Slide Show : Select this if you want to
stop the slide show.
• Slide Show Speed : Select if you want to
adjust the Slide Show speed.
• Slide Show Effect : Select if you want to set
the Slide Show Effect.
• Background Music : Select if you want to
listen to music while viewing a picture.
• Zoom : Select if you want to enlarge the
current picture. (Enlarged up to 4 times)
• Rotate : Select if you want to rotate the
picture. (This will rotate the picture either
clockwise or counter clockwise.)
• Information : Shows the picture information
including the name and size, etc.
✎ NOTE
 Before you can enable the background music
function, the photo file should exist in the same
storage media with the music file. However,
the sound quality can be affected by the bit
rate of the MP3 file, the size of the photo, and
the encoding method.
4. Press the ▲▼◄► buttons to select the
photo you want to play, and then press the
ENTER button.
✎ NOTE
 You can't enlarge the subtitle and PG graphic
in the full screen mode.
English
HT-C6900W_XAA_0914.indd 55
55
2010-09-14
2:28:36
Basic Functions
Playing Back a USB Storage Device
F
You can use the USB connection to play multimedia
files (MP3, JPEG, DivX, etc.) downloaded from a USB
storage device.
1. Move to the Home menu.
2. In Stop mode, connect the USB storage device
to the USB port on the front panel of the product.
The message “Do you want to access the
device?” appears.
3. Press the ◄► button to select Yes, then
press the ENTER button.
4. Press the RED (A) button or the BLUE (D)
button. If you pressed the RED (A) button,
go to Step 5. If you pressed the BLUE (D)
button, go to Step 4-1>
You Tube
internet radio service
Please activate [email protected]
to enjoy a variety of Internet Services.
✎ NOTE
 You must remove the USB storage device
safely by performing the “Safe to Remove
Hardware” function to prevent possible
damage to the USB memory. Press the MENU
button to move to the main screen, press the
YELLOW (C) button, and then press the ENTER
button.
 When the Audio-CD (CD-DA), MP3, or JPEG
files are in stop mode, you can't see the full
screen by pressing the FULL SCREEN button on
the remote control.
 If you insert a disc when playing a USB storage
device, the device mode is changed to “DVD
or CD” automatically.
 To listen to your music files with 5.1 channel sound,
you must set the Dolby Pro Logic ll mode to Matrix.
(See page 55)
Listening to Radio
Using buttons on the Remote Control
CD
USB
USB a Change Device Safely Remove USB d View Devices " Enter
5.
Press the ▲▼ buttons to select USB, then
press the ENTER button.
6. Press the ◄► buttons to select the desired
Videos, Music or Photos, then press the
ENTER button. Go to Step 7.
4-1. Press the BLUE (D) button, the screen
below appears. Go to 5-1.
Please activate [email protected] service
to enjoy a variety of Internet Services.
1. Press the FUNCTION button to select FM.
2. Tune in to the desired station.
• Automatic Tuning 1 : When the # $ button
is pressed, a preset broadcast station is selected.
• Automatic Tuning 2 : Press and hold the
) button to search for active
TUNING/CH (
broadcasting stations automatically.
• Manual Tuning : Press the TUNING/CH
) button to increase or decrease the
(
frequency incrementally.
Using the buttons on the home theater
1. Press the FUNCTION (
USB
) button to select FM.
2. Select a broadcast station.
USB
d Home
" Enter
5-1. Press the ◄► buttons to select USB, then
press the ENTER button.
6-1. Press the ▲▼ buttons to select the desired
Videos, Music or Photos, then press the
ENTER button.
7. To play back Video, Music, or Photo files,
see pages 47~55.
56
• Automatic Tuning 1 : Press the STOP ( )
button to select PRESET and then press the
# $ button to select the preset station.
• Automatic Tuning 2 : Press the STOP ( )
button to select MANUAL and then press and
hold the # $ button button to search the
band automatically
• Manual Tuning : Press the STOP ( ) button to
select MANUAL and then press the # $
button to tune in to a lower or higher frequency.
English
HT-C6900W_XAA_0914.indd 56
2010-09-14
2:28:40
04
MO/ST
Press the MO/ST button.
D
• Each time the button is pressed, the
sound switches between STEREO
and MONO.
• In a poor reception area, select
MONO for a clear, interference-free reception.
Using an iPod
You can enjoy music and video files from an iPod
through the product.
Basic Functions
Setting Mono/Stereo
iPod
iPod
Presetting Stations
Example : Presetting FM 89.10 into memory
1. Press the FUNCTION button to select FM.
) button to select
2. Press the TUNING/CH (
<89.10>.
3. Press the TUNER MEMORY button.
TUNER
MEMORY
• NUMBER flashes on the display.
C
4. Press the # $ button to select
preset number.
• You can select between 1 and 15
presets.
5. Press the TUNER MEMORY button again.
• Press the TUNER MEMORY button before
NUMBER disappears from the display.
• NUMBER disappears from the display and
the station is stored in memory.
6. To preset another station, repeat steps 2 to 5.
• To tune in to a preset station, press the # $
button on the remote control to select a channel.
Listening to Music
You can play music files stored in the iPod player by
connecting it to the product.
Please activate [email protected]
service
You
YouTube
Tube
internet radio
to enjoy a variety of Internet Services.
No disc
MEMU
iPod
iPod
No Disc
a Change Device
d View Devices
s Enter
1. Connect the iPod dock connector to the iPod
jack on the rear panel of the product.
2. Place the iPod in the supplied iPod Dock.
• Your iPod is automatically turned on.
• “iPod” message appears on the TV screen.
3. Press the RED (A) button.
4. Press the ▲▼ buttons to select iPod, then press
the ENTER button.
5. Press the ◄► buttons to select Music, then
press the ENTER button.
6. Select the music file to play.
- You can use the remote control or product to
control simple playback functions such as the
PLAY, PAUSE, STOP, #/ $, /  and
REPEAT buttons. See page 18.
English
HT-C6900W_XAA_0914.indd 57
57
2010-09-14
2:28:43
Basic Functions
✎ NOTE
 Adjust the volume to a moderate level before you
connect your iPod and product.
 When the product is powered on and you connect
an iPod, the product charges your iPod's battery.
 Make sure to connect the dock connector so that
the label “SAMSUNG” faces upward.
 “Made for iPod” means that an electronic accessory
has been designed to connect specifically to the
iPod and has been certified by the developer to meet
Apple performance standards.
 “Works with iPhone” means that an electronic
accessory has been designed to connect specifically
to an iPhone and has been certified by the developer
to meet Apple performance standards.
iPod Music categories
File information including the artist name, album name,
music title and genre is displayed according to the ID3
Tag information on each music file.
Now
Playing
Plays a recently played file or moves to
the playback screen of the current file.
Artist
To play by artist.
Songs
To play in numeric or alphabetical order
Playlist
To play by Playlist.
Album
To play by album.
Generic
To play by genre.
Composers
To play by composer.
✎ NOTE
 The category list may differ, depending on the
iPod model.
 What is an ID3 Tag?
This is what is attached to an MP3 to carry
information relevant to the file such as the title,
artist, album, year, genre and a comment field.
3. Place the iPod in the supplied iPod Dock.
• “iPod” message appears on the TV screen.
4. Press the RED (A) button.
5. Press the ▲▼ buttons to select iPod, then press
the ENTER button.
6. Press the ◄► buttons to select Videos, then
press the ENTER button.
7. Select the video file to play.
- You can use the remote control or the product to
control simple playback functions such as the
PLAY, PAUSE, STOP, # /$ and  /
buttons. (See page 18.)
iPod/iPhone models you can use with
this product
 iPod touch (3rd generation)
 iPod touch (2nd generation)
 iPod touch (1st generation)
 iPod classic
 iPod with video
 iPod with dock connector
 iPod with Click Wheel





iPod nano (5th generation)
iPod nano (4th generation)
iPod nano (3rd generation)
iPod nano (2nd generation)
iPod nano (1st generation)
 iPhone 3GS
 iPhone 3G
 iPhone
✎ NOTE
 You must have the VIDEO output (Composite)


Watching a Movie
You can play video files stored in the iPod player
by connecting it to the product.
1. Connect the iPod dock connector to the iPod jack
on the rear panel of the product.
2. In the iPod screen, move to Settings > Videos,
then set the TV Out option and the TV signal.
58


connected to your TV to view iPod video (See
page 26).
If you want to view an iPod video via VIDEO
output, set Anynet+ (HDMI-CEC) to off.
No other screen than the playback screen
appears on the TV screen. View other iPod
screens on the iPod player.
If the connected iPod does not support video
playback, the “Cannot play video files saved on
this iPod” message appears when you select the
Video menu.
Apple is not responsible for the operation of this
device or its compliance with safety and
regulatory standards.
English
HT-C6900W_XAA_0914.indd 58
2010-09-14
2:28:48
05
Network Services
Check the following instructions before using
any network service.
4. After you have signed off on the service
agreement, the [email protected] service starts
updating. It takes several minutes. When the
update is complete, you will see the
[email protected] menu screen.
1. Connect the product to the network.
(see pages 28~29)
[email protected] at a Glance
2. Configure the network settings.
(see pages 41~44)
1
2
Network Services
You can enjoy various network services such as
[email protected] or BD-LIVE by connecting the
product to the network system.
3
Recommended
Contents 1
Using [email protected]
Contents 2
Contents 3
My Applications
Contents 1
Connect this product to the network to download
various for a fee or free-of-charge applications.
[email protected] brings useful and entertaining
content and services directly from the web to
your product such as news, weather forecasts,
stock market quotes, games, movies, and music.
Contents 2
Contents 4
by Date 1/3
Contents 3
Samsung AppS Settings
a Login
6
5
b Mark as Favorite
d Sort by ' Return
4
[email protected]
You can also initiate this function
by pressing the [email protected] button
on the remote control.
Getting Started with [email protected]
1. Move to the home menu.
1
Commercial : Displays [email protected] Guide,
product introduction and new application
introduction.
2
Recommended : Displays recommended
contents managed by Samsung.
3
My Application : Displays your personal gallery
in which you can add and delete applications.
4
Navigation Help : Displays the remote control
buttons available.
• RED (A) : To log in to to [email protected]
• GREEN (B) : To mark the application as
a favorite.
• BLUE (D) : To sort the applications.
• Return : To return to the previous
menu.
5
Settings : You can set up the system and create
accounts, etc.
6
Samsung AppS : You can download various for
a fee or free-of-charge application services.
You Tube
internet radio service
Please activate [email protected]
to enjoy a variety of Internet Services.
No Disc
a Change Device
d View Devices
" Enter
2. Press the ◄► buttons to select [email protected]
TV and press the ENTER button.
3. In the start screen of the [email protected] service,
you will see the service agreement screen.
You must agree to the service terms and
conditions before you can use the [email protected]
TV service.
English
HT-C6900W_XAA_0914.indd 59
59
2010-09-14
2:28:49
Network Services
Using the On-Screen Keypad
13. Press the ENTER button.
Through your remote, you can use the OnScreen Keypad in several [email protected]
applications to enter text.
14. The map and address appear on the screen.
Pressing the FULL SCREEN button on the
remote while you are using the Screen Keypad
lets you change the text fields to lower case,
upper case, numbers, and icons.
✎ NOTE
 Samsung Electronics shall take no legal
responsibility for any interruption of the
[email protected] service caused by the service
provider for any reasons.
 The [email protected] service downloads and
1
2
abc
3
def
4
ghi
5
jkl
6
mno
7
pqrs
8
tuv
9
wxyz
Input Mode
a
Delete
]
0
A
1

For example, here is how to use the Keypad to
search for an address in Google Maps:
processes data via the Internet so that you can
enjoy the contents on the TV screen.
If the Internet connection is unstable, the
service may be delayed or interrupted.
If the connection is especially unstable, your
home theater may turn off automatically.
If this occurs, check the Internet connection
and try again.
 [email protected] applications may be provided in
English only and the contents available may
vary, depending on the area.
1.
Press the ENTER button on the remote at
the Google Maps icon at the [email protected]
2.
Press the GREEN (B) button to use the
SEARCH function.
service, visit the web site of the applicable
service provider.
3.
Press the ◄► buttons to move to the
"Search or address" window.
 The services provided are subject to change,
4.
Press the ENTER button to use the Search
or address function.
5.
Let's say that you want to input “105
Challenger Rd., Ridgefield Park NJ’.
6.
Press the FULL SCREEN button on the
remote twice to change the input mode from
lower case to numbers.
7.
Press ‘1’, ‘0’, ‘5’.
8.
Press the YELLOW (C) button on the remote
to input a blank space.
9.
Press the FULL SCREEN button on the
remote 3 times to change the input mode
from numbers to upper case.
 For more information about the [email protected]
depending on the [email protected] service
provider.
 The [email protected] service contents may differ
according to the firmware version on your
device.
 For-a-fee DivX contents with copy protection
can only be played using HDMI cable. If you
have connected your product to your TV using
Component or video cables, the DivX video
signal can not output. You may see the popup
message “Connect with a HDMI cable to play
this file.”or “Cannot play current file”.
10. Press ‘2’ button on the remote 3 times to
input C.
11. Press the FULL SCREEN button on the
remote 3 times to change the input mode
from upper case to lower case.
12. Press buttons on the remote to input the rest
of ‘Challenger Rd., Ridgefield Park NJ’.
60
English
HT-C6900W_XAA_0914.indd 60
2010-09-14
2:28:52
05
System Setup
For a more enjoyable application experience,
register and log in to your account.
Reset
To do this, you must create an account first. (For
instructions on creating an account, refer to
[email protected] ID on this page)
1.
Press the ▲▼◄► buttons to select the
desired application and press the RED (A)
button.
Resets [email protected] settings to factory default
settings.
Network Services
Account Login
✎ NOTE
 If you forgot your password, press the STOP
() button on the front panel of the product for
more than 5 seconds with no disc inserted.
Login
[email protected] ID
User Account :
Use this menu to create or delete an account and
admin
enter or delete account information.
Password :
You can control your account including the
content site’s account information.
a Create
[0~9] Enter PIN ' Cancel
This account is only for [email protected]
Create
2.
Enter the user account and password.
Settings
Create IDs and configure [email protected] settings on
this screen.
✎ NOTE
 The account name must be at least 1
character in length but no more than 8.
 You can register up to 10 User Account
Settings
 System setup
 [email protected] ID
 Service Manager
 Properties
Create an account and link it with desired service
applications.
Names.
Change the Service Lock password
Reset
Manager
' Cancel
• Service Site : Register login information for
service sites.
• Change Password : Change account
password.
• Delete : Delete the account.
English
HT-C6900W_XAA_0914.indd 61
61
2010-09-14
2:28:53
Network Services
Service Manager
Delete and lock applications installed in [email protected]
TV.
Lock
Lock the application. Accessing a locked
application requires a password.
Using the color buttons with the Samsung
Apps
• RED (A) (Login) : To log in to the Internet
service.
• GREEN (B) (Thumbnail View) : To change
the view mode.
• BLUE (D) (Sort By) : To sort the applications
by Featured, Most Downloaded, Most Recent
or Name.
Delete
Delete the application.
[email protected] Services Available
Properties
Display information about [email protected] Use the
"Check the speed of your internet connection"
option to test your network connection.
Samsung AppS
Various applications are available through this
screen, organized into different categories.
Some applications have a download fee.
Samsung AppS
What's New!
 Video
 Sports
 Lifestyle
 Games
 Infomation
 Other

Video
Featured
1/1
Most downloaded
Most recent
YouTube
Name
Free
• YouTube/Pandora/Netflix/Blockbuster/USA
Today News
- Blockbuster : You can view movies streamed
by Bloxckbuster.
- YouTube : You can view video streamed by
YouTube.
- Netflix : You can view movies streamed by
Netflix.
- Pandora : You can listen to Internet radio.
- USA Today News : You can read news
streamed by USA Today News.
- AccuWeather : You can view weather
information by AccuWeather.
- Google Maps : You can view maps by
Google Maps and search for locations.
TV store Test User002
✎ NOTE
 The available Internet contents services may
My Applications
Help
be added or deleted.
a Login
b Thumbnail View
d Sort By
' Return
My Applications
Displays the application list.
Help
If you questions about [email protected], check this
section first. If none of the tips apply, please visit
the help website.
62
English
HT-C6900W_XAA_0914.indd 62
2010-09-14
2:28:53
05
Once the product is connected to the network,
you can enjoy various movie-related service
contents using a BD-LIVE compliant disc.
1. Check the size of the remaining memory.
The memory device must have at least 1GB
of free space to accommodate the BD-LIVE
services.
2. Insert a Blu-ray disc that supports BD-LIVE.
3. Select an item from various BD-LIVE service
contents provided by the disc manufacturer.
✎ NOTE
 The way you use BD-LIVE and the provided
contents may differ, depending on the disc
manufacturer.
Software Upgrade Notification
When connected to the network, the product can
notify you of any new software version with a
popup message.
1. Turn on the product.
2. In the Software Upgrade menu, set Auto
Upgrade Notification to On. (See page 46)
If there is a new software version available,
the product notifies you with a popup
message.
3. To upgrade the firmware, select Yes on the
pop-up.
The product turns off automatically, then
restarts, and begins the download.
(Never turn it on manually.)
4. The update progress popup appears.
When the update is completed, the product
turns off again automatically.
5. Press the POWER button to turn on the product.
✎
Using the AllShare Function
AllShare lets you play music, video and photo
files in your PC using the product.
To use AllShare, you must connect the product to
your PC via the network (See pages 28~29) and
install the SAMSUNG PC Share Manager on the
PC. To install Share Manager, follow these steps.
1. Visit the Samsung website at www.samsung.
com.
2. Download the SAMSUNG PC Share
Manager and install it on the PC.
3. When the installation is completed, you will
see the SAMSUNG PC Share Manager icon
on your desktop.
Double-click the icon to launch the application.
AllShare Program at a Glance
after downloading and then restarts. Press the
POWER button to turn on the updated
product for your use.
Never turn the product off or on manually
during the update process.
 Samsung Electronics shall take no legal
responsibility for product malfunction caused by
unstable of internet connection or consumer
negligence during software upgrade.
6
1
SAMSUNG PC Share Manager
File
Share
Server
Help
Server : PC Share Manager
2345
My Computer
Shared Folder
C: Document and settings Admin
Name
Folder 1
Size
Kind
File
Folder 2
File
Folder 3
File
8
1
2
3
4
NOTE
 Update is complete when the product turns off
5
6
7
8
Folder
Folder 1
Full Path
C: Document and settin..
7
Menu Bar
Share Folder Enabled icon : Use this if you
want to select a folder in your PC to share.
Share Folder Disabled icon : Use this if you
want to set folder sharing off.
Refresh icon : Use this if you want to refresh
list of folders and files in My Computer.
Set Change State icon : You must click the
Set Change State icon after you have selected
a folder to share or your home theater won't
be able to read the shared folder.
Server : Displays the name of the sharing server.
Shared Folder : Displays a list of the shared
folders.
My Computer : Displays a list of the folders
and files in the PC.
English
HT-C6900W_XAA_0914.indd 63
Network Services
BD-LIVE™
63
2010-09-14
2:28:54
Network Services
To use Share Manager, follow these steps:
 AllShare does not support the following
functions.
1. Select a folder to share from the My
computer pane, and click the Share Folder
Enabled icon ( ).
(To remove a shared folder : Select a folder
to remove from the shared folders, and click
the Share Folder Disabled icon ( ).)
2. To apply the updated sharing state to the
server, click the Set Change State icon (
).
3. To enable the product to locate a PC server,
click Share from the menu bar.
Click Set Device Policy and click Accept.
SAMSUNG PC Share Manager
File
Share
Server
 The Sorting method may differ depending on
the server function.
 The search and skip operation may differ
depending on the server function.
 During video playback, play time is not
displayed.
Help
Server : PC Share Manager
Set Device Policy
My Computer
Shared Folder
C: Document and settings Admin
IP
Device
Name
Size
Kind
SAMSUNG Blu-ray
FolderXXX.XXX.X.XX
1
FileDisc Player
Folder 2
- The Background Music and Background
Music Setting functions.
- Sorting files by preference in the Photo,
Music, and Movie folders.
- The Change Group function.
- The Safe Remove function.
Folder
State
Folder 1
Deny
Delete Selected Item
Full Path
Set State
C: Document and settin..
Accept
 To use the AllShare function, please place both
this product and the PC in the same subnet.
File
Folder 3
File
OK
Cancel
4. Click the Set Change State icon ( ) and
move to the home menu on the product.
5. To select a device, use the RED (A) or
BLUE (D) button to select a file to play.
(To play back Video, Music, or Photos files,
see pages 47~55.)
You Tube
internet radio service
Please activate [email protected]
to enjoy a variety of Internet Services.
No Disc
a Change Device
d View Devices
" Enter
✎ NOTE
 Depending on the performance of the external
modem or router, HD video may not play
properly.
 If your system uses a firewall, the product may
not locate your PC on the TV screen.
64
English
HT-C6900W_XAA_0914.indd 64
2010-09-14
2:28:54
06
Other information
Other information
Troubleshooting
Refer to the chart below when this product does not function properly. If the problem you are
experiencing is not listed below or if the instructions below do not help, turn off the product,
disconnect the power cord, and contact Samsung Electronics at 1-800-SAMSUNG.
Symptom
Check/Remedy
I cannot eject the disc.
• Is the power cord plugged securely into the outlet?
• Turn off the power and then turn it back on.
The iPod fails to connect.
• Check the condition of the iPod connector and Dock.
• Keep the iPod S/W version up to date.
Playback does not start.
• Check the region number of the BD/DVD.
BD/DVD discs purchased from abroad may not be playable.
• CD-ROMs and DVD-ROMs cannot be played on this Product.
• Make sure that the rating level is correct.
Playback does not start
immediately when the
Play/Pause button is pressed.
• Are you using a deformed disc or a disc with scratches on the surface?
• Wipe the disc clean.
Sound is not produced.
• No sound is heard during fast playback, slow playback, and step motion playback.
• Are the speakers connected properly? Is the speaker setup correctly customized?
• Is the disc severely damaged?
Sound can be heard only from a
few speakers and not all 6.
• On certain BD/DVD discs, sound is output from the front speakers only.
• Check if the speakers are connected properly.
• Adjust the volume.
• When listening to a CD, radio or TV, sound is output to the front speakers only.
Select "PRO LOGIC II" by pressing
PL II (Dolby Pro Logic II) on the remote
control to use all six speakers.
Dolby Digital 5.1 CH Surround
Sound is not produced.
• Is there "Dolby Digital 5.1 CH" mark on the disc? Dolby Digital 5.1 CH Surround Sound is
produced only if the disc is recorded with 5.1 channel sound.
• Is the audio language correctly set to Dolby Digital 5.1-CH in the information
display?
The remote control does not work.
• Is the remote control being operated within its operational angle and distance ranges?
• Are the batteries drained?
• Have you selected the mode (TV/BD) functions of the remote control (TV or BD) correctly?
• Disc is rotating but no
picture is produced.
• Is the TV power on?
• Are the video cables connected properly?
• Is the disc dirty or damaged?
• A poorly manufactured disc may not be playable.
• Picture quality is poor and
picture is shaking.
Audio language and subtitles do
not work.
• Audio language and subtitles will not work if the disc does not contain them.
Menu screen does not appear
even when the menu function is
selected.
• Are you using a disc that does not contain menus?
English
HT-C6900W_XAA_0914.indd 65
65
2010-09-14
2:28:57
Other information
Symptom
Check/Remedy
Aspect ratio cannot be changed.
• You can play 16:9 BD/DVDs in 16:9 Wide mode, 4:3 Letter Box mode, or 4:3
Pan - Scan mode, but 4:3 BD/DVDs can be seen in 4:3 ratio only. Refer to the
Blu-ray Disc jacket and then select the appropriate function.
• The product is not working.
(Example: The power goes out
or a strange noise is heard.)
• Turn off the power, and press and hold the STOP ( ) button on the product
for longer than 5 seconds.
• The Product is not working
normally.
The rating level password has
been forgotten.
- Using the RESET function will erase all stored settings.
Do not use this unless necessary.
• With no disc in the product, press and hold the product's STOP ( ) button for
longer than 5 seconds. INIT appears on the display and all settings will return
to the default values.
And then press the POWER button.
- Using the RESET function will erase all stored settings.
Do not use this unless necessary.
Can't receive radio broadcasts.
• Is the antenna connected properly?
• If the antenna's input signal is weak, install an external FM antenna in an area
with good reception.
While listening to TV audio
through the Product, no sound is
heard.
• If the OPEN/CLOSE ( ) button is pressed while listening to TV audio using the
D.IN or AUX functions, the BD/DVD functions are turned on and the TV audio is
muted.
"Not Available" appears on
screen.
• The features or action cannot be completed at this time because:
1. The BD/DVD’s software restricts it.
2. The BD/DVD’s software doesn’t support the feature (e.g., angles)
3. The feature is not available at the moment.
4. You’ve requested a title or chapter number or search time that is out of range.
No HDMI output.
• Check the connection between the TV and the HDMI jack of the Product.
• Check if your TV supports 480p/720p/1080i/1080p HDMI input resolution.
Abnormal HDMI output screen.
• If random noise appears on the screen, it means that TV does not support
HDCP (High-bandwidth Digital Content Protection).
If the HDMI output is set to a resolution
your TV cannot support (for example,
1080p), you may not see a picture on
your TV.
• Press the STOP () button (on front panel) for more than 5 seconds with no
disc inside. All settings will revert to the factory settings.
66
• When the factory default settings are restored, all the user data stored in the
BD data will be deleted.
English
HT-C6900W_XAA_0914.indd 66
2010-09-14
2:28:57
06
Other information
Symptom
Check/Remedy
PC Share Manager function
I can see folders shared through the
PC Share Manager, but I cannot see
the files.
• Since it shows only files corresponding to the Image, Music, and Movie
categories, files that do not correspond to these categories may not be
displayed.
AllShare function
Video is played intermittently.
• Check if the network is stable.
• Check if the network cable is properly connected and if the network is not
overloaded.
• Wireless connection between the server and the product is unstable.
Check the connection.
AllShare connection between TV
and PC is unstable.
• IP address under the same subnetwork should be unique, otherwise IP
collision can results in such a phenomenon.
• Check if you have a firewall enabled.
If so, disable the firewall function.
BD-LIVE
I cannot connect to the BD-LIVE
server.
• Check whether the network connection is successful or not by using Network
Test menu. (See page 44)
• Check whether the USB memory device is connected with product or not.
• The memory device must have at least 1GB of free space to accommodate the
BD-LIVE service.
You can check the available size in BD Data Management. (See page 39)
• Please check whether the BD-LIVE Internet Connection menu is set to Allow
(All).
• If all above fails, contact the contents provider or update the latest firmware.
When using the BD-LIVE service,
an error occurs.
• The memory device must have at least 1GB of free space to accommodate the
BD-LIVE service.
You can check the available size in BD Data Management. (See page 39)
✎ NOTE
 When the factory default settings are restored, all the user data stored in the BD data will be deleted.
English
HT-C6900W_XAA_0914.indd 67
67
2010-09-14
2:28:57
Other information
Index
A
D
Accessories
AllShare
Angle
Anynet+ (HDMI-CEC)
Audio
Audio Language
AV Sync
15
63
51
39
36
50
39
B
Background
BD-Live
BD-LIVE Internet Connection
BD Data Management
BD Wise
Before Starting (Initial settings)
BONUSVIEW
45
63
44
39
33
30
51
Digital Output
Disc menu
Display
DivX(R) Deactivation
DivX(R) Registration
Dolby Pro Logic ll Mode
DSP
Dynamic Range Control
E
EQ Optimizer
Change Password
Clock
Connections
Speaker
Wireless receiver module
TV
HDMI
FM Antenna
Component
Composite
Set-Top Box
OPTICAL
AUX
Network
LAN Cable
Wireless Network
Contact Samsung
45
40
20
20
22
24
24
25
26
26
27
27
27
28
28
29
46
37
F
Front Display
45
G
General
C
P
38
47
32
40
40
55
54
39
45
H
HDMI Audio
HDMI Deep Color
HDMI Format
37
35
35
I
Initial Settings
[email protected]
[email protected] Screen Size
iPod
39
59
39
57
L
Language
Light Effect
44
45
M
Mono/Stereo
Movie Frame (24 Fs)
Musical Room Calibration
MUTE
57
35
37
18
68
41
41
44
45
53
48
45
35
R
Region code
12
Remote Control
18
Remote control sensor
16
Repeat
49, 53
Resolution
33
S
Search
Security
Setting the Menu
Setup
SFE
Skip
SLEEP (timer)
Slow motion
Software Upgrade
Speaker Setting
Step motion
Still Mode
Subtitle Language
Support
System
48
45
31
30
54
48
18
49
46
36
49
35
50
46
39
T
3D
Title menu
Title list
TV Aspect
TV Screen Saver
32
48
48
33
31
U
USB Storage
N
Network Setup
Network Settings
Network Status
Parental Rating
Playlist
Popup menu
Power On/Off Sound
Progressive Mode
56
Z
Zoom
55
English
HT-C6900W_XAA_0914.indd 68
2010-09-14
2:28:57
06
Other information
Specifications
General
FM Tuner
Power Requirements
AC 120V, 60Hz
Power Consumption
75 W
Weight
8.3 Ibs
Dimensions
16.9 (W) x 2.4 (H) x 13.0 (D) inches
Operating Temperature Range
+41°F to +95°F
Operating Humidity Range
10 % to 75 %
Signal/noise ratio
70 dB
Usable sensitivity
10 dB
Total harmonic distortion
0.5 %
BD (Blu-ray Disc)
DVD (Digital Versatile Disc)
Disc
CD : 5 inches (COMPACT DISC)
CD : 3 1/2 inches (COMPACT DISC)
Composite Video
Reading Speed : 4.917m/sec
Reading Speed : 3.49 ~ 4.06 m/sec.
Approx. Play Time (Single Sided, Single Layer Disc) : 135 min.
Reading Speed : 4.8 ~ 5.6 m/sec.
Maximum Play Time : 74 min.
Reading Speed : 4.8 ~ 5.6 m/sec.
Maximum Play Time : 20 min.
1 channel : 1.0 Vp-p (75 Ω load)
Blu-ray Disc : 480i
DVD : 480i
Y : 1.0 Vp-p (75 Ω load)
Video Output
Component Video
Pr : 0.70 Vp-p (75 Ω load)
Pb : 0.70 Vp-p (75 Ω load)
Blu-ray Disc : 1080i, 720p, 480p, 480i
Video/Audio
HDMI
2D : 1080p, 1080i, 720p, 480p
3D : 1080p, 720p
Front speaker output
165W x 2 (3Ω)
DVD : 480p, 480i
PCM multichannel audio, Bitstream audio, PCM audio
Amplifier
Center speaker output
170W (3Ω)
Surround speaker output
165W x 2 (3Ω)
Subwoofer speaker output
170W (3Ω)
Frequency response
Analog input
20Hz~20kHz (±3dB)
Digital input
20Hz~44kHz (±3dB)
S/N Ratio
70dB
Channel separation
60dB
Input sensitivity
(AUX)500mV
English
HT-C6900W_XAA_0914.indd 69
69
2010-09-14
2:28:57
Other information
5.1ch speaker system
Speaker system
Speaker
Front
Surround
Center
Subwoofer
Impedance
3Ω
3Ω
3Ω
3Ω
Frequency range
140Hz~20kHz
140Hz~20kHz
140Hz~20kHz
40Hz ~ 160Hz
Output sound pressure level
87dB/W/M
87dB/W/M
87dB/W/M
88dB/W/M
Rated input
165W
165W
170W
170W
Maximum input
330W
330W
340W
340W
Dimensions (W x H x D)
Front : 3.54 x 13.17 x 2.7 inches (Stand base : 4.29 x 3.86 inches)
Surround : 3.54 x 5.57 x 2.7 inches
Center : 14.17 x 2.93 x 2.7 inches
Subwoofer : 6.61 x 13.78 x 11.61 inches
Front : 1.85 Ibs, Surround : 1.28 Ibs
Center : 1.28 Ibs, Subwoofer : 9.92 Ibs
*: Nominal specification
- Samsung Electronics Co., Ltd reserves the right to change the specifications without notice.
- Weight and dimensions are approximate.
- Design and specifications are subject to change without prior notice.
Weights
SWA-5000
70
Power Requirements
AC 120V ~60Hz
Power Consumption
50 W
Weight
Dimensions (W x H x D)
Operating Temperature Range
Operating Humidity Range
Output
2.52 lbs
Frequency range
3 x 9 x 6 inches
+41°F to +95°F
10% ~ 75%
165W x 2 CH
20Hz~20KHz
S/N Ratio
65dB
English
HT-C6900W_XAA_0914.indd 70
2010-09-14
2:28:58
LIMITED WARRANTY TO ORIGINAL PURCHASER
This SAMSUNG brand product, as supplied and distributed by Samsung Electronics America, Inc. (SAMSUNG) and delivered
new, in the originalcarton to the original consumer purchaser, is warranted by SAMSUNG against manufacturing defects in
materials and workmanship for a limited warranty period of:
One (1) Year Parts and Labor*
(*90 Days Parts and Labor for Commercial Use)
This limited warranty begins on the original date of purchase, and is valid only on products purchased and used in the United
States. To receive warranty service, the purchaser must contact SAMSUNG for problem determination and service procedures.
Warranty service can only be performed by a SAMSUNG authorized service center. The original dated bill of sale must be
presented upon request as proof of purchase to SAMSUNG or SAMSUNG's authorized service center. Transportation of the
product to and from the service center is the responsibility of the purchaser.
SAMSUNG will repair or replace this product, at our option and at no charge as stipulated herein, with new or reconditioned
parts or products if found to be defective during the limited warranty period specified above. All replaced parts and products
become the property of SAMSUNG and must be returned to SAMSUNG. Replacement parts and products assume the
remaining original warranty, or ninety (90) days, whichever is longer.
SAMSUNG’s obligations with respect to software products distributed by SAMSUNG under the SAMSUNG brand name are set forth in
the applicable end user license agreement. Non-SAMSUNG hardware and software products, if provided, are on an “AS IS” basis.
Non-SAMSUNG manufacturers, suppliers, publishers, and service providers may provide their own warranties.
This limited warranty covers manufacturing defects in materials and workmanship encountered in normal, and except to
the extent otherwise expressly provided for in this statement, noncommercial use of this product, and shall not apply to the
following, including, but not limited to: damage which occurs in shipment; delivery and installation; applications and uses for
which this product was not intended; altered product or serial numbers; cosmetic damage or exterior finish; accidents, abuse,
neglect, fire, water, lightning or other acts of nature; use of products, equipment, systems, utilities, services, parts, supplies,
accessories, applications, installations, repairs, external wiring or connectors not supplied and authorized by SAMSUNG, or
which damage this product or result in service problems; incorrect electrical line voltage, fluctuations and surges; customer
adjustments and failure to follow operating instructions, cleaning, maintenance and environmental instructions that are covered
and prescribed in the instruction book; product removal or reinstallation; reception problems and distortion related to noise,
echo, interference or other signal transmission and delivery problems. SAMSUNG does not warrant uninterrupted or error-free
operation of the product.
THERE ARE NO EXPRESS WARRANTIES OTHER THAN THOSE LISTED AND DESCRIBED ABOVE, AND NO WARRANTIES
WHETHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTIES OF MERCHANTABILITY
OR FITNESS FOR A PARTICULAR PURPOSE, SHALL APPLY AFTER THE EXPRESS WARRANTY PERIODS STATED
ABOVE, AND NO OTHER EXPRESS WARRANTY OR GUARANTY GIVEN BY ANY PERSON, FIRM OR CORPORATION WITH
RESPECT TO THIS PRODUCT SHALL BE BINDING ON SAMSUNG. SAMSUNG SHALL NOT BE LIABLE FOR LOSS OF
REVENUE OR PROFITS, FAILURE TO REALIZE SAVINGS OR OTHER BENEFITS, OR ANY OTHER SPECIAL, INCIDENTAL
OR CONSEQUENTIAL DAMAGES CAUSED BY THE USE, MISUSE OR INABILITY TO USE THIS PRODUCT, REGARDLESS
OF THE LEGAL THEORY ON WHICH THE CLAIM IS BASED, AND EVEN IF SAMSUNG HAS BEEN ADVISED OF THE
POSSIBILITY OF SUCH DAMAGES. NOR SHALL RECOVERY OF ANY KIND AGAINST SAMSUNG BE GREATER IN AMOUNT
THAN THE PURCHASE PRICE OF THE PRODUCT SOLD BY SAMSUNG AND CAUSING THE ALLEGED DAMAGE. WITHOUT
LIMITING THE FOREGOING, PURCHASER ASSUMES ALL RISK AND LIABILITY FOR LOSS, DAMAGE OR INJURY TO
PURCHASER AND PURCHASER’S PROPERTY AND TO OTHERS AND THEIR PROPERTY ARISING OUT OF THE USE,
MISUSE OR INABILITY TO USE THIS PRODUCT SOLD BY SAMSUNG NOT CAUSED DIRECTLY BY THE NEGLIGENCE OF
SAMSUNG. THIS LIMITED WARRANTY SHALL NOT EXTEND TO ANYONE OTHER THAN THE ORIGINAL PURCHASER OF
THIS PRODUCT, IS NONTRANSFERABLE AND STATES YOUR EXCLUSIVE REMEDY.
Some states do not allow limitations on how long an implied warranty lasts, or the exclusion or limitation of incidental or
consequential damages, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal
rights, and you may also have other rights which vary from state to state.
To obtain warranty service, please contact SAMSUNG customer care center.
HT-C6900W_XAA_0914.indd 71
2010-09-14
2:28:58
Contact SAMSUNG WORLD WIDE
If you have any questions or comments relating to Samsung products, please contact the SAMSUNG
customer care center.
Area
Contact Centre 
` North America
Canada
1-800-SAMSUNG (726-7864)
Mexico
01-800-SAMSUNG (726-7864)
U.S.A
1-800-SAMSUNG (726-7864)
` Latin America
Argentine
0800-333-3733
0800-124-421
Brazil
4004-0000
Chile
800-SAMSUNG (726-7864)
Nicaragua
00-1800-5077267
Honduras
800-7919267
Costa Rica
0-800-507-7267
Ecuador
1-800-10-7267
El Salvador
800-6225
Guatemala
1-800-299-0013
Jamaica
1-800-234-7267
Panama
800-7267
Puerto Rico
1-800-682-3180
Rep. Dominica 1-800-751-2676
Trinidad &
1-800-SAMSUNG (726-7864)
Tobago
Venezuela
0-800-100-5303
Colombia
01-8000112112
` Europe
0810 - SAMSUNG
Austria
(7267864, € 0.07/min)
Belgium
02-201-24-18
Czech
800 - SAMSUNG
(800-726786)
70 70 19 70
030 - 6227 515
01 48 63 00 00
01805 - SAMSUNG
(726-7864 € 0,14/Min)
06-80-SAMSUNG (726-7864)
800-SAMSUNG (726-7864)
261 03 710
0900-SAMSUNG
(0900-7267864) (€ 0,10/Min)
815-56 480
0 801 1SAMSUNG (172678)
022-607-93-33
80820-SAMSUNG (726-7864)
0800-SAMSUNG (726-7864)
902 - 1 - SAMSUNG
(902 172 678)
0771 726 7864 (SAMSUNG)
0845 SAMSUNG (7267864)
0818 717100
Denmark
Finland
France
Germany
Hungary
Italia
Luxemburg
Netherlands
Norway
Poland
Portugal
Slovakia
Spain
Sweden
U.K
Eire
HT-C6900W_XAA_0914.indd 72
Web Site
www.samsung.com
www.samsung.com
www.samsung.com
www.samsung.com
www.samsung.com
www.samsung.com
www.samsung.com
www.samsung.com
www.samsung.com
www.samsung.com
www.samsung.com
www.samsung.com
www.samsung.com
www.samsung.com
www.samsung.com
www.samsung.com
www.samsung.com
www.samsung.com
www.samsung.com
www.samsung.com
www.samsung.com/
be (Dutch)
www.samsung.com/
be_fr (French)
www.samsung.com
www.samsung.com
www.samsung.com
www.samsung.com
www.samsung.com
www.samsung.com
www.samsung.com
www.samsung.com
www.samsung.com
www.samsung.com
www.samsung.com
www.samsung.com
www.samsung.com
www.samsung.com
www.samsung.com
www.samsung.com
www.samsung.com
Area
Switzerland
Contact Centre 
Web Site
0848 - SAMSUNG (7267864, www.samsung.com/ch
www.samsung.com/
CHF 0.08/min)
ch_fr/ (French)
8-800-77777
www.samsung.com
8000-7267
www.samsung.com
800-7267
www.samsung.com
Lithuania
Latvia
Estonia
` CIS
Russia
Georgia
Armenia
Azerbaijan
Kazakhstan
Uzbekistan
Kyrgyzstan
Tadjikistan
8-800-555-55-55
8-800-555-555
0-800-05-555
088-55-55-555
8-10-800-500-55-500
8-10-800-500-55-500
00-800-500-55-500
8-10-800-500-55-500
Ukraine
0-800-502-000
Belarus
Moldova
` Asia Pacific
Australia
New Zealand
810-800-500-55-500
00-800-500-55-500
www.samsung.com
www.samsung.com
www.samsung.com
www.samsung.com
www.samsung.ua
www.samsung.com/
ua_ru
1300 362 603
www.samsung.com
0800 SAMSUNG (0800 726 786) www.samsung.com
400-810-5858
China
www.samsung.com
010-6475 1880
www.samsung.com/
hk
Hong Kong
(852) 3698-4698
www.samsung.com/
hk_en/
3030 8282
1800 110011
India
www.samsung.com
1800 3000 8282
1800 266 8282
0800-112-8888
Indonesia
www.samsung.com
021-5699-7777
Japan
0120-327-527
www.samsung.com
Malaysia
1800-88-9999
www.samsung.com
1-800-10-SAMSUNG
(726-7864)
1-800-3-SAMSUNG
Philippines
(726-7864)
www.samsung.com
1-800-8-SAMSUNG
(726-7864)
02-5805777
Singapore
1800-SAMSUNG (726-7864) www.samsung.com
1800-29-3232
Thailand
www.samsung.com
02-689-3232
Taiwan
0800-329-999
www.samsung.com
Vietnam
1 800 588 889
www.samsung.com
` Middle East & Africa
Turkey
444 77 11
www.samsung.com
South Africa
0860-SAMSUNG (726-7864) www.samsung.com
U.A.E
800-SAMSUNG (726-7864)
www.samsung.com
Bahrain
8000-4726
Jordan
800-22273
2010-09-14
2:28:58
QUESTIONS OR COMMENTS?
COUNTRY
CALL
OR VISIT US ONLINE AT
WRITE
IN THE US
1-800-SAMSUNG
(7267864)
www.samsung.com/us
Samsung Electronics America, Inc.
85 Challenger Road Ridgefield Park,
NJ 07660-2112
Code No. AH68-02279R
HT-C6900W_XAA_0914.indd 73
2010-09-14
2:28:58
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
