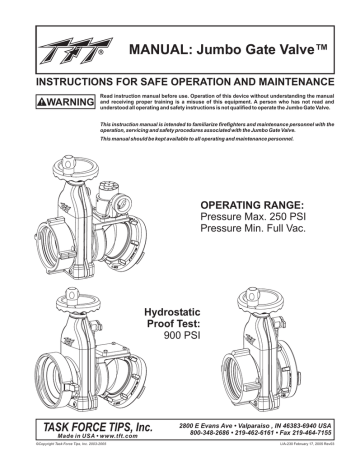

MANUAL: Jumbo Gate Valve™
INSTRUCTIONS FOR SAFE OPERATION AND MAINTENANCE
WARNING
Read instruction manual before use. Operation of this device without understanding the manual
and receiving proper training is a misuse of this equipment. A person who has not read and
understood all operating and safety instructions is not qualified to operate the Jumbo Gate Valve.
This instruction manual is intended to familiarize firefighters and maintenance personnel with the
operation, servicing and safety procedures associated with the Jumbo Gate Valve.
This manual should be kept available to all operating and maintenance personnel.
OPERATING RANGE:
Pressure Max. 250 PSI
Pressure Min. Full Vac.
Hydrostatic
Proof Test:
900 PSI
TASK FORCE TIPS, Inc.
Made in USA • www.tft.com
©Copyright Task Force Tips, Inc. 2003-2005
2800 E Evans Ave • Valparaiso , IN 46383-6940 USA
800-348-2686 • 219-462-6161 • Fax 219-464-7155
LIA-230 February 17, 2005 Rev03
TABLE OF CONTENTS
1.0 MEANING OF SIGNAL WORDS
1.1 SAFETY
2.0 GENERAL INFORMATION
2.1 CORROSION
2.2 USE WITH SALT WATER
3.0 INSTALLATION
4.0 USE
4.1 VALVE OPEN AND CLOSE
5.0 AIR VENT
5.1 CHANGING SIDES FOR VENTED AIR
6.0 PRESSURE RELIEF VALVE
6.1 RELIEF VALVE SETTING PRESSURE
6.2 RELIEF VALVE FLOW vs. PRESSURE CURVE
7.0 DRAWINGS AND PART LISTS
8.0 MAINTENANCE
9.0 WARRANTY
©Copyright Task Force Tips, Inc. 2003-2004
2
LIA-230 February 17, 2005 Rev03
1.0 MEANING OF SIGNAL WORDS
A safety related message is identified by a safety alert symbol and a signal word to indicate the level of risk involved with a particular
hazard. Per ANSI standard Z535.4-1998 the definitions of the three signal words are as follows:
DANGER
DANGER indicates an imminently hazardous situation which, if not avoided, will result in death or serious
injury.
WARNING
WARNING indicates a potentially hazardous situation which, if not avoided, could result in death or serious
injury.
CAUTION
CAUTION indicates a potentially hazardous situation which, if not avoided, may result in minor or
moderate injury.
1.1 SAFETY
WARNING
This equipment is intended for use by trained personnel for firefighting. Its use for other purposes
may involve hazards not addressed by this manual. Seek appropriate guidance and training to
reduce risk of injury.
WARNING
Burst hoses and fittings can result in injury or death. Maximum operating pressure of TFT's Jumbo
Gate Valve is 250 psi (17 bar). Do not exceed 250 PSI on either side of valve.
Per NFPA 1962 3 ½ to 5 inch (90-127 mm) hose marked SUPPLY HOSE shall not exceed 185 PSI (13 bar).
Per NFPA 1962 6 inch (152 mm) hose marked SUPPLY HOSE shall not exceed 135 psi (9 bar).
2.0 GENERAL INFORMATION
The Jumbo Gate Valve is intended for use on the intake manifold of a fire engine, fire hydrant, or in a hose line. When used on a fire
engine, the valve is kept closed while the water supply from a hydrant or another pumper to the engine is being established. This
prevents the pump from sucking air through the intake manifold and losing its prime. Once the supply hose is filled and under pressure,
and the air has been vented from the hose, the valve may be opened to connect the pump to the water supply.
Open
Closed
Open
Closed
Open
Closed
Serial Number
Handwheel
Handwheel
Serial
Number
Pressure
Relief Valve
Serial Number
Air Vent
Air Vent
Side A
Coupling
Side B
Coupling
Jumbo Gate Valve w/Elbow
Side A
Coupling
Side B
Coupling
Jumbo Gate Valve w/Elbow
and Pressure Relief Valve
Side A
Coupling
Side B
Coupling
Jumbo Gate Valve
Note: If the pressure relief valve is mounted on top of the elbow, the air vent will be mounted on the side of the elbow.
2.1 CORROSION
The aluminum castings are plastic impregnated, hardcoat anodized, and TFT powdercoat finished inside and out for maximum
corrosion protection. Unique stainless steel wedge gate with polymer seats results in low wear and bi-directional sealing. Hose
couplings are attached using polymer bearing rings which provides electrical isolation to help prevent galvanic corrosion. The effects of
corrosion can be minimized by good maintenance practices. See Section 7.0 for maintenance.
2.2 USE WITH SALT WATER
Use with salt water is permissible provided valve is thoroughly cleaned with fresh water after each use. The service life of the valve may
be shortened due to the effects of corrosion and is not covered under warranty.
©Copyright Task Force Tips, Inc. 2003-2004
3
LIA-230 February 17, 2005 Rev03
3.0 INSTALLATION
Make connections to fire hose or fittings on each side of valve. Valve seals in both directions. When the valve is in the fully shut off
position air is bleed from only one side of valve. The valve is factory assembled to bleed air from the same side as the air bleed
knob is on. See section 5.1 for how to change which side air is vented from.
WARNING
Kinks in supply hose may reduce water flow and cause injury or death to persons dependant on
water flow. When this valve is used on a hydrant or fire truck it is recommended that it be used with
an elbow to minimize risk of hoseline kinks.
CAUTION
Valve must be properly connected. Mismatched or damaged connectors may cause leaking or
uncoupling under pressure and could cause injury.
CAUTION
Male fire hose threads are sharp and can cause injury. Be careful when around male hose threads.
4.0 USE
4.1 VALVE OPEN AND CLOSE
To open the valve turn the handwheel in a counter-clockwise direction until the handwheel cannot be turned. To close, turn the
handwheel the opposite way until it cannot be turned.
5.0 AIR VENT
This valve is equipped with an Air Vent which will allow the air to escape from the valve when the hose is charged. The Air Vent is opened
by turning the knob counter-clockwise and closed by turning it clockwise.
The vent is tapped 1/4 NPT. A barb fitting and plastic tube may be used to run the vent behind the pump panel.
WARNING
Loss of prime can interrupt water flow and cause injury or death. Always bleed out air with air bleed
valve to prevent possible loss of prime. Valve can be set up to bleed air from either of its two sides.
When installing valve, be aware of which side a particular valve is set up to bleed from.
5.1 CHANGING SIDES FOR VENTED AIR (JUMBO GATE VALVE ONLY)
Va l v e i s f a c t o r y
assembled to vent air
from this side.
For best sealing results against a pressurized
source, place pipe plug towards water supply.
SIDE B
©Copyright Task Force Tips, Inc. 2003-2004
SIDE A
4
Pipe Plug factory installed on this side. If
it is desired to vent air from this side then
remove the pipe plug and reinstall in the
threaded hole on the other side.
LIA-230 February 17, 2005 Rev03
6.0 PRESSURE RELIEF VALVE
CAUTION
Loss of prime can interrupt water flow and cause injury or death. Always bleed out air with air valve
to prevent possible loss of prime.
If there is a pressure relief valve on the top side of the elbow, it may be set to any pressure between 50 and 200 p.s.i.. Its function is to
protect the pump and the supply hose from excess pressure. The relief valve may be mounted with its opening facing the front, back,
right or left. A piece of hose or tubing may be mounted on the round spout to direct the water coming out of the relief valve away from the
pump panel. To change the orientation of the relief valve, remove the four 7/16 bolts on the corners of the relief valve flange, orient the
valve the way you want it, and replace the bolts. Use a drop of thread locking compound on the threads of the bolt to prevent them from
coming loose.
6.1 RELIEF VALVE SETTING PRESSURE
To set the relief valve pressure turn the adjusting screw on the relief valve housing until the surface of the screw is even with the desired
pressure. Do not cap or plug discharge opening.
PRESSURE RELIEF VALVE PERFORMANCE
6.2 RELIEF VALVE FLOW vs. PRESSURE CURVE
100
300
275
250
225
200
175
150
125
100
75
50
25
0
200
300
400
500
600
700 FLOW (LPM)
20
15
200 PSI SETTING
10
125 PSI SETTING
5
PRESSURE (BAR)
PRESSURE (PSI)
0
Adjusting
Screw
Relief Valve
Discharge Opening
50 PSI SETTING
0
25
50
©Copyright Task Force Tips, Inc. 2003-2004
75
100
125
150
5
175
0
200 FLOW (GPM)
LIA-230 February 17, 2005 Rev03
7.0 DRAWINGS AND PARTS LISTS
16
19
31
38
30
33
36
37
35
39
20
17
34
32
22
11
23
12
40
24
25
26
27
28
9
10
9
7
8
5
10
8
6
29
4
3
2
1
©Copyright Task Force Tips, Inc. 2003-2004
6
LIA-230 February 17, 2005 Rev03
7.0 DRAWINGS AND PARTS LISTS
Table 1: Jumbo Gate Valve Parts List
#
1
2
3
4
5
6
7
8
9
10
11
12
16
17
19
20
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
©Copyright Task Force Tips, Inc. 2003-2004
Part Description
BOTTOM COVER
O-RING-247
BLADE
1/8 NPT PLUG - HEX SOCKET
5/32 X 1-3/4 HD SPIROL PIN
THREADED BLOCK
GATE BODY
3/8-16 X 1 BUTTON HEAD BOLT
SEAT
SEAL
BARB FITTING
NAME LABEL - GATE VALVE
KNOB - SOFT TOUCH
WASHER .812"OD .406"ID
CRANK BUSHING
1/4 X 1-3/8 HDP SPIROL PN
3/8-16 X 1-1/2 BUTTON HEAD
5/16-18 X 3/4 SOCKET HEAD
CRANK RETAINER
O-RING-221
O-RING-206
BUSHING
BLADE WASHER
ACME SCREW
HANDWHEEL
NAME LABEL: GATE VALVE
DRAIN HOUSING
O-RING-115
DRAIN SLEEVE
DRAIN LEVER
O-RING-110
DOG POINT
3/4" PIPE PLUG
FOLLOWER
MODEL NUMBER LABEL
7
Part #
A5510
VO-247
A5540
VFSP1M-SS
VP156X1.75HD
A5542
A5505
VT37-16BHX1.0
A5545
A5550
XX329
A1302
A1512
VW812X406-65
A1513
VP250X1.375H
VT37-16BH1.5
VT31-18SH750
A5515
VO-221
VO-206
A5525
A5530
A5520
X281
A1307
A1543
VO-115
A1541
A1542
VO-110
H515
XG410
U251
A1303
Qty
1
1
1
1
2
1
1
4
2
2
1
1
1
1
1
1
1
2
1
1
1
1
1
1
1
1
1
2
1
1
1
1
1
1
1
LIA-230 February 17, 2005 Rev03
7.0 DRAWINGS AND PARTS LISTS
6
6
7
13
8
1
2
9
1
2
3
4
5
5
10
PSM4.25
1
12
2
9
5
PSM5.25
11
PSM7.0-NFS
Table 2: Jumbo Gate Valve With Elbow/prv
#
1
2
3
4
5
6
7
8
9
10
11
12
13
DESCRIPTION
PLASTIC STRIP 5.25"
CUP SEAL 5.25 X 4.75 X 1/4
DRAIN VALVE SUBASSEMBLY
ELBOW W/PRV PSF5.25 X PSM5.25
LABEL; PORT COVER
7/16-14 X 1 HEX HEAD BOLT
PRESSURE RELIEF VALVE SUBASSEMBLY
O-RING-236
BALL 7/16" STAINLESS (FOR LOCKED OUT ELBOWS)
MATE PSM4.25 X PSF5.25
MATE PSF5.25 X PSM7.0-NFS
1/2 BARB X 1/4 MNPT NIPPLE
LDH BLANK CAP
QTY
1
1
1
1
1
4
1
1
1
1
1
1
1
PART#
A1291*
A1296*
A1621
A4040UU
A1298*
VT43-14HX1.0
A1640
VO-236
VB.437**
A4730***
A4745****
XX329
X631
*
If either item 10 or 11 is used, this quantity will be 2.
**
If neither item 10 or 11 is used, this quantity will be 0;
If the B side is 5.0" or 6.0" female swivel handle coupling or 6.0" female swivel rocker coupling, this quantity will be 1;
If the B side is 4.0" Storz rigid, this quantity will be 2.
***
This mate is used to connect 4.0" Storz coupling on B side.
**** This mate is used to connect 5.0" or 6.0" female swivel handle coupling or 6.0" female swivel rocker coupling on B side.
©Copyright Task Force Tips, Inc. 2003-2004
8
LIA-230 February 17, 2005 Rev03
7.0 DRAWINGS AND PARTS LISTS
1
2
5
7 8
6
3
4
Table 3: Storz Coupling Parts List
#
1
2
3
4
5
6
7
8
Part Description
PLASTIC STRIP 4.25” (FOR 4 INCH STORZ)
PLASTIC STRIP 5.25”
CUP SEAL 4.25 X 3.75 X ¼ (FOR 4 INCH STORZ)
CUP SEAL 5.25 X 4.75 X ¼
BALL 7/16” STAINLESS (FOR LOCKED OUT COUPLINGS)
PORT PLUG
LOCKING LEVER
SPRING TORSION
4” STORZ FITTING (USES A4730 ADAPTER ON NON ELBOWED GATE VALVES)
5” STORZ FITTING
6” STORZ FITTING
4” STORZ GASKET PRESSURE ONLY
4” STORZ GASKET PRESSURE/VACUUM
5” STORZ GASKET PRESSURE ONLY
5” STORZ GASKET PRESSURE/VACUUM
6" STORZ GASKET PRESSURE ONLY
6” STORZ GASKET PRESSURE/VACUUM
1
3
2
4
Qty
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
Part #
A1292
A1291
A1297
A1296
VB.437
A1299
A4171
A4230
A4124
A4125
A4126
A4215
A4216
A4220
A4221
A4225
A4226
5
Table 4: Male Thread Spout Parts List
#
1
2
3
4
5
Part Description
PLASTIC STRIP 5.25”
CUP SEAL 5.25 X 4.75 X ¼
BALL 7/16” STAINLESS
LABEL; PORT COVER
4.0" NH MALE SPOUT
4.5" NH MALE SPOUT
5.0" NH MALE SPOUT
6.0" NH MALE SPOUT
©Copyright Task Force Tips, Inc. 2003-2004
Qty
1
1
1
1
1
1
1
1
9
Part #
A1291
A1296
VB.437
A1298
A4620N
A4625N
A4630N
A4635N
LIA-230 February 17, 2005 Rev03
7.0 DRAWINGS AND PARTS LISTS
5
6
1
2
3
3
4
Table 5: Female Thread Coupling Parts List
#
1
2
3
4
5
6
Part Description
PLASTIC STRIP 5.25"
PLASTIC STRIP 7.00" (FOR 6.0” FEMALE THREADED COUPLINGS)
CUP SEAL 5.25 (FOR 4.0” THRU 5.0” COUPLINGS ONLY)
PORT PLUG
4.0” NH FEMALE ROCKERLUG COUPLING
4.5" NH FEMALE ROCKERLUG COUPLING
5.0" NH FEMALE ROCKERLUG COUPLING
6.0" NH FEMALE (USES A4745 ADAPTER ON NON ELBOWED GATE VALVES)
4.0” NH FEMALE HANDLE COUPLING
4.5" NH FEMALE HANDLE COUPLING
5.0" NH FEMALE HANDLE COUPLING
6.0" NH FEMALE (USES A4745 ADAPTER ON NON ELBOWED GATE VALVES)
4.0" HOSE COUPLING GASKET
4.5" HOSE COUPLING GASKET
5.0" HOSE COUPLING GASKET
6.0" HOSE COUPLING GASKET
©Copyright Task Force Tips, Inc. 2003-2004
10
Qty
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
Part #
A1291
A1290
A1296
A1299
A4660N
A4665N
A4670N
A1266NX
A4560N
A4565N
A1261NT
A1266NX
V3198
V3210
V3220
V3240
LIA-230 February 17, 2005 Rev03
7.0 DRAWINGS AND PARTS LISTS
1
3
4
5
6
7
8
9
11
12
13
14
15
Table 6: Relief Valve Parts List
Index
1
3
4
5
6
7
8
9
11
12
13
14
15
©Copyright Task Force Tips, Inc. 2003-2004
Description
1/2-13 X 1.0 BUTTON HEAD CAP SCREW
DEBRIS WASHER
HOUSING W/OUT THDS
5/16-18 X 3/8 SOCKET SET SCREW CUP POINT
VALVE SEAT
PISTON -HARDCOAT
O-RING-232 2-3/4 ID 1/8 C/S
QUAD RING 422 1.5 ID X 1/8 C/S
SPRING SEAT
RELIEF SPRING
SMALLEY RING
ADJUSTING SCREW
SPRING HOUSING
11
QTY
1
1
1
1
1
1
1
2
1
1
1
1
1
Part #
VT50-13BH1.0
A1169
A1150
VT31-18SS375
A1168
A1160
VO-232
VOQ-4222
A1166
A1170
V4210
A1167
A1164
LIA-230 February 17, 2005 Rev03
8.0 MAINTENANCE
The valve should be disconnected, cleaned and visually inspected inside and out periodically.
Moving parts such as hand wheels, gate/seat and couplings should be checked for smooth and
free operation and greased as needed. A silicone based grease such as Dow Corning 112, or
equivalent, will exclude moisture and retard the effects of corrosion. If valve becomes difficult
to move under pressure, grease all four internal Blade Ramps in Gate Valve (see drawing for
ramp locations).
Grease all four (4)
internal blade ramps.
Any scrapes that expose bare aluminum should be touched up with enamel paint such as RustOleum to inhibit corrosion. Replace any missing or damaged parts before returning the valve to
service.
CAUTION
CAUTION
Dissimilar metals coupled together can cause galvanic corrosion that can result in the inability to
unscrew the threads of complete loss of thread engagement over time. Per NFPA 1962 (1998
edition), if dissimilar metals are left coupled together an anti-corrosive lubricant should be applied
to the threads. Also the coupling should be disconnected and inspected at least quarterly.
Any alterations to the Jumbo Gate Valve and its markings could diminish safety and constitutes a
misuse of this product.
9.0 WARRANTY
Task Force Tips, Inc., 2800 East Evans Avenue, Valparaiso, Indiana 46383 ("TFT") warrants to the original purchaser of its Jumbo Gate
Valve ("equipment"), and to anyone to whom it is transferred, that the equipment shall be free from defects in material and workmanship
during the five (5) year period from the date of purchase.
TFT's obligation under this warranty is specifically limited to replacing or repairing the equipment (or its parts) which are shown by
TFT's examination to be in a defective condition attributable to TFT. To qualify for this limited warranty, the claimant must return the
equipment to TFT, at 2800 East Evans Avenue, Valparaiso, Indiana 46383, within a reasonable time after discovery of the defect.
TFT will examine the equipment. If TFT determines that there is a defect attributable to it, TFT will correct the problem within a
reasonable time. If the equipment is covered by this limited warranty, TFT will assume the expenses of repair.
If any defect attributable to TFT under this limited warranty cannot be reasonably cured by repair or replacement, TFT may elect to
refund the purchase price of the equipment, less reasonable depreciation, in complete discharge of its obligations under this limited
warranty. If TFT makes this election, claimant shall return the equipment to TFT free and clear of any liens and encumbrances.
This is a limited warranty. The original purchaser of the equipment, any person to whom it is transferred, and any person who is an
intended or unintended beneficiary of the equipment, shall not be entitled to recover from TFT any consequential or incidental
damages for injury to person and/or property resulting from any defective equipment manufactured or assembled by TFT. It is
agreed and understood that the price stated for the equipment is in part consideration for limiting TFT's liability. Some states do not
allow the exclusion or limitation of incidental or consequential damages, so the above may not apply to you.
TFT shall have no obligation under this limited warranty if the equipment is, or has been, misused or neglected (including failure to
provide reasonable maintenance) or if there have been accidents to the equipment or if it has been repaired or altered by someone else.
THIS IS A LIMITED EXPRESS WARRANTY ONLY. TFT EXPRESSLY DISCLAIMS WITH RESPECT TO THE EQUIPMENT ALL
IMPLIED WARRANTIES OF MERCHANTABILITY AND ALL IMPLIED WARRANTIES OF FITNESS FOR A PARTICULAR
PURPOSE. THERE IS NO WARRANTY OF ANY NATURE MADE BY TFT BEYOND THAT STATED IN THIS DOCUMENT.
This limited warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
TASK FORCE TIPS, Inc.
Made in USA • www.tft.com
©Copyright Task Force Tips, Inc. 2003-2005
2800 E Evans Ave • Valparaiso , IN 46383-6940 USA
800-348-2686 • 219-462-6161 • Fax 219-464-7155
LIA-230 February 17, 2005 Rev03
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
