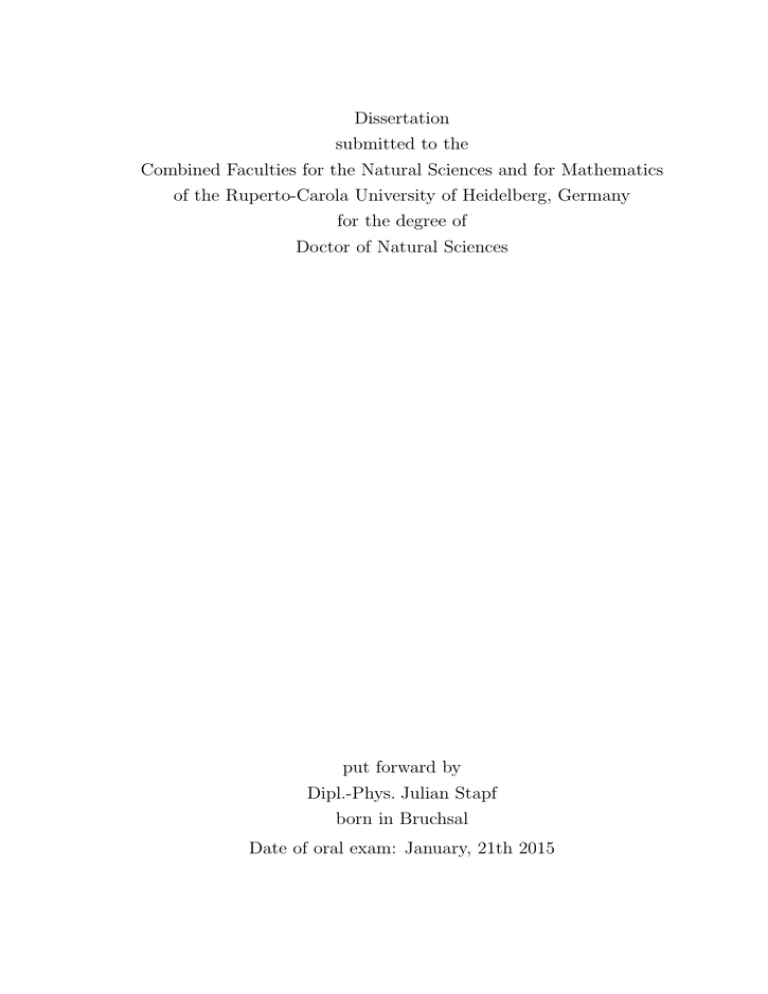

Dissertation
submitted to the
Combined Faculties for the Natural Sciences and for Mathematics
of the Ruperto-Carola University of Heidelberg, Germany
for the degree of
Doctor of Natural Sciences
put forward by
Dipl.-Phys. Julian Stapf
born in Bruchsal
Date of oral exam: January, 21th 2015
Novel learning-based techniques
for dense fluid motion measurements
Referees:
Priv.-Doz. Dr. Christoph S. Garbe
Prof. Dr. Werner Aeschbach-Hertig
Abstract: In this thesis novel learning-based approaches are presented for the estimation of
dense fluid flow velocity fields from particle image sequences. The developed methods apply
prior knowledge in form of typical spatio-temporal motion models. These motion models are
obtained with methods of unsupervised learning using proper orthogonal decomposition (POD).
The POD modes reveal dominant flow structures and contain relevant information of complex
relations between neighboring flow vectors. The first high-energy POD modes obtained from
appropriate training vector fields are used as typical motion models. Meaningful local flow
structures can be expressed in the orthogonal space spanned by the motion models. Additional
information about dominant flow events is gained by the motion models and related parameters.
The proposed approaches are embedded in well-established local parametric and variational
optical flow frameworks but are contrasted with these common techniques by the inclusion of
prior knowledge. Further extensions of the methods use available information, which is generally
discarded in other methods, to obtain robust motion estimations. The methods can easily
be tuned for different flow applications by choice of training data and, thus, are universally
applicable. Beyond their simple implementation, the approaches are very efficient, accurate and
easily adaptable to all types of flow situations. All methods were tested on synthetic and real
particle image sequences and the influence of the relevant parameters was investigated. For
typical use cases of optical flow, such as small image displacements, they were more accurate
compared to all competing methods including particle image velocimetry (PIV) and common
optical flow techniques.
Zusammenfassung: In dieser Arbeit werden neue lernbasierte Methoden zur Bestimmung
dichter Strömungsgeschwindigkeitsfelder aus Tracer-Partikel-Bildsequenzen vorgestellt. Dabei
wird Vorwissen in Form von typischen räumlich-zeitlichen Bewegungsmustern verwendet. Diese
Bewegungsmuster werden durch Methoden des unsupervised learnings mittels Hauptkomponentenzerlegung (POD) bestimmt. Die POD-Moden beschreiben dominante Strömungsstrukturen
und beinhalten Informationen über den komplexen Zusammenhang benachbarter Geschwindigkeitsvektoren. Die ersten, aus geeigneten Trainingsvektorfeldern gelernten, POD-Moden mit
hohem Informationsgehalt bilden die typischen Bewegungsmuster. Sinnvolle Strömungsstrukturen liegen im Lösungsraum, der von den Bewegungsmustern aufgespannt wird. Aus den
Bewegungsmustern kann, zusammen mit entsprechenden Parametern, Zusatzinformation über
vorherrschende Strömungsmuster gewonnen werden. Die vorgeschlagenen Ansätze basieren
auf gängigen optischer Fluss Schätzern, die zusätzlich das Vorwissen aus den gelernten Bewegungsmustern einbeziehen. Um die Ergebnisse robuster zu machen, wird bereits vorhandene
Information verwendet, die von bisherigen Schätzern unberücksichtigt geblieben ist. Durch Wahl
geeigneter Trainingsdaten können die Methoden leicht für verschiedene Anwendungen optimiert
werden und sind dadurch universell einsetzbar. Darüber hinaus sind sie einfach zu implementieren, effizient, genau und anpassungsfähig. Alle Varianten wurden an synthetischen und realen
Sequenzen getestet und der Einfluss der relevanten Parameter wurde untersucht. Für kleine Verschiebungen zwischen einzelnen Bildern erzielten die lernbasierten Methoden verglichen mit anderen getesteten Methoden, wie z. B. particle image velocimetry (PIV) oder bekannten optischer
Fluss Schätzern, die genausten Ergebnisse.
Contents
1 Introduction
1
1.1
Motivation
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1
1.2
Previous work . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2
1.3
Scope of this thesis . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3
1.4
Structure of the thesis . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4
2 Basics
5
2.1
Fluid dynamics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5
2.1.1
Continuity equation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5
2.1.2
Navier-Stokes equation . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6
2.1.3
Turbulent flows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6
Proper orthogonal decomposition . . . . . . . . . . . . . . . . . . . . . . . . . . .
7
2.2.1
Proper orthogonal decomposition in fluid dynamics . . . . . . . . . . . . .
8
2.2.2
Basic principles of proper orthogonal decomposition . . . . . . . . . . . .
9
2.2.3
The singular value decomposition . . . . . . . . . . . . . . . . . . . . . . .
10
2.2.4
Proper orthogonal decomposition applied on a flow field . . . . . . . . . .
11
Mathematical preliminaries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
15
2.3.1
Calculus of variation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
15
2.3.2
Fixed point iteration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
15
2.3.3
Method of least squares . . . . . . . . . . . . . . . . . . . . . . . . . . . .
18
2.3.4
Linear filtering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
20
2.2
2.3
3 Fluid motion detection
23
3.1
The measurement of fluid flows . . . . . . . . . . . . . . . . . . . . . . . . . . . .
23
3.2
The motion field . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
25
3.3
Particle image velocimetry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
26
3.3.1
The standard approach . . . . . . . . . . . . . . . . . . . . . . . . . . . .
26
3.3.2
Limits and extensions of the standard approach . . . . . . . . . . . . . . .
27
3.3.3
PIV algorithm used in this thesis . . . . . . . . . . . . . . . . . . . . . . .
28
Optical Flow . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
28
3.4.1
Brightness change constraint equation . . . . . . . . . . . . . . . . . . . .
29
3.4.2
Aperture problem . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
30
3.4
i
Contents
3.5
3.4.3
Extending the brightness change constraint equation . . . . . . . . . . . .
31
3.4.4
Differential-based estimation approaches . . . . . . . . . . . . . . . . . . .
33
3.4.5
Robust error functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
42
3.4.6
Hierarchical multi-scale methods . . . . . . . . . . . . . . . . . . . . . . .
43
Error measures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
45
3.5.1
Angular error . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
45
3.5.2
Displacement error . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
46
3.5.3
Interpolation error . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
47
4 The learning-based approach
4.1
4.2
4.3
4.4
Description of the approach . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
49
4.1.1
Principles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
49
4.1.2
Learning typical motion models . . . . . . . . . . . . . . . . . . . . . . . .
52
4.1.3
Local approach . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
55
4.1.4
Variational approach . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
57
4.1.5
Robust variational approach . . . . . . . . . . . . . . . . . . . . . . . . . .
60
4.1.6
Statistical approach . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
63
Implementation details . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
64
4.2.1
Algorithm . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
64
4.2.2
Hierarchical approach . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
67
Testing the approach . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
68
4.3.1
The test sequences . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
69
4.3.2
The learned motion models . . . . . . . . . . . . . . . . . . . . . . . . . .
71
4.3.3
Influence of the model size . . . . . . . . . . . . . . . . . . . . . . . . . . .
74
4.3.4
Influence of the number of used motion models . . . . . . . . . . . . . . .
77
4.3.5
Influence of the training data . . . . . . . . . . . . . . . . . . . . . . . . .
84
4.3.6
Statistical approach . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
85
4.3.7
Robust variational approach . . . . . . . . . . . . . . . . . . . . . . . . . .
87
4.3.8
Computation time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
88
Conclusion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
90
5 Fluid dynamical applications
5.1
5.2
ii
49
91
Image characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
91
5.1.1
Influence of the particle number density . . . . . . . . . . . . . . . . . . .
91
5.1.2
Influence of the displacement . . . . . . . . . . . . . . . . . . . . . . . . .
92
5.1.3
Optical flow versus particle image velocimetry . . . . . . . . . . . . . . . .
94
Applications and methods . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
95
5.2.1
Synthetic backward facing step . . . . . . . . . . . . . . . . . . . . . . . .
96
5.2.2
2D turbulence . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104
5.2.3
Real backward facing step . . . . . . . . . . . . . . . . . . . . . . . . . . . 110
Contents
5.2.4
5.3
Laminar separation bubble . . . . . . . . . . . . . . . . . . . . . . . . . . 113
Conclusion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 115
6 Conclusion and Outlook
117
6.1
Conclusion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117
6.2
Outlook . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 119
iii
1 Introduction
1.1 Motivation
In numerous technical applications a precise measurement of fluid flow is essential. Reduction of
energy usage or fluctuating forces in aerospace applications, combustion processes or technical
flows can often only be achieved through experimental measurements of the fluid flow. Also
for the validation and calibration of numerical models precise measurements of the flow field
are required. Of particular interest in many technical processes is the flow in near-wall regions
as well as in turbulent areas. For instance in combustion processes, turbulence is exploited
in order to mix the fuel charge and increase the combustion speed. However, the amount of
turbulence is critical, since strong turbulence leads to noise and efficiency losses. Considering
airfoils turbulence puts a lot of stress on certain parts and reduces their durability. The boundary
layer flow around objects must be investigated in order to reduce efficiency losses due to drag.
For an optimization of these processes an accurate measurement of the fluid velocity field is
required. Due to many fluctuating small scale structures contained in turbulent flows, a dense
instantaneous determination of the flow field is essential. The development and improvement of
capable measurement techniques, which fulfill this requirement, is the aim of this thesis.
The motion field is usually determined using flow visualization and recording techniques, which
have the advantage that they are non-intrusive and are able to capture instantaneous velocity
fields. Accordingly, tracer material, such as dye or neutrally buoyant particles, is added to the
fluid and the now visible flow is recorded with a high-speed camera. The motion field is estimated
from the recorded image sequence measuring the displacements of corresponding particles in
subsequent images. If the time between consecutive frames is considered, the velocity can be
deduced from the displacement. In order to estimate the displacement field, usually correlationbased methods, denoted by particle image velocimetry (PIV) are applied. The displacement is
thereby given by the maximum value of the cross-correlation coefficient of two corresponding
local areas taken from subsequent images. However, correlation-based PIV suffers from some
limitations such as a low spatial resolution, a constriction to integer values, and a missing
integration of the underlying physics. Most of these limitations can be tackled to a certain
extend by additional assumptions and post-processing steps, but the accurate estimation of flow
fields on small scales remains challenging.
There are also other methods to estimate motion from image sequences originating from computer vision. The technique of optical flow was originally developed to estimate the movement
1
1 Introduction
of the recording camera as well as the motion of imaged objects. Usually, it relies on the assumption of conserved image brightness. Especially variational methods have the advantage to
yield dense flow fields providing one flow estimate per pixel. Although optical flow was originally established without particular awareness of fluid mechanical problems, the application for
the measurement of fluid motion seems natural. Especially, in turbulent regions optical flow
methods are reasonable due to their dense description of the flow field.
In this thesis new concepts and approaches for dense, accurate fluid motion estimation are presented. These methods extent the established optical flow techniques by using prior knowledge
of meaningful flow structures represented by previously learned typical motion models.
1.2 Previous work
The systematic, experimental investigation of fluid flows started in the early 20th century.
Prandtl [1904] used flow visualization techniques to study unsteady, separated flows behind
objects in a water tunnel [Merzkirch, 2007]. In order to make the flow visible, he added a
suspension of mica particles to the water surface [Raffel et al., 2007]. With these qualitative
techniques only the geometry and the orientation of flow structures could be studied, but a thorough, quantitative evaluation of the motion field was not possible. In order to determine the
fluid velocity, single-point measurements (e.g., with a pitot tube), could be conducted [Adrian
and Westerweel, 2011]. For many interesting flow features such as the vorticity, the knowledge
of the instantaneous velocity field is required. Therefore, techniques were needed, which are
able to measure the complete flow field at one instant of time. This led among other methods
to the development of whole field techniques, with which the velocity field is determined from
particle image sequences taken from the fluid flow, such as correlation-based PIV [Adrian, 1991;
Willert and Gharib, 1991]. Whereas it was an analog technique at the beginning, especially the
technical progress made in optics, lasers, electronics, video and computer techniques helped to
establish a greatly improved digital version. To date, many improvements and extensions to
PIV have been proposed [Adrian and Westerweel, 2011; Raffel et al., 2007] and led to a wide
usage and popularity of the method.
Almost 20 years ago the potential of optical flow techniques in order to estimate fluid motion
was recognized [Quénot et al., 1998; Wildes et al., 1997]. This technique was originally developed
in computer vision some time before correlation-based PIV [Horn and Schunck, 1981; Lucas and
Kanade, 1981]. The concept is widely used in object detection and tracking, robot navigation,
control systems, as well as video compression. In their seminal work Horn and Schunck [1981]
solved the optical flow problem in a variational manner by minimizing an energy functional
consisting of a data term and an additional regularization term. Their approach was the blueprint
for many other techniques to come. Lucas and Kanade [1981] took a different approach by
assuming constant flow in local neighborhoods pooling different constraints derived within the
neighborhood for a single joint estimate.
2
1.3 Scope of this thesis
Since optical flow was developed for the motion estimation of large, rigid objects, it had to
be slightly adapted to meet the requirements of fluid motion detection. The regularization term
proposed by Horn and Schunck [1981] suppresses the divergence and the vorticity of the flow
field. Because this suppression is unwanted in most fluid flows, Corpetti et al. [2002] proposed
to use divergence and vorticity preserving regularizers introduced by Suter [1994]. In many
applications the assumption of a constant image brightness is violated. As a consequence Brox
et al. [2004] assumed other image features such as the gradient of the brightness to be constant.
Haussecker and Fleet [2001] used a parameterized model to describe brightness changes along
streamlines. Physically more grounded data terms that build on the continuity equation were
considered to be a good choice for fluid motion estimation [Corpetti et al., 2006; Liu and Shen,
2008]. According to Heitz et al. [2010], variational optical flow methods provide an adequate
framework in order to combine image measurements with physical constraints derived from
the fluid. Such methods establish a proper connection between computational fluid dynamics
and measurement data. Nakajima et al. [2003] proposed to use the Navier-Stokes equations as
regularization term. This method prefers solutions that follow the underlying physical equations.
A further approach combining image-based flow measurements with prior physical knowledge
in form of the constitutive fluid flow equations was proposed for viscose non-turbulent flows
by Ruhnau and Schnörr [2007]. This approach was also extended to turbulent flows using the
2D vorticity transport equation [Ruhnau et al., 2007]. An overview of the basic fluid motion
estimation schemes presented in the past 20 years is given in Heitz et al. [2010].
Optical flow approaches using previous knowledge learned from appropriate training data were
proposed by Black et al. [1997] and Yacoob and Davis [1998]. They employed spatial or temporal
motion models to estimate non-rigid flow fields of human action like walking or speaking. These
approaches were refined by Nieuwenhuis et al. [2010] to fit into a simple parametric optical flow
framework with spatio-temporal motion models. The approaches proposed in this thesis extend
these learning-based techniques in order to estimate dense motion fields of fluid flows. The
methods are able to use prior knowledge about complex local flow structures in a simple but
efficient way. This is in contrast to other optical flow methods that apply prior knowledge such
as the method proposed by Ruhnau et al. [2007]. These physics-based methods are extremely
complex and extensive and require the complete knowledge of the boundary conditions, which
is often not feasible. The proposed approaches are particularly of interest, if prior knowledge
is available in form of similar flow fields or numerical simulations, but the boundary conditions
are unknown.
1.3 Scope of this thesis
The scope of this thesis is to develop new, improved estimation methods in order to determine
dense velocity fields of fluid flows based on particle images. Therefore, previous knowledge
about local flow structures in form of typical motion models is applied and the estimated flow
3
1 Introduction
fields are expressed in the solution space spanned by these orthogonal basis flows. The motion
models are obtained by methods of unsupervised learning. Accordingly, flow estimates fulfill
the guidelines defined by the motion models and are more accurate than the estimates from
standard techniques. Essentially, the typical motion models are embodied by the high energy
modes obtained from a proper orthogonal decomposition (POD). The proposed approaches
incorporate the experience and know-how of over thirty years of research in the field of computer
vision and are integrated into existing well-established gradient-based optical flow frameworks.
The method is either realized as purely local parametric approach or as combined local global
variational technique. By the application of a cost function, which can easily be adapted to
model the underlying effects, the approach is very flexible. Advantages of these methods such
as the achievement of dense high resolution flow fields are also given for the proposed methods.
A further extension of these approaches uses information obtained from neighboring estimates,
which is usually discarded by the existing methods, in a statistical manner to yield results of
increased accuracy. The benefits and limitations of the different approaches are investigated
and compared to each other and the properties and conditions yielding the best results are
examined. The proposed approaches are compared on different fluid dynamical test cases to
common optical flow and correlation-based methods in order to rank the quality of the achieved
flow fields.
1.4 Structure of the thesis
The remainder of this thesis is organized as follows. In Chapter 2, fundamental fluid dynamical
equations and properties are introduced and the mathematical tools and concepts, which are
important for an understanding of this thesis, are described. In Chapter 3, the general principles
of fluid motion estimation techniques are presented, and common estimation approaches are
introduced. Apart from PIV which was especially developed with fluid dynamical applications in
mind, also gradient-based optical flow techniques originating from computer vision and adapted
for fluid flow measurements are described. In Chapter 4, the approaches developed in this
thesis are introduced and the influence of different approach specific properties are investigated
on different test sequences. In Chapter 5, tests of the developed approaches on various fluid
dynamical test cases are described and the achieved results are compared to the results of
other common optical flow and PIV methods. Finally, the general findings of this thesis are
summarized and discussed in Chapter 6. All of the abbreviations used within this thesis are
listed on page 121.
4
2 Basics
In this chapter, some basic principles and concepts, which are considered to be helpful in order to
understand this thesis, are introduced, starting with a short recapitulation of the fundamental
fluid dynamical equations in Section 2.1. In Section 2.2 the POD is introduced, which is an
important analysis tool used in many fluid dynamical applications, and which is the centerpiece
of the estimation algorithm proposed within this thesis. Finally, in Section 2.3 some basic
mathematical concepts, which are needed in order to solve the occurring equations, are presented.
2.1 Fluid dynamics
The field of fluid dynamics describes basically the motion of fluids. In the following section,
the important equations are shortly introduced. They are derived from the conservation laws
of mass, momentum, and energy. A detailed description of the topic can be found in any fluid
mechanical text book, e.g., [Kundu et al., 2011; Spurk and Nuri, 2008].
2.1.1 Continuity equation
The conservation of mass leads to the continuity equation of fluid mechanics, which simply states
that the fluid mass entering a volume equals the fluid mass leaving the volume. This means that
mass is neither created nor destroyed. In differential form the continuity equation is given by
∂ρ
+ ∇ · (ρu) = 0
∂t
with density ρ and velocity u. Using the material derivative
(2.1)
Dρ
Dt
:=
∂ρ
∂t
+ (u · ∇) ρ, Equation
(2.1) can be formulated as
Dρ
+ ρ (∇ · u) = 0 .
Dt
(2.2)
The material derivative describes the time rate of change of the density. It states that the
change of ρ is either due to local temporal changes
∂ρ
∂t
or due to advection by the mean flow u.
Equation (2.2) is given in Eulerian description, which means that the characteristics of the flow
field are monitored at fixed locations. Also common is the Lagrangian description, where fluid
particles are followed as they move through the flow field. Depending on the situation, each of
the descriptions has its advantages. Within this thesis fluid velocity fields are observed, which
corresponds to an Eulerian description.
5
2 Basics
For incompressible fluids, which implies that the density is considered to be constant within
a small parcel of fluid, the derivative of the density vanishes ( Dρ
Dt = 0). From Equation (2.2) it
follows
∇u = 0 .
(2.3)
Usually, liquids are considered as incompressible fluids. For velocities smaller than approximately
100 m
s (Mach numbers < 0.3), also gases can be considered to be incompressible [Kundu et al.,
2011].
2.1.2 Navier-Stokes equation
The Navier-Stokes equation describes the motion of Newtonian fluids such as water or air,
which can be characterized by a linear proportionality of shear stress and shear rate of the fluid.
The solution of the Navier-Stokes equation is a velocity field, also called flow field, which is a
description of the velocity of the fluid at a given point in space and time. The Navier-Stokes
equation corresponds to Newtons second law of motion, which states that the acceleration equals
the net forces on an object divided by its mass. The forces acting on a fluid are pressure forces,
viscous forces, as well as external forces such as gravity. The acceleration of a fluid parcel can
be described by the material derivative
Du
Dt
:=
∂u
∂t
+ (u · ∇) u. It consists of two parts. The
first part describes the rate of change of the velocity at a particular location with respect to
time. The second part describes the velocity change due to the transport of the fluid parcel to
a location with different velocity.
For incompressible fluids, which fulfill Equation (2.3), the Navier-Stokes equation can be
written in the form
ρ
∂u
+ (u · ∇) u
∂t
= −∇p + µ∆u + f
(2.4)
with velocity u, density ρ, pressure p, dynamic viscosity µ, and body forces per unit volume
f . The Navier-Stokes equation is a non-linear partial differential equation of second order. The
non-linearity is due to the term (u · ∇) u which is quadratic in u. Therefore, the solution of
Equation (2.4) is very difficult and often only possible under certain assumptions.
For small velocities, the non-linear term is usually neglected and the equation describes laminar
flows. However, when the flow turns turbulent, the influence of the non-linear term is strong
and cannot be neglected anymore.
2.1.3 Turbulent flows
A fluid flow becomes turbulent, if the so-called Reynolds number defined as
Re :=
6
ρU L
µ
(2.5)
2.2 Proper orthogonal decomposition
exceeds a problem dependent critical value. Thereby, U denotes the velocity scale and L a characteristic length scale, which depends on the underlying geometry. The Reynolds number itself is
dimensionless. The change from laminar to turbulent flows is not sharp. In the interval between
low (laminar) and high (turbulent) Reynolds numbers, where both flow types are possible, the
flow is called transitional. According to Kundu et al. [2011] turbulence can be imagined as a
dissipative flow state characterized by non-linear fluctuating 3D vorticity.
A turbulent flow consists of rotational structures, so-called eddies, of different length scales.
Kolmogorov’s theory describes how energy is transferred from eddies of larger scales to eddies of
smaller scales. This energy transfer goes under the name energy cascade. Only at the dissipative
subrange, at the bottom of the cascade, kinetic energy dissipates into heat. The energy transfer
across different length scales is described by the energy spectrum, which is defined as the Fourier
transform of the autocorrelation function of the velocity components. According to Kolmogorov’s
theory, the spectrum decreases with increasing wave number k proportional to k −5/3 [Kundu
et al., 2011].
However, this behavior is different for 2D turbulent flows. Here, two different inertial ranges
are observed [Boffetta et al., 2005]. On the one hand, an inverse Kolmogorov spectrum proportional to k −5/3 is present and, thus, energy is transferred from the point of energy injection
to larger scales. On the other hand a downscale enstrophy (mean square vorticity) cascade to
smaller scales proportional to k −3 is present.
A mathematical tool which is often used to study turbulent flows is POD. In this thesis it is
used to generate an orthogonal system of basis functions, which serves as solution space for the
fluid flow problem. Therefore, it is introduced in the next section.
2.2 Proper orthogonal decomposition
The proper orthogonal decomposition (POD) is a powerful mathematical method for data analysis
and simplification. It transforms a multi-dimensional dataset of possibly correlated variables
into a set of uncorrelated variables, and a new orthogonal system of basis vectors is found, in
which the data can be expressed in an optimal manner. The basis found by POD is the most
preferred one to use in many applications. Depending on the field of application the POD has
many different names such as Karhunen-Loève decomposition, principal component analysis, or
Hotelling transform.
Other than in fluid dynamics, POD is used according to Holmes et al. [1996] mainly in the
fields of image processing, signal analysis, random variables, and data compression. To compress
a large dataset, POD removes redundant information. The dimensionality of the dataset is
reduced and the information is redistributed onto new variables that optimally represent the
data. Formerly interrelated variables are merged to obtain fewer variables that are unrelated.
POD is also used for the reduction of noise in datasets which is also done by a decrease of the
dimensionality. This is due to the fact that POD sorts the new optimal variables according to
7
2 Basics
their variance. Assuming that the proportionate noise variance is less than the total variance of
the dataset, the last variables can be cut of.
Mathematically speaking, the POD is equal to a diagonalization of the covariance matrix. In
this way the redundancy between the different variables is dropped since all cross variances of the
variables become zero. Basically, it is a coordinate transform into a new, simplified coordinate
system.
2.2.1 Proper orthogonal decomposition in fluid dynamics
The POD was introduced to the field of fluid dynamics in the context of turbulence by Lumley
[1967]. It can contribute to a better understanding of turbulent flows since it is a useful technique
to analyze complex flow phenomena and is used for the identification of the most energetic
contributions and dominant structures. Therefore, it is sometimes utilized for the discovery
and the identification of coherent structures as shown by Berkooz et al. [1993] and Sirovich
[1987]. In the study of turbulent flows it helps to break the complex, multi-scaled, random fields
of turbulent motion down into more elementary organized motions, which are called coherent
structures. However, the concept of coherent structures is often vague and lacks a clear definition.
Coherent structures are organized spatial features, which repeatedly appear and undergo a
characteristic temporal life cycle [Berkooz et al., 1993]. Since the continuity of fluid motion
guarantees that any continuous fluid motion is spatially coherent, only motion structures that
contribute to time averaged flow statistics are counted as coherent structures [Adrian, 2007].
They can be imagined as larger fluid portions that stick together while moving through the fluid.
Coherent structures can also be viewed as energetically dominant recurrent patterns [Haller and
Yuan, 2000]. Interesting features of coherent structures are kinematic properties such as size,
shape, vorticity, and energy as well as dynamic properties such as stability, origin, growth, and
transformation. Coherent structures occur in different scales. In turbulent boundary layers
for example the bulges are large-scale coherent structures, and the near-wall quasi-streamwise
vortices are small scale structures [Nobach et al., 2007].
The POD yields a complete set of orthogonal basis functions consisting of the eigenfunctions
of the correlation matrix of the dataset, which are often called POD modes. It is generally
recognized that the empirical eigenfunctions extracted by POD are intimately related to coherent
structures, although, the exact relationship is debated [Gordeyev and Thomas, 2000]. Lumley
[1981] stated that the first POD mode represents a coherent structure only if it contains a
dominant part of the variance. Therefore, sometimes a summation of the most energetic POD
modes is considered as the large-scale coherent structure [Gordeyev and Thomas, 2000].
Because the direct relationship between the POD modes and the coherent structures is somewhat contested, the POD is used to provide a set of basis functions with which a low-dimensional
subspace is identified on which a dynamical model of coherent structures can be constructed by
projection of the governing equations [Holmes et al., 1996; Nobach et al., 2007]. Nevertheless,
POD is a common tool in fluid dynamics in order to identify energetically relevant events. It
8
2.2 Proper orthogonal decomposition
can be thought of as a set of basis flows, which allows an optimal description of many fluid
flows. Apart from providing an optimal representation of the fluid flow, POD is also used as
reconstruction or outlier replacement tool for measured flow fields. Accordingly it is used in
order to fill in missing information of erroneous, gappy data to recover the complete flow field
[Everson and Sirovich, 1995; Raben et al., 2012].
2.2.2 Basic principles of proper orthogonal decomposition
In the following, the POD is introduced together with some of its properties. The introduction
complies with the introductions given in Nobach et al. [2007] and Chatterjee [2000]. Further
information can be gained from Holmes et al. [1996] and Berkooz et al. [1993].
A function u(x , t), which is possibly vector valued and defined over some domain of interest
D = Ω × [0, T ] with Ω ⊂ R3 , can be approximated as a finite sum in the variable-separated form
u(x , t) ≈
K
X
αk (t)φk (x ) .
(2.6)
k=1
In this approximation, the φk (x ) are some basis functions and the αk (t) are coefficients. In fluid
mechanics x is normally seen as spatial variable (x = (x, y, z) ∈ Ω) and t as temporal variable.
The expectation is that the approximation becomes better with increasing K and is exact in the
limit K → +∞.
There exist many basis functions φk (x ) that solve the approximation (2.6). One could choose
for example familiar functions like the Fourier series, the Legendre polynomials, or the Chebyshev polynomials. An alternative approach could be to determine the functions φk (x ) that are
naturally intrinsic for the approximation of u(x , t). This particular approach corresponds to the
POD.
The time functions αk (t) depend on the choice of the basis functions φk (x ) and, therefore, are
different for different sets of basis functions. In the case of orthonormal basis functions, which
implies that

1, if k = k
1
2
φk1 (x )φk2 (x )dx =
,
0, otherwise
Ω
Z
(2.7)
the coefficients are given by
Z
αk (t) =
u(x , t)φk (x )dx .
(2.8)
Ω
Orthonormality would be a good condition for the chosen basis functions because then, αk (t)
only depends on φk (x ) and not on the other φ. A second condition is, that the approximation
(2.6) is as good as possible in a least square sense for any chosen K. This means that the first
two basis functions yield the best possible two term approximation and the first three basis
functions yield the best possible three term approximation and so on.
Consider a data set, which consists of M realizations of u (x , t) at N different instants of time,
9
2 Basics
such as for instance a set of velocity vector fields. Then the optimal basis of this data is found
by solving
min
N
X
ku (x , ti ) −
i=1
K
X
αk (ti )φk (x )k22
(2.9)
k=1
with the L2 -norm k · k2 . The dataset can be arranged in a matrix A ∈ RM ×N by transforming
the data obtained at each instant of time into a column vector. The matrix is given by

u(x 1 , t1 )
u(x 1 , t2 )
···
u(x 1 , tN )

 u(x 2 , t1 ) u(x 2 , t2 ) · · · u(x 2 , tN )
A=
..
..
..
..

.
.
.
.

u(x M , t1 ) u(x M , t2 )
u(x M , tN )



 .


(2.10)
According to Nobach et al. [2007], a practical method in order to solve the minimization problem
(2.9) is to use the singular value decomposition (SVD) described in the next section.
2.2.3 The singular value decomposition
The singular value decomposition (SVD) is a factorization of any real or complex matrix. Let
A be a real M × N matrix (A ∈ RM ×N ). Then the SVD is given by [Nobach et al., 2007]
A = UΣV T
(2.11)
where U is an orthogonal M × M matrix and V an orthogonal N × N matrix (i.e., U U T = IM
and V V T = IN , with IN and IM being the N × N and M × M identity matrix, respectively).
A proof of the SVD can be found in Golub and Van Loan [1996]. The diagonal Matrix Σ is of
size M × N and contains the singular values σ on its diagonal. These singular values are sorted
in decreasing order σ1 ≥ σ2 ≥ . . . ≥ σr ≥ 0 with r = min(M, N ). The rank of A equals the
number r of its non-zero singular values. The i-th column of V is called the i-th right singular
vector v i and the i-th column of U is called the i-th left singular vector u i with i ∈ [1, . . . , r].
It is shown in Nobach et al. [2007] that the left singular vectors of A correspond to the
eigenvectors of AAT and the right singular vectors of A correspond to the eigenvectors of AT A.
Furthermore, the singular values are equal to the square root of the eigenvalues, i.e., σi =
√
λi . This can easily be seen, if one computes the eigenvalue decomposition of AAT that is
AAT = W ΛW −1 = W ΛW T with the orthogonal M × M matrix W and compares it to AAT =
U Σ V T V Σ U T = U Σ 2 U T . This shows that the squared singular value matrix corresponds to
the eigenvalue matrix and the eigenvector matrix corresponds to the matrix containing the left
singular vectors, i.e., Σ 2 = Λ and W = U , respectively. For AT A one can proceed analogously.
Further information about the relation between POD and SVD can be found in Fahl [2000] and
in Volkwein [1999].
For a geometric illustration of the SVD, the M × N data matrix A can be seen as a list of
10
2.2 Proper orthogonal decomposition
x2
x2
𝛷1
x1
x1
𝛷2
Figure 2.1: Geometric illustration of the SVD. Left: The data point cloud. Right: Mean shifted point cloud and new
optimal basis.
coordinates of N points P1 , P2 , . . . PN with Pi = (pix , piy )T . The data points are illustrated in
Figure 2.1 on the left as point cloud in the two dimensional coordinate system. Applying the
POD or rather the SVD on the data matrix A yields a new optimal basis system with the two
orthonormal basis vectors φ1 and φ2 . Prior to the application of the SVD the data matrix is
mean shifted by subtracting from each row of A the mean of that row. Therefore, the data is
centered around the origin of the coordinate system. Optimality of the basis system implies
that the first basis vector points in direction of the largest variance and the second basis vector
is perpendicular to the first one and points in direction of the second largest variance. The
mathematical concept of the SVD can geometrically be interpreted as a rotation of the original
basis into a new coordinate system whose orthogonal axes coincide with the axes of inertia of
the data [Nobach et al., 2007]. The mean shifted data is displayed together with the new rotated
basis in Figure 2.1 on the right.
2.2.4 Proper orthogonal decomposition applied on a flow field
The following example shows, how POD modes of a fluid flow field typically look like. It further
shows, how these POD modes can be used to approximate the flow field with a linear combination
of the modes and some coefficients. Therefore, a POD is performed on the flow field data and a
flow field patch, which is a local part of the flow field, is reconstructed with various numbers of
POD modes. The flow field used for this example is the simulated velocity field of a 2D turbulent
sequence of size 256 × 256 px2 , which is described in detail in Section 5.2.2. A sample set of
2000 flow field patches of size 31 × 31 was randomly chosen from the flow field. Performing a
POD by means of SVD on the data set yielded 1922 (= 2 · 31 · 31) POD modes of size 31 × 31.
11
2 Basics
mode 1
mode 2
mode 3
mode 4
mode 5
mode 10
mode 20
mode 30
mode 40
mode 50
mode 60
mode 70
Figure 2.2: Selection of POD modes. Shown are the modes of size 31 × 31 obtained from the 2D turbulent sequence
described in Section 5.2.2.
12
2.2 Proper orthogonal decomposition
5
10
1
0.8
0
10
σ
RIC
0.6
0.4
−5
10
0.2
−10
10
0
500
1000
k
1500
0
0
2000
50
100
150
K
200
250
300
Figure 2.3: Left: Plot of the singular values σ in dependence of the components k. Right: Plot of the relative
information content RIC in dependence of K.
These POD modes are also called motion models, or eigenflows. A detailed description on how
motion models are derived from flow fields is given in Section 4.1.2. Figure 2.2 shows several of
the determined POD modes. The first modes represent large scale structures and carry more
energy or information than higher modes. For higher POD modes, the scales of the contained
flow structures are getting smaller and for very high modes the structures belong more or less
to noise. This fact is shown in the left plot of Figure 2.3, where the obtained singular values are
depicted on a semi logarithmic scale. Each singular value represents the energy or information
content of the belonging POD mode. The values decrease very fast for growing components k.
Following Nobach et al. [2007], the total number K of basis functions, which is needed to
represent a fraction δ ∈ [0, 1] of the information contained in the original flow field patch, is
given by the relative information content (RIC) defined by
K
P
RIC(K) :=
k=1
2N
P
σk
.
(2.12)
σk
k=1
This is simply the normalized part of the whole information contained in the first K basis
functions. On the right side of Figure 2.3, the RIC is shown as a function of the number of
used components K. To be clearly represented, only the first part of the RIC up to K = 300
is shown in the plot since the function approaches one quite fast. The plot indicates that 99 %
of the whole information is contained within the first 10% of all basis functions. This means,
that a flow field patch, which contains 99% of the total information of the original patch, can be
approximated by using the first 200 modes. Since POD modes corresponding to small singular
values carry only little information, they can be neglected. In order to determine the smallest
number of basis functions K for which the RIC is larger or equal to a particular δ, the following
13
2 Basics
original patch
5 components
px
1.4
1.3
1
20 components
100 components
0.8
0.6
0.4
0.2
Figure 2.4: Original patch as well as the reconstructions taken from the 2D turbulent sequence. Top left: Original patch.
Top right: Reconstruction with 5 modes. Bottom left: Reconstruction with 20 modes. Bottom right: Reconstruction
with 100 modes. The magnitude of the velocity is color coded.
equation must be solved
K = arg min(RIC(K); RIC(K) ≥ δ) .
(2.13)
For the reconstruction of the flow field patch, the linear combination of coefficients αk and
POD modes φk of Equation (2.6) is used. Therefore, each coefficient αk is computed by the
scalar product of the original patch and the k-th POD mode φk , as shown in Equation (2.8). In
Figure 2.4, one particular flow field patch of the 2D turbulent sequence is shown together with
three reconstructions of this patch. For each reconstruction, a different number of POD modes
was used. According to Figure 2.3, a reconstruction with the first 5 modes contains 50 % of the
total information. In this case, the reconstructed patch looks in large areas very different than
the original patch. Especially the upper half shows strong disparities. The reconstructed patch
with the first 20 components contains approximately 85 % of the information and the similarity
to the original patch is already quite good. However, there are small but visible differences. By
using the first 100 modes, the RIC rises to 97 % and there are no differences observable by eye
between the reconstructed and the original patch.
14
2.3 Mathematical preliminaries
2.3 Mathematical preliminaries
The following mathematical section gives a short recapitulation of some methods and tools which
are used in this thesis. The intention is to help the reader to understand the concepts presented
in the following chapters. The description covers the main aspects and further information
can be found in the literature quoted. In particular, Section 2.3.1 addresses how to minimize
functionals by solving the corresponding Euler-Lagrange equation. Therefore, the solution of
large systems of linear equations is sometimes required as described in Section 2.3.2. Section
2.3.3 introduces the solution of overdetermined systems of linear equations. Finally, the concept
of linear filtering, which is needed for many image processing tasks, is introduced in Section
2.3.4.
2.3.1 Calculus of variation
The theory of calculus of variations deals with the optimization, i.e., minimization and maximization of functionals. A functional can be understood as a function of a function. More
precisely, a functional is defined as a function from a vector space, which is often a space of
functions, into its underlying scalar field.
Consider the functional of integral type over some domain Ω ∈ R2
Z
L (x, y, u(x, y), ux (x, y), uy (x, y)) dx
J(u) =
(2.14)
Ω
on the set of twice continuously differentiable functions u = u(x, y) with known boundary values
on ∂Ω and x = (x, y)T ∈ Ω. Here and in the following, ux and uy denote the derivatives of u with
respect to x and y, respectively. A task of calculus of variations is now to find a function u which
minimizes the functional J(u). A minimizing function is found by solving the Euler-Lagrange
equation given by
∂L
d ∂L
d ∂L
−
−
=0.
∂u dx ∂ux dy ∂uy
(2.15)
Further information on calculus of variations including a proof of Equation (2.15) is given for
instance in Lebedev and Cloud [2003]. Solving the Euler-Lagrange equation often comes down
to solving a large system of linear equations. Therefore, in Section 2.3.2 some solution concepts
for large systems of linear equations are introduced.
2.3.2 Fixed point iteration
As explained before, the optimization process often leads to a large system of linear equations
such as:
Ax = b
(2.16)
with the real valued coefficient matrix A = (aij ) ∈ Rn×n , the right hand side vector b = (bi ) ∈
Rn , and the solution vector x = (xi ) ∈ Rn . This system of equations is called quadratic because
15
2 Basics
the number of unknowns embodied by the components xi equals the number of equations. If
the equations are linearly independent, i.e., rank(A) = n, Equation (2.16) has a unique solution.
Otherwise, if rank(A) < n, infinitely many solutions exist. If the number of equations exceeds
the number of unknowns, which is the case for A ∈ Rm×n and m > n, no exact solution exists,
but usually an approximated solution can be found as shown in Section 2.3.3.
In order to solve the system of linear equations (2.16), many different methods can be used.
Basically there are two different groups of techniques. On the one hand, there are direct methods
such as the Gaussian elimination method where the solution is determined within a finite number
of calculation steps up to some rounding error. On the other hand, there are iterative methods
which successively determine a sequence of vectors x (q) q∈N , which tend to better and better
approximations of the exact solution x for increasing q.
For large systems of linear equations with n 1000, direct methods become very impractical
and slow due to memory requirements and computational costs. The number of required operations is of the order of 32 n3 [Quarteroni et al., 2000]. Especially in the case of large sparse
matrices A with a number of non-zero entries on the order of n, iterative methods are the better
choice to solve the problem. For these methods, the number of operations per iteration step is
proportional to the number of non-zero elements and is, therefore, on the order of n for sparse
systems.
The focus is on iterative methods because the systems of linear equations that occur within
this work are in fact large and sparse. They are also called fixed point methods. For a function
f , a fixed point iteration defined by
x(q+1) = f x(q)
(2.17)
is often used to approximate the fixed point x of the function given by
f (x) = x .
(2.18)
Of course the fixed point iteration is only successful if the sequence x(1) , x(2) , . . . converges to
the fixed point x, which is the case, if the spectral radius given by the maximum eigenvalue
of the iteration matrix is smaller than one. An extensive description of convergence criteria of
iterative methods is given for example in Quarteroni et al. [2000].
In the following, some iterative methods are introduced. For a more comprehensive review of
the topic see for instance Quarteroni et al. [2000] or Schwarz and Köckler [2011].
Jacobi method
The simplest iterative solution of the system of linear equations (2.16) is given by the Jacobi
method. Accordingly, the matrix A is decomposed into a diagonal matrix D and a reminder
R. It is: A = D + R. This leads to the reformulated problem Dx = b − Rx which is solved
16
2.3 Mathematical preliminaries
iteratively by
x (q+1) = D−1 b − Rx (q)
(2.19)
with the iteration parameter q. With every iteration the solution x (q+1) is updated starting with
an initial value x (1) . In a point-based formulation the solution is given by

(q+1)
xi
=

N
X
1 
(q) 
bi −
aij xj 

 ,
aii
j=1
i = 1, . . . , n .
(2.20)
j6=i
(q)
In simple words, the Jacobi method utilizes constantly updated values xj
mine
(q+1)
xi
with j 6= i to deter-
until convergence is reached.
Gauss-Seidel method
(q+1)
At the time of the determination of xi
(q+1)
, the values xj
with j < i are already known and
could be used for the calculation. This is the principle of the Gauss-Seidel method. With a
decomposition of A into a diagonal matrix D, a strictly lower triangular matrix L, and a strictly
upper triangular matrix U given by A = D + L + U , the problem (2.16) can be reformulated as
(D + L) x = (b − U x ). The iterative solution is then given by
x (q+1) = (D + L)−1 b − U x (q) .
(q+1)
The strictly lower triangular matrix L addresses the values xj
(2.21)
with j < i from the current
iteration step that are already known. The strictly upper triangular matrix U addresses the
(q)
values xj
with j > i known from the previous iteration step. In point-based notation the
solution is given by

(q+1)
xi
=
1 
bi −
aii
i−1
X
(q+1)
aij xj
−
j=1
n
X

(q)
aij xj  ,
i = 1, . . . , n .
(2.22)
j=i+1
Compared to the Jacobi method the Gauss-Seidel method converges faster and, therefore, fewer
iterations steps are required to reach a fixed point. In the case that A is symmetric and positive
definite (i.e., all eigenvalues are positive), convergence is guaranteed.
Successive over-relaxation
The successive over-relaxation (SOR) method leads to an additional speed up of the convergence.
(q)
In fact it is a weighted linear combination of the value xi
Gauss-Seidel value
(q+1)
x̃i
of the previous iteration and the
of the actual iteration step:
(q+1)
xi
(q+1)
= ωx̃i
(q)
+ (1 − ω)xi
(2.23)
17
2 Basics
with the relaxation parameter ω ∈ (0, 2). For ω = 1, this comes down to the simple GaussSeidel method. If ω < 1, which is in fact called under-relaxation, a solution that would normally
slightly diverge may be stabilized. Choosing ω > 1 may significantly accelerate the convergence
compared to the Gauss-Seidel method and is called over-relaxation. The choice of an optimal relaxation parameter ωopt is not quite easy and depends strongly on the specific problem
[Quarteroni et al., 2000]. It is therefore often chosen empirically.
Using once again the decomposition A = D + L + U , the matrix notation of the SOR method
is given by
x (q+1) = (D + ωL)−1 ωb + ((1 − ω) D − ωU ) x (q) .
(2.24)
In point-based notation the iteration instruction can be formulated as

(q+1)
xi
(q)
= (1 − ω) xi +
ω 
bi −
aii
i−1
X
(q+1)
aij xj
−
j=1
n
X

(q)
aij xj  ,
i = 1, . . . , n .
(2.25)
j=i+1
Outer fixed point iteration
In the case the system of equations consists of non-linear equations, it can be decomposed into a
series of linear problems, which then can be solved by the standard linear techniques presented
in the previous sections. This method is called lagged diffusivity [Bruhn, 2006; Chan and Mulet,
1999]. The system of non-linear equations can be described by
A(x ) = b
(2.26)
with the non-linear operator A(x ), which can be decomposed into
A(x ) = B(x )x + c(x ) .
(2.27)
Thereby, matrix B(x ) ∈ Rn×n and vector c(x ) ∈ Rn are again non-linear operators. Assuming
that the matrix B(x ) is symmetric and positive definite the fixed point iteration
−1 x (q+1) = B x (q)
b − c x (q)
(2.28)
is solved while keeping a fixed argument x (q) for the non-linear operators. Thus, the non-linear
expressions are evaluated at the old time step q. At each time step a remaining linear system of
equations has to be solved, which can be done iteratively by one of the introduced methods.
2.3.3 Method of least squares
In the case that the system of linear equations (2.16) is overdetermined, the method of least
squares can be used to derive a solution. This short introduction of the method follows the
monograph of Van Huffel and Vandewalle [1991]. The underlying problem is, to find a solution
18
2.3 Mathematical preliminaries
vector x ∈ Rn of the system of linear equations
Ax = b
(2.29)
with given data matrix A ∈ Rm×n and vector of observations b ∈ Rm . In the case that there
are more equations than unknowns, i.e., m > n, the system of equations is overdetermined and
has typically no exact solution. Therefore, it can be written as Ax ≈ b. There exist several
approximated solutions of this problem but the question is, which of these solutions is the best?
The least squares solution of Ax ≈ b is derived by solving
min kAx − bk2
(2.30)
with the L2 -norm k · k2 . The minimizing vector is denoted by x ls and is given by the so-called
normal equation:
x ls = AT A
−1
AT b .
Of course the solution is only defined if the inverse matrix AT A
(2.31)
−1
exists. In the case of a
singular matrix, the Moore-Penrose pseudoinverse [Ben-Israel and Greville, 2003] can be used
in order to find the least squares solution. The Equation (2.31) is obtained by considering the
principles of calculus which state that the minimum of a function can be found by setting its
derivatives to zero and solve the corresponding equations.
It is assumed that only the observation vector b may be erroneous, whereas, the data points
given by A are error free. This means that the observation points b may differ from the correct
points b 0 by ∆b.
The idea of the method of least squares is to minimize the sum of the squared residual r , which
can be interpreted as the deviation of the vector b ls obtained from the least squares solution
x ls , from the real observation vector b:
r = b − Ax ls = b − b ls .
(2.32)
A graphical interpretation of the method of least squares for a one parameter estimation
αx = β is shown in the left plot of Figure 2.5. The plot contains several data points (ai , bi ) with
i ∈ [1, . . . , m]. The solution x is given by the slope of the line fitted to the data points. The
least squares solution xls is the one that minimizes the sum of the quadratic differences of the
real observations b and the predicted observations b ls , i.e., the quadratic vertical distances of
data points and the line.
Given that the dependent variables b as well as the independent variables given by the coefficients of A are erroneous, the method of total least squares might yield better results. This
method considers independent and identically distributed errors described within the deviations
∆b and ∆A of both types of variables. The method of total least squares can be formulated as
19
2 Basics
b
b
|rils|
|ritls|
a
a
Figure 2.5: Geometric interpretation of the method of least squares (left) and the method of total least squares (right).
Within the least squares solution the vertical distances and within the total least squares solution the orthogonal distances
are minimized.
the minimization problem
i
h
min [A, b] − Atls , b tls F
(2.33)
using the augmented
matrices [A, b] and Atls , b tls and the Frobenius norm k · kF , which is
qP
P
tls exactly solves the system
defined by kAkF =
i
j aij . The total least squares solution x
of linear equations:
Atls x tls = b tls
with the corrected total least squares variables Atls , b tls = [A, b] + [∆A, ∆b].
(2.34)
According to Van Huffel and Vandewalle [1991], the total least squares solution of (2.29) is
given by
x tls = AT A − σmin I
−1
AT b .
(2.35)
Here, σmin denotes the smallest singular value (cf. Section 2.2.3) of the augmented matrix
[A, b] and I denotes the identity matrix. According to the method of least squares a graphical
interpretation of the method of total least squares is given in the right plot of Figure 2.5.
2.3.4 Linear filtering
Filter operations are very important for image processing. They are used for instance to sharpen
or blur image details, to remove noise, or to determine gradient images. Therefore, the images
are convolved with a filter kernel which is also called impulse respond function [Jähne, 2005]. It
is a neighborhood operation which connects the pixel values in the vicinity of a given pixel with
the pixel values of the filter kernel to determine an output value. Type and size of the kernel
account for the character of the filter operation. A common filter kernel used for smoothing
operations and noise reduction is for instance the Gaussian kernel
Kσ (x, y) = √
20
1
2πσ 2
e−
x2 +y 2
2σ 2
(2.36)
2.3 Mathematical preliminaries
29 29 52 64 64 32 32 47
15 24 34 43 39 31 30 25
18 27 32 64 32 47 47 47
18 28 39 48 46 42 42 31
29 21 35 32 47 33 47 19
12 21 12 32 32 32 19 16
24 12 21 19 32 32 21 12
*
1
16
12 12 16 19 21 21 19 16
1
2
1
2
4
2
1
2
1
17 24 30 37 39 38 35 23
=
14 19 22 28 33 32 25 15
13 16 18 23 28 27 21 12
11 15 18 20 21 22 19 12
12 12 29 16 16 16 16 12
9
15 20 21 19 18 16 11
11 16 22 32 16 24 12 16
7
12 17 18 15 14 12
h(x,y)
f(x,y)
8
(f * h)(x,y)
Figure 2.6: Illustration of the filtering operation (convolution). The discrete function f (x, y) is convolved with the
discrete filter kernel h(x, y). The blue pixel locations in f yield together with the filter kernel the blue pixel location in
f ∗ h.
with standard deviation σ. Due to the discrete nature of the images, the discrete version of the
convolution is used. For the discrete functions f and h it is given by [Szeliski, 2011]
(f ∗ h)(i, j) =
X
f (i − k, j − l)h(k, l)
(2.37)
(k,l)∈N
where (i, j) denotes a discrete pixel location in the image domain and (k, l) a discrete pixel
location in the filter kernel domain N . A graphical illustration of the convolution is shown in
Figure 2.6. It can be performed by first mirroring the filter kernel on its center of symmetry and
then sliding it pixelwise over the image. At each pixel location the linear combination of filter
coefficients and image pixels yields the current value.
One problem of the filtering operation is the calculation of the boundary pixels because here,
the filter kernel extends beyond the image boundaries. To overcome this problem, the image
is normally augmented either by zeros (zero padding) or another fixed value, by repeating the
values of the nearest edge pixel (replicate), by reflecting pixels at the image edge (mirror), or by
assuming a periodic input array (circular). This ensures, that the filtered image has the same
size as the initial image. Nevertheless, the boundary pixel values might not be very accurate.
An important property of many filter kernels used in image processing regarding the computation time is their separability. If a 2D filter kernel is separable, it can be separated into two
1D filter kernels, which are applied consecutively. Without separation, the convolution requires
about N 2 operations per pixel, with N being the size (width or height) of the filter kernel.
Splitting the convolution in two successive convolutions requires 2N operations [Szeliski, 2011].
Within this project, mainly the filter kernels optimized for optical flow computations introduced
by Scharr [2007] were used.
21
3 Fluid motion detection
In this chapter, the basic principles of fluid motion detection are presented. The experimental
setup of image-based fluid flow measurements is explained in Section 3.1. In Section 3.2, the term
optical flow is introduced and its relationship to the motion field and the displacement field is
described. In order to determine the fluid flow field from image sequences, many different image
processing techniques can be applied. Most commonly used in the research of fluid dynamics is a
correlation-based approach described in Section 3.3. Since the methods developed in this thesis
belong to the gradient-based optical flow techniques, which originate from computer vision, the
basic principles of these approaches are presented in Section 3.4. In order to determine the
quality of the estimated displacement fields, so-called error measures introduced in Section 3.5
are needed.
3.1 The measurement of fluid flows
Fluid flow measurements can be divided into qualitative and quantitative techniques. A qualitative technique is for instance the simple flow visualization which has a long tradition in fluid
mechanics. At the beginning of the 20th century, Ludwig Prandtl studied unsteady, separated
flows behind objects by utilizing flow visualization techniques in a water channel [Raffel et al.,
2007]. His observations [Prandtl, 1904] led to the introduction of the concept of the boundary
layer [Prandtl and Betz, 2010]. The aim of flow visualization is to make the movement of transparent liquids and gases visible to the observer. In order to do so, some tracer material such
as smoke, dye, or small artificial particles is added to the fluid, acting as an indicator of fluid
motion. It is crucial that the difference between the motion of the added tracer material and
the fluid is negligible, since only the motion of the tracer is observable but the motion of the
fluid is of interest. Different flow visualization techniques are presented in Merzkirch [2007].
The quantitative flow measurements can be classified into point-wise measurements including
measurements with a pitot tube, a thermal anemometer, or a laser Doppler velocimeter, and
in whole field techniques, which extend the qualitative flow visualization methods. Advantages
of the highly developed point-wise techniques are their accuracy and rapid frequency response
[Adrian and Westerweel, 2011]. However, the limitation is that information can be gained only at
one specific location at one instant of time and, therefore, no information about the surrounding
flow structure can be obtained. Single-point measurements do not allow to take instantaneously
spatial derivatives of the flow which would be extremely important for many interesting fluid
23
3 Fluid motion detection
Laser
Light sheet optics
Light sheet
Flow channel
Field of view
Illuminated
tracer particles
Flow direction
CCD Camera
Figure 3.1: Sketch of the experimental setup of standard PIV. The fluid, seeded with tracer particles, is illuminated by
a pulsed laser in a plane by applying light sheet optics. The light, which is reflected by the particles, is then observed
by a camera.
mechanical properties such as for instance the vorticity [Adrian and Westerweel, 2011].
Whole field techniques are able to measure the complete velocity vector field simultaneously.
Typically, they are optical methods originating from flow visualization and are, therefore, nonintrusive which means that the flow is not influenced by the measurement as it is for instance the
case for measurements with the pitot tube. Here, the flow may be disturbed by the instrument. A
very common whole field technique is particle image velocimetry (PIV), where an image sequence
of the fluid and additional tracer material is recorded. The fluid velocity is then estimated from
the sequence applying image processing techniques. The experimental setup is sketched in Figure
3.1. In most applications the fluid is seeded with appropriate tracer particles, e.g., silver coated
hollow glass spheres. The fluid is illuminated in a plane by a thin laser light sheet and the light
reflected by the tracer particles is captured on a CCD-sensor of a camera. In order to determine
the motion, the fluid is illuminated and recorded at least twice in a short period of time. From
the particle shift between subsequent images, a displacement field can be estimated as explained
in Section 3.3 and 3.4.
24
3.2 The motion field
Apart from PIV also other whole field measurement techniques tailored towards specific applications are utilized. One example is particle tracking velocimetry (PTV) which is used to track
individual particles belonging to single fluid parcels. This is useful, if a Lagrangian description of the flow is of interest. Another whole field technique is laser induced fluorescence (LIF)
where a particular transition of some LIF-active molecules is excited by a laser light sheet and
the emitted light is observed by a camera. LIF is often used to study combustion processes,
sometimes even in combination with PIV.
3.2 The motion field
The complete velocity field of a fluid at one point in time is given by the 3D velocity vectors
at every location of a volume. Since we are merely taking images of the scene, as explained in
Section 3.1, we normally can only extract a 2D slice of the complete velocity field. Therefore, the
2D motion field is a projection of the 3D real object motion relative to the image sensor onto the
image plane. Unfortunately, all information of motion perpendicular to the image plane is lost
due to this projection. Yet, the motion field of fluids is of major interest to many researchers.
The beholder can observe only the so called optical flow, which is the apparent motion in the
image plane given by the flow of the gray values in an image sequence. The optical flow has the
dimension of a velocity and in the following it is denoted by the vector u = (u, v)T . The optical
flow vector between two subsequent images is called displacement vector d = (d1 , d2 )T . It has
the dimension of a length. A dense representation of displacement vectors, i.e., one vector per
image pixel, is called displacement field. Dividing the displacement field by the time difference
∆t between the two successive images yields a discrete approximation of the continuous optical
flow field.
The optical flow field itself is an approximation of the 2D motion field. Equality between both
fields is only given, if the irradiance of the imaged objects on the image plane stays constant
while moving in the scene [Jähne, 2005]. However, in practice this is not always true and not
every gray value change can be connected to real world motion and moreover not every object
motion is depicted by a gray value change. A prominent example for the failure of optical flow is
a rotating sphere and its motion field. A homogeneous textured, spinning sphere with constant
illumination leads to zero optical flow, whereas a static sphere with varying illumination causes
non-zero optical flow [Horn, 1986].
In the simplest case of determining the optical flow one assumes the constancy of brightness,
which means that the brightness of a moving gray value distribution in an image sequence
remains constant over time. This implies a constant homogeneous illumination of the imaged
scene and no occlusion of the objects. Let Ii (x ) be the image brightness at location x = (x, y)T
of the i-th image of a sequence, which is proportional to the radiance received by a camera. The
2D image domain Ω constitutes of a sampling grid given by an orthogonal lattice and x ∈ Ω is
an arbitrary point in it. For ideal images (i.e., no camera noise) the assumption of the constancy
25
3 Fluid motion detection
of brightness can be expressed as
Ii (x ) = Ii+1 (x + d (x )) .
(3.1)
Considering whole images, Equation (3.1) states that the subsequent image Ii+1 is a displaced
version of the image Ii .
The determination of the displacement field d from Equation (3.1) is an inverse problem. Since
this is a single equation with two unknowns, namely the two components of the displacement
vector, the problem is ill-posed in the sense of Hadamard [1902]. However, by utilizing additional
constraints it is possible to receive a solution. One possibility is to assume that the displacement
field is locally constant in small image regions and to pool one solution from several equations.
Correlation-based techniques such as PIV (cf. Section 3.3) provide only one vector per region
as well as local optical flow methods (cf. Section 3.4.4). Another possibility is to use additional
regularization terms such as for instance the smoothness of the solution as shown in Section
3.4.4.
3.3 Particle image velocimetry
In this section correlation-based motion estimation schemes for the determination of fluid motion are presented. These methods constitute the classical particle image velocimetry (PIV)
approach. Since correlation-based techniques are most often used in fluid flow velocity measurements derived from PIV images they are often simply denoted as PIV methods. The technique
is described comprehensively by Raffel et al. [2007] and by Adrian and Westerweel [2011].
3.3.1 The standard approach
The standard PIV approach is sketched in principles in Figure 3.2. In order to determine
the displacement field, two subsequent gray value images of the PIV sequence are divided into
interrogation windows and the cross correlation coefficient of two corresponding windows is
computed. The cross correlation coefficient is a normalized version of the cross correlation
function and is used to disable the influence of the particle brightness on the correlation peak
height. The position of the peak of the correlation surface corresponds to the displacement
vector associated with the center of the interrogation window. The cross correlation coefficient
function for one particular window Wi is given by [Raffel et al., 2007]
P
C(d )
Wi
I1 (x )I2 (x+d )
x ∈Wi
=r P
x ∈Wi
I12 (x )
P
x ∈Wi
I22 (x )
(3.2)
where d represents the 2D displacement vector, x the two dimensional spatial vector, and I1 and
I2 the first and the second mean subtracted frame of an image pair, respectively. By dividing
26
3.3 Particle image velocimetry
t+Δt
t
C
d1
d2
Figure 3.2: The principle of double frame single exposure PIV. Two subsequent images at time t and t + ∆t are divided
into interrogation regions. The maximum of the cross correlation coefficient function of two corresponding interrogation
regions (e.g., the red dyed squares) gives the displacement of the whole region and thus, one displacement vector in
the region center.
the displacement vector d by the time difference ∆t between two subsequent images one obtains
the velocity vector.
To speed things up, the computational heavy cross correlation is usually replaced by a multiplication in Fourier space. This is feasible based on the correlation theorem, which states that
the cross correlation of the two interrogation windows can be performed in Fourier space by
a multiplication of the Fourier transform of one window with the complex conjugate Fourier
transform of the other window.
3.3.2 Limits and extensions of the standard approach
Over the past decades a large variety of different methods have been proposed to improve the
results and the computational performance compared to standard PIV [Adrian, 1991; Adrian
and Westerweel, 2011; Raffel et al., 2007].
The standard PIV approach suffers from a number of shortcomings that limit the accuracy,
the dynamic range, and the spatial resolution [Jähne et al., 2007]. These limitations are mainly a
consequence of the finite size of the interrogation windows. A trade-off has to be found between
large and small interrogation windows. Large windows can resolve large motions and provide
good accuracy due to a high signal-to-noise ratio and are more robust to outliers. Small windows
yield a better spatial resolution and are less affected by velocity gradients such as shear flows
or vortices. To provide a robust evaluation of the cross-correlation the interrogation windows
must contain a sufficient number of particles, which depends on the particle density, and thus,
cannot be arbitrarily small. According to Keane and Adrian [1992], the number of corresponding
particles in both interrogation windows has to be at least four to allow for an adequate detection
reliability. However, usually the effective number of particles per window must be higher in
27
3 Fluid motion detection
order to compensate in-plane and out-of-plane losses of particle pairs. Another constraint of the
window size is the one quarter rule, which states that the size of the interrogation window has
to be at least four times bigger than the maximum displacement [Keane and Adrian, 1990].
To circumvent these problems, a hierarchical recursive approach, which employs successively
reduced correlation window sizes, can be used [Scarano and Riethmuller, 1999]. Since flows with
strong velocity gradients lead to a sheared particle pattern in the second interrogation window
resulting in a smaller and broader cross correlation coefficient peak, Scarano [2002] proposed to
use a continuous window deformation technique.
Another limitation of PIV approaches is the peak locking effect, which means that displacement
vectors are biased towards integer values. The effect can be attenuated by an increased particle
size. The optimal particle diameter is slightly more than two pixels [Raffel et al., 2007].
The PIV methods described so far are two dimensional two component (2D2C) techniques,
which means that only two of the three velocity components are determined in a plane of the
measurement volume. However, for many turbulent flow applications the knowledge of the full
3D3C velocity field is required for a thorough investigation of the physical issues of interest.
Hence, improved methods have been developed to determine the complete 3D3C velocity field
with PIV methods, such as for instance holographic PIV [Hinsch, 2002] and tomographic PIV
[Elsinga et al., 2006].
3.3.3 PIV algorithm used in this thesis
For the estimation of PIV velocity vector fields within the scope of this thesis, the software fluere
(Version 1.3) created by Kyle Lynch was used. The program is available under the terms of the
GNU General Public License (GPL). It is based on the iterative image deformation algorithm
described by Scarano and Riethmuller [2000]. This algorithm enhances the matching performance of two interrogation windows by means of relative transformation between the windows.
On the basis of an iterative prediction of the tracer motion, window offset and deformation are
applied, accounting for the local deformation of the fluid continuum [Scarano and Riethmuller,
2000]. Apart from the standard correlation mode, fluere has also a multi-frame correlation
mode, where a sliding ensemble correlation is used over a small kernel of images. The software
also removes and replaces spurious vectors identified by a normalized median test. Overall, the
algorithm allows for a wide dynamic range and reduces the effects of peak locking.
3.4 Optical Flow
Although, originally the approximation of the motion field itself was named optical flow (cf.
Section 3.2) the estimation scheme to determine the optical flow field is often also simply called
optical flow, especially global methods (cf. Section 3.4.4) are frequently referred to optical flow
[Heitz et al., 2010]. The technique was developed roughly thirty years ago by the computer
vision community. Path breaking work back then was done by Horn and Schunck [1981]. Until
28
3.4 Optical Flow
today it remains to be one of the primary research topics in computer vision and the concepts
are currently used for motion estimation as well as stereo vision.
Since the beginning of optical flow research there exist several different classes of motion estimation techniques [Beauchemin and Barron, 1995]. Most common are differential or gradientbased methods which build on spatio-temporal derivatives of the image intensity [Horn and
Schunck, 1981; Lucas and Kanade, 1981]. Other techniques are for instance region-based matching [Anandan, 1989; Glazer et al., 1983], frequency-based methods [Adelson and Berger, 1985;
Heeger, 1988], and phase-based methods [Fleet and Jepson, 1990; Waxmann et al., 1988].
Over the years the original optical flow methods have been significantly refined and improved.
A variety of different methods is presented and compared in Barron et al. [1994] and more recently
in Baker et al. [2011]. Further general information on motion estimation with optical flow is
provided by Jähne et al. [2007], Haussecker and Spies [1999], Derpanis [2006], and Sun et al.
[2014]. Originally developed for the detection of real world rigid object motion, the technique
has been also successfully applied to determine fluid motion from particle and scalar images
[Cassisa et al., 2011; Corpetti et al., 2006; Liu and Shen, 2008; Quénot et al., 1998; Ruhnau
et al., 2005].
The motion estimation schemes used in this thesis are based on differential methods. Therefore, the principles of some differential methods are recapitulated in the following. An essential
requirement of these methods is that the image is differentiable in space and time. Usually, the
motion estimation method relies on the assumption of the temporal conservation of an invariant
derived from the data [Heitz et al., 2010]. For rigid or quasi-rigid body motion, this can be the
geometric invariance of local features such as corners or contours. Because such features are
difficult to define for fluid images, photometric invariants are used. This means that a property
of the pixels such as the gray value is assumed not to change from one image to the next.
In the next sections differential-based estimation approaches are explained, common constraint
equations, also called data terms or observation terms are introduced, and different solution
concepts for the optical flow problem are presented.
3.4.1 Brightness change constraint equation
The most common constraint for image motion estimation is the brightness change constraint,
which was applied in the seminal paper of Horn and Schunck [1981]. It relates the change of
brightness at an image point to the motion of the brightness pattern. The assumption is that
the brightness I(x, y, t) of a particular spatio-temporal point in the pattern remains constant.
This implies that for a shift of the pattern of the distance δx in x-direction and δy in y-direction
during the time δt the brightness constancy model can be formulated as
I(x, y, t) = I(x + δx, y + δy, t + δt) .
(3.3)
29
3 Fluid motion detection
The right hand side of this equation can be expanded in a Taylor series
I(x, y, t) = I(x, y, t) + δx
∂I
∂I
∂I
+ δy
+ δt
+ O2
∂x
∂y
∂t
(3.4)
where O2 denotes the second and higher order terms. It is assumed that the spatio-temporal
structure around x is locally linear and the higher order terms can be neglected. Simplifying
Equation (3.4) by subtracting I(x, y, t) from both sides, ignoring O2 , and dividing by δt yields
δx ∂I
δy ∂I
∂I
+
+
=0.
δt ∂x
δt ∂y
∂t
By substitution of the optical flow vector u = (u, v)T =
δx δy
δt , δt
(3.5)
T
this equation can be refor-
mulated as
(∇I)T · u + It = 0
(3.6)
where ∇I is the 2D vector of spatial gradients of I in x- and y-direction with the 2D gradient
T
∂
∂
operator ∇ = ∂x
, ∂y
. Here and in the following Iz denotes the partial derivative of the
image brightness with respect to z and, therefore, It is the partial time derivative of I. Equation
(3.6) is commonly known as the brightness change constraint equation (BCCE). It states that
the brightness I of an image at location x can only change due to motion. Strictly speaking,
it is only valid for a constant and homogeneous illumination as well as for Lambertian surface
properties of the imaged objects. In reality these conditions are rarely met and, therefore, many
extensions of the BCCE have been proposed (cf. Section 3.4.3).
3.4.2 Aperture problem
The BCCE (3.6) is an ill-posed equation with the two unknown components u and v of the
optical flow u. This equation alone only allows to determine the component u ⊥ pointing in the
direction of the image gradient given by
u⊥ = −
It ∇I
||∇I||22
(3.7)
where ||·|| represents the L2 -norm. The direction of u ⊥ corresponds to the direction perpendicular to the line of equal intensities. However without further assumptions, the second component
of the vector pointing in the direction perpendicular to the image gradient cannot be determined.
In the literature this problem is commonly known as aperture problem [Beauchemin and Barron,
1995; Ullman, 1979].
The aperture problem can be illustrated by a moving object seen through small apertures as
shown in Figure 3.3. By observing the scene through an aperture, only a small part of the object,
in this case a square, is visible. Depending on the local structure seen through the aperture,
the observer records different motion information. In the first case where the aperture is placed
30
3.4 Optical Flow
I
A1
S(t2)
S(t1)
A2
A3
Figure 3.3: Illustration of the aperture problem. The blue square is moving from position S(t1 ) in the first image
taken at time t1 to position S(t2 ) in the second image taken at time t2 . Observing the scene through aperture A1 ,
the optical flow can be determined correctly because there is enough structure present at the corner of the square.
At the edge of the square (aperture A2 ) many solutions of the optical flow problem exist and, therefore, the solution
is not unique. However, the component u⊥ in direction of the local gradient, that is, perpendicular to the edge, can
be determined. In the center of the homogeneous square at aperture A3 no information about the local structure is
available and the optical flow is zero (blank wall problem).
over the corner of the square (A1 ) the correct shift is visible. For the second aperture A2 , only
the shift perpendicular to the edge is observable (aperture problem). Through aperture A3 no
change of the structure is observable and, thus, no information about the object motion can be
gained and the optical flow is zero. The last case is also known as blank wall problem [Derpanis,
2006; Jähne et al., 2007].
3.4.3 Extending the brightness change constraint equation
The conditions, which have to hold for the validity of the BCCE (3.6), are quite strong [Derpanis,
2006; Verri and Tomaso, 1989]. In essence, the underlying surface radiance has to be constant
and, therefore, the illumination needs to be uniform. Furthermore, the motion has to be parallel
to the sensor, because motion in the direction of the optical axis leads to an intensity change
in the image. Also, the surface of the imaged objects has to be well textured and Lambertian,
in order to reflect the light equally in all directions. When these conditions are strictly met
the optical flow field equals the motion field exactly (cf. Section 3.2). In surface regions with
significant irradiance variations due to non-motion effects, the BCCE leads to erroneous results.
This is especially the case when these effects lead to gray value changes of the same intensity
than gray value changes caused by motion.
To overcome these drawbacks, many extensions of the BCCE have been proposed [Beauchemin
and Barron, 1995; Derpanis, 2006; Heitz et al., 2010] , which led to different constraint equations or data models. Cornelius and Kanade [1983] proposed to relax the brightness constancy
31
3 Fluid motion detection
assumption by allowing linear brightness changes. Therefore, they introduced a constant term
c in the BCCE
(∇I)T · u + It = c .
(3.8)
Nagel [1989] suggested that the BCCE should be explicitly based on the three dimensional scene.
Therefore, knowledge of the scene geometry is required. The constant c is then given by
T
c = 4I
T
P Ṗ
ẑ Ṗ
−
T
ẑ P
PP T
!
(3.9)
where P is a three dimensional point in the real world scene, Ṗ the corresponding velocity and
ẑ is a unit vector in the direction of the optical axis [Beauchemin and Barron, 1995].
Negahdaripour and Yu [1993] proposed a generalized brightness change model, which allows
linear transformation of the brightness of an image point, from one instant of time to the next,
described by a multiplier and an offset field. The model incorporates brightness variations
of scene points, due to non-uniform illumination, light source motion, specular reflection, and
interreflection. The general brightness change model extends the brightness constancy model
by the multiplier field, which captures brightness changes due to illumination and reflectance
changes, and the offset field, which models interreflections, shading variations caused by light
source motion, as well as saturation of the sensor due to large variations of the illumination
level. The belonging motion constraint equation is given by
(∇I)T · u + It = mt I + ct
(3.10)
where mt is the temporal contrast change and ct the temporal mean intensity change.
Another generalization of the brightness constancy assumption proposed by Haussecker and
Fleet [2001] defines a path x (t) along which the brightness can change according to a parameterized function h. The generalized brightness change constraint equation is given by
(∇I)T · u + It =
d
h(I0 , t, a)
dt
(3.11)
where I0 is the image at time t = 0 and a is a parameter vector of the brightness change
model. Brightness changes are either parameterized as time-varying analytical functions or by
the differential equations, which model the underlying physical processes. The physical models
examined by Haussecker and Fleet [2001] are moving illumination, changing surface orientation,
and physical models of heat transport in infrared images such as diffusion or exponential decay.
A further extension of the BCCE can be derived by treating the optical flow like a fluid
flow and considering the image brightness to be related to the density of a physical quantity
such as the particle concentration in the case of particle images. Then, the original BCCE
(3.6) corresponds to the continuity equation of incompressible fluids with the condition of the
incompressibility given by ∇u = 0, assuming that the continuity equation is also divergence
32
3.4 Optical Flow
free in two dimensions. One drawback of this divergence free equation is that it is invalid for
brightness changes due to out-of-plane motion. Therefore, Schunck [1984, 1985] proposed to use
the continuity equation as data model resulting in a more general constraint equation
(∇I)T · u + I · ∇u + It = 0
(3.12)
where ∇u represents the divergence of the flow field. Equation (3.12) is sometimes named
extended optical flow constraint [Derpanis, 2006]. The constraint was used for instance by
Wildes et al. [1997] in the context of experimental fluid mechanics and by Corpetti et al. [2002]
for satellite meteorological images. A substantial discussion about the relation between fluid
flow and optical flow is given in Liu and Shen [2008].
In the case the brightness constancy assumption fails, the constancy of image features, which
are less sensitive to illumination changes can be used. For instance, the gradient of the brightness
intensity ∇I = (Ix , Iy )T can be assumed to be constant over time [Brox et al., 2004; Bruhn, 2006;
Verri et al., 1990]. Because the gradient is a 2D vector one obtains two constraint equations
(∇Ix ) · u + Ixt = 0
(3.13)
(∇Iy ) · u + Iyt = 0 .
(3.14)
which can be added up quadratically to generate the data term.
Of course also other features such as higher order derivatives can be considered to be constant
and can be used to formulate a data model. Also, linear combinations of different constancy assumptions, e.g., the constancy of brightness and the constancy of the gradient, are feasible [Brox
et al., 2004; Bruhn, 2006; Tretiak and Pastor, 1984]. Data terms based on higher order image
derivatives are often more sensitive to noise than data terms based on the original brightness
data.
The success of each of these constraint equations strongly depends on the frame conditions
such as the kind of motion, image acquisition conditions, noise, and prior knowledge of the scene.
There is not one single constraint equation which fits best for all optical flow problems.
3.4.4 Differential-based estimation approaches
Differential-based optical flow estimation approaches assume the image sequence to be locally
continuous in the spatial and temporal dimensions. In reality, only a discrete representation of
the image sequence is available. However, it is assumed that the sampling rate is small in order
to recover the derivatives of the underlying continuous representation.
In order to handle the aperture problem described in Section 3.4.2 and determine a solution of
the ill-posed BCCE (3.6), several solution concepts can be used. Of course the methods can also
be combined with other constrained equations introduced in Section 3.4.3. Depending on the
way the optical flow problem is solved, the differential-based estimation schemes can be divided
33
3 Fluid motion detection
mainly into local and global approaches.
Local approaches
Since the BCCE (3.6) is an ill-posed problem (cf. Section 3.3), additional constraints are required
to achieve a solution. In fact, at least two independent constraint equations are needed to
determine the two unknown flow components. The simplest local approach is the Lucas and
Kanade method [Lucas and Kanade, 1981] where it is assumed that the optical flow is constant
in a small neighborhood N and the information, imposed by one constraint equation per image
location, is combined in order to obtain an overdetermined system of equations. From the single
BCCE only the flow component u ⊥ in direction of the brightness gradient can be computed (cf.
Section 3.4.2). By pooling the constraints of small neighborhoods, the complete flow vector can
be estimated provided that the neighborhood is sufficiently large to contain enough structure, and
the solutions of the single equations are slightly different. Otherwise the constraint equations are
not sufficient to solve the aperture problem. However, large neighborhoods cause interpolation
of small scale flows and the larger the chosen neighborhood, the more unlikely it is that the
velocity is still constant in the whole neighborhood. The task of finding the optimal size of the
neighborhood is referred to as the generalized aperture problem [Jähne et al., 2007].
The optical flow problem is formulated as minimization problem of the weighted sum of the
squared constraint equation (3.6). It is defined by the normal equation
X
u = arg min
w(x ) (∇I)T · u + It
2
(3.15)
x ∈N
where w(x ) is a weighting function. In order to solve Equation (3.15), the method of least squares
(cf. Section 2.3.3) is used. The searched solution is the velocity vector, which minimizes the
sum of squared deviations of the brightness constancy for each point within the neighborhood
N . The least squares solution is given by
u = AT A
−1
AT b
(3.16)
with matrix AT A and vector AT b denoted by
T
A A=
X
x ∈N
w(x )
Ix Ix Ix Iy
Iy Ix Iy Iy
!
and
T
A b=−
X
x ∈N
w(x )
Ix It
!
Iy It
,
respectively. If the inverse of matrix AT A does not exist, no flow vector can be determined. In
this case only the flow u ⊥ in direction of the brightness gradient can be estimated.
By applying the Lucas and Kanade approach it is assumed that only the temporal derivatives
of the image intensity are corrupted by errors such as Gaussian noise. The spatial derivatives,
however, are considered to be noise free. A generalization is the structure tensor approach, where
it is assumed that both, spatial and temporal derivatives are contaminated by noise [Bigün et al.,
34
3.4 Optical Flow
1991; Nagel and Gehrke, 1998]. Instead of using the least squares solution, within the structure
tensor approach the method of total least squares (cf. Section 2.3.3) is utilized to solve the
optical flow problem (3.6). Similar to the Lucas and Kanade approach, the structure tensor
approach can be formulated as minimization problem
ũ = arg min
ũ T ũ=1
X
w(x ) (∇3 I)T · ũ
2
(3.17)
x ∈N
where w(x ) is a weighting function and ∇3 I is the three dimensional vector with two spatial
and one temporal derivative and ũ = (u, v, 1)T is an extended optical flow vector. In order to
avoid the trivial solution ũ = 0, an additional constraint ũ T ũ = 1 is applied. Equation (3.17)
can be converted into
ũ = arg min = ũ T J ũ
(3.18)
ũ T ũ=1
with the structure tensor J, which is defined by

J :=
X
x ∈N
Ix Ix Ix Iy Ix It

w(x ) Iy Ix Iy Iy
It Ix
It Iy


Iy It  .
(3.19)
It It
Equation (3.18) can be solved with the help of Lagrange multipliers yielding the eigenvalue
problem
J ũ = λũ .
(3.20)
The minimum of Equation (3.18) is the eigenvector ũ corresponding to the smallest eigenvalue
λ of the structure tensor J. The optical flow vector u is then given by the first two components
of the normalized eigenvector. Thereby, the eigenvector is normalized in a way that the third
component equals one.
The structure tensor is widely used in image processing to estimate local orientations. Thereby,
the orientation at a point is determined with local gradients considering a small local neighborhood around this point. Inclusion of the information of the neighboring points is usually achieved
by a convolution with a Gaussian kernel Kσ with standard deviation σ (cf. Section 2.3.4). The
weighted sum over the neighborhood N in Equation (3.19) is, therefore, expressed by the convolution with Kσ , where σ is related to the size of N . Considering the structure tensor, optical
flow estimation can also be interpreted as the finding of the spatio-temporal orientation with
the least change of the gray value which is given by the eigenvector of the structure tensor to
the smallest eigenvalue.
The Lucas and Kanade and the structure tensor approach share the assumption that the
optical flow is constant in small local neighborhoods. According to Brox [2005], ordinary least
squares tends to underestimate the flow vectors at motion discontinuities, whereas, total least
squares often yields estimates which are too large, especially if the orientation was estimated
35
3 Fluid motion detection
= p1 .
= p1 .
p2 .
+
+ p2 .
+ p4 .
+ p3 .
+ p5 .
+ p6 .
Figure 3.4: Illustration of parametric methods as a linear sum of orthogonal basis flows. Top row : Lucas and Kanade
method with two parameters and flow models of constant flow. Bottom row : Parametric method with six parameters
and affine motion models.
wrong.
The local approaches discussed so far are special cases of the parametric approach where the
optical flow is modeled in small local neighborhoods by a parametric function [Derpanis, 2006].
The simplest function is the one of constant flow and accords to the methods described above.
More complex models have to be applied in a way that spatial variations occurring within the
local neighborhoods, can be described by the model. Instead of directly estimating the flow
vector, specific parameters need to be estimated, which implicitly define the flow vector as the
center of a small local neighborhood of vectors given by a linear combination of the parameters
and the motion models.
One example of a parametric approach with more advanced flow models uses affine motion
models. It assumes linear variation of the optical flow by an affine transformation of local image
regions [Haussecker and Spies, 1999; Szeliski, 2006]:
u=
a1 a2
a3 a4
!
x
y
!
+
t1
t2
!
= Ax + t .
(3.21)
The model superimposes affine motion. The vector t = (t1 , t2 )T represents translation motion.
It corresponds to the constant optical flow vector u used in the structure tensor and the Lucas
and Kanade method. From the parameters of the affine transformation matrix A the basic
elementary geometric transformations such as rotation, dilation, shear and stretching can be
determined.
In order to estimate the optical flow, the flow vector u in Equation (3.6) is replaced by the
affine motion model or by any other parametric model obtaining a similar quadratic optimization
problem as before:
arg min
X
w(x ) (Ax + t)T (∇I) + It
2
.
(3.22)
x ∈N
Minimization can be done once again by the method of least squares to solve for the parameters
of the model. Inserting the parameters in the underlying model (e.g., Equation (3.21)) yields
the flow vector.
36
3.4 Optical Flow
An illustration of the parametric method is shown in Figure 3.4. Within the Lucas and
Kanade method only two models of constant flow are applied. The affine approach utilizes six
parameters and affine motion models. The flow vector u is then given by a linear combination
of motion models and parameters p. The neighborhood reconstructed with the two parameter
model contains the same vector at every location, whereas the flow vectors estimated with the
six parameter model differ from each other. By using more than two parameters it is possible to
model local variations within the neighborhood. The optical flow method introduced later on in
this thesis (cf. Section 4.1.3) is a parametric method with a user-defined number of parameters
and learned motion models.
Velocity fields estimated with local methods are sometimes not dense. This is due to the
fact that the optical flow cannot be determined in areas with no or only little structure. In
these areas, the matrix of the least squares estimation becomes singular and no flow vector can
be estimated, resulting in a sparse flow field. In order to state the reliability of single flow
vectors, confidence measures can be used. One example for a confidence measure is to observe
the smallest eigenvalue of the least squares matrix, which is an indicator of how close the matrix
is to being singular [Derpanis, 2006; Simoncelli et al., 1991]. If the eigenvalue is close to zero,
the matrix is not invertible and only the normal flow component u ⊥ can be calculated.
Global approaches
Global approaches form another class of methods to solve the underconstrained flow problem.
They are also called variational approaches. The most prominent global approach, which is also
the basic framework of other variational methods, was introduced by Horn and Schunck [1981].
In order to solve the BCCE (3.6), they proposed the additional use of a global smoothness
constraint, which is to minimize the squared magnitude of the gradient of the optical flow
components given by
||∇u||22
and
||∇v||22 .
(3.23)
By using this smoothness constraint, one assumes that neighboring image points have similar
velocities and, thus, the velocity field of the brightness pattern varies smoothly almost everywhere. In order to make the optical flow problem well-posed, the solution is regularized by using
the so-called Tikhonov regularizer [Tikhonov and Arsenin, 1977]. The combination of the BCCE
with the regularizer based on the smoothness assumption yields the energy functional
Z
E=
(∇I)T · u + It
2
+ λ ||∇u||22 + ||∇v||22 dx
(3.24)
Ω
with the positive regularization parameter λ with which the influence of the smoothness constraint can be controlled by the user. Larger values of λ lead to a stronger penalization of large
gradients and, therefore, yield smoother flow fields. The functional is defined over the image
37
3 Fluid motion detection
domain Ω. The first part is often called data term whereas the second term is called smoothness
or regularization term.
In order to estimate the optical flow f the energy of (3.24) has to be minimized. This can be
done due to calculus of variations (cf. Section 2.3.1) by solving the Euler-Lagrange equations.
The smoothness term thereby restricts the class of admissible solutions. The Euler-Lagrange
equations are given by
Ix (Ix u + Iy v + It ) − λ∆u = 0
(3.25)
Iy (Ix u + Iy v + It ) − λ∆v = 0
(3.26)
2
2
∂
∂
with the Laplace operator ∆ = ( ∂x
2 + ∂y 2 ), which can be approximated numerically using finite
differences [Horn and Schunck, 1981]. Therefore, it is ∆u(x, y) = ū(x, y) − u(x, y) with the
weighted average ū(x, y) calculated from u in the neighborhood of location (x, y). Of course ∆v
is approximated similarly.
The system of equations (3.25) and (3.26) can be solved iteratively for the two components u
and v of the optical flow vector u by
u(q+1) = ū(q) −
Ix (Ix ū(q) + Iy v̄ (q) + It )
λ + Ix2 + Iy2
(3.27)
v (q+1) = v̄ (q) −
Iy (Ix ū(q) + Iy v̄ (q) + It )
.
λ + Ix2 + Iy2
(3.28)
Thereby, the subscript q + 1 denotes the next iteration step.
An advantage of global methods such as the Horn and Schunck method is that it yields dense
flow fields as flow information is interpolated from the surrounding to areas with homogeneous
brightness pattern and no or only little structure information. At image locations with small
gradients the data term of (3.24) is close to zero and the influence of the smoothness term is
large. Since the total energy is minimized the smoothness term gets small as well, which favors
flow values that are similar to the neighboring values. This is called filling-in effect [Bruhn et al.,
2005].
However, global methods are more prone to noise than local methods [Barron et al., 1994].
Since noise leads to relatively strong gradients, which serve as weights in the data term, the
influence of the smoothness term is weak compared to that of the data term at noisy locations.
Therefore, the flow field is less regularized at noisy image structures than elsewhere. The regularization parameter λ has to be chosen carefully to obtain good filling-in properties on the one
hand, and low sensitivity to noise on the other hand. A large λ leads to potentially good looking
flow fields which may be oversmoothed and therefore false.
In general, global methods are more accurate than local methods [Barron et al., 1994]. However, local methods are usually faster and simpler to implement. Another advantage of local
methods is that they are more robust to noise than global methods because in local methods
38
3.4 Optical Flow
local errors do not propagate to the surrounding estimates as it is the case in global methods.
An extension of the Horn and Schunck approach in presence of occluding boundaries was
described by Nagel and Enkelmann [1986]. They used an image-driven smoothness constraint.
Therefore, they replaced the standard smoothness constraint by an oriented smoothness term
that preserves edges by not smoothing over them. The edges are identified by steep intensity
gradients. However, steep gradients do not necessarily belong to edges, they also appear for
instance in strong textured regions of an object. In such a case a smoothing over the edge would
be desirable but is indeed prevented. Alternatively so-called flow-driven constraints (cf. Section
3.4.5), which reduce smoothing across flow discontinuities can be applied [Weickert and Schnörr,
2001].
Instead of a purely spatial, also spatio-temporal smoothness constraints can be applied [Black
and Anandan, 1991; Bruhn et al., 2005]. Due to the additional denoising properties in temporal
direction spatio-temporal constraints may lead to better results.
Corpetti et al. [2006] showed that applying the Horn and Schunck smoothness constraint is
equal to using the so-called first-order div-curl regularizer given by
Z
(divu)2 + (curlu)2
(3.29)
Ω
with divu =
∂u
∂x
∂v
+ ∂y
and curlu =
∂v
∂x
− ∂u
∂y . This formulation shows that the regularization term
may not be well suited for fluid flows, since such flows are expected to contain vorticity and
divergence, which are in fact suppressed by the regularization. In turbulent flows for example
there are many rotational structures, which are characterized by a large vorticity. To overcome
this problem, higher-order regularizers, which penalize the gradient of the divergence and the curl
of the flow, can be used [Corpetti et al., 2002; Yuan et al., 2007]. For instance the second-order
div-curl regularizer was proposed by Suter [1994] and is given by
Z
||∇divu||22 + ||∇curlu||22 .
(3.30)
Ω
Using the second-order div-curl regularizer (3.30) the divergence and the vorticity of the flow
field is preserved.
Combined approaches
Both, local and global methods, have advantages and disadvantages. It seems natural to combine
the two techniques in order to get a new combined approach featuring the best of both worlds.
The most famous combined approach is the one introduced by Bruhn et al. [2005], where the
local Lucas and Kanade method is combined with the global Horn and Schunck method. The
advantage of a combined approach is the robustness under Gaussian noise while giving dense
flow fields.
Applying the augmented optical flow vector ũ = (u, v, 1)T and the structure tensor J defined
39
3 Fluid motion detection
in Equation (3.19) the energy functional can be formulated analogously to the functional (3.24)
of the Horn and Schunck method:
Z
E=
ũ T J ũ + λ ||∇u||22 + ||∇v||22 dx .
(3.31)
Ω
The data term described in the first part of the functional contains the local Lucas and Kanade
method in structure tensor notation. Additionally, as regularization term, embodied in the
second part of the functional, the same smoothness constraint already utilized within the Horn
and Schunck method is used. In order to find the optimal optical flow vector, which is the one
that minimizes (3.31), the Euler-Lagrange equations have to be solved. They are given by
J11 u + J12 v + J13 − λ∆u = 0
(3.32)
J12 u + J22 v + J23 − λ∆v = 0 .
(3.33)
A solution of these linear equations can be obtained with iterative methods such as for instance
SOR introduced in Section 2.3.2.
Extensions of the method use robust error norms (cf. Section 3.4.5) instead of quadratic
ones or are integrated into a spatio-temporal framework [Bruhn et al., 2005]. One can also
apply different local models as data term such as for instance the structure tensor model or the
learning-based model, which will be introduced in Section 4.1.4.
Physics-based optical flow estimation
The regularizations used so far to achieve a solution for the optical flow problem are not motivated by physical concepts. For example, the smoothness assumption (3.23) is a merely reasonable assumption which is needed to make the problem well posed. In the context of fluid
dynamics, the fluid flow is described by the Navier-Stokes equations. It seems natural, to use
the knowledge that the fluid flow has to satisfy these flow equations and utilize them as physicsbased constraint equations. Therefore, it is desirable to develop a computational scheme, which
consistently combines the evaluation of experimental data and simulations [Heitz et al., 2010].
A first step in this direction was made by Nakajima et al. [2003]. They proposed an energy
functional for incompressible fluids which uses the continuity equation and the Navier-Stokes
equations as regularization. The functional over the image domain Ω can be written as
Z
T
λ1 (∇I) · u + It
E=
2
2
+ (∇u) + λ2
Ω
where the differential operator
Du
Dt
is given by
∂u
∂t
1
Du
+ ∇p − ν∆u − f
Dt
ρ
2
dx
(3.34)
+ (u · ∇)u . ∆ is the Laplace operator, ρ the
density of the fluid, p the pressure, ν the kinetic viscosity and f the external forces on a unit
mass of fluid. The coefficients λ1 and λ2 are used to weight the terms differently.
The flow field is estimated by solving the corresponding non-linear Euler-Lagrange equations.
40
3.4 Optical Flow
Since the result of non-linear optimization problems often depends on the initial condition,
Nakajima et al. [2003] propose to use the estimated flow field of Horn and Schunck’s method as
initial condition in order to permit a stable calculation. They then apply several computation
steps with gradually reduced weight parameter λ1 . The obtained solution is a combination of
the solution of the data term and the solution of the fluid flow equations.
Another approach combining image-based flow measurements with the constitutive fluid flow
equations was proposed by Ruhnau and Schnörr [2007]. In a first attempt they restrict the
approach to steady flows of viscous media. Therefore, all admissible flow fields have to fulfill the
Stokes equations, which are the underlying physical equations for this kind of problems. The
restriction to the Stokes equation is done mainly for simplicity reasons as the problem gets very
complex for general flows described by the Navier-Stokes equation. The approach is formulated
according to other variational approaches and comprises the objective functional
Z
T
(∇I) · u + It
E(u, p, f , g ) =
2
+
α||f ||22 dx
Z
+
Ω
γ||∇t g ||22 ds
(3.35)
∂Ω
and a system of physical constraints denoted by the Stokes equations and boundary conditions





−µ∆u + ∇p
= f
in Ω ,
∇u
= 0
in Ω ,




u
= g
on ∂Ω .
(3.36)
Again, p denotes the pressure, f the body force acting on a unit mass of fluid, µ the dynamic
viscosity, and g the boundary values defined on the boundary ∂Ω of the domain Ω. The term
∇t g denotes the derivative of g tangential to the boundary. To make the whole problem well
posed, additional regularization terms of the control variables weighted with coefficients α and
γ are included into the objective functional.
In order to estimate the optical flow field, the functional (3.35) is minimized subject to Equation (3.36). The principle of the method, is that body force f and boundary values g are
determined in a way that the resulting velocity field u matches the apparent motion given by
the data term (3.6) as accurate as possible. In terms of control theory f and g are called control
variables. In the case of the velocity field being de facto governed by the Stokes equations the
pressure p and the forces f can directly be determined from the image sequence. However, the
approach can also be applied successfully to divergence-free turbulent flows, which cannot be
described by the Stokes equations. For these flows, the control variables f and g are no longer
physically significant but still control the flow [Heitz et al., 2010]. In their work Ruhnau and
Schnörr [2007] showed that the approach can outperform other optical flow methods as well as
correlation-based methods in case of highly non-rigid flows.
A limitation of the approach is that the boundary conditions must be known in order to
estimate the flow field. Yet, a complete knowledge of the boundary is unavailable in many fluid
41
3 Fluid motion detection
2
1.8
1.6
1.4
1.2
1
0.8
0.6
quadratic
regularized TV
Leclerc
Lorentzian
0.4
0.2
0
−2
−1.5
−1
−0.5
0
0.5
1
1.5
2
Figure 3.5: Different error norms, including the quadratic norm, the convex regularized TV penalty function ( = 0.01),
and the two non-convex error norms Leclerc (τ = 1) and Lorentzian (σ = 0.75).
mechanical applications. Due to the complexity of the approach it is computationally quite
heavy and also detailed expertise is required in order to solve the underlying optimal control
problem and implement the approach.
3.4.5 Robust error functions
Within the original variational approach proposed by Horn and Schunck [1981] quadratic error
functions are used for the data and the regularization term, respectively. This is a good choice in
the case of the occurring errors being Gaussian as well as independent and identically distributed
[Baker et al., 2011]. However, in the case of outliers originating from illumination changes,
occlusion, or noise it seems beneficial to penalize these outliers less severely than in a quadratic
way. A remedy may be to use so-called robust penalty functions, which originate from robust
statistics [Huber, 1981], for the data term. By such a function the influence of outliers on the
BCCE is reduced.
Nevertheless, the use of such a robust error function is also reasonable for the regularization
term, since the quadratic error norm is prone to outliers, which do not fulfill the smoothness
assumption. With a robust error function the regularizer can handle discontinuities in the
optical flow field. A regularizer that applies a non-quadratic error norm, is called flow-driven
[Weickert and Schnörr, 2001]. In contrast, there are also image-driven regularizers that associate
discontinuities of the image sequence with discontinuities in the flow field [Nagel and Enkelmann,
1986; Weickert and Schnörr, 2001].
The standard optical flow energy functional (cf. Equation (3.24)) with robust error functions
is given by
Z
E=
Ω
42
ψd (∇I)T · u + It + λψs (||∇u||2 + ||∇v||2 ) dx .
(3.37)
3.4 Optical Flow
Thereby, the non-quadratic penalizer functions ψd (·) and ψs (·) are used for the data term and
the smoothness term, respectively. This robust energy functional accepts outliers in the data
term as well as in the smoothness term.
Many robust error norms have been proposed for optical flow applications [Black and Anandan, 1996; Stewart, 1999; Sun et al., 2014] some of which are depicted in Figure 3.5. The
√
regularized total variation (TV) penalty function ψ(x) = x2 + 2 with the small positive constant is a convex error function which corresponds to a regularized L1 -norm [Bruhn et al.,
2005]. Convex error norms have the advantage that they guarantee well-posedness and convergence of the problem because they have a unique minimum. This means that the solution is
independent from the initialization. There are also non-convex error norms such as the Leclerc
penalty function ψ(x) =1 − exp(−τ x2 ) [Corpetti et al., 2006] or the Lorentzian penalty funcx2
tion ψ(x) = log 1 + 2σ
[Sun et al., 2014] with the positive parameters τ and σ, respectively.
2
From a statistical point of view, these non-convex penalizers are more robust but the resulting
energy functional may comprise multiple local minimums and, therefore, advanced minimization
strategies have to be applied in order to find the global minimum.
Local optical flow techniques can also be transformed into a robust formulation using the error
norm ψ(·) [Fleet and Weiss, 2006]. A robust version of Equation (3.15) thus reads
u = arg min
X
w(x )ψ (∇I)T · u + It .
(3.38)
x ∈N
Another robust local approach used in the field of motion detection with data corrupted by
non-Gaussian noise is the least median of squares method. The approach is given by solving the
minimization problem [Derpanis, 2006]
u = arg min medi
h
(∇I)T · u + It
2 i
i
.
(3.39)
In the case of Gaussian noise, the efficiency of the least median of squares method is poor. An
extension of the method was proposed by Bab-Hadiashar and Suter [1998]. They used the least
median of squares to find an initial estimate, which is used to assign each equation to either the
group of inliers or the group of outliers. The solution is given by applying the method of least
squares to the group of inliers.
3.4.6 Hierarchical multi-scale methods
Optical flow estimation schemes are often realized as hierarchical multi-scale approaches [Bruhn,
2006; Mémin and Pérez, 1998, 2002]. These approaches are either applied to speed up the
estimation process or to improve the results. Especially the variational formulation is limited
to small displacements compared to the shortest wavelength present in the image [Heitz et al.,
2010]. Displacements that are larger than half of the period of the highest frequency component
can cause temporal aliasing and are a potential source of local minima, in which the estimation
43
3 Fluid motion detection
I(0)
I(1) = (Kσ * I(0)) r
I(2) = (Kσ * I(1)) r
I(3) = (Kσ * I(2)) r
Figure 3.6: Example of a Gauss pyramid on a black and white image of Carl Friedrich Gauss (painting by Gottlieb
Biermann, 1887). The resolution decreases from left to right.
can get trapped [Derpanis, 2006]. Furthermore, the linearization of the BCCE (Equation (3.4))
also restricts the optical flow estimation to relatively small displacements. In order to handle
large displacements the estimation process is performed step wise in a coarse to fine manner.
Therefore, the images of the sequence are transformed into image pyramids such as for instance
the Gauss pyramid.
The Gauss pyramid consists of multiple versions of an image, which all have a different resolution and size. Stacking these different versions on each other with the next smaller image
on top of the previous one, a pyramid like structure is obtained. The Gauss pyramid is created successively by applying a smoothing filter followed by a sub-sampling step to the image
of the previous scale [Jähne, 2005]. The smoothing filter is necessary to follow the sampling
theorem, which states that a periodic structure is only sampled correctly, if at least two samples
per wavelength are taken [Jähne, 2005]. This means that the size reduction always has to go
together with an adequate smoothing operation. An example of a Gauss pyramid is shown in
Figure 3.6. To perform the smoothing operation the image is convolved with a Gaussian kernel
Kσ of standard deviation σ as introduced in Section 2.3.4. After the convolution the image is
down sampled with the sampling rate ↓r. In this example, a sampling rate of ↓r = 2 is used,
which means that the dimension of the image on the next pyramid level is cut in half. The
pyramid is built step wise since image I (q) on the q-th level of the pyramid is calculated from
image I (q−1) on the (q − 1)-th level. Therefore, the smoothing and down sampling operations
are done successively on the subsequent images.
The hierarchical multi-scale scheme applied within this thesis combines the estimated optical
flow on each pyramid level with an image warping step. The optical flow field estimated at a
coarser pyramid level is used to warp the original image. Therefore, the flow field is up-sampled
to fit the dimension of the current pyramid level, and the warped image is an interpolated image
obtained from the original image shifted by this flow field. At the next finer level, the remaining
motion between the original and the warped image is estimated. Finally, a summation of the
44
3.5 Error measures
motion increments of all levels yields the desired optical flow field.
This hierarchical coarse to fine technique improves the quality of the estimated optical flow
in cases of large displacements. However, a drawback of the multi-resolution approach is that
it sometimes produces wrong estimates when large estimation errors occur on coarser scales
that cannot be corrected on the finer scales [Derpanis, 2006]. Another limitation is that the
technique restricts the entire estimation process more or less to image pairs. The use of temporal
information by the application of image sequences within the coarse to fine technique, requires
a large number of successive warping steps for the very same image, which makes the approach
very complex and introduces large interpolation errors.
An alternative multi-resolution technique, which can be used in connection with variational
optical flow techniques and which requires no warping steps, is to use the flow field estimated
on a coarser scale as initial guess on the next finer scale [Anandan, 1989]. This technique is on
the one hand applied to improve the resulting flow field and on the other hand to speed up the
calculation due to a faster convergence of the solution.
3.5 Error measures
Different performance or error measures can be used to quantitatively evaluate the accuracy
of motion estimation algorithms. Accordingly, the estimated motion field is compared to the
correct flow field. Of course this comparison is only possible if the correct flow data is known.
Otherwise, if no reference flow field is available the second image of a sequence can be compared
to a warped version of the first image obtained by shifting the gray values by the estimated
motion field. In the following section the error measures applied in this thesis are described.
3.5.1 Angular error
The angular error (AE) is the most popular performance measure of optical flow applications in
computer vision [Baker et al., 2011] but it is also used in the field of fluid dynamics [Héas et al.,
2013; Ruhnau et al., 2005]. Following Barron et al. [1994] the AE is defined as
AE := arccos
ũ c ũ e
kũ c k kũ e k
·
180
π
(3.40)
using the extended 3D vectors ũ c = (uc , vc , 1) for the correct and ũ e = (ue , ve , 1) for the
estimated flow field. These vectors can be interpreted as orientation vectors in the 3D spatiotemporal domain (cf. Figure 3.7) with time difference t = 1 between successive images. The
AE gives the angular deviation from the correct spatio-temporal orientation vector in units of
degree.
The popularity of the AE comes from the fact that it takes into account both, direction and
magnitude differences between the vector fields. Another advantage of the AE compared to other
error measures is that it avoids the division by zero for zero flows and is, therefore, well-defined.
45
3 Fluid motion detection
t
ue
~
1
y
uc
~
AE
Figure 3.7: Illustration of the angular error (AE). The
angel in the 3D spatio-temporal space between the correct flow vector ũc and the estimated flow vector ũe is
defined as AE.
x
It is also able to handle large and small displacements without the amplification inherent in
relative measures of vector differences.
However, the AE has some limitations as shown by Haussecker and Spies [1999]. It depends
for instance non-linearly on the speed of the velocity field. Also, symmetric deviations from the
true velocity do not lead to the same AE. Thus, a velocity vector estimated 10% shorter than
the true vector has a different AE than a velocity vector estimated 10% longer [Nieuwenhuis,
2009].
The mean value of the AE of the entire flow field is defined as average angular error (AAE).
This is a single scalar value, which describes the overall deviation of the estimated flow field from
the correct one and is a convenient way to quantify the performance, thereby ranking different
motion estimators.
3.5.2 Displacement error
An alternative error measure, which is often used for PIV image sequences [Stanislas et al., 2008]
is the average displacement error (ADE). It is defined as the root mean square (RMS) of the
deviation of the estimated displacements from the correct displacements for the x-component
and the y-component, respectively
s
i=1
ADEx =
46
j=1 (uc (i, j)
− ue (i, j))2
(3.41)
mn
s
ADEy =
Pm Pn
Pm Pn
i=1
j=1 (vc (i, j)
mn
− ve (i, j))2
.
(3.42)
3.5 Error measures
The variables m and n denote the width and the height of the flow field, respectively. The ADE
is given in units of pixels.
3.5.3 Interpolation error
If the correct velocity field is not available, the AAE and the ADE cannot be assigned. In
this case the average interpolation error (AIE), which is given by the RMS of the gray value
differences of the real and an interpolated image, can be used as error measure. Hereby, the
interpolated image is obtained by shifting or warping the first image of an image pair by the
estimated displacement field towards the second image. According to Baker et al. [2011], the
AIE is defined as
s
AIE =
Pm Pn
i=1
j=1 (I
t+1 (i, j)
− Iwt (i, j))2
mn
(3.43)
where I t denotes an image of size m × n of the sequence at time t and Iwt denotes a warped
version of the same image. To generate Iwt the estimated velocity field is used to warp the image
I t onto I t+1 . A limitation of such error measures is the strong dependence on the interpolation
method. Within this thesis a bicubic interpolation was applied. Another limitation of the AIE
is that in homogeneous image regions with the same gray values, incorrect flow vectors may be
considered correct since the gray value difference is vanishing.
47
4 The learning-based approach
The learning-based approach (LBA) is a new method for the estimation of fluid dynamical
displacement fields from particle images. The approach is an extension of the model-based
optical flow algorithm proposed by Nieuwenhuis et al. [2010] and is based on the approaches
introduced by Black et al. [1997] and by Yacoob and Davis [1998], where learned motion models
are incorporated into a local optical flow method. The basic idea of the approach is that complex,
spatio-temporal flow field patches can be expressed as a linear combination of typical basis flows,
which have been learned previously from appropriate training data. In this way, prior knowledge
is introduced to the system and the resulting flow field is restricted to the space spanned by
these basis flows. The coefficients of the linear combination can be estimated using the brightness
constancy assumption described in Section 3.4.1. Some of the basic principles of learning domain
specific motion models originate from face recognition where dimension reduction algorithms are
used to determine effective subspaces for the representation and discrimination of faces [Li and
Jain, 2011]. Especially the concepts of the eigenface method introduced by Turk and Pentland
[1991] are used for the learning process in an adapted way to meet the requirements of the fluid
dynamical framework.
The description of the LBA is organized as follows. Section 4.1 states the principles of the
approach and describes the learning process of the basis flows, which are also called motion
models. Thereafter, different estimation methods applying the learned motion models are introduced in order to determine the optical flow field. In Section 4.2 some implementation details are
described. Finally, the properties and the performance of the approach is described in Section
4.3.
4.1 Description of the approach
4.1.1 Principles
The LBA is an extension of optical flow methods which assume constant flow in local areas
such as the local structure tensor approach by Bigün et al. [1991] or the combined local global
method by Bruhn et al. [2005]. Both methods are described in Section 3.4.4. Instead of using
local neighborhoods of constant flow, typical flow constellations specially designed to meet the
requirements of the underlying flow problem, are applied to describe the flow in the neighborhoods. These typical flow structures are embodied by the so-called motion models which are
learned from a set of training vector fields. Using the motion models, the flow can be described
49
4 The learning-based approach
training data
.
..
.
..
.
..
.
..
.
..
.
..
POD
image sequence
motion models
.
..
.
..
...
parameter estimation
displacement field
Figure 4.1: Sketch of the learning-based optical flow approach. Initially, typical motion models (here of size 5 × 5 × 3)
are learned from the training sequences with POD. In order to estimate the velocity field from the image sequence, a
parameter vector has to be determined. A linear combination of these parameters and the motion models yields the
velocity field.
50
4.1 Description of the approach
more precisely in the local neighborhoods than by the model of constant flow, since occurring
local flow structures are considered. Another advantage of the motion models is that a larger
model size can be used without over-smoothing allowing for a more accurate estimation due to
a larger number of motion constraints.
Since the LBA is a parametric approach, the flow vectors are not directly determined from the
optical flow equations. Instead a large number of motion constraints is pooled in a neighborhood
to estimate a much smaller number of model parameters. This leads to accurate and stable
results. The flow vectors are given by a linear combination of the learned motion models and
the parameters. The LBA is similar to the affine model approach described in Section 3.4.4
which uses motion models that consist of affine transformations [Fleet and Weiss, 2006; Haussecker and Spies, 1999]. One disadvantage of the affine model is the limited applicability to
complex natural scenes including motion discontinuities or non-rigid motion [Black et al., 1997].
However, the learned motion models may include such complex flow structures if they are present
in the training data. In that way, the motion models are tunable for different problems. Fleet
et al. [2000] proposed to use an extended affine model, which consists of the affine basis flows
and additional learned motion models that are orthogonal to the affine set.
The input ensemble from which the motion models are learned consists of spatio-temporal flow
field patches obtained from the training data. Different sets of simulated flow fields or arbitrary
flow fields of similar flow applications can be used as training data. By choice of the training data
the method can easily be adapted and optimized for different flow situations. If the flow field
under study contains for instance rotations, the training data must comprise rotations as well.
Otherwise rotations are not included in the motion models and thus, have to be approximated
by the other remaining models, which is less accurate. Therefore, excluding rotations from the
training data results in an incomplete model.
The basic principles of the LBA are sketched in Figure 4.1. At first, the spatio-temporal motion
models are learned from the training data by applying POD (cf. Section 4.1.2). As explained in
Section 2.2, POD is used in fluid dynamics to recover the most energetic structures and dominant
flow events of turbulent flow fields. A further feature of POD is the ability to reconstruct
incomplete, erroneous flow fields. Essentially, POD yields a set of optimal, orthogonal basis
functions spanning the space of possible flow structures. Therefore, a reasonable choice is to use
the first K most energetic POD modes as motion models.
Secondly, some parameters have to be estimated from the image sequence and the motion
models. For this estimation, different local, global, and robust approaches are at hand.
Finally the resulting flow vector u is given in dependance of the local spatio-temporal neighborhood ω by a linear combination of the vectorized motion models φk and the estimated
parameters αk :
u(ω) ≈
K
X
αk φk .
(4.1)
k=1
As shown in Figure 4.2, the linear combination of the estimated parameters and the learned
51
4 The learning-based approach
α1
α2
α3
Σ
α4
...
α5
Figure 4.2: Determination of the flow vector. A linear combination of the estimated coefficients α and learned motion
models produces a neighborhood of flow vectors of the same size as the basis flows. The central vector of the determined
patch is taken as one vector of the resulting flow field.
motion models yields a local neighborhood ω of flow vectors of the same size as the motion
models. The central flow vector of this neighborhood is used as flow estimate in the resulting
flow field. In this way the flow vectors are determined in dependance of the motion models and
the solution is restricted to the space spanned by these motion models. In order to obtain the
full vector field, Equation (4.1) has to be solved for every image location.
4.1.2 Learning typical motion models
Consider a training vector field q (x, y, t) defined on the discrete spatio-temporal domain D ∈ R3
where (x, y) ∈ R2 indicates the spatial location within a rectangular domain and t ∈ [0, T ]
indicates time. To learn the motion models, a defined number of several thousand (e.g., 5000)
spatio-temporal patches of fixed size ω ∈ D (e.g., 15 × 15 × 7) are randomly chosen from q as
shown in Figure 4.3. Accordingly, the patches may overlap but it is not allowed to choose the
exact same patch twice. The number of sample patches must be large enough to ensure that all
relevant flow structures are represented according to their significance within the set of sample
patches. The influence of the number of sample patches on the resulting motion models was
observed. In most cases 5000 patches were sufficient to capture the relevant flow structures and
a higher number of patches did not alter the resulting motion models.
In order to prevent any directional bias of the motion models, the sample patches are rotated
by 90◦ , 180◦ , and 270◦ and the flow vectors in the patches are mirrored on the horizontal
and the vertical axis and moreover, the temporal direction of the flow field in the patches is
reversed. By applying these transformations, the motion models become more general and
can be used for a broader range of applications. However, in some cases it may be beneficial
to omit the transformations in order to obtain motion models that are more specific for a
particular application. The influence of the patch transformations on the resulting motion
52
4.1 Description of the approach
training vector field
patches
...
rotations
reflections
time reversal
...
...
...
Figure 4.3: The sample patches are chosen randomly from the training vector field q(x, y, t). In this example the
patch size is 3 × 3 × 3. All of the patches are rotated and mirrored and also the time is reversed by changing the sign.
models is described in Section 5.2.1.
In order to apply a POD on the sample patches they have to be transformed into a data
matrix, which contains the patches as column vectors. This is done by writing the entries of
each patch in lexicographical order in one column vector. Accordingly, the horizontal velocity
components are stored in the upper half of the vector and the vertical components in the lower
half. The procedure is shown in Figure 4.4. Finally, a large data matrix A of zero mean, which
contains the different realizations of the vectorized patches in its columns, is obtained. A is of
size 2N × M with N being the number of flow vectors in one patch. The factor two is due to
the fact that every flow vector has two components. M indicates the number of patches times
the rotations, reflections and time reversals of the patches. Since the spatio-temporal patches
are of limited size the number of components in one patch is usually smaller than the number
of patches in total, thus, 2N < M .
The large number of sample patches has to be reduced to only a few motion models, which
however, contain most of the information of the entire set of patches. To fulfill this task, the
POD is used, which yields a set of optimal, orthonormal basis functions that are sorted, due to
their relevance, as shown in Section 2.2. Therefore, applying a POD on matrix A yields a set of
2N orthogonal basis functions φk with k ∈ [1, 2N ]. The POD is performed by means of a SVD
as described in Section 2.2.3 given by
A = U ΣV T
(4.2)
53
4 The learning-based approach
patches and variations
...
...
x1
y1
y1
y1
x27
x27
y1
y1
y1
y27
y27
...
...
y27
x27
...
y27
...
...
y27
...
y27
...
...
...
...
...
y27
x27
...
y1
x27
x1
...
y1
x27
x1
...
y1
...
...
x27
x1
x1
...
...
x27
x1
...
...
x27
y27
x1
x1
...
A =
x1
...
y27
Figure 4.4: Construction of the data matrix. The sample patches and their variations are vectorized and stored as
column vectors in the data matrix A.
with the orthogonal 2N × 2N matrix U and the orthogonal M × M matrix V . The 2N × M
diagonal matrix Σ contains the 2N singular values in decreasing order σ1 ≥ σ2 ≥ . . . ≥ σ2N ≥ 0.
The column vectors of U define the basis functions, which are also known as POD modes. In
practice the SVD is computed in an economic manner to save computation time. Therefore,
redundant information is dropped and only the first 2N columns of V and Σ are determined.
Figure 4.5 shows the matrices of the SVD. The column vectors of U are reshaped back to patch
size in order to obtain the motion models.
The motion models are sorted by their information content and, therefore, the set of motion
models can be cropped nearly without loss of information. As shown in Figure 2.3 in Section 2.2,
the singular values and, thus, the information content drop quite fast, which implies that the
first motion models are sufficient to approximate any flow vector. According to Section 4.1.1 the
approximation of the flow vector is given by the linear combination (4.1) of motion models φk
and motion parameters αk . The motion models implicitly encode all the relevant information of
the fluid flow. The ability of the POD modes alias motion models to approximate any state of a
54
4.1 Description of the approach
A
=
...
U
VT
Σ
...
=
...
...
...
motion models
Figure 4.5: Visualization of the SVD. The motion models are given by the reshaped column vectors of U .
complex flow system is totally dependent on the information originally contained in the patches
obtained from the training data. Therefore, the training data has to be extensive to include all
relevant flow structures.
The following sections describe how the parameters αk are estimated from the image sequence
in dependence of the motion models φk . Essentially, the estimation is done either via a local
parametric technique or a combined local global approach.
4.1.3 Local approach
The estimation of the parameters can be performed in a local manner similar to the method proposed by Lucas and Kanade [1981] and is therefore called local learning-based approach (lLBA).
The Lucas and Kanade method utilizes only two parameters and two motion models of constant
flow in x- and y-direction, whereas, the number of parameters and motion models within the
lLBA can be chosen arbitrarily. As part ot this thesis the lLBA has already been published by
Stapf and Garbe [2013, 2014a] and is based on the work of Black et al. [1997] and Nieuwenhuis
et al. [2010].
The BCCE introduced in Section 3.4.1, which assumes constancy of the image brightness I is
used as data term. The BCCE is given by
(∇I)T · u + It = 0 .
(4.3)
It is assumed that the 2D optical flow vector u can be approximated in dependance of a local
neighborhood ω by the linear combination of Equation (4.1). A substitution of u within (4.3)
55
4 The learning-based approach
by (4.1) leads to a system of N linear equations
e ·
∇I
K
X
αk φk = −I t
(4.4)
k=1
with the N -dimensional vector of gray values I which can be understood as a vectorized local
neighborhood ω of gray values of the same size as the learned motion models φk . Then I t is
defined as the vector of partial derivatives of the gray value at each position within the local
e is defined by the N × 2N gradient matrix:
neighborhood with respect to time. And ∇I



e
∇I := 


Ix1
0
···
0
Iy1
0
0
..
.
Ix2
0
..
.
···
0
..
.
Iy2
0
···
0
IxN
0
···
···
0

..
0
..
.


 .


.
0
IyN
Here, Ixi denotes the gradient in x-direction of the i-th patch position and Iyi denotes the
gradient in y-direction of the i-th patch position. Together with the 2N × K matrix Φ, which
e can be combined to the
contains the first K motion models φ1 , · · · , φK as column vectors, ∇I
e ·Φ. Using B the system of linear equations (4.4) can be simplified
N ×K matrix B, it is B := ∇I
to
B · α = −I t
(4.5)
with the K-dimensional parameter vector α. In order to determine the parameter vector α, this
system of linear equations can be solved by the method of least squares as introduced in Section
2.3.3. Therefore, the solution is given by
α = − BT B
−1
BT I t .
(4.6)
As with all local optical flow methods, the estimated displacement field may not be dense
because Equation (4.6) has no solution in cases where B T B is not invertible. This can happen for
instance in homogeneous image regions with very little structure or in areas where the aperture
problem (cf. Section 3.4.2) is present. However, by using the Moore-Penrose pseudoinverse
[Ben-Israel and Greville, 2003] a solution of the problem can be obtained. In order to identify
locations where the determination of the optical flow is problematic, confidence measures such
as the one based on linear subspace projections proposed by Kondermann et al. [2007] can be
applied. This confidence measure assumes, that all correct flow field patches can be described
by a linear combination of the learned motion models. This means, that the better the flow
constellations can be reconstructed in terms of the motion models, the more reliable they are.
56
4.1 Description of the approach
4.1.4 Variational approach
The variational learning-based approach (vLBA) is an extension of the lLBA into a global framework. Analog to the local-global optical flow approach proposed by Bruhn et al. [2005] (cf.
Section 3.4.4) the local approach is thereby embedded into a global functional. This alternative
formulation of the problem combines advantages of local and global optical flow methods, such
as robustness against noise and dense flow fields, respectively. In locations with no or only little
structure, local methods may fail to determine an optical flow vector. Global methods, however, fill in information from the surrounding and are able to state flow vectors in these areas.
Additionally, advantages of parametric optical flow approaches are contained within the vLBA.
Using more advanced motion models than constant flow and more than two parameters, allows
to precisely model the flow within small local neighborhoods and leads to better flow estimates.
As part of this thesis the approach has already been published [Stapf and Garbe, 2014b].
As data term basically the system of linear equations (4.4) is used. Additionally, a further
constraint in form of a regularizing term is included within the functional. Similar to the
regularizer proposed by Horn and Schunck [1981], which assumes smooth variation of the optical
flow and penalizes large gradients of the optical flow vector in a quadratic way, the squared
magnitude of the gradient of the parameters given by
k∇αk k22 ,
k = 1, . . . , K
(4.7)
was chosen as regularizer. Thus, global smoothness of the parameters is assumed and the
gradient of the parameters is quadratically penalized. This simplest case of regularization leads
to linear equations and is, therefore, relatively easy to solve. Using the following notations
α̃ := (α1 , . . . , αK , 1)T
e · φk
l k := ∇I
L := (l 1 , . . . , l K , I t )
J := LT L
k∇αk22
:=
K
X
(4.8)
k∇αk k22
k=1
the energy functional can be expressed by
Z
E=
α̃T J α̃ + λk∇αk22 dx
(4.9)
Ω
where the first part denotes the data term and the second part denotes the regularizing term.
The ratio of the two terms is defined by the positive regularization parameter λ, which can be set
by the user. The optimal parameter vector α is the one that minimizes this functional. Due to
the principles of calculus of variations the minimum of a functional can be obtained by solving
57
4 The learning-based approach
the Euler-Lagrange equations (cf. Section 2.3.1) given by a set of K equations:
K
X
Jij αj + JiK+1 − λ∆αi = 0 ,
i = 1, . . . , K
(4.10)
j=1
with the subscripts i, j ∈ [1, K] and the Laplace operator ∆ defined by ∆ :=
∂2
∂x2
+
∂2
.
∂y 2
Due to the discrete nature of the input images the continuous Euler-Lagrange equations have
to be discretized. Therefore, a rectangular pixel grid of cell size hx and hy is applied. In general,
image processing uses fixed grids with h = hx = hy = 1. All values are given at discrete locations
(m, n) ∈ N2 with distance h between neighboring points. The number of pixels in x-direction
and in y-direction is denoted by Nx and Ny , respectively. Let N (m, n) denote the set of the
four nearest neighbors of pixel (m, n), then the 2nd order central difference approximation at
location (m, n) of ∆αi is given by
∆αi ≈
X
αm̃ñ,i − αmn,i
.
h2
(4.11)
m̃,ñ∈N (m,n)
Using the above approximations and notations the Euler-Lagrange equations (4.10) can be discretized. At location (m, n) they are given by

1
λ
K
X

Jmn,ij αmn,j + Jmn,iK+1  −
j=1
X
αm̃ñ,i − αmn,i
=0,
h2
i = 1, . . . , K .
(4.12)
m̃,ñ∈N (m,n)
For m = 1, . . . , Ny and n = 1, . . . , Nx this is a large sparse system of linear equations and like
other variational optical flow methods, it can be solved iteratively. According to Bruhn et al.
[2005], the SOR method, introduced in Section 2.3.2, is a good compromise between simplicity
and efficiency for combined local and global optical flow approaches and is, therefore, used in
the vLBA as well. In the following the iteration parameter q and the notations
N − (m, n) := {m̃, ñ ∈ N (m, n) | m̃ < m, ñ < n}
(4.13)
N + (m, n) := {m̃, ñ ∈ N (m, n) | m̃ > m, ñ > n}
are used. The iterative SOR solution of the discrete Euler-Lagrange equations is given by
(q+1)
(q)
αmn,i = (1 − ω) αmn,i
P
+ω
m̃,ñ∈N − (m,n)
|N (m, n)| +
h2
λ
−ω
58
(q+1)
αm̃,ñ,i +
K
P
j=1,j<i
(q)
P
m̃,ñ∈N + (m,n)
αm̃,ñ,i
h2
λ Jmn,ii
(q+1)
Jmn,ij αmn,j +
(4.14)
!
K
P
(q)
j=1,j>i
|N (m, n)| +
Jmn,ij αmn,j + Jmn,iK+1
h2
λ Jmn,ii
4.1 Description of the approach
for i = 1, . . . , K, m = 1, . . . , Ny and n = 1, . . . , Nx . |N (m, n)| denotes the number of the
next neighbors of pixel (m, n), which belong to the image domain. The value of the relaxation
parameter ω is chosen between 1 and 2 in order to speed up the convergence compared to the
Gauss-Seidel method. Initially α(0) is assigned by 0.
Notable when spatio-temporal motion models are utilized the data term of (4.9) contains in
addition to spatial also temporal information. To extend the regularization term to the spatiotemporal domain as well, the 2D Laplace operator in Equation (4.9) must be replaced by a 3D
spatio-temporal one. This leads to an enlarged set of nearest neighbors N (m, n), which also
contains the nearest neighbors in temporal direction.
The discrete Euler-Lagrange equations can also be written in matrix notation. Accordingly,
a large sparse matrix is required. In order to simplify the matrix notation, smaller matrices are
stitched together. To achieve this, the following notations are used:
h2
Jmn,ij
λ
h2
tmn,ij :=
Jmn,ij
λ

s11,ij

 −1


 0

 .
 ..

 .
 ..


 0


Sij := 
 −1


 0
 .
 .
 .
 .
 .
 .
 .
 .
 .

 ..
 .
smn,ij :=




Tij := 


+4
−1
0
s12,ij
−1
−1
..
.
s13,ij
..
..
..
−1
..
.
···
..
.
.
.
..
..
..
.
..
.
..
..
.
..
.
−1
..
.
.
.
..
.
..
−1 s1Nx ,ij
..
.
−1
..
.
.
.
.
.
..
.
..
.
..
···
···
0
0
..
.

..
···
t11,ij
0
0
..
.
0
···
t12,ij
..
.
···
..
.
..
.
0
···
0
tNy Nx ,ij
−1
..
.
0
−1
..
.
.
..
..
0
0
−1
..
.
.
..
···
..
.
−1
..
s21,ij
−1
−1
..
.
s22,ij
.
−1
..
.
.
.
..
.
−1
0
··· ··· ··· ···
..
.
.. ..
.
.
.. .. ..
.
.
.
.. .. ..
.
.
.
.. ..
.
.
..
..
.
.
..
.
−1
.. .. ..
.
.
.
.. .. .. ..
.
.
.
.
.. .. .. ..
.
.
.
.
.. .. ..
.
.
.
··· ···
0

0
..
.
..
.
..
.
..
.

































0
−1
0
..
.
..
.
0
−1
−1 sNy Nx ,ij






On the diagonal of the matrix Sij the values of Jij at location (m, n) multiplied with
h2
λ
are
59
4 The learning-based approach
written together with the central pixel of the 2nd order central difference term. The four offdiagonals of Sij contain the four next neighbors of the central pixel. The diagonal of Tij contains
the values of Jij at location (m, n) multiplied with
h2
λ .
With these notations the large sparse
matrix can be written as:

S11

 T
 21
 .
B := 
 ..
 .
 .
 .
TK1
T12 · · ·
.
S22 . .
..
..
.
.
..
.
···
···
T1K

..
.
T2K
..
.
..
.
TK−1K









· · · TKK−1
(4.15)
SKK
The discrete Euler-Lagrage equations in matrix notation are then given by the sparse system of
linear equations
Bα = b .
(4.16)
Hereby, the parameter vector α with stacked parameter values at each image location and each
motion model and the right hand side vector b are given by:
α := α11,1 . . . αNy Nx ,1 , α11,2 . . . αNy Nx ,2 , . . . , α11,K . . . αNy Nx ,K
T
b := J11,1K+1 . . . JNy Nx ,1K+1 , J11,2K+1 . . . JNy Nx ,2K+1 , . . . , J11,KK+1 . . . αNy Nx ,KK+1
T
(4.17)
.
Using the decomposition B = D +L+U with diagonal matrix D, lower triangular matrix L, and
upper triangular matrix U the SOR solution of the Euler-Lagrange equations in matrix notation
is given by (cf. Equation (2.24))
α(q+1) = (D + ωL)−1 ωb + ((1 − ω) D − ωU ) α(q) .
(4.18)
Unless otherwise specified, the vLBA is conducted with a maximum number of 50 iteration
steps and a SOR parameter ω = 1.8. However, if a fixed point is reached in less than 50 iteration
steps, the calculation is stopped successfully.
4.1.5 Robust variational approach
So far the vLBA uses a quadratic error norm for the data and the regularization term. This error
norm has the advantage that the underlying energy functional results in linear Euler-Lagrange
equations which are relatively easy to solve. However, the use of a quadratic L2 norm implies,
that the occurring errors are assumed to be Gaussian as well as independent and identically
distributed [Baker et al., 2011]. In reality, however, this assumption is frequently violated as for
instance near occlusion boundaries. Therefore, robust error norms introduced in Section 3.4.5
may yield better results. Robustness implies that the method is less sensitive to the influence
of outliers in the input data [Bab-Hadiashar and Suter, 1998]. The robust variational learning-
60
4.1 Description of the approach
based approach (rvLBA) introduced in this section, uses the robust error functions ψd (·) and
ψs (·) for the data term and the smoothness term, respectively.
One example of a robust error norm is the L1 norm, which falls into the class of TV [Weickert
and Schnörr, 2001] known from noise reduction [Rudin et al., 1992]. It is beneficial to use a
convex error norm, because this guarantees that the problem has a unique minimizer. The
regularized version of the TV penalty function given by
ψ(x2 ) =
p
x2 + 2
(4.19)
with the regularization parameter , is therefore a good choice, because it allows rather sharp
discontinuities [Brox, 2005]. For simplicity reasons, this regularized error function is used within
the rvLBA for the data term and for the regularization term.
With the notations given in Equation (4.8) the energy functional can be expressed similar to
(4.9) with robust error norms by:
Z
ψd α̃T J α̃ + ψs λk∇αk22 dx .
E=
(4.20)
Ω
In order to determine the minimizing parameter vector α, the Euler-Lagrange equations have
to be solved. They are given by:

ψd0 α̃T J α̃ 
K
X

Jij αj + JiK+1  − λ div ψs0 k∇αk22 ∇αi = 0 ,
i = 1, . . . , K .
(4.21)
j=1
Accordingly, ψd0 and ψs0 denote the first derivative of each error function. Because in both cases
Equation (4.19) is used as error function, the derivative is given by
1
ψ 0 (x2 ) = √
2
2 x + 2
(4.22)
in each case. Both terms of Equation (4.21) are non-linear because of the non-linear factors
ψd0 α̃T J α̃ and ψs0 k∇αk22 in front of the linear expressions known from (4.10). Due to this
non-linearity the solution of (4.21) is slightly more complicated. Similar to the vLBA in Section
4.1.4 the Euler-Lagrange equations have to be discretized. Therefore, the abbreviations
0
ψdmn
:= ψd0 α̃Tmn Jmn α̃mn
0
ψsmn
:= ψs0 k∇αmn k22
which describe the derivatives of the error functions at location (m, n) are used. Accordingly, the
discrete image space is again given by (m, n) ∈ N2 with distance h between neighboring points,
and Nx and Ny denoting the number of locations in horizontal and vertical direction, respectively.
Furthermore, N (m, n) denotes the set of the four nearest neighbors of pixel (m, n) . The second
61
4 The learning-based approach
term of Equation (4.21) is similar to the non-linear diffusion equation ∂t c = div D |∇c|2 ∇c
with concentration c and diffusivity function D [Brox, 2005]. According to Brox [2005], the
discrete version of this term is thus given by
X
m̃,ñ∈N (m,n)
0
αm̃ñ,i − αmn,i
ψs0 m̃ñ + ψsmn
.
2
h2
(4.23)
With the above definitions and approximations the discretized Euler-Lagrange equations at pixel
(m, n) can be formulated as


K
0
X
ψdmn

Jmn,ij αmn,j + Jmn,iK+1 
λ
j=1
−
(4.24)
0
αm̃ñ,i − αmn,i
ψs0 m̃ñ + ψsmn
=0,
2
h2
X
m̃,ñ∈N (m,n)
i = 1, . . . , K .
0
0
on αmn the discrete Euler-Lagrange equations are
and ψsmn
Because of the dependency of ψdmn
still non-linear. Therefore, an outer fixed point iteration is applied in order to remove this non0
0
and ψsmn
are kept fixed while the resulting linear system of equations
linearity. To do so, ψdmn
is solved for αmn using for instance SOR. The iterative solution of the linear system is given by
(q+1)
(q)
αmn,i = (1 − ω) αmn,i
P
+ω
m̃,ñ∈N − (m,n)
0
ψs0 m̃ñ +ψsmn
(q+1)
αm̃,ñ,i
2
P
m̃,ñ∈N (m,n)
2
h
0
ψdmn
λ
−ω
K
P
j=1,j<i
P
+
m̃,ñ∈N + (m,n)
0
ψs0 m̃ñ +ψsmn
2
(q+1)
Jmn,ij αmn,j +
P
m̃,ñ∈N (m,n)
0
ψs0 m̃ñ +ψsmn
(q)
αm̃,ñ,i
2
2
h
0
+ ψdmn
λ Jmn,ii
K
P
j=1,j>i
0
ψs0 m̃ñ +ψsmn
2
(4.25)
!
(q)
Jmn,ij αmn,j + Jmn,iK+1
2
h
0
+ ψdmn
λ Jmn,ii
for i = 1, . . . , K, m = 1, . . . , Ny and n = 1, . . . , Nx . Then αmn is used to update the values of
0
0
ψdmn
and ψsmn
and (4.25) must be solved again. The entire process is repeated until the values
0
0
of ψdmn
and ψsmn
are constant and a fixed point is reached. Because the error functions ψd
and ψs are chosen to be convex, the whole problem is convex too and, therefore, has a unique
solution [Brox et al., 2004].
Apart from in point-based notation the robust Euler-Lagrange equations can of course also
be written in matrix notation. To this end, the procedure is similar to the one in Section 4.1.4.
62
4.1 Description of the approach
averaging
operation
Figure 4.6: Principles of the statistical approach. Each flow vector of the flow field is derived via an average operation
from several reconstructed flow patches. The reconstructed patches are thereby derived at slightly different locations.
4.1.6 Statistical approach
All approaches introduced in the previous sections only use the central flow vector of the reconstructed patch as shown in Figure 4.2. The complete information given by the surrounding flow
vectors is discarded. However, this information can be used in a statistical manner to improve
the results by having not just one flow estimate per pixel but several. The maximum number of
estimates per final flow vector is equal to the total number of flow vectors in the reconstructed
patches. Yet, also smaller samples consisting of a defined number of vectors around the central
vector can be used.
The principles are sketched in Figure 4.6. Several reconstructed flow patches are used to
obtain one flow vector. Accordingly, the parameter vector α of each patch is estimated from
slightly different neighborhoods of the image sequence applying any variant of the LBA. By
using the linear combination (4.1) of parameters αk and motion models φk one patch of flow
vectors is obtained for each neighborhood as demonstrated in Figure 4.2. Normally, only the
central vector of each reconstructed patch is used as flow estimate. Thus, two neighboring flow
vectors u 1 and u 2 are derived from two slightly different neighborhoods named ω1 and ω2 ,
respectively, whereas ω2 is translated by one pixel compared to ω1 . However, there are actually
two estimates for the flow vector u 1 , one given by the central vector of the patch reconstructed
from ω1 , and one given by the vector next to the center of the patch reconstructed from ω2 . As
shown in Figure 4.6, different flow estimates of the same flow vector obtained from the vectors at
different positions of the diverse reconstructed patches are used in combination to determine the
respective flow vector. To obtain one flow vector out of the sample of estimates, an averaging
operation is applied in which one of the following concepts is used. Let x1 . . . xn denote the data
in the sample.
• The arithmetic mean is given by x̄mean =
1
n
Pn
i=1 xi .
• The median is the value that separates the data sample into a lower and an upper half.
63
4 The learning-based approach
For a sorted sample it is given by x̄med = x( n+1 ) .
2
• The weighted arithmetic mean is given by x̄wmean =
Pn
i=1 wi ·xi
P
n
i=1 wi
with weights wi . For the
statistical LBA, the central pixel, which is the sole pixel used in the normal LBA, is
weighted equally strong as all other pixels together.
• The truncated arithmetic mean is similar to the arithmetic mean where a certain number
of the highest and an equal number of the lowest values is cut off. In the case of outliers,
the truncated mean is more robust than the normal arithmetic mean. For the statistical
LBA, the cut off refers to 20 % of the highest and lowest values, respectively.
• For the purpose of this work, the weighted and truncated mean is a combination that
weights the central pixel equally strong as the truncated mean of all other pixels.
In addition to these simple statistical averaging methods also more advanced techniques, based
on the probability density function of the data sample could be applied. Considering that the
sample data does not necessarily follow a normal distribution, more advanced techniques could
further improve the method.
4.2 Implementation details
The implementation of optical flow approaches has great influence on the quality of the estimated
flow fields. Small changes in the code such as for instance the application of different filter kernels
may have a tremendous effect on the results. Different implementations of the same optical flow
model may lead to results that strongly differ from each other [Sun et al., 2014]. Therefore,
the algorithmic realization of the LBA has to be designed carefully and the influence of some
implementation details must be considered.
The approach was implemented in Matlab, which is a high-level language and an interactive
environment for numerical computation, visualization, and programming. Together with the
Image Processing Toolbox™ the software is a great tool for doing image processing. It has many
useful built-in functions such as SVD and supports vector as well as matrix operations. Program
writing and algorithm implementation is simple and fast, a reason why it is comfortable to use for
the development of new processes. Compared to languages like C/C++, Matlab can be quite
slow, particularly when many for-loops are used. However, for this project an easy adaptability
was more important than computation time and, therefore, the choice of Matlab is not critical.
4.2.1 Algorithm
A schematic overview of the algorithmic realization of the LBA is shown in Figure 4.7. It consists
mainly of three parts described in the following section.
64
4.2 Implementation details
input
training
data
output
action
selecting sample patches
learning typical
motion models
patch transformations
POD
motion
models
sequence
motion
models
parameter
estimation
image preprocessing
image gradients
solving optical flow problem
parameters
motion
models
parameters
constructing
the flow field
linear combination
masking
optical
flow field
Figure 4.7: Schematic overview of the processing pipeline. The different algorithmic components are displayed in blue.
Inputs and outputs are shown in red and green, respectively.
Learning typical motion models
The learning process is implemented as described in Section 4.1.2. From the training vector
fields, which serve as input, the sample patches are randomly chosen. These patches are altered
in the patch transformation block. The output in form of the typical motion models φk is
determined via POD. Notably, when appropriate motion models are known from a previous
learning process, the entire block can be omitted.
Parameter estimation
This is the main part of the algorithm. The parameters that define the displacement field are
estimated from the image sequence in dependence of the learned motion models. In some cases,
as for instance noisy images, preprocessing of the images yields improved optical flow fields.
Therefore, a smoothing operation in form of a convolution with a Gaussian kernel Kσ of standard
65
4 The learning-based approach
motion models
Figure 4.8: Illustration of the boundary pixel problem. At some pixel locations at the boundary of the image it
is not possible to use the entire motion
models because they extend beyond the
boundaries of the image. At these locations the motion models are shortened
by cropping the red area. At locations
where the motion models fit completely
into the image, they can be used as a
whole.
deviation σ is conducted (cf. Section 2.3.4). By the image smoothing the high frequencies that
are more error-prone than low frequencies are removed [Scharr, 2000]. With regard to particle
images, it also diffuses distinct particles isotropically and connects corresponding particles from
successive images, which is a requirement to obtain correct gradient images [Liu and Shen,
2008]. Gaussian smoothing is particularly of advantage for larger displacements. However,
smoothing must be applied carefully, because important image structures could be smoothed
out and destroyed. The size of the Gaussian kernel is given by ρ = 2 · d3σe + 1 with the
ceil operator dxe = min {k ∈ Z | k ≥ x}. Sun et al. [2014] compared a variety of preprocessing
operations and showed that the relatively simple Gaussian smoothing performs well compared
to other more advanced preprocessors.
In order to determine the gradient images, different filter operations are performed. Scharr
[2000] demonstrated that the choice of the filter kernel may have a large effect on the resulting
flow fields. All image derivatives are usually computed with the gradient filters optimized for
optical flow by Scharr [2007]. In the case of equidistant time steps between the single frames of
the image sequence, filters of size 5 × 5 × 5 are used. The filter kernel consists of the derivator
stencil [0.0836, 0.3327, 0, −0.3327, −0.0836] in direction of the derivation and the smoother stencil
[0.0233, 0.2415, 0.4704, 0.2415, 0.0233] in the two remaining directions. In the case of image pairs
a 5×5×2 filter with simple two point stencil [1, −1] in time direction is applied. At the boundaries
of the images the values of the boundary pixels are mirrored. This is necessary to obtain images
of full size, because the filter kernel extends beyond the boundary of the images (cf. Section
2.3.4). However, it is important to bare in mind, that the boundary values of the gradient
images, which could be determined in this way, may not be correct.
The optical flow problem itself is solved by one of the approaches introduced in Section 4.1.
Options are to imply the local, the variational or the robust variational approaches as well as
66
4.2 Implementation details
level 2 estimation
OF estimation
level 1 estimation
median filtering
level 0 estimation
+
up-sampling
OF estimation
warping
median filtering
up-sampling
warping
1st image
OF estimation
+
2nd image / warped image
Figure 4.9: Schematic drawing of the hierarchical optical flow approach with three levels. The algorithm starts at the
top pyramid level (q = 2) and continues towards finer levels until the bottom level (q = 0) is reached. The images are
taken from the scalar images of the 2D turbulent sequence provided by Carlier [2005b].
their statistical extensions. However, the output of the function is not the optical flow field itself
but a 3D array that defines a parameter vector α at each pixel location. Different parts of the
motion models are utilized depending on the location of the current pixel within the image. This
is necessary in order to obtain flow fields of the same size as the images. Otherwise it would not
be possible to determine optical flow vectors at boundary locations. The problem is illustrated
in Figure 4.8.
Constructing the flow field
The optical flow is given by the linear combination (4.1) of the estimated parameters and the
learned motion models. In the case of the normal LBA, the calculation of the optical flow field
is straight forward as described in Section 4.1.1. If the statistical LBA is used, the calculation
is only slightly more complicated (cf. Section 4.1.6).
The masking part is optional. In the case of stationary, visible flow boundaries in the images
(e.g., sequence ’a6’ described in Section 4.3.1), a binary masking image is used to set the flow
vectors within the boundary to zero. Therefore, the optical flow field is pixel wise multiplied by
the masking image, which consists of ’zeros’ at locations on the boundary and the object and
’ones’ at all other locations.
4.2.2 Hierarchical approach
In the case of relatively large displacements a hierarchical multi-scale approach is applied (cf.
Section 3.4.6). This is necessary because the linearized BCCE (3.6) is only valid for small
displacements. The principles of the hierarchical pyramid approach are sketched in Figure 4.9.
67
4 The learning-based approach
The basic steps are:
1. The Gauss pyramids of the two successive images I1 and I2 are calculated by
Ip(q) = (Kσ ∗ Ip(q−1) )↓r
with Gaussian kernel Kσ of standard deviation σ. The subscript p ∈ {1, 2} denotes the
image, q denotes the pyramid level, and ↓r denotes the down sampling rate (cf. Section
3.4.6). The value of the used standard deviation depends on the down sampling rate, it
is: σ =
1
↓r
− 1.
2. The optical flow field on the topmost pyramid level (image with lowest resolution) is
calculated.
3. Median filtering of the flow field.
4. Up-sampling of the flow field to fit the dimensions of the next finer pyramid level.
5. Backward warping of I2 towards I1 using the up-sampled optical flow field.
6. The residual motion field between the warped image Iw and I1 is estimated. To combine
the new flow increment with the actual flow field derived from previous steps, the flow
fields are added up.
7. Steps 3 - 6 are repeated until the bottom of the pyramid (image with highest resolution)
is reached. Finally the resulting optical flow field is given by the sum of the motion
increments from all pyramid levels.
The estimation of the optical flow field in steps 2 and 6 is done as described by the parts
parameter estimation and constructing the flow field shown in Figure 4.7 and described in Section
4.2.1. According to Sun et al. [2014], the median filtering performed during step 3 of the
intermediate flow field on every pyramid level is a key implementation detail, which strongly
improves the quality of the resulting optical flow field. In order to perform the image warping
in step 5, interpolation is necessary, in which the values of the flow vectors must be evaluated
between pixels due to their sub-pixel length. Usually, a bicubic interpolation is used.
4.3 Testing the approach
In order to investigate the properties and the performance of the LBA different tests were conducted. Therefore, the optical flow of several synthetically generated particle image sequences,
introduced in Section 4.3.1, was estimated. The influence of the model size on the resulting
optical flow field is observed in Section 4.3.3. The effect of the number and the composite of the
used motion models is analyzed in Section 4.3.4. In Section 4.3.5, the influence of the training
68
4.3 Testing the approach
Figure 4.10: The analytic set. From top to bottom and left to right, the first and the second image of sequence ’a1’
and the ground truth of sequence ’a1’, ’a2’, ’a3’, ’a4’, ’a5’, ’a6’, and ’a8’ are shown, respectively.
data used to learn the motion models is explored. The statistical versions of the LBA as well as
the rvLBA are analyzed in Section 4.3.6 and Section 4.3.7, respectively. Finally, the computation
times of the approaches are compared in Section 4.3.8. Within these tests, no presmoothing of
the images was applied. With regard to the many acronyms used in this section the reader is
referred to the list of abbreviations on page 121.
4.3.1 The test sequences
The analytic set provided by Carlier [2005b] was used as test sequences. The set is freely available
and can be downloaded from the FLUID project page (http://fluid.irisa.fr). It consists of seven
synthetically generated particle image sequences namely ’a1’, ’a2’, ’a3’, ’a4’, ’a5’, ’a6’, and ’a8’.
69
4 The learning-based approach
Table 4.1: Characteristics of the image sequences of the analytic set such as the dynamic range, the mean velocity,
and the standard deviation (std).
name
flow typ
’a1’
’a2’
’a3’
’a4’
’a5’
’a6’
’a8’
Poiseuille
Lamb-Oseen vortex
uniform
sink
vortex
cylinder with rotation
gradient
dynamic range
px frame
0.02 - 2
0.01
0.55
√ -√
2- 2
0.06 - 14.75
0.06 - 14.75
0 - 3.40
0 - 0.50
mean
px frame
1.33
0.45
√
2
0.14
0.14
1.02
0.25
std
px frame
0.59
0.08
0
0.21
0.21
0.60
0.14
A sequence called ’a7’ does not exist in the data set. Each sequence contains 41 images of size
256 × 256 px2 in 8-bit TIFF format. In order to generate the initial images of each sequence, the
same parameters such as particle size and particle concentration were used. The mean particle
diameter is 1.5 px and the particle number density (PND) is approximately 0.25 ppp (particles
per pixel). The image sequences are derived from computed flow fields that are also provided
together with the image sequences. They represent the correct solutions, (ground truth) of the
flow problems. In Figure 4.10 two subsequent frames of the first sequence are shown together
with the correct flow fields of all seven sequences.
Some properties of the flow fields are listed in Table 4.1. The Poiseuille (’a1’), the Lamb-Oseen
(’a2’), and the gradient (’a8’) flow are examples of viscous flows. Their velocity field directly
results from the solution of the Navier-Stokes equations. The Poiseuille flow describes the flow
between two parallel plates. The Lamb-Oseen vortex contains circular streamlines and radial
decreasing vorticity. The uniform (’a3’), the sink (’a4’), and the vortex flow (’a5’), as well as
the flow around a cylinder with rotation (’a6’) are potential flows and, therefore, the velocity
field is given by the gradient of the scalar potential field. One characteristic of potential flows is
that they are incompressible (∇ · u) and irrotational (∇ × u). The uniform flow contains flow
from bottom left to top right. The sink and the vortex is arranged at the corresponding image
center. According to Carlier [2005b], the flow around a cylinder with rotation is a superposition
of a uniform doublet and a vortex flow.
px
The particle displacement is mostly below 2 frame
. Only at the center of the sink (’a4’) and at
the center of the vortex flow (’a5’), as well as near the cylinder wall of the cylinder flow (’a6’)
the displacement extends this value in small local areas. Due to a linearization of the data term,
relatively small displacements are a requirement for most optical flow approaches. Otherwise,
multi-scale techniques must be applied in order to cope with large displacements (cf. Section
px
3.4.6). Since there are only a few locations where the displacement is larger than 2 frame
the
simple LBA without multi-scale methods was used for the test sequences.
The analytic set is considered to be a valuable test case for the LBA because it contains
many interesting, yet simple flow aspects such as gradients, curls, and sinks. Furthermore, the
70
4.3 Testing the approach
different flow fields of the set can be used to learn different motion models, and their suitability
to estimate the flow field of each sequence can be studied. A further advantage of the analytic
set is that the correct flow field is known and can be compared to the estimated flow field.
Therefore, the performance of the approach can easily be quantified using for instance the AAE
introduced in Section 3.5.
4.3.2 The learned motion models
Different sets of motion models were obtained from the correct flow fields of the analytic sequences. Each correct flow field is used as training data, from which the motion models were
learned, as described in Section 4.1.2. Additionally, a mixed set of motion models was learned
from training data that consisted of all seven correct flow fields. In Figure 4.11, the first k = 9
learned motion models of size ω = 11 × 11 × 1 are shown. Apart from the pictured 11 × 11 × 1
models, also other sets of motion models with different spatio-temporal sizes were learned. The
spatial dimension ranged from ρ = 5 to ρ = 21 and the temporal dimension from t = 1 to t = 7.
At first glance, it appears that the first two motion models of all sequences shown in Figure
4.11 contain almost translational motion in vertical and horizontal direction. Yet, especially the
models of ’a4’ and ’a5’ reveal some local variations of the flow vectors within the models. The
motion models two to nine from each sequence are considerably different from each other. They
share in common that local structures with smaller scales are contained in the higher models. In
some sequences, special models reminiscent of affine motion models are contained. For instance
the single rotation mode is present in the set of ’a2’, ’a5’, ’a6’, and the ’mixed’ sequence. Other
affine like models contained in some sequences are divergence, stretching, and shear. However,
the learned motion models provide some advantages compared to affine models. They may
contain, on the one hand, models that are suited to represent complex flow structures, which
cannot be represented by affine models, and on the other hand, only contain the fundamental
models tailored to the specific problem. In Figure 4.12 spatio-temporal motion models of size
11 × 11 × 7 of sequence ’a6’ are depicted. However, these spatio-temporal models contain almost
no temporal variation, since the flow field is stationary.
For motion models embodied by later POD modes, the energy or information content becomes
smaller. This can be seen in Figure 4.13 where the RIC (cf. Section 2.2.4) is shown for the
different sequences. As shown in Equation (2.12) the RIC defines the fraction of the total
energy that can be represented by the first K motion models. Figure 4.13 shows that the
convergence rates are different for the different sequences. For some sequences such as ’a1’, ’a2’,
’a3’ and ’a8’, the first two to five motion models are sufficient to represent virtually the whole
energy of the corresponding sequence. In the case of sequence ’a3’ the first two models represent
literally 100 % of the complete information, which is anticipated, because the sequence only
contains uniform motion with no variations. Thus, the models three to nine of ’a3’ displayed in
Figure 4.11 are somewhat meaningless. The sequences ’a4’, ’a5’, ’a6’, and ’mixed’ require even
more models than those nine shown in Figure 4.11 in order to represent the entire energy of the
71
4 The learning-based approach
k
'a1'
'a2'
'a3'
'a4'
'a5'
'a6'
'a8'
'mixed'
1
2
3
4
5
6
7
8
9
Figure 4.11: The first nine motion models of size ω = 11 × 11 × 1 learned from the correct flow fields of the different
sequences of the analytic set. Column 8 contains motion models that were learned from a mixed set of all seven
sequences. The length of the vectors is individually scaled for each POD mode.
72
4.3 Testing the approach
10
8
y
6
4
2
2
x
4
6
8
10
10
8
y
6
4
2
2
x
4
6
8
10
10
8
y
6
4
2
2
x
4
6
8
10
10
8
y
6
4
2
2
x
4
6
8
10
1
2
3
4
5
6
7
t
Figure 4.12: The first four motion models of size ω = 11 × 11 × 7 learned from the correct flow field of sequence ’a6’.
Because the flow field is stationary there are almost no variations between different time steps.
73
4 The learning-based approach
1
RIC
0.8
0.6
0.4
’a1’
’a2’
’a3’
’a4’
’a5’
’a6’
’a8’
’mixed’
0.2
0
5
10
K
15
20
25
Figure 4.13: RIC of the different sequences of the analytic set
shown for the first K = 25 motion models of size 11 × 11 × 1.
corresponding sequence. Especially for ’a4’ and ’a5’ this may be due to the very center of the
sequences where many variations, strong gradients, and relatively large motions are present. It
seems that most relevant motions are covered by the first few models as evident from the motion
models in Figure 4.11.
4.3.3 Influence of the model size
In order to investigate the influence of the size of the learned motion models on the resulting
optical flow field, the flow fields of the seven image sequences of the analytic set were estimated
with varying model sizes with the LBA. For each sequence, the motion models obtained by
using the own correct flow field as training data, were used. The first nine motion models of size
ω = 11 × 11 × 1 are displayed in Figure 4.11. These own motion models are perfectly suited for
the particular sequence, since they innately contain all relevant flow structures.
To quantify the performance of the LBA, the AAE defined in Section 3.5.1 was calculated.
The results are given in Table 4.2 and Table 4.3 for the lLBA and the vLBA, respectively. The
AAE is quoted together with its standard deviation. To obtain these results the number of used
motion models was kept fixed to K = 6. Yet, in many cases this is not the optimal choice
for K as shown in Section 4.3.4, where the influence of the number of used motion models is
investigated. The minimal reached AAE of each sequence is highlighted in blue. Additionally,
the dependency of the AAE on the model size is shown for the lLBA and the vLBA in Figure
4.14 and Figure 4.15, respectively. Because the plots of ’a2’ and ’a8’ look very similar to the
one of ’a1’ and the plot of ’a4’ looks similar to the one of ’a5’, they are not shown.
As can be seen from both tables and both figures, the AAE essentially decreases with increasing
size of the motion models. Increasing the model size leads to a higher number of constraint
74
4.3 Testing the approach
Table 4.2: Dependency of the lLBA on the model size for the analytic set. The spatial size is denoted by ρ and the
temporal size by t. In all cases the number of used motion models was K = 6. The minimal AAE of each sequence is
highlighted in blue.
’a1’
’a2’
’a3’
AAE [◦ ]
’a4’
1.34 ± 1.41
0.75 ± 0.60
0.48 ± 0.43
0.39 ± 0.34
0.28 ± 0.24
0.22 ± 0.23
0.27 ± 0.26
0.20 ± 0.20
0.17 ± 0.19
0.21 ± 0.21
0.18 ± 0.18
0.15 ± 0.16
0.67 ± 0.48
0.41 ± 0.32
0.24 ± 0.22
0.29 ± 0.24
0.18 ± 0.21
0.12 ± 0.18
0.22 ± 0.19
0.14 ± 0.17
0.10 ± 0.15
0.18 ± 0.15
0.13 ± 0.13
0.10 ± 0.12
0.42 ± 1.38
0.09 ± 0.63
0.06 ± 0.44
0.12 ± 0.57
0.09 ± 0.43
0.09 ± 0.38
0.12 ± 0.45
0.10 ± 0.37
0.10 ± 0.33
0.12 ± 0.36
0.11 ± 0.31
0.11 ± 0.28
0.69 ± 2.07
0.46 ± 1.48
0.64 ± 1.98
0.91 ± 1.85
0.34 ± 1.31
0.36 ± 1.25
0.42 ± 1.42
0.44 ± 1.26
0.44 ± 1.16
0.42 ± 1.62
0.41 ± 1.34
0.44 ± 1.30
size
ρ
t
5
5
5
11
11
11
15
15
15
21
21
21
1
3
7
1
3
7
1
3
7
1
3
7
’a1’
1.4
0.8
0.6
0.4
0.65 ± 2.09
0.92 ± 1.38
0.79 ± 1.66
0.58 ± 1.69
0.59 ± 1.09
0.20 ± 1.42
0.44 ± 1.56
0.36 ± 1.16
0.23 ± 1.41
0.42 ± 1.55
0.35 ± 1.50
0.54 ± 1.29
1.69 ± 5.20
0.80 ± 2.15
0.52 ± 1.18
0.71 ± 2.55
0.45 ± 1.10
0.31 ± 0.78
0.50 ± 1.52
0.38 ± 0.86
0.32 ± 0.69
0.44 ± 0.91
0.39 ± 0.74
0.34 ± 0.65
0.49 ± 0.45
0.29 ± 0.32
0.16 ± 0.22
0.23 ± 0.28
0.14 ± 0.21
0.08 ± 0.18
0.17 ± 0.22
0.11 ± 0.18
0.07 ± 0.15
0.13 ± 0.19
0.08 ± 0.16
0.05 ± 0.13
t=1
t=3
t=7
0.3
0.2
0.1
0.2
5
1
10
15
spatial size
’a5’
0
20
t=1
t=3
t=7
0.8
0.6
0.4
5
10
15
spatial size
’a6’
20
t=1
t=3
t=7
1.5
AAE
AAE
’a8’
0.4
AAE
AAE
1
’a6’
’a3’
0.5
t=1
t=3
t=7
1.2
’a5’
1
0.5
0.2
5
10
15
spatial size
20
5
10
15
spatial size
20
Figure 4.14: Dependency of the AAE of the lLBA on the model size of the sequences ’a1’,’a3’,’a5’, and ’a6’ (from top
left to bottom right). The parameter t denotes the temporal dimension of the motion models. The number of used
motion models was K = 6.
75
4 The learning-based approach
Table 4.3: Dependency of the vLBA on the model size for the analytic set. The spatial size is denoted by ρ and the
temporal size by t. In all cases the number of used motion models was K = 6. The minimal AAE of each sequence is
highlighted in blue.
’a1’
’a2’
’a3’
AAE [◦ ]
’a4’
’a5’
’a6’
’a8’
0.27 ± 0.26
0.24 ± 0.25
0.21 ± 0.24
0.23 ± 0.24
0.20 ± 0.19
0.17 ± 0.18
0.22 ± 0.23
0.17 ± 0.16
0.15 ± 0.16
0.18 ± 0.17
0.15 ± 0.15
0.13 ± 0.14
0.28 ± 0.15
0.15 ± 0.14
0.12 ± 0.12
0.19 ± 0.14
0.13 ± 0.13
0.10 ± 0.14
0.18 ± 0.13
0.13 ± 0.12
0.09 ± 0.13
0.17 ± 0.12
0.12 ± 0.12
0.10 ± 0.11
0.11 ± 0.40
0.08 ± 0.53
0.06 ± 0.39
0.11 ± 0.38
0.10 ± 0.31
0.09 ± 0.37
0.11 ± 0.34
0.10 ± 0.29
0.10 ± 0.27
0.12 ± 0.28
0.11 ± 0.24
0.11 ± 0.23
0.35 ± 2.00
0.27 ± 1.97
0.50 ± 1.55
0.55 ± 1.69
0.27 ± 1.40
0.28 ± 1.31
0.33 ± 1.91
0.41 ± 1.38
0.42 ± 1.33
0.40 ± 1.99
0.38 ± 1.78
0.42 ± 1.43
0.38 ± 2.42
0.57 ± 1.49
0.48 ± 1.56
0.51 ± 1.78
0.51 ± 1.25
0.18 ± 1.53
0.41 ± 1.76
0.34 ± 1.44
0.22 ± 1.53
0.41 ± 1.75
0.34 ± 1.59
0.54 ± 1.47
0.45 ± 1.24
0.37 ± 1.12
0.31 ± 0.81
0.42 ± 1.16
0.36 ± 0.89
0.27 ± 0.76
0.41 ± 1.11
0.35 ± 0.82
0.31 ± 0.71
0.41 ± 0.83
0.38 ± 0.77
0.34 ± 0.67
0.14 ± 0.14
0.10 ± 0.13
0.06 ± 0.11
0.13 ± 0.14
0.09 ± 0.12
0.06 ± 0.12
0.12 ± 0.14
0.08 ± 0.12
0.06 ± 0.11
0.11 ± 0.13
0.08 ± 0.13
0.05 ± 0.12
size
ρ
t
5
5
5
11
11
11
15
15
15
21
21
21
1
3
7
1
3
7
1
3
7
1
3
7
’a1’
0.35
t=1
t=3
t=7
0.3
0.25
0.2
5
10
15
spatial size
0
20
5
’a5’
1
10
15
spatial size
20
’a6’
t=1
t=3
t=7
0.8
0.6
0.4
t=1
t=3
t=7
0.6
AAE
AAE
0.2
0.1
0.15
0.1
t=1
t=3
t=7
0.3
AAE
AAE
’a3’
0.5
0.4
0.3
0.2
5
10
15
spatial size
20
5
10
15
spatial size
20
Figure 4.15: Dependency of the AAE of the vLBA on the model size of the sequences ’a1’,’a3’,’a5’, and ’a6’ (from
top left to bottom right). The parameter t denotes the temporal dimension of the motion models. The number of
used motion models was K = 6.
76
4.3 Testing the approach
equations. Because the number of unknown coefficients is equal for different models sizes this
leads to higher accuracy. However, in some cases as for instance the sequences ’a5’ and ’a6’, the
AAE is minimal for the size ω = 11 × 11 × 7 and increases again for larger model sizes. The
minimal AAE of sequence ’a4’ is reached for ω = 11 × 11 × 3. It is the sole sequence for which
the optimal temporal dimension differs from t = 7. As the ideal model size also depends on the
number of used motion models, this influence is investigated in Section 4.3.4. In this section also
the combination of model size and number of used models that yield the lowest error values are
given. The sequence ’a3’ is somewhat special, because the optimal model size is ω = 5 × 5 × 7.
This may be due to the fact, that the displacement field shows absolutely no variations and,
therefore, an increased model rather introduces some errors than new information. Strikingly,
the ideal model sizes are the same for the lLBA and the vLBA.
In Figure 4.16 the AE of the Lamb-Oseen vortex sequence (’a2’) is shown for various model
sizes for the vLBA. With increasing model size the values of the AE decrease. For spatial size
ρ = 5 and temporal size t = 1, there are some areas of relatively strong errors around the vortex
center. These error values become smaller with increasing spatial and temporal dimensions. In
accordance with Table 4.3 the error values are lowest for ρ = 15 and t = 7 and increase again
for ρ = 21. However, if the number of used motion models is optimized for each spatial and
temporal model size, the evolution of the error values is slightly different. The AE values of
sequence ’a2’ obtained with the vLBA with optimized K for different model sizes is shown in
Figure 4.17. A comparison of Figure 4.16 with Figure 4.17 clearly demonstrates that the effect
of the number of used motion models on the resulting flow field is not negligible. Therefore, the
influence of the number of used motion models on the resulting flow field is investigated in the
next section.
4.3.4 Influence of the number of used motion models
To examine the influence of the number of POD modes (K) included in the flow model, Figure
4.18 shows the dependency of the AAE on K for all sequences of the analytic set. The figure
contains a plot for the lLBA on the left side and a plot for the vLBA on the right side. The
trends of both methods are very similar. Essentially, the estimated optical flow field becomes
more accurate with increasing K, as indicated by the decreasing values of the AAE. The effect
on the AAE is quite strong for the first few motion models. This implies that these motion
models contain the most important flow structures and, therefore, must be included in the set
of motion models for an accurate estimation of the optical flow. This is not surprising, because
by using POD the motion models were constructed such that the first models contain the most
information (cf. Section 2.2). For a particular K, which depends on each sequence, a minimum
value of the AAE is reached. A further increase of K leads to a plateau of the AAE or to slightly
increased values again. Therefore, it is crucial to choose the number K of POD modes, included
in the set of motion models, to be sufficiently large. However, choosing K too large may lead
to slightly decreased results and unnecessarily long calculation times as shown in Section 4.3.8.
77
4 The learning-based approach
t=1
t=2
t=3
AE[°]
ρ= 5
0.6
0.5
ρ=11
0.4
0.3
ρ=15
0.2
0.1
ρ=21
Figure 4.16: AE of sequence ’a2’ for different spatial (ρ) and temporal (t) dimensions of the motion models. The
optical flow field was estimated with the vLBA. A fixed number of motion models (K = 6) was used for each model
size. The corresponding AAE values are given in Table 4.3.
78
4.3 Testing the approach
t=1
t=2
t=3
AE[°]
ρ= 5
0.6
AAE = 0.21°
K=4
AAE = 0.15°
K=5
AAE = 0.11°
K=5
0.5
ρ=11
0.4
AAE = 0.18°
K=5
AAE = 0.12°
K=5
AAE = 0.09°
K=5
0.3
ρ=15
0.2
AAE = 0.17°
K=5
AAE = 0.13°
K=5
AAE = 0.09°
K=7
0.1
ρ=21
AAE = 0.16°
K=5
AAE = 0.11°
K=9
AAE = 0.08°
K=9
Figure 4.17: AE of sequence ’a2’ for different spatial (ρ) and temporal (t) dimensions of the motion models. The
optical flow field was estimated with the vLBA. The number of used motion models was optimized for each spatial
and temporal model size. Each optimal value of the AAE is shown together with the used number of motion models
K below the images.
79
4 The learning-based approach
lLBA
vLBA
AAE
0.8
0.6
0.8
0.6
0.4
0.4
0.2
0.2
0
5
10
K
15
20
25
’a1’
’a2’
’a3’
’a4’
’a5’
’a6’
’a8’
1
AAE
’a1’
’a2’
’a3’
’a4’
’a5’
’a6’
’a8’
1
0
5
10
K
15
20
25
Figure 4.18: Influence of the number of motion models K on the AAE for the lLBA (left) and the vLBA (right). The
size of the used motion models was ω = 21 × 21 × 7.
The sequence ’a6’ and especially the sequences ’a4’ and ’a5’ require a larger number of motion
models compared to other sequences to reach a minimum of the AAE. The same prediction can
be obtained from the plot of the RIC shown in Figure 4.13, which indicates that these three
sequences require many more POD modes than the other sequences in order to represent the
complete information.
The effect of omitting single motion models on the resulting AAE is shown in Table 4.4. In
the case of important POD modes not being included in the set of motion models the AAE
is up to several hundred times higher than the AAE obtained using the complete set. In this
case the total number of POD modes in the set of motion models was reduced to the first nine
modes. The motion models shown in Figure 4.11 are similar to the models used in Table 4.4.
Yet, they are not equal, because they are of different dimensions. The models from Table 4.4
are of size ω = 15 × 15 × 7 and the models shown in Figure 4.11 are of size ω = 11 × 11 × 1.
The main difference is the inclusion of temporal information in the models used in Table 4.4.
Nevertheless, the 11 × 11 × 1 motion models of Figure 4.11 give a comprehensive overview of the
general appearance of the motion models.
The largest effect on the AAE has as expected the omission of one of the first two POD modes,
which describe translation like motion in two orthogonal directions. Without these important
POD modes an estimation of the flow field is virtually not feasible. For the sequences ’a1’
and ’a8’, which contain no movement in vertical direction, omitting the first mode, which is
responsible for the gross movement in vertical direction, has no negative effect on the result, in
fact the AAE is even slightly lower. However, there are also other important modes in most
sets of motion models. For instance the third POD mode of the ’a2’ model contains rotational
motion. Excluding this mode leads to an AAE, which is twice as high as the AAE obtained with
all nine motion models. The fourth and the fifth mode of this sequence also have a comparable
80
4.3 Testing the approach
Table 4.4: Results in form of the AAE of the lLBA omitting individual motion models. The first column indicates
which models were omitted from the set of nine motion models. For all sequences a model size of ω = 15 × 15 × 7
was chosen. The results for the vLBA are similar.
omit
k
’a1’
’a2’
1
2
3
4
5
6
7
8
9
1,2
3,4
3,4,5
0.18 ± 0.19
0.17 ± 0.20
45.82 ± 24.10
0.61 ± 0.71
0.18 ± 0.19
0.16 ± 0.18
0.16 ± 0.21
0.17 ± 0.19
0.18 ± 0.19
0.17 ± 0.19
45.24 ± 24.25
0.60 ± 0.71
0.69 ± 0.82
0.11 ± 0.16
13.88 ± 8.38
13.90 ± 8.30
0.25 ± 0.32
0.24 ± 0.19
0.20 ± 0.19
0.11 ± 0.17
0.11 ± 0.17
0.10 ± 0.15
0.10 ± 0.16
21.55 ± 7.85
0.36 ± 0.31
0.41 ± 0.30
’a3’
AAE [◦ ]
’a4’
’a5’
’a6’
’a8’
0.10 ± 0.33
35.31 ± 5.26
33.68 ± 7.98
0.10 ± 0.33
0.10 ± 0.33
0.10 ± 0.33
0.10 ± 0.33
0.10 ± 0.33
0.10 ± 0.33
0.10 ± 0.33
51.48 ± 8.07
0.10 ± 0.33
0.10 ± 0.33
0.41 ± 1.12
5.83 ± 5.52
5.80 ± 5.37
0.43 ± 1.48
0.46 ± 1.18
0.47 ± 1.22
0.69 ± 1.54
0.69 ± 1.54
0.43 ± 1.14
0.43 ± 1.15
8.89 ± 6.56
0.48 ± 1.54
0.54 ± 1.65
0.23 ± 1.39
5.13 ± 5.06
5.16 ± 5.06
0.25 ± 1.81
0.31 ± 1.48
0.34 ± 1.49
0.40 ± 1.73
0.42 ± 1.73
0.23 ± 1.39
0.22 ± 1.41
7.90 ± 6.15
0.33 ± 1.92
0.43 ± 2.01
0.30 ± 0.75
13.26 ± 11.63
32.94 ± 22.15
0.31 ± 0.73
0.45 ± 0.81
0.44 ± 0.78
0.32 ± 0.76
0.32 ± 0.74
0.31 ± 0.71
0.31 ± 0.73
36.79 ± 23.66
0.46 ± 0.84
0.57 ± 0.91
0.07 ± 0.16
0.06 ± 0.14
13.83 ± 7.83
0.07 ± 0.16
0.26 ± 0.20
0.06 ± 0.14
0.07 ± 0.16
0.07 ± 0.16
0.07 ± 0.15
0.07 ± 0.16
13.71 ± 7.77
0.26 ± 0.19
0.25 ± 0.17
Table 4.5: Comparison of the best AAE obtained with the lLBA and the vLBA, respectively. The error values are
written side by side and listed together with the relevant parameters. The minimal AAE of each sequence is highlighted
in blue. In the case of the sequences ’a1’ and ’a3’, the results are the same, but the standard deviation of the vLBA is
lower.
seq
ρ
t
lLBA
K
AAE [◦ ]
’a1’
’a2’
’a3’
’a4’
’a5’
’a6’
’a8’
21
21
5
21
11
15
21
7
7
7
7
7
7
7
4
9
2
18
22
8
3
0.131 ± 0.152
0.082 ± 0.137
0.058 ± 0.420
0.212 ± 1.125
0.194 ± 1.436
0.305 ± 0.747
0.047 ± 0.097
AAE [◦ ]
0.131 ± 0.150
0.075 ± 0.118
0.058 ± 0.378
0.182 ± 1.474
0.175 ± 1.547
0.271 ± 0.756
0.046 ± 0.094
vLBA
ρ
t
K
λ
21
21
5
15
11
11
21
4
9
2
25
22
8
3
0.0001
0.0010
0.0001
0.0010
0.0005
0.0010
0.0005
7
7
7
7
7
7
7
effect on the resulting AAE. Omitting all three models simultaneously, deteriorates the result
almost by a factor of four. This finding fits to the RIC of ’a2’. The plot of the RIC, which is
shown in Figure 4.13, indicates that the first five POD modes include nearly 100% of the total
information of sequence ’a2’. An extreme case is sequence ’a3’, which has only two important
POD modes, namely the first and the second one. This can either be seen from Figure 4.13 or
from Table 4.4, which show that, if the first two modes are included within the set of motion
models the result is always the same, independent of whether or not other modes are included.
The lowest values of the AAE that were achieved with the lLBA and the vLBA are shown in
Table 4.5 together with the important parameters. In order to obtain these optimal values, the
parameters ρ and t as well as the number of used motion models K, and in case of the vLBA
also the weight parameter λ of the smoothness term (cf. Section 4.1.4) were optimized for each
sequence individually. To this end ρ and t denote the spatial and temporal dimensions of the
81
4 The learning-based approach
'a1'
'a2'
0.35
'a3'
0.2
0.3
0.25
0.15
0.1
0.05
0.05
1.5
0.06
0.1
2.5
2
0.08
0.15
0.2
'a4'
0.1
0.04
1
0.02
0.5
0
'a5'
2.5
'a6'
2.5
2
2
1.5
1.5
1
1
0.5
0.5
0
0
'a1'
'a2'
0.35
'a8'
0.15
0.1
0.05
'a3'
0.1
0.2
0.3
0.25
0.08
0.15
0.2
0.06
0.1
0.15
0.1
0.05
0.05
'a4'
2.5
2
1.5
0.04
1
0.02
0.5
0
'a5'
'a6'
'a8'
2.5
2.5
2
2
1.5
1.5
1
1
0.5
0.5
0
0
0.15
0.1
0.05
Figure 4.19: AE (color coded) of each sequence for the lLBA (both top rows) and the vLBA (both bottom rows). The
parameters were chosen such that the lowest values of the AAE were obtained (cf. Table 4.5). Consider the different
color ranges of the different sequences. For sequences ’a4’, ’a5’, and ’a6’, the cutoff AAE value is 2.5◦ , which means
that values larger or equal 2.5◦ are displayed in the same color.
motion models. Therefore, the parameters were chosen from different sets: ρ ∈ {5, 11, 15, 21},
t ∈ {1, 3, 7}, K ∈ {2, . . . , 25}, and λ ∈ {0.0001, 0.0005, 0.001, 0.005, 0.01, 0.02}. As explained in
Section 4.1.4 a maximum number of 50 iteration steps and a SOR parameter ω = 1.8 was used
for the vLBA.
The Table 4.5 reveals that for most sequences the results of the vLBA are better than the
results obtained with the lLBA. For the sequences ’a1’ and ’a3’, the values of the AAE are
equal. Nevertheless, in these two cases the standard deviation of the errors obtained with the
vLBA is lower. The largest difference between both approaches was obtained for the sequences
’a4’, ’a5’, and ’a6’. Overall, the vLBA appears to be the favorable method. This may be due to
the filling-in effect introduced by the regularization term, which spreads information to image
locations were the aperture problem is present.
82
4.3 Testing the approach
Table 4.6: Influence of the utilized set of motion models on the estimated flow field. Each column of the table contains
results in form of the AAE of the lLBA for one particular sequence obtained with different motion models. The motion
models in the ’HS’ row were learned from the Horn and Schunck flow field of the corresponding sequences. For each
value, the spatial and temporal model size as well as the number of used motion models was optimized. All parameters
are listed in Tabel 4.7. The minimal AAE of each sequence is highlighted in blue.
model
’a1’
’a2’
’a3’
AAE [◦ ]
’a4’
’a1’
’a2’
’a3’
’a4’
’a5’
’a6’
’a8’
’mixed’
’HS’
0.13 ± 0.15
0.11 ± 0.16
0.55 ± 0.63
0.66 ± 0.81
0.28 ± 0.31
0.14 ± 0.20
0.16 ± 0.15
0.14 ± 0.20
0.14 ± 0.15
0.20 ± 0.18
0.08 ± 0.14
0.36 ± 0.28
0.39 ± 0.46
0.19 ± 0.22
0.11 ± 0.16
0.20 ± 0.18
0.11 ± 0.16
0.09 ± 0.13
0.05 ± 0.32
0.05 ± 0.30
0.06 ± 0.42
0.16 ± 0.28
0.08 ± 0.34
0.08 ± 0.34
0.06 ± 0.41
0.06 ± 0.42
0.04 ± 0.23
0.27 ± 1.87
0.19 ± 1.80
0.33 ± 1.94
0.21 ± 1.12
0.22 ± 1.57
0.21 ± 1.79
0.27 ± 1.87
0.20 ± 1.68
0.17 ± 1.27
’a5’
’a6’
’a8’
0.27 ± 1.76
0.16 ± 1.31
0.34 ± 2.11
0.29 ± 2.15
0.19 ± 1.44
0.17 ± 1.20
0.27 ± 1.77
0.19 ± 1.23
0.16 ± 1.33
0.38 ± 0.81
0.23 ± 0.68
0.47 ± 0.82
0.35 ± 0.77
0.29 ± 0.77
0.30 ± 0.75
0.38 ± 0.81
0.27 ± 0.78
0.26 ± 0.76
0.06 ± 0.11
0.07 ± 0.14
0.23 ± 0.17
0.31 ± 0.24
0.14 ± 0.19
0.09 ± 0.15
0.05 ± 0.10
0.07 ± 0.15
0.05 ± 0.12
Table 4.7: The optimal parameter values for the number of motion models K ∈ {2, . . . , 25}, the spatial model size
ρ ∈ {5, 11, 15, 21}, and the temporal model size t ∈ {1, 3, 7} that yielded the AAE values listed in Table 4.6. Marked
in blue are the parameters corresponding to the minimal error values of each sequence.
model
K
’a1’
ρ
t
K
’a2’
ρ
t
K
’a3’
ρ
t
K
’a4’
ρ
t
K
’a5’
ρ
t
K
’a6’
ρ
t
K
’a8’
ρ
t
’a1’
’a2’
’a3’
’a4’
’a5’
’a6’
’a8’
’mixed’
’HS’
4
6
15
16
19
4
3
4
4
21
21
11
11
15
15
15
15
21
7
7
7
7
7
7
7
7
7
4
9
3
25
24
5
4
5
9
11
21
11
15
11
15
11
15
21
7
7
7
7
7
7
7
7
7
6
13
2
23
25
6
3
2
13
5
5
5
5
5
5
5
5
5
7
7
7
7
7
7
7
7
7
4
5
2
18
25
5
4
7
9
11
11
11
21
11
11
11
11
15
7
7
7
7
7
7
7
7
7
4
20
4
25
22
5
4
10
9
11
21
11
15
11
15
11
11
15
7
7
7
7
7
7
7
7
7
4
12
3
25
22
9
4
5
5
11
21
11
15
11
15
11
11
11
7
7
7
7
7
7
7
7
7
6
9
2
25
24
4
3
4
4
21
21
11
15
11
15
21
15
21
7
7
7
7
7
7
7
7
7
Images of the AE corresponding to the AAE values and the respective parameters given in
Table 4.5 are shown for the lLBA and the vLBA in Figure 4.19. In order to eliminate the error
values introduced at the image boundaries by the convolution with the gradient filter kernels (cf.
Section 2.3.4), the AE images were slightly cropped. For a better visibility, the range of the color
bar of the sequences ’a4’, ’a5’, and ’a6’ was restricted to the interval [0, 2.5]. AE values larger
or equal 2.5◦ are displayed in the same color. A visual comparison of the corresponding images
from both methods shows, that the images obtained with the vLBA are slightly smoother than
the ones obtained with the lLBA. Small error spikes obtained by the local approach were slightly
smoothed down by the global approach which is due to the additional smoothness constraint
used within the vLBA.
83
4 The learning-based approach
4.3.5 Influence of the training data
So far only motion models learned from the own correct flow fields of each sequence were used
to estimate the optical flow fields with the LBA. In this section, the effect of the utilized motion
models on the achieved AAE and therewith the optical flow field is described. All eight sets
of motion models displayed for ω = 11 × 11 × 1 in Figure 4.11, were utilized to estimate the
flow field of each sequence. In addition to the seven sets of motion models learned from the
seven sequences, the mixed set was used. This means that for instance for the estimation of
the flow field of sequence ’a1’, the motion models obtained from ’a1’ as well as the remaining
sets of motion models were utilized. Furthermore, also motion models learned from flow fields
previously determined with the standard Horn and Schuck optical flow approach [Horn and
Schunck, 1981] described in Section 3.4.4, were employed. In this case, only the Horn and
Schunck flow fields learned from each sequence were used to determine the optical flow field of
this particular sequence.
The results in from of the AAE obtained with the lLBA are given in Table 4.6. For each combination, the parameter values yielding the lowest AAE were chosen. Each parameter selection
is listed in Table 4.7. The AAE values obtained with the vLBA are generally lower than those
obtained with the lLBA. The conclusion about the applicability of each set of motion models is
the same for both methods and, therefore, these results are not shown here.
The results of each particular sequence obtained with the own motion models were always
amongst the best, but they were mostly not the very best choice. Overall, the motion models
learned from ’a2’ yielded the lowest error values and, therefore, these motion models are perfectly
suited for most of the analytic sequences. Only for ’a3’, ’a4’, and ’a8’, the ’a2’ motion models
did not yield the lowest AAE, nevertheless, the results were second-best for these three cases.
The motion models learned from ’a6’, ’mixed’, and ’HS’ yielded also very good results for all
sequences. It is not surprising that the motion models of the three sequences ’a2’, ’a6’ and
’mixed’ yielded similar results, because the first few motion models look similar (cf. Figure
4.11). The ’HS’ motion models are different for each sequence, because they were learned from
each Horn and Schunck flow field of the particular sequence. For the sequences ’a3’ and ’a4’,
these motion models yielded the lowest AAE.
On the other hand the motion models learned from ’a3’ performed very poorly for all sequences
apart from ’a3’ itself. This may be due to the fact, that this set in essence contains only two
models with constant motion in two perpendicular directions and, therefore, cannot accurately
model advanced flow structures. The performance of the motion models learned from ’a1’, ’a5’,
and especially from ’a4’ was worse compared to the other models.
Table 4.7 indicates that if the models learned from ’a4’ and ’a5’ were used, a relatively large
number of motion models was required in order to reach the lowest error value of each sequence
that is possible with these sets of motion models. If the models learned from ’a3’ were used,
the number of used motion models was usually low, because this sequence contains only two
expedient modes. For the motion models learned from the other sequences, K ranged between
84
4.3 Testing the approach
Table 4.8: AAE obtained with the statistical lLBA. The parameters Nρ , Nt , and the averaging method were chosen
to yield the lowest error values. The last column contains the values from Table 4.5 obtained with the normal lLBA.
The minimal AAE of each sequence is highlighted in blue.
AAE [◦ ]
seq
ρ
t
K
method
Nρ
Nt
slLBA
lLBA
’a1’
’a2’
’a3’
’a4’
’a5’
’a6’
’a8’
21
21
5
21
11
15
21
7
7
7
7
7
7
7
4
9
2
18
22
9
3
mean
med
med
tmean
tmean
tmean
med
11
11
5
7
3
9
11
1
1
1
3
7
7
1
0.119 ± 0.143
0.070 ± 0.135
0.040 ± 0.291
0.170 ± 1.165
0.186 ± 1.406
0.242 ± 0.730
0.043 ± 0.094
0.131 ± 0.152
0.082 ± 0.137
0.058 ± 0.420
0.212 ± 1.125
0.194 ± 1.436
0.305 ± 0.756
0.047 ± 0.097
Table 4.9: AAE obtained with the statistical vLBA. The parameters Nρ , Nt , and the averaging method were chosen
to yield the lowest error values. The last column contains the values from Table 4.5 obtained with the normal vLBA.
The minimal AAE of each sequence is highlighted in blue.
seq
ρ
t
K
λ
method
Nρ
Nt
’a1’
’a2’
’a3’
’a4’
’a5’
’a6’
’a8’
21
21
5
15
11
11
21
7
7
7
7
7
7
7
4
9
2
25
22
8
3
0.0001
0.0010
0.0001
0.0010
0.0005
0.0010
0.0005
mean
med
med
mean
tmean
tmean
med
11
11
5
11
3
7
11
1
1
1
1
7
7
1
AAE [◦ ]
svLBA
0.120 ± 0.142
0.069 ± 0.117
0.047 ± 0.300
0.173 ± 1.451
0.174 ± 1.527
0.254 ± 0.760
0.043 ± 0.092
vLBA
0.131 ± 0.150
0.075 ± 0.118
0.058 ± 0.378
0.182 ± 1.474
0.175 ± 1.547
0.271 ± 0.756
0.046 ± 0.094
four and nine. The ideal number of motion models depended on each set of learned motion
models and was related to the RIC of the particular set. The spatial dimension ranged from
ρ = 11 to ρ = 21 with exception of sequence ’a3’ where the ideal size was ρ = 5 for all sets of
motion models. The ideal temporal dimension was in any case t = 7.
Table 4.6 shows that the results obtained with foreign motion models are comparable to, or
in many cases even better than the results obtained with the own motion models. Therefore, it
is possible to use existing vector fields of known flow problems with similar flow features than
the one of interest to determine the optical flow field. The usage of motion models learned from
flow fields, that were previously determined with alternative methods is also possible.
4.3.6 Statistical approach
In order to test the statistical LBA the flow fields of the analytic sets were estimated using the
motion models learned from their own correct flow fields. The lowest achieved AAE values are
shown in Table 4.8 and Table 4.9 for the statistical local learning-based approach (slLBA) and
the statistical variational learning-based approach (svLBA), respectively. Thereby, the optimal
parameter values for ρ, t, and K given in Table 4.5 were adopted. The parameters Nρ and Nt
denote the number of vector patches in each spatial and the temporal direction from which the
85
4 The learning-based approach
1000
ucorrect
900
700
vnone
umed
600
vmed
utmean
500
vtmean
700
uwmean
600
uwtmean
vmean
vwmean
vwtmean
400
500
400
300
300
200
200
100
100
0
−0.4895
vcorrect
unone
umean
800
800
−0.489
−0.4885
−0.488
u
−0.4875
−0.487
−0.4865
−0.486
0
0.1685 0.169 0.1695 0.17 0.1705 0.171 0.1715 0.172 0.1725 0.173 0.1735
v
Figure 4.20: Kernel density estimations of the samples of the statistical lLBA at a particular location (44, 99) of
sequence ’a2’. Left: Horizontal vector components. Right: Vertical vector components. The colored lines show the
displacement in pixels obtained with different averaging methods.
statistical sample data was taken. Therefore, they control the total number of flow estimates
within the data sample, which is given by 2 · Nρ · Nt . In order to obtain the lowest AAE, the
five averaging methods introduced in Section 4.1.6 were tested with different parameter choices
ρs ∈ {3, 5, 7, 9, 11} and ts ∈ {1, 3, 7}. The following abbreviations are used in Table 4.8 and
Table 4.9 for the method: mean (arithmetic mean), med (median), wmean (weighted mean),
tmean (truncated mean), and wtmean (weighted and truncated mean).
For comparison of the statistical LBA and the normal LBA, additionally the AAE obtained
with the latter one is shown in the last columns of Table 4.8 and Table 4.9. The statistical
approaches led to greatly improved results. The preferred averaging methods were mean, median,
and truncated mean. In neither case, the weighted mean or the weighted and truncated mean
yielded the lowest AAE. With the exception of sequence ’a4’, the local and the variational
approaches favored the same averaging method. In all cases, the statistical methods yielded
lower error values than their non-statistical counterparts. In average the AAE of each statistical
version is approximately 15 % lower for the local approach and about 8 % lower for the variational
approach.
Typical distributions of the displacements within the statistical sample data are displayed in
the kernel density estimations shown in Figure 4.20. The displacements in horizontal direction
are shown on the left and the displacements in vertical direction on the right. The sample data
was taken from an arbitrarily chosen location (here (44, 99)) of sequence ’a2’. With parameters
Nρ = 11 and Nt = 7 the number of vectors within the sample was 847. The width of the
distribution is only about 0.003 px in both cases. The difference between neighboring vectors of
the correct vector field is in the same order of magnitude.
The kernel density estimation is a non-parametric way to estimate the probability density
86
4.3 Testing the approach
Table 4.10: AAE of the rvLBA. For a better comparability to the other methods, the statistical and the normal vLBA
are shown in the last two columns. The minimal AAE is highlighted in blue.
seq
ρ
t
K
λ
rvLBA
AAE [◦ ]
stat vLBA
vLBA
’a1’
’a2’
’a3’
’a4’
’a5’
’a6’
’a8’
21
21
5
15
11
11
21
7
7
7
7
7
7
7
4
9
2
25
22
8
3
0.0001
0.0010
0.0001
0.0010
0.0005
0.0010
0.0005
0.75
0.65
0.1
1.5
0.8
1.1
1.85
0.130 ± 0.150
0.075 ± 0.119
0.056 ± 0.407
0.170 ± 1.366
0.165 ± 1.443
0.266 ± 0.738
0.046 ± 0.094
0.120 ± 0.142
0.069 ± 0.117
0.047 ± 0.300
0.173 ± 1.451
0.174 ± 1.527
0.254 ± 0.760
0.043 ± 0.092
0.131 ± 0.150
0.075 ± 0.118
0.058 ± 0.378
0.182 ± 1.474
0.175 ± 1.547
0.271 ± 0.756
0.046 ± 0.094
function of the sample. The estimated probability density functions (Figure 4.20) are clearly
not normal distributed. Therefore, the used averaging methods might differ from the expected
value of the samples. Additionally to the distribution, the values of the correct displacements
as well as the estimated displacements with and without averaging operation are marked by
colored lines (cf. Figure 4.20). Out of all averaging methods, the median is closest to the correct
displacement for both components. As indicated in Table 4.9 the median is also the desired
averaging method for this sequence. All other methods including the estimate obtained without
averaging, which corresponds to the normal LBA, yield displacements further away from the
correct displacement. However, as for instance the case for the horizontal component shown on
the left of Figure 4.20, the correct displacement may be located very much at the side of the
distribution. Therefore, no value derived from the distribution can yield the correct displacement
in this case. Nevertheless, as indicated in the Tables 4.8 and 4.9 the statistical approaches clearly
improve the obtained results and provide advantages.
4.3.7 Robust variational approach
The results obtained with the rvLBA and the own motion models are shown in Table 4.10.
As robust error function, the regularized TV penalty function defined in Equation (4.19) was
used for the data as well as for the smoothness term. For simplicity reasons, the regularization
parameter was set to the same value in both terms. The other parameters such as ρ, t, K,
and λ were adopted from Table 4.5, where the lowest possible error values obtained with the
lLBA and the vLBA are depicted. The number of outer and inner fixed point iterations was
set to ten. However, in the case that a fixed point was reached with respect to a tolerance of
10−8 in lesser than ten iteration steps, the iteration was stopped successfully. For a comparison
with the normal and the statistical vLBA, the error values of these approaches are also given in
Table 4.10.
For the sequences ’a4’ and ’a5’, the rvLBA achieved the lowest AAE. Both sequences share
in common, that they contain very large displacements in a small area in the central part of
the images. At these locations, the AE is particularly large, which is due to the linearized
87
4 The learning-based approach
BCCE, wrong particle pair assignment, particle losses, and extreme gradients. Therefore, in
these cases the use of robust error functions was advisable and led to improved results. For all
other sequences, the lowest error values were obtained with the svLBA. Nevertheless, the error
values obtained with the rvLBA are never higher than the error values achieved with the vLBA.
For the sequences ’a1’, ’a3’, ’a4’, ’a5’, and ’a6’ they are in fact lower. This indicates an accuracy
gain of the rvLBA compared to the vLBA. On average, the AAE of the rvLBA is approximately
3 % lower than the AAE of the vLBA.
Due to the absence of noise in the analytic test set, these sequences may not be an ideal test
cases for the rvLBA. With the exception of the object boarder in sequence ’a6’, there are also
no flow discontinuities in the sequences, which require the usage of a flow-driven approach such
as the rvLBA. However, because the object area in sequence ’a6’ was masked, the non-robust
approaches were also applicative and yielded good results. Especially, the statistical approach
with the truncated mean led to a low AAE.
4.3.8 Computation time
In order to analyze the efficiency of the LBA, the calculation time was monitored. In Figure 4.21
the computation time per pixel is shown for different spatio-temporal dimensions and different
numbers of motion models for the local (lLBA), the variational (vLBA), and the robust (rvLBA)
approach. The results were computed on the ’a2’ sequence of the analytic set. Within the vLBA,
50 iteration steps were executed and the rvLBA was used with 5 inner and 5 outer fixed point
iterations. All computations were conducted on a 2.80 GHz Intel® CoreTM i7-860 CPU executing
Matlab code. Because the set of learned motion models needs to be calculated only once and
can be used for different estimations of the optical flow field, the computation of the POD modes
is not considered for the determination of the computation time.
With increasing number of used motion models, the computation time increases approximately
linearly for the lLBA (Figure 4.21). Whereas for the vLBA and the rvLBA the increase in
computation time with a growing number of motion models is rather quadratic. For K = 10,
the computation time rises from 0.26 ms for ω = 5 × 5 × 1 to 1.78 ms for ω = 21 × 21 × 7 for
the lLBA. For the same increase of the spatio-temporal size, the computation time rises from
0.92 ms to 1.29 ms for the vLBA and from 1.48 ms to 1.87 ms for the rvLBA. This shows, that
the computation time of the lLBA increases faster with a growing spatio-temporal dimension
compared to both other approaches. However, the computation time of the lLBA is generally
lower. For the statistical LBA, the computation time rises for all methods according to the
chosen statistical sample size and the averaging method. The extra time, which has to be added
to the times shown in Figure 4.21, ranges from 0.2 ms up to 0.8 ms per pixel depending on the
size of the statistical sample.
The computation times shown in Figure 4.21 were obtained without a special optimization of
the code. The focus within this project was rather on the functionality of the method than on
the computation speed. The shown computation times give only a rough survey of the relative
88
4.3 Testing the approach
5x5x1
8
lLBA
vLBA
rvLBA
7
4
3
5
4
3
2
2
1
1
5
10
K
15
20
0
25
15x15x3
8
6
time [ms]
3
1
K
20
25
25
20
25
3
1
15
20
4
2
10
15
5
2
5
K
lLBA
vLBA
rvLBA
6
4
10
21x21x7
7
5
0
5
8
lLBA
vLBA
rvLBA
7
time [ms]
6
5
0
lLBA
vLBA
rvLBA
7
time [ms]
time [ms]
6
11x11x3
8
0
5
10
K
15
Figure 4.21: Comparison of the computation time of the different versions of the LBA for different dimensions and
numbers of used motion models.
performances of the different approaches and their dependency on size and number of motion
models. Therefore, no comparison of the LBA with the computation times of other optical flow
methods has been performed in this thesis.
Nevertheless, there are several possibilities to achieve performance gains. First of all, the
local version (lLBA) can be easily parallelized. This is possible, because the determination
of one individual flow vector is independent of the other flow vectors. Accordingly, it could
be implemented in graphics processing units (GPUs) following the description of Strzodka and
Garbe [2004] who used such a technique to achieve real-time performance. A similar performance
should be possible for the lLBA. In order to improve the performance of the variational and the
robust variational approach, multigrid methods, could be used to speed up the computation.
These methods belong to the fastest numerical schemes for solving systems of equations [Briggs
et al., 2000]. The problem is solved hierarchically on various scales to obtain initializations that
are already very close to the correct solution. This procedure drastically reduces the required
89
4 The learning-based approach
iteration steps. As described by Bruhn et al. [2006], using so called bidirectional multigrid
methods, real time performance is possible. A corresponding implementation of the vLBA and
the rvLBA should lead to a great performance gain.
4.4 Conclusion
All of the different versions of the LBA performed very well on the synthetic test sequences and
the conducted tests lead to the following conclusion. The ideal number and size of the applied
typical motion models depends on the complexity of the studied fluid flow. Simple flows such
as the uniform motion in sequence ’a3’ require only two motion models of relatively small size
(e.g., 5 × 5 × 7). However, the ideal number and size increase with increasing complexity of the
studied flows. The inclusion of temporal information by using spatio-temporal motion models
with t > 1 leads to more accurate flow estimates. In order to obtain suitable motion models the
training data should contain similar flow structures than the flow field under study. Omitting
selected important motion models leads to deteriorated flow fields.
A Comparison of the results obtained with different versions of the LBA on the test sequences
showed, that the variational approach performed better than the local one. The AAE obtained
with the vLBA was approximately 7 % lower than the AAE obtained with the lLBA. Moreover,
the AE obtained with the vLBA was smoother than the AE obtained with the lLBA. This
is mainly due to the additional smoothness constraint, which is applied within the variational
approach. An additional performance gain could be obtained by using the statistical versions of
the LBA. They yielded lower error values on all seven test sequences. In average the AAE of the
slLBA was 15 % lower than the AAE of the lLBA and the AAE of the svLBA was 8 % lower than
the AAE of the vLBA. The rvLBA, which uses non-quadratic error norms for the data and the
regularization term, also led to lower error values compared to the vLBA with quadratic error
norms. The results improved on average by 3 %. Thus, the improvement was not as distinct
as the improvement obtained with the svLBA. The computation time of all methods increased
with increasing number of motion models and increasing model size. If computation time is key,
it can be reduced significantly by using parallelized code and hierarchical multigrid methods in
case of the local and the variational approach, respectively.
90
5 Fluid dynamical applications
In this chapter the LBA, which was introduced and tested in Chapter 4, is applied to different
fluid dynamical problems. The applicability of the method is examined and the results are
compared to the results of established methods. In Section 5.1 the properties of particle image
sequences are investigated and the ideal image characteristics for which the LBA works best are
determined and compared to the conditions of PIV (cf. Section 3.3), which is the most common
method used to estimate the velocity field from particle images. In Section 5.2 the performance
of the LBA on different particle image sequences is investigated and the results are compared to
the results of other common estimation techniques. Due to the large number of abbreviations it
is once more referred to page 121 where all acronyms are listed.
5.1 Image characteristics
The properties of particle image sequences are studied in order to identify the conditions under
which the LBA works best. Therefore, especially the effect of the particle number density (PND)
as well as the amount of the particle displacement from frame to frame is investigated.
5.1.1 Influence of the particle number density
In order to study the influence of the PND on the quality of the estimated displacement field,
the Lamb-Oseen vortex flow of sequence ’a2’ of the analytic set (cf. Section 4.3.1) was used
as test case. To obtain different PND, several image sequences containing various numbers of
synthetic particles, were generated. Therefore, a gray value image was constructed by placing
images of synthetic particles at random image locations. The number of locations depended
on the desired PND. To generate the particles, Gaussian blobs of varying height, dimension,
and standard deviation were constructed. Additionally, small random numbers were added to
each pixel of the particles to create particles that are unique in their appearance. Finally, the
sequence was obtained by repeated warping of the generated image with the Lamb-Oseen flow
field. Practically, this was done by interpolating the gray values at shifted positions of the image
to determine the gray value at the grid positions of the subsequent image. The shift was defined
by the flow field. The PND of the constructed sequences ranged from ρp = 0.01 ppp (particles
per pixel) to ρp = 0.35 ppp.
In Figure 5.1 the influence of the PND on the AAE is shown for the lLBA, the Horn and
Schunck approach (HSA) [Horn and Schunck, 1981], and PIV. For the lLBA, the first nine
91
5 Fluid dynamical applications
lLBA
HSA
PIV
0.4
0.35
AAE
0.3
0.25
0.2
0.15
0.1
0
0.05
0.1
0.15
ρp
0.2
0.25
0.3
0.35
Figure 5.1: Influence of the PND
on the AAE for the lLBA, the
standard Horn and Schunck optical flow approach (HSA), and
PIV.
motion models of size 21 × 21 × 7, which were learned from the correct flow field, were used. The
HSA, which is the standard global optical flow approach, was applied with different regularization
parameters, which were optimized for each PND. PIV was conducted using the fluere 1.3 software
package (cf. Section 3.3.3) with a final interrogation window size of 32 × 32. The AAE obtained
with the lLBA decreases relatively fast for increasing PND and stays constant for ρp > 0.1 ppp.
Therefore, the ideal PND for the application of the LBA is ρp > 0.1 ppp. The HSA shows also a
strong decrease of the AAE followed by a plateau for ρp > 0.25 ppp. The decrease of the AAE of
PIV is less steep but a clear trend towards smaller errors for increased PND is visible. This is in
agreement with the findings of Raffel et al. [2007] where it is shown that a higher particle number
leads to a higher accuracy, which is due to higher particle pair detection rates as well as lower
measurement uncertainties. For PND smaller than 0.01 ppp, optical flow methods fail, whereas
PIV still manages to estimate the flow field. A rule of thumb is that PIV applications require at
least eight particles per interrogation window in order to ensure a detection probability of 95 %
[Raffel et al., 2007]. One should keep in mind, that the above findings are based on synthetically
generated images. The results may look different for real particle images and varying particle
diameters.
5.1.2 Influence of the displacement
Due to the linearization of the BCCE (cf. Section 3.4.1) as well as the use of gradient images,
optical flow approaches are not suitable to handle displacements that are larger than approximately one or two pixels. According to Liu and Shen [2008], optical flow methods require such a
small displacement that the corresponding particles in two consecutive frames remain in contact.
Otherwise the gradient images with respect to time cannot be accurately calculated and, thus,
92
5.1 Image characteristics
2
10
lLBA (t=1)
lLBA (t=3)
lLBAσ (t=3)
lLBA (t=7)
plLBA (t=1)
HSA
Sun
PIV
1
AAE
10
0
10
−1
10
0
0.5
1
1.5
2
2.5
umean
3
3.5
4
4.5
5
Figure 5.2: AAE of different optical flow methods and PIV in dependence of the mean velocity of
sequence ’a2’ from the analytic
set.
optical flow methods fail. However, hierarchical multi-scale methods, which were introduced in
Section 3.4.6, are able to compensate this deficit to a certain extent. For a thorough inspection
of this fact, the influence of the displacement on the performance of different methods was investigated. Therefore, the Lamb-Oseen vortex flow of sequence ’a2’ of the analytic set introduced
in Section 4.3.1 was once more considered as test case. The sequence consists of 41 frames as
well as the correct displacement field. As stated in Table 4.1 the mean displacement of the whole
vector field is 0.45 px. By leaving away some frames, different image sequences with different
mean displacements were generated. For instance, if only every second frame is considered, the
mean displacement rises up to 0.9 px. The reference flow field was constructed by integrating
the correct flow fields of the omitted images.
In Figure 5.2 the AAE of different methods in dependance of the mean displacement u mean
is plotted with logarithmic scale on the ordinate. The figure contains different versions of the
lLBA with spatial size ρ = 15 and different temporal dimensions t ∈ {1, 3, 7}. The number of
ideal motion models was optimized for each version. Also included in the plot is a pyramidal
multi-scale version (plLBA). The method lLBAσ equals method lLBA but additionally Gaussian
presmoothing with standard deviation σ = 0.5 was applied. Two other shown optical flow
approaches are, the standard HSA [Horn and Schunck, 1981] and the classical method introduced
by Sun et al. [2014], which applies a multi-resolution method similar to the plLBA. Additionally,
results obtained with the PIV software fluere 1.3 (cf. Section 3.3.3) with a final interrogation
window size of 32 × 32, are shown. The spatio-temporal versions of the lLBA require more than
a pair of images in order to estimate the flow field and, therefore, the maximal possible mean
displacement was smaller than for purely spatial approaches, since the original image sequence
contains only 41 frames.
93
5 Fluid dynamical applications
The plots of the optical flow approaches without multi-resolution techniques show a fast
increase of the AAE starting with a mean displacement of approximately 1.5 px. For mean displacements smaller than 1.5 px, the error values of these methods are lower than the values of
the other approaches. The AAE of the optical flow methods with multi-resolution techniques
increase only slightly for mean displacements larger than 1.5 px. However, for small displacements the AAE is up to one order of magnitude higher than the AAE of the lLBA with t = 7.
The AAE of the PIV approach decreases slightly with growing mean displacement. For displacements larger than 2, the AAE stays approximately constant. If preprocessing in form of Gaussian
smoothing was applied (lLBAσ ), the AAE for displacements larger than 1.5 px is smaller than
without preprocessing. Due to the Gaussian smoothing, distinct particles are isotropically diffused and originally separated particles in subsequent images become connected, whereas the
displacements remain unchanged [Liu and Shen, 2008]. This leads to more accurate temporal
derivatives and, thus, lower error values.
For optical flow approaches such as the LBA, the displacement between two frames of a
particle image sequence should ideally be below two pixels. However, the common displacement
of particle images recorded for correlation-based PIV methods is around 8 px [Raffel et al., 2007].
5.1.3 Optical flow versus particle image velocimetry
In order to estimate fluid flows from particle images, correlation-based PIV is the most common
technique. However, optical flow methods specially tuned for the requirements of fluid flows and
particle images also yield excellent results [Corpetti et al., 2006; Heitz et al., 2010; Ruhnau et al.,
2005]. Nevertheless, as shown in the previous sections the requirements for both methods are
slightly different. Whereas PIV prefers relatively large displacements, the ideal displacement for
optical flow methods is rather small (< 1.5 px). The spatial resolution of PIV is mainly restricted
by the interrogation window size since one window produces one flow estimate. This means
that flow structures, which are smaller than the windows, cannot be considered. Especially in
turbulent flow fields the size of the smallest measurable eddies is strongly limited. By using
overlapping interrogation windows, the number of flow estimates can be increased.
An advantage of variational optical flow methods is that they produce dense flow fields with
one flow estimate per pixel. However, the spatial resolution is not defined by the pixel grid. In
purely global variational methods the resolution is reduced due to smoothing operations induced
by the regularization term. In local global methods such as the vLBA the resolution is reduced
on the one hand due to the regularization term and on the other hand by local averaging.
Therefore, the exact spatial resolution depends also on the number and the size of the utilized
motion models.
94
5.2 Applications and methods
BFS
BFS-PIV
2DT
2DT-PIV
pipe
analytic
1
2
3
4
5
6
Figure 5.3: The first six motion models of size 11 × 11 × 1 learned from the synthetic BFS and the 2D turbulent
sequences as well as from a sequence containing a laminar pipe flow and from a combination of the different analytic
sequences.
5.2 Applications and methods
In the following the performance of the LBA on different fluid dynamical test cases is presented.
As test cases synthetic and real image sequences of the flow over a BFS as well as a laminar
separation bubble flow and a 2D turbulent flow were considered. The motion models utilized
for the BFS and the 2D turbulent sequences are shown in Figure 5.3. The figure contains the
first six motion models of size 11 × 11 × 1 learned from the synthetic BFS sequence, the 2D
turbulent sequence, a sequence of a laminar pipe flow as well as from a combination of the
seven analytic sequences introduced in Section 4.3.1. Thereby, ’BFS’ and ’2DT’ denote the
sets of motion models learned from the correct flow fields of the BFS and the 2D turbulent
sequences, respectively. ’BFS-PIV’ and ’2DT-PIV’ denote the sets of motion models learned
95
5 Fluid dynamical applications
outflow
recirculation region
inflow
Figure 5.4: Sketch of a backward facing step (BFS) together
with relevant flow properties.
reatachment point
separation point
px
50
50
100
100
150
150
50
100
150
200 250
300
350
400
450
1
0.5
50
100
150
200 250
300 350 400
450
0
Figure 5.5: Simulated flow over a BFS. Left: Vector plot of the correct flow field. Right: Color coded magnitude of
the displacements. The dashed square in the right image marks the area where the AE of different LBA methods is
compared (cf. Figure 5.8).
from flow fields, which were previously estimated with correlation-based PIV (cf. Section 3.3).
The motion models learned from the laminar pipe flow and the analytic sequences are denoted
by ’pipe’ and ’analytic’, respectively. Within the scope of this thesis, some results of this section
have already been published in Stapf and Garbe [2014a,b].
5.2.1 Synthetic backward facing step
The sequence
The flow over a BFS was considered to be a valuable fluid dynamical test case for the LBA
because it contains some interesting flow aspects such as a sharp separation with a steep velocity
profile in the free mixing layer and large rotations in the recirculation area. Furthermore the
BFS is a traditional test case for experimental techniques of fluid flow measurements as well as
for numerical simulations and, therefore, well understood. Due to its simple geometry and its
easy reproducibility it is often employed for all kinds of methods. In Figure 5.4 a sketch of a BFS
is shown. The flow is separated at the step edge and reattached again at the reattachment point
further downstream. In the area behind the step, between the separation and the reattachment
point, one or more recirculation eddies are formed by the flow. The reattachment length depends
on the Reynolds number.
The flow field over the BFS was simulated in 2D with the finite element software library deal.II
[Bangerth et al., 2007]. In Figure 5.5 a simulated flow field with Reynolds number Re = 1000
96
5.2 Applications and methods
Figure 5.6: Two subsequent frames of the synthetically generated BFS image sequence.
and maximum velocity vmax = 1.5
px
frame
is depicted. The left image contains a vector plot.
For illustrative reasons, in vertical direction only every 10th and in horizontal direction only
every 20th vector arrow is depicted. The right image contains the color coded magnitude values
of the vectors, which represent the frame to frame displacements in pixels. In the vector plot
the recirculation area behind the step, which contains a curl rotating in clockwise direction, is
clearly visible.
The synthetic image sequence was generated by warping a gray value pattern with the simulated velocity fields. It was intended to be similar to the image sequences recorded in PIV
measurements. Therefore, the gray value pattern consisted of synthetically created randomly
spread tracer particles. In order to construct the first frame of the sequence, approximately 3000
particle locations were chosen randomly, and at each location an artificial particle was placed.
The particles were created with a 2D Gaussian function and vary slightly in shape, size, and
intensity. The resulting images are of size 481 × 193 px2 and the PND approximately amounts to
0.035 particles per pixel (ppp). As shown in Section 5.1.1 increasing the PND leads to improved
results of the LBA. Two subsequent frames of the synthetic image sequence are shown in Figure
5.6.
By adding Gaussian noise with zero mean and varying standard deviation σ several image
sequences with different noise levels were created. The noise level is defined by the noise-tosignal ratio (NSR). It is given by the ratio of the standard deviation of the noise σ and the
signal mean µ, that is NSR = σµ . In order to generate sequences with different NSR, the standard
deviation was enlarged in steps of 5 % from 0 % to 100 % of the signal mean.
The NSR is simply the inverse of the more common signal-to-noise ratio. Considering an ideal
image sensor with only shot noise, which is due to a varying number of photons registered by
the sensor at a given exposure level, the signal-to-noise ratio equals the square root of the signal
mean [EMVA, 2010]. However, real sensors introduce additional noise, which can mainly be
modeled by a normal distribution. Therefore, the signal-to-noise ratio is sensor specific.
Results
The flow field of the synthetic BFS sequence was estimated with the different versions of the
LBA that were introduced in Chapter 4. Additionally, the influence of the applied training data
97
5 Fluid dynamical applications
1.1
1
0.9
0.8
0.8
0.7
0.7
0.6
0.6
0.5
0
0.2
0.4
lLBA
vLBA
slLBA
svLBA
rvLBA
1
AAE
0.9
AAE
1.1
lLBA−BFS
lLBA−BFS−PIV
lLBA−2DT
lLBA−pipe
lLBA−analytic
NSR
0.6
0.8
1
0.5
0
0.2
0.4
NSR
0.6
0.8
1
Figure 5.7: AAE of the LBA in dependence of the noise level given by the NSR. Left: Results obtained with the lLBA
with different training data. Right: Results obtained with different versions of the LBA.
was observed as it was done for the analytic sequences in Section 4.3.5. The optimal size of
the learned motion models was 15 × 15 × 7. Previously to the estimation of the optical flow
the images of the sequence were smoothed with a Gaussian kernel Kσ of standard deviation σρ
in spatial and σt in temporal direction. All relevant parameters have been optimized for each
realization of the LBA. Besides σρ and σt , this was basically the number of used motion models
(K) as well as for the variational approaches vLBA and rvLBA the smoothness parameter λ
and for the robust version also the regularization parameter of the penalty function defined in
Equation (4.19). For the statistical versions namely the slLBA and the svLBA, the most capable
averaging method was chosen for each realization.
The left plot of Figure 5.7 contains the results obtained with the lLBA using different sets of
motion models. Thereby, the motion models displayed in Figure 5.3 were utilized with exception
of ’2DT-PIV’. The plot shows the dependency of the AAE on the NSR. The results are comparable for all motion models but the ones learned from the 2D turbulent sequence (’2DT’). In
general, the error values increase with increasing noise level. For small NSR, the motion models
learned from flow fields, which were previously estimated with PIV (’BFS-PIV’), yielded the
lowest error values. With increasing noise level the motion models learned from the correct flow
fields (’BFS’) led to the best results. However, the difference of the AAE achieved with different
sets of motion models was only marginal and with exception of the ’2DT’ models, any set of
motion models yielded similar error values.
The reason for the poor performance of the ’2DT’ motion models compared to the other
motion models is mainly due to variations within the first two models. Whereas the first two
motion models of the other sets contain more or less constant motion in vertical and horizontal
direction with parallel flow vectors of equal length, the first two models of the ’2DT’ set contain
vectors that vary slightly in direction and length. Since, large parts of the BFS flow field
constitute approximately constant flow, which cannot be modeled accurately with the ’2DT’
98
5.2 Applications and methods
vLBA
LBA
rvLBA
40
40
40
60
60
60
80
80
80
100
100
100
120
120
120
140
140
140
160
160
160
180
140
160
180
200
220
240
260
180
140
160
sLBA
180
200
220
240
260
180
svLBA
140
40
60
60
3.5
80
80
3
100
100
120
120
140
140
160
160
140
160
180
200
220
240
260
180
180
200
220
240
260
AE
40
180
160
4
2.5
2
1.5
1
0.5
140
160
180
200
220
240
260
0
Figure 5.8: AE obtained with different LBA methods in the area marked by the dashed square in Figure 5.5 for the
sequence with NSR = 1.
motion models, the AAE is larger than for the other motion models.
The right plot of Figure 5.7 contains the AAE in dependence of the NSR obtained with
different versions of the LBA. Thereby, the models learned from the correct flow fields (BFS)
were applied. The plot indicates a performance gain of the statistical versions of the LBA
compared to their non-statistical counterparts. For all NSR, the svLBA yielded the lowest AAE.
The error values obtained with the vLBA are slightly lower than the error values achieved with
the lLBA. Especially for larger NSR, the results obtained with the rvLBA are comparable to
the results obtained with the other methods. But overall, the rvLBA was not beneficial for this
sequence, since it performed worse than the vLBA. In this case the application of quadratic
error norms led to lower error values than the application of robust error norms.
In Figure 5.8 the AE values of the different LBA methods are compared visually for NSR = 1.
Therefore, the AE is displayed color coded in the area marked in Figure 5.5. The error values
obtained with the vLBA and the rvLBA are smoother than the error values obtained with the
lLBA. This is mainly due to the applied smoothness constraint. Large error spikes, which
are present in the lLBA image, were smoothed out by the variational approaches leading to
smaller errors. Therefore, information is interpolated from the surrounding to areas where the
estimation of the optical flow is somewhat problematic, e.g., due to a lack of gray value structures.
99
5 Fluid dynamical applications
2
lLBA
vLBA
slLBA
svLBA
rvLBA
STA
AMA
HSA
PIV
AAE
1.5
1
0.5
0
0.1
0.2
0.3
0.4
0.5
NSR
0.6
0.7
0.8
0.9
1
Figure 5.9: Comparison of different optical flow techniques on
the BFS sequence, including the
LBA, the STA, the AMA, the
HSA as well as PIV.
As expected, also the AE images of the statistical approaches look smoother than the AE images
of the non-statistical versions, which is mainly due to the applied averaging operation.
All versions of the LBA perform better than other tested methods, as can be seen in Figure
5.9. In this figure, the different versions of the LBA are compared to other optical flow methods
as well as to correlation-based PIV. All methods were described in Chapter 3. The used optical
flow methods were in essence, the local structure tensor approach (STA) [Bigün et al., 1991]
with two parameters, the affine model approach (AMA) [Haussecker and Spies, 1999] with a
six parameter model as well as the global HSA [Horn and Schunck, 1981]. All optical flow
methods were implemented in Matlab, whereas PIV was conducted with the software fluere
1.3 (cf. Section 3.3.3). In order to achieve the best results with each method, all parameters
were optimized. PIV was performed with different interrogation window sizes and besides the
standard correlation method also an ensemble correlation method was applied in order to include
temporal information. From all variations always the one that yielded the lowest error values
was selected.
Additionally to the plot in Figure 5.9, the results in form of the AAE as well as the ADE in
x and y direction are presented in Table 5.1 together with each parameter choice for the three
noise ratios NSR = 0, NSR = 0.5, and NSR = 1. The parameter Kσ denotes the size of the
Gaussian kernel, which is used as weighting function by the two parametric approaches STA and
AMA. Figure 5.9 and Table 5.1 show, that the LBA outperformed all other methods. In any
case, the best results were obtained with the svLBA. In average the AAE achieved with this
approach is approximately 25 % lower than the AAE of the second best method.
At least for low noise ratios the AAE of the AMA is comparable to the AAE of the LBA
methods. Similar to the LBA this method is a parametric optical flow approach, which uses
100
5.2 Applications and methods
Table 5.1: Performance of different methods on the synthetic BFS sequence. All parameters have been optimized for
each method to yield the lowest possible error measures. Highlighted in blue is the lowest AAE of each noise level.
NSR
method
ρ
t
K
0.0
LBA
vLBA
rvLBA
sLBA
svLBA
STA
AMA
HSA
PIV
15
15
15
15
15
11
11
7
7
7
7
7
7
7
5
9
9
5
9
2
6
16
1
0.5
LBA
vLBA
rvLBA
sLBA
svLBA
STA
AMA
HSA
PIV
15
15
15
15
15
11
15
7
7
7
7
7
7
7
32
3
1.0
LBA
vLBA
rvLBA
sLBA
svLBA
STA
AMA
HSA
PIV
15
15
15
15
15
11
15
7
7
7
7
7
7
7
32
3
5
9
9
5
9
2
6
4
5
5
4
5
2
6
other parameters
σρ
σt
AAE [◦ ]
ADEx [px]
ADEy [px]
λ = 0.01
λ = 0.005, = 0.3
’mean’
λ = 0.005, ’med’
Kσ = 2.2
Kσ = 4.5
λ = 0.26
1.5
1.0
1.0
1.5
1.5
0.8
1.0
0.8
1.5
0.0
0.0
0.0
0.0
0.0
0.0
0.0
0.4
0.0
0.572 ± 0.408
0.553 ± 0.340
0.578 ± 0.424
0.564 ± 0.405
0.543 ± 0.362
0.828 ± 0.833
0.603 ± 0.788
0.933 ± 0.860
0.648 ± 0.509
0.0140
0.0128
0.0137
0.0134
0.0128
0.0234
0.0199
0.0248
0.0184
0.0101
0.0096
0.0104
0.0107
0.0099
0.0125
0.0125
0.0167
0.0093
λ = 0.01
λ = 0.008, = 0.3
’tmean’
λ = 0.01, ’med’
Kσ = 3.7
Kσ = 6.5
λ = 0.5
1.1
1.0
1.0
1.1
1.1
0.5
0.8
0.5
1.6
0.0
0.0
0.0
0.0
0.0
0.3
0.4
0.4
0.0
0.643 ± 0.425
0.621 ± 0.392
0.683 ± 0.453
0.623 ± 0.402
0.610 ± 0.385
1.056 ± 1.739
0.827 ± 1.118
1.224 ± 1.142
1.124 ± 2.284
0.0162
0.0161
0.0195
0.0155
0.0158
0.4969
0.0293
0.0343
0.0474
0.0113
0.0112
0.0122
0.0113
0.0110
0.4030
0.0165
0.0232
0.0139
λ = 0.01
λ = 0.03, = 0.1
’tmean’
λ = 0.005, ’wmean’
Kσ = 4.9
Kσ = 7.0
λ = 0.5
1.1
1.0
1.0
1.1
1.1
0.0
1.0
0.7
1.0
0.3
0.0
0.0
0.3
0.3
0.3
0.4
0.4
0.0
0.981 ± 0.652
0.929 ± 0.585
0.958 ± 0.628
0.954 ± 0.632
0.920 ± 0.579
1.382 ± 2.196
1.445 ± 1.730
1.849 ± 1.422
1.434 ± 2.667
0.0302
0.0310
0.0298
0.0292
0.0292
0.4583
0.0536
0.0550
0.0573
0.0170
0.0147
0.0158
0.0168
0.0152
0.4056
0.0270
0.0318
0.0187
more than two parameters and affine motion models. However, the affine motion models were less
suitable to accurately model the flow field in small neighborhoods than the learned motion models
applied by the LBA. Therefore, the learned motion models were superior for this sequence. The
worst results were obtained with the STA and especially with the HSA. The performance of
the PIV approach was good for NSR = 0, but for increasing noise rations the AAE increased
relatively fast.
Apart from the AAE also the ADEx and the ADEy are given in Table 5.1. Generally the
findings of the different error measures match each other with exception of the STA. Here, the
relatively large displacement errors are due to sporadic outliers with very large displacements.
These outliers have a strong influence on the ADE. The effect on the AAE is rather little.
Nevertheless, it leads to an increased standard deviation. In order to improve the results obtained
with the STA, a sparsification of the flow field on the basis of a confidence measure (cf. Section
3.4.4) may be an option.
So far, the motion models were learned from sample patches that were rotated, mirrored and
time reflected in order to remove any directional bias from the models as shown in Section 4.1.2.
However, one may argue that in some cases, e.g., if the training set is taken from the correct
101
5 Fluid dynamical applications
2
1
4
3
AE
2
1
5
6
7
2
3
4
1.5
1
0.5
5
7
6
0
Figure 5.10: AE of the BFS sequence derived with the lLBA.
The image is divided into seven
areas, ignoring the step region.
Top: Results obtained with motion models learned with patch
transformations. Bottom: Results obtained with motion models learned without patch transformations.
Table 5.2: AE of the different areas denoted by the red rectangles in Figure 5.10 obtained with or without patch
transformations (pt). The lowest error value of each area is highlighted in blue.
region
’1’
’2’
’3’
’4’
’5’
’6’
’7’
’full’
AAE [◦ ]
with pt
without pt
0.406 ± 0.292
0.525 ± 0.230
0.568 ± 0.256
0.436 ± 0.166
1.049 ± 0.486
0.693 ± 0.316
0.471 ± 0.202
0.541 ± 0.348
0.447 ± 0.287
0.528 ± 0.231
0.563 ± 0.244
0.480 ± 0.184
0.983 ± 0.446
0.624 ± 0.297
0.413 ± 0.193
0.537 ± 0.347
flow field or is at least very similar to it, it might be better to retain the directional biases in
the models as they reflect actual biases that exist in the data. It might further be of interest, to
what extent a restriction of the training data to local areas of interest would affect the results.
This restriction of the training data would generate motion models, which are specific for certain
image regions. One interesting region in the BFS sequence is for instance the recirculation area,
which contains different flow features than a region further downstream.
The AAE obtained with the lLBA and the first five motion models of size 15 × 15 × 7 is shown
in Figure 5.10. The upper image shows the AE that was obtained by using motion models
learned with patch transformations, whereas the lower image shows the errors obtained by using
motion models learned without patch transformations. The different regions marked by the
red lines indicate the areas from which different sets of motion models were learned, once with
and once without patch transformations. In total, the images were divided into seven regions,
whereas the step region, which contains no fluid flow, was ignored. The estimation of the flow
field was then restricted to these regions and the motion models applied for each region were
102
5.2 Applications and methods
Figure 5.11: Two subsequent frames of the 2D turbulent image sequence.
the ones learned from the same region. In Table 5.2 the AAE of each region, labeled by the
red numbers, is shown for both sets of motion models with and without patch transformations.
Prior to the estimation of the flow field the images were smoothed with a Gaussian kernel of
standard deviation σ = 1.5.
Figure 5.10 and Table 5.2 show that the largest errors occur in the recirculation area (’5’).
This is also the area with one of the greatest differences of the AAE between using motion
models learned with patch transformations and using motion models learned without patch
transformations. The application of motion models learned without patch transformations led
to a reduction of the AAE of approximately 0.07 ◦ which corresponds to 6 % in this region. In
region ’6’ and ’7’ a similar improvement could be obtained by not using patch transformations.
However, in other areas especially area ’1’ and ’4’ the application of patch transformations
yielded lower error values. Therefore, the overall improvement achieved by not using patch
transformations was only marginal.
Since the application of patch transformations yields more generalized motion models, with a
wider field of application, these transformations are reasonable. However, if the field of interest
lies within a certain flow region, motion models specially trained for this region may be a
good alternative and, therefore, patch transformation might be counterproductive in this case.
Generally, the additional effort of constructing special motion models for every image region is
not proportional to the benefit.
103
5 Fluid dynamical applications
px
0
2.5
50
50
100
100
2
1.5
150
150
1
200
200
0.5
250
250
0
50
100
150
200
250
50
100
150
200
250
Figure 5.12: 2D turbulent sequence. Left: Vector plot of the correct flow field. Right: Color coded magnitude of the
displacements.
5.2.2 2D turbulence
The sequence
This test case consists of a synthetic image sequence of a self sustained 2D turbulent flow
provided by Carlier [2005a]. The velocity field was computed by solving the vorticity transport
equation in Fourier space, and a highly non-rigid sequence with self sustained 2D turbulence was
constructed. Large scale motions of the atmosphere or the ocean can be modeled, due to their
thinness, in a simplified way with the 2D Navier-Stokes equation and are, therefore, examples
of 2D turbulent flows [Ferziger et al., 2002].
The images are of size 256 × 256 px2 . In Figure 5.11 two subsequent frames of the sequence
are shown. The maximum displacement is approximately 3 px, whereas the mean displacement
is about 1 px. In order to study the ability to handle noisy conditions, Gaussian noise was added
to the images as it was done for the BFS image sequence described in Section 5.2.1. Again the
NSR was enlarged in steps of 5 % from 0 % to 100 %. A vector field of the sequence is depicted
in Figure 5.12 together with the color coded magnitude of the displacement vectors on the right
side.
Results
Once again, the influence of the used training data on the resulting flow fields was estimated.
Accordingly, the motion models shown in Figure 5.3 with exception of ’BFS-PIV’ were used.
Representative for all versions of the LBA, the influence of the applied motion models was
investigated with the lLBA. For low noise ratios, the preferred dimension of the motion models
was 11 × 11 × 3, whereas for larger noise ratios an increased temporal dimension with a total
104
5.2 Applications and methods
16
14
12
10
10
8
8
6
6
4
4
2
lLBA
vLBA
slLBA
svLBA
rvLBA
12
AAE
AAE
14
lLBA−2DT
lLBA−2DT−PIV
lLBA−BFS
lLBA−pipe
lLBA−analytic
0
0.2
0.4
NSR
0.6
0.8
1
2
0
0.2
0.4
NSR
0.6
0.8
1
Figure 5.13: AAE of the LBA in dependance of NSR. Left: Results obtained with the lLBA with different training
data. Right: Results obtained with different versions of the LBA.
motion model size of 11 × 11 × 7 yielded better results. Also the ideal number of motion models
was different for different NSR. Depending on the applied motion models, the ideal number
ranged for low noise ratios from K ≈ 20 for the models ’2DT’, ’2DT-PIV’, and ’BFS’ to K ≈ 10
for the ’pipe’ and ’analytic’ models. For higher noise levels, the ideal number ranged between
K = 5 and K = 3. The images were preprocessed by smoothing with a Gaussian kernel in
spatial and in temporal direction. With increasing noise ratio also the standard deviations of
the Gaussian kernels in spatial (σρ ) and in temporal (σt ) direction were increased.
The results in form of the AAE achieved with the lLBA are shown in the left plot of Figure 5.13.
The lowest AAE was obtained with the motion models learned from the correct flow fields (’2DT’)
as well as the motion models learned from the PIV flow fields (’2DT-PIV’). For all noise levels,
the difference between these two cases was only marginal. Comparable results were also obtained
with the ’analytic’ and the ’BFS’ motion models for NSR < 0.3 and NSR < 0.5, respectively.
However, for larger noise levels the AAE obtained with these two sets of motion models was
approximately 1.5 ◦ higher than the AAE achieved with ’2DT’ or ’2DT-PIV’. Permanent higher
error values were obtained with the motion models learned from the laminar pipe flow (’pipe’).
As can be seen in Figure 5.3 the ’pipe’ set of motion models does not include a rotation mode,
which is essential to model the turbulent flow of this sequence. As already described in Section
4.1.2, the relevant flow features of the sequence of interest must be included in the training data.
Otherwise, these flow features are completely missing in the set of learned motion models and
cannot be modeled correctly. Therefore, the motion models learned from the laminar pipe flow
are not suitable for the 2D turbulent sequence. Since the motion models learned from the BFS
(’BFS’) and from the analytic set (’analytic’) contain the relevant flow structures, these models
are at least for low noise levels capable to estimate the flow field. The influence of the rotation
mode was also explored estimating the flow field with the ’2DT’ models excluding the rotation
mode. Omitting this mode led to an increase of the AAE from 2.86 ◦ ± 2.12 ◦ to 4.04 ◦ ± 3.70 ◦ .
105
5 Fluid dynamical applications
20
lLBA
vLBA
slLBA
svLBA
rvLBA
STA
AMA
HSA
PIV
18
16
AAE
14
12
10
8
6
4
2
0
0.1
0.2
0.3
0.4
0.5
NSR
0.6
0.7
0.8
0.9
1
Figure 5.14: Comparison of different optical flow techniques on
the 2D turbulent sequence, including the LBA, the STA, the
AMA, the HSA as well as PIV.
In the following the ’2DT’ motion models were used.
The results obtained with different versions of the LBA are compared in the right plot of Figure
5.13. The error values of all methods are very similar. However, there are small differences, but
unlike the BFS sequence (cf. Figure 5.7) there is not one single version of the LBA that is better
than the other approaches for all noise levels. The vLBA was slightly better than the lLBA.
The statistical approaches were best for low error levels but for high error levels they performed
worse than the non-statistical approaches. The results obtained with the rvLBA were neither
the best nor the worst.
In Figure 5.14 the results are compared to the ones achieved with other methods. The same
optical flow and PIV approaches were used than described for the BFS sequence in Section
5.2.1. For each method and each noise level, the settings were chosen for which the lowest AAE
could be obtained. The error values as well as the chosen parameters are given in Table 5.3 for
three different noise levels. Additionally to the AAE also the ADEx and ADEy are listed. As
previously described for the BFS sequence, the relatively large ADE of the STA compared to the
AAE shown in Table 5.3 is due to sporadic wrong displacement estimates, that are extremely
large. These outliers have a strong influence on the ADE.
Similar to the BFS sequence, the LBA was superior. It performed better than all other tested
methods. However, the STA obtained similar results than the LBA but merely, for NSR > 0.5.
For lower NSR, the AAE obtained with the STA was up to 60 % higher than the AAE obtained
with the LBA. If the results of the STA and the AMA are compared, it is conspicuous that for
low noise levels the AAE of the AMA is smaller, whereas for high noise levels it is the other way
round and the AAE of the STA is smaller. This fits to the findings that the ideal number of used
motion models decreases with increasing noise ratios (cf. Table 5.3). This behavior indicates
106
5.2 Applications and methods
Table 5.3: Performance of different methods on the 2D turbulent sequence. All parameters have been optimized for
each method to yield the lowest possible error measures. Highlighted in blue is the lowest AAE of each noise level.
NSR
method
ρ
t
K
0.0
LBA
vLBA
rvLBA
sLBA
svLBA
STA
AMA
HSA
PIV
11
11
11
11
11
11
11
3
3
3
7
7
7
3
21
21
21
22
19
2
6
8
1
0.5
LBA
vLBA
rvLBA
sLBA
svLBA
STA
AMA
HSA
PIV
11
11
11
11
11
11
11
7
7
7
7
7
7
7
16
3
1.0
LBA
vLBA
rvLBA
sLBA
svLBA
STA
AMA
HSA
PIV
11
11
11
11
11
11
15
7
7
7
7
7
7
7
32
3
7
7
7
7
7
2
6
5
5
5
5
5
2
6
other parameters
σρ
σt
AAE [◦ ]
ADEx [px]
ADEy [px]
λ = 0.0001
λ = 0.0001, = 10
’wmean’
λ = 0.0001, ’wmean’
Kσ = 1.0
Kσ = 1.5
λ = 0.035
0.0
0.0
0.0
0.0
0.0
0.0
0.0
0.0
0.3
0.0
0.0
0.0
0.0
0.0
0.0
0.0
0.0
0.0
2.862 ± 2.122
2.816 ± 2.083
2.815 ± 2.081
2.848 ± 2.074
2.852 ± 2.086
4.573 ± 3.999
3.314 ± 2.496
3.989 ± 2.943
5.346 ± 3.935
0.0723
0.0716
0.0717
0.0706
0.0715
0.1225
0.0869
0.1104
0.1072
0.0662
0.0656
0.0655
0.0669
0.0677
0.1063
0.0793
0.1030
0.1324
λ = 0.00005
λ = 0.00007, = 2.0
’mean’
λ = 0.00005, ’mean’
Kσ = 2.5
Kσ = 4.0
λ = 0.07
1.4
1.4
1.4
1.4
1.4
0.0
1.4
1.1
0.6
0.4
0.0
0.0
0.4
0.0
0.6
0.4
0.4
0.0
6.631 ± 4.198
6.618 ± 4.157
6.681 ± 4.293
6.289 ± 3.870
6.307 ± 3.843
6.797 ± 5.166
8.049 ± 4.721
11.252 ± 6.202
8.310 ± 6.053
0.1776
0.1764
0.1755
0.1693
0.1710
0.2558
0.2204
0.2829
0.1783
0.1636
0.1627
0.1622
0.1528
0.1543
0.1699
0.1971
0.2660
0.1915
λ = 0.00024
λ = 0.00027, = 2.5
’med’
λ = 0.00025, ’tmean’
Kσ = 3.5
Kσ = 5.0
λ = 0.095
2.0
2.1
2.1
2.0
2.0
0.0
1.6
1.5
1.0
0.4
0.0
0.0
0.4
0.0
0.4
0.4
0.4
0.0
12.813 ± 7.568
12.467 ± 6.903
12.724 ± 7.567
13.725 ± 8.880
12.738 ± 7.358
12.762 ± 11.975
15.816 ± 9.206
18.936 ± 9.987
13.224 ± 9.388
0.3409
0.3328
0.3267
0.3400
0.3307
1.9089
0.3966
0.4583
0.3030
0.2919
0.2809
0.2774
0.2922
0.2791
3.3895
0.3588
0.4028
0.2945
that the complexity of the motion models must be decreased for higher NSR. If small scale
structures are included in the motion models, they try to model the noise of the image sequence
as small scale flow structures. Therefore, small scale motion models must be omitted for noisy
images. Apart from small noise levels, the results of the HSA are the worst. For small NSR, the
highest AAE values were obtained with PIV. However, with increasing NSR the performance
of PIV becomes better, and for very high noise ratios the error values are similar to the error
values obtained with the LBA.
In Figure 5.15 the energy spectrum (cf. Section 2.1.3) of the horizontal velocity component is
compared for the lLBA, the vLBA, and PIV. The flow fields were estimated from the noise free
image sequence with the parameters given in Table 5.3. Additionally, the energy spectrum of
the correct ground truth flow field (gt) is shown. The energy spectrum is often used to describe
the characteristics of turbulent fluctuations. Normally a decrease of the spectrum proportional
to k −3 would be expected for 2D turbulence [Boffetta, 2007]. However, in the energy spectrum
shown in Figure 5.15 a decrease proportional to k −6 is observed. Due to the logarithmic scale,
this corresponds to a slope of −6. This discrepancy could be due to the nature of this simulated
107
5 Fluid dynamical applications
8
10
6
10
4
E(k)
10
2
10
0
10
−2
10
gt
lLBA
vLBA
PIV
−2
10
Figure 5.15: Energy spectrum
of the horizontal velocity component shown for ground truth (gt),
lLBA, vLBA, and PIV.
−1
10
k
self sustained 2D turbulence, since the slope shown in Figure 5.15 nicely matches the slope found
by Heitz et al. [2010] for the same sequence.
For large scales (small k), the two LBA spectra are very similar to the ground truth spectrum.
This indicates a correct estimation of the large scale motions by the LBA. The PIV spectrum on
the other side slightly differs from the correct spectrum. For small scales (large k), all estimated
spectra show a different trend than the ground truth spectrum. Overall the best agreement with
the ground truth spectrum is found for the vLBA. This behavior is also reflected by the error
values given in Table 5.3. The table indicates that the AAE obtained with PIV is approximately
90 % higher compared to the AAE obtained with the vLBA.
The LBA also provides additional information about local flow structures by means of the
mode 1
mode 2
mode 3
20
20
20
0
0
−20
−20
−40
mode 5
mode 4
10
0
−10
10
0
−10
10
5
0
−5
−10
Figure 5.16: From left to right the first five motion models of size 11 × 11 × 1 (top row ) are shown together with the
parameter images (bottom row ).
108
5.2 Applications and methods
learned motion models and the coefficients of the linear combination given in Equation (4.1).
The estimated flow field is composed of typical flow structures embodied by the learned motion
models and the coefficients, which indicate the weight of the flow structures at each location. In
Figure 5.16 the first five motion models are shown in combination with the parameter images,
which indicate the weight of each motion model for all image locations. Since the learned motion
models are in fact the POD modes of the training data, this decomposition is comparable to
a POD of the estimated flow field itself. At least if the training data and the observed flow
fields are similar. Therefore, these motion models can be used to identify dominant structures
of the flow field (cf. Section 2.2). Of course, this is only possible for structures, which are of
similar dimension than the motion models. For the identification of large scale structures, the
POD would have needed to be performed on the entire flow field instead of only on small local
patches.
A striking structure shown in Figure 5.16 is for instance represented by the third motion
model, which contains pure rotation. The corresponding parameter image indicates areas where
rotations are present. In order to verify this statement, the vorticity as well as the Q-criterion
of Hunt et al. [1988] were computed. In 2D, the vorticity is defined by
∇ × u :=
∂v
∂u
−
∂x ∂y
(5.1)
and indicates vortex regions by values larger than a threshold defined by the user. However,
the vorticity cannot distinguish between swirling motion and shearing motion [Kida and Miura,
1998]. Therefore, often other methods are used in order to identify vortex regions such as for
instance the Q-criterion. It defines
a vortex
as a spatial region, where the Euclidean norm
T
1
of the vorticity tensor Ω = 2 ∇u − (∇u)
dominates that of the rate-of-strain tensor S =
T
1
. The Q-criterion is defined by
2 ∇u + (∇u)
Q :=
|Ω|2 − |S|2
>0.
2
(5.2)
In the case of 2D flows, the same criterion has been known as the elliptic version of the OkuboWeiss criterion [Haller, 2005]. The parameter image of the third rotation mode, the vorticity,
and the Q-criterion image are shown together with the estimated velocity field in Figure 5.17.
Visually, the parameter image and the vorticity image are very similar to each other and predict
the same structures. Some of the vortices, which could be identified in all three images, are
marked by the black circles in Figure 5.17. In essence, all of the vortices identified by the Qcriterion could also be identified by the parameter and the vorticity image. However, there are
also some structures such as the one marked by the red rectangle, which were only indicated in
the two later images, and might be due to shearing motion.
Nevertheless, the decomposition of the flow field in the typical motion models weighted by
the parameters provides useful information about the underlying flow field. The motion models,
109
5 Fluid dynamical applications
0.5
20
15
50
0.4
50
0.3
10
100
5
0
150
0.2
100
0.1
0
150
−0.1
−5
200
−10
−15
250
50
100
150
200
−0.2
200
−0.3
−0.4
250
50
250
100
150
200
250
100
150
200
250
0
0.03
0.025
50
50
0.02
100
0.015
100
0.01
150
0.005
150
0
200
−0.005
−0.01
250
50
100
150
200
250
200
250
0
50
Figure 5.17: Comparison of the parameter image of the third motion model (top left) with the computed vorticity
(top right) and the Q-criterion image (bottom left). Additionally the vector plot of the estimated flow field is shown
(bottom right). Some of the identified curls are marked by black circles.
which are at hand anyway for the LBA, describe the most significant motions and dominant
structures that are present in the flow.
5.2.3 Real backward facing step
In order to test the ability of the LBA to determine the displacement field of real world particle
images, the turbulent flow over a BFS was employed. The image sequence was recorded by Weier
et al. [2011]. In Figure 5.18 two subsequent frames of the sequence are depicted. Unlike the
synthetic BFS sequence, the inflow region and the step itself is not visible in the images of the
real BFS sequence. Within the field of view is the area directly located behind the step. The flow
direction was like in the synthetic case from left to right. The PND is about 0.05 ppp and the step
height Reynolds number of the flow was 1875. The maximum in-plane displacement between
subsequent images is approximately 7 − 8 pixels. Due to this relatively large displacements
110
5.2 Applications and methods
Figure 5.18: Two subsequent frames of the real BFS image sequence.
the LBA had to be applied together with a coarse-to-fine strategy. Therefore, the hierarchical
multi-scale approach introduced in Section 3.4.6 was used.
As the sequence consists of real images, the correct displacement field is unknown. Therefore,
the AAE and the ADE cannot be calculated. In order to validate the results quantitatively, the
AIE (cf. Section 3.5.3), which is defined as the RMS of the gray value differences of the real and
the warped version of corresponding images, was used. However, this error measure is only a
rough indicator for the quality of the estimated flow field, since it merely compares images and
not the flow field itself. This is especially a problem in homogeneous image regions, since here
wrong flow estimates may lead to low error values.
The flow field was estimated with the LBA and compared to the results obtained with PIV.
In Figure 5.19 two flow fields obtained with the svLBA and PIV are compared visually. The flow
fields shown in the figure are mean flow fields averaged over ten subsequent flow fields. Both
flow fields look very similar and by eye almost no differences are visible. Only in the curl area
and in the bottom right corner the images look slightly different. In order to learn the motion
models used for the svLBA, the simulated flow fields of the synthetic BFS sequence (Section
5.2.1) as well as flow fields obtained with PIV were applied as training data. Virtually, there
were no differences detected between the resulting flow fields, and the AIE was the same in
both cases. The size of the motion models was 15 × 15 × 1. Due to the applied multi-scale
approach, the application of a larger temporal dimension was not possible. The best results
were obtained with K = 5 motion models and a regularization parameter λ = 0.0021. Prior
to the estimation of the flow field the images were smoothed with a Gaussian kernel Kσ of
111
5 Fluid dynamical applications
px
0
7
50
100
6
150
5
200
100
200
300
400
500
600
700
800
4
900
0
3
50
2
100
150
1
200
100
200
300
400
500
600
700
800
0
900
Figure 5.19: Mean flow fields of the real BFS sequence estimated with the svLBA (top) and PIV (bottom). The
magnitude of the displacement vectors is displayed color coded.
-2 0
2
4
6
8
-2 0
2
4
6
8
-2 0
2
4
6
8
-2 0
2
4
6
8
-2 0
2
4
6
8
svLBA
PIV
50
100
150
200
100
200
300
400
500
600
700
800
900
1000
Figure 5.20: Horizontal velocity profiles of the mean displacement fields at different positions.
standard deviation σ = 0.4. As averaging method the weighted arithmetic mean was used and
the statistical sample consisted of 121 (Nρ = 11) vector patches. The achieved AIE with the
svLBA was 0.0242. The results obtained with other versions of the LBA were very similar and
the AIE was only marginally larger. PIV was performed with fluere 1.3 (cf. Section 3.3.3) with
an initial interrogation window size of 64 × 64 and a final interrogation window size of 16 × 16.
The AIE obtained with PIV was 0.0246. This value is only about 1.5 % higher than the value
obtained with svLBA. Thus, the differences of the two approaches are quite small.
This can also be seen in Figure 5.20 where horizontal velocity profiles of both methods are
shown at regularly spaced positions with a distance of 100 pixels. A displacement scale is shown
above every second profile and given in terms of pixels. The profiles were determined from the
mean displacement fields shown in Figure 5.19. Especially the profiles located at the left side are
almost identical for the svLBA and PIV. The red profiles of PIV are hardly visible behind the
112
5.2 Applications and methods
px
100
100
200
200
300
300
400
400
500
500
600
200
400
600
800
1000
1200
1400
600
4
3
2
1
200
400
600
800
1000
1200
Figure 5.21: Displacement vector field (left) and magnitude (right) of the laminar separation bubble sequence.
blue ones of the svLBA. However, since the profiles of the svLBA are a bit smoother, the wilder
PIV profiles sometimes emerge behind them. Further down stream, at the right side of the plot,
small differences between single profile pairs occur. The largest discrepancy of approximately
0.5 px can be found on the last profile pair.
This example shows, that an estimation of the displacement field from real particle images
with the LBA is feasible. Despite the relatively large displacements, which are in fact ideal for
PIV, a meaningful displacement field could be obtained, which is comparable to the one obtained
with the well established PIV method.
5.2.4 Laminar separation bubble
In order to test the LBA on a competitive PIV image sequence, for which correct flow fields are
available, a test case from the international PIV Challenge [PIV-Challenge, 2014] was chosen.
So far the PIV Challenge was held four times namely in the years 2001, 2003, 2005 and 2014.
The objective was to exchange the knowledge of PIV image analysis techniques and to assess
the current state of the art of PIV as well as to guide future development efforts. At each
edition several challenging test sequences were provided and the contributing teams proposed
different algorithms in order to estimate the flow fields. In this way a fair comparison of different
techniques was possible, which led to the construction of improved estimation techniques.
As test case a sequence from the third international PIV Challenge [Stanislas et al., 2008]
was taken, since the sequences of the latest PIV Challenge had not yet been available. Selected
was case B, which consists of a direct numerical simulation of a laminar separation bubble. The
images of the synthetic sequence are of size 1440×688 px2 . They were generated with equidistant
time steps between subsequent frames. The PND is approximately 0.025 ppp and the maximal
frame to frame displacement is around 5 px, whereas the mean displacement is around 2.2 px.
In Figure 5.21 the velocity field is depicted together with the color coded magnitude. A special
challenge of this sequence is the large dynamic range as well as strong gradients. The smallest
displacements occur inside the laminar separation bubble located at x ∈ [0, 600], y ∈ [0, 200],
whereas the largest displacements occur near the bottom of the image. The flow field can
be divided into an upper half with small displacements and a lower half with relatively large
displacements. In order to simulate different light sheet intensities as well as different particle
113
5 Fluid dynamical applications
0
ADEx
10
lLBA (OF)
vLBA (OF)
svLBA (OF)
CLI (OF)
CEM (OF)
Bruhn (OF)
fluere (PIV)
LaVis (PIV)
−1
10
−2
10
0
20
40
60
time step
80
100
120
Figure 5.22: Performance of
different methods on the laminar separation bubble sequence.
With increasing time the signalto-noise ratio decreases leading
to higher noise levels at later time
points.
diameters and different sensor sensitivities, the signal-to-noise ratio was decreased with time
[Stanislas et al., 2008].
The displacement field of the sequence was estimated with the LBA and compared to the ones
of other estimation methods. Because of the relatively large displacements, again a coarse-to-fine
strategy was used, as it was done for the real BFS sequence in Section 5.2.3. The sequence was
constructed to work best for interrogation window sizes of 32 × 32 and the optimal size of the
motion models was 35 × 35 × 1 and, thus, of similar dimension. The optimal number of motion
models was K = 5 for low noise levels and decreased to K = 2 for high noise levels. As training
data for the motion models, the flow fields obtained with PIV were used.
The LBA was compared to some of the approaches submitted to the PIV Challenge, namely
the two optical flow approaches CEMAGREF/INRIA (CEM) and CLIPS/LIMSI (CLI) and the
best correlation-based PIV approaches submitted by LaVision (LaVis), which is commercially
available [LaVision, 2014]. The results of these methods were originally published in Stanislas
et al. [2008]. The CEM approach is a variational optical flow approach based on the method
proposed by Corpetti et al. [2002]. It is embedded in a multi-resolution scheme in order to
handle large displacements. The CLI approach was developed by Quénot et al. [1998] and uses
an hierarchical processing scheme to cope with large displacements. Another state of the art
optical flow approach, which was not submitted to the PIV Challenge, but applied here, was the
combined local and global method (cf. Section 3.4.4) proposed by Bruhn et al. [2005] (Bruhn).
For the estimation of the flow field, the version implemented by Liu [2009] was used. This
method also uses a coarse-to-fine strategy in order to handle large displacements. Apart from
the PIV approach proposed by LaVision, also the PIV method applied in the previous sections
(fluere 1.3) was used.
114
5.3 Conclusion
The results in form of the ADE in x-direction (ADEx ) are shown for different time steps in
Figure 5.22. With time also the noise ratio increases. The plot is similar to the ones published
in Stanislas et al. [2008] but has a logarithmic scale for a better representation of the data. It
can be seen that the two correlation-based PIV methods are superior to all optical flow methods.
This is not surprising, since the sequence was specially designed to meet the requirements of
PIV methods (e.g., large displacements and small particle sizes). However, among all compared
optical flow methods the LBA obtained the best results. The plot shows the results of the lLBA,
the vLBA, and the svLBA. Out of these approaches the svLBA performed best. At the lowest
noise ratio the results are only 3.5 % worse than the results obtained with fluere 1.3 and 10 %
worse than the results obtained with LaVision. However, for larger noise ratios the discrepancy
is larger. Nevertheless, for low noise ratios the error obtained with the svLBA is approximately
40 % lower than the error obtained with the next best optical flow approach. These findings
show that the LBA could not quite keep up with the best PIV methods, but it outperformed
other state of the art optical flow approaches, which were also designed for the determination of
fluid flows from particle images.
5.3 Conclusion
This chapter describes the ideal properties and conditions, which have to hold for the used
particle images, as well as the performance of different approaches on four test sequences. For
the LBA, a PND larger than 0.1 ppp and particle displacements smaller than 1-2 pixel are ideal.
This is in contrast to the optimal conditions of PIV, which mainly prefers larger displacements.
To handle large displacements, the LBA must be performed within an hierarchical multi-scale
framework. However, for small displacements, the non-hierarchical LBA is more accurate.
The performance of the different versions of the LBA on four test sequences was compared
to the performance of common optical flow methods as well as PIV. This led to the following
findings. On the synthetic image sequences of a BFS and a 2D turbulence, the LBA obtained
the lowest error values for all noise levels. Especially the svLBA performed very well. With
increasing noise level, it is advisable to reduce the complexity of the flow model by using lesser
motion models. The application of motion models learned from flow fields, which were previously
obtained with PIV, led to improved flow fields compared to the PIV flow fields themselves.
Therefore, the LBA can also be understood as post-processing step leading to improved accuracy.
The motion models that are at hand anyway for the LBA, provide together with the parameter
images additional information about dominant flow events and coherent structures, which can
be used to characterize the flow. The LBA also worked well on real images such as the real
BFS sequence as well as on a more competitive sequence taken from the third international PIV
Challenge. On the latter sequence, the LBA yielded results of improved accuracy compared to
all other optical flow methods. For low noise levels, the ADE was hardly higher than the ADE
obtained with PIV. Considering all results, it shows that for relatively small displacements,
115
5 Fluid dynamical applications
e.g., one pixel, the LBA was able to outperform all other tested methods including PIV. If it
is known beforehand that the LBA will be applied, measurements should be conducted with an
appropriate frame rate in order to yield small particle displacements.
116
6 Conclusion and Outlook
6.1 Conclusion
The scope of this thesis was the development of new approaches for a better estimation of dense
fluid dynamical motion fields from particle images. The intention was to use prior knowledge in
form of typical motion models for the approximation of local flow structures of the underlying
flow fields. On the one hand, such prior knowledge is not available in common optical flow
and PIV methods. On the other hand, optical flow methods using prior knowledge in from of
physics-based constraint equations are extremely complex and very costly. Furthermore, they
require the complete knowledge of the boundary conditions, which is usually not given. With
the proposed learning-based approach (LBA), it was possible to apply prior knowledge of local
flow structures in a simple, yet, efficient way. Therefore, concepts were established in order to
express the solution in terms of an optimal system of orthogonal basis functions. Such a system
was learned from appropriate training vector fields by performing a POD on a set of small vector
patches drawn from the training data. The training data consisted of known fluid dynamical
velocity vector fields and by careful choice of the training data the motion models could be
tuned for specific flow problems. The POD is a common tool in fluid dynamics and is often
used to identify dominant flow events and coherent structures as well as to reconstruct missing
information of incomplete flow fields. Therefore, it is perfectly suited for the determination of
typical flow structures.
The approach was embedded into existing well-established frameworks known from computer
vision. In essence, it was formulated as parametric optical flow approach, which was named local
learning-based approach (lLBA). This local method was also extended to fit into a global context
yielding the variational learning-based approach (vLBA) by using the concepts of variational
and combined local global optical flow approaches. A further extension was derived by using
non-quadratic error norms to obtain the robust variational learning-based approach (rvLBA).
The robust error norm reduces the weights of outliers in order to lessen their influence on the
computed solution. In all of these approaches, each flow vector was estimated in dependence of a
small spatio-temporal neighborhood. Thereby, only the central flow estimate was used while the
surrounding estimates were discarded. By using this available surrounding information, a large
sample of estimates could be derived for the very same flow vector. The final flow estimate was
then obtained from the data sample applying an averaging operation. This statistical extension
was used in combination with the lLBA and the vLBA in order to obtain the statistical local
117
6 Conclusion and Outlook
learning-based approach (slLBA) and the statistical variational learning-based approach (svLBA),
respectively.
The properties and the performance of the different versions of the LBA were investigated on
several synthetic flow sequences. In essence, the effect on the resulting flow field, of applying
different numbers and kinds of spatio-temporal motion models of various sizes, was observed.
The optimal number and the optimal size of the motion models depend on the complexity of the
flow under study. Simple flows require only two to five relatively small motion models, whereas
the ideal number and the ideal size of the motion models increase for flows of increased complexity, which contain many small scale structures. The inclusion of temporal information and,
therefore, the application of spatio-temporal motion models led to improved results compared
to the application of purely spatial motion models. However, experiments with noisy image sequences reveled that with increasing noise level the optimal number of motion models decreases.
Considering too many motion models, the approach tries to model the occurring noise as small
scale flow structures. Therefore, low energy motion models, which contain small scale structures
must be omitted considering noisy sequences.
A comparison of the different versions of the LBA on the analytic sequences showed that
the variational approach performed better than the local approach. The achieved AAE was
in average 7 % lower. The statistical versions of the LBA were able to outperform the nonstatistical versions. The error values of these methods were approximately 15 % and 8 % lower
for the local and the variational version, receptively. With the rvLBA also a slight performance
gain of about 3 % compared to the vLBA could be achieved. The improvements of the vLBA
and the rvLBA compared to the lLBA are somewhat at the expense of the simplicity of the
method. While for the purely local method a simple least squares approach is sufficient to solve
the optical flow problem, the variational methods require more advanced techniques such as
the minimization of a functional that consists of the data term and an additional regularization
term. Especially the robust version requires extensive mathematical knowledge, since a nonlinear problem must be solved. Yet, all mathematical concepts are similar to the concepts of
common optical flow methods and are, therefore, well-known. Apart from improved results, the
variational methods also yield dense flow fields due to the filling-in effect, which is not necessarily
true for the local approach. The statistical approaches are only slightly more complex than the
non-statistical versions. All of the information is readily available and an improved solution
is obtained performing an averaging operation. Therefore, the statistical extension is a highly
recommended add-on to the LBA.
The best conditions and image properties in order to apply the LBA are a relatively high PND
(larger than 0.1 ppp) and particle displacements of about 1-2 pixels. If larger displacements are
present in the sequence, the normal LBA leads to wrong estimates and a warping-based hierarchical multi-scale approach must be applied. However, together with the multi-scale approach only
purely spatial and no spatio-temporal motion models can be used. Furthermore, the multi-scale
approach cannot cope with small displacements. Therefore, it is recommended to use the non-
118
6.2 Outlook
hierarchical version together with sequences of high frame rates and, thus, small displacements,
whenever it is possible.
The LBA was also tested on different fluid dynamical applications in the presence of increasing
noise. The results were compared to the results obtained with other common optical flow and
PIV methods. Compared to the competing approaches, the LBA performed extremely well.
Especially on the sequences with relatively small displacements such as the synthetic BFS and
the 2D turbulent sequence the LBA obtained the lowest error values. On these two sequences,
the AAE of the best LBA version was in average 25 % and 10 % lower than the AAE of the
second best method. Tests on real images of a BFS showed that the LBA can also handle real
world conditions. On a competitive sequence taken form the third international PIV Challenge,
the LBA outperformed all other optical flow methods. The errors obtained with the LBA
were only slightly higher than the errors obtained with PIV, even though, the image properties
(e.g., relatively large displacements) were ideal for PIV. The LBA can also be regarded as postprocessing step to improve the flow fields obtained with other methods such as PIV. Accordingly,
the LBA can be performed using motion models learned from these existing flow fields in order
to improve the results.
The LBA is a highly accurate method that is able to yield precise vector fields of fluid dynamical flows from particle images using prior knowledge about local flow structures. Yet, it is
simple to implement and easy to apply. It is hardly more complex than common optical flow
methods. The LBA also provides additional information about local dominant flow structures
by means of the learned high energy motion models and corresponding parameters, which can
be used to characterize the flow field.
6.2 Outlook
The proposed LBA could be improved in several ways. In order to cope with large displacements
a combination of the LBA with correlation-based methods such as PIV is promising. Such an
approach could link the advantages of both methods. PIV is a capable method for large displacements, whereas the LBA obtains dense flow fields and is highly accurate for small displacements.
Accordingly, PIV could solve for a rough, large displacement field, which is afterwards refined
by application of the LBA on a warped sequence, which merely contains small flow increments.
Due to the vast improvements obtained with the statistical extension of the LBA, further
research in this direction seems reasonable. A thorough investigation of advanced statistical
techniques connecting sample data from neighboring locations may uncover further improvements towards robuster estimates.
In order to reduce the computation time, the implementation of the approaches could be
adapted. The local approach could be parallelized and implemented in graphics processing units
(GPUs). The variational version could benefit from improved numerical multigrid schemes for a
faster solution of the systems of equations. These improved implementations would be the first
119
6 Conclusion and Outlook
step towards a real time performance of the LBA.
So far, only the case of 2D motion fields determined from particle images was considered.
The LBA can also be applied in order to investigate 3D fluid flows. All equations can easily be
extended to 3D. The assumption of constant image brightness is even more likely to hold in 3D,
since if the entire measurement volume is homogeneously illuminated, there are no brightness
variations due to out of plane motion, as it may be the case with 2D light sheets. In the last
years a lot of progress was made in the development of volumetric velocimetry techniques such
as tomographic PIV and the quantity and quality of real 3D sequences increased. In order to
handle this data, accurate and reliable estimation methods are required.
120
Abbreviations
AE
angular error
AAE
average angular error
ADE
average displacement error
AIE
average interpolation error
AMA
affine model approach
BCCE
brightness change constraint equation
BFS
backward facing step
HSA
Horn and Schunck approach
LBA
learning-based approach
LIF
laser induced fluorescence
lLBA
local learning-based approach
NSR
noise-to-signal ratio
PIV
particle image velocimetry
PND
particle number density
POD
proper orthogonal decomposition
PTV
particle tracking velocimetry
RIC
relative information content
RMS
root mean square
rvLBA
robust variational learning-based approach
slLBA
statistical local learning-based approach
SOR
successive over-relaxation
STA
structure tensor approach
SVD
singular value decomposition
svLBA
statistical variational learning-based approach
TV
total variation
vLBA
variational learning-based approach
121
Bibliography
Edward H. Adelson and James R. Berger. Spatitemporal energy models for the perception of
motion. Journal of the Optical Society of America A, 2:284–299, 1985.
Roland J. Adrian. Particle-Imaging Techniques for Experimental Fluid Mechanics. Annual
Review of Fluid Mechanics, 23:261–304, 1991.
Roland J. Adrian and Jerry Westerweel. Particle Image Velocimetry. Cambridge University
Press, 2011.
Ronald J. Adrian. Hairpin vortex organization in wall turbulence. Physics of Fluids, 19, 2007.
Padmanabhan Anandan. A computational framework and an algorithm for the measurement of
visual motion. International Journal of Computer Vision, 2:283–310, 1989.
Alireza Bab-Hadiashar and David Suter. Robust Optic Flow Computation. International Journal
of Computer Vision, 29(1):59–77, 1998.
Simon Baker, Daniel Scharstein, J.P. Lewis, Stefan Roth, Michael J. Black, and Richard Szeliski.
A Database and Evaluation Methodology for Optical Flow. International Journal of Computer
Vision, 92:1–31, 2011.
Wolfgang Bangerth, Ralf Hartmann, and Guido Kanschat. deal.II – a General Purpose Object
Oriented Finite Element Library. ACM Trans. Math. Softw., 33:24/1–24/27, 2007.
John. Barron, David Fleet, and Steven Beauchemin. Performance of Optical Flow Techniques.
IJCV, 12:1:43–77, 1994.
Steven Beauchemin and John Barron. The Computation of Optical Flow. ACM Computing
Surveys, 27-3, 1995.
Adi Ben-Israel and Thomas N.E. Greville. Generalized Inverses: Theory and Applications.
Springer, second edition, 2003.
Gal Berkooz, Philip Holmes, and John L. Lumley. The Proper Orthogonal Decomposition in
the Analysis of Turbulent Flows. Annual Review of Fluid Mechanics, 25:539–575, 1993.
Josef Bigün, Gö H. Granlund, and Johan Wiklund. Multidimensional orientation estimation
with application to texture analysis and optical flow. IEEE Journal of Pattern Analysis and
Machine Intelligence, 13(8):775–790, 1991.
123
Bibliography
M. Black, Y. Yacoob, A. Jepson, and D. Fleet. Learning Parameterized Models of Image Motion.
Proceedings of the International Conference on Computer Vision and Pattern Recognition,
1997.
Michael J. Black and Padmanabhan Anandan. Robust Dynamic Motion Estimation Over Time.
In Proc. Computer Vision and Pattern Recognition, pages 296–302, Maui, Hawaii, 1991.
Michael J. Black and Padmanabhan Anandan. The Robust Estimation of Multiple Motions:
Parametric and Piecewise-Smooth Flow Fields. Computer Vision and Image Understanding,
63:75–104, 1996.
Guido Boffetta. Energy and enstrophy fluxes in the double cascade of two-dimensional turbulence. Journal of Fluid Mechanics, 589:253–260, 2007.
Guido Boffetta, Antonio Cenedese, Stefania Espa, and Stefano Musacchio. Experimental study
of two-dimensional enstrophy cascade. Europhysics Letters, 71(590), 2005.
William L. Briggs, Van Emden Henson, and Steve F. McCormick. A multigrid tutorial. SIAM,
Philadelphia, second edition, 2000.
Thomas Brox. From Pixels to Regions: Partial Differential Equations in Image Analysis. PhD
thesis, Saarland University, 2005.
Thomas Brox, Andrés Bruhn, Nils Papenberg, and Joachim Weickert. High Accuracy Optical
Flow Estimation Based on a Theory for Warping. In Proc. 8th European Conference on
Computer Vision, 2004.
Andrés Bruhn. Variational Optic Flow Computation - Accurate Modelling and Efficient Numerics. PhD thesis, Saarland University, 2006.
Andrés Bruhn, Joachim Weickert, and Christoph Schnörr. Lucas/Kanade Meets Horn/Schunck:
Combining Local and Global Optic Flow Methods. International Journal of Computer Vision,
61(3):211–231, 2005.
Andrés Bruhn, Joachim Weickert, Timo Kohlberger, and Christoph Schnörr.
A Multi-
grid Platform for Real-Time Motion Computation with Discontinuity-Preserving Variational Methods.
International Journal of Computer Vision, 70(3):257–277, 2006.
doi:
10.1007/s11263-006-6616-7.
Johan Carlier. 2d turbulence sequence. Provided by CEMAGREV within the European project
’Fluid Image Analysis and Description’ http://fluid.irisa.fr/, 2005a.
Johan Carlier. Second set of fluid mechanics image sequences. European Project ’Fluid image
analysis and description’ (FLUID), 2005b.
124
Bibliography
Cyril Cassisa, Serge Simoens, Véronique Prinet, and Liang Shao. Subgrid scale formulation of
optical flow for the study of turbulent flow. Experiments in Fluids, 51:1739–1754, 2011.
Tony F. Chan and Pep Mulet. On the convergence of the lagged diffusivity fixed point method
in total variation image restoration. SIAM Journal on Numerical Analysis, 36(2):354–367,
1999.
Anindya Chatterjee. An introduction to the proper orthogonal decomposition. Current Science,
78(7):808–817, 2000.
Nancy Cornelius and Takeo Kanade. Adapting Optical-Flow to Measure Object Motion in Reflectance and X-ray Image Sequences. Technical report, Carnegie Mellon University, Computer
Science Department, 1983.
Thomas Corpetti, Étienne Mémin, and Patrick Pérez. Dense Estimation of Fluid Flows. IEEE
Transactions on Pattern Analysis and Machine Intelligence, 24:365–380, 2002.
Thomas Corpetti, Dominique Heitz, Georges Arroyo, Étienne Mémin, and Alina Santa-Cruz.
Fluid experimental flow estimation based on an optical-flow scheme. Experiments in Fluids,
40:80–97, 2006.
Konstantinos G. Derpanis. Characterizing Image Motion. Technical report, York University,
Ontario, Canada, 2006.
Gerrit E. Elsinga, Fulvio Scarano, Bernhard Wieneke, and Bas W. van Oudheusden. Tomographic particle image velocimetry. Experiments in Fluids, 41:933–947, 2006.
EMVA. EMVA Standard 1288 - Standard for Characterization of Image Sensors and Cameras.
Technical Report Release 3.0, European Machine Vision Association, November 2010.
Richard Everson and Lawrence Sirovich. Karhunen-Loève procedure for gappy data. Journal of
the Optical Society of America A, 12(8):1657–1646, 1995.
Marco Fahl. Trust-Region Methods for Flow Control based on Reduced Order Modelling. PhD
thesis, University of Trier, 2000.
Joel H. Ferziger, Koseff Jeffrey R., and Stephen G. Monismith. Numerical simulation of geophysical turbulence. Computers & Fluids, 31:557–568, 2002.
David Fleet, Michael J. Black, Yaser Yacoob, and Allan Jepson. Design and Use of Linear Models
for Image Motion Analysis. International Journal of Computer Vision, 36(3):171–193, 2000.
David J Fleet and Allan D. Jepson. Computation of Component Image Velocity from Local
Phase Information. International Journal of Computer Vision, 5:1:77–104, 1990.
125
Bibliography
David J Fleet and Yair Weiss. Handbook of Mathematical Models in Computer Vision, chapter
Optical Flow Estimation. Springer, 2006.
Frank Glazer, George Reynolds, and Padmanabhan Anandan. Scene Matching by Hierarchical
Correlation. Technical report, Massachusetts University Amherst Department of Computer
and Information Science, 1983.
Gene H. Golub and Charles F. Van Loan. Matrix Computations, Third Edition. Johns Hopkins
University Press, 1996.
Stanislav V. Gordeyev and Flint O. Thomas. Coherent structure in the turbulent planar jet.
Part 1. Extraction of proper orthogonal decomposition eigenmodes and their self-similarity.
Journal of Fluid Mechanics, 414:145–194, 2000.
Jacques Hadamard. Sur les problèmes aux dérivés partielles et leur signification physique. Princeton University Bulletin, 13:49–52, 1902.
George Haller. An objective definition of a vortex. Journal of Fluid Mechanics, 525:1–26, 2005.
doi: 10.1017/S0022112004002526.
George Haller and Guocheng Yuan.
Lagrangian coherent structures and mixing in two-
dimensional turbulence. Physica D, 147:352–370, 2000.
Horst Haussecker and Hagen Spies. Handbook of Computer Vision and Applications, chapter 13,
pages 309–396. Academic Press, 1999.
Horst W. Haussecker and David J. Fleet. Computing Optical Flow with Physical Models of
Brightness Variation. IEEE Transactions on Pattern Analysis and Machine Intelligence, 23:
661–673, 2001.
Patrick Héas, Cédric Herzet, Etienne Mémin, Dominique Heitz, and Pablo D. Mininni. Bayesian
Estimation of Turbulent Motion. IEEE Transactions on Pattern Analysis and Machine Intelligence, 35(6):1343–1356, 2013.
David J. Heeger. Optical flow using spatiotemporal filters. International Journal of Computer
Vision, 1:279–302, 1988.
Dominique Heitz, Etienne Mémin, and Christoph Schnörr. Variational fluid flow measurements
from image sequences: synopsis and perspectives. Experiments in Fluids, 48:369–393, 2010.
Klaus D. Hinsch. Holographic particle image velocimetry. Measurement Science and Technology,
13:R61–R72, 2002.
Philip Holmes, John L. Lumley, and Gal Berkooz. Turbulence, Coherent Structures, Dynamical
Systems and Symmetry. Cambridge Monographs on Mechanics, 1996.
126
Bibliography
Berthold K. P. Horn. Robot Vision. MIT Press, 1986.
Berthold K. P. Horn and Brian G. Schunck. Determining Optical Flow. Artificial Intelligence,
17:185–203, 1981.
Peter J. Huber. Robust Statistics. John Wiley & Sons, 1981.
J.C.R. Hunt, A.A. Wray, and P. Moin. Eddies, Streams, and Convergence Zones in Turbulent
Flows. In Center for Turbulence Research, Proceedings of the Summer Program, 1988.
Bernd Jähne. Digital Image Processing. Springer, 2005.
Bernd Jähne, Michael Klar, and Markus Jehle. Handbook of Experimental Fluid Mechanics,
chapter 25, pages 1437–1491. Springer, 2007.
Richard D. Keane and Roland J. Adrian. Optimization of particle image velocimeters. Part I:
Double pulsed systems. Measurement Science and Technology, 1:1202–1215, 1990.
Richard D. Keane and Roland J. Adrian. Theory of cross-correlation analysis of PIV images.
Applied Scientific Research, 49:191–215, 1992.
Shigeo Kida and Hideaki Miura. Identification and analysis of vortical structures. European
Journal of Mechanics - B/Fluids, 17(4):471–488, 1998.
Claudia Kondermann, Daniel Kondermann, Bernd Jähne, and Christoph Garbe. An Adaptive
Confidence Measure for Optical Flows Based on Linear Subspace Projections. In Pattern
Recognition, volume 4713 of LNCS. Springer, 2007.
Pijush K. Kundu, Ira M. Cohen, and David R. Dowling. Fluid Mechanics. Academic Press, fifth
edition, 2011.
LaVision. Data aquisition and Visualisation (DaVis), 2014. URL http://www.lavision.de/
de/products/davis.php. Accessed: 2014-10-31.
Leonid P. Lebedev and Michael J. Cloud. The Calculus of Variations and Functional Analysis.
World Scientific, 2003.
Stan Z. Li and Anil K. Jain. Handbook of Face Recognition. Springer, 2nd edition, 2011.
Ce Liu. Beyond Pixels: Exploring New Representations and Applications for Motion Analysis.
PhD thesis, Massachusetts Institute of Technology, 2009.
Tianshu Liu and Lixin Shen. Fluid flow and optical flow. Journal of Fluid Mechanics, 614:
253–291, 2008.
Bruce D. Lucas and Takeo Kanade. An Iterative Image Registration Technique with an Application to Stereo Vision (DARPA). Proceedings of the 1981 DARPA Image Understanding
Workshop, pages 121–130, 1981.
127
Bibliography
John L. Lumley. The structure of inhomogeneous turbulent flows. In Atmospheric Turbulence
and Radio Wave Propagation, 1967.
John L. Lumley. Coherent structures in turbulence. In Transition and turbulence, 1981.
Etienne Mémin and Patrick Pérez. Dense Estimation and Object-Based Segmentation of the
Optical Flow with Robust Techniques. IEEE Transactions on Image Processing, 7:703–719,
1998.
Etienne Mémin and Patrick Pérez. Hierarchical estimation and segmentation of dense motion
fields. International Journal of Computer Vision, 46(2):129–155, 2002.
Wolfgang Merzkirch. Handbook of Experimental Fluid Mechanics, chapter 11, pages 857–870.
Springer, 2007.
Hans-Hellmut Nagel. On a Constraint Equation for the Estimation of Displacement Rates in
Image Sequences. IEEE Transactions on Pattern Analysis and Machine Intelligence, 11(1):
13–30, 1989.
Hans-Hellmut Nagel and Wilfried Enkelmann. An Investigation of Smoothness Constraints for
the Estimation of Displacement Vector Field from Image Sequences. IEEE Transactions on
Pattern Analysis and Machine Intelligence, Pami 8(5):565–593, 1986.
Hans-Hellmut Nagel and A. Gehrke. Spatitemporal adaptive estimation and segmentation of
OF-fields. In Proceedings of the ECCV, Lecture Notes in Computer Science, pages 87–102.
Springer, 1998.
Yoshikazu Nakajima, Hiroshi Inomata, Hiroki Nogawa, Yoshinobu Sato, Shinichi Tamura, Kozo
Okazaki, and Seiji Torii. Physics-based flow estimation of fluids. Pattern Recognition, 36:
1203–1212, 2003.
Shahriar Negahdaripour and Chih-Ho Yu. A Generalized Brightness Change Model for Computing Optical Flow. In IEEE International Conference on Computer Vision, 1993.
Claudia Nieuwenhuis. Postprocessing and Restoration of Optical Flows. PhD thesis, Ruprecht
Karls University Heidelberg, 2009.
Claudia Nieuwenhuis, Daniel Kondermann, and Christoph Garbe. Complex Motion Models for
Simple Optical Flow Estimation. Pattern Recognition (Proc. DAGM) LNCS, 6376:141–150,
2010.
Holger Nobach, Cameron Tropea, Laurent Cardier, Jean-Paul Bonnet, Joël Delville, Jacques
Lewalle, Marie Farge, Kai Schneider, and Ronald J. Adrian. Handbook of Experimental Fluid
Mechanics, chapter 22, pages 1337–1398. Springer, 2007.
128
Bibliography
PIV-Challenge. Homepage of the PIV Challenge, 2014. URL http://www.pivchallenge.org/.
Accessed: 2014-10-31.
Ludwig Prandtl. Über Flüssigkeitsbewegung bei sehr kleiner Reibung. In Verhandlungen des
III. Internationalen Mathematiker-Kongresses, Heidelberg, 1904.
Ludwig Prandtl and Albert Betz. Vier Abhandlungen zur Hydrodynamik und Aerodynamik,
Göttinger Klassiker der Strömungsmechanik Bd. 3. Universitätsverlag Göttingen, 2010.
Alfio Quarteroni, Riccardo Sacco, and Fausto Saleri. Numerical Mathematics. Springer, 2000.
Georges M. Quénot, Jaroslaw Pakleza, and Tomasz A. Kowalewski. Particle image velocimetry
with optical flow. Experiments in Fluids, 25:177–189, 1998.
Samuel G. Raben, John J. Charonko, and Pavlos P. Vlachos. Adaptive gappy proper orthogonal
decomposition for particle image velocimetry data reconstruction. Measurement Science and
Technology, 23(2), 2012.
Markus Raffel, Christian E. Willert, Steven T. Wereley, and Jürgen Kompenhans. Particle
Image Velocimetry: A practical guide. Springer Verlag, 2007.
Leonid I Rudin, Stanley Osher, and Emad Fatemi. Nonlinear total variation based noise removal
algorithms. Physica D, 60:259–268, 1992.
Paul Ruhnau and Christoph Schnörr. Optical stokes flow estimation: an imaging-based control
approach. Experiments in Fluids, 42:61–78, 2007.
Paul Ruhnau, Timo Kohlberger, Christoph Schnörr, and Holger Nobach. Variational optical
flow estimation for particle image velocimetry. Experiments in Fluids, 38:21–32, 2005.
Paul Ruhnau, Anette Stahl, and Christoph Schnörr. Variational estimation of experimental fluid
flows with physics-based spatio-temporal regularization. Measurement Science and Technology, 18:755–763, 2007.
Fulvio Scarano. Iterative image deformation methods in PIV. Measurement Science and Technology, 13:R1–R19, 2002.
Fulvio Scarano and Michel L. Riethmuller. Iterative multigrid approach in PIV image processing
with discrete window offset. Experiments in Fluids, 26:513–523, 1999.
Fulvio Scarano and Michel L. Riethmuller. Advances in iterative multigrid PIV image processing.
Experiments in Fluids, Suppl.:S51–S60, 2000.
Hanno Scharr. Optimal Operators in Digital Image Processing. PhD thesis, Heidelberg University, 2000.
129
Bibliography
Hanno Scharr. Optimal Filters for Extended Optical Flow. In Complex Motion, Lecture Notes
in Computer Science. Volume 3417, 2007.
Brian G. Schunck. The motion constraint equation for optical flow. In Proceedings International
Conference on Pattern Recognition, pages 20–22, 1984.
Brian G. Schunck. Image flow: Fundamentals and future research. In IEEE Conference on
Computer Vision and Pattern Recognition, San Francisco, pages 560–571, 1985.
Hans Rudolf Schwarz and Norbert Köckler. Numerische Mathematik. Vieweg + Teubner, 8.
edition, 2011.
Eero P. Simoncelli, Edward H. Adelson, and David J. Heeger. Probability distributions of optical
flow. In IEEE Conference on Computer Vision and Pattern Recognition, pages 310–315, 1991.
Lawrence Sirovich. Turbulence and the Dynamics of Coherent Structures. Part I: Coherent
Structures. Quarterly of Applied Mathematics, 45(3):561–571, 1987.
Joseph H. Spurk and Aksel Nuri. Fluid Mechanics. Springer, second edition, 2008.
Michel Stanislas, Koji Okamoto, Christian J Käler, Jerry Westerweel, and Fulvio Scarano. Main
results of the third international PIV Challenge. Experiments in Fluids, 45:27–71, 2008.
Julian Stapf and Christoph Garbe. Partikelbasierte Strömungsmessung unter Ausnutzung typischer Bewegungsmuster. In Lasermethoden in der Strömungsmesstechnik, München, September
2013. Deutsche Gesellschaft für Laser-Anemometrie GALA e.V.
Julian Stapf and Christoph Garbe. A learning-based approach for highly accurate measurements
of turbulent fluid flows. Experiments in Fluids, 55(8), 2014a. doi: 10.1007/s00348-014-1799-0.
Julian Stapf and Christoph Garbe. A variational optical flow approach using learned motion
models for the determination of fluid flows. In 17th International Symposium on Applications
of Laser Techniques to Fluid Mechanics, Lisbon, Portugal, July 2014b.
Charles V. Stewart. Robust Parameter Estimation in Computer Vision. SIAM Rieview, 41(3):
513–537, 1999.
R. Strzodka and C.S. Garbe. Real-Time Motion Estimation and Visualization on Graphics
Cards. In Proceedings IEEE Visualization 2004, pages 545–552, 2004.
Deqing Sun, Stefan Roth, and Michael J. Black. A Quantitative Analysis of Current Practices in
Optical Flow Estimation and the Principles Behind Them. International Journal of Computer
Vision, 106:115–137, 2014.
David Suter. Motion Estimation and Vector Splines. In Proceedings Conference on Computer
Vision and Pattern Recognition, pages 939–942, 1994.
130
Bibliography
Richard Szeliski. Image alignment and stitching: A tutorial. Foundations and Trends in Computer Graphics and Computer Vision, 2(1):1–104, 2006.
Richard Szeliski. Computer Vision. Springer, 2011.
Andrey N. Tikhonov and Vasily Y. Arsenin. Solutions of Ill Posed Problems. John Wiley &
Sons Inc., 1977.
O. Tretiak and L. Pastor. Velocity estimation from image sequences with second order differential
operators. In IEEE International Conference on Pattern Recognition, pages 16–19, 1984.
Matthew Turk and Alex Pentland. Eigenfaces for Recognition. Journal of Cognitive Neuroscience, 3(1):71–86, 1991.
Shimon Ullman. The Interpretation of Visual Motion. MIT Press, Cambridge, MA, 1979.
Sabine Van Huffel and Joos Vandewalle. The Total Least Squares Problem: Computational
Aspects and Analysis. Society for Industrial and Applied Mathematics, 1991.
Alessandro Verri and Poggio Tomaso. Motion Field and Optical Flow: Qualitative Properties.
IEEE Transactions on Pattern Analysis and Machine Intelligence, 11(5):490–498, 1989.
Alessandro Verri, Federico Girosi, and Vincent Torre. Differential techniques for optical flow.
Journal of the Optical Society of America A, 7(5):912–922, 1990.
Stefan Volkwein. Proper Orthogonal Decomposition and Singular Value Decomposition. Technical report, Institut für Mathematik, Universität Graz, 1999.
Allen Waxmann, J. Wu, and Bergholm Fredrik. Convected activation profiles and receptive fields
for real time measurement of short range visual motion. In Proceedings of IEEE Conference
on Computer Vision and Pattern Recognition, 1988.
Joachim Weickert and Christoph Schnörr. A Theoretical Framework for Convex Regularizers
in PDE-Based Computation of Image Motion. International Journal of Computer Vision, 45
(3):245–264, 2001.
Tom Weier, Thomas Albrecht, Gunter Gerbeth, Sebastian Wittwer, Hans Metzkes, and J”org
Stiller. The Electromagnetically Forced Flow over a Backward-Facing Step. In TSFP7 Ottawa,
2011.
Richard P. Wildes, Michael J. Amabile, Ann-Marie Lanzillotto, and Tzong-Shyng Leu. Physically based fluid flow recovery from image sequences. In Proceedings Conference on Computer
Vision and Pattern Recognition, pages 969–975, 1997.
Christian E. Willert and M Gharib. Digital particle image velocimetry. Experiments in Fluids,
10:181–193, 1991.
131
Bibliography
Yaser Yacoob and Larry Davis. Learned Temporal Models of Image Motion. In International
Conference on Computer Vision, 1998.
Jing Yuan, Christoph Schnörr, and Étienne Mémin. Discrete Orthogonal Decomposition and
Variational Fluid Flow Estimation. Journal of Mathematical Imaging and Vision, 28:67–80,
2007.
132
Danksagung
Ich möchte allen danken, die zum Gelingen dieser Arbeit beigetragen haben. Besonderen Dank
gilt meinem Betreuer Priv.-Doz. Dr. Christoph Garbe, der mir ermöglichte in seiner Arbeitsgruppe Image Processing and Modeling zu promovieren. Mit vielen Ideen und Tipps stand er
mir stets tatkräftig zur Seite. Bei Prof. Dr. Werner Aeschbach-Hertig bedanke ich mich, dass
er sich die Zeit genommen hat, die Arbeit zu begutachten. Prof. Dr. Dirk Dubbers und Prof.
Dr. Tilman Plehn danke ich für die Bereitschaft Teil meiner Prüfungskommission zu sein.
Für die finanzielle Unterstützung dieser Dissertation durch ein Stipendium der Deutschen
Forschungsgemeinschaft im Rahmen des Graduiertenkollegs GRK1114 Optische Messtechniken
für die Charakterisierung von Transportprozessen an Grenzflächen der TU Darmstadt und der
Universität Heidelberg möchte ich mich bei den Trägern des Graduiertenkollegs bedanken.
Ebenso möchte ich mich bei der Heidelberger Graduiertenschule HGS MathComp bedanken,
die meine Teilnahme an verschiedenen Konferenzen finanzierte.
Bei allen ehemaligen und aktuellen Kollegen am HCI, dem IUP, dem GRK und der HGS
bedanke ich mich für die schöne gemeinsame Zeit und die tolle Zusammenarbeit.
Für die Wartung und Betreuung der Server sowie die Unterstützung bei Rechnerproblemen
aller Art bedanke ich mich bei Dominic Spangenberger, Dr. Nils Krah sowie Jürgen Moldenhauer. Bei Sascha Hub möchte ich mich für die Hilfe beim Wiederherstellen einiger Dateien
meiner zerstörten Festplatte bedanken.
Des Weiteren geht mein Dank an Karin Kruljac und Dr. Christian Schmidt für die Unterstützung bei administrativen Fragen.
Für das Korrekturlesen dieser Arbeit bedanke ich mich ganz herzlich bei Prof. Dr. Hiltrud
Brauch, Jana Schnieders, Marcel Gutsche, Dr. Felix Friedl, Dr. Alfred Klar, Florian Stapf,
Günter Stapf sowie Corinna Korder.
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
