luxCONTROL lighting control system
ready2mains™

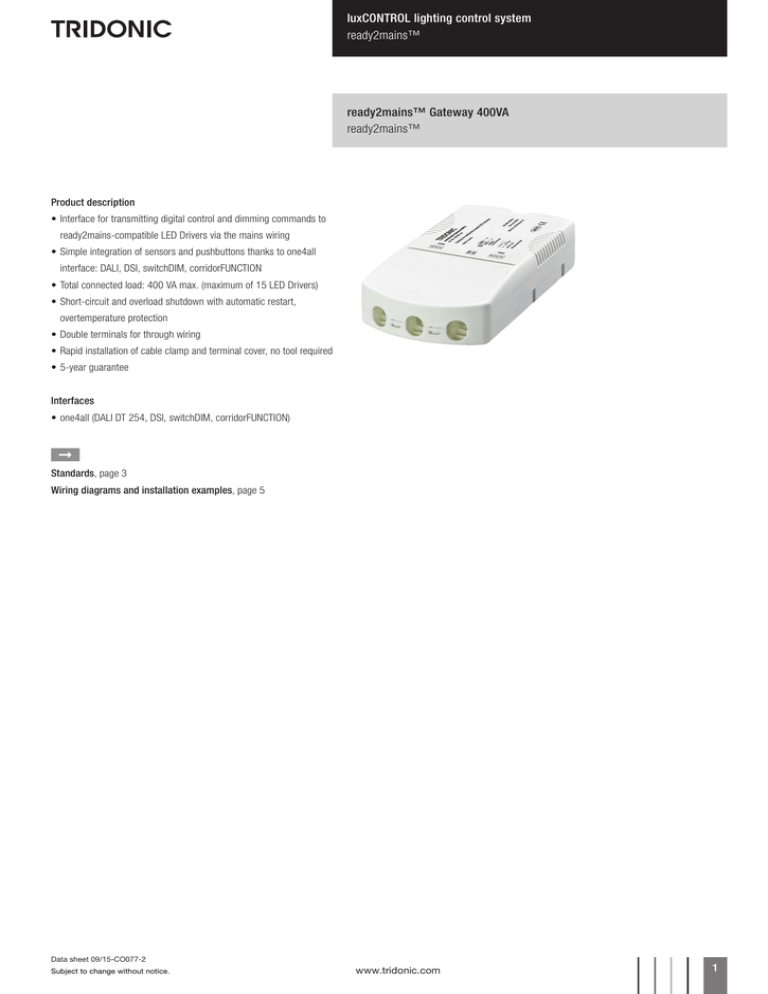

ready2mains™ Gateway 400VA
ready2mains™
Product description
•Interface for transmitting digital control and dimming commands to
ready2mains-compatible LED Drivers via the mains wiring
•Simple integration of sensors and pushbuttons thanks to one4all
interface: DALI, DSI, switchDIM, corridorFUNCTION
•Total connected load: 400 VA max. (maximum of 15 LED Drivers)
•Short-circuit and overload shutdown with automatic restart,
overtemperature protection
•Double terminals for through wiring
•Rapid installation of cable clamp and terminal cover, no tool required
•5-year guarantee
Interfaces
•one4all (DALI DT 254, DSI, switchDIM, corridorFUNCTION)
È
Standards, page 3
Wiring diagrams and installation examples, page 5
Data sheet 09/15-CO077-2
Subject to change without notice.
www.tridonic.com
1
luxCONTROL lighting control system
ready2mains™
ready2mains™ Gateway 400VA
ready2mains™
0 – 400 VA
Power loss1
0.75 W (1.35 W at full load)
Input DALI/DSI control input and switchDIM
1
Current draw from DALI
2 mA
Number of DALI addresses
1
Control range, DSI2
0 – 100 %
Control range, DALI2
0 – 100 %
Terminals
0.5 – 1.5 mm²
Max. cable length secondary at 1.5 mm²3
250 m
Ambient temperature ta
0 ... +60 °C
Type of protection
IP20
Housing
Polycarbonat white RAL colour 9016
159,4
86
50 / 60 Hz
Connected load
Ø
198 – 264 V
Mains frequency
82
220 – 240 V
Input voltage AC
33
Rated supply voltage
34
Technical data
125,5
Ordering data
Type
Article number
Packaging, carton
Weight per pc.
ready2mains Gateway 400VA
28001248
10 pc(s).
0.22 kg
1
Connected luminaires are switched off from mains (no stand-by losses of the connected LED Drivers).
2
Dimming range depends on the connected LED Drivers.
3
The regional and national rules and guidelines must be observed.
Data sheet 09/15-CO077-2
Subject to change without notice.
www.tridonic.com
2
luxCONTROL lighting control system
ready2mains™
Standards
EN 61347-2
EN 61347-2-11
EN 55015
EN 61000-3-2
EN 61000-3-3
EN 61547
According to DALI Standard V2
EN 62386-101
EN 62386-102
Overload protection
If the maximum permissible connected load is exceeded the Gateway will switch
off the output and restart after 10 s. If the overload persists the Gateway will
switch off and will be reactivated only after a mains reset.
Glow wire test
according to EN 60598-1 with increased temperature of 960 °C passed.
Control input (DA/N, DA/L)
Digital signals (DALI, DSI) or switchDIM can be wired on the same terminals
(DA/N and DA/L).
Overview ready2mains Gateway 400VA
ready2mains enables digital information to be transmitted via the mains cable
with the aid of phase control. The procedure used ensures robust
interference-free communication.
The ready2mains Gateway described here receives control signals via the
one4all interface and transmits them to the mains cable and to all the
ready2mains-compatible LED Drivers connected on th secondary side.
Sensors can be easily integrated. The relevant information is broadcast
simultaneously to all the LED Drivers.
Digital signal DALI/DSI
The control input is non-polar for digital control signals (DALI, DSI). The control
signal is not SELV. Control cable has to be installed in accordance to the requirements of low voltage installations.
Different functions depending on each module.
The possible functions depend on the LED Driver used.
The step width corresponds to the DALI standard.
A continuous communication (e.g. caused by dynamic dimming applications)
shall be avoided as increased traffic may lead to increased operating
temperature (see “Overtemperature protection”).
Installation
switchDIM
Integrated switchDIM function allows a direct connection of a push to make
switch for dimming and switching.
Brief push (< 0.6 s) switches LED Driver ON and OFF. The LED Drivers
switch-ON at light level set at switch-OFF.
When the push to make switch is held, LED Drivers are dimmed. After repush
the LED Drivers are dimmed in the opposite direction.
In installations with LED Drivers with different dimming levels or opposite
dimming directions (e.g. after a system extension), all LED Drivers can be
synchronized to 50 % dimming level by a 10 s push.
Use of push to make switch with indicator lamp is not permitted.
Overtemperature protection
If a temperature of 65 °C in the Gateway is exceeded the data rate will be
gradually linear reduced. Commands will therefore be implemented by the LED
Driver with a slight delay, causing visible dimming steps. If the temperature
continues to rise and reaches a value of 120 °C, the Gateway will switch off and
will be reactivated only after a mains reset.
•The ready2mains Gateway may only be used on conjunction with
ready2mains-compatible LED Drivers.
LED Drivers without ready2mains technology and any other loads
must not be operated via the ready2mains Gateway.
•DSI / DALI is not SELV. Apply the installation instructions
for mains voltage.
•Make sure the L and N polarity on the primary side is correct.
If the polarity is incorrect the neutral conductor will be live!
•For the system and its protective equipment to operate correctly,
L and L_out as well as N and N_out must be strictly separated via
the Gateway. L_out and N_out may only be used to operate
ready2mains-compatible LED Drivers.
•Do not exceed the maximum permissible number of connected
LED Drivers. For more information see the section on
„Maximum number of LED Drivers“.
•Gateways must not be cascaded.
•Gateways can be operated on a 3-phase power supply.
On the output side each Gateway must have its own neutral
conductor however. Secondary-side neutral conductors must not be
connected together!
•Connecting and disconnecting luminaries to the secondary side while
Gateway is powered up can cause non-reversible damage.
Short-circuit behaviour
If there is a short-circuit at the output the Gateway will switch off and restart
after 10 s. If another short-circuit is detected the Gateway will switch off and will
be reactivated only after a mains reset.
Mains overvoltage protection
The output is disconnected if the input voltage exceeds 288 V.
As soon as the voltage falls below this limit value the Gateway will automatically
restart. It cannot be switched on if the voltage is more than 288 V.
corridorFUNCTION
The corridorFUNCTION can be programmed in two different ways.
To program the corridorFUNCTION by means of software a DALI-USB interface is
needed in combination with a DALI PS. The software can be the masterCONFIGURATOR.
To activate the corridorFUNCTION without using software a voltage of 230 V simply
has to be applied for five minutes at the switchDIM connection.
The unit will then switch automatically to the corridorFUNCTION.
Note:
If the corridorFUNCTION is wrongly activated in a switchDIM system (for example a
switch is used instead of pushbutton), there is the option of installing a pushbutton
and deactivating the corridorFUNCTION mode by five short pushes of the button
within three seconds.
switchDIM and corridorFUNCTION are very simple tools for controlling LED Driver
with conventional momentary-action switches or motion sensors.
To ensure correct operation a sinusoidal mains voltage with a frequency of 50 Hz
or 60 Hz is required at the control input.
Special attention must be paid to achieving clear zero crossings. Serious mains
faults may impair the operation of switchDIM and corridorFUNCTION.
Data sheet 09/15-CO077-2
Subject to change without notice.
www.tridonic.com
3
luxCONTROL lighting control system
ready2mains™
LED Drivers to be connected
Only ready2mains-compatible LED Drivers may be connected to the Gateway.
Any other mode of operation may damage the Gateway and/or the connected
LED Drivers.
ready2mains-compatible LED Drivers can be identified by the label „supports
ready2mains“ and an appropriate indication in the data sheet. Mixed operation
of different LED Driver families (e.g. mixing PRE and EXC Drivers) is not a problem but may lead to different brightness levels because of different dimming
ranges.
Maximum number of LED Drivers
•The total connected apparent power must not exceed the maximum
connected load of the Gateway.
•No more than 15 LED Drivers may be connected.
This limitation is necessary because of the discharge currents that
have to be handled by the Gateway during generation of the
ready2mains signals.
Installation instructions
Wiring type and cross section
The wiring can be in stranded wires with ferrules or solid with a cross section of
0.5–1.5 mm².
Strip 9.5 mm of insulation from the cables to ensure perfect operation of the
push-wire terminals.
Use one wire for each terminal connector only.
wire preparation:
0.5 – 1.5 mm²
8.5 – 9.5 mm
Release of the wiring
Press down the “push button” and remove the cable from front.
Neither of these limitation may be exceeded.
Calculation of the apparent power
The maximum connected load of the Gateway is specified in the „Technical
data“ section and is calculated as the total apparent power of all the connected
LED Drivers.
Apparent power (in VA) is calculated as the quotient of the true power
(in W) and the power factor (λ).
Detailed values for the individual LED Drivers are given in the relevant data
sheets.
S=
P
λ
Data sheet 09/15-CO077-2
Subject to change without notice.
www.tridonic.com
4
luxCONTROL lighting control system
ready2mains™
Wiring diagram for DALI / DSI
L
N
L
N
L_out ready2mains
N_out
Gateway
DALI / DSI
2
3
4
Udriver
DA/L
DA/N
Max. devices see
“Max. amount of LED Drivers”
2
3
4
2
3
4
Udriver
Udriver
Wiring diagram for switchDIM
L
N
L
N
switchDIM
L_out
N_out
ready2mains
Gateway
2
3
4
Udriver
DA/L
DA/N
Max. devices see
“Max. amount of LED Drivers”
2
3
4
2
3
4
Udriver
Udriver
Data sheet 09/15-CO077-2
Subject to change without notice.
www.tridonic.com
5
luxCONTROL lighting control system
ready2mains™
Wiring diagram for corridorFUNCTION
L
N
2
3
4
L
N
L_out
N_out
Udriver
ready2mains
Gateway
DA/L
DA/N
Max. devices see
“Max. amount of LED Drivers”
2
3
4
Udriver
2
3
4
Udriver
Wiring diagram with basicDIM DGC
L
N
switchDIM
L
N
L’
T1
T2
Sensor
basicDIM DGC
DA
DALI IN
DA
DALI
basicDIM DGC
Sensor
eD1
eD2
D1
CH1
D2
CH2
L
N
L_out
N_out
ready2mains
Gateway
2
3
4
D1
D2
Max. devices see
“Max. amount of LED Drivers”
2
3
4
2
3
4
Data sheet 09/15-CO077-2
Subject to change without notice.
Udriver
DA/L
DA/N
www.tridonic.com
Udriver
Udriver
6
