Sharp CV-10MH, CV10NH User manual

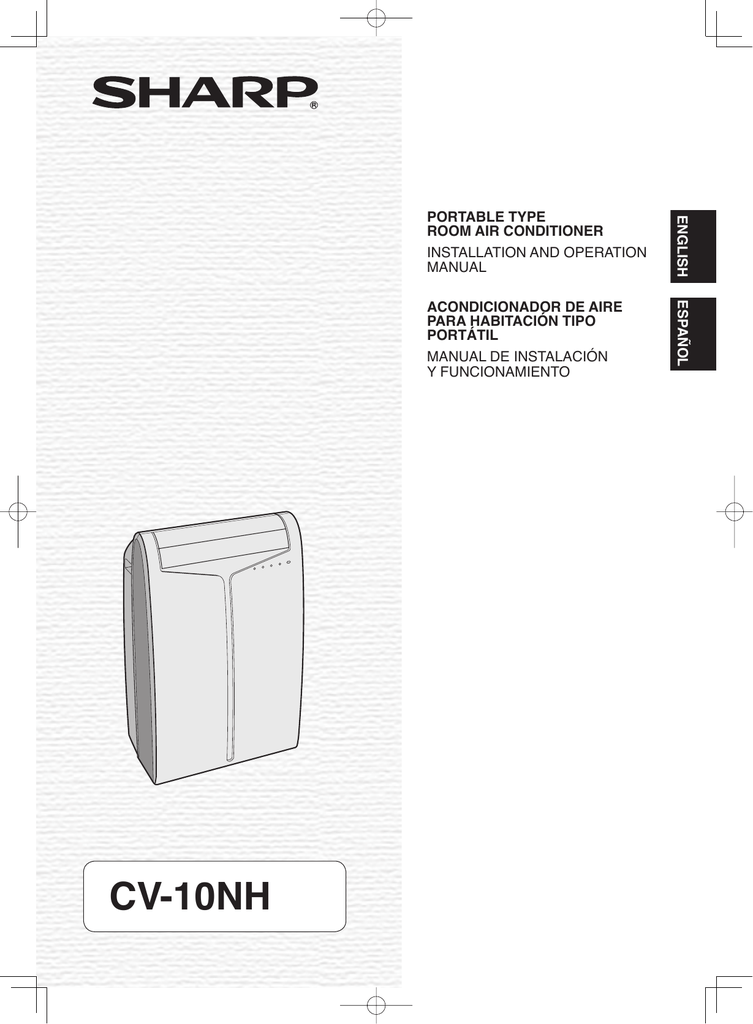

INSTALLATION AND OPERATION MANUAL MANUAL DE INSTALACIÓN Y FUNCIONAMIENTO CV-10NH ACONDICIONADOR DE AIRE PARA HABITACIÓN TIPO PORTÁTIL PORTABLE TYPE ROOM AIR CONDITIONER ENGLISH This manual explains the proper use of your new air conditioner. Please read this manual carefully before using the product. This manual should be kept in a safe place for handy reference. CONTENTS E-1 • FOR CUSTOMER ASSISTANCE ...........................................E-2 • CONSUMER LIMITED WARRANTY ......................................E-3 • PRECAUTIONS ......................................................................E-4 • LOCATION ...............................................................................E-7 • INCLUDED...............................................................................E-7 • PART NAMES ..........................................................................E-8 • INSTALL WINDOW PANEL......................................................E-10 • INSTALLATION AND REMOVAL OF EXHAUST HOSE .........E-14 • PRE-OPERATION CHECKS ...................................................E-16 • COOL MODE ...........................................................................E-18 • DEHUMIDIFICATION MODE ...................................................E-19 • FAN MODE ..............................................................................E-20 • VENTILATION MODE ..............................................................E-20 • TO CHANGE AIR FLOW DIRECTION .....................................E-21 • MEGA COOL OPERATION......................................................E-22 • ONE-HOUR OFF TIMER .........................................................E-22 • TIMER OPERATION ................................................................E-23 • MAIN UNIT OPERATION .........................................................E-25 • DRAINAGE ..............................................................................E-26 • MAINTENANCE .......................................................................E-27 • BEFORE CALLING FOR SERVICE ........................................E-28 FOR CUSTOMER ASSISTANCE (the United States) To aid in answering questions if you call for service or for reporting loss or theft, please record below the model and serial number located on the back side of the unit. MODEL NUMBER SERIAL NUMBER DATE OF PURCHASE Dealer Name Address City State Zip Telephone TO PHONE: Dial 1-800-BE-SHARP (237-4277) for: SERVICE (for your nearest Sharp Authorized Servicer) PARTS (for your Authorized Parts Distributor) ACCESSORIES ADDITIONAL CUSTOMER INFORMATION TO WRITE: For service problems, warranty information, missing items and other assistance: Sharp Electronics Corporation Customer Assistance Center 1300 Naperville Drive Romeoville, IL 60446-1091 TO ACCESS THE INTERNET: www.sharpusa.com Please provide the following information when you write or call: model number, serial number, date of purchase, your complete mailing address (including zip code), your daytime telephone number (including area code) and description of the problem. E-2 CONSUMER LIMITED WARRANTY CONSUMER LIMITED WARRANTY FOR THE U.S. USERS SHARP ELECTRONICS CORPORATION warrants to the first consumer purchaser that this Sharp brand product (the “Product”), when shipped in its original container, will be free from defective workmanship and materials, and agrees that it will, at its option, either repair the defect or replace the defective Product or part thereof with a new or remanufactured equivalent at no charge to the purchaser for parts or labor for the period(s) set forth below. In order to enforce the rights under this limited warranty, the purchaser should follow the steps set forth below and provide proof of purchase to the servicer. The limited warranty described herein is in addition to whatever implied warranties may be granted to purchasers by law. ALL IMPLIED WARRANTIES INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS FOR USE ARE LIMITED TO THE PERIOD(S) FROM THE DATE OF PURCHASE SET FORTH BELOW. Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you. Neither the sales personnel of the seller nor any other person is authorized to make any warranties other than those described herein, or to extend the duration of any warranties beyond the time period described herein on behalf of Sharp. The warranties described herein shall be the sole and exclusive warranties granted by Sharp and shall be the sole and exclusive remedy available to the purchaser. Correction of defects, in the manner and for the period of time described herein, shall constitute complete fulfillment of all liabilities and responsibilities of Sharp to the purchaser with respect to the Product, and shall constitute full satisfaction of all claims, whether based on contract, negligence, strict liability or otherwise. In no event shall Sharp be liable, or in any way responsible, for any damages or defects in the Product which were caused by repairs or attempted repairs performed by anyone other than an authorized servicer. Nor shall Sharp be liable or in any way responsible for any incidental or consequential economic or property damage. Some states do not allow the exclusion of incidental or consequential damages, so the above exclusion may not apply to you. THIS WARRANTY GIVES YOU SPECIFlC LEGAL RIGHTS. YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE. Your Product Model Number & Description: Warranty Period for this Product: Additional Item(s) Excluded From Warranty Coverage (If any): Where to Obtain Service: What to Do to Obtain Service: CV-10NH Portable Air Conditioner. Be sure to have this information available when you need service for your Product. One (1) year parts and labor from date of purchase. The warranty period continues for a total of five (5) years from date of purchase for the Sealed Cooling System parts; labor and service are not provided free of change for this additional period. Appearance items of the Product, filters, or accessories, or any printed materials. Product which has been used for rental and/or commercial purposes. From a Sharp Authorized Servicer located in the United States. To find the location of the nearest Sharp Authorized Servicer, call Sharp Toll Free at 1-800-BE-SHARP. Contact your Sharp Authorized Servicer to obtain in-home service for this Product. The Servicer will come to your home, and if it is necessary to remove the Product, the Servicer will reinstall it. Be sure to have Proof of Purchase available. TO OBTAIN SUPPLY, ACCESSORY OR PRODUCT INFORMATION, CALL 1-800-BE-SHARP, OR VISIT OUR WEBSITE AT www.sharpusa.com SHARP ELECTRONICS CORPORATION Sharp Plaza, Mahwah, New Jersey 07430-2135 E-3 This warranty does not apply to any appearance items of the Product nor to the additional excluded item(s) set forth below nor to any Product the exterior of which has been damaged or defaced, which has been subjected to improper voltage or other misuse, abnormal service or handling, or which has been altered or modified in design or construction. PRECAUTIONS Points to keep in mind when using your air conditioner. WARNINGS FOR USE • Install the air conditioner in accordance with the installation instructions in the latter section of this manual. • Do not modify any part of this product. • Do not insert anything into any part of the unit. • Ensure the power supply used has an appropriate voltage rating. Only use a three-pin grounded electrical AC socket rated 125V, 60Hz, and 15 amps or more as shown on the right. Use of a power supply with an improper voltage rating can result in damage to the unit and possibly fire. • Always use a fuse with the proper amp rating. Do not, under any circumstances, use wire, pins or other objects in place of a proper fuse. • In the event of any abnormality with the air conditioner (ex. a burning smell), turn it off immediately and disconnect the power supply. WARNING FOR POWER SUPPLY CORD • This air conditioner uses a plug with a built-in fuse. Read the precautions on the plug before using the air conditioner. • Always conduct a “Power Plug Check” (See Page 16) before use to confirm the power plug functions normally. • This power plug must only be plugged into an appropriate wall socket. Do not use in conjunction with any extension cords. • Push the power plug securely into the socket and make sure it is not loose. • Do not pull, deform, or modify the power supply cord, or immerse it in water. Pulling or misuse of the power supply cord can result in damage to the unit and cause electrical shock. • A damaged power supply cord must be replaced with a new power supply cord obtained from the product manufacturer and not repaired. Replacement must be performed by manufacture's service agent in order to avoid a hazard. NOTE Radio or TV Interference If this room air conditioner should cause interference to radio or television reception, try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the room air conditioner and radio/TV receiver. • Connect the room air conditioner into an outlet on a circuit different from that to which the radio/TV receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. E-4 WARNING ABOUT GROUNDING Grounding pin 3-Pin plug 3-Pin socket 3-Pin socket Grounded electrical box Grounded electrical box 3-Pin plug Grounding pin • Do not under any circumstances cut or remove the round grounding pin from this plug. Consult a qualified electrician or serviceman if the grounding instructions are not completely understood, or if in any doubt as to whether the appliance is properly grounded. If a grounding adapter is used, make sure the electrical box is fully grounded. Grounding adapter Grounding wire Screw Tab for grounding screw Grounded electrical box USAGE CAUTIONS • Ventilate the room periodically during use, especially if using gas appliances. • Be sure to turn the unit off and disconnect the power supply cord before performing any maintenance or cleaning. • Do not splash or pour water directly onto the unit. Water can cause electrical shock or equipment damage. • Drainage should be performed whenever moving the air conditioner. (See Page 26) If any water remains in the tank, it may spill out while being moved. • Remove the window panel in the event of particularly adverse weather. Extremely adverse weather may cause water to leak in through the openings. • To ensure proper drainage, the drainage hose must have no kinks or be on a different level during dehumidification mode. The drained water may spill out into the room. • The temperature around the drainage hose must not be below freezing point when used. Drained water may freeze inside the hose, causing water inside the unit to overflow into the room. • Do not block the exhaust air outlet with obstacles. Cooling performance may be reduced or stop completely. E-5 • Improper use of the grounding plug can result in the risk of electric shock. This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of an electric shock by providing a less resistant conduit for the electric current. This appliance is equipped with a cord that has a grounding wire connected to a grounding plug. The plug must be plugged into a socket that is properly installed and grounded. PRECAUTIONS NOTES ON OPERATION • Allow 3 minutes for the compressor to restart cooling. If you turn the air conditioner off and immediately restart it, allow three minutes for the compressor to restart cooling. There is an electronic device in the unit that keeps the compressor turned off for three minutes for safety. • In the event of a power failure during use, allow 3 minutes before restarting the unit. After power is reinstated, restart the air conditioner. If the power was off for less than three minutes, be sure to wait at least three minutes before restarting the unit. If you restart the air conditioner within three minutes, a protective device in the unit may cause the compressor to shut off. This protective device will prevent cooling for about 5 minutes. Any previous settings will be canceled and the unit will return to its initial settings. • Low temperature operation: Is your unit freezing up? Freezing may occur when the unit is set close to 64°F in low ambient temperature conditions, especially at night. In these conditions, a further temperature drop may cause the unit to freeze. Setting the unit to a higher temperature will prevent it from freezing. • Dehumidification mode increases room temperature. The unit generates heat during dehumidification mode and the room temperature will rise. Warm air will be blown out from the Exhaust air outlet, but this is normal and does not indicate a problem with the unit. • This air conditioner blows the warm air generated by the unit outside the room via the exhaust hose while in cool mode. Accordingly, the same amount of air as that blown out will enter the room from outside through any openings into the room. • When cooling operation is performed at high humidity conditions, water tank inside the unit may frequently become full. When water tank inside the unit is full, the unit stops operating and TIMER, OPERATION and MEGA COOL lamps will blink. In this case, perform drainage to drain out water within the unit. (See page 26) OPERATING CONDITIONS • The air conditioner must be operated within the temperature range indicated below. MODE ROOM TEMPERATURE COOL 64°F~95°F Dehumidification 59°F~95°F • A built-in safety device may cut off operation if the temperature exceeds these limits. • When cooling operation is performed at high room temperature, the fan may run at a slower speed. ENERGY EFFICIENCY TIPS • Avoid direct sunlight. Close blinds, drapes or shades to keep out direct sunlight while in cooling mode. • Keep the filter clean. Keeping the filter clean greatly aids efficient operation. A dirty filter blocks the flow of air, making your air conditioner work harder and less efficiently. See page 27 on how to clean the filter. • Turn off unnecessary lights. Your air conditioner must remove the heat produced by your lights or other heat-producing appliances. Turn off any lights or appliances that are not in use. • Turn off the air conditioner when no one is home. Use only when necessary. The less time the air conditioner is used, the lower the running costs. E-6 LOCATION MIN.12" (30cm) MIN.12" (30cm) INCLUDED SUGGESTED TOOLS FOR WINDOW PANEL INSTALLATION 1. Screwdriver(medium size Phillips) 2. Tape measure or ruler 3. Knife or scissors 4. Saw (In the event that the window panel needs to be cut down in size because the window is too narrow for direct installation.) E-7 • The air conditioner should be placed on a firm foundation to minimize noise and vibration. For safe and secure positioning, place the unit on a smooth, level floor strong enough to support the unit. • The unit has casters to aid placement, but it should only be rolled on smooth, flat surfaces. Use caution when rolling on carpet surfaces. Do not attempt to roll the unit over objects. • The unit must be placed within reach of a properly rated grounded socket. • Never place any obstacles around the air inlet or outlet of the unit. • Allow at least 12" (30cm) of space from the wall for efficient air-conditioning. PART NAMES FRONT VIEW 1 2 3 1 Air Outlet 2 Vertical louvers 3 Horizontal louvers 4 4 Remote control signal receiver window 5 5 POWER Button 6 6 OPERATION Lamp (red) 7 8 9 9 7 TIMER Lamp (orange) 8 MEGA COOL Lamp (green) 9 Air inlet 9 REAR VIEW 0 0 Exhaust air outlet q q Window exhaust adapter w w Exhaust hose e r t y e Remote control hook r Air filters t Drainage nozzle and stopcock y Power supply cord hooks u Drainpipe nozzle and stopcock u i o p i Power supply cord o Power plug p Casters(4) NOTE: Actual unit might vary slightly from above illustration. E-8 REMOTE CONTROL 1 1 Transmitter 2 Display 3 POWER Button 4 TEMPERATURE Button 2 3 4 5 6 7 8 9 0 q w e 5 1 hr OFF Button 6 MODE Button 7 ON TIMER Button 8 FAN Button 9 OFF TIMER Button 0 CANCEL Button q LOUVERS Button w RESET Button e MEGA COOL Button REMOTE CONTROL DISPLAY r MODE SYMBOLS r t u i y o : COOL : DEHUMIDIFICATION : FAN : VENTILATION t MEGA COOL SYMBOL y FAN SPEED SYMBOLS : AUTO Quiet : Manual setting Low High u TEMPERATURE AND TIMER COUNT DOWN INDICATOR i TRANSMITTING SYMBOL o ON TIMER / OFF TIMER SYMBOL E-9 INSTALL WINDOW PANEL Installation in a double-hung sash window (See page 12 for installation in a sliding sash window. ) 1 Connect the rain guards to the insect guard net. Insert all three projections on each rain guard into the holes in the insect guard net. Side “A” will now be at the top, as indicated in the diagram. Hole "A" Projection Attach the guard combined above to the panel 2 window Push the insect guard net firmly to ensure that its four projections fit into the holes in the window panel. Side “A” will now be at the top, as indicated in the diagram. Rain guard Insect guard net Projection Window panel "A" Cut the foam seal A (adhesive type) to 3 the proper length and attach it to the window stool. Foam seal A (adhesive type) Attach the window panel to the window 4 stool. If the inner width of the window is between 22" (559mm) and 24" (609mm) inclusive. Cut The window panel cannot be installed in windows less than 22" (559mm) wide, as you will be unable to shut the exhaust cover. (1) Remove the adjustment panel from the window panel, and cut the window panel to the same width as the window. (2) Open the window sash and place the window panel on the window stool (3) Secure the window panel to the window stool with 2 screws. E-10 Window panel 22"~ 24" Window stool If the inner width of the window is between 24" (609mm) and 36.8" (934mm) inclusive. Adjustment panel (1) Open the window sash and place the window panel on the window stool. (2) Slide the adjustment panel to fit the window frame width. 24"~36.8" (3) Secure the window panel to the stool with 3 screws. If the inner width of the window is between 36.8" (934mm) and 48" (1219mm) inclusive. Extension panel (1) Attach the extension panel to the adjustment panel. (2) Open the window sash and place the window panel on the window stool. (3) Slide the adjustment and extension panels to fit the window frame width. (4) Secure the window panel to the window stool with 4 screws. 5 36.8"~48" Foam seal A (adhesive type) Cut the foam seals (adhesive type) A and B to the proper length and attach it to the window panel. Attach foam seal A to the window panel and extension panel, and attach foam seal B to the adjustment panel. Foam seal B (adhesive type) Close the window sash securely against Window panel. 6 the the foam seal to an appropriate length and seal the opening between the 7 Cut top of the inner window sash and the outer window sash. 8 Attach the bracket with a screw. Foam seal Bracket E-11 INSTALL WINDOW PANEL Installation in a sliding sash window (See page 10 for installation in a double-hung window.) 1 Connect the rain guards to the insect guard net. Insert all three projections on each rain guard into the holes in the insect guard net. Side “A” will now be at the top, as indicated in the diagram. "A" Insect guard net Hole Rain guard Projection the guard combined above to the 2 Attach window panel. Push the insect guard net firmly to ensure that its four projections fit into the holes in the window panel. Side “A” will now be at the top, as indicated in the diagram, when it is installed in the window. Window panel "A" Projection the foam seal A (adhesive type) to the proper length and attach it to the 3 Cut window frame. Foam seal A (adhesive type) the window panel into the window 4 Install frame. If the inner height of the window is between 22" (559mm) and 24" (609mm) inclusive. The window panel cannot be installed in windows less than 22" (559mm) high, as you will be unable to shut the exhaust cover. Cut (1) Remove the adjustment panel from the window panel, and cut the window panel to the same height as the window. (2) Open the window sash and place the window panel on the window frame. Window panel 22"~24" (3) Secure the window panel to the window frame with 2 screws. E-12 If the inner height of the window is between 24" (609mm) and 36.8" (934mm) inclusive. Adjustment panel (1) Open the window sash and place the window panel on the window frame. 24"~36.8" (3) Secure the window panel to the window frame with 3 screws. Extension panel If the inner height of the window is between 36.8" (934mm) and 48" (1219mm) inclusive. (1) Attach the extension panel to the adjustment panel. 36.8"~48" (2) Open the window sash and place the window panel on the window frame. (3) Slide the adjustment and extension panels to fit the window frame height. (4) Secure the window panel to the window frame with 4 screws. 5 Cut the foam seals (adhesive type) A and B to the proper length and attach them to the window panel. Attach foam seal A to the window panel and extension panel, and attach foam seal B to the adjustment panel. Foam seal B (adhesive type) the window sash securely against the Window panel. 6 Close Foam seal A (adhesive type) Cut the foam seal to an appropriate 7 length and seal the opening between the side of the inner window sash and the outer window sash. 8 Attach the bracket with a screw. Bracket Foam seal E-13 (2) Slide the adjustment panel to fit the window frame height. INSTALLATION AND REMOVAL OF EXHAUST HOSE The exhaust hose must be installed or removed in accordance with the usage mode. MODE EXHAUST HOSE COOL, FAN, VENTILATION, DEHUMIDIFICATION with no container Install DEHUMIDIFICATION with container(minimum capacity 31/2 gallons) Remove Installation of the exhaust hose the window exhaust adapter to 1 Attach the exhaust hose. Extend one end of the exhaust hose and insert it into the window exhaust adapter, and turn it (approx. three times) until it stops. Make sure they are securely attached. 2 Attach the exhaust hose adapter to the unit. Insert the two projections on the exhaust hose adapter into the two holes on the unit, and firmly attach them to each other. Window exhaust adapter Extend Exhaust hose Projection and open the exhaust cover on the window panel, and attach the win3 Slide dow exhaust adapter. Hole Surface of window exhaust adapter marked "TOP" should be at the top when it is installed in a double-hung sash window. Surface of window exhaust adapter marked "TOP" should be on the window frame side when it is installed in a sliding sash window. "TOP" The exhaust hose should be as short as possible for operational efficiency; however, it must not be twisted or bent. Acceptable E-14 Acceptable Removal of the exhaust hose Remove the window exhaust adapter. 1 Pull out and remove the window exhaust adapter by pushing down two “PUSH” markings, and slide and close the exhaust cover in the window panel. "PUSH" Remove the exhaust hose adapter from unit. 2 the Lift up and remove the exhaust hose adapter from the unit by pushing down on the two projections. Projection E-15 PRE-OPERATION CHECKS POWER PLUG CHECK This air conditioner uses a fused power plug. Always check the power plug before use. Press the RESET button. 1 Insert 2 socket.the power plug into the wall Press the TEST button. 3 You will hear a CLICK if the circuit breaker is functioning correctly. the RESET button until you 4 Press hear another CLICK. RESET TEST TEST RESET The circuit breaker is activated, power is supplied, and the air conditioner is now ready for use. Do not attempt to use the air conditioner if the above procedure cannot be performed. Disconnect the power plug and call for service. LOADING BATTERIES Use two AAA (R03) batteries. the battery cover at the 1 Remove back of the remote control. batteries into the com2 Insert partment, making sure the ± and — polarities are correctly aligned. • Lines will appear on the display when batteries are properly installed. 3 Reattach the battery cover. the RESET button using 4 Press a thin pointed implement. Battery cover NOTES: • The battery should last approximately one year under normal use. • When replacing the batteries, always change both batteries at the same time, and make sure they are the same type. • If the remote control does not operate normally after replacing the batteries, press the RESET button using a thin pointed implement. • If you will not be using the unit for a prolonged period, remove the batteries from the remote control. E-16 HOW TO USE THE REMOTE CONTROL Point the remote control towards the units signal receiver window and press the desired button. A beep will sound when the unit receives the signal. • Make sure nothing, such as curtains, blocks the signal receiver window. • The remote control operates up to 23 feet (7 meters) away. CAUTION • Do not expose the signal receiver window to direct sunlight. This may adversely affect its operation. If necessary, close the curtains to block out the sunlight. • Use of a fluorescent lamp in the same room may interfere with transmission of the signal. • The unit may be affected by signals emitted from other remote controllers for televisions, VCRs or other equipment used in the same room. • Do not leave the remote control exposed to direct sunlight or near a heater. Protect the remote control from moisture and shock which can discolor or damage it. To prevent the remote control from being misplaced, hook it to the unit when not in use. When attached, to remove the remote control from the unit, lift the remote control up slightly and pull it out. Remote control hook E-17 COOL MODE Install the exhaust hose (See Page14), turn the drainage nozzle to the CLOSE position, "CLOSE" position and check the drainage nozzle is covered with the stopcock. Drainage nozzle Stopcock Stopcock Ensure that the stopcock is securely inserted into the lower drainpipe nozzle and that the nozzle has not been damaged. Drainpipe nozzle Press the MODE button to select 1 COOL mode. COOL DEHUM FAN VENT Press the POWER button to start op2 eration. 2 3 • The red OPERATION lamp on the unit will light. Press the TEMPERATURE button to 3 set the desired temperature. • The temperature can be set within the range of 64°F to 86°F. 1 4 Press the FAN button to set the de4 sired fan speed. AUTO QUIET LOW HIGH TO TURN OFF Press the POWER button again. • The red OPERATION lamp on the unit will turn off. E-18 DEHUMIDIFICATION MODE In this mode, the air conditioner dehumidifies the room. Ensure that the stopcock is securely inserted into the lower drainpipe nozzle and that the nozzle has not been damaged. Dehumidification with container Drainage nozzle Stopcock • When the stopcock is removed, a small amount of water may be discharged from the drainage nozzle. • Always perform this procedure with the unit turned off. Drain water will spout out if attempted during operation. "OPEN" position the drain grommet to a standard commer4 Attach cially-available hose. (5/8" inner diameter, 7/8" outer diameter) the hose to the drainage nozzle, and se5 Attach cure it with the hose band. • Insert the hose securely into a container with a minimum capacity of 31/2 gallons. Be sure to monitor the water level in the container and empty as necessary. Do not operate in dehumidify mode for more than 8 hours at a time. Be sure to empty the water container whenever dehumidify mode is started. Failure to empty the water container can cause the container to overflow and cause damage to underlying materials. • Set the hose sloping downwards for easier drainage. Moreover, do not bend the hose at any point, nor allow the end to be submerged in water. Drain grommet Hose Hose band Dehumidification with no container If draining of the water is not desirable, install the exhaust hose (See Page 14), turn the drainage nozzle to the CLOSE position, and check that the drainage nozzle is covered with the stopcock. In this operation, the water tank inside the unit may become full, the unit will stop operating and the TIMER, OPERATION and MEGA COOL lamps will blink. In this case, drain out the water within the unit (See Page 26). the MODE button to select DEHUMIDIFICATION mode. 1 Press COOL 2 DEHUM FAN VENT 2 Press the power button to start operation. • The red OPERATION lamp on the unit will light. • The temperature cannot be set. • The fan speed is preset to AUTO and cannot be changed. 1 TO TURN OFF Press the POWER button again. • The red OPERATION lamp on the unit will turn off. CAUTION When operating dehumidification with container, the unit generates heat during dehumidification mode and the room temperature will rise. Operate dehumidification with no container if you don't want the room temperature to rise. This will help to slightly drop the room temperature, but dehumidification performance will become less effective than when operating dehumidification with container. E-19 1 Remove the exhaust hose (See Page 15) 2 Turn the drainage nozzle to the OPEN position. 3 Pull the stopcock out from the drainage nozzle. FAN MODE In this mode, the air conditioner simply circulates the air without cooling it. Install the exhaust hose (See Page14), turn the drainage nozzle to the CLOSE position, and check the drainage nozzle is covered with the stopcock. Ensure that the stopcock is securely inserted into the lower drainpipe nozzle and that the nozzle has not been damaged. 1 Press the MODE button to select FAN mode. COOL DEHUM FAN VENT 2 2 Press the POWER button to start operation. Press the FAN button to set the desired fan 3 speed. 1 • The red OPERATION lamp on the unit will light. • The temperature cannot be set. QUIET LOW HIGH 3 TO TURN OFF Press the POWER button again. • The red OPERATION lamp on the unit will turn off. VENTILATION MODE In this mode, the air conditioner ventilates the air to outdoors. Install the exhaust hose (See Page 14), turn the drainage nozzle to the CLOSE position, and check the drainage nozzle is covered with the stopcock. Ensure that the stopcock is securely inserted into the lower drainpipe nozzle and that the nozzle has not been damaged. 1 Press the MODE button to select VENT mode. COOL DEHUM FAN VENT the POWER button to start operation. 2 2 •Press The red OPERATION lamp on the unit will light. • The temperature cannot be set. 1 3 Press the FAN button to set the desired fan 3 speed. • Although the louvers are closed and no air blows out into the room, the external ventilation fan speed changes. QUIET LOW HIGH TO TURN OFF Press the POWER button again. • The red OPERATION lamp on the unit will turn off. E-20 TO CHANGE AIR FLOW DIRECTION UP / DOWN AIR FLOW DIRECTION Press the LOUVERS button on the re1 mote control. 1 2 the LOUVERS button again when the horizontal louvers are at the desired 2 Press position. • The horizontal louvers will stop moving. • The adjusted position will be memorized and the same position will be set automatically when operated the next time. NOTE • During VENTILATION mode, UP/DOWN air flow direction cannot be changed. Horizontal louvers LEFT / RIGHT AIR FLOW DIRECTION Hold the vertical louver as shown in the diagram and adjust the air flow direction. Vertical louvers CAUTION Never attempt to adjust the horizontal louvers manually. • Manual adjustment of the horizontal louvers can cause the unit to malfunction when the remote control is used for adjustment. • When the horizontal louvers are positioned at the lowest position in the COOL or DEHUMIDIFICATION mode for an extended period of time, condensation may result. Do not adjust the vertical louvers to the extreme left or right in the COOL mode with the fan speed set to "QUIET ( )" for an extended period of time. Condensation may form on the louvers. E-21 • The horizontal louvers will swing continuously. MEGA COOL OPERATION In this operation, the air conditioner fan works at extra high speed with a setting temperature of 59°F. Press the MEGA COOL button during cooling 1 mode. • The remote control will display " ". • The temperature display will go off. • The green MEGA COOL lamp on the unit will light. TO CANCEL Press the MEGA COOL button again. 1 • MEGA COOL operation is also cancelled when the mode is changed, or when the unit is turned off. • The green MEGA COOL lamp on the unit will turn off. NOTES: • You cannot set the temperature or fan speed during MEGA COOL operation. • The fan returns to the HIGH speed setting after the unit has run for 30 minutes in MEGA COOL mode. • The extra high fan speed may automatically slow down to protect the unit. ONE-HOUR OFF TIMER When the ONE-HOUR OFF TIMER is set, the unit will automatically turn off after one hour. 1 Press the 1hr OFF button. • The remote control displays “ ”. • The orange TIMER lamp on the unit will light. • The unit will stop operating after one hour. TO CANCEL Press the CANCEL button. 1 CANCEL • The orange TIMER lamp on the unit will turn off. Alternatively, turn the unit off by pressing the POWER button. • The red OPERATION lamp and the orange TIMER lamp on the unit will turn off. NOTES: • The ONE-HOUR OFF TIMER operation has priority over ON TIMER and OFF TIMER operations. • If the ONE-HOUR OFF TIMER is set while the unit is not operating, the unit will operate for an hour at the formerly set condition. • If you wish to operate the unit for another hour before the ONE-HOUR OFF TIMER is activated, press the 1hr OFF TIMER button again during operation. E-22 TIMER OPERATION ON TIMER Point the remote control at the signal receiver window on the unit. 1 Press the ON TIMER button. • The time setting will change as you press the button as follows. 0.5h 1 1.0h 1.5h 10h 11h 12h Hold the button down to speed through the settings. • The orange TIMER lamp on the unit will light. • The unit will emit a beep when it receives the signal. • The time setting will count down to show the remaining time. Select the mode, temperature and fan speed setting as desired. Display shown when you set the unit to turn on 6.5 hours later. • When the temperature is set with the ON TIMER, the temperature will show in the display for 5 seconds and then return to the time display. • If you do not change the setting, the unit will operate using the most recent setting. TO CANCEL TIMER Press the CANCEL button. • The orange TIMER lamp on the unit will turn off. E-23 The unit will turn on automatically according to your setting. Timer duration can be set from a minimum of half an hour (30 minutes) to a maximum of 12 hours. Up to 9.5 hours, you can set in half-hour (30-minute) increments and from 10 to 12 hours, in 1-hour increments. TIMER OPERATION OFF TIMER The unit will turn off automatically according to your setting. Timer duration can be set from a minimum of half an hour (30 minutes) to a maximum of 12 hours. Up to 9.5 hours, you can set in half-hour (30-minutes) increments and from 10 to 12 hours, in 1-hour increments. Point the remote control at the signal receiver window on the unit. Press the OFF TIMER button and set the 1 time as desired. • The time setting will change as you press the button as follows. 0.5h 1.0h 1.5h 10h 11h 12h Hold the button down to speed through the settings. 1 • The orange TIMER lamp on the unit will light. • The unit will emit a beep when it receives the signal. • The time setting will count down to show the remaining time. TO CANCEL TIMER Press the CANCEL button. • The orange TIMER lamp on the unit will turn off. Display shown when you set the unit to turn off 2.5 hours later. NOTES ON TIMER SETTING AND OPERATION • The latest time setting will be memorized and will appear on the remote control display the next time you set the OFF TIMER or ON TIMER. • The OFF TIMER and ON TIMER can not be set together. Only the most recent TIMER setting will be valid. • While the ONE-HOUR OFF TIMER is set, the OFF TIMER and ON TIMER is settings are unavailable. • If the ONE-HOUR OFF TIMER is set while the OFF TIMER or ON TIMER activated, the ON TIMER or OFF TIMER setting will be cancelled. • If a power failure occurs while the OFF TIMER or ON TIMER is set, the TIMER setting will be cancelled and will not be retrieved even after the power is restored. E-24 MAIN UNIT OPERATION Use this mode when the remote control is not available. 1 Press the POWER button on the unit. TO TURN OFF Press the POWER button again. • The red OPERATION lamp on the unit will turn off. NOTES: • Upon starting MAIN UNIT operation, the drainage pump inside the unit runs for about a minute, which may produce an audible gurgling sound. E-25 1 • The red OPERATION lamp on the unit will light. • If the unit has not been unplugged since it was last operated, it will resume operation at its last settings. • If the unit has been unplugged since it was last operated, it will resume operation in the cooling mode, set at 68˚F. The fan speed set to AUTO. DRAINAGE Prepare for drainage and drain out water within the unit in the following cases. If the unit stops operating and the TIMER, OPERATION and MEGA COOL lamps are blinking. (This indicates that the water tank inside the unit is full.) sure to turn the unit off. 1 Make the drainage nozzle to the OPEN position. 2 Turn the stopcock out from the drainage nozzle. 3 Pull • When the stopcock is removed, a small amount of water may be discharged from the drainage noz- 4 5 6 7 8 9 Drainage nozzle Stopcock zle. "OPEN" position Attach the drain grommet to a standard commercially available hose. (5/8" inner diameter, 7/8" outer diameter) Attach the hose to the drainage nozzle, and secure it with the hose band. Drain grommet • Prepare for draining, as drain water will come out through the hose during operation. Hose Press the POWER button on the unit twice. • The water will drain out through the drainage hose. Maximum amount of water that may be drained out is approximately 41/5 pints. • The OPERATION, TIMER and MEGA COOL lamps will be blinking. When drainage water stops running out from Hose band the hose, turn the unit off by pressing POWER button. • This will take about one minute. Remove the hose from the drainage nozzle, and replace the stopcock. • Keep the hose band and drain grommet in case of re-used. Turn the drainage nozzle to the CLOSE position. Whenever the unit is moved (to prevent water within the unit from spilling). When the unit is not used for a long time. out the above procedures from 1 to 5. 1 Carry the POWER button on the unit. 2 Press • The water will drain out through the drainage hose. Maximum amount of water that may be drained out is approximately 4 1/5 pints. • The OPERATION lamps will light. When drainage water stops running out from the hose, turn the unit off by pressing POWER button. • This will take about one minute. Remove the hose from the drainage nozzle, and replace the stopcock. • Keep the hose band and drain grommet in case of re-used. 3 4 5 Turn the drainage nozzle to the CLOSE position. the stopcock from the drainpipe nozzle, and completely drain any water 6 Remove within the unit. • Always prepare a receptacle to collect the water before draining. Maximum amount of water that may be drained out is approximately 2/5 pints. 7 Replace the stopcock to the drainpipe nozzle. E-26 Stopcock Drainpipe nozzle MAINTENANCE Be sure to disconnect the power from the wall socket before performing any maintenance. CLEANING THE FILTERS THE FILTERS 1 REMOVE • Gently pull the filter handle to the right and slide the filter out of the unit. THE FILTERS 2 CLEAN • Use a vacuum cleaner to remove any dust. If the filters are very dirty, wash them with deterFilters gent and rinse carefully with clean water. Dry the filters in the shade before reinstalling them. THE FILTERS 3 REINSTALL • Hold the filter handle and gently push the filter back into place. Never operate the unit without the filter. Doing so may result in serious damage to the unit. CLEANING THE UNIT AND THE REMOTE CONTROL Wipe them with a soft, dry cloth or with a cloth moistened with a mild soap. Carefully remove any residue by wiping with a damp cloth and dry completely. Avoid splashing water onto the unit. Water can dangerously damage the electrical insulation. Never use harsh chemicals or abrasive cleaners on any part of the unit. To avoid damaging the unit, do not use hot water (120°F/50°C or hotter) when cleaning. CLEANING THE INSECT GUARD NET The cooling performance may be reduced or stop completely if the insect guard net becomes clogged with dust. Periodically remove the window exhaust adapter from the window panel and clean the insect guard net with a vacuum cleaner. Insect guard net MAINTENANCE AFTER AIR CONDITIONER SEASON drainage to drain out water within the unit. (See Page 26 "When the unit is not used for a long time"). 1 Perform the unit in the FAN or VENTILATION mode for about half a day to thoroughy dry inside the unit. 2 Operate 3 Clean the filters, then reinstall them. E-27 If the filter is clogged with dust, the airflow will be reduced, resulting in poor cooling performance. The filter should be cleaned every two weeks. BEFORE CALLING FOR SERVICE If the unit appears to be malfunctioning, check the following points before calling for a service. AIR CONDITIONER DOES NOT OPERATE AT ALL • Is the unit plugged in or is the plug loose? • Has the fuse blown or is the circuit breaker tripped? • Did you restart the unit within 3 minutes of a power failure? If the power was off for less than 3 minutes when, you restarted the air conditioner, a protective device may cause the compressor to shut off, preventing cooling for about 5 minutes. • Are the OPERATION, TIMER and MEGA COOL lamps blinking? The water tank inside the unit is full. It must be drained. (See page26) • Check the power plug. (See page16) AIR CONDITIONER DOES NOT COOL PROPERLY • Is it set to FAN, DEHUMIDIFICATION or VENTILATION mode? Cooling does not take place in these modes. Change the MODE setting. • Are the filters clogged with dust? Clean and replace the filters. • Is the cooling coil frozen? No air will blow out if the cooling coil is frozen. Run the air conditioner in FAN mode with the fan speed set to "HIGH" until all ice dissipates. • Is the temperature set properly? • Is the window exposed to direct sunlight? Close the curtains or blinds to minimize solar energy heating the room. • Is the exhaust hose too long? For efficient operation, make the hose as short as possible. The exhaust hose must not be twisted or bent. SOUNDS • The unit may seem rather loud for the first 2 to 3 minutes when the unit is turned on. This is the sound of the compressor starting-up and is perfectly normal. • A soft, swishing noise can be heard immediately after the unit is turned on or off, and also during operation. This is the sound of the refrigerant flowing inside the unit. • This air conditioner evaporates water condensed during cooling operation within the unit through the exhaust air outlet. Although water flowing sound way be heard, this is normal. • An audible gurgling sound may be heard for about a minute upon starting AUXILIARY mode. This is sound of running drainage pump inside the unit. • An audible gurgling sound may be heard when the unit is operated on a gently sloping floor. Place the unit on a level floor. TIMER DOES NOT WORK PROPERLY • If a power failure occurs while the TIMER is set, the TIMER setting will be cancelled and will not be retrieved even after the power is restored. This is normal for this unit. THE UNIT FAILS TO REACT TO THE REMOTE CONTROL SIGNAL • Check the batteries in the remote control. Replace if necessary. • Try to send the signal again with the remote control pointed directly at the unit’s signal receiver window. • Check whether the remote control batteries are installed with the polarities properly aligned. E-28 ÍNDICE S-1 • SOLICITU DE SERVICIO AL CLIENTE ........................................... S-2 • GARANTÍA LIMITADA DEL CONSUMIDOR .................................... S-3 • PRECAUCIONES ............................................................................ S-4 • UBICACIÓN ...................................................................................... S-7 • PIEZAS INCLUIDAS ......................................................................... S-7 • DESIGNACIÓN DE LAS PIEZAS ..................................................... S-8 • INSTALACIÓN DEL PANEL DE VENTANA ...................................... S-10 • INSTALACIÓN Y DESMONTAJE DE LA MANGUERA DE ESCAPE ..................................................................................... S-14 • REVISIONES ANTES DE INICIAR EL FUNCIONAMIENTO ............. S-16 • MODO ENFRIAR .............................................................................. S-18 • MODO DESHUMIDIFICACIÓN ........................................................ S-19 • MODO VENTILADOR....................................................................... S-20 • MODO VENTILACIÓN...................................................................... S-20 • CAMBIO DE LA DIRECCIÓN DE LA CORRIENTE DE AIRE............................................................................................ S-21 • FUNCIONAMIENTO MEGA COOL................................................... S-22 • FUNCIÓN DE DESACTIVACIÓN AUTOMÁTICA EN UNA HORA ................................................................................. S-22 • FUNCIONAMIENTO CON EL TEMPORIZADOR ............................. S-23 • FUNCIONAMIENTO DE LA UNIDAD PRINCIPAL ........................... S-25 • DRENAJE ......................................................................................... S-26 • MANTENIMIENTO............................................................................ S-27 • ANTES DE LLAMAR AL DEPARTAMENTO DE SERVICIO TÉCNICO ................................................................. S-28 S-2 PARA OBTENER REFACCIONES, ACCESORIOS O INFORMACIÓN DE LOS PRODUCTOS, LLAME AL 1-800-BE-SHARP O VISITE www.sharpusa.com SHARP ELECTRONICS CORPORATION Sharp Plaza, Mahwah, New Jersey 07430-2135 S-3 S-4 Tornillo S-5 CONSEJOS PARA EL RENDIMIENTO DE ENERGÍA S-6 UBICACIÓN MÍN.12" (30 cm) MÍN.12" (30 cm) Abrazadera (1) Tornillo (8) Control remoto (1) Pila (2) (AAA.R03) S-7 DESIGNACIÓN DE LAS PIEZAS PARTE DELANTERA 1 2 3 4 5 6 6 Lámpara OPERATION (roja ) 7 8 9 9 7 Lámpara TIMER (anaranjada ) 8 Lámpara MEGA COOL(verde) 9 Orificio de entrada de aire 9 PARTE TRASERA 0 0 Orificio de salida de aire de escape q w e r t y u i o p S-8 CONTROL REMOTO 1 3 6 Tecla de modo (MODE) 4 5 6 7 8 9 0 q w e PANTALLA DE VISUALIZACIÓN DEL CONTROL REMOTO r SÍMBOLOS DE MODO : ENFRIAR : DESHUMIDIFICACIÓN r t i y : VENTILADOR u : VENTILACIÓN t SÍMBOLO DE SUPERENFRIAMIENTO y SÍMBOLOS DE VELOCIDAD DEL VENTILADOR : AUTOMÁTICO o SILENCIOSA : Ajuste manual BAJA ALTA
