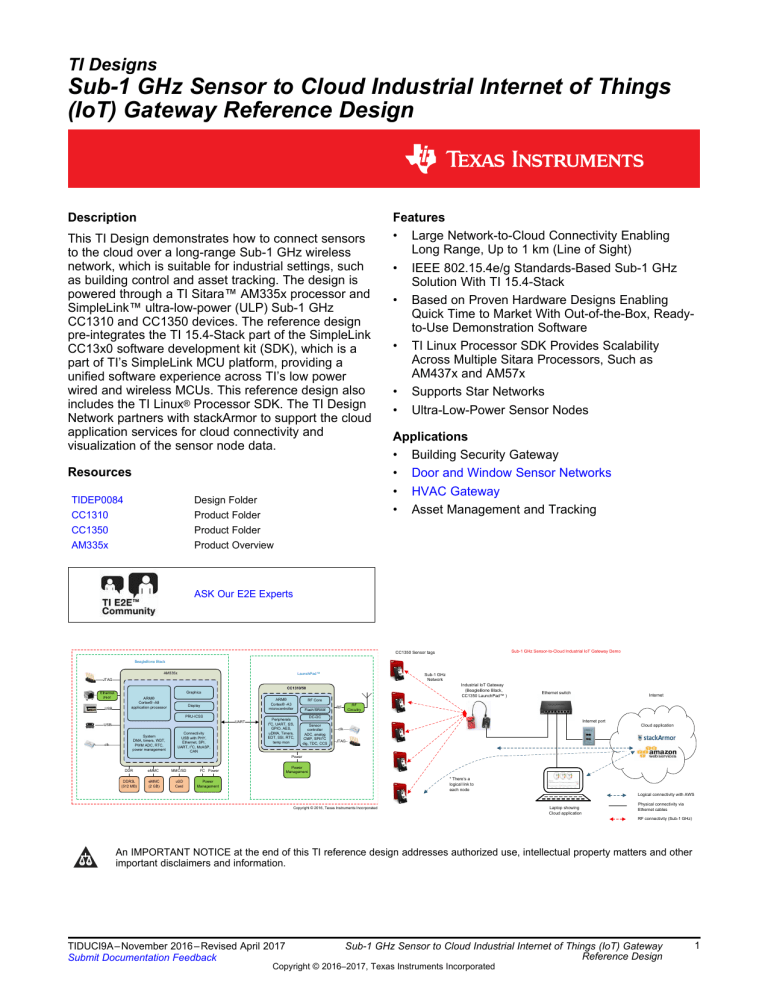

TI Designs

Sub-1 GHz Sensor to Cloud Industrial Internet of Things

(IoT) Gateway Reference Design

Description

This TI Design demonstrates how to connect sensors to the cloud over a long-range Sub-1 GHz wireless network, which is suitable for industrial settings, such as building control and asset tracking. The design is powered through a TI Sitara™ AM335x processor and

SimpleLink™ ultra-low-power (ULP) Sub-1 GHz

CC1310 and CC1350 devices. The reference design pre-integrates the TI 15.4-Stack part of the SimpleLink

CC13x0 software development kit (SDK), which is a part of TI’s SimpleLink MCU platform, providing a unified software experience across TI’s low power wired and wireless MCUs. This reference design also includes the TI Linux

®

Processor SDK. The TI Design

Network partners with stackArmor to support the cloud application services for cloud connectivity and visualization of the sensor node data.

Resources

TIDEP0084

CC1310

CC1350

AM335x

Design Folder

Product Folder

Product Folder

Product Overview

Features

• Large Network-to-Cloud Connectivity Enabling

Long Range, Up to 1 km (Line of Sight)

• IEEE 802.15.4e/g Standards-Based Sub-1 GHz

Solution With TI 15.4-Stack

• Based on Proven Hardware Designs Enabling

Quick Time to Market With Out-of-the-Box, Readyto-Use Demonstration Software

• TI Linux Processor SDK Provides Scalability

Across Multiple Sitara Processors, Such as

AM437x and AM57x

• Supports Star Networks

• Ultra-Low-Power Sensor Nodes

Applications

• Building Security Gateway

• Door and Window Sensor Networks

• HVAC Gateway

• Asset Management and Tracking

ASK Our E2E Experts

JTAG

Ethernet

PHY

USB

USB clk

BeagleBone Black

AM335x

ARM®

Cortex® -A8 application processor

Graphics

Display

PRU-ICSS

System

DMA, timers, WDT,

PWM ADC, RTC, power management

Connectivity

USB with PHY,

Ethernet, SPI,

UART, I

2

C, McASP,

CAN

DDR

DDR3L

(512 MB) eMMC eMMC

(2 GB)

MMC/SD uSD

Card

I

2

C Power

Power

Management

UART

/DXQFK3DGŒ

CC1310/50

ARM®

Cortex® -A3 microcontroller

Peripherals

I

2

C, UART, I2S,

GPIO, AES, uDMA, Timers,

EDT, SSI, RTC, temp mon

RF Core

Flash/SRAM

DC-DC

Sensor controller

ADC, analog

CMP, SPI/I

2

C dig, TDC, CCS

RF

RF

Circuitry clk

JTAG

Power

Power

Management

Copyright © 2016, Texas Instruments Incorporated

CC1350 Sensor tags

Sub-1 GHz

Network

Industrial IoT Gateway

(BeagleBone Black,

CC1350 /DXQFK3DGΠ)

Sub-1 GHz Sensor-to-Cloud Industrial IoT Gateway Demo

Ethernet switch

Internet port

Internet

Cloud application

* 7KHUH¶V D logical link to each node

Laptop showing

Cloud application

Logical connectivity with AWS

Physical connectivity via

Ethernet cables

RF connectivity (Sub-1 GHz)

An IMPORTANT NOTICE at the end of this TI reference design addresses authorized use, intellectual property matters and other important disclaimers and information.

TIDUCI9A – November 2016 – Revised April 2017

Submit Documentation Feedback

Sub-1 GHz Sensor to Cloud Industrial Internet of Things (IoT) Gateway

Reference Design

Copyright © 2016–2017, Texas Instruments Incorporated

1

System Overview

1 System Overview

www.ti.com

1.1

System Description

This TI Design provides a reference for creating an industrial IoT gateway that is capable of connecting a network of wireless sensors to an enterprise cloud provider. In this TI Design, a long-range, low-power wireless network, made up of Sub-1 GHz CC1310 or CC1350 devices (both are supported) that run the TI

15.4-Stack-based application, is connected to the AWS IoT cloud. An online dashboard is provided that allows the user to visualize the real-time sensor data as well as send actuation commands from anywhere in the world using an Internet-connected device with a web browser.

This reference design provides a list of required hardware, schematics, and foundational software to quickly begin your Internet of things (IoT) product development. Amazon Web Services (AWS) IoT service, which is brokered by stackArmor, was chosen as the cloud service provider for the demonstration. The software design, however, is architected to be flexible to enable other cloud service providers.

This TI Design enables IoT in numerous applications, such as building security gateways, door and window sensor networks, asset management and tracking, and other IoT-enabled home and industrial automation applications.

The connection between the wireless sensor network and the cloud is made possible by TI’s Sitara

AM335x device on the BeagleBone Black development platform. On one side, the AM335x is connected to a Sub-1 GHz device acting as the central node in the wireless network, and on the other side, the device is connected to the AWS IoT cloud using Ethernet. These two connections allow the AM335x device to act as a gateway to get the sensor messages from the wireless network to the cloud and, also, to get the actuation requests from the cloud dashboard sent back to the wireless network.

Due to the long-range and low-power capabilities of the Sub-1 GHz sensors, this TI Design is useful for any type of application that would benefit from distributed sensing. This reference design provides a blueprint that gives the ability to visualize or actuate tens or hundreds of sensors while only needing one gateway device, TI’s Sitara AM335x, to be connected to the Internet.

1.2

Block Diagram

BeagleBone Black

AM335x

JTAG

Ethernet

PHY

USB

USB clk

ARM®

Cortex® -A8 application processor

Graphics

Display

PRU-ICSS

System

DMA, timers, WDT,

PWM ADC, RTC, power management

Connectivity

USB with PHY,

Ethernet, SPI,

UART, I

2

C, McASP,

CAN

DDR

DDR3L

(512 MB) eMMC eMMC

(2 GB)

MMC/SD uSD

Card

I

2

C Power

Power

Management

UART

/DXQFK3DGŒ

CC1310/50

ARM®

Cortex® -A3 microcontroller

Peripherals

I

2

C, UART, I2S,

GPIO, AES, uDMA, Timers,

EDT, SSI, RTC, temp mon

RF Core

Flash/SRAM

DC-DC

Sensor controller

ADC, analog

CMP, SPI/I

2

C dig, TDC, CCS

RF clk

JTAG

RF

Circuitry

Power

Power

Management

Figure 1. IoT Gateway TI Design Block Diagram

Copyright © 2016, Texas Instruments Incorporated

2

Sub-1 GHz Sensor to Cloud Industrial Internet of Things (IoT) Gateway

Reference Design

TIDUCI9A – November 2016 – Revised April 2017

Copyright © 2016–2017, Texas Instruments Incorporated

Submit Documentation Feedback

www.ti.com

1.2.1

Software Block Diagram

Cloud Service

IOT Cloud Application

User Interface

Application

Internet

Connection cloudAdapter appClient

IOT Gateway Application (NodeJS)

Socket Interface

TI 15.4-Stack appServer

TI 15.4-Stack

Collector Example

Application

Serial Device Level Interface

CC1310LP

Sensor End

Node

CC13xx

Sensor Tag

Sensor End

Node

Linux Kernel

BBB + Processor SDK

UART Interface

MAC Coprocessor Application

CC1310LP

Copyright © 2016, Texas Instruments Incorporated

Figure 2. TI 15.4-Stack Sensor-to-Cloud TI Design Software Block Diagram

System Overview

TIDUCI9A – November 2016 – Revised April 2017

Submit Documentation Feedback

Sub-1 GHz Sensor to Cloud Industrial Internet of Things (IoT) Gateway

Reference Design

Copyright © 2016–2017, Texas Instruments Incorporated

3

System Overview

www.ti.com

The following is a high-level description of each module in the software block diagram:

User Interface Application

: This application presents the network information, device information, and provides ability to control network behavior to the end user.

IOT Cloud Application

: This application runs on the AWS cloud, which communicates with the IoT gateway application. The interface of the IoT cloud application with the cloud server is described in

Section 5

and

Section 6

.

IoT Gateway Application

: This application runs on the BeagleBone Black board. The application interfaces on one side with the cloud service to enable cloud connectivity and on the other side to the

Linux collector application to interface with the TI 15.4-Stack based network. The interface between the

IoT gateway and the cloud service is described in

Section 5 .

cloudAdapter

: This application provides the cloud service provider specific functionality and is described in

Section 6 . Users can take the current interface, which is designed as an extensible

framework, and quickly modify the interface to add their own functionality for their end product development.

appClient

: This application interfaces with the Linux collector application over the socket interface to enable connection with the TI-15.4 Stack network. The interface is described in

Section 4

.

TI 15.4-Stack Linux Collector Example Application

: This application implements an example application that starts the network, allows new devices to join the network, configures the joining devices on how often to report the sensor data, configures how often to poll for buffered messages in case of non-beacon and frequency-hopping mode of network operation for sleepy network devices, and tracks connected devices to determine if they are active or inactive on the network. This determination is achieved by the collector periodically sending tracking request messages and awaiting corresponding tracking response messages.

TI 15.4-Stack appServer

: The collector application also opens up a socket server to talk to the

iotgateway

application. The communication over the socket is implemented through a serialization protocol known as Protocol Buffers or ProtoBuf. Protocol Buffers are a language-independent and platform-neutral way of serializing structured data for efficient data communication. The proto files are defined in the /example/collector/ directory for the collector application. For the iot-gateway application, the protocol file is at /example/iot-gateway/appClient/protofiles. The definitions in these proto files should match for successful communication. For details on protocol buffers, see Protocol

Buffers . The interface between the collector application and the iot-gateway application is described in

Section 4 .

MAC CoP Application

: The MAC coprocessor application runs on the CC1310 or CC1350

LaunchPad™, which provides a UART-based interface from TI 15.4-Stack sensor to cloud IoT gateway

SDK.

CC1310 LaunchPad Sensor End Node

: The sensor example application from TI 15.4-Stack and runs on the CC1310 LaunchPad.

CC13xx SensorTag

: The CC13xx SensorTag runs the sensor example application ported from the TI

15.4-Stack out-of-box sensor example applications, which enable support of the CC1350 SensorTag platform and integrate support for various sensors on the SensorTag platform.

4

Sub-1 GHz Sensor to Cloud Industrial Internet of Things (IoT) Gateway

Reference Design

TIDUCI9A – November 2016 – Revised April 2017

Copyright © 2016–2017, Texas Instruments Incorporated

Submit Documentation Feedback

www.ti.com

System Overview

1.3

Highlighted Products

This section highlights key hardware devices and software components used in the TI Design.

1.3.1

AM335x

The AM335x processors, based on the ARM

®

Cortex

®

-A8 core, are enhanced with image, graphics processing, peripherals, and industrial interface options, such as EtherCAT

® and PROFIBUS

®

.

These devices support high-level operating systems (HLOS) such as Linux, which is available free of charge from TI. The AM335x processors contain the subsystems shown in

Figure 3 . The microprocessor

unit (MPU) subsystem is based on the ARM Cortex-A8 core and the PowerVR SGX™ graphics accelerator subsystem provides 3D graphics acceleration to support display and gaming effects.

The PRU-ICSS is separate from the ARM core, which allows independent operation and clocking for greater efficiency and flexibility. The programmable real-time unit subsystem and industrial communication subsystem (PRU-ICSS) enables additional peripheral interfaces and real-time protocols such as

EtherCAT, PROFINET

®

, EtherNet/IP, PROFIBUS, Ethernet Powerlink, Sercos, and others.

ARM®

Cortex A8

Up to 1 GHz*

Graphics

AccelerationPac

SGX530 t

45nm

PRU- ICSS

Industrial

Communication

Subsystem

EtherCAT

®

,

PROFINET

®

,

EtherNET/IP

Π,

and more

32K/32K L1

256K L2 w/ECC

64K RAM

64KB L3 Shared RAM

LPDDR1/DDR2/DDR3/

DDR3L

EDMA JTAG/ETB

EMAC

2- port w/

Switch

10/100/1

G w/1588

LCD

Controller

24bit LCD Cont.

Touch Screen

Controller

(1)

Security

AccelerationPac

Crypto

USB2

OTG

+PHY x2

System Services

Timers x8 WDT RTC

Connectivity and IOs

CAN x2

PWM x3 eCAP / eQEP x3

SPI x2

I2C x3

McASPx2

GPIO

UART x6

12- bit ADC

(1)

NAND/NOR

(16bit ECC)

MMC/

SD/SDIO x3

Figure 3. AM335x Block Diagram

Additionally, the programmable nature of the PRU-ICSS, along with its access to pins, events, and all system-on-chip (SoC) resources, provides flexibility in implementing fast, real-time responses, specialized data handling operations, custom peripheral interfaces, and in offloading tasks from the other processor cores of the SoC.

TIDUCI9A – November 2016 – Revised April 2017

Submit Documentation Feedback

Sub-1 GHz Sensor to Cloud Industrial Internet of Things (IoT) Gateway

Reference Design

Copyright © 2016–2017, Texas Instruments Incorporated

5

System Overview

www.ti.com

1.3.2

SimpleLink™ Ultra-Low-Power CC1310 or CC1350

The CC1350 is a member of the CC26xx and CC13xx family of cost-effective, ultra-low-power, 2.4-GHz and Sub-1 GHz RF devices. Very-low active RF and microcontroller (MCU) current consumption, in addition to flexible low-power modes, provide excellent battery lifetime and allow long-range operation on small coin-cell batteries and in energy-harvesting applications.

The CC1350 is the first device in the CC13xx and CC26xx family of cost-effective, ultra-low-power wireless MCUs capable of handling both Sub-1 GHz and 2.4 GHz RF frequencies. The CC1350 device combines a flexible, very-low-power RF transceiver with a powerful 48-MHz Cortex-M3 MCU in a platform supporting multiple physical layers and RF standards. A dedicated radio controller (Cortex-M0) handles low-level RF protocol commands that are stored in ROM or RAM, thus, ensuring ultra-low power and flexibility to handle both Sub-1 GHz protocols and 2.4-GHz protocols [for example Bluetooth

® low energy

(BLE)]. This enables the combination of a Sub-1 GHz communication solution that offers the best possible

RF range together with a BLE smartphone connection that enables great user experience through a phone application. The Sub-1 GHz-only device in this family is the CC1310.

The CC1350 device is a highly-integrated, true single-chip solution, which incorporates a complete RF system and an on-chip DC-DC converter.

SimpleLink

TM

CC26xx wireless MCU cJTAG

Main CPU

ROM

ARM

®

Cortex

®

-M3

128KB

Flash

8KB cache

20KB

SRAM

RF core

Digital PLL

DSP modem

ADC

ADC

ARM

®

Cortex

®

-M0

4KB

SRAM

ROM

G eneral peripherals / modules

I 2 C 4× 32-bit Timers

S ensor controller

Sensor controller

engine

UART

2× SSI (SPI, µW, TI)

I2S

10 / 15 / 31 GPIOs

Watchdog timer

TRNG

12-bit ADC, 200 ks/s

2x comparator

SPI-I 2 C digital sensor IF

AES Temp. / batt. monitor

Constant current source

32 ch. µ DMA

RTC

Time-to-digital converter

2KB SRAM

DC-DC converter

Copyright © 2017, Texas Instruments Incorporated

Figure 4. CC1350 Block Diagram

6

Sub-1 GHz Sensor to Cloud Industrial Internet of Things (IoT) Gateway

Reference Design

TIDUCI9A – November 2016 – Revised April 2017

Copyright © 2016–2017, Texas Instruments Incorporated

Submit Documentation Feedback

www.ti.com

System Overview

Sensors can be handled in a very low-power manner by a dedicated autonomous ultra-low-power MCU that can be configured to handle analog and digital sensors; thus, the main MCU (Cortex-M3) can maximize sleep time.

1.3.3

TI 15.4-Stack

TI 15.4-Stack is an IEEE802.15.4e/g-based software stack part of the SimpleLink CC13x0 SDK supporting a Star network topology for Sub-1 GHz applications. TI 15.4-Stack software runs on TI’s SimpleLink Sub-1

GHz CC1310 or CC1350 wireless MCU. TI 15-4 Stack offers several key benefits such as longer range in

FCC band and better protection against in-band interference by implementing frequency hopping. The

SDK also provides customers an accelerated time to market with a complete end-to-end, node-to-gateway solution. TI 15.4-Stack is supported on the industry’s lowest-power SimpleLink Sub-1 GHz wireless MCU platform.

This release is available royalty-free to customers using TI’s CC1310 or CC1350 wireless MCU and also runs on TI’s SimpleLink Sub-1 GHz CC1310 or CC1350 wireless MCU LaunchPad development kit. This release is available royalty-free to customers using TI’s CC1310 or CC1350 wireless MCU and also runs on TI’s SimpleLink Sub-1 GHz CC1310 or CC1350 wireless MCU LaunchPad development kit.

Features:

• IEEE 802.15.4e/g standards-based solution

• Frequency hopping

• Medium access with CSMA/CA

• Built in acknowledgment and retries

• Network and device management (joining, commissioning, service discovery)

• Security feature through AES -128 encryption and integrity check

• Supported on SimpleLink Sub-1 GHz CC1310 wireless MCU

• Star topology: Point-to-point, one-to-many, and data concentrator

• Synchronous (beacon) and asynchronous (non-beacon) modes

• Designed for 915-MHz FCC and 863-MHz ETSI

• Sensor-to-web example application

• Easy application development guided through sample applications showcasing the stack configuration and APIs

• Coprocessor mode for adding connectivity to any MCU or MPU, with Linux host middleware and console application

For more details and to get the TI 15.4-Stack software, download the

SimpleLink CC13x0 SDK

[1]

, which includes the TI 15.4-Stack.

1.3.4

TI Processor Linux

®

SDK for AM335x

The TI processor SDK is a unified software platform for TI embedded processors, which provides easy setup and fast out-of-the-box access to benchmarks and demonstrations. All releases of the processor

SDK are consistent across TI’s broad portfolio, which allows developers to seamlessly reuse and migrate software across devices. Developing scalable platform solutions has never been easier with the processor

SDK and TI’s embedded processor solutions.

TI processor Linux SDK highlights:

• Long-term stable (LTS) mainline Linux kernel support

• U-Boot bootloader support

• Linaro GNU compiler collection (GCC) tool chains

• Yocto Project™ OE Core compatible file systems

For more details and to get the processor SDK, see

AM335x Processor SDK

[2]

.

TIDUCI9A – November 2016 – Revised April 2017

Submit Documentation Feedback

Sub-1 GHz Sensor to Cloud Industrial Internet of Things (IoT) Gateway

Reference Design

Copyright © 2016–2017, Texas Instruments Incorporated

7

Getting Started Hardware and Software

2 Getting Started Hardware and Software

www.ti.com

This section provides details on required hardware and software to be able to run the out-of-box TI 15.4-

Stack sensor-to-cloud TI Design software application. Developers can then quickly use the out-of-box application as a framework to develop end products.

2.1

Required Hardware

The following hardware is required to get the out-of-box application running and to develop applications.

• A CC1310 or CC1350 LaunchPad to run the MAC coprocessor application

• One or more CC1310 or CC1350 LaunchPads or CC1350 SensorTags to run the TI 15.4-Stack sensor application to create one or more Sub-1 GHz network devices

• An AM335x-based BeagleBone Black board

• An 8-GB microSD card (the TI processor SDK image requires at least 8 GB of space)

• A 5-V power supply for the BeagleBone Black

• An Ethernet cable to connect the BeagleBone Black to the Internet

• An LCD BoosterPack (optional if using the CC1310 or CC1350 LaunchPad as the Sub-1 GHz network device)

• A means to configure and set up the BeagleBone Black microSD card (Windows

® or Linux machine)

• A PC to host and run the web browser used to view the web application

• A standard Ethernet router required for internet connectivity to the BeagleBone Black and the host computer or tablet to view the web-application to monitor and control the sensor nodes in the network

• A USB cable to connect the BeagleBone Black with the CC1310 or CC1350 LaunchPad

NOTE:

The out-of-box application is demonstrated using a USB cable to connect the AM335x-based

BeagleBone Black with the CC1310 or CC1350 LaunchPad. The TI Design includes design files for a hardware adapter board that connects the BeagleBone Black with the CC1310 or

CC1350 LaunchPad the way an end product should. The adapter board is not available for purchase but customers can either build their own using the design files provided, or they can jump straight to their own form factor design using the adapter board design files as a reference for how to connect the AM335x and CC1310 or CC1350 devices for an end product. When designing an end product, customers must also keep in mind that certificates need to be stored in secure memory; therefore, a trusted platform module (TPM) or other means of having secure storage must be included in the end-product design.

8

Sub-1 GHz Sensor to Cloud Industrial Internet of Things (IoT) Gateway

Reference Design

TIDUCI9A – November 2016 – Revised April 2017

Copyright © 2016–2017, Texas Instruments Incorporated

Submit Documentation Feedback

www.ti.com

Figure 5

shows the hardware setup to run the demonstration.

CC1350 SensorTag

Ethernet cable for internet connectivity

Getting Started Hardware and Software

BeagleBone Black

Micro-SD card programmed with Processor

SDK Linux for AM335x

USB cable connects

BBB and CC1310/50LP

CC1310LP running MAC coprocessor application

CC1310LP with optional LCD

BoosterPack

Figure 5. Demonstration Hardware Setup

2.2

Required Software

With the required hardware, perform the following steps to replicate the software portion of the demonstration:

1. Boot the Linux kernel and file system from the Linux Processor SDK on the BeagleBone Black.

2. Copy the provided Sub-1 GHz IoT gateway demonstration reference design software to the

BeagleBone Black.

3. Program a CC1310 or CC1350 LaunchPad with the provided MAC coprocessor application.

4. Program the remaining CC1310 or CC1350 LaunchPad and CC1350 SensorTags with the provided sensor application.

The following sections in this chapter detail the above steps. For the purposes of this design guide, it is assumed that a Windows host machine is being used.

2.2.1

BeagleBone Black SD Card

Program the SD card with the Linux processor SDK image using the following steps:

1. Download the prebuilt TI Linux processor SDK SD card image am335x-evm-linux-xx.xx.xx.xx.img.zip from http://software-dl.ti.com/processor-sdk-linux/esd/AM335X/latest/index_FDS.html

(where xx.xx.xx.xx is the version number of the latest Linux Processor SDK).

2. To program the microSD memory card, see the instructions at

Processor SDK Linux Creating an SD

Card with Windows

[4]

.

TIDUCI9A – November 2016 – Revised April 2017

Submit Documentation Feedback

Sub-1 GHz Sensor to Cloud Industrial Internet of Things (IoT) Gateway

Reference Design

Copyright © 2016–2017, Texas Instruments Incorporated

9

Getting Started Hardware and Software

www.ti.com

2.2.2

Booting the BeagleBone Black

Boot the BeagleBone Black from the microSD card using the following steps:

1. Disconnect power and unplug the USB cable from the BeagleBone Black board.

2. Insert the microSD card into the BeagleBone Black (see

Figure 6 ).

3. Press and hold the boot switch (S2).

• Important: The boot switch is detected only at initial power on.

4. Provide power to the BeagleBone Black (1.5 A, 5 V).

5. Wait a few seconds then release the boot switch. In about 5 to 15 seconds, the LEDs begin to blink.

NOTE:

The first boot from a freshly-formatted SD card takes about one to two minutes longer.

During this extended time, the BeagleBone Black Linux distribution performs some one-timeonly steps.

Figure 6. Boot BeagleBone Black From SD Card

2.2.3

Determining the BeagleBone Black Network Address

In order to transfer files to the BeagleBone Black using its network interface, it is necessary to find its network address (IP address). There are two methods to determine the IP address of the BeagleBone

Black:

• Method 1: Use the FTDI cable to connect through the serial header on the BeagleBone Black, and use the ifconfig command to determine the IP address allocated to the BeagleBone Black.

10

Sub-1 GHz Sensor to Cloud Industrial Internet of Things (IoT) Gateway

Reference Design

TIDUCI9A – November 2016 – Revised April 2017

Copyright © 2016–2017, Texas Instruments Incorporated

Submit Documentation Feedback

www.ti.com

Getting Started Hardware and Software

• Method 2: Most routers include a built-in web server to configure the device (see

Table 1

).

– Connect the BeagleBone Black to the router.

– Boot the BeagleBone Black.

– Find the DHCP client page to determine the IP address of the BeagleBone Black. Some examples follow. The generic name for this feature is the DHCP client table.

NOTE:

Troubleshooting – the DHCP IP address is often determined by the order in which the devices boot. If the user's laptop booted first, it may receive address: xx.xx.xx.100. The

BeagleBone Black boots second and receives the address: xx.xx.xx.101; however, on the next use or if another device is attached (for example, a cell phone or tablet), the resulting boot order may change, and therefore, the IP address might change.

BRAND

LINKSYS™

NETGEAR

®

BELKIN™

Table 1. Commercial Routers

EXAMPLE LINK

http://www.linksys.com/us/support-article?articleNum=139502 http://documentation.netgear.com/fvs336g/enu/202-10257-01/FVS336G_RM-11-

07.html

http://www.belkin.com/pyramid/AdvancedInfo/F5D8235-4/Advance/reserveIP.htm

2.2.4

Get Sub-1 GHz IoT Gateway Demonstration Software

The Sub-1 GHz sensor to cloud Industrial IoT gateway reference design demonstration software is located on a Git repository found at https://git.ti.com/apps/tidep0084 . Clone the repository to the host machine and copy it over to the BeagleBone Black using secure copy (SCP).

• On your Windows host machine:

– cd C:\path\to\desired\clone\directory\

– git clone git://git.ti.com/apps/tidep0084.git tidep0084

– Use WinSCP, Teraterm, or FileZilla to copy the

tidep0084

directory to the BeagleBone Black using the network address found earlier.

2.2.5

Logging in to the BeagleBone Black Using the Secure Shell (SSH) Protocol

Putty or TeraTerm can be used (along with the IP address found in

Section 2.2.3

) to connect to the

BeagleBone Black using SSH. The user name is

root

, and there is no password. Once connected, the root user will be logged into the board and the Linux console prompt will appear.

TIDUCI9A – November 2016 – Revised April 2017

Submit Documentation Feedback

Sub-1 GHz Sensor to Cloud Industrial Internet of Things (IoT) Gateway

Reference Design

Copyright © 2016–2017, Texas Instruments Incorporated

11

Getting Started Hardware and Software

www.ti.com

2.2.6

Programming the CC1310 or CC1350 LaunchPad™

To run the example application users must first program one CC1310 or CC1350 LaunchPad with the

MAC CoP hex file and the other LaunchPads with the sensor example application hex file. In this design guide, the Flash Programmer 2 tool running on a Windows machine is used. Developers can also use the

Serial Flash Programmer tool, described in the

CC13x0 SimpleLink TI 15.4-Stack 2.x.x Linux Developer’s

Guide

[5]

to program the desired hex image onto the CC1310 or CC1350 LaunchPad.

NOTE:

It is easy to confuse the sensor and CoP devices. Be sure to label the devices as they are programmed.

To program the LaunchPad or SensorTag, follow these steps:

1. Download and install the SmartRF Flash Programmer 2 . .

2. Program CC1310 or CC1350 LaunchPad 1 – this device runs the CoP example application.

(a) Label this device collector. The LCD BoosterPack is not supported in the CoP application.

(b) If using the CC1310LP as MAC coprocessor: From a Windows PC, use the SmartRF Flash

Programmer 2 to program a CC1310 LaunchPad MAC CoP with the coprocessor_cc1310_lp.hex

file located here:

{demo software clone directory}/firmware/CC1310_LAUNCHXL/coprocessor_cc1310_lp.hex

(c) If using the CC1350LP as MAC coprocessor: From a Windows PC, use the SmartRF Flash

Programmer 2 to program a CC1350 LaunchPad MAC CoP with the coprocessor_cc1350_lp.hex

file located here:

{demo software clone directory}/firmware/CC1350_LAUNCHXL/coprocessor_cc1350_lp.hex

3. Program CC1310 or CC1350 LaunchPad 2 or SensorTag – this device runs the sensor example application.

(a) Label this device sensor. Optional: connect the LCD BoosterPack to this LaunchPad.

(b) To program CC1310 LaunchPad: From a Windows PC, use the SmartRF Flash Programmer 2 to program the hex file sensor_cc13x0lp.hex file located here:

{demo software clone directory}/firmware/ CC1310_LAUNCHXL/sensor_cc13x0lp.hex

(c) To program CC1350 LaunchPad: From a Windows PC, use the SmartRF Flash Programmer 2 to program the hex file sensor_cc13x0lp.hex file located here:

{demo software clone directory}/firmware/ CC1350_LAUNCHXL/sensor_cc13x0lp.hex

(d) To program CC1350 SensorTag: From a Windows PC, use the SmartRF Flash Programmer 2 to program the hex file sensor_cc13x0stk.hex file located here:

{demo software clone directory}/firmware/ CC1350_SensorTag/sensor_cc13x0stk.hex

NOTE:

Important – the default hex files are built for 915-MHz band operation. To rebuild the hex files for other bands (for example, 868 MHz ETSI band) see the

CC13x0 SimpleLink TI 15.4-

Stack 2.x.x Embedded Developer's Guide

[6]

or

TI 15.4-Stack CC13x0 SimpleLink Embedded

Applications Quick Start Guide

[7]

. See the

CC13x0 SimpleLink TI 15.4-Stack 2.x.x Linux

Developer’s Guide

[5] , specifically the Example Collector Application configuration section, to

change the Linux example application.

For porting the out-of-box TI 15.4-Stack sensor application, which is supported on the

LaunchPad platform to the CC1350 SensorTag platform, see the

TI 15.4-Stack Wiki

[3] .

Troubleshooting – If the devices (sensor or CoP) get mixed up, use the Flash Programmer 2 tool to verify the flash content. Uncheck the ERASE option, uncheck the PROGRAM option, and enable the VERIFY option along with the read-back feature, to double-check or doubleverify the flash operation.

12

Sub-1 GHz Sensor to Cloud Industrial Internet of Things (IoT) Gateway

Reference Design

TIDUCI9A – November 2016 – Revised April 2017

Copyright © 2016–2017, Texas Instruments Incorporated

Submit Documentation Feedback

www.ti.com

Getting Started Hardware and Software

2.3

Running the Demonstration

With the required hardware and software together, the demonstration can be completed. At this point, the following assumptions are made:

• The BeagleBone Black is booted from the SD card using the latest kernel and file system from the

Linux processor SDK.

• The BeagleBone Black is powered up, and the user is logged in using SSH and can send commands on the Linux console.

• The Git repository containing the demonstration software was copied to the file system of the

BeagleBone Black.

• The coprocessor LaunchPad has been programmed with the coprocessor firmware.

• The remaining LaunchPads and SensorTags have been programmed with the sensor example application.

If any of these assumptions are not true at this point, return to the previous corresponding sections in this chapter.

2.3.1

Connecting the CC1310 or CC1350 LaunchPad™ Coprocessor

Plug the CC1310 or CC1350 LaunchPad running the coprocessor application into the BeagleBone Black using the USB cable. In

Figure 7 , the USB connection on the right side of the image is connected to the

CC1310 or CC1350 LaunchPad coprocessor.

Figure 7. Coprocessor LaunchPad™ Connected to BeagleBone Black

TIDUCI9A – November 2016 – Revised April 2017

Submit Documentation Feedback

Sub-1 GHz Sensor to Cloud Industrial Internet of Things (IoT) Gateway

Reference Design

Copyright © 2016–2017, Texas Instruments Incorporated

13

Getting Started Hardware and Software

www.ti.com

Once this connection is made, type

ls -l /dev/ttyACM*

at the BeagleBone Black console. There are two ttyACM devices that correspond to the serial ports from the CC1310 or CC1350 LaunchPad (similar to

Figure 8 ).

Figure 8. /dev/ttyACM0 Device Check

Make sure/dev/ttyACM0 shows up in the list. This is the UART connection between the BeagleBone Black and the CC1310 or CC1350 LaunchPad device over which all of the sensor and network information is transferred. Open the {demo software directory}/prebuilt/bin/collector.cfg file and double check that the

[uart-cfg] section for the collector application is pointing to the correct device, as shown in

Figure 9

.

Figure 9. UART Configuration

2.3.2

AWS Certificates and Configuration From stackArmor

To connect the IoT Gateway to the AWS IoT service, the gateway needs authentication certificates provisioned by AWS. For these certificates, as well as a unique AWS URL, see the stackArmor web

page [8] . Return to this guide once obtaining the following:

• certificate.pem.crt

• private.pem.key

• public.pem.key

• root-CA.crt

• a URL to the AWS host that should be used

Use SCP to copy the four files into the {demo software directory}/prebuilt/iot-gateway/cloudAdapter/certs/ directory on the BeagleBone Black’s file system.

Open the {demo software directory}/prebuilt/iot-gateway/cloudAdapter/awsConfig.json file and do the following:

certDir

- Make sure that the

certDir

parameter is set to the correct path to the certs directory where the four files were copied.

host

- Set the

host

parameter equal to the URL that was provided by stackArmor.

region

- Make sure that the

region

parameter matches the region portion of the URL. It should be something similar to

us-east-1

.

clientId

- The

clientId

parameter must be changed to a unique string. Only one connection to the AWS cloud from a specific

clientId

is allowed. If the same

clientId

is used by more than one device connecting to the AWS cloud, connectivity issues can occur as the connection may timeout or be refused.

14

Sub-1 GHz Sensor to Cloud Industrial Internet of Things (IoT) Gateway

Reference Design

TIDUCI9A – November 2016 – Revised April 2017

Copyright © 2016–2017, Texas Instruments Incorporated

Submit Documentation Feedback

www.ti.com

Getting Started Hardware and Software

2.3.3

Starting the Application

The {demo software directory}/prebuilt/ directory has a simple shell script called

run_demo.sh

. Type the following at the BeagleBone Black console to run the IoT Gateway application:

cd {demo software directory}/prebuilt/ chmod +x bin/bbb_collector bash run_demo.sh

The shell script will start all of the necessary programs in order to get the full demonstration application up and running. The script will also print the URL to the IoT dashboard to the console. Navigate to the URL from the console output using the web browser on the host machine.

2.3.3.1

Common Issues

The following is a list of common issues that might be seen while starting or running the application:

Error: Rcvd Error on the socket connection with AppServer (ECONNREFUSED 127.0.0.1:5000)

This error occurs when the AppClient (which is started by the IoT Gateway) is not able to make a local socket connection with the AppServer (which is started by the bbb_collector). Make sure that the bbb_collector application is up and running before starting the IoT Gateway. The run_demo.sh script in the prebuilt directory gives an example on how to start the demonstration in the correct order. This script starts up the bbb_collector application and then starts the IoT Gateway.

Error: getaddrinfo ENOTFOUND <your unique AWS URL> (AWS Cloud Adapter error)

This error can happen if the BeagleBone Black is behind a firewall and cannot connect to the servers at the AWS URL. This issue can be resolved by using a mobile hotspot to connect the BeagleBone

Black to the Internet or possibly by configuring the local network settings to allow the BeagleBone

Black to access outside servers.

Error: certificate is not yet valid (AWS Cloud Adapter error)

This issue can occur if the date and time on the BeagleBone Black are set incorrectly to a time before the AWS certificates were generated by stackArmor. Setting the date of the BeagleBone Black to the current date and time should resolve this issue.

Removing Sensor Nodes from the Sub-1 GHz Wireless Network

The current demonstration does not provide a method in the user interface to remove sensor nodes from the Sub-1 GHz wireless network. The bbb_collector application uses a file named

nvsimulation.bin

(that can be found in the

prebuilt/bin/

directory) to save the information of the sensor nodes that have connected to the Sub-1 GHz wireless network. Delete the

nv-simulation.bin

file and restart the demonstration in order to remove sensor nodes. This process also means the remaining sensor nodes will need to reconnect to the Sub-1 GHz wireless network before they will show up in the user interface again.

Error: Cannot find module moduleName (or any other Node-JS error)

Cloning the TIDEP0084 Git repository to a Windows machine and then copying it to the BeagleBone

Black might produce Node-JS errors when starting the demonstration. These errors appear to be caused by the line endings in the repository getting changed by Windows before being copied to the

BeagleBone Black. To correct this issue, the TIDEP0084 Git repository can be cloned directly to the

BeagleBone Black. To accomplish this, make sure your BeagleBone Black has an internet connection and then run the following command from the terminal:

git clone git://git.ti.com/apps/tidep0084.git

.

TIDUCI9A – November 2016 – Revised April 2017

Submit Documentation Feedback

Sub-1 GHz Sensor to Cloud Industrial Internet of Things (IoT) Gateway

Reference Design

Copyright © 2016–2017, Texas Instruments Incorporated

15

Getting Started Hardware and Software

www.ti.com

2.3.4

IoT Dashboard Web Page - Open Network for New Device Joins

Figure 10

shows the IoT dashboard provided by stackArmor. Navigate to the dashboard by following the

URL provided by the console output in the previous step. Initially, the application starts with no devices present (not shown), the network is closed to new devices joining (not shown), and the network will not accept new devices.

Figure 10. IoT Dashboard

16

Sub-1 GHz Sensor to Cloud Industrial Internet of Things (IoT) Gateway

Reference Design

TIDUCI9A – November 2016 – Revised April 2017

Copyright © 2016–2017, Texas Instruments Incorporated

Submit Documentation Feedback

www.ti.com

Getting Started Hardware and Software

2.3.5

Joining the Sensor Devices to the Network

At start up, the collector example application initially has the network closed; therefore, sensor devices cannot join. To open the network, switch the

On/Off

button on the web browser to the

On

state. Within a few seconds (time depends on the polling interval and other configuration settings), the sensor joins the network. When the device joins the network, the red LED turns on. If the sensor LaunchPad has an LCD module, the device indicates the current state on the LCD. See

Figure 11

.

• State 1 = Not joined

• State 3 = Joined

• State 4 = Restored

• State 5 = Orphan condition

More details can be found in the

CC13x0 SimpleLink TI 15.4-Stack 2.x.x Embedded Developer's Guide

[6]

.

Figure 11. Sensor LaunchPad™ State Change LCD

2.3.6

Data Communication

After the new device appears, initially only the short and extended addresses appear. The data fields will not show any data as none have been reported yet.

Sensor Data Reports:

After about one minute data appears on the screen (the exact interval is configured in the collector application using a #define value), see the

CC13x0 SimpleLink TI 15.4-Stack 2.x.x Embedded Developer's

Guide

[6]

or the Linux example collector source code for more details. After this time, the sensor nodes periodically report the sensor data.

Actuation:

Clicking on the toggle LED button sends a message to the sensor module to toggle the LED. There may be a slight delay (a few seconds) in toggle operation on the desired sensor LaunchPad. This delay is because the sensor nodes are in sleep mode and only wake up periodically to get the command buffered on the collector.

See

Figure 10

for an example of the IoT dashboard with multiple sensors and reported data.

TIDUCI9A – November 2016 – Revised April 2017

Submit Documentation Feedback

Sub-1 GHz Sensor to Cloud Industrial Internet of Things (IoT) Gateway

Reference Design

Copyright © 2016–2017, Texas Instruments Incorporated

17

Testing and Results

3 Testing and Results

www.ti.com

During the development process of this TI Design, the full hardware and software portions described in earlier sections were used for testing. Multiple CC1310 and CC1350 sensor nodes and a BeagleBone

Black (connected to a CC1310 coprocessor) were used to verify the IoT gateway functionality with the

AWS cloud enabled by stackArmor. The culmination of this TI Design can be visualized by the IoT dashboard described in

Section 3.1

.

3.1

IoT Dashboard

Figure 12

shows an example of the IoT Dashboard being displayed on the web interface. Observe that the current network information is shown, the network chart displays the number of connected devices, and that the sensor nodes section shows the device and current sensor information for all the devices in the network.

Figure 12. IoT Dashboard

18

Sub-1 GHz Sensor to Cloud Industrial Internet of Things (IoT) Gateway

Reference Design

TIDUCI9A – November 2016 – Revised April 2017

Copyright © 2016–2017, Texas Instruments Incorporated

Submit Documentation Feedback

www.ti.com

4

IoT-Gateway and Collector Application Interface API

IoT-Gateway and Collector Application Interface API

The purpose of this section is to provide a description of the application programming interface between the TI 15.4-Stack Linux collector example application and the IoT gateway application. The collector example application implements an appsrv module, which opens up a server socket to which a client application can connect. The interface allows management and data interface to the client application, connecting to the socket server, to monitor and control the TI 15.4-Stack-based network. Management functionalities include the ability to open and close the network for new device joins, whereas the data interface allows sending and receiving data to and from the network devices. It is easy to add new APIs or modify the current implementation.

This API is defined at a specific interface level, which is a TCP socket pipe.

API commands and parameters are serialized over the socket interface using Google

® protocol buffers

(protobuf; for details, see Protocol Buffers ). The names of some parameters in this API section do not reflect the true name of the parameter, which is used by the application using that API, as those parameters are automatically generated by the protobuf engine.

For transport using a TCP socket, the protobuf-packed packets are preceded by a 4-byte header, containing the following fields (in this order):

1.

len

– 16-bit number that specifies the actual length (in bytes) of the protobuf-packed packet

2.

Subsystem

– 1 byte: specifies the subsystem to or from which the packet is sent or received. The value '10' is reserved for TI 15.4-Stack application server interface.

3.

cmd_id

– 1 byte: The command ID of the actual command being sent. This value is also available inside the packed packet. The actual command ID numbers are provided in the protobuf definition files that are part of the TI 15.4-Stack Linux SDK (collector example application and the gateway example application). When using command IDs in code, always use the defined names (never hardcode the command ID numbers), as the numbers may change between releases.

4.1

Management Interface

4.1.1

APPSRV_SET_JOIN_PERMIT_REQ

4.1.1.1

Description

Allows client application to enable or disable network for join for new devices.

4.1.1.2

Parameter List

PARAMETER

Duration

Table 2. APPSRV_SET_JOIN_PERMIT_REQ Parameter List

TYPE

INT32

DESCRIPTION

Duration for join permit to be turned on in milliseconds:

• 0 sets the join permit pff, and 0xFFFFFFFF sets the join permit on indefinitely.

• Any other non-zero value sets the join permit on for that duration.

TIDUCI9A – November 2016 – Revised April 2017

Submit Documentation Feedback

Sub-1 GHz Sensor to Cloud Industrial Internet of Things (IoT) Gateway

Reference Design

Copyright © 2016–2017, Texas Instruments Incorporated

19

IoT-Gateway and Collector Application Interface API

4.1.2

APPSRV_SET_JOIN_PERMIT_CNF

www.ti.com

4.1.2.1

Description

The application server notifies the client of the result of processing of permit join request message.

4.1.2.2

Parameter List

PARAMETER

Status

Table 3. APPSRV_SET_JOIN_PERMIT_CNF Parameter List

TYPE

INT32

DESCRIPTION

0 if success

4.1.3

APPSRV_NWK_INFO_IND

4.1.3.1

Description

The application server notifies the client of the network information when a network is formed using this

API.

4.1.3.2

Parameter List

PARAMETER

Fh channel panID shortAddress extAddress securityEnabled nwkMode state

Table 4. APPSRV_NWK_INFO_IND Parameter List

TYPE

UINT32

UINT32

UINT32

UINT32

INT64

INT32

ENUM

ENUM

DESCRIPTION

True if network is frequency hopping

Channel number used, if non-frequency hopping network configuration

The 16-bit PAN identifier of the network

The 16-bit short address of the PAN coordinator

The 64-bit IEEE extended address of the PAN coordinator device

true

if security enabled,

false

otherwise

Network operation mode

BEACON_ENABLED = 1

NON_BEACON = 2

FREQUENCY_HOPPING = 3

PAN coordinator state values

STATE

Initialized waiting for user to start

VALUE

1

Starting coordinator

Restoring coordinator (from NV)

Started

Restored

2

3

4

5

Joining allowed for new devices

Joining not allowed for new devices

6

7

4.1.4

APPSRV_GET_NWK_INFO_REQ

4.1.4.1

Description

The application server’s client can use this API to get the current network information

4.1.4.2

Parameter List

There is no parameter in the command message.

20

Sub-1 GHz Sensor to Cloud Industrial Internet of Things (IoT) Gateway

Reference Design

TIDUCI9A – November 2016 – Revised April 2017

Copyright © 2016–2017, Texas Instruments Incorporated

Submit Documentation Feedback

www.ti.com

4.1.5

APPSRV_GET_NWK_INFO_CNF

IoT-Gateway and Collector Application Interface API

4.1.5.1

Description

The application server sends the current network information as a response to the get network information request from the client using this API.

4.1.5.2

Parameter List

PARAMETER

Status

Fh channel panID shortAddress extAddress securityEnabled nwkMode state

Table 5. APPSRV_GET_NWK_INFO_CNF Parameter List

TYPE

INT32

UINT32

UINT32

UINT32

UINT32

INT64

INT32

ENUM

ENUM

DESCRIPTION

0 if success

True if network is frequency hopping (optional)

Channel number used, if non-frequency hopping network configuration

(optional)

The 16-bit PAN identifier of the network (optional)

The 16-bit short address of the PAN coordinator (optional)

The 64-bit IEEE extended address of the PAN coordinator device

(optional)

true

if security enabled,

false

otherwise (optional)

Network operation mode (optional)

BEACON_ENABLED = 1

NON_BEACON = 2

FREQUENCY_HOPPING = 3

PAN coordinator state values (optional)

STATE VALUE

Initialized waiting for user to start

Starting coordinator

1

2

Restoring coordinator (from NV)

Started

Restored

Joining allowed for new devices

Joining not allowed for new devices

5

6

7

3

4

4.1.6

APPSRV_GET_DEVICE_ARRAY_REQ

4.1.6.1

Description

The application client requests the current list of connected device using this API.

4.1.6.2

Parameter List

There is no parameter in the command message.

TIDUCI9A – November 2016 – Revised April 2017

Submit Documentation Feedback

Sub-1 GHz Sensor to Cloud Industrial Internet of Things (IoT) Gateway

Reference Design

Copyright © 2016–2017, Texas Instruments Incorporated

21

IoT-Gateway and Collector Application Interface API

4.1.7

APPSRV_GET_DEVICE_ARRAY_CNF

www.ti.com

4.1.7.1

Description

The application server sends the current list of connected device as a response to the get device array request message using this API.

4.1.7.2

Parameter List

PARAMETER

Status devInfo panID shortAddress extAddress panCoord ffd mainsPower rxOnWhenIdle security allocAddr

Table 6. APPSRV_GET_DEVICE_ARRAY_CNF Parameter List

TYPE

INT32

Csf_deviceInformation

UINT32

UINT32

INT64

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

DESCRIPTION

0 if success

Multiple entries of this structure element. Number of entries is equal to the number of connected devices in the network.

The 16-bit PAN identifier of the network

The 16-bit short address of the network device

The 64-bit IEEE extended address of the network device

True if the device is PAN coordinator

True if the device is a full function device

True if the device is mains powered

True if the device's RX is on when the device is idle

True if the device is capable of sending and receiving secured frames

True if allocation of a short address in the associate procedure is needed.

4.1.8

APPSRV_DEVICE_JOINED_IND

4.1.8.1

Description

The application server informs the client of a new device join in the network using this API.

4.1.8.2

Parameter List

PARAMETER

panID shortAddress extAddress panCoord ffd mainsPower rxOnWhenIdle security allocAddr

Table 7. APPSRV_DEVICE_JOINED_IND Parameter List

TYPE

UINT32

UINT32

INT64

UINT32

UINT32

UINT32

UINT32

UINT32

UINT32

DESCRIPTION

The 16-bit PAN identifier of the network

The 16-bit short address of the network device

The 64-bit IEEE extended address of the network device

True if the device is PAN coordinator

True if the device is a full function device

True if the device is mains powered

True if the device's RX is on when the device is idle

True if the device is capable of sending and receiving secured frames

True if allocation of a short address in the associate procedure is needed.

22

Sub-1 GHz Sensor to Cloud Industrial Internet of Things (IoT) Gateway

Reference Design

TIDUCI9A – November 2016 – Revised April 2017

Copyright © 2016–2017, Texas Instruments Incorporated

Submit Documentation Feedback

www.ti.com

4.1.9

APPSRV_DEVICE_NOTACTIVE_UPDATE_IND

IoT-Gateway and Collector Application Interface API

4.1.9.1

Description

The application server informs the client of an inactive device using this API.

4.1.9.2

Parameter List

PARAMETER

panID shortAddress extAddress timeout

Table 8. APPSRV_DEVICE_NOTACTIVE_UPDATE_IND Parameter List

TYPE

UINT32

UINT32

INT64

UINT32

DESCRIPTION

The 16-bit PAN identifier of the network

The 16-bit short address of the network device

The 64-bit IEEE extended address of the network device

True if not active because of tracking timeout.

meaning that the device didn't respond to the tracking request within the timeout period.

4.1.10

APPSRV_COLLECTOR_STATE_CNG_IND

4.1.10.1

Description

The application server informs the client of change in the state of the collector application using this API.

4.1.10.2

Parameter List

PARAMETER

state

Table 9. APPSRV_COLLECTOR_STATE_CNG_IND Parameter List

TYPE

ENUM

DESCRIPTION

STATE

Initialized waiting for user to start

Starting coordinator

Restoring coordinator (from NV)

Started

Restored

Joining allowed for new devices

Joining not allowed for new devices

VALUE

1

2

3

6

7

4

5

TIDUCI9A – November 2016 – Revised April 2017

Submit Documentation Feedback

Sub-1 GHz Sensor to Cloud Industrial Internet of Things (IoT) Gateway

Reference Design

Copyright © 2016–2017, Texas Instruments Incorporated

23

IoT-Gateway and Collector Application Interface API

4.2

Data Interface

www.ti.com

4.2.1

APPSRV_DEVICE_DATA_RX_IND

4.2.1.1

Description

The application server informs the client of receipt of sensor data from a network device using this API.

4.2.1.2

Parameter List

PARAMETER

srcAddr

Rssi sDataMsg sConfigMsg

Table 10. APPSRV_DEVICE_DATA_RX_IND Parameter List

TYPE

UINT32

SINT32

Smsgs_sensorMsg

Smsgs_configRspMsg

DESCRIPTION

The 16-bit PAN identifier of the network

RSSI of the message received

Received sensor message (optional)

Received config response message (optional)

PARAMETE

R

cmdId

TYPE

ENUM

Framecontro l

UINT32

Table 11. Smsgs_sensorMsg

DESCRIPTION

COMMAND ID

Smsgs_cmdIds_configReq

Smsgs_cmdIds_configRsp

Smsgs_cmdIds_trackingReq

Smsgs_cmdIds_trackingRsp

Smsgs_cmdIds_sensorData

Sensor message command ID

DESCRIPTION

Configuration message, sent from the collector to the sensor

Configuration response message, sent from the sensor to the collector

Tracking request message, sent from the collector to the sensor

Tracking response message, sent from the sensor to the collector

Sensor data message, sent from the sensor to the collector

VALUE

1

2

3

4

5

Smsgs_cmdIds_toggleLedReq

Toggle LED message, sent from the collector to the sensor

Smsgs_cmdIds_toggleLedRsp

6

Smsgs_cmdIds_toggleLedRsp 7

Frame control field states what data fields are included in reported sensor data, each value is a bit mask value so that they can be combined (OR'd together) in a control field. When sent over-the-air in a message this field is 2 bytes.

PARAMETER

Smsgs_dataFields_tempSensor

DESCRIPTION

Bit mask for temperature sensor

VALUE

0x0001

0x0002 Smsgs_dataFields_lightSensor

Smsgs_dataFields_humiditySens or

Bit mask for light sensor

Bit mask for humidity sensor

Smsgs_dataFields_msgStats Bit mask for stats message

Smsgs_dataFields_configSettings Bit mask for configuration settings

0x0004

0x0008

0x0010

Smsgs_dataFields_pressureSens or

Smsgs_dataFields_toggleSettings

Bit mask for pressure sensor

Bit mask for toggle settings

0x0020

0x0030

24

Sub-1 GHz Sensor to Cloud Industrial Internet of Things (IoT) Gateway

Reference Design

TIDUCI9A – November 2016 – Revised April 2017

Submit Documentation Feedback

Copyright © 2016–2017, Texas Instruments Incorporated

www.ti.com

PARAMETE

R

TYPE

tempSensor

Smsgs_tem pSensorFiel d lightSensor

Smsgs_light

SensorField humiditySen sor

Smsgs_hum iditySensorF ield configSettin gs

Smsgs_confi gSettingsFie ld pressureSen sor

Smsgs_pres sureSensorF ield

PARAMETER

cmdId

Status

Framecontrol treportingInterval pollingInterval

IoT-Gateway and Collector Application Interface API

Table 11. Smsgs_sensorMsg (continued)

DESCRIPTION

PARAMETER

Lists the reported temperature sensor data (optional)

Smsgs_tempSensorField:

TYPE

ambienceTemp UINT32

DESCRIPTION

Ambience chip temperature

- each value represents a

0.01° C, so a value of 2475 represents 24.75° C.

objectTemp UINT32

Object temperature - each value represents a 0.01° C, so a value of 2475 represents 24.75° C.

PARAMETER

rawData

PARAMETER

temp

Lists the reported light sensor data (optional)

Smsgs_lightSensorField:

TYPE

UINT32

DESCRIPTION

Raw sensor data read out of the OPT2001 light sensor

Lists the reported humidity sensor data (optional)

Smsgs_humiditySensorField:

TYPE

UINT32

DESCRIPTION

Raw temperature sensor data humidity

PARAMETER

reportingInterval

UINT32

Lists the reported configuration settings (optional)

Smsgs_configSettingsField:

Raw humidity sensor data

TYPE

UINT32

DESCRIPTION

Reporting interval - in milliseconds, how often to report sensor data to the pan-coordinator, 0 means reporting is off pollingInterval

PARAMETER

tempValue pressureValue

UINT32

Lists the reported pressure sensor data (optional)

Smsgs_pressureSensorField:

TYPE

UINT32

UINT32

Polling interval - in milliseconds (32 bits) - If the sensor device is a sleep device, this states how often the device polls its parent for data. This field is 0 if the device does not sleep.

DESCRIPTION

Temperature value

Pressure value

Table 12. Smsgs_configRspMsg

TYPE

Smsgs_cmdIds

Smsgs_statusValues

Smsgs_dataFields

UINT32

UINT32

DESCRIPTION

Sensor message command ID

Status of the processing of the request message

Bit mask of Smsgs_dataFields

Sensor data reporting interval

Polling interval if the device is a sleepy device

TIDUCI9A – November 2016 – Revised April 2017

Submit Documentation Feedback

Sub-1 GHz Sensor to Cloud Industrial Internet of Things (IoT) Gateway

Reference Design

Copyright © 2016–2017, Texas Instruments Incorporated

25

IoT-Gateway and Collector Application Interface API

4.2.2

APPSRV_TX_DATA_REQ

www.ti.com

4.2.2.1

Description

The application client uses this to send data to a network device.

4.2.2.2

Parameter List

PARAMETE

R

TYPE

msgId panID shortAddres s extAddress

Smsgs_cmdI ds

UINT32

UINT32

INT64 configReqM sg

Smsgs_confi gReqMsg toggleLedRe q

Smsgs_toggl eLedReqMs g

Table 13. APPSRV_TX_DATA_REQ Parameter List

DESCRIPTION

Sensor message command ID

The 16-bit PAN identifier of the network

The 16-bit short address of the network device

The 64-bit IEEE extended address of the network device

Configuration request message parameters (optional)

PARAMETER TYPE

cmdId Smsgs_cmdIds

DESCRIPTION

The value will be

Smsgs_cmdIds_configReq

( = 1).

frameControl reportingInterval pollingInterval

UINT32

UINT32

UINT32

Frame control field states what data fields are included in reported sensor data, each value is a bit mask value so that they can be combined (OR'd together) in a control field.

When sent over the air in a message this field is 2 bytes.

Sensor data reporting interval

Polling interval if the device is a sleepy device

Toggle led request message parameters (optional)

4.2.3

APPSRV_TX_DATA_CNF

4.2.3.1

Description

Thepplication server informs the client of result of the transmit data request

4.2.3.2

Parameter List

PARAMETER

Status

Table 14. APPSRV_TX_DATA_CNF Parameter List

TYPE

INT32

DESCRIPTION

0 if success

26

Sub-1 GHz Sensor to Cloud Industrial Internet of Things (IoT) Gateway

Reference Design

TIDUCI9A – November 2016 – Revised April 2017

Copyright © 2016–2017, Texas Instruments Incorporated

Submit Documentation Feedback

www.ti.com

5 TI IoT Gateway to Cloud Interface

TI IoT Gateway to Cloud Interface

The purpose of this section is to provide a description of the message types and expected data flows that will be shared between the TI IoT gateway and an IoT cloud server. The interface is designed to be flexible to support multiple cloud vendors. For this purpose, the Sub-1 GHz wireless network and node information will be exchanged between the gateway and the cloud using the long-established JavaScript object notation (JSON) format. Additionally, IPSO alliance smart object definitions will be used to define sensors (and their data) that are connected to each node in the wireless networks.

5.1

Message Types

To fully specify the Sub-1 GHz wireless network information, as well as the Sub-1 GHz sensors and their data, two distinct message types have been defined for the IoT gateway to update the cloud. In order to allow the cloud to send messages back to the TI IoT gateway, two additional message types are defined that allow the cloud to update the wireless network state and also send actuation messages to specific devices in the network.

5.1.1

Network Information Message Type (From TI IoT Gateway to the Cloud)

This message type presents information about the wireless network, its current state, and a list of devices that are connected to the network. As shown later in this document, this will be the first message type sent after the network is initialized, and it contains all the information necessary to prepare for receiving sensor data from devices. This message type contains the following fields:

name

: begins as the short address of the network but allows for the cloud to provide a more specific name

channels

: list of channels that the wireless network is operating on

pan_id

: the 16-bit PAN identifier of the network

short_addr

: the 16-bit short address of the pan-coordinator

ext_addr

: the 64-bit IEEE extended address of the pan-coordinator device

security_enabled

:

yes

if security enabled,

no

otherwise

mode

: network operation mode (beacon, non-beacon, frequency hopping)

state

: PAN coordinator state values (waiting, starting, restoring, started, open, closed)

devices

: list of wireless nodes in the network

name

: begins as the short address of the device but allows cloud to update

short_addr

: the 16-bit short address of the pan-coordinator

ext_addr

: the 64-bit IEEE extended address of the PAN coordinator device

topic

: the topic that the device will send its sensor data updates to

object_list

: list of IPSO alliance smart objects (sensors) attached to this device

oid

: object ID which specifies the sensor type in the IPSO standard

iid

: list of instance IDs for the current object (can be multiple same type sensors)

TIDUCI9A – November 2016 – Revised April 2017

Submit Documentation Feedback

Sub-1 GHz Sensor to Cloud Industrial Internet of Things (IoT) Gateway

Reference Design

Copyright © 2016–2017, Texas Instruments Incorporated

27

TI IoT Gateway to Cloud Interface

www.ti.com

5.1.2

Device Information Message Type (From TI IoT Gateway to the Cloud)

This message type provides information about the wireless device as well as the latest data for all of the sensors connected to the device. This message type will be sent when a device reports sensor data or switches between an active or inactive state. The following fields are contained in this message type:

active

: whether or not the wireless node is active

ext_addr

: the 64-bit IEEE extended address of the PAN coordinator device

rssi

: received signal strength indicator of the last message received

smart_objects

: list of the IPSO alliance smart objects connected to this wireless device

object ID description

: type of sensor (as defined in the IPSO standard); can be multiple types of sensors connected to each device

instance ID

: the instance ID for the parent object type; can be multiple sensors of the same type

resource ID description list

: sensor data name value pairs (for example,

sensorValue

: 32.5,

units

:

Celsius

, and so forth); these resources match what is specified for the given object ID in the IPSO standard

5.1.3

Update Network State Message Type (From Cloud to TI IoT Gateway)

In the current implementation of the TI IoT gateway, this message type is intended to be able to open or close the wireless network to new devices joining. The cloud’s front end user interface can allow a user to click a button to open or close the network and then generate this message type and send it to the TI IoT gateway. The gateway will then notify the network on whether it needs to open or close to new device joins. This message type only includes the desired state of the network and should be sent to the same topic that the cloud is receiving the network information messages from. The following field is all that is required:

state

: should be set to either

open

or

closed

5.1.4

Device Actuation Message Type (From Cloud to TI IoT Gateway)

This message type is added to allow the cloud to send actuation messages to specific devices in the wireless network. The current implementation only supports toggling an LED on the wireless device’s board. The device actuation message should be sent to the topic of the device as given in the devices list of the network information message. The following field is the only requirement for this message:

toggleLED

: should be set to

true

5.2

Data Flows

This section of the document specifies the expected data flow when different events occur within the wireless network and also when the cloud must send configuration or commands to the TI IoT gateway.

5.2.1

Network Information Sent to the Cloud

The following items are the list of events that can occur on the TI IoT gateway that will cause a network information message type to be sent to the cloud. A description is given with each event, and the end of this section describes the expected behavior from the cloud upon receipt of this type of message.

Network Startup

This is the initial event in the TI IoT gateway. The TI IoT gateway will aggregate the information about the wireless network as well as the list of connected devices and their sensor types. The TI IoT gateway will then make a connection to the cloud and will send the aggregated data encapsulated in the network information message type.

Network Information Update

This event can occur if any of the information about the wireless network changes. For example, if the network operation mode of the wireless network was changed, the TI IoT gateway would once again aggregate all the information needed (network information and device list) and send the network information message type to the cloud.

Network State Change

28

Sub-1 GHz Sensor to Cloud Industrial Internet of Things (IoT) Gateway

Reference Design

TIDUCI9A – November 2016 – Revised April 2017

Copyright © 2016–2017, Texas Instruments Incorporated

Submit Documentation Feedback

www.ti.com

TI IoT Gateway to Cloud Interface

This event occurs if the state of the wireless network changes. For example, if the network state changes from open to closed, the TI IoT gateway will send a network information message type to the cloud.

Device Joins the Wireless Network

When a new device joins the network, after the network is up and running, this event will occur. In this case, the TI IoT gateway will add the new device and its information to the devices list within the network information message type and then send the updated information to the cloud

Expected Cloud Behavior

It is expected that the cloud will be prepared for the network startup event and will be able to receive the network information message type (using a wildcard and then filtering or by having prior knowledge about the destination or topic of the message). Once the cloud receives the network information message, the wireless network information (PANID, security, mode, and so forth) can be displayed to users and the device list information (topic, object list, and so forth) can be used to prepare itself to receive and display device and sensor data.

5.2.2

Device Information Sent to the Cloud

The following is the list of events that will cause the TI IoT gateway to send a device information message type to the cloud. A description is given with each event and the end of this section describes the expected behavior from the cloud upon receipt of this type of message.

Device Becomes Inactive

This event occurs when the TI IoT gateway detects that one of the devices in the connected devices list has stopped sending sensor data updates. The TI IoT gateway will update the

active

field and send a device information message type to the cloud for the inactive device.

Device Reports Sensor Data

Each time a sensor on a connected device reports sensor data this event occurs. The TI IoT gateway updates the IPSO alliance smart object list in the device for each sensor and then sends a device information message type to the cloud.

Expected Cloud Behavior

It is expected that the Cloud will be alert on each topic given in the connected devices list from the network information message. When one of the two events occur in this section, the TI IoT gateway will send the device information message to the topic (corresponding to the device being update) that the cloud should be listening on or subscribed to. When the device information message arrives at the cloud, the cloud should display the latest device information and sensor data to users.

5.2.3

Update Network State Message Sent to the TI IoT Gateway

This message is used to open or close the wireless network to new devices joining. This should be an option provided to users in the front end user interface that the cloud presents. When the user decides to update the network state, the cloud should send an update network state message type to the TI IoT gateway on the same topic that the network information messages are arriving on.

Expected TI IoT Gateway Behavior

The TI IoT Gateway will receive the update network state message and will generate the correct command (either open or close) to the wireless network. This command should, in turn, cause a network state change event (from

Section 5.2.1

) that will send a network information message back to the cloud, which can confirm the successful completion of the update network state command.

5.2.4

Device Actuation Message Sent to the TI IoT Gateway

This method is used to toggle the LED on the board of the connected devices. This is meant to be a proofof-concept on the current device setup and will change for customer use-case specific actuations. A toggle

LED button for each device will be provided to users of the cloud’s front end interface. When the toggle

LED button is clicked, the cloud should send a device actuation message to the TI IoT gateway on the same topic that the device information messages are arriving on.

TIDUCI9A – November 2016 – Revised April 2017

Submit Documentation Feedback

Sub-1 GHz Sensor to Cloud Industrial Internet of Things (IoT) Gateway

Reference Design

Copyright © 2016–2017, Texas Instruments Incorporated

29

AWS IoT

www.ti.com

Expected TI IoT Gateway Behavior

The TI IoT Gateway will generate a toggle LED command and send it to the device corresponding to the topic that the device actuation message was received on. This will cause the LED to toggle. Because the state of the LED is not captured in the device information message type, there will be no feedback to the cloud that the LED actually toggled.

6 AWS IoT

Section 5

of this document was generic to any cloud host or vendor. This section will give specific implementation details when using AWS IoT as the Cloud vendor. The numbering and header names of this section will be the same as

Section 5

, but additional information specific to the AWS IoT implementation is added here.

6.1

Message Types

The message types from

Section 5.1

will remain the same for messages traveling in both directions.

However, the message payload sent to and from the AWS cloud will be wrapped with some additional information specific to the use of the Amazon thing shadow interface.

6.1.1

Network Information Message Type (From TI IoT Gateway to the Cloud)

The network information message type will be sent to the AWS cloud using a thing name that includes the extended address of the wireless collector node that is attached to the TI IoT gateway. For example, the thing name could be

ti_iot_0x124b000a27dda1_network

and would use the base thing shadow topic of

$aws/things/ti_iot_0x124b000a27dda1_network/shadow

where 0x124b000a27dda1 is the extended address of the collector node. Because all of the initial information needed to describe a network will be sent to this thing shadow, the thing name will either need to be known beforehand

or

the cloud front end will need to subscribe to an MQTT wildcard topic and then filter on the

_network

keyword in order to receive the initial message containing the network Information.

The message payload shown in

Section 5.1.1

will remain the same, but the message will be in JSON format and will be encapsulated in a

state

JSON object to comply with the Amazon thing shadow interface. Further, all messages sent from the TI IoT gateway toward the AWS cloud will be sent to the

state.reported

property of the thing shadow document. Sending data to the

state.reported

property is how the AWS cloud receives and stores the latest state of the thing.

The only other note that should be made on this message type is that the

topic

property given in each connected device will be the base topic for the thing device shadow in the following format:

"topic"

:

"$aws/things/ti_iot_0x124b000a27dda1_0x124b000a27d849/shadow"

where the thing name is

ti_iot_0x124b000a27dda1_0x124b000a27d849

. This name is comprised of first the wireless network’s extended address (0x124b000a27dda1) and second the extended address of the device connected to the wireless network (0x124b000a27d849). This naming convention guarantees a distinct thing name and also makes it easy to determine the wireless network that the device is connected to.

6.1.2

Device Information Message Type (From TI IoT Gateway to the Cloud)

The device information message type messages will be sent to the thing shadows or MQTT topics that are provided in the devices list from the network information message type. It is recommended that things are registered (or MQTT topics are subscribed to) for each device once the network Information message is received. This registration will allow the cloud front end to receive all sensor and information updates from all devices.

Similar to the network information message type above, the device information message type will be sent in JSON format and will be wrapped in a

state

JSON object to comply with the Amazon thing shadow interface. Once again, when this message type is sent from the TI IoT Gateway to the AWS Cloud, the message will be sent to the

state.reported

property of the thing shadow document.

30

Sub-1 GHz Sensor to Cloud Industrial Internet of Things (IoT) Gateway

Reference Design

TIDUCI9A – November 2016 – Revised April 2017

Copyright © 2016–2017, Texas Instruments Incorporated

Submit Documentation Feedback

www.ti.com

AWS IoT

6.1.3

Update Network State Message Type (From Cloud to TI IoT Gateway)

The update network state message type messages will be sent to the same thing shadow or MQTT topic that the cloud receives network information messages on. This message type will also be sent in JSON format and will also be wrapped in a

state

JSON object to comply with the Amazon Thing Shadow API.

The major difference is that this message (

from

the Cloud

to

the TI IoT Gateway) will send its data to the

state.desired

property of the thing shadow. This is the method that the Amazon thing shadow provides to request a thing to make a state or property change. In this case, the only currently supported wireless network change that can be requested is to either open or close the network for new device joins. The following is an example of the message in JSON format that should be sent to the thing shadow:

{ “state” : { “desired” : { “state” : “open” } } }

6.1.4

Device Actuation Message Type (From Cloud to TI IoT Gateway)

The device actuation message type messages will be sent to the same thing shadow or MQTT topic that the Cloud receives device information messages on. This message type will also be sent in JSON format and will also be wrapped in a

state

JSON object to comply with the Amazon thing shadow API.

Similar to the update network state messages, this message type will also be sent to the

state.desired

property of the thing shadow. The only currently supported actuation message that can be sent is to request that the wireless device toggle an onboard LED. The following JSON object is the only currently supported device actuation message type that should be sent from the AWS cloud to the TI IoT gateway:

{ “state” : { “desired” : { “toggleLED” : “true” } } }

6.2

Data Flows

The data flows for the AWS cloud remain the same as in

Section 5.2

above. The only AWS specific information is that the data is being sent to thing shadows and that the messages are wrapped in either

state.reported

or

state.desired

JSON objects as described in

Section 6.1

.

7 Design Files

This TI Design showcases the connectivity between AM335x and CC13x0 devices. The AM335x acts as a gateway processor and CC13x0 as communication node.

The AM335x-based BeagleBone Black is used as a platform for gateway processor, and the CC13x0based LaunchPad acts as communication node. The schematic for this TI Design shows how to map one

UART port and backdoor signals from BeagleBone Black to the LaunchPad.

For software flexibility, the schematic also maps various SPI, I²C, and GPIOs from BeagleBone Black to the LaunchPad; however, for this IoT gateway reference design only one UART port and backdoor signals are valid.

7.1

Schematics

To download the schematics for each board, see the design files at TIDEP-0084 .

7.2

Bill of Materials

To download the bill of materials (BOM), see the design files at TIDEP-0084 .

7.3

PCB Layout Recommendations

7.3.1

Layout Prints

To download the layout prints, see the design files at TIDEP-0084 .

7.4

Altium Project

To download the Altium project files, see the design files at TIDEP-0084 .

TIDUCI9A – November 2016 – Revised April 2017

Submit Documentation Feedback

Sub-1 GHz Sensor to Cloud Industrial Internet of Things (IoT) Gateway

Reference Design

Copyright © 2016–2017, Texas Instruments Incorporated

31

Design Files

7.5

Gerber Files

To download the Gerber files, see the design files at TIDEP-0084 .

7.6

Assembly Drawings

To download the assembly drawings, see the design files at TIDEP-0084 .

www.ti.com

8 Software Files

To download the software files for this reference design, please see the link at https://git.ti.com/apps/tidep0084 .

9 Related Documentation

1. Texas Instruments,

TI-15.4 Stack: IEEE802.15.4e/g Standard Based Star Networking Software

Development Kit (SDK)

, TI 15.4-Stack Tool Folder

2. Texas Instruments,

Processor SDK for AM335x Sitara™ Processors - Linux and TI-RTOS support

,

PROCESSOR-SDK-AM335X Tool Folder

3. Texas Instruments,

TI 15.4-Stack Wiki

, TI 15.4-Stack Wiki

4. Texas Instruments,

Processor SDK Linux Creating an SD Card with Windows

, Wiki Page

5. Texas Instruments,

CC13x0 SimpleLink TI 15.4-Stack 2.x.x Linux Developer’s Guide

, User's Guide

(SWRU490)

6. Texas Instruments,

CC13x0 SimpleLink TI 15.4-Stack 2.x.x Embedded Developer's Guide

, User's

Guide (SWRU489)

7. Texas Instruments,

TI 15.4-Stack CC13x0 SimpleLink Embedded Applications Quick Start Guide

,

User's Guide (SWRU488)

8. stackArmor,

Industrial IoT Gateway Demonstration Request Form

9.1

Trademarks

Sitara, SimpleLink, LaunchPad are trademarks of Texas Instruments Incorporated.

ARM, Cortex are registered trademarks of ARM Limited.

LINKSYS, BELKIN are trademarks of Belkin International, Incorporated.

Bluetooth is a registered trademark of Bluetooth SIG, Incorporated.

EtherCAT is a registered trademark of EtherCAT Technology Group.

PowerVR SGX is a trademark of Imagination Technologies Limited.

Linux is a registered trademark of Linux Foundation.

NETGEAR is a registered trademark of NETGEAR, Incorporated.

PROFIBUS, PROFINET are registered trademarks of PROFIBUS and PROFINET International (PI).

Yocto Project is a trademark of The Linux Foundation.

All other trademarks are the property of their respective owners.

10 About the Author

SUYASH JAIN

is an Applications Engineer at Texas Instruments, where he is responsible for supporting customers designing low power wireless systems. Suyash earned his Master of Science in Electrical

Engineering (MSEE) from Texas Tech University in Lubbock, TX.

JASON REEDER

is a Software Applications Engineer at Texas Instruments, where he is responsible for supporting customers using Linux on TI’s Sitara family of devices. Jason earned his Bachelor of Science in Computer Software Engineering and his Master of Science in Electrical Engineering at the University of

Florida in Gainesville, FL.

AMRIT MUNDRA

is a part of the Systems Team in Catalog Processors BU. He has been with TI for 13 years and has worked on multiple IP’s and SoC’s. He is the security architect for Keystone3 and security lead for Catalog BU. Amrit also is system lead for IoT EE initiative in BU.

32

Sub-1 GHz Sensor to Cloud Industrial Internet of Things (IoT) Gateway

Reference Design

TIDUCI9A – November 2016 – Revised April 2017

Copyright © 2016–2017, Texas Instruments Incorporated

Submit Documentation Feedback

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement

Table of contents
