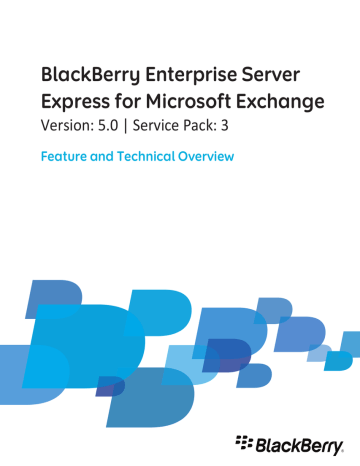

BlackBerry Enterprise Server Express for Microsoft Exchange Feature and Technical Overview

BlackBerry Enterprise Server Express for Microsoft Exchange Feature and Technical Overview

4

Feature and Technical Overview

Overview: BlackBerry Enterprise Server Express

Overview: BlackBerry Enterprise Server Express

1

The BlackBerry® Enterprise Server Express is designed to be a secure, centralized link between an organization's wireless network, communications software, applications, and BlackBerry devices. The BlackBerry Enterprise Server

Express integrates with your organization's existing infrastructure, which can include messaging software, calendar and contact information, wireless Internet and intranet access, and custom applications, to provide BlackBerry device users with mobile access to your organization's resources. You can install the BlackBerry Enterprise Server Express on the same server as your organization's messaging server, or you can install the BlackBerry Enterprise Server Express on a separate server.

The BlackBerry Enterprise Server Express supports devices that are provisioned for a BlackBerry Enterprise Server or for the BlackBerry® Internet Service.

The BlackBerry Enterprise Server Express supports AES and Triple DES encryption to protect and ensure the integrity of wireless data that is transmitted between the BlackBerry Enterprise Server Express components and devices. You can configure IT policy rules to control the features of the devices that are used in your organization's environment.

You can manage the BlackBerry Enterprise Server Express, devices, and user accounts using the BlackBerry

Administration Service, a web application that is accessible from any computer that can access the computer that hosts the BlackBerry Administration Service. You can use the BlackBerry Administration Service to manage a

BlackBerry Domain, which consists of one or more BlackBerry Enterprise Server Express instances and remote components that use a single BlackBerry Configuration Database.

What's new in BlackBerry Enterprise Server Express 5.0 SP3

Feature

Support for Windows® Small

Business Server 2011 Standard

BlackBerry® Device Software updates

Enhancements to media file downloads

Enhancements to highly secure messaging

Description

The BlackBerry® Enterprise Server Express 5.0 SP3 supports Windows Small

Business Server 2011 Standard.

The BlackBerry® Enterprise Server Express includes the following enhancements to the software update process:

• administrators can make software updates optional for BlackBerry device users

• users have the option to rollback an optional software update

The default settings for media file downloads changed to allow users to download larger amounts of content using the BlackBerry® Browser or an

HTTP connection using the BlackBerry MDS Connection Service.

Users that have S/MIME encryption enabled on their devices can send or forward email messages that contain attachments in signed, encrypted, or signed and encrypted format.

Feature and Technical Overview

What's new in BlackBerry Enterprise Server Express 5.0 SP3

Feature

Enhancements to the BlackBerry

Administration Service

Description

This feature will be supported in an upcoming release of BlackBerry Device

Software.

The BlackBerry Administration Service includes the following enhancements:

• ability for you to delete only work data from BlackBerry devices

• two new permissions that allow you to delete data from devices:

"Delete all device data and remove device" and "Delete only the organization data and remove device permissions" (the "Edit a device" permission no longer permits you to delete all device data)

• option for you to delete or disable a user account from the BlackBerry

Enterprise Server Express after you delete only work data or all data from devices

• option for the BlackBerry Administration Service to automatically select and authenticate with proxy servers

• improved search results including additional user information and the option to sort and move columns for a customized display

• option to export the data from the user search results into a .csv file

Calendar synchronization process is enabled by default

Support for assigning additional configurations to groups

Enhancement to logging

New traits

The calendar synchronization process allows you to find and correct differences between the calendar entries on devices and the calendar entries on users' computers.

You can assign VPN profiles and Wi-Fi® profiles to groups using the same method that you use to assign IT policies, software configurations, and roles to groups.

By default, the logging level for deployment jobs is increased to debug to help you more easily identify, diagnose, and solve issues with incomplete

JDBC driver upgrade jobs.

The JDBC driver that BlackBerry Enterprise Server Express components use to connect to the BlackBerry Configuration Database is upgraded to version

2.0 for the BlackBerry Administration Service, and to version 3.0 for the

New IT policy rules

BlackBerry MDS Connection Service.

For information about new IT policy groups and IT policy rules, see the

BlackBerry Enterprise Server Express Policy Reference Guide.

New application control policy rule A new application control policy rule named "Is access to the corporate data

API allowed" specifies whether a third-party application or an add-on application developed by Research In Motion® can access work data on a device.

The BlackBerry Enterprise Trait Tool includes the following new traits:

• PolicyEnterpriseWipeCommandOrderTraitType

• BASIsProxyWPADOptionEnabled

5

6

Feature and Technical Overview

Comparing the BlackBerry Enterprise Server and the BlackBerry Enterprise Server Express

Feature

Support for Microsoft® Office 2010 file attachments

Support for Microsoft® Hyper-V®

Server 2008 R2

End of support for Microsoft® SQL

Server® 2000

Description

• BASNumberOfAdditionalWiredApplicationsToIncludeInACP

• BASProxyBasicAuthUID

• BASProxyBasicAuthPassword

• EWSDomain

• EWSPassword

• EWSServiceAccount

• MaxDomainSlowSyncsPerMin

• MaxSyncServerSlowSyncsPerMin

• MaxSyncServerSlowSyncsInProcess

• MaxPollCycleCountForHungSlowSync

• MaxPollCycleCountForNoResponseToSlowSync

• NumberOfUserTargetTypeForSlowSyncInParallel

• SlowSyncPollCycleInterval

For more information about new traits, see the BlackBerry Enterprise Server

Express Administration Guide.

The BlackBerry Enterprise Server Express is designed to support Microsoft

Office 2010 file attachments in messages.

The BlackBerry Enterprise Server Express is designed to support the

Microsoft Hyper-V Server 2008 R2 virtualization platform.

The BlackBerry Enterprise Server Express no longer supports Microsoft SQL

Server 2000 and MSDE.

If the installer detects Microsoft SQL Server 2000 or MSDE, the setup application displays a warning message and you cannot continue to install or upgrade the BlackBerry Enterprise Server Express until you upgrade the database server.

Comparing the BlackBerry Enterprise Server and the

BlackBerry Enterprise Server Express

The following table compares the features of the BlackBerry® Enterprise Server and BlackBerry® Enterprise Server

Express.

Feature

Supported messaging platforms

BlackBerry Enterprise Server

• Microsoft® Exchange

• IBM® Lotus® Domino®

• Novell® GroupWise®

BlackBerry Enterprise Server Express

• Microsoft Exchange

• IBM Lotus Domino

Feature and Technical Overview

Comparing the BlackBerry Enterprise Server and the BlackBerry Enterprise Server Express

Feature

Supported operating systems

BlackBerry Enterprise Server

• Windows Server® 2003 SP2 (32-bit or

64-bit)

• Windows Server 2003 R2 SP2 (32-bit or

64-bit)

• Windows Server 2008 SP2 (32-bit or 64bit)

• Windows Server 2008 R2

Installation on the computer that hosts the messaging server

Not supported

BlackBerry Domain

• Supports multiple BlackBerry

Enterprise Server instances in one

BlackBerry Domain

• Supports different BlackBerry

Enterprise Server versions in one

BlackBerry Domain

• Does not support BlackBerry Enterprise

Server Express instances in the same

BlackBerry Domain as BlackBerry

Enterprise Server instances

Microsoft Exchange mixed environments

Supports mixed environment of Microsoft®

Exchange Server 2003 and 2007, or

Microsoft Exchange Server 2007 SP2 and

2010

Administator roles

• Preconfigured administrative roles

• Custom administrative roles

IT policies

Exporting and importing IT policy data

• Default IT policy and various preconfigured IT policies

• Custom IT policies

• Full set of IT policy rules

Supported

BlackBerry Enterprise Server Express

• Windows Server 2003 SP2 (32-bit or 64bit)

• Windows Server 2003 R2 SP2 (32-bit or

64-bit)

• Windows Server 2008 SP2 (32-bit or 64bit)

• Windows Server 2008 R2

• Windows® Small Business Server 2003

• Windows Small Business Server 2008

• Windows Small Business Server 2011

Standard

Supported for the BlackBerry® Enterprise

Server Express for Microsoft® Exchange

• Supports multiple BlackBerry

2010

Enterprise Server Express instances in one BlackBerry Domain

• Supports different BlackBerry

Enterprise Server Express versions in one BlackBerry Domain

Does not support BlackBerry Enterprise

Server instances in the same BlackBerry

Domain as BlackBerry Enterprise Server

Express instances

Supports mixed environment of Microsoft

Exchange Server 2003 and 2007, or

Microsoft Exchange Server 2007 SP2 and

Preconfigured administrative roles only

Default IT policy

Custom IT policies

Reduced set of IT policy rules

Not supported

7

Feature and Technical Overview

Comparing the BlackBerry Enterprise Server and the BlackBerry Enterprise Server Express

Feature

BlackBerry devices that are associated with the BlackBerry®

Internet Service

Enterprise instant messaging using collaboration clients developed by RIM

BlackBerry

Monitoring Service

High availability

BlackBerry® Mobile

Voice System

BlackBerry®

Enterprise Server for

Voice Services

BlackBerry®

Pushcast™ Software

Log files for PIN messages, SMS text messages, and phone calls

BlackBerry Enterprise Server

Not supported

Supported

Supported

Supported

Supported

Supported

Supported

Supported

BlackBerry Enterprise Server Express

Supported

Not supported

Not supported

Not supported

Not supported

Not supported

Not supported

Not supported

8
