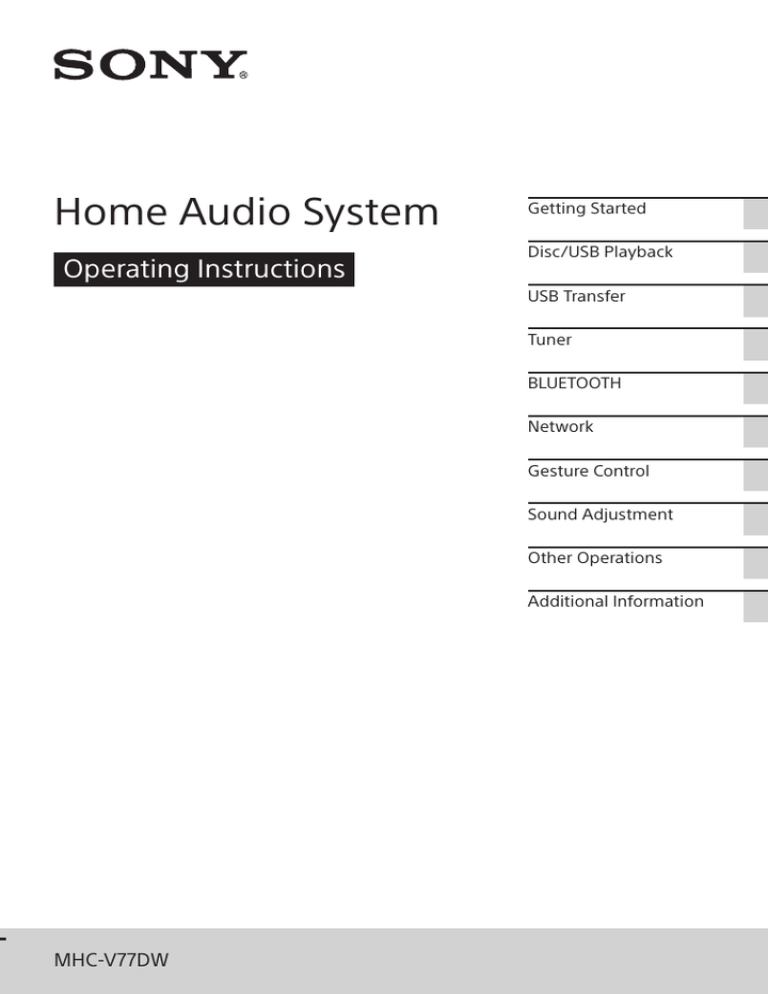

Operating Instructions

Operating Instructions

Getting Started

Hooking up the system securely

Unit (Rear)

Note

The jacks/terminal/port at the rear panel have cover, open the cover then make the connection.

HDMI OUT (TV) jack

Use an HDMI cable (not supplied) to connect to the HDMI IN jack of

a TV (page 22).

VIDEO OUT jack

Use a video cable (not supplied) to connect to the video input jack

of a TV or projector (page 22).

Note

Do not connect this system to the TV through the video deck.

19

GB

MHC-V77DW.GB.4-596-07615(1)

20

GB

Audio input and output jacks

Use an audio cable (not supplied) to make either connection as follows:

AUDIO/PARTY CHAIN OUT

L/R jacks

—Connect to the audio input jacks of an optional

• equipment.

• system to enjoy the Party

Chain function (page 57).

AUDIO/PARTY CHAIN IN (TV)

L/R jacks

—Connect to the audio output jacks of a TV or an audio/ video equipment. The sound is output through this system.

• system to enjoy the Party

Chain function (page 57).

Wireless LAN antenna

If you use the wireless network function, set the antenna as shown in the illustration.

FM ANTENNA terminal

Find a location and an orientation that provide good reception when you set up the antennas.

Keep the antenna away from the

AC power cord (mains lead) and the USB cable to avoid picking up noise.

Extend the FM lead antenna horizontally

LAN (100) port

Use a LAN cable (not supplied) to connect to a network equipment

(page 46).

AC power cord (mains lead)

Connect the AC power cord

(mains lead) (supplied) to the unit, then to the wall outlet.

To wall outlet

Note

If a network (LAN) cable is connected to the system, the system automatically operates to establish a wired LAN connection. If you wish to use a wireless LAN connection, do not connect a network (LAN) cable to the system.

Hint

We recommend you to adjust the wireless LAN antenna to 90 degrees as in the illustration above for maximum reception.

When the AC power cord (mains lead) is connected, the system is performing initialization. During system initialization, “WELCOME” appears on the display. While the initializing is in progress, you cannot turn on the system.

After initialization completes,

demonstration (page 25)

starts automatically. If you press

 to turn on the system, the demonstration ends.

MHC-V77DW.GB.4-596-07615(1)

Deactivating the demonstration

To deactivate the demonstration while the system is turned off, press

DISPLAY repeatedly to select the no display mode (Power Saving Mode)

(page 25).

Inserting batteries

Insert the two supplied R03 (size

AAA) batteries, matching the polarities shown below.

To operate the unit using the remote control

Point the remote control at the unit’s remote control sensor.

Note

Do not mix an old battery with a new one or mix different types of batteries.

• If you do not use the remote control for a long period of time, remove the batteries to avoid damage from battery leakage and corrosion.

MHC-V77DW.GB.4-596-07615(1)

21

GB

22

GB

Connecting the TV

Connecting the TV

Before connecting cables, be sure to disconnect the AC power cord (mains lead).

To watch video

Select the connection methods according to the jacks on your TV.

High quality

HDMI cable* 1 (not supplied)

HDMI IN (ARC) *2

or

HDMI IN

Video cable (not supplied)

VIDEO IN

Standard quality

Recommended connection

Alternative connection

* 1 High Speed HDMI Cable with Ethernet

* 2 You can listen to TV sound via the system if you connect the system to the TV’s HDMI

IN (ARC) jack. The Audio Return Channel (ARC) function enables the TV to output sound through the system with an HDMI connection, without performing an audio connection (connection

 below). To set the ARC function on this system, see [AUDIO

RETURN CHANNEL] (page 36). To check the compatibility of your TV’s ARC function,

refer to the operating instructions supplied with your TV.

MHC-V77DW.GB.4-596-07615(1)

To listen to TV sound via the system

If you do not connect the system to the TV’s HDMI IN (ARC) jack, make this connection.

Audio cable (not supplied)

AUDIO OUT

To listen to TV sound, press FUNCTION +/– repeatedly to select “TV”.

Hint

You can also enjoy the sound of external equipment (DVD players, etc.) via the system by connecting to the AUDIO IN (TV) jack as connection

 above. For details, refer to the operating instructions of your equipment.

• If the audio output level from the system is low when connecting the external equipment, try adjusting the audio output settings on the connected equipment. It may improve the audio output level. For details, refer to the operating instructions of your equipment.

MHC-V77DW.GB.4-596-07615(1)

23

GB

24

GB

Carrying the unit

The unit has caster wheels so that you can roll it easily. Normally, carrying the unit by this method is recommended on flat surfaces.

Before carrying the unit, disconnect all the cables.

Note

• The caster wheels can be used only on flat surfaces. Lift the unit by two people on uneven surfaces. Correct hand placement while carrying the unit is very important to avoid personal injury and/or property damage. Be sure to use the handle when lifting the unit.

Changing the color system

(Except for Latin American,

European, and Russian models)

Set the color system to PAL or NTSC depending on the color system of your TV.

Each time you perform the procedure below, the color system changes as follows:

NTSC

 PAL

Use the keys on the touch panel of the unit to perform this operation.

1

Press

to turn on the system.

2

Touch FUNCTION repeatedly to select “DVD/CD”.

3

Touch and hold DJ and TUNING + for more than 2 seconds.

“NTSC” or “PAL” appears on the display.

Handle

Exercise extreme caution when carrying the unit on a slope.

• Do not carry the unit with a person,

• luggage, etc. on it.

Do not let children or infants be near when carrying the unit.

Performing the quick setup

Before using the system, you can make the minimum basic adjustments in the quick setup.

1

Turn on your TV and select the video input.

2

Press

to turn on the system.

3

Press FUNCTION +/– repeatedly to select “DVD/CD”.

The guide message [Press ENTER to run QUICK SETUP.] appears at the bottom of the TV screen.

MHC-V77DW.GB.4-596-07615(1)

4

Press without loading a disc.

[LANGUAGE SETUP] appears on the

TV screen. Displayed items may vary depending on country or region.

LANGUAGE SETUP

OSD :

MENU

AUDIO

:

:

S U B T I T L E

:

ENGLISH

ENGLISH

CHINESE 1

CHINESE 2

THAI

5

Press / repeatedly to select a language, then press .

[VIDEO SETUP] appears on the TV screen.

6

Press / repeatedly to select the setting that matches your

TV type, then press .

After [QUICK SETUP is complete.] appears on the TV screen, the system is ready for playback.

To change the setting manually

See “Using the Setup Menu”

(page 33).

To quit the quick setup

Press DVD SETUP.

Note

The guide message appears when you turn on the system for the first time or

after performing [RESET] (see “Returning the setup menu settings to the default” on page 75).

Changing the display mode

Press DISPLAY repeatedly while the system is turned off.

Each time you press the button, the display mode changes as follows.

Demonstration

The messages about the main features of this system scrolls across the display and the illumination turns on.

To turn off the illumination, press

PARTY LIGHT.

No display (Power Saving Mode)

The display is turned off to conserve power.

MHC-V77DW.GB.4-596-07615(1)

25

GB
