ACS ACR122U
Manuals and User Guides for ACS ACR122U. We found 11 manuals for free downloads User manual, Specification, Manual
ACS ACR122U is a PC-linked Contactless Smart Card Reader/Writer developed on the 13.56MHz Contactless Technology. This device is designed to support not only MiFare and ISO14443 Type A and B Cards but also FeliCa and NFC tags. This reader acts as a Plug and Play (PnP) device so there is no need to provide drivers to users. Furthermore, read and write operations to contactless tags are faster and more efficient since the device makes use of high-speed card access by making use of pseudo-APDU’s and full USB speed of 12 Mbps. The ACR122U SDK provides the user with the following: sample applications, sample codes, tools, and utilities that can be used to experience the features and capabilities of ACR122, the world’s first CCID compliant NFC Card Reader. Together with its compact size and trendy design and with the various features the ACR122 offers users can experience the convenience of using ACR122 for applications such as payment, mass transit, physical access control, time attendance, etc.
Key Features
CCID Standard
Read / Write Speed up to 424kbps
ISO/IEC18092 (NFC) compliant
ISO14443 Type A and B card support
FeliCa Card Support
Bi-Color LED
Compact size: 98mm (L) x 65mm (W) x 12.8mm (H)
Light Weight: 70g
CE, FCC and RoHS compliant
User Controllable Buzzer (optional)

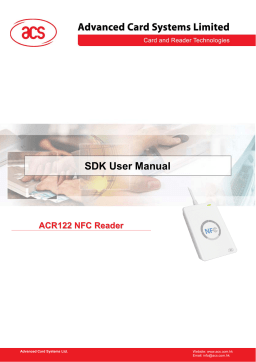

Pages: 11 ACS ACR122U User manual
Brand: ACS Category: Security door controllers Size: 1 MB
Languages: English
Open manualOther manuals and documents
Frequently Answers and Questions
What is the ACR122U?
The ACR122U is a PC-linked Contactless Smart Card Reader/Writer developed on the 13.56MHz Contactless Technology.
What are the key features of the ACR122U?
The ACR122U is a CCID compliant device with read / write speed up to 424kbps, ISO/IEC18092 (NFC) compliant, and supports ISO14443 Type A and B cards, and FeliCa cards.
What are the typical applications of the ACR122U?
The ACR122U can be used for a wide range of applications, including network access control, micro-payment, NFC mobile tag, public transportation terminals, automatic fare collection, physical access control, customer loyalty, time attendance, contactless public phones, and vending machines.
Questions & Answers
S S R
How does the ACR122U handle different NFC tag types?
The ACR122U supports MiFare, ISO14443 Type A and B Cards, FeliCa, and NFC tags and can detect ISO 14443 and ISO 18092 cards. The manual does not explicitly describe the ability of ACR122U to automatically switch configuration parameters based on the tag type.
S S R
Does the ACR122U automatically identify different types of tags and switch configuration parameters accordingly?
The ACR122U supports MiFare, ISO14443 Type A and B cards, FeliCa, and NFC tags, and can detect ISO 14443 and ISO 18092 cards. However, it is not explicitly described whether the ACR122U automatically switches configuration parameters based on the tag type.
I I R
How does the ACR122U identify different types of tags and switch configuration parameters based on the tag type?
The ACR122U can work with various contactless cards compliant with ISO14443 and ISO18092 standards. The multi-application demo showcases its compatibility with Topaz, FeliCa, MiFare Ultralight, and MiFare 4K cards.
W W R
Can the device automatically switch configuration parameters based on the tag type?
The document does not explicitly mention the device's ability to automatically switch configuration parameters based on the tag type. However, the ACR122 device is compatible with various contactless cards following ISO14443 and ISO18092 standards, and supports cards like Topaz, FeliCa, MiFare Ultralight, and MiFare 4K.
Additionally, the ACR122 tool can detect ISO 14443 and ISO 18092 cards, allowing users to inspect and manipulate the contents of Mifare 1K/4K and Mifare Ultralight cards. The scripting tool enables sending and receiving data to and from contactless cards.
While automatic switching of configuration parameters isn't directly stated, the device's compatibility with multiple card types and the provided tools might allow developers to implement similar functionality.
