Allen-Bradley 1336 IMPACT Power Supply Connection - H Frame

Manuals and User Guides for Allen-Bradley 1336 IMPACT Power Supply Connection - H Frame. We found 1 manuals for free downloads Installation instructions

Allen-Bradley 1336 IMPACT Power Supply Connection - H Frame is a component designed for use with Allen-Bradley's 1336 IMPACT drive system. It connects the drive to a power source, supplying the necessary voltage and current for its operation. The power supply connections are pre-configured for the 522–597kW (700–800HP) range, but can also be adjusted for custom configurations. This component ensures reliable and efficient power delivery for the 1336 IMPACT drive, enabling smooth operation and optimal performance in your industrial applications.

Key Features

High voltage bus connection
120 volt power supply
Adjustable output voltage
Pre-configured for 522–597kW (700–800HP) range
Safety features
Easy installation

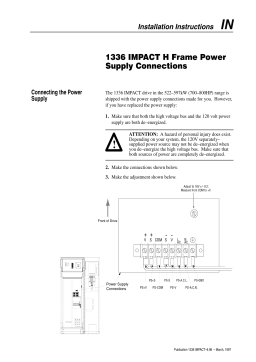

Pages: 2 Allen-Bradley 1336 IMPACT Power Supply Connection - H Frame Installation instructions

Brand: Allen-Bradley Category: Electrical equipment & supplies Size: 75 KB

Languages: English

Open manual

Frequently Answers and Questions

How do I adjust the output voltage of the power supply?

The output voltage of the power supply can be adjusted by using the adjustment screw on the front of the drive. Refer to the manual for specific instructions.

What is the voltage range for the 120V power supply?

The manual does not specify the range of the 120V power supply. However, it is recommended to check the specifications of your particular model for this information.

What are the safety precautions I should take during installation?

Ensure that both the high voltage bus and the 120V power supply are de-energized before making any connections. Refer to the manual for specific safety instructions.
