Allen-Bradley AC/DC INPUT MODULE

Manuals and User Guides for Allen-Bradley AC/DC INPUT MODULE. We found 1 manuals for free downloads Installation instructions

Allen-Bradley AC/DC INPUT MODULE is a versatile device designed for industrial applications. It offers 16 channels to monitor AC/DC input signals, making it ideal for monitoring various sensors and other devices. The module features adjustable delay-time settings to prevent false inputs in high-noise environments and provides status indicators to aid in troubleshooting.

Key Features

  • 16 channels
  • AC/DC input
  • Adjustable delay time
  • Status indicators
  • Modular design
  • Easy installation

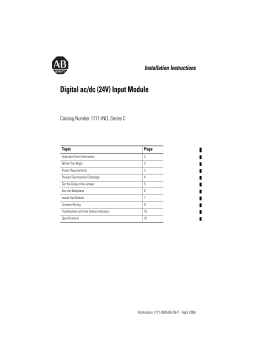

Pages: 12 Allen-Bradley AC/DC INPUT MODULE Installation instructions

Brand: Allen-Bradley Category: Electrical terminal blocks Size: 328 KB

Languages: English

Open manual

Frequently Answers and Questions

What is the operating temperature range of the Allen-Bradley AC/DC INPUT MODULE?
The operating temperature range is 0°C to 60°C (32°F to 140°F).
What is the input voltage range of the module?
The nominal input voltage is 24V AC, 50-60 Hz or 24V DC.
How do I set the delay time on the module?
Use the delay-time jumper at the top-right edge of the module circuit board to select between 5 ms and 20 ms delay times.
What kind of field wiring arm is compatible with the module?
The module is compatible with field wiring arm cat. no. 1771-WH.
What does the module-active indicator indicate?
A green module-active indicator indicates that the module is powered and operating normally. If the indicator is off, there may be a fault in the module or system.
