Allen-Bradley ArmorBlock LP2

Manuals and User Guides for Allen-Bradley ArmorBlock LP2. We found 3 manuals for free downloads Installation instructions

Allen-Bradley ArmorBlock LP2 is a standalone 24V dc I/O module that communicates via a DeviceNet network. It features a sealed housing requiring no enclosure and is designed for industrial environments. This model provides 2 sinking inputs and 2 sourcing outputs, each capable of delivering up to 300mA. The module is equipped with AutoBaud, enabling it to automatically adjust to the existing settings on your DeviceNet network.

Key Features

2 sinking inputs
2 sourcing outputs
300mA output current
AutoBaud detect
Sealed housing
DeviceNet communication
Industrial environment

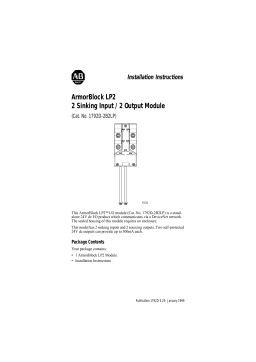

Pages: 8 Allen-Bradley ArmorBlock LP2 Installation instructions

Brand: Allen-Bradley Size: 192 KB

Languages: English

Open manual

Frequently Answers and Questions

How many outputs can the Allen-Bradley ArmorBlock LP2 provide?

This module provides 2 sourcing outputs, labeled O0 and O1.

What kind of communication protocol does the ArmorBlock LP2 use?

The ArmorBlock LP2 is equipped with DeviceNet communication.

Does the ArmorBlock LP2 require an enclosure?

No, the ArmorBlock LP2 features a sealed housing that requires no enclosure.

What is the maximum current that each output can supply?

Each of the two outputs can provide up to 300mA.

What is the operating temperature range of the ArmorBlock LP2?

The operating temperature range is -25 to 60oC (-13 to 140oF).
