Allen-Bradley MOV

Manuals and User Guides for Allen-Bradley MOV. We found 1 manuals for free downloads Installation instructions

Allen-Bradley MOV is a replacement kit for the Frame 5 MOV assembly. This kit includes all the necessary components to replace the MOV assembly, including a new MOV, lugs, and insulation. The MOV is used to protect electrical equipment from overvoltages, such as those caused by lightning strikes or power surges. The kit is easy to install and includes clear instructions. The MOV assembly must be removed and replaced with the new kit by following the instructions provided in the manual.

Key Features

Replacement Kit
Frame 5
MOV
Overvoltage Protection
Easy Installation
Clear Instructions

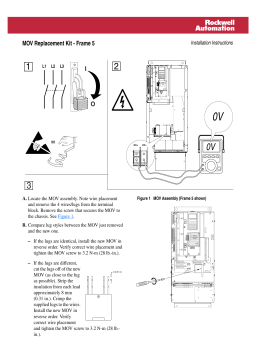

Allen-Bradley MOV Installation Instructions - Download & View Online

Pages: 2 Allen-Bradley MOV Installation instructions

Brand: Allen-Bradley Category: Circuit breaker accessories Size: 126 KB

Languages: English

Open manual

Frequently Answers and Questions

How do I remove the old MOV assembly?

Locate the MOV assembly, note the wire placement, and remove the 4 wires/lugs from the terminal block. Remove the screw that secures the MOV to the chassis. Refer to Figure 1 in the viewed document for instructions.

What are the lug styles of the new and old MOV?

Compare the lug styles between the old and new MOV assemblies. If they're identical, install the new one in reverse order. Ensure proper wire placement and tighten the MOV screw to 3.2 N-m (28 lb.-in.). If they are different, cut the lugs off the new MOV, strip the insulation, crimp the supplied lugs to the wires, install the new MOV, and tighten the screw to 3.2 N-m (28 lb.-in.). Refer to the viewed document for further details.

What are the torque requirements for the power terminal?

The power terminal has a wire range of 14-1/0 AWG (2.5-35 MM2), a torque of 32 IN-LB (3.6 N-M), and a strip length of 0.67 IN (17 MM). Use only 75 C CU wire.
