Bowers Group Trimos Mestra Height Gauges

Manuals and User Guides for Bowers Group Trimos Mestra Height Gauges. We found 1 manuals for free downloads instruction manual

Below you will find brief information for measuring instrument Mestra. This user manual is a comprehensive guide to the functionality and operation of the device, covering topics such as basic functions, secondary functions, programmable function keys, configuration, data communication, application and adjustments, maintenance, and technical specifications. It is important that you take time to read through the entire manual and understand the various aspects of the measuring instrument Mestra.

Key Features

Surface measurements
Diameter measurements
Centerline distance measurements
Squareness deviation checking
Angle measurements
Tolerance limits mode
Data communication via RS232
Programmable function keys

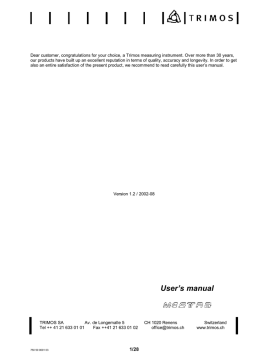

Measuring instrument Mestra User's manual

Pages: 28 Bowers Group Trimos Mestra Height Gauges instruction manual

Brand: Bowers Group Category: Multimeters Size: 993 KB

Languages: English

Open manual

Frequently Answers and Questions

How do I set the probe constant?

To check and memorize the probe constant, press the key and follow the sequence described in 'Setting into operation' in section 4.1, steps 3 to 7.

What are the different measuring modes available?

The instrument offers modes for surface measurements, diameter measurements, centerline distance measurements, and squareness deviation checking, among others.

How do I use the tolerance limits mode?

The tolerance mode allows you to compare measured values to pre-programmed limits. Activate the tolerance input mode by pressing the Tol key longer than 2 seconds and enter the nominal size and tolerance values. Then, when measuring, the luminous LEDs will indicate the tolerance position.

How do I transfer data from the instrument?

The instrument can transfer data via RS232. Connect the instrument to a computer or printer using the D-Sub connector. The data transfer parameters, such as speed and format, can be configured in the Print menu.

What is the purpose of the programmable function keys?

The operating handle features two programmable function keys. You can allocate different functions to these keys, such as Preset, Zero, Ref, Surfaces/Diameters, Min/Max/Delta, or Surfaces/Min/Max, through the configuration menu.
