DeWalt DCD996P2
Manuals and User Guides for DeWalt DCD996P2. We found 3 manuals for free downloads Specification, instruction manual
Below you will find brief information for 20V Max DCD991 Brushless Cordless Drill/Driver, 20V Max DCD996 Brushless Cordless Drill/Driver/Hammerdrill. These professional-grade cordless tools are designed for versatile drilling, percussion drilling, and screwdriving applications. They feature a three-speed gearing system for optimal torque and speed, an electronic adjustable torque clutch, and a 1/2" keyless chuck for quick accessory changes. An integrated worklight with spotlight mode enhances visibility, making these devices suitable for various demanding tasks.
Key Features
20V Max Heavy-Duty Brushless Design
1/2" (13 mm) Keyless Single Sleeve Chuck
Three-Speed Gearing for variable torque/speed
Electronic Adjustable Torque Clutch
Integrated Worklight with Spotlight Mode (20-minute run time)
Forward/Reverse Control with Lock-off
Variable Speed Trigger Switch with Brake
Side Handle for improved control
Belt Hook and Bit Clip (optional accessory)
Fuel Gauge Battery Packs (on some models)

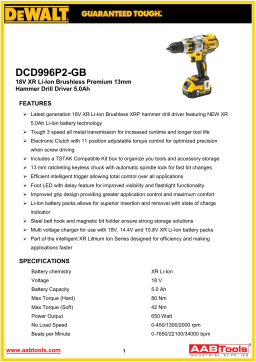

Pages: 2 DeWalt DCD996P2 Specification
Brand: DeWalt Category: Rotary hammers Size: 173 KB
Languages: English
Open manualOther manuals and documents
Frequently Answers and Questions
How do I change the direction of rotation on the drill?
To change the direction, release the trigger switch and then depress the forward/reverse control button. For forward rotation, use the button on the right side of the tool. For reverse, use the button on the left side. The center position locks the tool in the OFF position.
What should I do if the drill stalls during operation?
If the drill stalls, immediately release the trigger, remove the drill bit from the work, and determine the cause. Do not repeatedly press the trigger on and off to restart a stalled drill, as this can cause damage to the tool.
Can I use the drill as a spotlight, and how does it work?
Yes, the worklight has a spotlight mode (O). When this mode is active, the spotlight will run for 20 minutes after the trigger switch is released. It will flash twice and then dim two minutes before shutting off. To prevent it from turning off, lightly tap the trigger switch. When using the tool as a spotlight, ensure it's secured on a stable surface and remove all accessories from the chuck.
Where should I store the battery packs for the best life?
For optimal life and performance, battery packs should be stored in a cool, dry location, away from direct sunlight and excessive heat or cold. For long-term storage, it is recommended to store a fully charged battery pack out of the charger.
What does a fast-flashing red light on the charger indicate?
A fast-flashing red light on the charger indicates a detected problem. If this occurs, try re-inserting the battery pack into the charger. If the issue persists, try a different battery pack to determine if the original pack is defective or if there's a problem with the charger.
Questions & Answers
O O P
How does the clutch sensor work on an electronic adjustable torque screwdriver?
The electronic adjustable torque screwdriver system has numbers around the torque adjustment collar to set the clutch to deliver a torque range. The higher the number on the collar, the higher the torque. When torque is achieved in screwdriving mode, the unit automatically shuts off with a set of short pulses. When the torque adjustment collar is in the drill or hammerdrill positions, the drill will not clutch.
O O P
How does the clutch function change when switching between screwdriving and drill/hammerdrill modes?
When the torque adjustment collar is in the drill or hammerdrill positions, the drill will not clutch. However, when in screwdriving mode, the electronic adjustable torque screwdriver system has numbers around the torque adjustment collar to set the clutch to deliver a torque range. The higher the number on the collar, the higher the torque. When torque is achieved in screwdriving mode, the unit automatically shuts off with a set of short pulses.
