Delta 28-306

Manuals and User Guides for Delta 28-306. We found 1 manuals for free downloads instruction manual

Below you will find brief information for Band Saw 28-306. This 14" Metal/Wood Cutting Band Saw offers multiple speeds (40, 60, 85, 115, 160, 220, 335, and 3000 SFM) for versatile cutting of various materials. It features adjustable blade tension, tracking, and guides for precise cuts and safety. The tilting table and table insert allow for diverse cutting angles and workpiece support. Safety features are emphasized throughout the manual.

Key Features

Multiple speeds for metal and wood
Adjustable blade tension and tracking
Tilting table for angled cuts
Durable construction

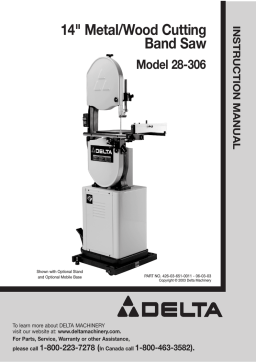

Delta 28-306 Band Saw Instruction Manual

Pages: 20 Delta 28-306 instruction manual

Brand: Delta Category: Power tools Size: 3 MB

Languages: English

Open manual

Frequently Answers and Questions

How do I adjust the blade tension?

Disconnect the machine from the power source. Use the knob on the back of the upper wheel slide bracket to raise or lower the wheel until the red fiber washer aligns with the proper graduation for the blade size.

How do I track the blade?

Disconnect the machine. Rotate the wheels slowly by hand and observe the blade's movement. Adjust the thumb screw to move the blade to the center of the tire. Never track while running.

How do I change speeds?

Disconnect the machine. Pull the shifter knob out for wood cutting (3000 SFM) or push it in for metal cutting (other speeds). Refer to the manual for detailed belt and pulley arrangements.
