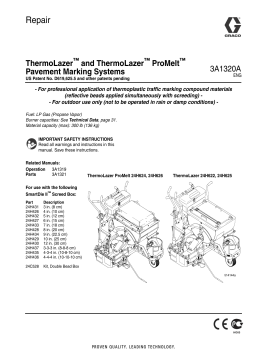

Graco 3A1320A - ThermoLazer and ThermoLazer ProMelt Pavement Marking System, Repair

Graco 3A1320A - ThermoLazer and ThermoLazer ProMelt Pavement Marking System, Repair is a professional system for applying thermoplastic traffic marking compound materials outdoors, ensuring precise and durable road markings. Its notable features include: Fuel Efficiency: Utilizes LP Gas (Propane Vapor) as fuel, providing a clean and efficient heat source. Burner Capacities: The system offers various burner capacities, allowing you to select the appropriate heat output for your specific project requirements. Material Capacity: With a maximum material capacity of 300 lb (136 kg), the system enables continuous operation without frequent refilling. Temperature Control: Precise temperature control ensures accurate heating of thermoplastic materials, preventing overheating and ensuring proper application. Bead Dispenser: The integrated bead dispenser simultaneously applies reflective beads during the marking process, enhancing visibility and road safety. Screed Box Compatibility: The system is compatible with a range of SmartDie II™ Screed Boxes, providing different application widths from 3 in. (8 cm) to 12 in. (30 cm). This comprehensive repair manual provides detailed instructions and troubleshooting guidance for various components of the Graco 3A1320A system, including the kettle gas safety valve, temperature control, thermopile, kettle thermometer, pilot ignitor electrode, over-temperature switch, bead dispenser wheel, linkage rod, screed box pivot arm, carbide runner, kettle gas regulator, torch and screed burners gas regulator, rear and front screed burner assemblies, and screed burner. By following the step-by-step procedures and utilizing the troubleshooting section, you can efficiently maintain and repair your Graco 3A1320A system, ensuring optimal performance and extending its lifespan.
