ICS Triplex ICS Regent Analog Input Modules

Manuals and User Guides for ICS Triplex ICS Regent Analog Input Modules. We found 1 manuals for free downloads Reference manual

ICS Triplex ICS Regent Analog Input Modules are designed for high-accuracy data input from 16 field analog signals. They offer 12-bit resolution and fast sampling rates, making them ideal for various applications. The modules feature hot-swappable design, fault-tolerant operation, and multiple input ranges, ensuring reliable performance and flexibility.

Key Features

  • 60Hz Rejection and Fast Response
  • Fault Tolerant Operation
  • Hot Replaceable
  • 12-bit Resolution
  • Multiple Voltage Ranges
  • Customizable Input Filters

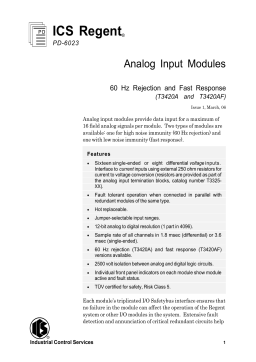

Pages: 39 ICS Triplex ICS Regent Analog Input Modules Reference manual

Brand: ICS Triplex Category: Signal converters Size: 3 MB

Languages: English

Open manual

Frequently Answers and Questions

What is the difference between the T3420A and T3420AF modules?
The T3420A module offers 60Hz rejection, ideal for environments with electrical noise. The T3420AF module prioritizes fast response, suitable for applications requiring rapid data acquisition.
How can I select the input range of the module?
You can choose from various voltage ranges, including unipolar, bipolar, and offset, using jumpers located inside the module.
What is the sampling speed of these modules?
The modules sample at a rate of 1.8 msec (differential) or 3.6 msec (single-ended).
