KTR SYNTEX DK

Manuals and User Guides for KTR SYNTEX DK. We found 2 manuals for free downloads Manual

Below you will find brief information for overload system SYNTEX DK. This overload system with positive locking protects components against destruction. The design DK (ratchet) re-engages after 30° each into the following lock-in position in case of an overload. This document covers technical data, storage hints, general assembly instructions, adjustment of the torque of engagement, assembly of SYNTEX overload system, limit switch operation.

Key Features

overload protection
positive locking
ratchet design
adjustable torque
limit switch integration

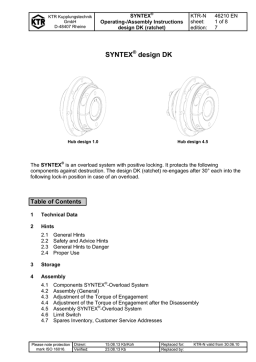

SYNTEX DK Operating-/Assembly Instructions

Pages: 8 KTR SYNTEX DK Manual

Brand: KTR Category: Power conditioning Size: 391 KB

Languages: English

Open manual

Frequently Answers and Questions

What is the purpose of the SYNTEX DK overload system?

The SYNTEX DK overload system is designed to protect components against destruction in case of an overload. It features a ratchet mechanism that re-engages after 30° each into the following lock-in position.

How do I adjust the torque of engagement?

You can adjust the torque of engagement by rotating the setting nut clockwise for higher torque or counterclockwise for lower torque. Refer to the table of torque of engagement for specific values based on the size of your system.

What is the function of the limit switch?

The limit switch is activated by the axial thrust of the shifting ring during an overload event. This triggers a control operation to disengage the drive.
