Klein Tools NCVT-2
Manuals and User Guides for Klein Tools NCVT-2. We found 4 manuals for free downloads Owner's manual, User's manual
Below you will find brief information for non-contact voltage tester NCVT-2. The Klein Tools NCVT-2 is a dual-range non-contact voltage tester that can detect AC voltage from 12 to 1000 volts. It features a high-intensity LED that lights up when voltage is present, and an audible beep that indicates the strength of the voltage. The NCVT-2 also has a low-battery indicator and an auto-power-off feature to conserve battery life. The NCVT-2 is a great tool for electricians, homeowners, and anyone who needs to test for AC voltage.
Key Features
Dual range voltage detection
High intensity LED indication
Audible beep for voltage strength
Low battery indicator
Auto power-off
Double insulated
CAT IV rated
Silent mode
Easy battery replacement

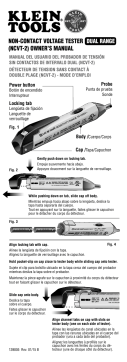

Pages: 3 Klein Tools NCVT-2 Owner's manual
Brand: Klein Tools Category: Measuring, testing & control Size: 1 MB
Languages: English
Open manualOther manuals and documents
Frequently Answers and Questions
What is the voltage range of the NCVT-2?
The NCVT-2 can detect AC voltage from 12 to 1000 volts.
How do I know if the NCVT-2 is working properly?
Always test the NCVT-2 on a known live circuit before using it to verify its functionality.
What does the blinking red LED and audible beep mean?
The blinking red LED and audible beep indicate the presence of voltage.
Can I use the NCVT-2 to test DC voltage?
No, the NCVT-2 only detects AC voltage.
What does the CAT IV rating mean?
The CAT IV rating indicates that the NCVT-2 is designed for use in high-voltage applications.
What are the operating conditions for the NCVT-2?
The NCVT-2 can be used in temperatures from 32° to 104° F (0° to 40° C) and relative humidity of less than 80%.
How do I replace the batteries in the NCVT-2?
To replace the batteries, gently depress the tab on the end-cap until it slides off the main body of the tester. Remove the old batteries and replace them with two 1.5V AAA or LR03 or NEDA 24A batteries. Place the batteries into the tester with the positive terminals facing the tip. Carefully align and slide the end-cap to the body of the tester, pushing it until it is fully seated (denoted by a clicking sound).
