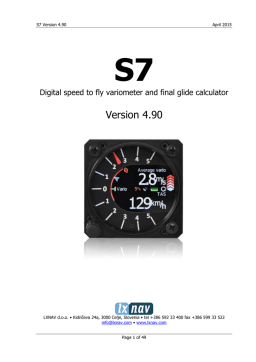

LXNAV S7 Version 4.90

Manuals and User Guides for LXNAV S7 Version 4.90. We found 1 manuals for free downloads User manual

Below you will find brief information for variometer S7 Version 4.90, variometer S7 S7D. The LXNAV S7 is a standalone digital variometer and final glide calculator, capable of receiving data from both GPS and PDA/PNA systems. The unit can be expanded through a CAN bus to one or more repeaters (LXNAV S7D). The unit has a bright 2-inch color display readable in all sunlight conditions, featuring a mechanical needle driven by a stepper motor that indicates vario, netto, relative or speed to fly value. The unit also offers 100Hz sampling rate for quick response, speed to fly indication, and TE compensation for both pneumatic and electronic TE probes. The LXNAV S7D is a rear seat device that can be connected to the main unit via a CAN bus and provides both pilots with equal control of all functions.

Key Features

  • Standalone digital variometer and final glide calculator
  • Bright 2-inch color display
  • Mechanical needle driven by stepper motor
  • GPS and PDA inputs/outputs
  • CAN bus for extension to S7D repeater
  • 100Hz sampling rate for fast response
  • Speed to fly indication
  • TE compensation for both pneumatic and electronic TE probes
  • Rear seat device (LXNAV S7D)

Pages: 49 LXNAV S7 Version 4.90 User manual

Brand: LXNAV Category: Climbing carabiners Size: 6 MB

Languages: English

Open manual

Frequently Answers and Questions

What types of data can the LXNAV S7 receive?
The LXNAV S7 can receive data from both GPS and PDA/PNA systems.
What is the purpose of the LXNAV S7D?
The LXNAV S7D is a rear seat device that can be connected to the main unit via a CAN bus, providing both pilots with equal control of all functions.
What are the different vario indications that can be displayed on the LXNAV S7?
The LXNAV S7 can display vario, netto, relative and speed to fly values.
How does the LXNAV S7 handle TE compensation?
The LXNAV S7 offers both pneumatic and electronic TE compensation. The quality of the TE compensation depends on the location, size, and dimension of the TE tube.
What is the purpose of the Smart Filter on the LXNAV S7?
The Smart Filter allows for additional filtering of the vertical speed, providing an effect similar to a Sage Variometer.
How is the overload factor calculated on the LXNAV S7?
The overload factor is calculated as the sum of empty glider weight, pilot weight, and water ballast, divided by the minimum glider weight.
What is the purpose of the password option on the LXNAV S7?
The password option allows for certain procedures to be performed on the device, such as resetting all settings to factory default, cleaning the logbook, adjusting the needle to zero, and aligning the airspeed to zero.
