Shaw-Box World Series

Manuals and User Guides for Shaw-Box World Series. We found 5 manuals for free downloads Parts Manual

Below you will find brief information for wire rope hoist World Series. The SHAW-BOX World Series electric hoists are wire rope and drum type hoists that are manufactured with an integral trolley. These hoists are all low headroom models with the drum and upper block on opposite sides of the beam suspending the trolley. The hoist motor is 2-speed with a 6:1 ratio between high and low speeds as standard. The hoists can be used for lifting and lowering loads, and traversing the hoist.

Key Features

Low headroom design
Integral trolley
2-Speed hoisting motor
6:1 Speed ratio
Rotary geared limit switch
Block operated limit switch

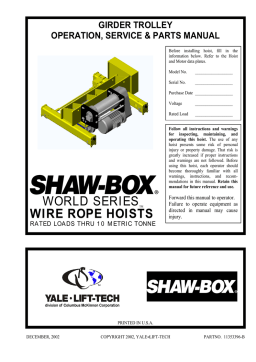

SHAW-BOX World Series Wire Rope Hoist Manual

Pages: 48 Shaw-Box World Series Parts Manual

Brand: Shaw-Box Category: Industrial & lab equipment Size: 1 MB

Languages: English

Open manual

Frequently Answers and Questions

What type of hoist is the SHAW-BOX World Series?

The SHAW-BOX World Series electric hoists are wire rope and drum type hoists that are manufactured with an integral trolley. These hoists are all low headroom models with the drum and upper block on opposite sides of the beam suspending the trolley.

What is the speed ratio of the hoist motor?

The hoist motor is 2-speed with a 6:1 ratio between high and low speeds as standard.

What are the standard safety features of the hoist?

The hoist includes a rotary geared limit switch and a block operated limit switch to prevent over travel and ensure safe operation.
